Tool and Cutter Grinder

EWAG WS11

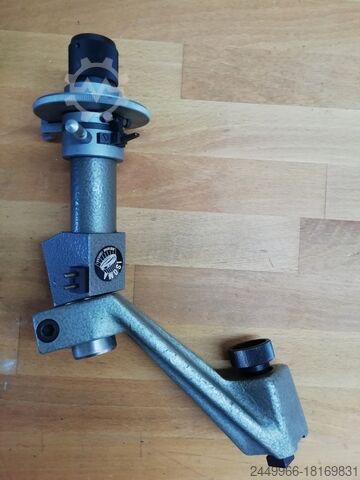

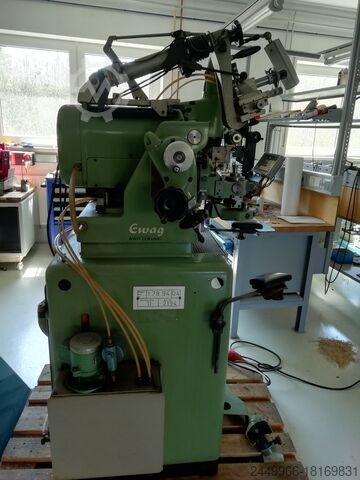

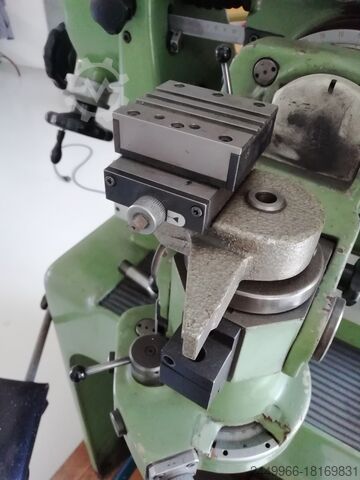

Condition: used, EWAG WS 11 SP is a tool and cutter grinder designed for precision, high accuracy and reliability. Working capacities: X/Y/Z axes 100 mm, grinding-wheel diameter 75 mm, workpiece spindle speed 100-1300 t/min, vertical adjustment of grinding head 100 mm, slewing range horizontal 165°, grinding spindle speeds 2500-7100 t/min, collet attachment 20 W. Technical specifications: voltage 50 Hz 3x380 V, total power required 2 kVA, machine weight about 400 kg, dimensions L850×W850×H1580 mm. Key equipment: flange for wheel, dust extraction, set of grinding wheels, lamp, helical grinding device W20, feed unit (Z-axis) 4 E-M, grinding stroke 3 J. Achieves tight tolerances; typical applications: automotive, watchmaking, machine tools, aerospace, medical Csdpfx Afjxyi I Ij Hjrk

Condition: not inspected (used), Year of construction: 1998, machine/vehicle number: 2183, travel distance X-axis: 500 mm, travel distance Y-axis: 300 mm, spindle speed (max.): 60,000 rpm, spindle speed (min.): 9,000 rpm, workpiece weight (max.): 300 kg, total height: 3,250 mm, feed rate X-axis: 2,000 m/min, feed rate Y-axis: 2,000 m/min, table width: 380 mm, table length: 600 mm, table load: 300 kg, overall weight: 4,500 kg, travel distance W-axis: 450 mm, Equipment: documentation/manual, THIS MACHINE IS SOLD EXCLUSIVELY WITHIN THE EU – THANK YOU FOR YOUR UNDERSTANDING! Item type: CNC Coordinate Grinding Machine Manufacturer: HAUSER Model: S35-400 Year of manufacture: 1998 Machine number: 2183 Condition: According to the previous owner and a Hauser specialist, the machine is in good condition. Crodpfxswakqys Af Hjk Terms of delivery: Free loaded onto truck Availability: Immediately (subject to prior agreement) Location: Magdeburg Technical data: • Control: GE Fanuc Series 16-M • Tool holder: Collets EX 19 or grinding arbors E19 • Travel X / Y / W axes: 500 / 300 / 450 mm • Feed rate X & Y axes: 0 – 2000 mm/min • Feed rate W axis approx.: 900 mm/min • Table dimensions: 600 x 380 mm • Max. table load: 300 kg • Grinding spindle speed stepless: 9,000 – 60,000 rpm • Z-axis stroke speed stepless: 0.5 – 14,000 mm/min • Fire extinguishing system • Further technical data – see pictures Scope of delivery: • Grinding motor 60S (9,000 – 60,000 rpm) – see separate pictures • Extraction system • Coolant system • Dressing turbine • Available manuals • The clamping equipment visible in the pictures as well as the currently mounted grinding motor are NOT included in the scope of delivery! Dimensions & weights: • Installation dimensions (L x W x H) approx.: 4,250 x 4,000 x 3,250 mm • Weight approx.: 4,500 kg If you have any questions or would like to arrange a viewing, please feel free to contact us. Additional notes: The tool changer is not operational – according to the previous owner, it was never needed anyway! • On request, we can arrange transport to the destination. • The offer price is net plus VAT. • The goods are sold under exclusion of any warranty! • The sale is exclusively to business customers! • Technical data subject to change and without guarantee. • Subject to prior sale.

Condition: refurbished (used), Year of construction: 2025, functionality: fully functional, machine/vehicle number: 176308, Country of manufacture: Switzerland Voltage: 400 / 380 / 50 / 3 Net weight: approx. 350 kg Dimensions: 82x85x156 cm Installed power: max 2 kVA Customs classification: 8460.3930 TECHNICAL SPECIFICATIONS GRINDING WHEEL SPINDLE UNIT Spindle speed (both rotation directions): 2,500 / 3,500 / 5,000 / 7,100 rpm Grinding wheel motor power (2,800 rpm): 0.4 HP Vertical slide stroke (linear): 100 mm Micrometric stop adjustment travel: 25 mm Micrometric stop readout accuracy: 0.01 mm WORKPIECE SPINDLE UNIT Workpiece spindle speed (both directions, continuous): 100–900 rpm Motor power: 0.2 HP Indexing plate teeth count: 120 Angular vernier reading: 20' Collet type: W-20 Horizontal travel: 100 mm Rapid feed per handwheel turn: 2 mm Micrometric feed per handwheel turn: 0.1 mm Micrometric feed per scale division: 0.001 mm SPINDLE HEAD SWIVEL RANGE (a) Main direction: 165° Fixed ratchet increments: every 3° Increments with micrometric screw: every 2' (b) Grinding plane: approx. 15° Stop: at 0° Cross movement range: 80 mm Crsdpfx Afsw T S Sqe Hsk Micrometer travel: 25 mm Reading precision: 0.01 mm Extraction motor power (2,800 rpm): 0.25 HP All technical specifications provided without guarantee and subject to possible errors or omissions.

Condition: used, Sharpening machine EWAG WS 11 SP Csdjwp T Nkjpfx Af Herk

Condition: used, _____ Description: Year of manuf. : 2020 Control : Sonstige WEISS CNC Centre width : 6 mm In Generel: ear of construction:2020 Control system:WEISS CNC Centre width:6 mm Centre height:200 mm Grinding wheel dimensions:400x60 mm + 0x60 mm Workpiece headstock: Speed:1 rpm Workpiece weight max.:25 kg Sanding diameter max.:390 mm Mounting:MK4 Grinding headstock: Peripheral speed:2 m/s Crodpfx Afjv Armco Hjk Grinding disc dimensions right:0 x 60 mm Grinding disc dimensions left:400 x 60 mm X-axis:380 mm Z-axis:1,1 mm B-axis:torque motor, infinitely variable Tailstock: Pinole diameter: mm Pionole stroke:45 mm Mounting:MK 4 Cylinder fine adjustment:+/- 0.04 mm Equipment: Positioning sensors:Direct scales Grinding spindles:2x grinding spindle (left/right) GAP / Crash Controll:Structure-borne sound (Sensotronik) Balancing:MPM balancing device Workpiece measurement:Marposs PF ME Automation:Robot interface prepared Set-up mode:Electronic handwheel Emulsion mist separator:Mechanical Dresser:For external grinding wheel left/right Accessories:Various grinding discs + flanges

Condition: good (used), 1 used universal grinding machine Manufacturer EWAG Type WS 11 Crjdjvxqvnjpfx Af Hek Speed of the grinding spindle in both directions of rotation 2500/3500/4800/6800 rpm Motor power 0.3 kW Vertical grinding stroke 100 mm Fine adjustment range of the stop micrometer 25 mm Speed of the workpiece spindle 100-1300 rpm continuously variable Motor power 0.25 KW Horizontal feed range 100 mm Swivel range of the spindle head in the main direction 165 degrees Stops with fixed pawl 3 degrees Stops with angle micrometer from 2 to 2 in the grinding plane Stop at 0 and + 190 degrees Transverse adjustment 80 mm

Condition: reconditioned (used), EWAG WS 11 is a Tool and cutter grinder designed for precision, high accuracy and reliability. X/Y/Z travel 100 mm; grinding-wheel Ø75 mm; A axis -135°/+30°; workspindle 100–1300 rpm; vertical head travel 100 mm; collet nose 20 W. Wheel spindle 2500–7100 rpm; 380 V 60 Hz; 0.4 CV; ~350 kg; 1000×1000×1800 mm. Accessories: set of collets, flanges, wheel arbors, lamp, Z feed unit. Achieves tight tolerances; suited to automotive, aerospace, watchmaking, medical sectors. Crodsxx U Epepfx Af Hek

Condition: good (used), Gillardon GT 16 bench drill - MK2 holder - infinitely variable speed Good condition, fully functional, can be inspected and tested on site. Shipping also abroad. Inspection : Basically, I would like to point out that the item can be inspected and tested under power before purchase to avoid misunderstandings. Please ask questions before buying to avoid any ambiguities. For general questions or to make an appointment for a viewing, I can be reached at any time at the telephone number below or above. Errors in the description and prior sale reserved. Cedpfx Afeum Staj Hsrk VAT is shown separately on my invoices. Shipping with forwarding agent.

Condition: used, TECHNICAL DETAILS - Number of axes : 5 - Distance between tips : 400 [mm] - Effective diameter : 180 [mm] LINEAR AXES - X1 and X2 x Z travel : 220 [mm] - Z travel : 850 [mm] - X x Z resolution : 0.0001 [mm] TURRET : - Number of fixed positions : 12 - Tool holders : VDI30 WHEEL CARRIER - Right-hand external grinding : * Grinding wheel dimensions (Ø x width x bore) : 400 x 50 x 127 [mm] * Drive power : 6.8 [kW] WORKPIECE CARRIER - Max. speed : 7500 [rpm] - Speeds (synchronous operation) : 1 - 5000 [rpm] - Taper type : CM4 - Drive power : 10.5 [kW] - C axis : 0.001 [°] SYNCHRONIZED COUNTER SPINDLE - Max. speed : 7500 [rpm] - Rotational speeds (synchronous operation) : 1 - 5000 [rpm] - C axis : 0.001 [°] - Inner cone : MK4 - Micrometric adjustment : +/- 40 [microns] - Drive power : 10.5 [kW] POWER SUPPLY - Power rating : 45 [KVA] DIMENSIONS - Floor dimensions : 2800 x 3960 [mm] - Machine weight : 7600 [kg] MACHINE HOURS - Powered hours : 57000 [h] EQUIPMENT - NC FANUC 310i-modelA - Software Studer WIN - RS232 / USB interface - Remote electronic handwheel - Turret with Renishaw LP2 length self-calibration device - Marposs feelers for diameters (multirange) + Z4 axes for positioning - Semi-automatic wheel balancing MPM.3 BMT100 M.24 - 480 L coolant tank * with paper filter * with magnetic filter Codpevxw A Usfx Af Herk - Chip conveyor - Fog extraction - Cooling unit for grinding wheel motor cooling - Electronic contact detection Dittel AE6000 - Fixed dressing device on workhead - Electrical cabinet air conditioning - Balancing shaft - Interface for automatic loading system

Condition: good (used), Year of construction: 1984, Grinding wheelhead: - motor power : 2,2 kW - spindle speeds : 1 000 - 8 000 rpm - spindle inclination (A-axis): -10° up to +27° - setting accuracy 1 min - height adjustment (Y axis) : 130 mm - stroke range (X axis) : 220 mm Crjdpfxsvmpabo Af Hek - oscillation stroke, steplessly adjustable during oscillation : 0-30 mm - oscillation frequency : 30/60 1/min Workhead: - radius setting (Z axis) : 0.01-50 mm - setting accuracy: 0,01 mm - retraction of slide from the grinding to the measuring position : max. 49 mm - cross table, clamping surface : 155 x 205 mm - travel X - Y : each 60 mm - maximum swivelling angle (B axis): 260° - supply voltage : 380 V - weight : 1200 kg Accessories/options: - grinding pressure variable - projector fixed in measuring position - 1 cabinet with accessories - different grinding wheels, flanges - coolant tank - documentation Under power in our warehouse.
