Used Jung Surface Grinding Machine for sale (132)

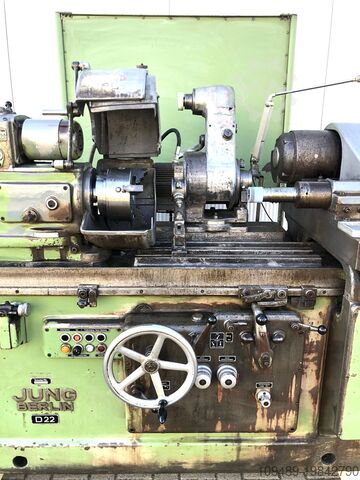

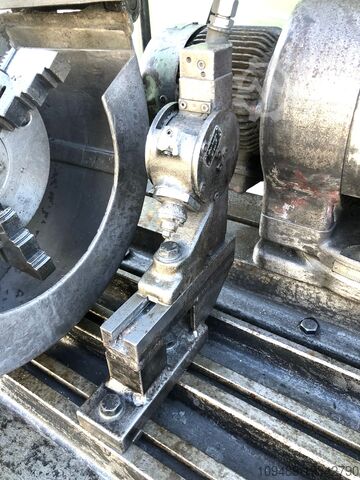

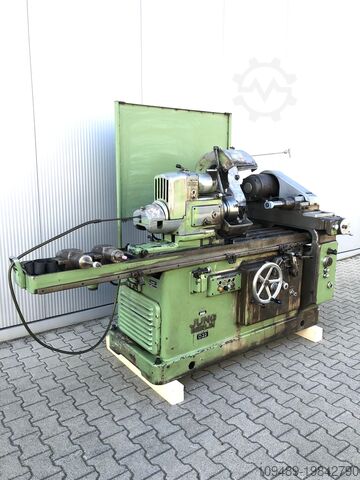

Condition: good (used), JUNG D22 - Internal Cylindrical Grinding Machine Csleyh Hhgohccqqerc - Machine suitable for internal grinding / plunge grinding - Smallest grindable bore: 14 mm - Largest grindable bore: 150 mm - Grinding length with face grinding attachment: 250 mm - 6 workpiece spindle speeds: 46-270 rpm - Spindle head swivels right/left: 30 degrees - Distance from spindle axis to table center: 250 mm - Maximum distance between workpiece spindle and grinding support: 935 mm - Worktable / tilting forwards and backwards: 5 degrees each - Manual / automatic operation - Taper grinding attachment - Steady rest - Three-jaw chuck - Spare grinding spindles (see photos) Dimensions: LxWxH: 2.8 x 1.5 x 1.8 meters / Weight: 3500 kg Errors and omissions excepted.

Condition: good (used), functionality: fully functional, Jung F40 sinusoidal magnet, 300 x 150 mm cooling water tank Csljzbbkljhccqqsrc 9x grinding disc documentation the machine is powered on for inspection.

Condition: excellent (used), Year of construction: 1988, functionality: fully functional, Jung JF 520 D year of manufacture 1988 magnet 500 x 175 mm max. grinding area 600 x 220 mm variable speed variable magnetic field strength automatic start diaform coolant/filter tank Colhjzba Ngoccqqorc 3 x flange 1 x clamp documentation machine is powered on for inspection

Condition: excellent (used), functionality: fully functional, grinding length: 600 mm, grinding width: 500 mm, total height: 1,840 mm, total length: 2,900 mm, total width: 1,840 mm, grinding height: 230 mm, table length: 600 mm, table load: 200 kg, table width: 200 mm, For sale is a DUE Grind surface grinding machine, brand Asyst, model A525 PNC 100. This machine has been completely overhauled from a Jung 525 surface grinder. A key feature of this machine is its ability to operate both conventionally as well as with CNC control. The machine is in very good, near-unused condition and is ready for immediate use. Technical Data: Year of manufacture: Table length: 600 mm Table width: 200 mm X-axis traverse (stroke): 600 mm Y-axis (grinding height): 500 mm Z-axis travel, end positions +/-: 230 mm Table speed X-axis: 0.3-25 m/min Magnetic chuck dimensions: 600x200 mm Optional 3-point dresser: 350x200 mm Max. workpiece weight (incl. magnet): 200 kg Working area: 400 mm Y-axis traverse speed: 0-1,000 mm/min Z-axis traverse speed: 0-1,000 mm/min Y-axis positioning accuracy: 0.001 mm Crolheyx D Ipeccqqsc Z-axis positioning accuracy: 0.001 mm Y-axis measuring system resolution: 0.0001 mm Grinding wheel dimensions: 250x30x51 mm Spindle speed: 100-3,800 rpm Spindle motor power: 100-3,800 kW Automatic dressing with stationary diamond unit TA 3/5 Machine dimensions: 2,900x2,320x1,840 mm Weight: 2,300 kg Transport and loading can be organized Europe-wide at an additional cost if desired. Prices net plus VAT. Viewing is possible by appointment. Please contact us—our team looks forward to assisting you. Trade-in or exchange is possible! Machines Purchase / Sale BUYING & SELLING OF PRODUCTION & METALWORKING MACHINES AND MORE. Are you looking for a high-quality yet affordable metalworking machine for your production, or would you like to sell your equipment? For more information or contact options, please visit our website.

Condition: excellent (used), Year of construction: 1978, grinding length 500 mm Cjlhjzbczrsccqqjrc grinding width 200 mm

Condition: good (used), functionality: fully functional, 1 x Surface grinding machine Jung HF 50 RD with diamond dressing device Coolant system Digital display for Z-axis Swiveling magnetic chuck 200 x 500 mm Technical data: Variable speed 1,000 - 4,000 rpm Grinding length 600 mm Grinding width 300 mm Workpiece height 350 mm Magnetic clamping plate, electric 500 x 200 mm Grinding wheel diameter 225 x 25 x 51 mm Accessories: 1 x Balancing scale 20 x Grinding wheels (including 14 with flange) The machine can be inspected while powered on. Crslhszawa Tjccqqsc

Condition: good (used), Year of construction: 1990, Year of construction 1990 Control type CNC Sanding length 600 mm Sanding width 200 mm Workpiece height 375 mm Table load 100 kg Grinding wheel dimensions 250x25x51 mm Run at 1-24 m/min Crjlhccsi Hn U Usqqjc Speed 4200 rpm Drive motor 5 kW Total power requirement 7.5 kW Machine weight approx. 3.2 t Space requirement approx. 3.7 x 2.1 x 2.1 m

Condition: used, Year of construction: 1961, Technical details: grinding length: 600 mm grinding width: 200 mm workpiece height: 270 mm Crelhcsu Ngg Uscqqoc grinding length: mit Magnet: 500 mm Distance Spindlecenter - clamping surface area, min:: 350 mm grinding spindle speed: 1000...4700 U/min table surface area: 720 x 200 mm table load capacity: 60 kp magnetic plate size: 455 x 180 (Gleichstrom) mm magnetic-table: vertical kippen 90° längs Stück total power requirement: 2,0 (2,7 PS) kW weight of the machine ca.: 1600 + 176 kg Gleichrichter kg dimension machine xH: 1,4 x 1,8 x 1,7 m transport measurements machine: 1,4 x 1,8 x 1,6 m dimensions electric cabinet: L: 850 x B: 450 x H: 1.100 mm dimensions of grinding wheel: Ø 225 x 20 x Bohrung Ø 51 mm mm The magnetic plate (24V) is cooled. Grinding spindle: The grinding wheel infeed is electric, vertical 270mm, infeed z-axis 0,002 mm to unlimited inching infeed 0,001 - 0,010mm Peripheral speed max 35 m/sec. allowed equipped with coolant tank, pump and magnetic separator, as well as grinding wheel - size Ø 152 x 14mm plus various accessories (in the cabinet) like some grinding wheels and balancing flange The machine is pre-equipped for an exhaust system. *

Condition: good (used), functionality: fully functional, SINUS – Magnet by JUNG model HF 50 RD Crjlhccqey Ugfvoqjc Width x Depth: 450 x 175 mm Pitch: 9 mm

Condition: good (used), grinding length 600 mm grinding width 200 mm Crjlhcsxb Eg Aocqqec max. dia. of grinding wheel 220 mm magnetic clamping plate 500 x 200 mm total power requirement 4,2 kW dimensions of the machine ca. 2 x 1,3 x 1,8 m

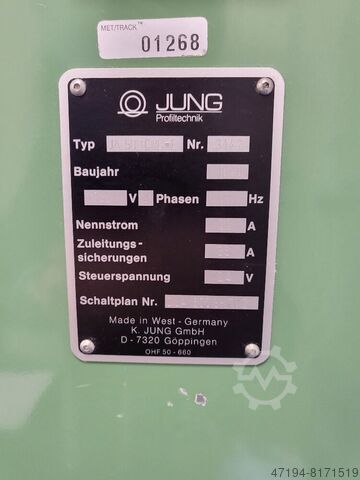

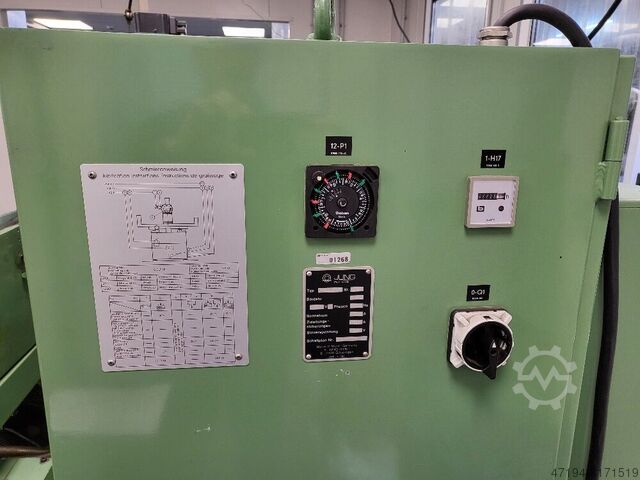

Condition: used, Year of construction: 1991, grinding length: 500 mm, grinding width: 200 mm, Jung JA500-E 1991 Colhey Iy Ukoccqqjrc

Condition: like new (used), Year of construction: 2016, Jung Supromatic JF 520 Jung Supromatic JF 520 Surface Grinding Machine, year of manufacture 2016, very good general overhauled original condition. The machine comes from the technical center of a renowned German mechanical engineering company. Technical Data: Year of manufacture: 2000 Technical Data: Clamping area (L x W in mm): 600 x 200 Grindable area (L x W in mm): 600 x 250 Max. magnet size mm: 500 x 200 Max. grinding wheel dimensions mm: 225 (250) x 25 x 51 Distance table/spindle center mm: Max. 400 Table longitudinal feed traverse m/min: 1 – 20 Creep feed mm/min: 0 – 500 Grinding spindle drive speed RPM: 800 – 4200 Power kW (with creep feed): 1.6 – 2.2 Machine weight approx.: 2.0 t Accessories and Equipment: Magnet Coolant system Machine feet Grinding wheel Creloy Naw Iehccqqoc About the machine: We are offering a Jung Supromatic JF 520 surface grinding machine, year of manufacture 2016, in very good condition. The machine is, of course, fully operational and has completed approx. 50 operating hours since overhaul. All slides move very smoothly and evenly. Even at high speeds, the Jung runs very quietly. This newer generation of surface grinding machines is very user-friendly and can achieve surfaces with a low Rz value. Take the opportunity to inspect this machine under power on site and see for yourself its condition. Scope of overhaul: Mechanical scope: Mechanical basic overhaul Hydraulics Feed Lubrication Cross and vertical adjustment Grinding spindle Dresser Painting to new-machinery quality Geometric scope: Guideway grinding at the manufacturer’s facility (optional) Scraping of the guideways Column pull, measurement, possible re-scraping/grinding, adjusting with pressure stones, check and pattern guideways Setting of cross-grinding on spindle head Aligning the dresser Regrinding the table and magnet Machine acceptance to manufacturer's inspection checklist Electrical scope: Renewal of complete electrics, all limit switches and buttons Conversion of X-axis from cam switch to contactless limit switches New control cabinet RSF position display (2- or 3-axis readout) Holding force regulation for 24V or EP-magnetic chuck Control system modernization New auxiliary control cabinet (control panel top right) Thyristor control for grinding spindle drive Manual cylindrical dressing with head or side dresser (for Diaform operation)

Condition: used, Year of construction: 2001, grinding length 600 mm grinding width 400 mm workpiece height 375 mm digital readout 2 Achsen HEIDENHAIN table-size 650 x 350 mm max. table load 400 kg magnetic clamping plate 600 x 350 mm dist. center of grinding spindle - table 525 mm table travel longitudinal 650 mm table travel cross 350 mm table feed 2 - 28 m/min grinding wheel size 300 x 30 x 76,2 mm dressing device Kopfabrichter voltage 400 V total power requirement 11,0 kW weight of the machine ca. 2,1 t dimensions of the machine ca. 2,20 x 1,70 x 2,25 m band filter unit 1,00 x 0,75 x 0,80 m electric cabinet 0,90 x 0,40 x 2,25 m - Serial-No.: 18090201 Cjlhccoy Ehw Ioqqsrc - Automatic vertical feed - Electric handwheel - HEIDENHAIN digital display, 2 axes - Head dresser - Coolant device - Belt filter system

Condition: reconditioned (used), Year of construction: 1978, functionality: fully functional, machine/vehicle number: 1025, Surface Grinding Machine Jung JF 520 DS No. 1025 with 1 Year Full Warranty Cjlhccqjy D I Ideqsrc - Geometrically overhauled; accuracy according to Jung standard less than 0.003mm - Electrical system tested, fully functional, relevant components replaced - Mechanics overhauled - All wear parts replaced - Color: reseda green; paint condition ok Equipment: Electro-permanent magnet 500x200mm including retrofitted Wagner control unit 756 2-axis digital readout for Y and Z axes Automatic feed for Y and Z axes Spark-out: 0 to infinite Y-axis with zero shutoff via stepper motor Roughing-finishing feed adjustment Manual hand dresser Infinitely variable spindle speed V-constant through wheel wear compensation Paper band filter unit, used, fully functional Max. grinding area: 600x250mm Max. load incl. magnet: 100kg Total weight: 2.5t

Condition: used, Year of construction: 1968, grinding length 500 mm grinding width 200 mm workpiece height 250 mm turning speeds 1000 - 4000 U/min table surface area 600 x 200 mm grinding wheel size 225 x 20 x 51 mm grinding spindle drive 1,5 kW table feed 1 - 20 m/min total power requirement 2,6 kW weight of the machine ca. 2 t Crjlhccswuuwysqqec dimensions of the machine ca. 2,6 x 1,6 x 1,8 m Automatic feed; 2-axis digital display; stepless speed control; Water-cooled sine angle magnetic clamping plate 400x135mm; 10mm magnetic pitch Sony digital display with scales for transverse and height adjustment Swing-out dresser on the grinding head Table direction reversal with contactless inductive switches LOSMA belt filter coolant system

Condition: excellent (used), grinding length 600 mm grinding width 300 mm workpiece height 350 mm magnetic clamping plate, electical 500 x 200 mm grinding wheel diameter 225 x 25 x 51 mm Cjlhccqjyyqt Isqorc total power requirement 4 kW weight of the machine ca. 2,1 t dimensions of the machine ca. 1,5x1,5x1,8 m

Condition: excellent (used), Year of construction: 1996, JUNG JF 600 Surface Grinding Machine Jung JF 600 Year of manufacture 1996 Overhauled in 2018 Excellent CONDITION The machine comes from the training workshop of a renowned German mechanical engineering company. Technical Data: Year of manufacture: 1993 / 2018 Table length: 600 mm Table width: 250 mm Axis movement: Crolhceyxdalscqqjc Longitudinal travel (X-axis): 600 mm Cross travel (Z-axis): 280 mm Maximum distance between table and spindle center: 500 mm Grinding length: 600 mm Table speed: Continuously adjustable from: 1 m/min to: 24 m/min Creep feed: from: 0.03 m/min to: 0.40 m/min Automatic cross feed: Continuously adjustable from: 0.010 mm/min to: 10000 mm/min Connection: 50 Hz 3x 380 Volt Grinding spindle motor: 9.5 kW Total power requirement: 13 kVA Machine weight approx.: 2500 kg Machine dimensions: Length: 2910 mm Width: 2320 mm Height: 1840 mm Additional equipment: Coolant system About the machine: For sale is a Jung JF 600 surface grinding machine. This universal surface grinder is in very good original condition. It comes from a facility where it was only occasionally used for training purposes. The control system is very user-friendly. A grinding travel of 600 mm on the longitudinal axis and a cross travel of 300 mm make this machine ideal for toolmaking, jig and fixture construction, and small batch production. This model series is characterized by extensive standard equipment and ease of use. The robust spindle head design and the double V guideways in both the longitudinal and cross axes guarantee long-term precision. The intuitive controls make operation easy and significantly increase productivity. The guideways are regularly lubricated via central lubrication. The Jung has been mechanically and electrically checked by us. Take advantage of the opportunity to view and test the Jung on site under power. Further surface grinders from well-known manufacturers can be found on our website.

Condition: used, Year of construction: 1980, grinding length 500 mm grinding width 200 mm workpiece height 290 mm Machine from the German Federal Institute of Physics and Metrology - geometrically revised - electrics tested, fully functional, relevant parts replaced - all wear parts replaced Crelhcewb Hygscqqoc - colour light grey, colour condition good Equipment: - electro magnet 500x200mm - grinding spindle overhauled 2-axis display for Y and Z axes Automatic delivery for Y and Z axes Y-axis with zero shutdown Manual hand dresser Stepless speed for grinding wheel V-constant via disc wear Paper band filter system, used Max. height with 250 disc diameter 290mm max. grinding area 600x250mm max. load incl. magnet 100kg Warranty: 1 year on geometry and electronics, Germany-wide Delivery: ex works Shipping time: immediately Payment: before pickup Acceptance at our premises Shipping according to your specifications

Condition: used, Year of construction: 1997, grinding length 880 mm grinding width 510 mm Control Siemens max. turning speeds 4.300 min/-1 grinding wheel diameter 210 - 400 mm grinding wheel width 100 mm total power requirement 26 kW weight of the machine ca. 7,5 t In our opinion, the machine is in good used condition and can be inspected under power by appointment. Accessories, tools, and clamping devices shown are only included in the Colhowwl N Soccqqjrc scope of delivery if noted in the additional information. Subject to changes and errors in the technical data and information, as well as subject to prior sale!

Condition: excellent (used), Year of construction: 1980, Grinding length: 600 mm Grinding width: 200 mm Clamping area of table: 600 x 200 mm Maximum distance between table and grinding spindle center: 500 mm Grinding wheel dimensions: 250 x 25 x 51 mm Table longitudinal feed hydraulically steplessly adjustable: 1 - 24 m/min Table cross feed per handwheel revolution: 4 mm Celhcox Ir I Aocqqsrc Grinding spindle speed steplessly adjustable via DC drive: 800 - 4200 rpm DC drive: 1.5 - 5.0 kW Net weight with control cabinet approx.: 2000 kg Space requirement approx.: 3100 x 1700 x 1900 mm

Condition: used, max. grinding length: 300 mm max. grinding width: 150 mm table movement - longitudinal: 2 - 20 m/min grinding plate rotations: 3000 Upm Crslhcer Nyatjcqqec electrical connection: 380 V, 1,1 kW space needed: 1500 x 1100 x 1750 mm weight: 920 kg

Condition: used, Jung F 50 Surface Grinding Machine Condition: Used Technical Data Grinding Length: 500 mm Grinding Width: 200 mm Celhccqsyuy Eusqorc Grinding Height to Spindle Center: 285 mm Table Size: 700 x 200 mm Spindle Speed: approx. 3000 rpm Grinding Wheel: 225 x 20 x 51 mm Feed: manual via handwheel Rapid Traverse Wheel Dressing Device Dimensions (L / W / H): approx. 1850 mm / 1300 mm / 1750 mm Weight: approx. 1400 kg

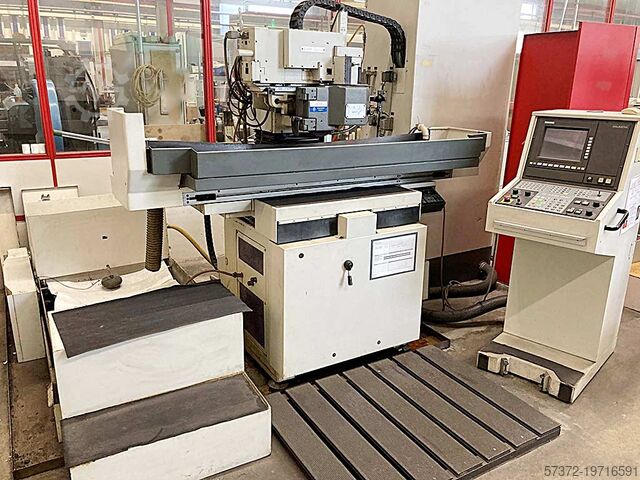

Year of construction: 1995, condition: ready for operation (used), A CNC surface grinding machine Jung, overhauled in 2003, is available. Grinding length: 500mm, grinding width: 200mm, max. workpiece height: 250mm, table dimensions X/Y: 600mm/200mm, grinding wheel dimensions X/Y/Z: 225mm/25mm/51mm, speed: 4200rpm, weight: approx. 2500kg, operating hours: approx. 16602h. Documentation available. An on-site inspection is possible. Crjlhccow H Attsqqsc

Year of construction: 1994, condition: ready for operation (used), Sanding length: 500mm, sanding width: 200mm, max. workpiece height: 250mm, table dimensions X/Y: 600mm/200mm, sanding wheel diameter: 225mm, sanding wheel width: 25mm, sanding wheel bore: 51mm, speed: 4200rpm, machine weight: approx. 2500kg. On-site inspection is possible. Cjlhov Exrqjccqqjrc

Year of construction: 1989, condition: ready for operation (used), Table dimensions X/Y: 600mm/200mm, grinding dimensions X/Y: 600mm/250mm, magnet dimensions X/Y: 600mm/200mm, grinding wheel diameter: 225mm, grinding wheel width: 25mm, grinding wheel bore: 51mm, spindle center-to-table distance: 350mm (+/-50mm), table feed: 20m/min, creep speed: 0mm/500mm/min, speed: 4200rpm, machine dimensions X/Y/Z: approx. 2700mm/2100mm/2100mm, weight: approx. 2500kg. On-site inspection is possible. Celev Exrwohccqqorc
