Pressure beam saw FIMAL CONCEPT 350 -used-

Fimal CONCEPT 350

Condition: new, engine output 5 kW Chsdpfx Ajwli Nrsbwsc saw-blade dia. 300-350 mm Working speed 0-40 m/min weight ca. 1.300 – 1.800 kg kg

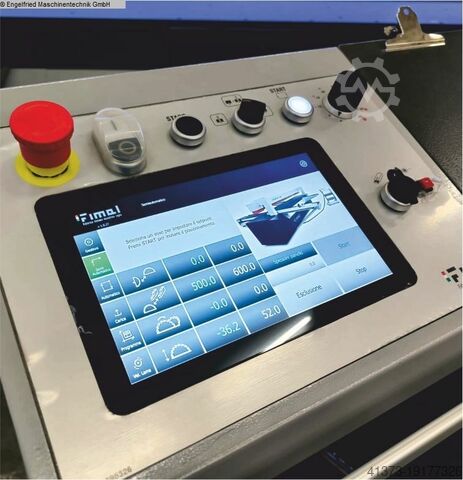

Year of construction: 2025, condition: new, New machine Year of manufacture: 2025 Partnership Edition General features: - Aluminium machine and extension tables - Saw unit tiltable up to 46° - Pressure beam, including LED lighting with 3 different action colors: WHITE: Machine in idle position RED: Pressure beam lowering or emergency stop function BLUE: Saw unit in operation, variably usable support table 1,000 x 500 mm - Scoring system using the main saw blade in tandem rotation - Automatic workpiece length detection for minimal travel distances - Mobile and height-adjustable control panel, including: Codew Tfyzjpfx Abwohc Saw blade holder, template holder, emergency stop button, start button, selector switch for slotting/scoring/sawing, rotary switch for feed speed, switch for laser (option) and USB socket Partnership Edition includes: - Motorized rip fence with 4 aluminum stops, synchronized operation All 4 stops are adjustable up to 1,300 mm. Table length approx. 2,000 mm - Windows 10 screen control (10'' touchscreen). The graphical interface offers the following functions: Tool database, angle cut calculation on the length stop, cut plans can be created and saved, programs can be saved/exported/imported via USB - Telescopic fence extendable to 3,400 mm, including 2 digital displays Technical data: - Max. saw blade projection with 350 mm blade: 100 mm at 90° / 70 mm at 45° - Saw blade diameter: 300 – 350 mm, bore 30 mm - Saw blade speed: 4,000 rpm - Motor: 5 kW (= 7.5 HP) - Feed speed: 0 – 40 m/min - Total length: approx. 4,250 mm - Weight: approx. 1,300 – 1,700 kg (depending on cutting length and equipment) - Required air pressure: 7 bar - Extraction ports: 1 x 100 mm, 1 x 120 mm Included: - Motorized rip fence with 4 aluminum stops, adjustable up to 2,100 mm instead of 1,300 mm - Cutting line laser - Saw motor with 7.5 kW (10 HP) including automatic star-delta start - Programmable saw blade height adjustment incl. automatic height correction for tilting of the saw unit - Mitre fence swivels +/- 50° with length compensation - Prolock quick-change system for saw blade Location: Flörsheim am Main Availability: by arrangement

Condition: as good as new (ex-display), Year of construction: 2024, functionality: fully functional, Exhibition machine – as new – including the following options: - Laser cutline indicator - Saw motor with 7.5 kW (10 HP) - Mitre fence swivels +/- 50° with length compensation - Programmable saw blade height adjustment Saw unit swivels up to 46° Pressure beam, including: LED lighting with 3 different action colors: - WHITE: Machine at standstill - RED: Pressure beam lowering or emergency stop function Chedpfx Aow Uf Nlobwoc - BLUE: Saw unit in motion Up to 3,400 mm extendable telescopic stop with 2 digital displays 4 parallel, motorized positioning width stops on a 2,000 mm wide support table, size adjustment up to 1,300 mm Automatic stop retraction Versatile support table 800 x 200 mm Scoring system using the main saw blade in synchronised rotation Automatic workpiece length detection for minimum travel distances Mobile, height-adjustable control panel, including: - Touchscreen control panel with cut plan creation - Saw blade stand - Template holder - Emergency stop button, start button, selector switch for grooving/groove sawing/cutting, rotary switch for feed speed - Switch for laser (option) - USB socket Attention: Machine is supplied without saw blade! Technical data: Cutting length: 3,200 mm Max. saw blade projection: 100 mm at 90°, 72 mm at 45° Saw blade: Diameter 300 – 350 mm, bore 30 mm Saw blade speed: 4,000 rpm Motor: 5 kW (= 7.5 HP) Feed speed: 0 – 40 m/min Overall length: approx. 4,270 mm Weight: from approx. 1,150 to 1,550 kg (depending on equipment) Required air pressure: 7 bar Extraction ports: 1 x 100 mm, 1 x 120 mm

Condition: excellent (used), Year of construction: 2021, functionality: fully functional, cutting length (max.): 3,800 mm, Used FIMAL Concept 350 PLUS – Panel Saw (Year of Manufacture: 2021) For sale is our FIMAL Concept 350 PLUS – a modern, space-saving panel saw that combines the benefits of various sawing systems in one machine. Purchased in 2021, it has been used exclusively for cutting chipboard panels. As a result, it is in excellent condition and guarantees consistently precise cutting quality. Innovative Technology and Ergonomics The Concept 350 PLUS offers: * Versatility of a panel saw: The workpiece is placed flat, eliminating the need for laborious handling in a sliding carriage. * Pressure beam precision: An integrated pressure beam holds the material in place for accurate cuts and ensures maximum safety, as there is no need for direct contact with the saw blade. * Ergonomic operation: Thanks to the automated feed system (0–40 m/min), the operator does not have to guide the material during the cutting process. * Tilting saw unit: The saw head can be tilted from 90° to 45°, allowing for precise angle, cross, and rip cuts. This innovative design significantly reduces the required footprint while providing maximum efficiency and operating comfort. Technical Data at a Glance: * Year of manufacture: 2021 * Application: Exclusively for chipboard cutting * Cutting length options: 3,800 mm * Saw blade diameter: approx. 300 – 350 mm * Maximum cutting height: up to approx. 105 mm * Motor power: approx. 5.5 kW * Feed speed: 0–40 m/min * Saw unit tilt: 90° to 45° * Weight: approx. 1,350 kg Chjdpfew D R T Aex Abwjc Manufacturer Quality Produced by FIMAL Srl, a renowned Italian company known for innovative and reliable sawing solutions, the Concept 350 PLUS stands for quality and dependability. On-site Inspection We recommend that interested parties inspect the machine onsite to personally verify its condition. A detailed inspection provides a thorough impression and the opportunity for individual consultation. Commercial Sale & Exclusion of Liability This machine is being sold by a joinery (business). No warranty or guarantee is provided as per statutory regulations. Pricing * Net price: €19,990 * Gross price: €23,788.10 (VAT reclaimable) Dismantling and transport must be arranged by the buyer. Assistance with dismantling can be provided. Summary & Contact This machine is immediately available and ideal for workshops seeking precise, safe, and time-saving panel cutting – while benefiting from a significantly reduced footprint compared to conventional panel saws. If you are interested, have any questions, or would like to schedule a viewing, please feel free to contact me. Pictures to follow.

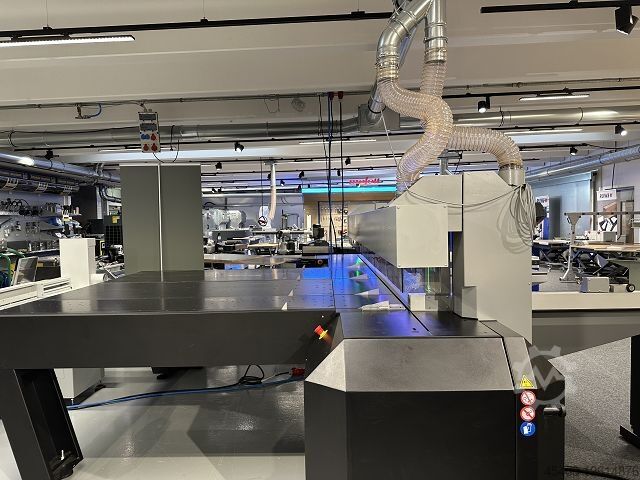

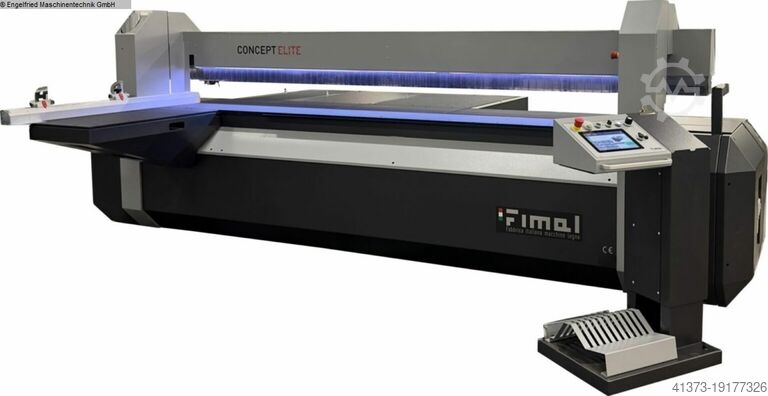

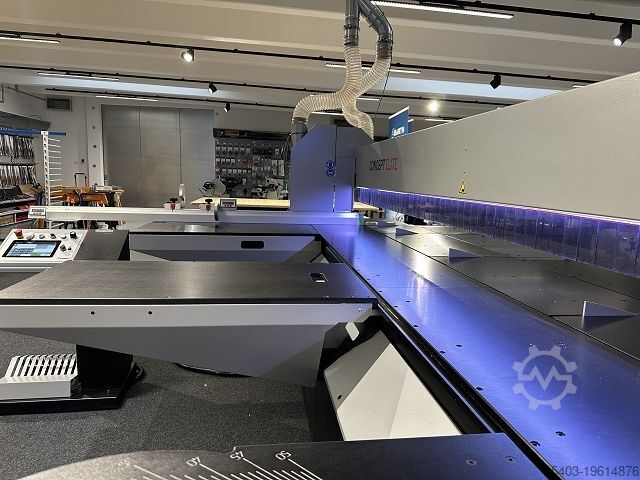

Condition: as good as new (ex-display), functionality: fully functional, cutting width (max.): 2,100 mm, cutting height (max.): 105 mm, saw blade diameter: 350 mm, total length: 4,300 mm, power: 7.35 kW (9.99 HP), The FIMAL CONCEPT 350 ELITE is the further development of the proven CONCEPT 350 PLUS, setting new standards in precision, safety, and efficiency. With a reinforced machine base, optimized extraction system, and a redesigned Multistop fence table, it offers even greater comfort and performance for joiners, furniture makers, and industrial panel processing. Thanks to its pressure beam with automatic feed, the ELITE combines the flexibility of a sliding table saw with the cutting quality of a pressure beam saw – all within a footprint of just 28 m². Technical Specifications ⦁ Aluminum machine and extension tables ⦁ Saw unit tiltable up to 46° ⦁ Pressure beam, including LED lighting with 3 different action colors: WHITE: Machine in stand-by RED: Pressure beam lowering or emergency-stop function BLUE: Saw unit in motion ⦁ Versatile support table 1,000 x 500 mm ⦁ Scoring system via the main saw blade (co-rotating) ⦁ Automatic workpiece length detection for minimal travel distance ⦁ Mobile and height-adjustable control panel, including: Saw blade holder, template holder, emergency-stop button, start button, selector switch for grooving/scoring/cutting, rotary switch for feed speed, switches for laser (option) and USB socket ⦁ Max. saw blade projection (350 mm blade): 100 mm at 90° / 70 mm at 45° ⦁ Saw blade: diameter 300 – 350 mm, bore 30 mm ⦁ Saw blade speed: 4,000 rpm ⦁ Motor: 5 kW (= 7.5 HP) ⦁ Feed speed: 0 – 40 m/min ⦁ Total length: approx. 4,250 mm Chedpfx Aow Axf Rjbwec ⦁ Weight: approx. 1,300 – 1,700 kg (depending on cutting length and configuration) ⦁ Required air pressure: 7 bar ⦁ Extraction port: 1 x 100 mm, 1 x 120 mm ⦁ Extension table length: 3,670 mm / 4,270 mm / 4,870 mm (total length) ⦁ Tilting range: 0 - 46° ⦁ Sliding table: 1,000 x 400 mm (extension table) ⦁ Crosscut fence: 3,200 mm with 2 digital flip stops ⦁ Speed: 4,000 rpm ⦁ Air requirement: 6 bar ⦁ Motor voltage: 400 V (50 Hz) ⦁ Feed speed: 0 - 40 m/min Options Multistop, cutting width 2,100 mm instead of 1,300 mm Programmable saw blade height adjustment Miter fence +/-50° Cutting line laser Including delivery and installation within postal code areas 71,72,73,77,78,79,86,87,88,89

Condition: as good as new (ex-display), Year of construction: 2023, functionality: fully functional, cutting length (max.): 3,200 mm, saw blade diameter: 350 mm, cutting height (max.): 105 mm, cutting width (max.): 1,300 mm, total length: 4,300 mm, overall weight: 1,300 kg, input voltage: 400 V, power: 7.35 kW (9.99 HP), rotational speed (max.): 4,000 rpm, frequency: 50 Hz, pivoting range: 45 °, The Concept 350 combines the advantages of various saw systems: As flexible as a panel saw, the cutting quality of a pressure beam saw, and as ergonomic as a trimming saw. This is the sawing concept for modern industrial production. The machine is a leasing return. Further technical data: - Motorized rip fence with 4 aluminum stops, which move synchronously - Screen control with 8" touchscreen - Air requirement: 6 bar - Sliding table: 1,000 x 400 mm (extension table) - Outrigger table size: 3,200 mm with 2 digital stop jaws - Extraction connection: 1 x 100 mm, 1 x 120 mm - Feed speed: 0 - 40 m/min Cedpowzuipefx Abwehc Special features: - Programmable saw blade height adjustment - Mitre fence +/- 50° - Cutting line laser - Additional support table 800 x 200 mm With the new Concept 350, you no longer need a panel saw! The workpiece rests on the machine and is positioned precisely with a pressure beam. The saw unit can be swiveled from 90° to 45°, is guided with precision, and cuts your workpiece at a constant feed speed of 0–40 m/min, ensuring the best possible cutting results. The standard crosscut fence enables quick cutting to length and efficient operation, with significantly less space required compared to any sliding table saw! Advantages over a sliding table panel saw: - Significantly less space required - The pressure beam secures the workpiece on the machine and guarantees optimal cutting results - The pressure beam prevents the operator from reaching into the saw blade - Ergonomic operation, as the operator no longer has to push the material through the saw blade - Time saving, as the operator does not need to guide the material during the sawing process Including delivery and installation within postal code areas 71, 72, 73, 77, 78, 79, 86, 87, 88, 89.
