Used Biesse Akron 1400 for sale (2)

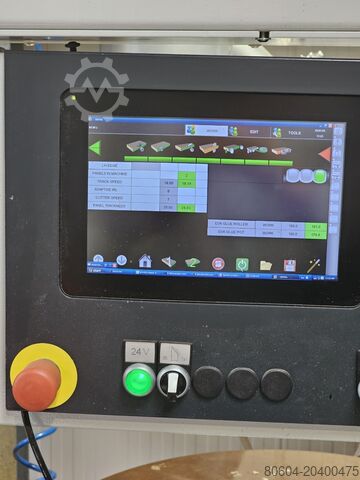

Condition: used, Year of construction: 2015, functionality: fully functional, BIESSE Edge Banding Machine AKRON 1440-A Automatic single-sided edge banding machines for gluing and processing straight edges with roll material (melamine, PVC, ABS, veneer) and strip material (solid wood, laminate, sliced veneer, etc.) • NC control with touch display • Automatic start of aggregate motors • Direct selection for second pass • Operating data acquisition • Software-guided maintenance TECHNICAL DATA Iedpexzb Iijfx Ac Hjtr Workpiece thickness 10-60 mm Workpiece thickness with MFU aggregate (depending on profile) 10-35/60 mm Edge height 14-64 mm Edge thickness – roll material 0.4-3 mm Edge thickness – strip material (*) 0.4-10 (12) mm Workpiece overhang 25 mm Minimum panel length 140 mm Minimum width (at 140 mm length) 85 mm Minimum width (at 250 mm length) 50 mm Feed speed 12 m/min Dust extraction* 8x connection Ø100 mm Compressed air connection 7 bar Glue pot capacity 2 (approx.) kg * Depending on selected aggregates. - GLUING UNIT VC-511 Applies the hot-melt adhesive to the workpiece, feeds the edge to the workpiece, automatically cuts it from the roll, and presses it onto the workpiece, guaranteeing perfect positioning. - END TRIMMING UNIT IN-801 For trimming the front and rear edge overhangs with 0° to 15° angle. - 2-MOTOR MULTIFUNCTIONAL PROFILE MILLING UNIT AR02 E For corner rounding and profile milling of workpiece edges made of synthetic material up to a thickness of max. 3 mm. JOINTING CUTTER UNIT RT02 Joins the workpiece before glue application. Equipped with two 1.8 kW high-frequency motors at 12,000 rpm. SCRAPER UNIT RB02 For post-processing thick PVC/ABS edges. FLAT SCRAPER RC02 Aggregate for removing excess glue in the edge-to-panel area. Equipped with tracing rollers and a flat knife with engagement control. BUFFING UNIT SZ02 For cleaning and buffing the workpiece edge using fabric polishing discs. The unit automatically adapts to the workpiece thickness. ANTI-ADHESIVE SPRAY UNIT ADZ02 Precision application of anti-adhesive using injectors activated by numerical control. KIT PRO-GLUE The PRO-GLUE kit includes the following components: • TEKNO-GLUE system for optimal gluing through: - controlled pressure of the glue roller - automatic disengagement in case of feed stop - automatic ON/OFF of the glue unit • REVERSE system to switch the glue roller for co- or counter-rotation Electrical and mechanical preparation for the use of special glue pots for POLYURETHANE glue with machines equipped for EVA gluing. NC Axis for Fine Trimming Unit Kit for the automatic adjustment of tracing rollers and tools to match edge type and thickness. Adjustment takes place via the control system. Pair of multiprofile cutters for the fine trimming unit: 25-degree bevel, radius 2 mm + radius 1 mm plus straight profile for solid wood. NC Axis for Profile Milling Unit Kit for automatic adjustment of the tracer to match the edge thickness. Adjustment takes place via the control system. Function for processing only on the corners. NC Axis for Scraper Unit Kit for automatic adjustment of tracing rollers and tools to match edge type and thickness. Adjustment takes place via the control system.

Condition: used, Year of construction: 2018, functionality: fully functional, Biesse Akron 1400 Edgebander. Genuine UK Machine available for demonstration: £10,000 + VAT This machine is suited for flush or bevel trimming of edgebanding materials upto 8mm thick (Max 3mm on the coil). Currently the machine is fitted with Straight cutters, but combination cutters can be fitted for radius trimming. This machine DOES NOT do corner rounding. But does have the following units: - Pre-Milling. EVA Hot Melt Gluing System. End Snipping Saws (Straight or Chamfer cut). Rough Trim (Top & Bottom). Itedpfjxrwm Njx Ac Hor Fine Trim (Top & Bottom). Glue line scraping (Top & Bottom).
