Used Biesse Skipper 100 for sale (10)

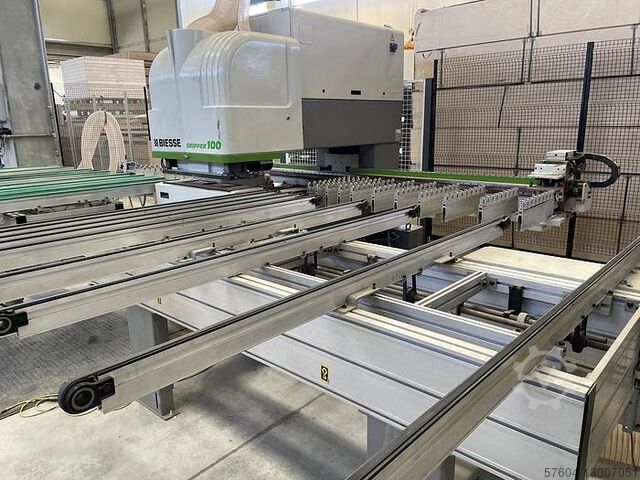

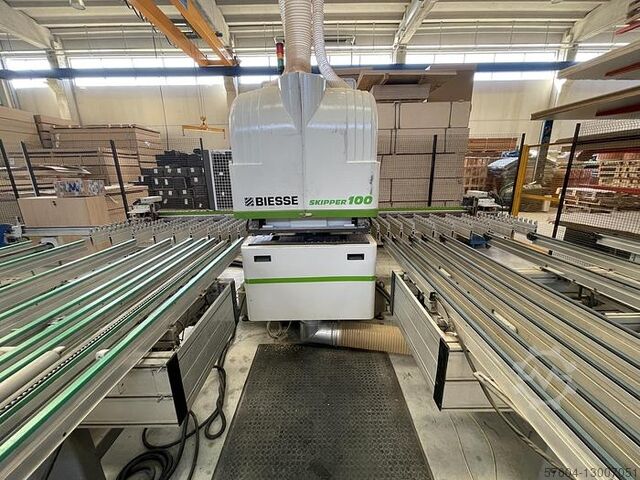

Condition: refurbished (used), Year of construction: 2013, functionality: fully functional, workpiece length (max.): 3,000 mm, workpiece width (max.): 1,000 mm, workpiece height (max.): 60 mm, overall weight: 3,000 kg, Equipment: CE marking, Biesse Skipper 100 CNC Drilling Machine – 2013 Well-maintained Biesse Skipper 100 CNC drilling and processing machine in very good working condition. The machine was originally manufactured in 2013 and has since been refurbished. It has been carefully maintained and is currently in excellent condition for its age. The machine is being sold only because the current owner has recently invested in a new Biesse drilling machine. It has therefore become surplus to production requirements. Kedpez Ibqbjfx Ahienc The Skipper 100 is a highly versatile CNC machining solution designed for drilling, routing, and panel processing. Its compact design and flexible operation make it particularly suitable for furniture, cabinet, and panel manufacturing applications. Key Highlights: Manufacturer: Biesse Model: Skipper 100 Year: 2013 Refurbished Very good mechanical and operational condition Regularly maintained Suitable for CNC drilling and panel processing Proven Biesse industrial construction Machine is available due to replacement with a newer Biesse drilling machine, not because of technical issues The machine can be inspected by appointment. Further technical information, photos, videos, and machine details can be provided upon request.

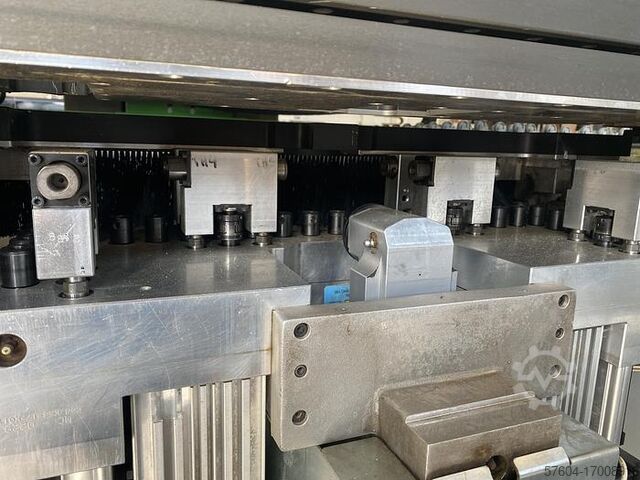

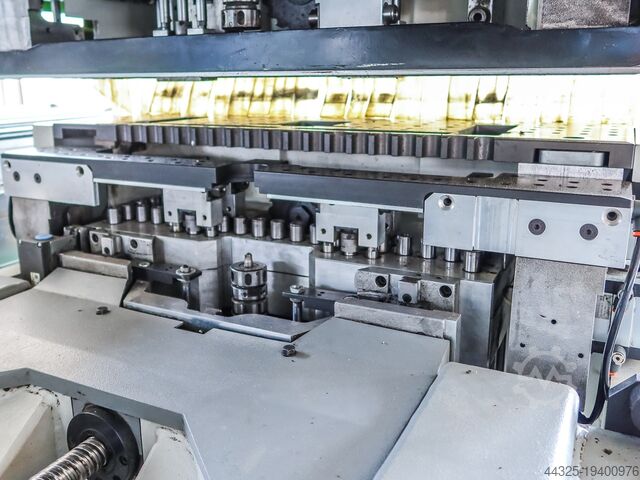

Condition: used, Technical Data Workpiece Dimensions - Length: 90 - 3,000 mm - Width: 70 - 1,000 mm - Thickness: 8 - 60 mm Working Ranges X-Axis - Vertical Drilling: 0 - 3,000 mm - Horizontal Drilling (X and Y): 0 - 3,000 mm - Through Milling: 0 - 2,500 mm - Partial Milling: 0 - 3,000 mm - Through Grooving with Saw (X-direction): 0 - 2,500 mm - Partial Grooving with Saw (X-direction): 0 - 3,000 mm Y-Axis - Vertical Drilling: 0 - 1,000 mm - Vertical Drilling with 32-mm System: 32 - 1,000 mm - Horizontal Drilling in X: 0 - 1,000 mm - Horizontal Drilling in Y-direction: 90 - 1,000 mm - Milling: 0 - 950 mm - Grooving with Saw (X-direction): 112 - 1,000 mm Z-Axis - Material Thickness: 0 - 60 mm Equipment The machine is equipped with 78 independent drilling spindles, distributed across two mirror-image processing units: - 39 spindles in the upper unit - 39 spindles in the lower unit Each processing unit includes: - 29 vertical drilling spindles (19 along the X-axis and 10 along the Y-axis, 32 mm spacing) - 8 horizontal drilling spindles along the X-axis (4 with dual outlets) - 2 independent horizontal drilling spindles in the X-direction - 2 independent horizontal drilling spindles in the Y-direction - 3.5 kW HSK electro-spindle Kodpfx Aszutrtjhionc - Spindle speed: 6,000 - 18,000 rpm Optional Equipment - Roller loading table - Upper and lower work tables (pressure tables) - Upper and lower processing units - Right-hand side strip unloading conveyor - Electronic thickness control - Central automatic lubrication - PC-based CNC control (Windows XP 600 with Soft CN) - Safety system

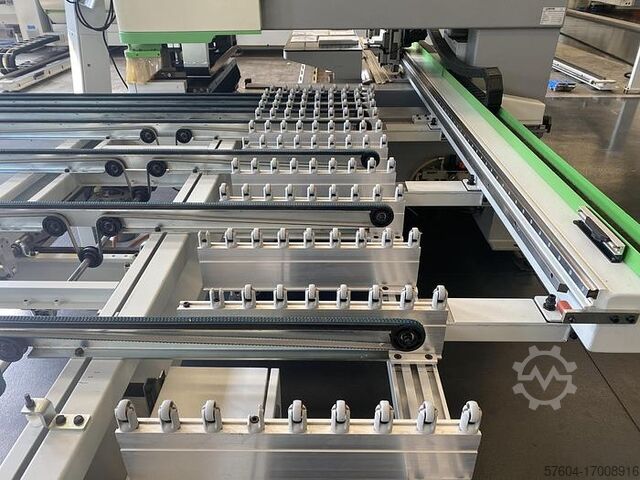

Condition: good (used), Code: 0231 Brand: BIESSE Model: SKIPPER 100 - CE Standard CNC working center for furniture, kitchens, custom furniture, panels and various - CE Standard - Year 2006 Technical data: 3-axis (x-y-z) CNC working center - swan neck machine Movable panel, fixed working head - panel horizontally Integral protection of the working head and with emergency front carpets Numerical control with biesseworks software Infeed table (with motorized belts) left N. 2 panel fixing clamps (for their introduction into the working area) Kedpjxqntdefx Ahisnc Outfeed table (with motorized belts) right Useful (maximum) working area (x - y - z) mm 3000 x 1000 x 60 Dimensions (minimum) workpieces that can be machined (x - y - z) mm 90 x 70 x 8 Dimensions (maximum) workpieces that can be machined (x - y - z) mm 3000 x 1000 x 60 (for panels longer than mm 2000, the minimum thickness becomes mm 13) Total installed power (kw) 20 (approx.) Lower working units: N. 1 vertical electro spindle hsk d-50 (power Hp 4,8) with inverter N. 1 circular saw unit (on x-axis) dia. mm 150 (power Hp 2,3) with inverter N. 29 vertical drilling spindles N. 10 horizontal drilling spindles (8 in x-axis + 2 in y-axis) Upper working units: N. 1 vertical electro spindle hsk d-50(power Hp 4,8) with inverter N. 1 circular saw unit (on x-axis) dia. mm 150 (power Hp 2,3) with inverter N. 29 vertical drilling spindles N. 10 horizontal drilling spindles (8 in x-axis + 2 in y-axis) Transfer for panel loading and unloading: structure made of aluminum profiles, belt-driven table for panel translation/lifting bar BiesseWorks machining programming system Compressed air 7/8 bar Total power Kw 20 Overall dimensions - (see attachment) Machine weight kg 2700

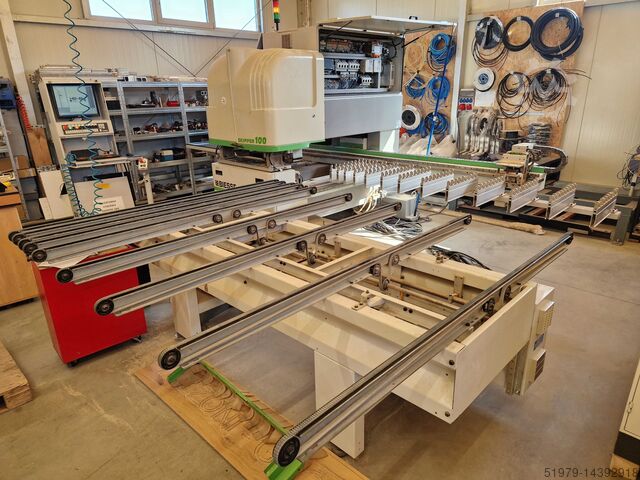

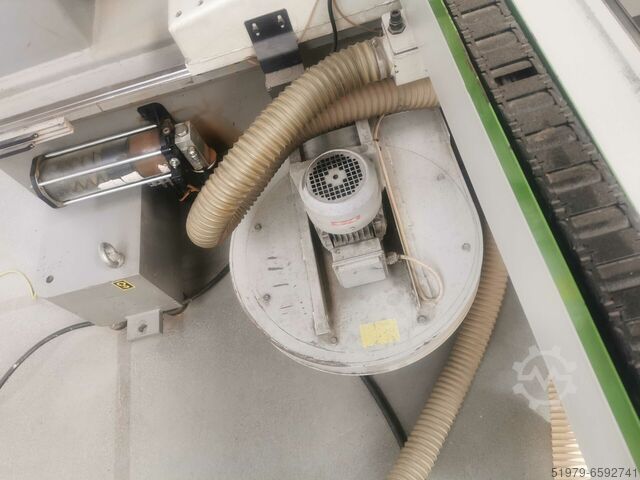

Condition: excellent (used), Year of construction: 2008, I sell the double side throughfeed CNC working centre Biesse Skipper 100 Year 2008. Very productive and fast. Automatic infeed table. Working length 90-3000mm Working width 70-1000mm Working height 8-60mm Configuration per side: Milling head 3,5 kW, 7000-18000 rpm 29+8+2 Drilling heads 1 Grooving saw D.150mm X-direction Software BiesseWorks. CD included. Version with outfeed table. Condition very good ! Fully working. Automatic system of central lubrication and dust collection connections. Complete with safety barriers, Transport elements and CE-points. Knedjq Diw Aopfx Ahiec CE-certyficate and full documents included.

Condition: good (used), Machining center composed of: 2 drilling heads (one upper and one lower) for vertical and horizontal drilling 1 upper milling unit and 1 lower milling unit 1 upper saw unit and 1 lower saw unit STANDARD CONFIGURATION Kedpfxsy E Ir Ej Ahienc

Condition: excellent (used), Year of construction: 2006, I sell the double side throughfeed CNC working centre Biesse Skipper 100 Year 2006. Very productive and fast. Automatic infeed table. Working length 90-3000mm Knodpfx Aehlhigjhijc Working width 70-1000mm Working height 8-60mm Configuration per side: Milling head 3,5 kW, 7000-18000 rpm 29+8+2 Drilling heads 1 Grooving saw D.150mm X-direction Software BiesseWorks. CD included. Condition very good ! Fully working. Automatic system of central lubrication and dust collection connections. Complete with safety barriers, Transport elements and CE-points. CE-certyficate and full documents included. Repairs required: 1 safety carpet

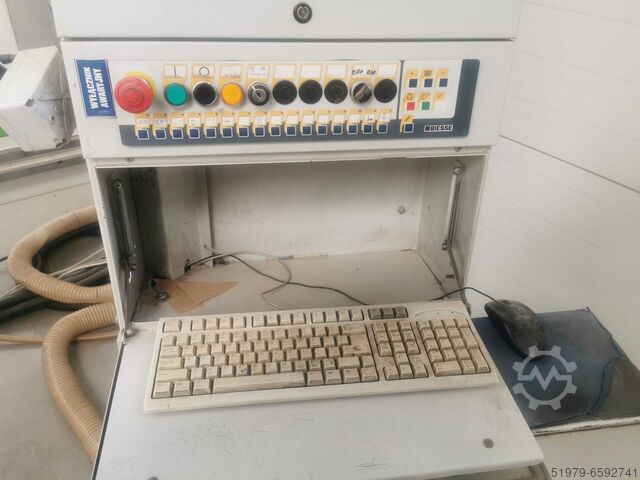

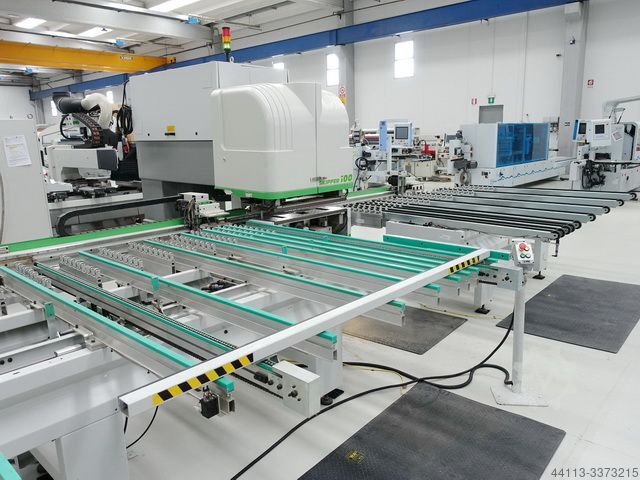

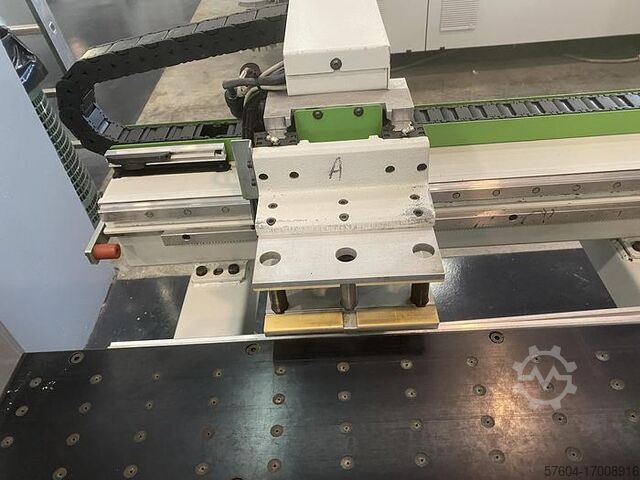

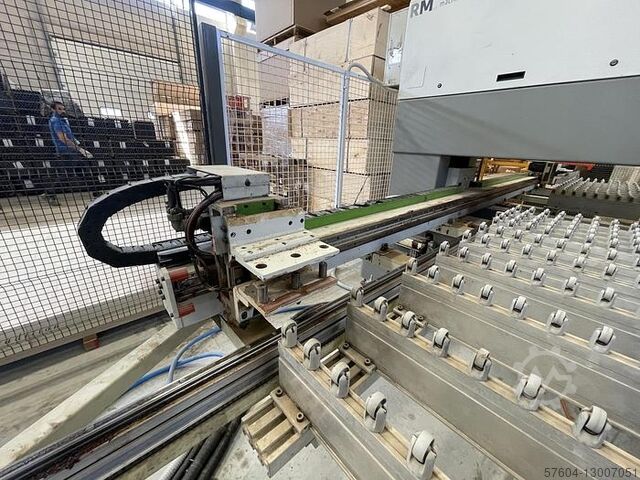

Condition: excellent (used), C.N.C. WORKING CENTER 3 axes (X-Y-Z) Safety enclosure on the working head - Side safety metal grids - Front emergency carpets The following technical data are ESTIMATED and are not BINDING: Numerical Control with Software Biesse Works - Workpieces dimensions (workable panels): - Length: mm 90 - 3000 x Width: mm 70 - 1000 x Thickness: mm 8-60 (for longer panels than mm 2000, minimum thickness is mm 13) - No. 2 Grippers to keep fix the workpieces during process and 1 in-feed table (with air-blowing) - No. 1 Out-feed table, with motorized conveyoring belts BOTTOM WORKING UNITS: Kodszy Ngwopfx Ahienc - No. 1 Vertical electro-spindle HSK D-50 (power HP 4.8) with Inverter - No. 1 Circular Grooving Saw (on X axe) dia. mm 150, power HP 2,3 with Inverter - No. 29 Vertical drilling spindles - No. 10 Horizontal drilling spindles (8 in X axe + 2 in Y axe) TOP WORKING UNITS: - No. 1 Vertical electro-spindle HSK D-50 (power HP 4.8) with Inverter - No. 1 Circular Grooving Saw (on X axe) dia. mm 150, power HP 2,3 with Inverter - No. 29 Vertical drilling spindles - No. 10 Horizontal drilling spindles (8 in X axe + 2 in Y axe)

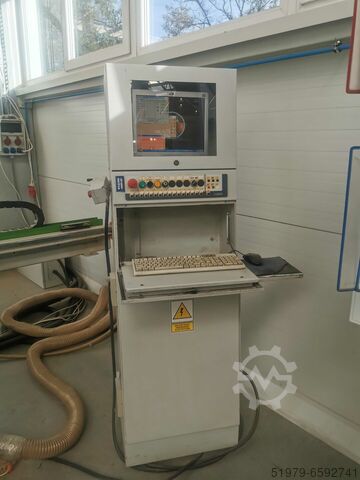

Condition: used, Xp 600 Numerical Control with Biesse Works Software Working range in X axis 3000 mm Working field in Y axis 1000 mm Working field in Z axis 60 mm Automatic loading system with motorized belt transfer N° 2 Pliers for blocking and transporting the panel N° 1+1 vertical electrospindle 3 axes (lower + upper) N° 1+1 independent blade (lower + upper) N° 29 + 29 independent spindles for vertical drilling in "X and Y" direction (upper + lower) N° 10 + 10 independent spindles for horizontal drilling in "X and Y" direction (upper + lower) Automatic unloading system with motorized belt transfer Knjdpfx Ahsuickyjijc

Condition: ready for operation (used), Year of construction: 2005, machine/vehicle number: 55595, functionality: fully functional, travel distance X-axis: 3,000 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 60 mm, overall weight: 3,000 kg, controller model: Xp 600, TECHNICAL DETAILS Working Area X-axis: 3,000 mm Working Area Y-axis: 1,000 mm Knjdpfxoydk Rmj Ahijc Working Area Z-axis: 60 mm MACHINE DETAILS Control: Xp 600 with Biesse Works Software Weight: 3,000 kg EQUIPMENT Automatic loading system with motorized belt conveyor 2 clamps for securing and transporting the panel 1+1 vertical electrospindle (lower + upper) with 3 axes 1+1 independent saw (lower + upper) 29 + 29 independent spindles for vertical drilling in X and Y direction (upper + lower) 10 + 10 independent spindles for horizontal drilling in X and Y direction (upper + lower) Automatic unloading system with motorized belt conveyor

Condition: used, machine/vehicle number: 005836, X axis working area: 3000 mm Y axis working area: 1000 mm Main Electrospindle power: 3.5 KW Knedpfx Ahswuckusisc Number of controlled axes: 3 axes Total number of drilling spindles: 82
