Used Biesse edgebander for sale (257)

Artech Akron 650 edgebander

Call

Condition: ready for operation (used), Technical characteristics Panel thickness 10 to 60 mm Edge thickness 0,4 - 3 / 8 mm Minimum panel length 150 mm Calibration Gluing End cutting Trimming Rounding Radius scraper aggregate Glue scraper Brushing Power and Motors Power: 8.6 Kw Overall dimensions Gktyxte2 Weight: 1600 Kg

more

Listing

Lahti

7,904 km

edgebander

BIESSE Akron 440 A X

Call

Condition: good (used), Year of construction: 2008, We are Penope Oy, official Biesse dealer of Finland. We sell only EXWORKS Lahti Finland. BIESSE AKRON 440A X edgebanding machine Machine is checked by our trained technician and some parts has been replaced by inspected secondhand parts. Tools are included and machine is set to R=1. Pre-milling unit FI-502. - Kit for NC controlled adjustable infeed fence with 4 positions revolver Including NC controlled 4 positions revolver on the 1st copying pad of the Pre- milling unit. - ANTIADHESIVE UNIT ADZ-700 Gluing unit VC-511. - RPT. Edge pressing rollers with temporized intervention. It includes AUTOMATIC adjustment of the working pressure of the edge-guillotine. End trimming unit IN-501V. - PNEUMATIC TILTING OF END TRIMMING UNIT IN-501V. - Independent exclusion and tilting of the two end trimming motors. 1st TILTING top and bottom trimming UNIT RI-501 - 2 motors 0,65 kW each - PNEUMATIC EXCLUSION of the 2 motors for the 1st Tilting top and bottom trimming unit RI-501. - Double working position AUTOMATIC FAST-RI for 1st RI-501 tilting top and bottom trimming unit. Includes pneumatic exclusion of the 2 motors. Corner rounding unit CR-200V. Bh9dt3viv28 - SYSTEM FAST FOR THE PRE-SELECTION OF 2 POSITIONS FROM CONTROL BOARD CR-200V. EDGE SCRAPER RBK-502. - Pneumatic exclusion of the Edge scraping unit RBK-502. BRUSHING UNIT SP-501. Other equipments - Numeric Control TS10 with 10'' screen instead of the TS06. - Electronic NC controlled top pressure beam positioning. - Lights inside protection cabin. Also we can offer secondhand Formetal panel returning system for this. Ask for more info.

more

Listing

Italy

8,629 km

Edgebander BATCH 1

BIESSE BIESSE STREAM B1 10.5 MDS; PRS

Call

Condition: used, machine/vehicle number: 004955, Position 1: Edgebander BATCH 1 BIESSE-BIESSE STREAM B1 10.5 MDS; PRS 0qanw

more

Listing

Cam. Polvorista Margen Iz., 30500, Murcia, España

7,927 km

BIESSE Artech Akron 650

€20,000

Edgebander (with corner rounding)

Call

Condition: ready for operation (used), Year of construction: 2008, Used Artech Akron 650 edgebander in good condition from 2008. -Tilting -with refiler -with spindle moulders (vertical and horizontal) -with trimmer -rounding group Issl3qy -polishing brushes thickness of glued edge max. 10 mm thickness of winding material max. 3 mm max. feed rate m/n 14 m/min Assembly milling aggregate Corner copying aggregate 4 motors Profile and flat edge scraper pneumatic synchronized aggregates machine length 6.500 mm control BIESSE ARTECH TS 10 BIESSE ARTECH IN 501V BIESSE ARTECH RS 701 BIESSE ARTECH CR 401 BIESSE ARTECH SP 700 BIESSE ARTECH PH 700 Hot air blower max. gluing height in 64 mm workpiece length min. 140 mm workpiece width min. 85 mm glue pelletizing system glue bowl under the feed chain end milling unit 2 motors flush/radial/chamfering milling stations 1 finishing aggregates hot air polishing aggregate strip magazine version left side machine CE-mark total power supply 22 kW weight ca. 3.400 kg

more

Listing

Rosmalen

7,545 km

BIESSE Akron 1330

Call

Condition: good (used), Year of construction: 2012, machine/vehicle number: 58212, BIESSE Akron 1330 Edgebander Technical description: Panel height mm 10-60 Height of edge banding material mm 14-64 Thickness of edge banding material in rolls / strips mm 0.4-8 Panel protrusion from track mm 25 Min panel length mm 150 Min panel width (with length mm 150) mm 85 Min panel width (with length mm 250) mm 50 Track feed speed m/min 12 Dust extraction system for each operating unit 1 hood dia. mm 100 Pneumatic connection bar 7 Glue pot capacity kg 2 (approx.) Glue pot heating time at ½ load min.10 (approx.) Rated power kW 15 400V 3PH 50Hz Machine description Slot for pre-milling unit RT02 Gluing unit SP03 End trimming unit IT03 Fine trimming unit RF02 Pair of multiprofile cutters for fine trimming unit: chamfering 25 degrees, R=2 mm, straight profile for solid wood Corner rounding unit AR02 AX-2, NC axis on corner rounding unit Pair of cutters, R = 2 mm, for corner rounding unit Edge scraper RB02 Pair of knives R=2 mm, for edge scraper Glue scraper RC02 Brushing unit SZ02 AX-1, motorized top pressure beam CE NORMS INCLUDED (All changes, mistakes in technical data, info and prices reserved. Availability subject to prior sales. No guarantee on printed data!) (Alle Änderungen und Irrtümer in den technischen Daten, Angaben und Preisen sowie Zwischenverkauf vorbehalten! Keine Garantie auf gedruckte Daten!) Best woodworkingmachines from the Netherlands Holland Bzycnpm99t Die besten holzbearbeitungsmaschinen aus die Niederlande De beste gebruikte machines uit Nederland

more

Listing

Wijchen

(dealership location)

7,560 km

Edge banding machine Edgebander Biesse Akron 850

Biesse Akron 850

Call

Condition: used, Year of construction: 2008, Edgebander Biesse Akron 850 Year of construction 2008 Minimum panel length 140 mm Te2uzi7n Minimum panel width: 85 mm Min/max thickness of panel: 10/60 mm Min/max edge thickness: 0.4/3 mm Feed speed: 10/14/20 m/min Compressed air: 7 Bar Power Requirement: 415V - 3 Phase Transport dimensions: 6500x1200x1600mm (LxWxH) weight 1200kg

more

Listing

Loughlass, Co. Laois, Ireland

6,731 km

Edgebander

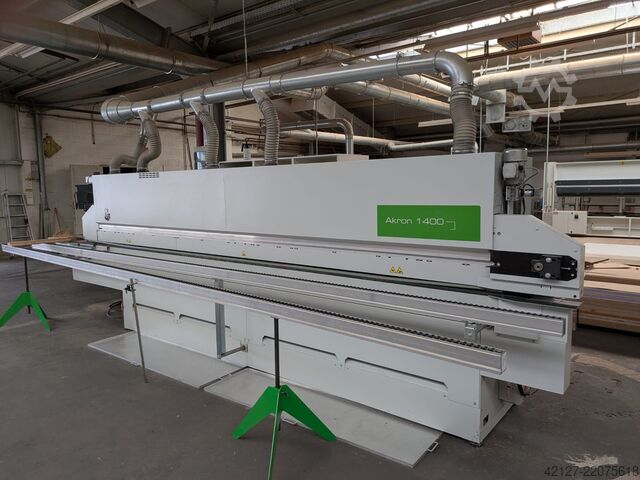

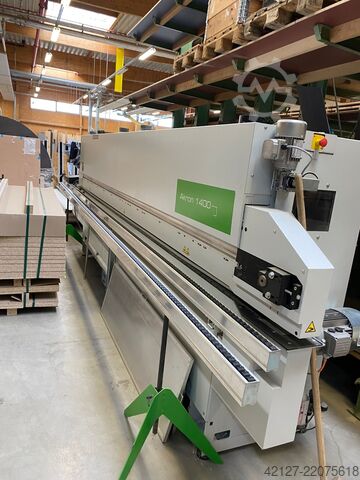

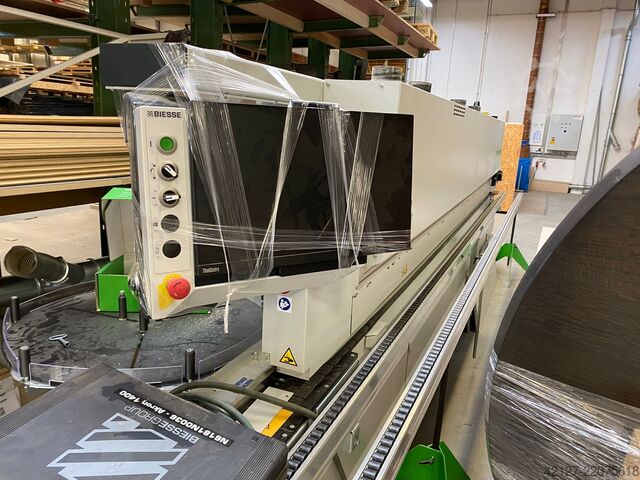

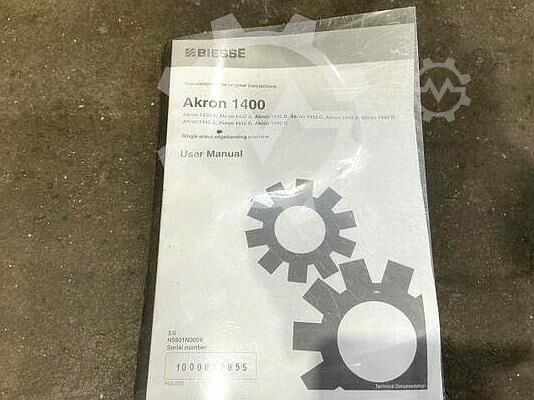

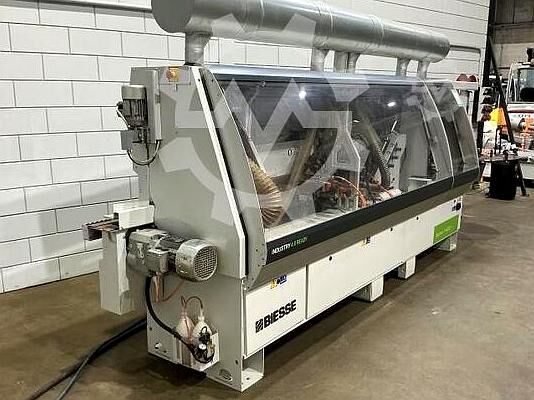

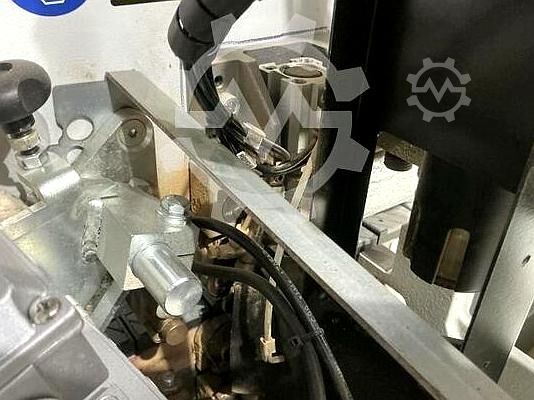

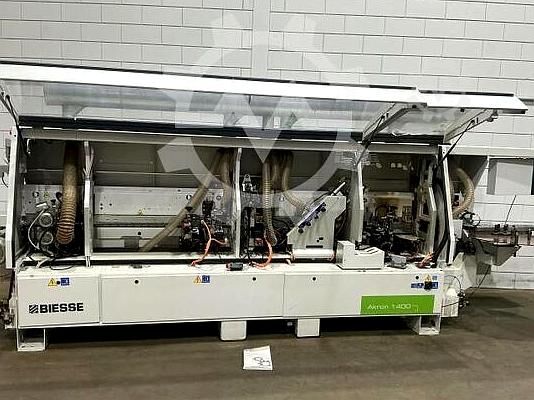

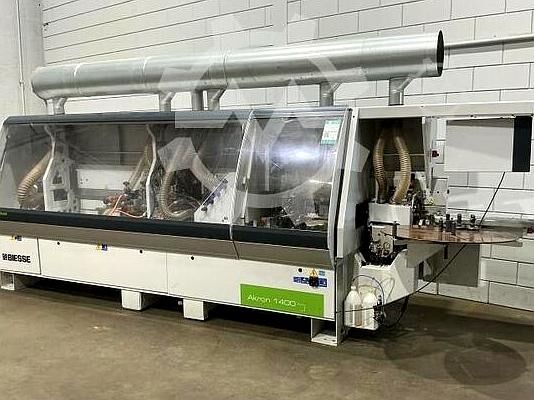

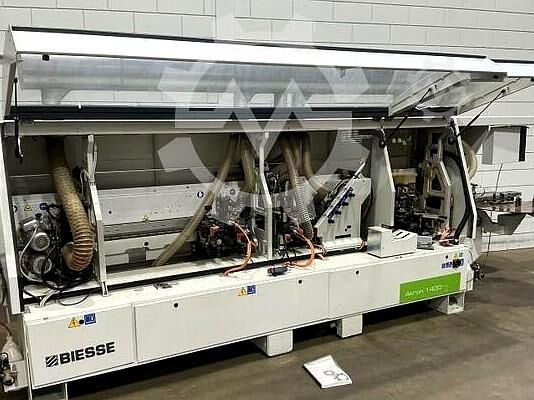

BIESSE AKRON 1400

€33,500

ONO plus VAT

Call

Condition: excellent (used), Year of construction: 2015, Ideal for multiple edging applications. PVC, ABS, Veneer, laminates and Solid Wood, from 0.4mm up 12mm thick Max edging height is 60mm Edge up to 12mm thick solid wood lippings which is ideal for fire doors. PUR glue pot which is also essential for fire doors. Features: • PUR glue pot • End trimmers Qguyt • Top/Bottom profile trimmers with Bevel, 1mm radius, 2mm radius and Straight trimmers • Corner Rounding Unit • Top/Bottom profile Scrapers with Bevel, 1mm radius and 2mm radius • Glue scrapers • Buffers • All units are NC controlled except the corner rounding unit. This is extremely easy to adjust. • Excellent condition and well maintained. Low working hours. Delivery not included This machine can be viewed in operation in our Factory.

more

Listing

Křižíkova 2989/68a, 612 00 Brno-Královo Pole, Česko

8,349 km

Biesse STREAM B1 PUR edgebander

BIESSE STREAM B

Call

Condition: refurbished (used), Year of construction: 2008, I sell the edge banding machine Biesse Stream B1 year 2008: Premilling Edge banding with preheating Pressure zone full servomotorical End cutting saws Tilting radius milling 4-position adjustable Corner rounding 2-motor each with 8 position magazine Radius scrapers 4-position adjustable Mwbc8k Glue scrapers Polishing brushes Hot-air blower Separation fluid spraying front and back Central lubrication system Material height 8-60mm Edge thickness 0,4-20mm Feeding speed up to 25m/min. PUR glue possible. Magazine for edges in rolls - 2 position Automatic feeding device for short elements. 2vekzu Strengthened feeding rollers at the edge pressing zone. New top feeding band. Very good condition of the feeding chain. 2.291.561 meters edgebanded. CE Mark. Including full documentation and CDs. Very good condition!

more

Listing

Italy

8,629 km

Edgebander BATCH 1

BIESSE STREAM B1 10.5 MDS

Call

Condition: used, machine/vehicle number: 004872, Type of edging: Thin edge, Thick edge Gluing System: EVA Hotmelt Premilling Unit: yes Corner Rounding Unit: yes Ckm9eosrvq Grooving Unit: yes Maximum panel thickness: 60 mm Operating Units: 10 nr

more

Listing

Odry

8,088 km

Biesse Artech Akron 245 edgebander

BIESSE Artech Akron 245

€6,200

Edgebander (with pre-milling)

Call

Condition: excellent (used), Year of construction: 2004, -NC control with preset programming, double saws, trimmers, scrapers, stops and corner rounding. -Max. working panel height: 55 mm -Min. workpiece - Length: 150 mm -Min. workpiece - width: 70 mm -Max. thickness of the PVC rolled edge: 3 mm -Working speed: 12m / min -Length: 4500 mm -Total engine power: 18 kW Pang2 -Weight: 1700 kg -Voltage: 400V

more

Listing

Rosmalen

7,545 km

BIESSE AKRON 1330

Call

Condition: good (used), Year of construction: 2014, BIESSE AKRON 1330 Edgebander (pre-milling) Description: Pre-milling unit (model RT02) Glue unit (model SP03) Edge band infeed and cutting unit for roll and strip material Pressure zone Saw unit (model IT03) Milling unit (model RF02) with pneumatic in/out and pro-nesting Bdqoqrp78sq Corner rounding unit unit (model AR02) Scraper unit (model RB02) with pneumatic in/out and pro-nesting Surface scraping unit (model RC02) Motorized adjustment of bridge, feed ruler, pressure zone, corner rounder Additional support rail Technical specifications: Panel thickness (min/max): 10 – 60 mm Edge material height (min/max): 14 – 64 mm Edge material thickness (roll material): 0.4 – 3 mm Edge material thickness (strips): 0.4 – 5 mm Panel overhang from chain: 25 mm Min. panel length: 150 mm Min. panel width (for length 150 mm): 85 mm Min. panel width (for length 250 mm): 50 mm Throughput speed: 12 m/min Extraction nozzles: 5 x 100 mm Glue container capacity: 2 kg Voltage: 400 volts – 50HZ (All changes, mistakes in technical data, info and prices reserved. Availability subject to prior sales. No guarantee on printed data!) (Alle Änderungen und Irrtümer in den technischen Daten, Angaben und Preisen sowie Zwischenverkauf vorbehalten! Keine Garantie auf gedruckte Daten!) Best woodworkingmachines from the Netherlands Holland Die besten holzbearbeitungsmaschinen aus die Niederlande De beste gebruikte machines uit Nederland

more

Listing

Křižíkova 2989/68a, 612 00 Brno-Královo Pole, Česko

8,349 km

Edgebander Akron 640

BIESSE Akron 640

Call

Condition: excellent (used), Year of construction: 2005, Units: 1. Pre-milling unit Cj8wsklg9b 2. Applying Eva / PUR glue, 2 x tubs. 3. ABS pressure unit4. Capping unit 5. Roughing unit 6. Rounding unit 7. Radius lock 8. Glue scraper

more

Listing

BIESSE STREAM B + PRS EVO3.2 panel return syst.

Rosmalen

7,545 km

Edgebander

BIESSE STREAM B + PRS EVO3.2 panel return syst.

Call

Condition: good (used), Year of construction: 2017, BIESSE STREAM B1/10.5 Single-sided edgebander PRS EVO 3.2 panel return system Stream B is a single sided edgebander that meets the needs of large companies for high productivity. It can cover three work shifts, 7 days a week, and has an endless number of possibilities for product customisation based on production requirements. Description; Brand: Biesse Type: Stream B1 Year of manufacture: 2017 Machine number: 15045 + 15046 Glue system: EVA and PU Edge band dimensions: 04 - 20 mm Units controlled: Yes Pre-milling unit: Yes Saw unit: Yes Milling unit: Yes Corner rounding unit: Yes Radius scraper unit: Yes Flat scraper unit: Yes Cleaning unit: Yes Other remarks: including PRS system EVO Bednftu Full description will be forwarded on request (All changes, mistakes in technical data, info and prices reserved. Availability subject to prior sales. No guarantee on printed data!) (Alle Änderungen und Irrtümer in den technischen Daten, Angaben und Preisen sowie Zwischenverkauf vorbehalten! Keine Garantie auf gedruckte Daten!) Best woodworkingmachines from the Netherlands Holland Die besten holzbearbeitungsmaschinen aus die Niederlande De beste gebruikte machines uit Nederland

more

Listing

Jacksonville

1,487 km

Biesse Stream B Edgebanders (2011)

BIESSE STREAM B

$20,000

Call

Condition: excellent (used), Year of construction: 2011, Biesse Stream B Edgebanders (2011) Kg 6510 Stations: Coil feeder Gluing Unit Pressure Unit Cq0tanwujn Premill End Trimming Unit Rough Milling Unit Fine Milling Unit MultiFunction Milling Unit Scraping Buffing Sound Enclosure Auctioneer's Note: (they have two machines and are including the second one that is not running as a parts machine) – Return conveyor not included S/N: 87560

more

Listing

NL

7,514 km

BIESSE AKRON 440

Call

Condition: used, machine/vehicle number: 006472, Type of edging: Thin edge, Thick edge Baerv7tz Gluing System: EVA Hotmelt Premilling Unit: yes Corner Rounding Unit: yes Maximum panel thickness: 60 mm Operating Units: 8 nr

more

Listing

United Kingdom

6,838 km

BIESSE AKRON 1330

Call

Condition: used, machine/vehicle number: 006393, Type of edging: Thin edge, Thick edge, Veneer Gluing System: EVA Hotmelt Premilling Unit: yes Corner Rounding Unit: yes Max feed speed: 12 m/min 3mnqfey0 Maximum panel thickness: 60 mm

more

Listing

United Kingdom

6,838 km

BIESSE AKRON 440

Call

Condition: used, machine/vehicle number: 006529, Type of edging: Thin edge, Thick edge, Solid wood, Veneer Benzvjvmr8r Gluing System: EVA Hotmelt Premilling Unit: yes Corner Rounding Unit: yes Max feed speed: 12 m/min Maximum panel thickness: 10 mm

more

Listing

NL

7,514 km

BIESSE AKRON 1330

Call

Condition: used, machine/vehicle number: 006354, Type of edging: Thin edge, Thick edge Gluing System: EVA Hotmelt Premilling Unit: yes Corner Rounding Unit: yes Max feed speed: 12 m/min C02pbklztg Maximum panel thickness: 60 mm Operating Units: 8 nr

more

Listing

United Kingdom

6,838 km

BIESSE AKRON 1445B WITH PRS

Call

Condition: used, machine/vehicle number: 006512, Type of edging: Thin edge, Thick edge, Solid wood, Veneer Gluing System: EVA Hotmelt Premilling Unit: yes Bdzqxwikb8y Corner Rounding Unit: yes Grooving Unit: yes Max feed speed: 12 m/min Maximum panel thickness: 12 mm

more

Listing

Italy

8,629 km

BIESSE STREAM B1 7.0

Call

Condition: used, machine/vehicle number: 005064, undefinedPosition 2: Panel Return Systems BIESSE-STREAM B1 7.0 Cy8jphbskw

more

Listing

Italy

8,629 km

Double Edgebanders

BIESSE STREAM SB1 7.5

Call

Condition: used, machine/vehicle number: 005973, Type of edging: Thin edge, Thick edge Gluing System: EVA Hotmelt Combination Squaring Edgebanding Machine: First Pass Ce7galo8yh Operating Units Right Side: 9 nr Operating Units Left Side: 9 nr

more

Listing

Italy

8,629 km

BIESSE STREAM B1 NG 8.5

Call

Condition: used, machine/vehicle number: 006164, Type of edging: Thin edge, Thick edge, Solid wood Gluing System: PUR Premilling Unit: yes Corner Rounding Unit: yes Cqzpz30cdj Grooving Unit: yes Max feed speed: 25 m/min Maximum panel thickness: 80 mm Operating Units: 10 nr

more

Listing

Italy

8,629 km

BIESSE STREAM B/11.5

Call

Condition: used, machine/vehicle number: 006370, Type of edging: Thin edge, Thick edge Gluing System: EVA Hotmelt Premilling Unit: yes Corner Rounding Unit: yes Grooving Unit: yes Max feed speed: 25 m/min Maximum panel thickness: 60 mm Operating Units: 12 nr Djkl0z

more

Listing

Italy

8,629 km

BIESSE STREAM B1 10.5 SOFT

Call

Condition: used, machine/vehicle number: 006366, Type of edging: Thin edge, Thick edge 8c7ummd Gluing System: EVA Hotmelt Corner Rounding Unit: yes Max feed speed: 30 m/min Maximum panel thickness: 60 mm Operating Units: 11 nr

more

Listing

Italy

8,629 km

BIESSE ROXYL 5.5

Call

Condition: used, machine/vehicle number: 005786, Type of edging: Thin edge, Thick edge, Solid wood Gluing System: EVA Hotmelt Premilling Unit: yes Corner Rounding Unit: yes Maximum panel thickness: 65 mm Rhokh Operating Units: 9 nr

more

Listing

Italy

8,629 km

Double Edgebanders

BIESSE STREAM C SB2 /12.5

Call

Condition: used, machine/vehicle number: 006367, Type of edging: Thin edge, Thick edge Gluing System: EVA Hotmelt Corner Rounding Unit: yes Combination Squaring Edgebanding Machine: First and Second Pass Max Panel Width: 2700 mm Operating Units Right Side: 13 nr 7vrhze03dc Operating Units Left Side: 13 nr

more

Listing

Italy

8,629 km

Vertical CNC Machine Centres

BIESSE STREAM B1 7.0

Call

Condition: used, machine/vehicle number: 005062, Type of edging: Thin edge, Thick edge Gluing System: EVA Hotmelt Premilling Unit: yes Corner Rounding Unit: yes Max feed speed: 25 m/min Maximum panel thickness: 60 mm Operating Units: 8 nr Cy8ix9f2qi

more

Listing

Tulsa

103 km

BIESSE BREMA VEKTOR 15

Call

Condition: used, machine/vehicle number: 006345, X axis working area: 3200 mm Cyponlis3v Y axis working area: 1300 mm Number of controlled axes: 3 axes Total number of drilling spindles: 23 Total number of tool changer positions: 10

more

Listing

Stokkanhaugen 116, 7048 Trondheim, Norway

7,115 km

machining center

BIESSE ROVER B

Call

travel distance X-axis: 5,050 mm, travel distance Y-axis: 1,656 mm, travel distance Z-axis: 250 mm, motor power: 12,000 W, Condition: excellent (used), Year of construction: 2009, Operating hours: 12,993 h, machine/vehicle number: 17666, Functionality: fully functional, Biesse Rover B 4.50 ATS - Double Pantographs - year 2009 - Windows XP600 - CE - From Norway Four axis machine X-Y-Z-C1-CN1-CN3 Working field : X from - 174 to 5050 mm. Y from -111,20 to 1656,8 mm. Z from -38 to -273 mm. C from 0 to 360 degree Pantograph TP1 - 12 kw - with C axis and with 8 slots revolver Pantograph TP3 - 12 kw - with 6 slots revolver Vertical drills 24 spindels Horizontal drills 10 spindles Bihzbolvzoy Saw unit Ø120, in X-direction ATS sytem for positioning of the beams and vacuum cops 250 m3 vacuum pump Total number of produced panels : 253 679 Machine number : 17666 Very nice and clean machine from a small workshop here in Norway. All service done by Biesse service Norway. Machine can be load on the truck within one week after received order. The machine is located in south Norway, south from Oslo. -- Rekman Maskin & Service work with Biesse machines since 1986 --

more

Listing

Rosmalen

7,545 km

CNC Machine

BIESSE SKILL 1536 G FT

Call

Condition: used, Year of construction: 2014, BIESSE SKILL 1536 G FT CNC Machine (Flattable) Description Cvldv3g7n Working fields: X = 3765 mm; Y = 1585 mm; X = 170 mm Automatic lubrication system 13.2 kW (17.7 HP) Electrospindle 300 m3/h vacuum pump BH 10 Drilling unit 12 position tool changer HSK 63 tool system Safety carpets .....more pictures and a video will be published on short term. (All changes, mistakes in technical data, info and prices reserved. Availability subject to prior sales. No guarantee on printed data!) (Alle Änderungen und Irrtümer in den technischen Daten, Angaben und Preisen sowie Zwischenverkauf vorbehalten! Keine Garantie auf gedruckte Daten!) Best woodworkingmachines from the Netherlands Holland Die besten holzbearbeitungsmaschinen aus die Niederlande De beste gebruikte machines uit Nederland

more

Listing

Barntrup

7,744 km

CNC - Machining center

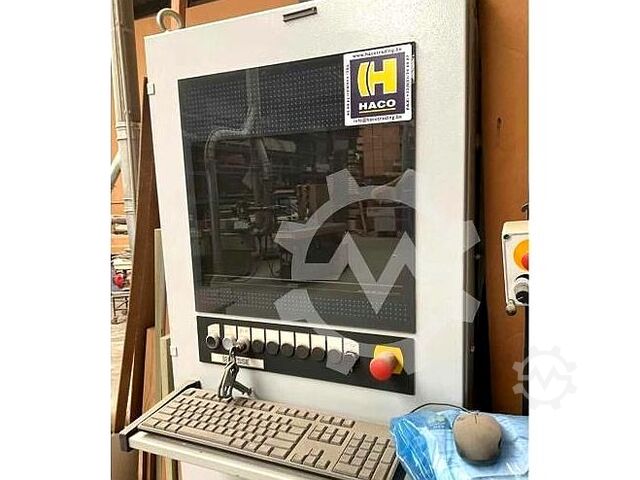

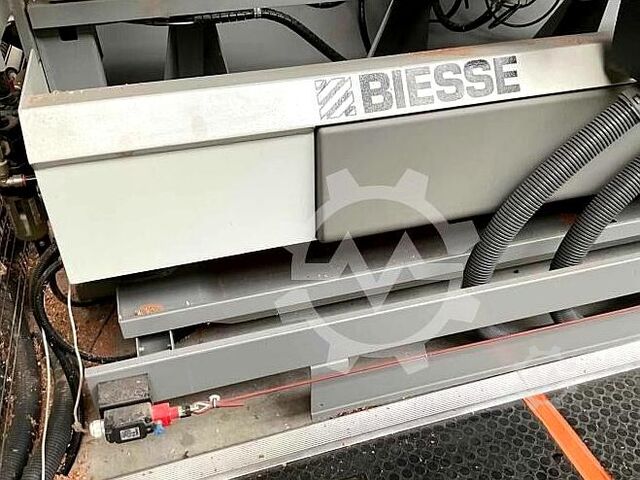

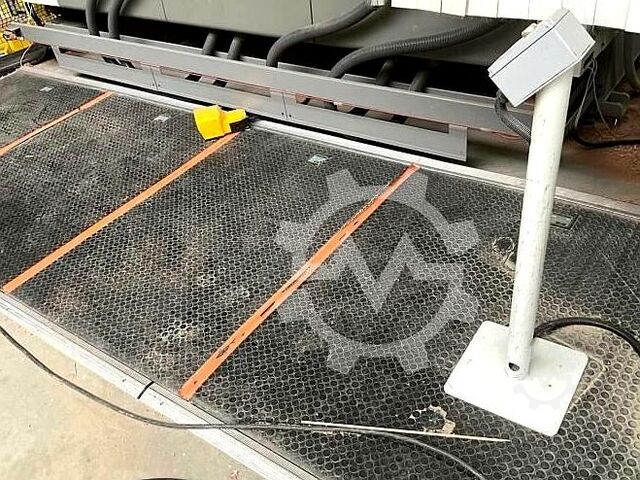

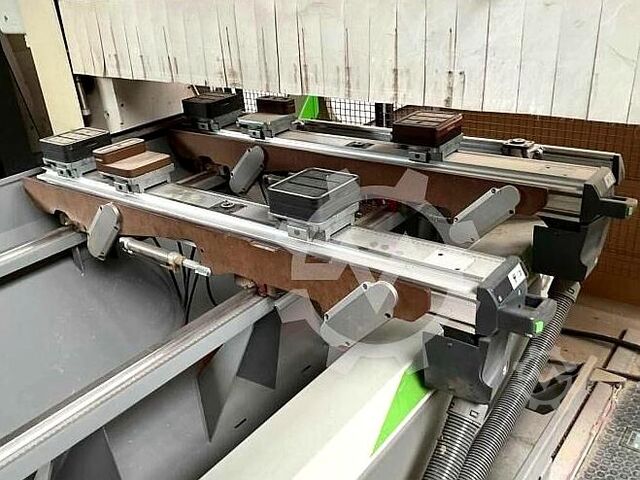

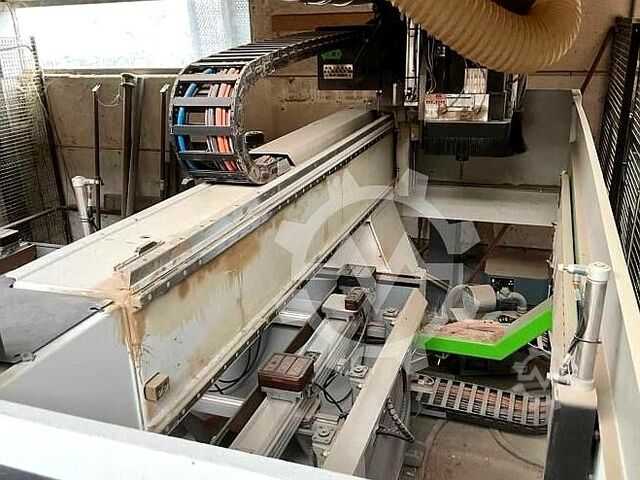

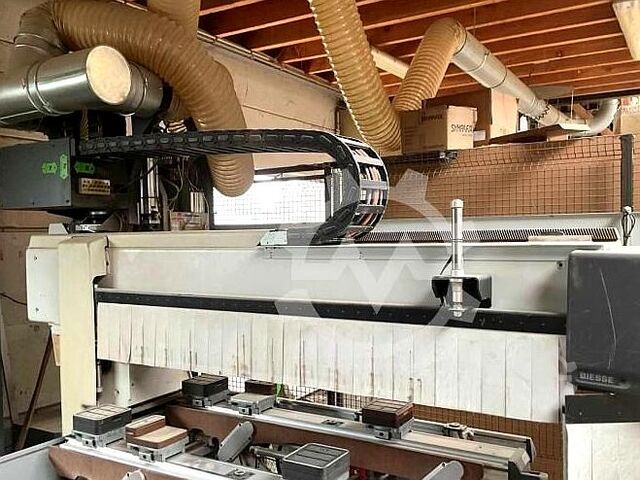

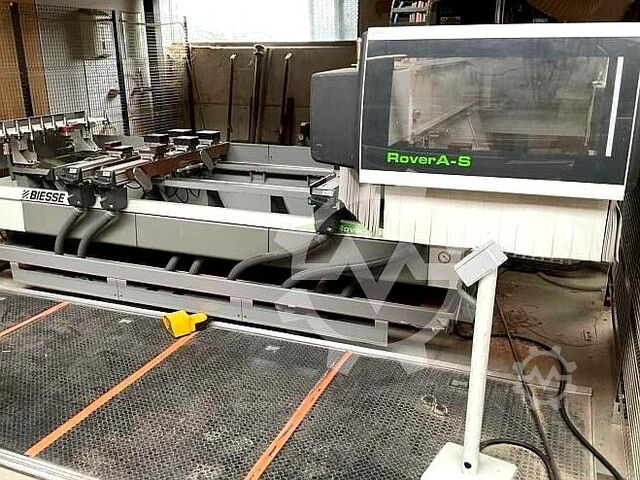

BIESSE ROVER A-S1332 UTS

Call

Condition: excellent (used), Year of construction: 2012, Functionality: fully functional, Working dimensions: X - axis: 3,280 mm Y-axis: 1,320 mm Z - axis: 170 mm Work table: 6 workpiece supports with 3 vacuum suction cups each 6 rear workpiece stops, lowerable via program, installed in one support each 6 front workpiece stops, can be lowered via program, installed in one support each, positioned approx. 970 mm from the rear seen from the rear 2 + 2 lateral workpiece stops 4 lifting rails, pneum. Can be lowered via program, for positioning heavy workpieces Vacuum pump 90 cbm/h Machining head equipment: BH 17 L drilling head with: 10 vertical drilling spindles, each individually retrievable 2+2 horizontal drilling spindles in X - direction Bilnbqoz33k grooving saw, diam. 120 fixed in X - direction Milling spindle 13.2 kW, ISO 30 Rotation speed 1,000 - 24,000 rpm Rotation right left C - axis 360 degrees for adapter units Tool magazine 12-fold Safety equipment: * Step mats in front of the machine * Protective grille on the side, right with access door XP 600 control unit with NC HOPS 6 programming software PC on Windows XP basis Optionally available: * swiveling horizontal trimming unit with 1 spindle

more

Listing

Bünde

7,698 km

Continuous drilling machine

BIESSE TECHNO LINE

€345,000

EXW ONO plus VAT

Call

total width: 1,000 cm, total length: 3,180 cm, Condition: good (used), Year of construction: 2007, Functionality: fully functional, Biesse Techno Line - Year of construction 2007/2012 3 Techno FDT throughfeed drilling machines with feeding and stacking Consisting of: 1. cross travel carriage, Wamhoff, year of manufacture 2012 (picture 1) 2. loading, Wamhoff crosswise version, year 2012 (pictures 1 and 2) 3. Techno FDT BJ 2007 (pictures 3 and 4) 4. Techno FDT BJ 2007 5. Techno FDT incl. dowel unit 2007 (image 5) 6. intermediate transport with hook turner, manufactured by Wamhoff, year 2012 (picture 6) 7th Wandres cleaning unit, year 2006 (picture 7) 8. turning station, manufactured by Wamhoff, year 2012 9. stacking unit, Wamhoff, year 2012 (pictures 8 to 10) The machine is supplied with - All existing drilling gears (Fig. 12) L0h3v70pyt Remarks: - Chip conveyor belts are partially defective - only four of the six dowel chambers are in operation and can be used without repair Not included in the price and can be purchased separately: - Various drill bits of all types and quality - Drill holders at least 1,000 pieces - Cross-travel carriage (Fig. 10, not included in the layout) - Various spare parts (list follows) Machine is to be dismantled and loaded by the purchaser.

more

Listing

Nevers

(dealership location)

7,693 km

BIESSE Rover 22

€18,000

Squaring/Edgebanding Lines

Call

Condition: ready for operation (used), Technical characteristics 3 axis machining center Bgchjt77yua X machining : 3060 mm Y machining : 1080 mm Z machining : 155 mm 6 beams, 3 suction cups Drilling unit : 14 vertical drillers (8 in X and 7 in Y) 6 horizontal drillers (4 in X and 2 in Y) Fixed slot 7 tools magazine ISO 30 electrospindle Spindle power : 7.5 kW Windows PC control Power and Motors Voltage: 380 V Pluging: Three-phased Power: 20 Kw Overall dimensions

more

Listing

Tulsa

103 km

BIESSE - RBO STREAM SB

Call

Condition: used, machine/vehicle number: 005845, Position 1: Panel Feeding and Loading BIESSE - RBO-STREAM SB Fiaa8cim8 Position 2: Double Edgebanders BIESSE - RBO-STREAM SB Position 3: Panel Turning Device BIESSE - RBO-STREAM SB Position 4: Double Edgebanders BIESSE - RBO-STREAM SB Position 5: Automatic Drilling Machine BIESSE - RBO-STREAM SB Position 6: Automatic Drilling Machine BIESSE - RBO-STREAM SB Position 7: Panel Turning Device BIESSE - RBO-STREAM SB Position 8: Panel Stacking and Offloading BIESSE - RBO-STREAM SB

more

Listing

Wijchen

(dealership location)

7,560 km

Wide belt sander, sanding machine Biesse Artech

Biesse Artech Levia 110

Call

Condition: used, Year of construction: 2004, Wide belt sander Biesse Artech Levia 110 Built in 2004 380V Working width 1100mm Sanding belt dimensions 1120x2150mm Min/max working height 3-200mm Grzgclh Throughput speed 5-10 m/min Engine 11kW Required extraction capacity 2450 m3/h 1st sanding unit Kontactrol 2nd sanding unit Combination with shoe Transport dimensions 1700x1525x2150mm, weight 1400kg

more

Listing

Nevers

(dealership location)

7,693 km

Machining center Rover C6.65

BIESSE - C2902

€79,000

Vertical CNC Machine Centres

Call

Condition: ready for operation (used), Technical characteristics Capacity: 6200mm in x 1535mm in y Cuzbkjmmws 400mm in z 5 axis electric spindle 11kW HSK63F 10 ATS beam workbench with motorized movement (4 suction cups / beam) 15° rotation on vacuum modules Positioning defined by the numerical control and recorded on each program 14 position chain tool magazine Independent tool changer on the front panel (large diameter / blade) Windows Computer BIESSE WORK staircase software Laser and vices not included Safety conveyor Vacuum pump 250m³/h Ideal for the production of stairs and joinery Power and Motors Pluging: Three-phased Power: 21 Kw Overall dimensions Lenght: 9000 mm Width: 3000 mm Weight: 7200 Kg

more

Listing

United Kingdom

6,838 km

BIESSE SKIPPER V31

Call

Condition: used, machine/vehicle number: 005875, X axis working area: 2500 mm Y axis working area: 900 mm Number of controlled axes: 3 axes Total number of drilling spindles: 16 Ce7khlttkm

more

Listing

Nevers

(dealership location)

7,693 km

BIESSE ROVER A 1556

Call

Condition: ready for operation (used), Technical characteristics CNC ROVER A machining center BIESSE's Rover A series machining centers are specially designed for daily milling and drilling operations on panels, doors, component doors and furniture. The mobile gantry structure is made of extra-thick electro-welded sheet steel and stiffening hangers to minimize distortion during machining. For movement of the moving column along the longitudinal axis (X axis) and in the transverse direction (Y axis), BIESSE has opted for a rack-and-pinion solution, enabling higher acceleration and speed parameters than those achievable with a ballscrew. Controlled axis motors : Brushless motors, controlled by digital actuators. Hardened steel controlled axis guides. Automatic centralized lubrication system. Machine equipped with two vacuum pumps, 250 m3/h and 300 m3/h. Activation of vacuum and pneumatic systems is available from any point along the machine's X work zone. Working range (vertical electrospindle axis): X= 5540 mm Y= 1560 mm for 4 axes, 1570 for 5 axes Z= 230 mm with modules H=74 mm /Configuration 1B and 3B Z = 275 mm with modules H=29 mm / Configuration 1B and 3B 8 ATS aluminum worktops 1 X-axis metric ruler for correct positioning of worktops 8 metric rulers on Y axis for correct positioning of workpiece clamping systems 32 carriages 132 x 132 x H 41.5 mm Each carriage rotates the modules every 15° 32 plugs for closing the carriages Additional quick-fit connections for special jigs EPS (Electronic Positioning System) automatic positioning for worktops up to 1550 mm, allowing automatic positioning of clamping devices at selected points. An entire half machining zone can be positioned in hidden time while the machine is machining (avoiding major productivity losses). Each carriage is equipped with a blowing system to ensure that the machining plane on which it slides is always clean. 2 X-shaped machining zones Reference systems : Rear line stop with 115 mm travel Intermediate line stop positioned at 685 mm Front line stop positioned at 1348 mm 4 side stops with 140 mm travel (2 left and 2 right) 2 additional side stops (1 left and 1 right) 1 retractable linear stop for raw panels. Vacuum module 132 x 146 Vacuum module 132 x 75 Vacuum module 132 × 54 CFT system : Vacuum system for aluminum CFT modules, for left work area Aluminum vacuum module, dimensions : X=1250 mm, Y=625 mm, H=74 mm, for modular worktops With this solution, it is possible to prepare a continuous surface for thin/flexible panels or for nesting, bending, etc Uniclamp vice Support base 130 x 130 mm Flat disc 130 x 130 mm Double-movement Uniclamp vice Circular support base, diameter 130 mm Clamping workpieces thicknesses from 40 to 98 mm Horizontal vice, height 74 mm Chip and waste conveyor belt Configuration (3B) : Machining unit 5 axis 13kW electrospindle, up to 20000 RPM HSK F63 spindle Liquid-cooled C axis sewing : 360° continuous rotation Maximum undercut angle: -5°. Drilling unit BH 17 L drilling head Up to 17 independent tools Single and multiple drilling Work on all 5 faces of the workpiece and grooves with X-direction blade on the upper face. 10 independent vertical spindles, 32 mm centres 5 in X direction 5 in Y direction 3 opposite independent horizontal spindles, 32 mm pitch 2 in X direction Juxoytnp27 1 in Y direction 1 circular blade ⌀ 120 mm For groove in X direction (useful cut 25 mm) Multifunctional unit 1 circular blade ⌀ 300 mm 2 independent Z axes (1 for the electro-spindle and 1 for the drilling and multi

more

Listing

Nevers

(dealership location)

7,693 km

BIESSE ROVER 30XL3

€17,000

Call

Condition: ready for operation (used), Technical characteristics useful fields: 6000 x 1772.5 mm 1 4-axis spindle with HSK 63 tool charger, 12 positions 28 drilling spindles including 8 horizontal Dm2lfx 10 mobile beams with 3 suction cups + vices Machine to be restarted Course d'axe Y1850 mm Course d'axe X6860 mm Course d'axe Z275 mm Nombre de ventouses3 Nombre de poutres10 Capacité pompe à vide100 m3/h Power and Motors Overall dimensions

more

Listing

Nevers

(dealership location)

7,693 km

BIESSE ROVER 30S2

€12,000

Call

Condition: ready for operation (used), Technical characteristics 3-axis spindle, 11 kW, 1000 to 24000 rpm 10 Y / 10X vertical drilling unit 6 X / 2 Y horizontal drilling unit XNG digital control 2wivai 8-position on-board tool loader + pick-up loader on frame Machine to be restarted dimension plan de travail en Y1640 mm Dimension plan de travail en X3430 mm Caractéristiques usinageDrilling unitOnboard tool chargerNesting table Power and Motors Overall dimensions

more

Listing

Nevers

(dealership location)

7,693 km

Automatic panel saw

BIESSE SELCO EB75

€35,000

Dowel drilling line, unstacker stacker

Call

Condition: ready for operation (used), Technical characteristics Cutting dimensions : 4300 x 4300 mm Cutting height : 80 mm Blade diameter : 400 mm Scoring unit Carriage feed 60 m/min max Pusher feed max. 40 m/min 4 air-cushion tables 2000 mm 11 collets on pusher Numerical control panel with cutting optimization and management Bd29vcw3ao Power and Motors Voltage: 380 V Pluging: Three-phased Power: 9 Kw Overall dimensions

more

Listing

Nevers

(dealership location)

7,693 km

BIESSE COMIL RBO RBO

€43,000

Double moulding edgebanding

Call

Condition: ready for operation (used), Technical characteristics Single column unloader with suction cups. It is suitable for unloading in machining lines requiring machines with reduced dimensions. BODY OF THE MACHINE The machine is composed of a vertical column, a horizontal bracket fixed to the carriage, a carriage fixed to the bracket and a suction cup holder frame unit. The carriage slides on linear guides equipped with ball bearings and is driven by a gear motor controlled by a frequency variator. SUCTION CUPS PANEL COLLECTION GROUP It consists of a suction cups row containing 10 suction cups with bellows to facilitate the separation of the panel. Suction cup diameter of 95 mm. The suction cups are operated by a vacuum pump with a flow rate of 22 m3/h. ELECTRICAL CABINET The machine is equipped with a separate electrical cabinet, managed by a PLC operating logic. PROTECTIONS FOR THE PREVENTION OF WORK ACCIDENTS The machine is protected on all the action perimeter of the suction cups group by protective panels. The battery insertion area is protected by a grid with button opening. DIMENSIONS OF THE WORKABLE PANELS : Length: 320 to 2700 mm Width : 250 to 700 mm Thickness : 12 to 50 mm Maximum weight : 50 kg Pneumatic brake idler roller LOAD TRANSFER IN SINGLE LONGITUDINAL ROW Transfer of introduction with inclined rollers to the left, covered in PVC. The rollers are driven by small belts activated by a gear motor under the control of a speed variator. The transfer is also equipped with a left hand guide adjustable by handwheel. Structure The structure is made of welded steel, reinforced to ensure maximum stability and precision during the operating phases. Work surface The worktop is made up of a transfer in four independent sections. The first section includes : An input transfer with flat belts driven by an asynchronous motor controlled by a frequency converter The second and third sections (drilling planes) each include: A belt transfer with: flat belts driven by asynchronous motor controlled by frequency converter A lateral reference guide, installed on the left side of the machine, with lateral stop function Pneumatic end stops for the positioning of right and left panels A lateral presser guide to guide and clamp panels of different widths against the lateral reference stop. The fourth section includes: a belt transfer for the evacuation of the panels with : flat belts driven by asynchronous motor controlled by frequency checker. Machining center The first center consists of a mobile carriage along the X axis on which two independent drilling heads are installed along the Y and Z axes. Each drilling head is composed as follows: In the X direction, 10 independent vertical chucks Cuy9cysgpc In the direction of the Y axis, 9 independent vertical mandrels The second center consists of a mobile carriage along the X axis on which two independent drilling heads are installed along the Y and Z axes. Each drilling head is composed as follows: In the X direction, 10 independent vertical chucks In the Y direction, 9 independent vertical spindles. Each operating head is suitable for the installation of an additional operating unit to be chosen as an option Axis movements Precision linear guides with circulating ball bearings and brushless motors for X,Y,Z axes. Rectified helical rack coupled to two pinions to allow the recovery of the play along the X axis. Hardened and ground ball screw (Y,Z axis). Pneumatic balancing device (Z axis) of the drilling unit. Numerical control XNC model bas

more

Listing

Nevers

(dealership location)

7,693 km

BIESSE STREAM SB2 10.5

€98,000

Call

Condition: ready for operation (used), Technical characteristics Panel width : 240 mm to 1200 mm G7wwcup Panel length : 240 mm to 3000 mm Panel thickness : 10 mm to 60 mm Band thickness : 0,3 mm to 3 mm Pin inner axis : 500 mm ENTRY / EXIT : Transfer realised with special chains covered in stainless long lasting rubber Entry pivoting guides adjustable depending on panel type Closing device on above pressor to assure the pressing of the panel against the pins Delaying device in entry for optimization of different width panel dimensions Single part rigid structural longitudinal chassis ADVANCE CHAIN : Continuous speed tuning from 10 to 40 m/min by INVERTER CN direct numerical command The stop pins are automatically adjusted in height by CN and can have : height/thickness 12- 18-23 mm from the chain level Chain pin inner axis 500 mm BELT PRESSOR SOUNDPROOF CABINS All machining groups inside the machine are surrounded by soundproof material Internal lighting CN command placed at entry of the machine, fixed chassis side NUMERICAL CONTROL Video interface Positioning axis control Chain advance speed tuning Pressor height adjusting depending on panel thickness Automatic adjustment of band changing and band charger Moulding list management Sequenced motor startup Possibility of connection to a barcode reader Module NC410 MILLING GROUP Timed pneumatical anti shard action for transversal milling Tool rotation speed : 6000 rpm Motor power : 5.8 kW Tool Ø : 200 mm DOUBLE SUPERPOSED SPLINTERS Simultaneous displacement for thickness adjustment and independent adjustment vertical and horizontal Cast iron bearing structure Tool speed rotation : 6000 rpm Motor power : 5.8 kW Tool Ø : 205 to 250 mm EXTENSION MACHINE to 3200 mm AUTOMATIC CENTRAL SUPPORT 10.5 This device allows support of parts that due to their dimensions or thickness can subdue central bending Fully automatic activation GLUING GROUP SP3 Straight bands in resin, melamine, ABS, PVC, PP EVA basis thermoplastic glue Independent Teflon covered changeable glue tank Glue level sensor inside the tank Glue input roller speed synchronized with the chain advance Breveted pre fusion device Glue granule container (8kg) Band presence detection device Automatic band changing procedure 6 POSITION MOBILE BAND CHARGERS END CUTTING End cutting unit for edge thicknesses up to 3 mm Device for quick removal in stroke Automatic exclusion of the unit when the motors are stopped Speed : 12000 rpm Panel projection : 35 mm Edge thickness : 0.3 to 3 mm Panel thickness : 10 to 60 mm Interval between 2 consecutive panels : 350 mm WHOLESALE TRIMMING UNIT 2 superimposed motors with horizontal axis Automatic pneumatic exclusion of the group Speed : 12000 rpm Motor power : 1.3 + 1.3 kw Panel thickness : 10 to 60 mm Tool diameter : 80 mm ANGLE TRIMMING GROUP The adjustment of the position of the tool in relation to the material is automatic with predefined dimensions on 4 pre-adjustable in-line stops The in-line stops are automatically selected by the control Use on the MULTIPROFIL tool group to change profile/shape without replacing the tool Tools are equipped with 20° chamfer and 1.5-2-3 mm radius Speed : 12000 rpm Motor power : 0.65 + 0.65 kw Panel thickness : 10 to 60 mm TOP / BOTTOM ROUNDING GROUP Rounding copier for the upper and lower stops of the panel with oscillating movement for the continuation of the panel Quick release system of the motor-holder groups Automatic exclusion of the tool with stopped motors Tool rotation speed : 12000 rpm Motor power : 0.3 kw

more

Listing

Nevers

(dealership location)

7,693 km

BIESSE ROVER A SMART 1632

€78,000

Automatic loading panel saw

Call

Condition: ready for operation (used), Technical characteristics 5 axes table with brackets (3 suction cups) Dimension of work surface in X : 3280 mm Dimension of work surface in Y : 1620 mm Dimension of work surface in Z : 245 mm Magazine with 12 tool holders HSK 63 Spindle 13 kW Vertical / horizontal drilling unit + BH17L groove unit C7wfwpbgg Vacuum pump 250 m3/h BUSCH Scrap recovery belt PC control BSolid in network Power and Motors Power: 17.3 Kw Overall dimensions Weight: 3400 Kg

more

Listing

Nevers

(dealership location)

7,693 km

BIESSE EBTR 120 TWIN PUSHER

€110,000

Call

Condition: ready for operation (used), Technical characteristics Description : SELCO panel saw TYPE EBTR 120 Twin Pusher - 5600 x 2200 mm Numerical panel saw, with two independent automatic loading stations and electromechanical precision lifting table Principal technical characteristics Max cutting length : 5600 mm Max auxiliar pusher course : 4300 mm Max blade height from table level : 122 mm Max clamps opening : 110 mm Lifting table with direct loading : 5600 x 2200 mm Min panel dimension on loading position : 2440 x 1220 mm Min panel thickness from loading table : 10 mm Main blade motor 18,5 kW / 50Hz (25 Hp) Incisor blade motor 2,2 kW / 50 Hz (3 Hp) Brushless motor for blade chariot - Speed 1 -150 m/min Brushless motor for main pusher – Max speed 100 m/min 2 back rollers lateral alignment device with automatic positioning (60 mm to 2200 mm) Turning platform for automatic pre-cuts with 4 pile blocking device Auxiliar pusher TWIN PUSHER Main blade Ø 430 mm Incisor blade Ø 200 mm 4 pneumatical clamps with independent lifting in the transversal area for main pusher (placed at 70, 180, 390, 600 mm from the squaring line) 4 pneumatical clamps with independent lifting in the longitudinal area for main pusher (placed at 2235, 3845, 4650, 5450 mm from the squaring line) 4 pneumatical clamps with independent lifting in the auxiliar pusher (placed at 70, 180, 390, 600 mm from the squaring line) Air cushion rounded work plan 2050 x 850 mm for width optimization placement allowing simultaneous transversal cutting of several bands 4 air cushion tables 4 front transversal pre-aligning devices direct on the pile turning station 2 front and longitudinal pile aligning devices after the rotation Lifting loading table Auxiliar pusher for simultaneous different cutting phases, synchronized with main pusher The 2 pusher are managed by a software, which depending on the cutting instructions, selects the clamps of different pushers so that the insertion in the cutting zone is optimized to realize as many simultaneous cuts as possible The auxiliar pusher has 4 independent clamps and can be equipped with a fifth one (option). Automatic cut panels evacuation Heavy single structure, Industrial chassis, strong stability Cemented and calibrated chariot guiding rails, which supports the main blade and the incisor blade Les 2 pousseurs sont gérés par un logiciel qui, en fonction du schéma de découpe et des phases d'usinage nécessaires, sélectionne les pinces des divers pousseurs à Insérer dans la zone d'usinage afin de réaliser le plus grand nombre possible de cycles de découpe simultanés. Expulsion automatique des panneaux coupés Pressor group Lateral alignment group with 2 independent rollers The turning station has a lifting platform turning the panel pile at 90° which is held in place with blocking devices. The pile is then aligned by the front devices When the pre-cutting cycle is over the main part of the pile is returned again at 90° on the turning station, and the pre-cut part is sent to the transversal cutting operation PC Windows XP, 17" screen With cutting profiles, lists, manual cutting, simulation, diagnostic, online help, maintenance, statistics and settings Software and applicancies: "OPTIPLANNING" Pro Version software : Great number of cutting lists (including different types of material) allowing “all at once” optimization "IMPORT FILE" function Editing on external device and import files on machine PC. Automatic management of panel piles and waste material J0cdxy Panel stock and

more

Listing

Nevers

(dealership location)

7,693 km

BIESSE ROVER 24S

€12,000

Call

Condition: ready for operation (used), Technical characteristics Machining X 3180, Y 1340 Drilling capacity X 3405, Y 1260 Pneumatic locking HSK63 12 KW 3-axis electro-chuck Jfhqi29 Displacement 0-100 m / min 0-90 ° blade grooving group 14-pin vertical drilling unit, 6-pin horizontal, 15-inch screen control cabinet included SOFT and control Machine to be restarted Nombre de ventouses12 Nombre de poutres6 Caractéristiques usinageVacuum pump Capacité pompe à vide100 m3/h Power and Motors Overall dimensions

more

Listing

Nevers

(dealership location)

7,693 km

BIESSE ROVER 30S2

€14,000

Call

Condition: ready for operation (used), Technical characteristics 8 suction cup beams + vices Electrospindle 10.5 CV ISO 30 Cuzbzpyluf 8 on-board tool carrier charger 20 vertical spindles and 4 horizontal spindles drilling unit Machine to be restarted dimension plan de travail en Y1630 mm Dimension plan de travail en X3430 mm dimension plan de travail en Z185 mm Nombre de poutres8 Caractéristiques usinageEvacuation conveyorVacuum pump Capacité pompe à vide100 m3/h Power and Motors Overall dimensions

more

Listing

Nevers

(dealership location)

7,693 km

Panel saw

BIESSE EB75

€35,000

Vertical machining center

Call

Condition: ready for operation (used), Technical characteristics Cutting dimensions: 3800 x 3800 mm Max. blade projection from work surface (cutting height): 80 mm Main blade max. diameter 320 mm, motor 7.5 kW Scoring blade max. diameter 200 mm, motor 2.2 kW Blade carriage speed adjustable from 5 to 60 m/min Pusher feed up to 40 m/min Automatic lateral alignment device 4 air-cushion unloading tables, dimensions 2000 x 650 mm with rounded profile 6 pneumatic grippers (positioned at 50-360-990-1740-2490-3240 mm) Windows PC-based control 3800 mm pusher stroke Remote Start cycle pusher, including emergency pusher Kit for automatic blade protrusion and controlled presser opening Juxds9kryf QUICK CHANGE device (quick blade release) DIGISET function Power and Motors Voltage: 380 V Pluging: Three-phased Overall dimensions Weight: 3950 Kg

more

Listing

Nevers

(dealership location)

7,693 km

BIESSE SKIPPER V31

€33,000
