Used Dmg Mori Ultrasonic 20 Linear for sale (2)

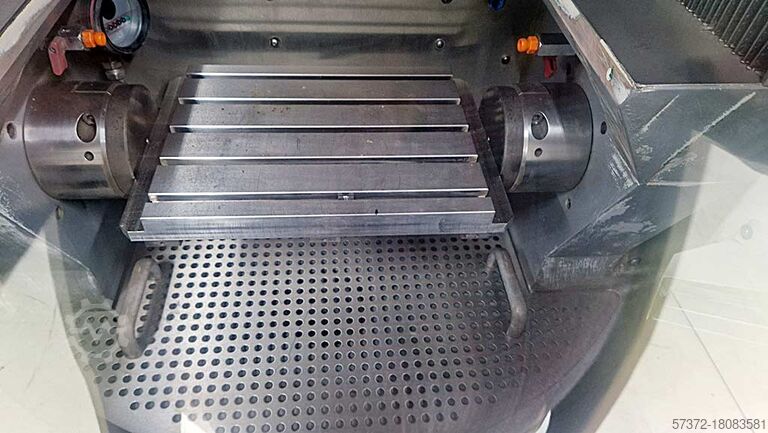

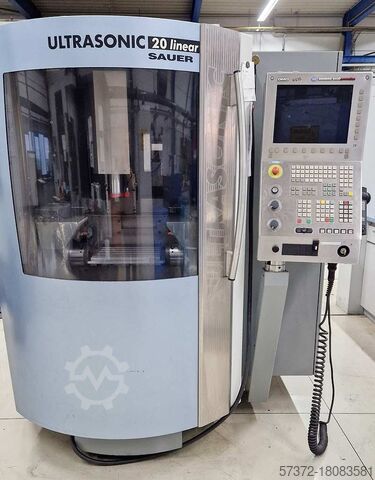

Condition: like new (used), Year of construction: 2015, operating hours: 1,000 h, functionality: fully functional, Equipment: documentation/manual, DMG MORI / SAUER GmbH ULTRASONIC 20 Machine Data Control system Heidenhain Axes 5 (X / Y / Z / A / C) Travel ranges X / Y / Z 200 / 200 / 280 mm Spindle speed max. 42,000 rpm Tool holder HSK-E32 Tool magazine 24 Rotary table Ø 190 mm Table load capacity, center 10 kg A-axis -5° / +130° C-axis 360° Rapid traverse 40 m/min Footprint L × W × H 2,020 × 2,196 × 2,385 mm Fuse rating 63 A Feed drive X / Y / Z Synchronous linear motors Feed rate max. 40,000 mm/min Bsdpfx Aloz Tc Tvozolp Input resolution 0.001 mm C-axis speed max. 150 rpm Table clamping Pneumatic / mechanical Tool length max., from spindle nose 200 mm Tool diameter max., automatic tool changer 40 mm Compressed air supply 6–10 bar Air consumption without tool blowing 12 m³/h Additional consumption with continuous tool blowing 25 m³/h Connection, weight, and dimensions Electrical connection 400 V / 50–60 Hz Machine weight 3,900 kg Tool weight max., automatic tool changer 1 kg Total weight of magazine tools max. 24 kg Compressed air connection min. Ø 12 mm Equipment and scope of supply 15 tool holders and other related accessories as shown in the offer photos are included. Technical data is subject to change without notice. Errors and prior sale are reserved. The specifications and scope of supply agreed upon in the purchase contract shall be the basis.

Year of construction: 2006, condition: ready for operation (used), A DMG Mori 3-axis precision milling machine is available. Travel X/Y/Z: 200mm/200mm/190mm, speed: 40000rpm, feed: 30m/min, accuracy: 0.001mm. Machine dimensions X/Y/Z: approx. 1800mm/1550mm/1850mm, weight: approx. 2200kg, control: Siemens 840D, operating hours: 4979h, spindle hours: 1041h. The spindle was completely overhauled in 2023. An on-site inspection is possible. Bjdpovi N D Sjfx Alzjlp
