Used Gildemeister Sprint 65 Linear for sale (236)

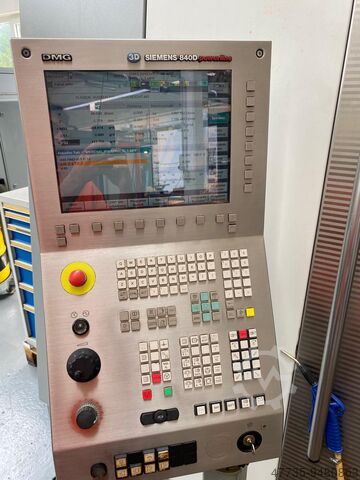

Year of construction: 2006, Condition: ready for operation (used), General Data Measurements width 1700 mm Measurements depth 4500 mm Measurements height 1900 mm Machine weight 6000 kg Control Unit Brand SIEMENS Model Sinumerik 840D Main Drive Cy8Fm7Yysq Spindle speed range 6000 rpm Spindle motor power 18.5 kW Number of axis 6 Media Chip conveyor Yes Additional Equipment Number of Tools: 12 Tools (including driven tools) Three turrets with 12 positions each, all positions support driven tools (VDI30 mount). Upper turret equipped with a Y-axis. Part catcher device with conveyor for part unloading Collet Chucks SK80: 18 units Angular Driven Tool Holders: 5 units Tool Holders for External Turning: Approx. 12 units for square 20 mm Angular Holders for Hole Turning: Approx. 12 units This 6-axis Gildemeister DMG GILDEMEISTER SPRINT Linear 65 was manufactured in 2006. A robust CNC Lathe with Linear Technology, it features a maximum turning diameter of 65 mm and length of 600 mm. Equipped with Siemens Sinumerik 840D control, three turrets, and Y-axis capabilities, it ensures precision and flexibility. If you are looking to get high-quality turning capabilities consider the Gildemeister DMG GILDEMEISTER SPRINT Linear 65 machine we have for sale. Contact us for more information about this machine. Application Types Turning

Condition: good (used), Year of construction: 2007, - SIEMENS 849 D control unit - Bar capacity 65 mm - Main and counter spindle with speed 5,000 1/min - C-axis, Y-axis - 3 turrets with 12 stations each (all driven) - Speed of driven tools 4,000 1/min TRAVEL X1= 165, Z1= 220 mm Ba3Rjk7R X2= 165, Z2= 150 mm X3= 165, Z3= 650, Y3= 80 (+50/-30) mm ACCESSORIES Coolant system Chip conveyor Bar feeder TOP Automazioni XF 375

Condition: used, Year of construction: 2006, spindle speed (max.): 5,000 rpm, total width: 45,000 mm, total length: 19,900 mm, total height: 23,000 mm, bar length: 600 mm, CNC Lathe (with 2nd spindle, 3 turrets and Y-axis) Spindle bore diameter 65 mm Spindle speed 5.000 R/min Spindle motor 25/20 kW Brvdwee8F93 Spindle speed counter spindle 5.000 R/min X-axis movement 165 / 165 / 165 Y-axis movement 80 mm Z-axis movement 220 / 150 / 650 mm W-axis movement (subspindle to mainspindle) 690 mm C-axis indexing 0,0001° Number of turret 3 Number of tools on turret 12 (3x 12) Tool taper VDI 30 Bar feeder LNS Quick Load Servo 65 If you have any questions concerning the machine, please do not hesitate to contact us by phone or e-mail. Feel free to view our other advertisements for a complete overview of our stock.

Condition: ready for operation (used), Year of construction: 2006, operating hours: 52,455 h, Functionality: fully functional, machine/vehicle number: 2501-0188, turning length: 600 mm, turning diameter over cross slide: 140 mm, turning diameter: 300 mm, spindle motor power: 25,000 W, spindle speed (min.): 5,000 rpm, spindle speed (max.): 5,000 rpm, travel distance Z-axis: 900 mm, rapid traverse X-axis: 3 m/min, rapid traverse Y-axis: 3 m/min, rapid traverse Z-axis: 3 m/min, rotational speed (max.): 4,000 rpm, rotational speed (min.): 4,000 rpm, torque: 239 Nm, bar passage: 80 mm, feed rate X-axis: 165 m/min, feed rate Y-axis: 165 m/min, feed rate Z-axis: 220 m/min, overall weight: 10,500 kg, Equipment: documentation/manual, Machine is still in use and can be seen working at VOVU Machining in Uden. In total there are 6 identical machines here. Fanuc 310is controller Uuomdubwmv

Condition: good (used), Year of construction: 2007, GILDEMEISTER CNC Turning Centre with 3 turrets, sub spindle and live tooling Type:SPRINT 65 Linear Year:2007 Control:ERGOline Touch FANUC 310iB – CELOS Spindle distance:900mm Main spindle speed:5000rpm Sub spindle speed:5000rpm Turrets 1, 2 and 3: -Width across flats:310mm -VDI30 -Number of driven tools:12atc Turret slide 1 (top left):XYZ:165/±40/420 Turret slide 2 (bottom / without a B-axis):165/640 Turret slide 3 (top right):165/420 With IEMCA MASTER 880r P-E bar feeder Ccckz8S Machine weight:10300kg Machine needs a repair in the top turret, the linear motor is defective Machine runs on the two bottom turrets Please Note: The above information has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. Specific tooling must be requested before purchasing, since machines are in production at time of photos and availability can not be guaranteed. We advise you to check any vital details!

Condition: excellent (used), Year of construction: 2007, Control Fanuc 310i-B MAIN SPINDLE - Spindle nose : A2-6 - Spindle power : 22 [kW] - Spindle speeds : 5000 [rpm] - Max. bar diameter : 65 [mm] - C axis indexing precision : 0.001 [°] COUNTER-SPINDLE - Spindle nose : A2-6 - Spindle power : 17.5 [kW] - Spindle speeds : 5000 [rpm] - Max. bar diameter : 65 [mm] - C axis indexing precision : 0.001 [°] - Travel : 690 [mm] - Spindle / counter-spindle distance : 950 [mm] UPPER LEFT TURRET - Number of positions : 12 - Number of motorized positions : 12 - X/Z stroke : 165/650 [mm] - Y stroke : +50/-30 [mm] - Tool type : VDI 30 - Live tools speed : 4000 [rpm] - Live tools power : 2.5 [kW] LOWER LEFT TURRET - Number of positions : 12 - Number of motorized positions : 12 - X/Z stroke : 165/220 [mm] - Tool type : VDI 30 - Live tools speed : 4000 [rpm] Gpdvfc - Live tools power : 2.5 [kW] LOWER RIGHT TURRET - Number of positions : 12 - Number of motorized positions : 12 - X/Z stroke : 165/150 [mm] - Tool type : VDI 30 - Live tools speed : 4000 [rpm] - Live tools power : 2.5 [kW] POWER SUPPLY - Supply voltage : 400 [V]

Year of construction: 2006, Condition: like new (used), With machine come 5 live tool holders and 5 normal tool holders. Ibpiba9 Parts shown by hand not come.

Condition: used, Year of construction: 2008, operating hours: 26,666 h, Functionality: fully functional, machine/vehicle number: 74001653, Gildemeister Sprint 65 linear CNC lathe, year of manufacture 2008 TECHNICAL DETAILS Main spindle: Control: Siemens 840D - Powerline Speed: 3250 rpm Power: 22 kW Torque: 150 Nm Bar capacity: 90 mm C-axis: 0.001° Workpiece clamping: Collet chuck, Hainbuch Spanntop size SK100BZ Flushing: Baking flushing from outside Counter spindle: Technology: Motorized spindle Speed: 5,000 rpm Power: 16.8 kW Torque: 100 Nm Bar capacity: 42 mm C-axis: 0.001° Workpiece clamping I: 3-jaw chuck, SMW autoblock KNCS-N-170-43 Workpiece clamping II: Differential pressure clamping Rinsing: Backflushing from outside Traverse path in W: 690 mm Rapid traverse in W: 30 m/min Tool carrier I (X/Z): Technology: Tool turret with 12 stations Tool holder: VDI 30 Tool drive: 4,000 rpm Traverse path in X/Z: 165/220 mm Rapid traverse in X/Z: 30 m/min Tool carrier II (X/Z): Technology: Tool turret with 12 stations Tool holder: VDI 30 Tool drive: 4,000 rpm Traverse path in X/Z: 165/150 mm Rapid traverse in X/Z: 30 m/min Tool carrier III (X/Y/Z): Technology: Tool turret with 12 stations Tool holder: Capto CDI68 Tool drive: 4,000 rpm Traverse path in X/Z: 165/80/650 mm Rapid traverse in X/Z: 40/30/30 m/min EQUIPMENT Chip management Chip conveyor Coolant management IKZ system with paper belt filter, temperature control and High pressure (7 bar at Rev. 1+2, 20 bar at Rev. 3) Raw material feed Breuning-Irco ILS-RBK 10016 Finished part removal Parts gripper + workpiece unloading belt C9Zphpy Tool breakage control Artis wear monitoring Emulsion mist extraction Mechanical separator Software package I Synchronous operation HSP/GSP Software package II Polygon turning Software package III Additional 4 M-functions Tool holder Various rigid and driven holders

Condition: used, Year of construction: 2006, spindle speed (max.): 5,000 rpm, total width: 45,000 mm, total length: 19,900 mm, total height: 23,000 mm, travel distance X-axis: 165 mm, travel distance Y-axis: 80 mm, bar length: 600 mm, CNC Lathe (with 2nd spindle, 3 turrets and Y-axis) Spindle bore diameter 65 mm Spindle speed 5.000 R/min Spindle motor 25/20 kW Bhnfcyvh Spindle speed counter spindle 5.000 R/min X-axis movement 165 / 165 / 165 Y-axis movement 80 mm Z-axis movement 220 / 150 / 650 mm W-axis movement (subspindle to mainspindle) 690 mm C-axis indexing 0,0001° Number of turret 3 Number of tools on turret 12 (3x 12) Tool taper VDI 30 Bar feeder LNS Quick Load Servo 65 If you have any questions concerning the machine, please do not hesitate to contact us by phone or e-mail. Feel free to view our other advertisements for a complete overview of our stock.

Condition: good (used), Year of construction: 2003, Functionality: fully functional, CNC turning-milling center DMG (Gildemeister MF Sprint 65 Siemens SINUMERIK 840 with tool drive in turret 1 and 2, counter spindle and NC dividing device for main and counter spindle, incl. integrated bar loading magazine Technical documentation 1 set of additional operating instructions in paper version Control extension C-axis operation for the main spindle Flat conveyor belt for removing finished parts Collet chuck, SPANNTOP system, D65 mm, complete with connecting parts Changing device, manual, size 65, Hainbuch company Dqqkg7 - For changing collets on collet chucks collet chucks from Hainbuch Three-jaw power chuck for the counter spindle counter spindle, chuck Ø 118 mm, Schunk company Centering steady rest for integrated bar feeder Steady rest jaws for centering steady rest, Blanks for boring to bar Ø required for each dimension Combination tool holder for material stop and remnant holder, complete, incl. rotating material stop

Condition: excellent (used), Year of construction: 1997, operating hours: 64,905 h, Functionality: fully functional, machine/vehicle number: 501637, bar diameter: 65 mm, number of slots in tool magazine: 16, Equipment: documentation/manual, No minimum price - guaranteed sale at the highest bid! TECHNICAL DETAILS Control: Sinumerik 840C Bar feeder: Irco RBK 7212, year of manufacture 1999 Bar length: 1 m Dqj09V Bar diameter: 65 mm Turret and spindle Turret: 2 pieces, 8 places each, VDI30, 4 driven tools each Main spindle: Hainbuch chuck Counter spindle: 3-jaw chuck MACHINE DETAILS Operating hours: 64,905 h Dimensions incl. bar loader and chip conveyor (LBH): approx. 6 × 2 × 2 m Weight: approx. 6.5 t Operating voltage: 50 Hz, 400 V EQUIPMENT - Fixture for finished parts - Cooling system - Chip conveyor - Documentation - Various guide tubes for the bar feeder - including 2 tool holders

Year of construction: 2015, Condition: ready for operation (used), Main spindle: max. bar capacity: 65mm, drawtube bore: 76mm, collet chuck diameter: 160mm, centering chuck diameter: 175mm, spindle nose: 140mm h5, speed: 5000rpm, torque: 150Nm, power: 22kW. Counter spindle: drawtube bore: 52.5mm, diameter of collet holder: 160mm, diameter of centering chuck: 175mm, spindle nose: 140mm h5, speed: 5000rpm, torque: 86Nm, power: 18kW. Travel X1/Y1/Z1: 165mm/40mm/300mm, travel X2/Y2/Z2: 165mm/40mm/640mm, travel Z3: 640mm. Tool positions: 12, tool holder: VDI 30 + TRIFIX. Machine dimensions X/Y/Z: approx. 6900mm/1700mm/2650mm, weight: approx. 10300kg, control: Siemens 840D SL, operating hours: 40540h, spindle hours: 26556h. Including automatic parts unloading, tool slide turret, pneumatic unit, coolant system, hydraulic system and lubrication system. Automatic parts unloading IRCO MUK 7012-II, year of manufacture: 2014, total conveyor path: 6m, conveyor width: 100mm, conveyor speed: 10m/min, max. load including pallet and product: 1.5kg. Documentation available. On-site inspection is possible. B9Ua0Vut

Condition: good (used), Year of construction: 2003, Functionality: fully functional, Control: Fanuc 160i B Main spindle Speed: 10,000 rpm Power: 5.5 kW Torque: 14 Nm Bar capacity: max. 20 mm C1 axis: 0.001 Z1 axis travel: 80 mm Counter spindle Speed: 10,000 rpm Power: 5.5 kW Torque: 14 Nm C2 axis: 0.001 Travel X2 / Z2 axis: 240 / 300 mm Rapid traverse in X2 / Z2 axis: 40 m/min Tool carrier I (X/Y) Technology: Linear slide Internal machining: 6 stations Tool holder: 20 mm External machining: 6 stations Tool holder: 12 x 12 mm Driven tool stations: 5 Tool drive: 3,450 / 6,000 rpm Tool holder: Collet chuck, ESX 16 Travel in X/Y axis: 50/350 mm Rapid traverse in the X/Y axis: 40/30 m/min Bar loader GENIUS 226 Tool carrier II (Y) Bl8G8C2Vouo Technology: Linear slide Internal machining: 4 stations Tool holder: 20 mm External machining: 4 stations Tool holder: 12 x 12 mm Driven tool stations: 5 Tool drive: 3,450 / 6,000 rpm Tool holder: collet chuck, ESX 16 Traverse path in Y2 axis: 120 mm Rapid traverse in the Y2 axis: 40 m/min MACHINE DETAILS Weight: 4200 kg Connected load: 30 kVA Operating voltage: 400 V / 50 Hz EQUIPMENT Chip management: Chip conveyor Coolant management: Other equipment: Signal lamp

Condition: used, TECHNICAL DETAILS - Number of spindles : 2 - Number of axes : 2 MAIN SPINDLE - Spindle speeds : 6500 [rpm] - Max. bar diameter : 42 [mm] - Max. turning diameter : 120 [mm] - C axis indexing precision : 0.1 [°] COUNTER-SPINDLE Bsamhlkpy9E - Spindle speeds : 6500 [rpm] - Max. bar diameter : 42 [mm] - C axis indexing precision : 0.1 [°] POWER SUPPLY - Supply voltage : 230 [V] - Total installed power : 7.5 [kW] WEIGHT & DIMENSIONS - Machine floor space : 5.400 x 1.900 [mm] - Machine height : 2.000 [mm] - Machine weight : 5.000 [kg] EQUIPMENT - CNC : FANUC 160i - Coolant tank - Chips conveyor - Parts catcher - Parts conveying strip - Bar loader : LNS HYDROBAR MINI-SPRINT

Condition: excellent (used), Year of construction: 2000, Hello. I have a CNC GILDEMEISTER MF Sprint 65 automatic lathe and milling machine to sell. TECHNICAL AND VISUAL CONDITION: VERY GOOD Type: CNC Automatic Lathe-Milling Machine Manufacturer: GILDEMEISTER Model: MF Sprint 65 Control: Siemens Sinumerik 840C Country of manufacture: Germany Year of manufacture 1999 Machine parameters: - 1 head: 8 - tools for VDI-30 toolholders (every 2nd socket driven) - 2 head: 8 - tools for VDI-30 toolholders (every 2 driven slots) - 2 x C axis - driven tools - storage - SIMAG rod feeder - max rpm 5000 /min. - max. rolling dia. X = 200mm - max. length of turning. Z = 300mm - chuck on the main spindle: Hainbuch BZI65 Dppv9T - three-jaw chuck on 125mm capture spindle - Capture spindle with C axis - receiver for finished workpiece - cooling system - chip conveyor - spindle bore: Fi-66mm - full programming manual - Documentation - machine weight: 6.5 tons Machine after full inspection. 100% operational. Connected and ready to work. Our company for many years engaged in machining on CNC machine tools, in addition, we also sell milling machines and CNC lathes which after importing from Germany we check in terms of technical. We carry out technical inspections, electrical, electronic as well as measuring accuracy. After conducting machining tests, the machine is offered for sale. As the machines we offer are known to us, there is the possibility of operator training on the use of control.

Condition: good (used), Year of construction: 1999, operating hours: 140,810 h, Functionality: fully functional, Gildemeister MF SPRINT 65 Machine no.: 07810000801 Control system: SINUMERIK 840 C Year of construction: 1999 Operating hours: 140810 Irco ILS short bar loader Annual maintenance by DMG, last maintenance 08.07.2024: Linear guide, axial bearing, KGT and adjusting nut of the X1 axis replaced Linear guide, axial bearing, KGT and adjusting nut of the Z1 axis replaced Linear guide, axial bearing, KGT and adjusting nut of the X2 axis replaced Linear guide, axial bearing, KGT and adjusting nut of the Z2 axis replaced. Replacement of all sliding plate wipers. Safety window of the work area door replaced. Replacement of all feed toothed belts and the toothed belts for the counter spindle drive Tool drive 1 dismantled, disassembled, cleaned and re-stored. Filter mat of the main spindle fan replaced, coolant valves of turret 1 and 2 replaced. Chuck of the main spindle and counter spindle dismantled and cleaned. Machine geometry and working area remeasured and adjusted. Hydraulic filter cartridges replaced. Pneumatic filter replaced. Technical data see appendix Machine can be inspected under power Price 35.000 € VHB C3P3Swhb The offer is subject to change and non-binding, changes and errors in the technical data or the equipment, as well as prior sale reserved Used machines are purchased as seen, without warranty claims. . Delivery ex works excluding packaging and insurance, unless otherwise agreed. The price does not include statutory value added tax. As is usual with used machines, payment is made before loading.

Condition: ready for operation (used), Year of construction: 2011, Functionality: fully functional, machine/vehicle number: 8086010645B, turning length: 320 mm, spindle speed (max.): 6,500 rpm, turning diameter: 42 mm, travel distance X-axis: 50 mm, travel distance Y-axis: 350 mm, travel distance Z-axis: 120 mm, TECHNICAL DETAILS Control: Fanuc 160i Workpiece diameter: max. 42 mm Workpiece length: max. 320 mm Bar passage: max. 42 mm Cccod7G X-axis travel: max. 50 mm Y-axis travel: max. 350 mm Z-axis travel: max. 120 mm Main spindle Spindle speed: 6,500 rpm Counter spindle spindle speed: 6,500 rpm Axes Number of linear axes: 6 Number of C-axes: 2 MACHINE DETAILS Weight: 4,700 kg Connected load: 40 kVA EQUIPMENT - Loading magazine Iemca Boss 545E 32 LL, 2011 - High-pressure system with integrated oil cooling - Kraft and Bauer extinguishing system - Chip conveyor system - Parts conveyor belt - Machine documentation

Condition: ready for operation (used), Year of construction: 2003, operating hours: 7,309 h, Functionality: fully functional, machine/vehicle number: 2301-0141, turning diameter: 33 mm, spindle speed (max.): 8,000 rpm, Equipped with C-axis for main and counter spindle as well as bar loader Iemca TECHNICAL DETAILS Turning diameter: max. 33 mm Speed: 8,000 rpm Number of axes: 8 pieces Control: FANUC Collet holder: for main and pick-up spindle Fixed tools: 5 positions 16x16 tool holder for slide 1 Rotating tools: 3 driven tools on slide 1 with ESX16 spindles Drive for rotating tools: Slide 2 Rotating tool speed: 6,000 rpm Tool holder: 4-fold tool holder Ø32mm MACHINE DETAILS Dimensions: 4,020 x 1,850 x 1,925 mm Machine weight: approx. 4,200 kg Connected load: 34 kVA Operating voltage: 400 V, 50 Hz Bar loader: IEMCA BOSS 545-E EQUIPMENT - Chip conveyor h=1100 mm - Pneumatic ejector and unloading system with belt - Cleaning system for counter spindle - collet chuck - Mechanical preparation for oil mist filter - Electrical and software preparation for bar loader Dpqwcz - Synchronization between main and counter spindle - Constant cutting speed and rigid thread cutting - Spindle speed control - Piece/time counter - Software for bar feed in overlapped time - Load Monitor Software (Tool Effort Management) - Instructions

Condition: used, Year of construction: 2013, turning diameter max. 20 mm turning length max. 80 mm control Fanuc 310is Main spindle: max. usable bar diameter 20 (25) mm inner draw tube diameter 28,5 mm Max. speed main spindle 10.000 min/-1 power capacity - main spindel 3,7 kW max. Torque 9,4 Nm C-Axis C1: 360 ° Subspindle: inner draw tube diameter 28,5 mm Max. speed main spindle 10.000 min/-1 power capacity - main spindel 3,7 kW max. Torque 9,4 Nm C-Axis C2: 360 ° axis stroke: x-axis 1: 50 / 2: 240 mm y-axis 1: 350 / 2: 120 mm z-axis 1: 80 / 2: 300 mm Linear tool panel carrier for slide 1: number of toolpositions 17 pos. inner processing 6 pos. outer processing 6 pos. driven statition 5 pos. Rqxfqx3Ndl Shank diameter 20 mm shaft cross cut 12 x 12 mm collet diameter ESX / ER 16 tool spindle speed range 3x 3.450 / 2x 6.000 min/-1 power capacity - driven tool-stations 5x 0.98 kW max. Torque 3x 4 / 2x 2,3 Nm Linear tool panel carrier for slide 2: number of toolpositions 13 pos. inner processing 4 outer processing 4 driven statition 5 pos Shank diameter 20 mm shaft cross cut 12 x 12 collet diameter ESX / ER 16 tool spindle speed range 3x 3.450 / 2x 6.000 min/-1 power capacity - driven tool-stations 5x 0,98 kW max. Torque 3x 4 / 2x 2,3 Nm feeds: rapid traverse ( X / Y / Z ) max. 40 m/min feed power max. 2,5 kN Accelaration max. 5 m/s² total power requirement 56 kVA weight of the machine ca. 4,8 t dimensions of the machine ca. 8,0 x 2,5 x 2,0 m CNC-Short-Lathe GILDEMEISTER - Sprint 20-8 - 8 Achsen ( 2x X / 2x Y / 2x Z / 2x C ) - Main- and Subspindle - Bar-Feeding-Magazine FMB turbo 3-36/ 3200A - Coolant System DELTATHERM

Year of construction: 2008, operating hours: 45,426 h, Condition: ready for operation (used), Control Unit Brand SIEMENS Model 840D Main Drive Number of axis 8 Bmefk3Upjy2 This 8-axis lathe, manufactured in 2008, the DMG Gildemeister Sprint 50 Linear, features a Fanuc 300I control system, 3 turrets, a sub-spindle, and comes with a diverse set of tool holders: 4x Z driven, 3x X driven, and 3x adjustable/X driven. Including 74687 operational hours and 45426 production hours, it also comes with a box of electrical/spare parts and a bar loader from IEMCA (Boss 552-HD). Consider the opportunity the DMG Gildemeister Sprint 50 Linear lathe we have for sale represents. Contact us for further details. Application Types Turning

Condition: excellent (used), Year of construction: 2005, Chip conveyor Dpb0B9 Iemca Boss 545/32 bar loader

Year of construction: 2006, Condition: ready for operation (used), General Data Measurements width 5026 mm Measurements depth 2036 mm Measurements height 1922 mm Control Unit Tw3Popzg Brand Fanuc Model 160i Main Drive Spindle speed range 6500 This Gildemeister Sprint 42 linear Lathe was made in the year 2006. It is equipped with a Fanuc 160i control unit. The machine has a spindle speed of 6500 rpm. Application Types Turning

Condition: good (used), Year of construction: 2003, Functionality: fully functional, Technical details turning diameter 600 mm turning length 2080 mm control Siemens 840 D powerline main spindle speeds: 20 - 2500 1/min. total power requirement 90 kVA weight of the machine ca. 12 t dimensions of the machine ca. 6205 x 2100 x 2300 mm Additional information Well-preserved CNC lathe The machine can still be viewed in production under power. Turning diameter 600 mm Swing diameter over X-slide 500 mm Swing diameter over bed 800 mm Turning length 2080 mm Spindle speed range 20 - 2500 rpm. Power of the main motor (100/40% ED) 40/52 kW Torque (100/40% ED) 1700/2200 Nm Rapid traverse range X60 / Z45 m/min C0Ftlcprj8 Spindle bore 136 mm Bar diameter 121 mm Net weight of the machine with chip conveyor 12800 kg Equipment and accessories: CNC path control Siemens 840 D powerline C-axis Speed ??range 0-100 rpm. Torque (40% duty cycle) 2200 Nm 12-way disc turret with driven tool stations Drive power (40% duty cycle) 15.7 kW Torque 50 Nm Max. speed 3500 rpm. Tailstock: Tailstock stroke 2100 mm Quill stroke 150 mm Quill diameter 120 mm Quill mount MK 5 Feed force 1800 daN PINTO power chuck, diameter 500 mm with large range of clamping jaws Steady rest SMW SLU-51-ZS, clamping range from 85 mm to 350 mm diameter Large range of tool holders: 12 external turning holders 12 internal turning holders 6 external cassettes 1 axially driven tool holder, Capto C5 Chip conveyor External coolant tank Note: The extraction system and the boring bars shown in the pictures are not included in the scope of delivery of the machine.

Condition: good (used), Year of construction: 2007, Functionality: fully functional, GENERAL Project No: 905695 Quantity: 1 pc. Manufacturer: GILDEMEISTER Type: TWIN 65 RG1 Control: Siemens 840 D powerline Year of Manufacture: 2007 Condition: Used Machine Machine on approx. [h]: 39.000 Programme run approx. [h]: 28.220 DESCRIPTION TURNING Max. turning diameter 100 mm Max. turning length 300 mm Max. Swing diameter over bed cover 145 mm Max. Clamping chuck diameter 140 mm Max. speed main spindle 5600 1/min Max. power main spindle at 10-40/100% duty ratio 20/15 kW Max. torque main spindle at 10-40/100% duty ratio 160/120 Nm Spindle bore main spindle 65 mm Axis at main spindle unit C Hollow clamping cylinder at main spindle 1 pc. Opposed spindle/-s ISM 42 Max. speed opposed spindle 5500 1/min Max. power opposed spindle at 10-40/100% duty ratio 26,5/20 kW Max. torque opposed spindle at 10-40/100% duty ratio 150/112 Nm Spindle bore opposed spindle 42 mm Axis at opposed spindle unit C Partial hollow clamping cylinder at opposed spindle Tailstock NC-controlled Tailstock quill reception MK 3 Tailstock quill stroke 230 mm 1 pc. Upper turret No. of stations/driven 12/12 Tool reception in turret VDI 25 Axis in turret X/Y/Z Dqqcjz 1 pc. Lower turret No. of stations/driven 12/12 Tool reception in turret VDI 25 Axis in turret X/Z FURTHER EQUIPMENT 2 pcs. Tool breakage control by wire Tool breakage monitoring by ARTIS Tool life time monitoring Fully enclosed work area Light in working area Oil-/emulsion mist extraction unit Chip conveyor Machine operates/operated with emulsion Flush gun Coolant unit with paperband filter Temperature controlled coolant High pressure pump 8/20 bar Part outfeed conveyor Finish-part pick-up unit Bar loader/magazine LNS Quickload Servo 3 Max. bar diameter 65 mm Max. bar length 1200 mm Warning lamp ACCESSORIES 2 pc. Collet chuck Dia 42 mm and Dia 65 mm 1 Set Collets 1 Set Tool holder for turning tools 1 Set Tool holder for driven tools GENERAL TECHNICAL DATA Mains fuse 100 A Total power requirement 65 kVA Machine weight approx. 5500 kg REMARKS We described the specified product with the upmost attention. As this product is not manufactured by us, the mentioned data and description can deviate. Herewith, we point out that they are non-binding and ask you to check them during your inspection.

Condition: excellent (used), Year of construction: 2002, Gildemeister DMG Mori CTX 420 V6-Linear Year of construction 2002 Siemens Sinumerik 840 D control system max. circulation diameter: 680 mm Rotation diameter over X-guide: 565 mm max. turning diameter: 324 mm max. turning length: 600 mm C-axis (main spindle) Speed: 250 rpm Holding torque: 200 Nm Pitch accuracy: 0.025 degrees Counter spindle Spindle head diameter flat flange: 140h5 mm Max. bar diameter: 42 mm Chuck diameter: 160 mm Spindle diameter in front bearing: 90 mm Spindle bore: 57 mm Drive power S1, 100% ED: 25 kW Speed range: 7000 rpm Torque S1, 100% ED: 160 Nm Buckling speed: 1500 rpm C-axis (counter spindle) Speed: 250 rpm Holding torque: 120 Nm Pitch accuracy: 0.025 degrees Cross slide X/Y/Z Face path X: 185 mm Longitudinal travel Z: 635 mm Ball screw Z (dxh): 40x15 mm Vertical travel Y: ±40 mm Ball screw Y (dxh): 40x5 mm Rapid traverse speed X/Y/Z: 60/15/45 m/min Feed force X/Y/Z: 3.5/7/7 kN Counter spindle Longitudinal travel Z2: 666 mm Rapid traverse speed Z2: 45 m/min Ball screw Z2 (dxh): 40x15 mm Dqoz8R Tool carrier Number of tools: 12 Shank diameter according to VDI 69880: 40 mm Power max. 100% ED: 9.4 kW Torque 100% ED: 20 Nm Speed range: 4500 rpm Electrical energy requirement: Connected load: 50 kVA Operating voltage: 400 V Frequency: 50 Hz Machine dimensions: 4890 x 2440 x 2090 mm Weight: approx. 6500 kg The machine is currently still in full operation at our customer and can be inspected by appointment.
