Used Elumatec Sbz 130 for sale (99)

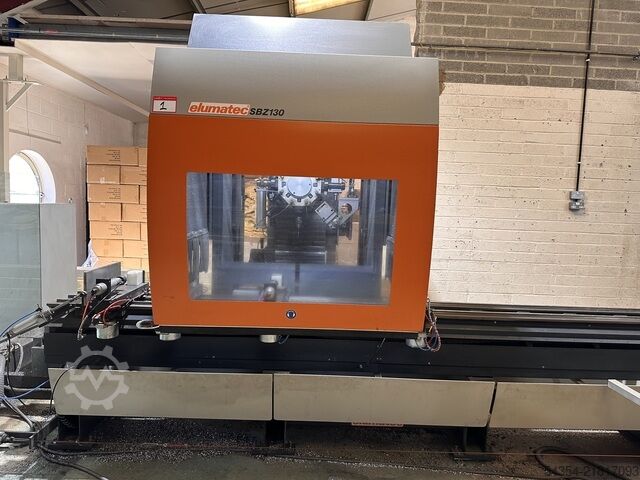

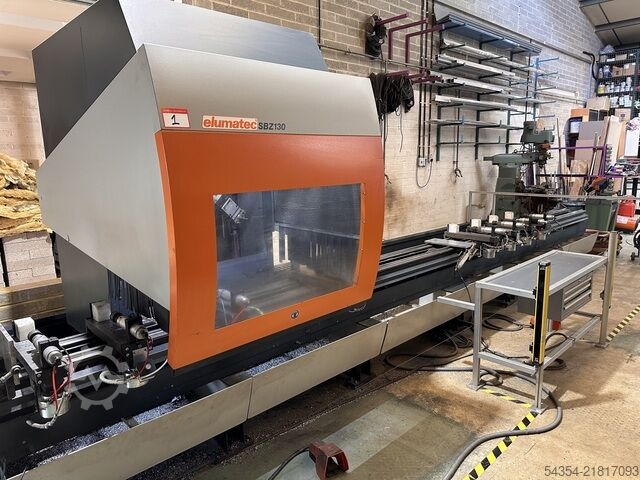

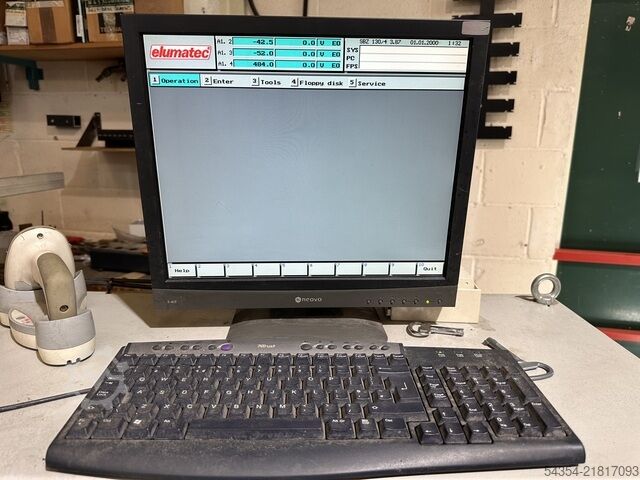

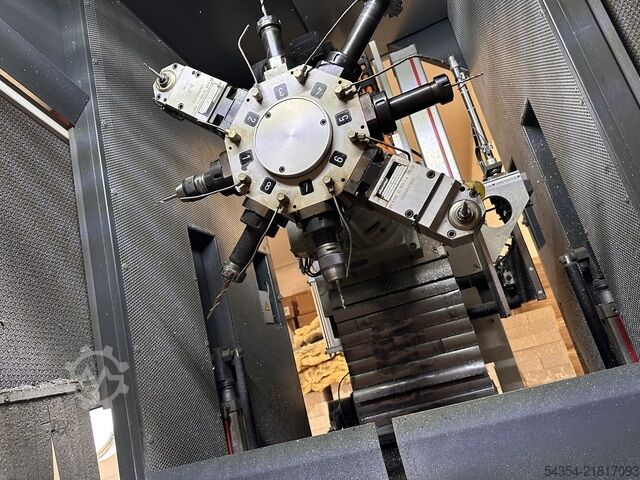

Year of construction: 2009, Condition: used, 3-axis machining center with automatic 8-way tool changer for aluminum, PVC or steel profiles Max. processing length: 7200 mm Max. travel Y-axis: 480 mm Max. travel Z-axis: 325 mm Windows control with Elusoft dongle Speed infinitely adjustable up to 6,000 rpm minimum quantity spraying 2 angle heads, one rotatable 1 slow-speed spindle for steel profiles clamp detection and displacement 8 pneumatic material clamps Pendulum operation possible through 2 light barrier areas Pslhcdwou T Nm Njxspr Loading included in the price Weight: approx. 5,000 kg

Condition: ready for operation (used), Year of construction: 1999, Control Unit Brand Ferrocontrol Model 3.204 Main Drive Spindle speed range Up to 6000 rpm Tool taper BT30 Movement X-Axis Movement 6500 Y-Axis Movement 400 Z-Axis Movement 380 Ppoleuyntkehcdwxer Additional Equipment For additional info, see the manual attached. This 3-axis Elumatec SBZ 130 vertical machining centre was manufactured in 1999. It features a working range of X=6500mm, Y=400mm, Z=380mm, and a Ferrocontrol 3.204 control system. The revolver tool magazine holds 8 tools with a maximum speed of 6000rpm and a BT30 clamping cone. If you are looking to get high-quality milling capabilities consider the Elumatec SBZ 130 machine we have for sale. Contact us for more information. Application Types Milling

Year of construction: 2003, Condition: good (used), Functionality: fully functional, machine/vehicle number: 1300030464, For sale on customer order: Profile processing machine SBZ 130 with a length of 7,500 mm - automatic clamp positioning Pjlhcdevx N Ebewxepr - pneumatic protective cover - 3 angle milling heads - 1 x high-speed spindle - various collet chucks - barcode scanner - clamping jaws

Condition: excellent (used), Year of construction: 2003, Functionality: fully functional, machine/vehicle number: 1300030446, travel distance X-axis: 6,450 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 380 mm, workpiece length (max.): 6,500 mm, rotational speed (max.): 6,000 rpm, number of slots in tool magazine: 8, Equipment: rotational speed infinitely variable, The machine will be delivered free-loading on a truck. TECHNICAL DETAILS X1-axis travel: 6,450 mm X-axis travel: 300 mm Y-axis travel: 400 mm Z-axis travel: 380 mm Feed rate X1 / X, Y, Z: 34 / 18 m/min Pjlhov Im S Djcdwxopr Tools Turret: 8 slots Tool diameter: 80 mm Oscillating operation: possible Tool change time: 1.2 s Spindle speed: 6,000 rpm Spindle power: 5.5 kW Tool taper holder: BT 30 Collet holder: S15 Clamping connections: 12 MACHINE DETAILS Air consumption per cycle: 180 l Dimensions: 9,800 x 3,000 x 2,400 mm Height with hood open: 3,300 mm Weight: 5,400 kg FEATURES - Automatic clamp adjustment - Continuously adjustable speed - Measuring plate included Delivery: EXW - free truck

Condition: used, Year of construction: 1999, x-axis 6450 mm y-axis 400 mm z-axis 380 mm working lenght 6500 mm Number of tools 8 St. tool taper BT30 tool changing time 1,2 sec diameter of tools max. 80 mm turning speeds 6000 U/min Feed speed X = 34 m/min. Polhcet H Sn Rodwxspr Feed speed Y+Z = 18 m/min. total power requirement 8,5 kW dimensions 9800 x 3000 x 2400/3300 mm weight 5400 kg *Bar machining center, 3-axis machining of aluminum, plastic, steel and stainless steel profiles*

Year of construction: 2010, Condition: excellent (used), Functionality: fully functional, Application type: Milling Machine type: Vertical machining center. Technical specifications - Elumatec SBZ 122/64 Width: 8450 mm Depth: 3400 mm Height: 2560 mm Weight: 3400 kg Control unit replaced in 2023 Main CNC language: German Customizable CNC language: Yes. Main Drive Number of Cycles: 1 Ppolhcowfrhqsdwxsr Spindle Speed Range: 24,000 RPM Power: 21 kW Movement X-Axis Movement: 6700 mm Y-Axis Movement: 350 mm Z-Axis Movement: 280 mm Work Table Outer Length: 6700 mm Number of T-Slots: 2 Available Tool Slots: 10 Max. Tool Weight: 4 kg Max. Tool Diameter: 80 mm Max. Turret Length: 200 mm Main Power Supply: 400 V Total Power Requirements: 30 kVA. The machining center has two stops and can therefore be double-loaded or handle profiles up to 6.5 m long. It has two tool magazines and an angle head. The machine can be inspected while powered.

Year of construction: 2019, Condition: ready for operation (used), General Data Measurements width 1600 Measurements depth 7550 Measurements height 1450 Machine weight 5500 Main Drive Main motor power 4000 W / 5.5 PS Psleubfk Hohcdwxjpr Additional Equipment 2 carbide saw blades for aluminum and plastic Diameter: 420 mm, number of teeth: 96 Saw blade cooling equipment Small stop for the stationary head Profile lifting bars for the stationary and moving head Work piece support that can be moved on the machine bed Two cutting and oversize cutting software solution Software connection to production preparation program Pneumatic clamping unit, horizontal Roller track mounted on a moving head 1.5 meters, 300 mm wide General Data Measurements width 1600 Measurements depth 7550 Measurements height 1450 Machine weight 5500 Main Drive Main motor power 4000 W / 5.5 PS Additional Equipment 2 carbide saw blades for aluminum and plastic Diameter: 420 mm, number of teeth: 96 Saw blade cooling equipment Small stop for the stationary head Profile lifting bars for the stationary and moving head Work piece support that can be moved on the machine bed Two cutting and oversize cutting software solution Software connection to production preparation program Pneumatic clamping unit, horizontal Roller track mounted on a moving head 1.5 meters, 300 mm wide This 3-axis Elumatec SBZ 131 pipe saw was manufactured in 2019. It features a 7.2-meter cutting length, 4-axis control for precise aluminum and steel processing, and a revolver head with storage for 8 tools. The machine ensures operator safety with a light barrier and protective grid. It's ideal for complete profile processing without moving the raw material. Buy this Elumatec SBZ 131 pipe saw for efficient and accurate work. Contact us for further details regarding this pipe saw. Application Types Milling

Year of construction: 2017, Condition: ready for operation (used), Functionality: fully functional, Aluminum machining center. 4 axes. Completely renovated. Has the option to work with a 6 meter long profile, the option to import from the NCX organization, profile length measurement, bar code scanner. Possibility of testing the machine and inspecting the machine in the company. Pslowfqtrjhcdwxopr

Year of construction: 2021, operating hours: 4,000 h, Condition: ready for operation (used), Functionality: fully functional, machine/vehicle number: 1220099982, Profile Machining Centre – ELUMATEC SBZ 122.75 The ELUMATEC SBZ 122.75 is a high-performance 5-axis CNC machining centre designed for efficient and precise processing of aluminium, light metal, and similar profile materials. Engineered for versatility and speed, it offers advanced automation and powerful cutting capabilities, making it ideal for demanding production environments. Key Features: Polhcowcxppjdwxopr 5-axis simultaneous machining for complex geometries and versatile profile processing High axis speed of up to 120 m/min for reduced cycle times Automatic tool changer for increased efficiency and minimized downtime Generous working envelope: X-axis: 4,167 mm Y-axis: 1,040 mm Z-axis: 540 mm High-speed spindle operating at up to 20,000 rpm Spindle runtime: approximately 4,000 hours – well-maintained and ready for continued use This machine is an excellent solution for manufacturers looking to boost productivity, precision, and automation in profile machining applications.

Condition: ready for operation (used), total height: 2,950 mm, total length: 11,400 mm, net weight: 4,900 kg, total depth: 3,350 mm, - 4-assig industrieel profielbewerkingscentrum - type SBZ 140 - Kan tot 5 zijden van een profiel bewerken - Bewerkingsmogelijkheden: boren, bewerken en draadtappen - Maximale bewerkingslengte met profielkopbewerking: 7480 mm - Maximale bewerkingslengte zonder profielkopbewerking: 7600 mm - De asgestuurde freeskop kan het profiel traploos bewerken op elke positie tussen 0° en 180° met alle beschikbare gereedschappen - 8 gereedschappen - 8 beweegbare klemmen - barcodelezer automatisch profielmeetsysteem 2 extra clips compleet materiaal afstandsbedieningsconsole voor SBZ 140 8x verstelbaar klemmateriaal automatische detectie van de klempositie automatische positionering van eindapparatuur microdoseersysteem (gereedschapssmering) veiligheidsafdekking veiligheidslicht centrale spaanafvoer 2x pneumatische nul-aanval apart klemsysteem (shuttle) - Hoek: +90° -90° Nieuwprijs was 189.000 euro Longitudinal travel X-axe: 7900 mm Crosstravel Y -axe: 850 mm Travel Z-axe (Height): 650 mm Power on spindle: 6 kW Ppolhcsv Tamrodwxer Admission in millingheadspindle (ISO): HSK-63 F Max speedrange: 24 000 rpm

Year of construction: 2013, Condition: good (used), Functionality: fully functional, machine/vehicle number: 6300001143, elumatec sawing center type SBZ 630/01 - maximum profile length 7.500mm - feed magazine for 7 profiles with 200mm width - 90° cuts over Y/Z axis Pslhcdstpcg Newxepr - 45°-90°-135° tilting over Y/A axis - 45°-90°-135° tilting over Z/C axis - controlled material clamping - saw motor power 7.5 kW - controlled saw feed - including automatic chip removal belt Machine can be viewed working and will be available July 12

Year of construction: 2012, Condition: used, 3-axis machining center with automatic tool change for aluminum or PVC profiles Max. travel X-axis: 3,850 mm Max. travel Y-axis: 350 mm Max. travel Z-axis: 280 mm Windows 7 control with USB ports Speed continuously adjustable up to 24,000 rpm handheld control unit minimum quantity spraying Tool changer with 2 magazines (total 10 places plus angle head) profile length measuring system on the head tensioner detection and tensioner displacement Just under 1300 spindle hours Light barrier A total of 5 material clamps Spindle in mint condition, spindle pull-in force: 16 kN Safety fence dismantled, but demonstration is still possible Ppjlhsv Rd Eyocdwxor Additional stop with roller conveyor for longer parts Weight: approx. 2,000 kg

Year of construction: 2006, operating hours: 30,000 h, Condition: used, Functionality: fully functional, The Elumatec SBZ 608 is a 5-axis machining center specifically engineered for post-processing operations, including screwing reinforcement, drilling, and milling profiles. It is widely used in the production of windows, doors, and facade walls, offering precision and efficiency for high-cross-section profiles. Built in 2005, it is a robust solution tailored for small to medium-sized companies in the construction and manufacturing sectors. Ppelsv S Di Iehcdwxor

Year of construction: 2008, Condition: excellent (used), Processing center elumatec SBZ 609 for profile processing. Equipped with 19 tools. Automatic screw code scanner. The machine has a protective fence on the right and left side of the machine. Completely renovated. New tools built in. Replaced consumable parts. Pjlovxbftjhcdwxspr

Year of construction: 2009, Condition: ready for operation (used), X-travel: 3850mm, y-travel: 350mm, z-travel: 280mm, working length: 3850mm, max. feed rate y and z/ x-axis: 30/ 50m/min, positioning accuracy: +/- 0,1mm, milling spindle rotational speed: 1-21.000/min, with electronic three-axis industrial PC-controls of which 2 axes as path control, with color screen and disk drive, barcode scanner and label printer. Ppolhcdovzx Iqswxer

Condition: good (used), Year of construction: 2009, Functionality: fully functional, machine/vehicle number: 122009984, travel distance X-axis: 3,850 mm, travel distance Y-axis: 350 mm, travel distance Z-axis: 280 mm, rotational speed (max.): 24,000 rpm, number of slots in tool magazine: 8, No reserve price - guaranteed sale at the highest bid! Ppolhcjvyg Szodwxer For milling, drilling and thread cutting work on aluminum, PVC and thin-walled steel profiles for applications in window, facade and metal construction! CONDITION Spindle: New bearings Frequency converter: Recently replaced Tool change: Automatic tool change requires a new sensor - little effort TECHNICAL DETAILS Areas of application: Aluminum, PVC and steel processing Software/control: PC-based EluCam software Processing area X-axis travel: 3,850 mm Y-axis travel: 350 mm Z-axis travel: 280 mm Feed rates (rapid traverse) X-axis: 60 m/min Y-axis: 30 m/min Z-axis: 30 m/min Spindle Power: 7 kW Max. speed: 24,000 rpm Tool holder: HSK-F63 angle head (as new, hardly used) Tool changer Type: Automatic tool changer Places: 8 Vices Number: 12 pneumatic double vices Safety equipment Included: light barrier and safety fence MACHINE DETAILS Machine weight: approx. 2,000 kg Dimensions: approx. 5.1 x 3.4 x 2.6 m

Year of construction: 2009, Condition: excellent (used), Functionality: fully functional, Length stop and measuring systems Roller conveyors Saw blades High performance cutting fluid Technical Data Pivoting range manually 22.5° to the left and right with digital display E111 Tilting range pneumatically from 90° - 45° For cutting range, see cutting diagram Saw blade diameter 420 mm Saw blade speed 2,800 rpm Power supply 230/400 V, 3~, 50 Hz Power output 4 kW Compressed air supply 7 bar Air consumption per working cycle 20 l without spraying, 32 l with spraying Length 1,400 mm, depth 1,500 mm, height 1,880 mm, weight 750 k Ppelhcdevwc I Towxor

Year of construction: 2000, Condition: repair required (used), Functionality: limited functionality, machine/vehicle number: 1500050136, Technical data: - Travel X-axis: 7300mm - Travel Y-axis: 1000mm - Travel Z-axis: 650mm - Swivel angle A-axis: 0-90° freely programmable - Swivel angle C-axis 0-355° freely programmable - Max. processing length without front-side processing: 7300mm Polhov Avg Hocdwxopr - Max. processing length with front-side processing: 6980mm - Tool changer with 10 places and a saw blade holder Bo72Ttwr8E - 9 material clamps - Tool holder SK30 - 2-layer processing

Condition: ready for operation (used), Year of construction: 2006, operating hours: 32,000 h, Functionality: fully functional, Elumatec SBZ 620 kombinira funkcionalnosti modela SBZ 610 (07/2006) i dvije linije SBZ 609 (08/2008). Ova modularna konfiguracija omogućava visoko učinkovitu obradu PVC profila pružajući maksimalnu preciznost i produktivnost. SBZ 610 je središnji modul za rezanje i obradu profila, dok SBZ 609 služi za brzo i precizno uvrtanje ojačanja, bušenje i glodanje već izrezanih profila. Kombinacija ovih modula u liniji SBZ 620 omogućava automatizirani proizvodni proces s optimiziranim protokom materijala i smanjenje otpada. Ppelhcjv S Agrodwxjr

Year of construction: 2009, Condition: used, 4-axis machining center with 8-way tool changer for aluminum or PVC profiles Max. processing length: 13,000 mm Y-axis travel: 850 mm Z-axis travel: 650 mm Swivel angle A-axis: 0° - 180° Max. Speed 21,000 rpm Pjlhcdsvwl Ucswxepr New PC with Windows 7 in 2020 minimum quantity spraying Tensioner detection and automatic displacement saw blade with 254 mm diameter from 2020 Pendulum operation through two light barrier areas Completely new spindle with 18 kN pull-in force Angle head for machining from below Barcode scanner Loading is included in the price Weight: approx. 6,500 kg

Year of construction: 2016, Condition: good (used), Functionality: fully functional, machine/vehicle number: 6280028128, Machine is provided "free loaded truck". No dismantling and loading costs! TECHNICAL DETAILS Max. profile cutting width: 320 x 160 mm Min. profile cutting width (depending on gripper position): 30 x 10 mm Raw material system Length of the raw bar system: 7,600 mm Finished part system Finished part length: 3,500–4,600 mm Kurt cell Kurt cell (50-150/150-350): optional Feed system Shortest raw bar length: 1,500 mm Swing arm selection: 5 (option 9) Support plate: 10 (over 120 mm 5) Infeed Servo drive: linear Gripper adjustment electric: Y/Z Gripper guide: standard Remnant piece measurement: optional Remnant piece processing: fully automatic Processing station Number of axes: 5 Milling spindles: 8 (can be prepared) Saw Number of axes: 3 Saw blades (diameter): Ø 550 mm, optional Ø 650 mm Saw angle: 22.5°–157.5° (swivel) Notch cuts: standard (from above) Outfeed chip carriage Number of axes: 1 Outfeed conveyor Lifting station: yes Swing selection: 5 Width of outfeed conveyor: 4,000 mm Ppolhcsvvu S Isdwxjr MACHINE DETAILS Dimensions: 20 x 3 x 4 m Weight: 8.8 t Connection power: 39 kW Operating voltage: 3/N/PE 400 V EQUIPMENT - Feed magazine - Loading transport - Processing station with milling unit, saw unit and clamping blocks - Unloading transport of profiles (removal gripper) and unloading conveyor - Acoustic protection cabin - Control panel on the soundproof cabin - Control cabinet - Fencing and protective doors

Condition: good (used), Year of construction: 2010, Machining center ELUMATEC SBZ 608, year of manufacture 2010, from left to right, available at short notice Pslhcsvmrq Nsdwxspr

Condition: excellent (used), Year of construction: 2016, operating hours: 1,395 h, Functionality: fully functional, machine/vehicle number: 1400040877,  4-axis (X, Y, Z, A) center,  For economical and efficient machining of aluminum profiles and thin-walled steel profiles,  Version with air-cooled milling spindle,  All machining processes such as milling, drilling and threading take place on a stationary profile,  Smooth machining using all tools,  Simultaneous tool magazine ensures short tool change times and, as a result, optimal machining cycles,  Magazine can be equipped with eight tools,  Windows operating system  Machine equipped with eluCam program  Max. length of machining fields with front machining: 4200 mm  Max. length of machining fields without front machining: 4320 mm  Automatic length measurement on both sides,  Barcode reader, Ppelhcdouc U S Nswxsr  Stationary tool magazine (8 slots),

Year of construction: 2010, Condition: used, 3-axis machining center with automatic tool change for aluminum or PVC profiles Max. travel X-axis: 3,850 mm Max. travel Y-axis: 350 mm Max. travel Z-axis: 280 mm Windows control with USB ports Speed continuously adjustable up to 24,000 rpm handheld control unit minimum quantity spraying Ppjlhcdovg Apcowxer Tool changer with 2 magazines (total 10 places plus angle head) profile length measuring system on the head tensioner detection and tensioner displacement Light barrier A total of 5 material clamps Spindle in new condition, spindle pull-in force: 15.5 kN Safety fence dismantled, but demonstration is still possible Weight: approx. 2,000 kg

Condition: excellent (used), Year of construction: 2013, operating hours: 7,810 h, Functionality: fully functional, machine/vehicle number: 1400040686, travel distance X-axis: 7,600 mm, travel distance Y-axis: 850 mm, travel distance Z-axis: 650 mm, rapid traverse X-axis: 65 m/min, rapid traverse Y-axis: 60 m/min, rapid traverse Z-axis: 60 m/min, total height: 2,950 mm, total length: 11,340 mm, total width: 3,430 mm, overall weight: 4,900 kg, spindle speed (max.): 24,000 rpm, operating hours of spindle: 7,810 h, number of spindles: 1, Equipment: cooling unit,  4-axis (X, Y, Z, A) center,  For economical and efficient machining of aluminum profiles and thin-walled steel profiles,  Version with liquid-cooled milling spindle,  All machining processes such as milling, drilling and threading take place on a stationary profile,  Smooth machining using all tools,  Co-rotating tool magazine ensures short tool change times and, as a result, optimal machining cycles,  The magazine can be equipped with eight tools,  Two separate machining zones allow machining in shuttle mode (option),  Windows operating system,  Machine equipped with eluCam program, Ppelhcsuc U Rfjdwxjr  Max. length of machining fields with front machining: 7600 mm,  Max. length of machining fields without front machining: 7720 mm,  Machining on two stations in shuttle mode,  Automatic length measurement on both sides,  Possibility of clamping two profiles,  Barcode reader,  Stationary tool magazine (8 sockets),  Concurrent tool magazines for the angle head  eluCad office software package for optimized production management
