Used Kallfass Universa 500 for sale (5)

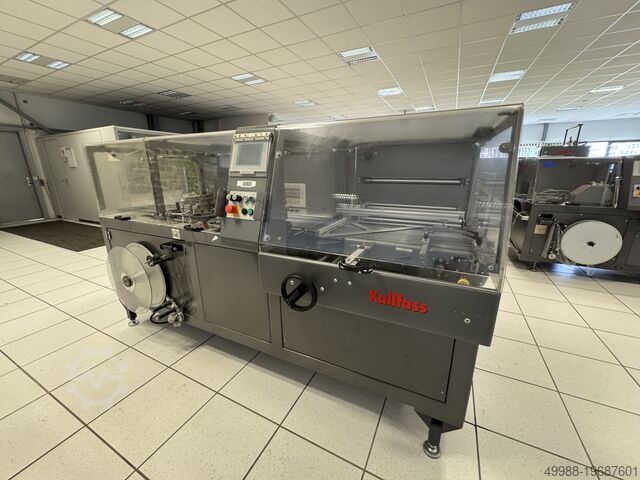

Condition: used, Year of construction: 2007, functionality: fully functional, Universa 500 Servo with Kallfass Compact Tunnel Year of manufacture: 2007 The machine will be cleaned and overhauled prior to delivery. Installation and training in Western Europe and parts of Eastern Europe are included in the purchase price. The Universa 500 Servo is a film packaging machine with a continuous motion sealing bar. The output is specified as up to 100 cycles per minute, depending on the type of film and product. The sealing bar has a width of 550 mm. The maximum product height is 200 mm. Packaging performance depending on product and film: 100 cycles/min Length of cross sealing bar: 550 mm Max. passage height of sealing bar: 200 mm Gijdpfx Asy Nx Dgohvou Min. product length: 80 mm Film: centre-folded film, approx. 12 - 80 µm Film roll holder: arranged at floor level for easy loading Max. film roll outer diameter: 400 mm Max. film roll width: 600 mm Conveyor speed: variable 10 - 40 m/min Sealing system: continuously heated sealing bar with replaceable sealing strip, temperature control and monitoring PLC user interface: Touch panel, SIEMENS TP 270 Programmable logic controller: SIMOTION® by SIEMENS® Film and product transport via vacuum conveyor to the continuous motion cross sealing unit Replaceable sealing strip; available in different profile shapes for optimal sealing seam quality depending on product and film Position-controlled product flow. No tedious readjustment of timing values required when changing formats or speed Power supply: 400 V three-phase, 50 Hz with protective earth, without cable and plug Rated power: 5 kVA Rated current (at 400 V): 7.3 A Available languages: German, English, French

Condition: used, Year of construction: 2007, functionality: fully functional, Universa 500 Servo with Kallfass Compact Tunnel Year of manufacture: 2007 The machine will be cleaned and overhauled prior to delivery. Installation and training in Western Europe and parts of Eastern Europe are included in the purchase price. The Universa 500 Servo is a film packaging machine with a continuous motion sealing bar. The output is specified as up to 100 cycles per minute, depending on the type of film and product. The sealing bar has a width of 550 mm. The maximum product height is 200 mm. Packaging performance depending on product and film: 100 cycles/min Length of cross sealing bar: 550 mm Max. passage height of sealing bar: 200 mm Min. product length: 80 mm Film: centre-folded film, approx. 12 - 80 µm Gedpfx Ahsy Nxvpjvoiu Film roll holder: arranged at floor level for easy loading Max. film roll outer diameter: 400 mm Max. film roll width: 600 mm Conveyor speed: variable 10 - 40 m/min Sealing system: continuously heated sealing bar with replaceable sealing strip, temperature control and monitoring PLC user interface: Touch panel, SIEMENS TP 270 Programmable logic controller: SIMOTION® by SIEMENS® Film and product transport via vacuum conveyor to the continuous motion cross sealing unit Replaceable sealing strip; available in different profile shapes for optimal sealing seam quality depending on product and film Position-controlled product flow. No tedious readjustment of timing values required when changing formats or speed Power supply: 400 V three-phase, 50 Hz with protective earth, without cable and plug Rated power: 5 kVA Rated current (at 400 V): 7.3 A Available languages: German, English, French

Condition: used, Year of construction: 2010, functionality: fully functional, Manufacturer: KALLFASS Model: UNIVERSA 500, year 2010 Model: Shrink Tunnel COMPACT 650 SO, year 2010 Giodpfx Ahoxnzlhjvju SPECIFICATIONS KALLFASS UNIVERSA 500 - fully-automatic side sealer Transverse seal bar, length: 500 mm Product clearance height: up to 200 mm Power supply: 208 - 480 volt Film, center-folded film: 12 - 80 μm Transport speed: 10 - 35 meter / minute Packaging capacity, max.: 85 cycles / minute Technical Data Compact 650 SO Tunnel clearance in width: 650 mm Tunnel clearance in height, adjustable: 100 - 400 mm Length of the heated tunnel hood: 1100 mm Air-flow regulation with patented ring nozzle system: standard Maintenance free plastic-mesh-belt: standard Transport speed infinitely variable, frequency controlled: approx. 10 – 35 m/min. Capacity of the tunnel blower infinitely variable, frequency controlled: standard Energy saving 2-stage heating with special insulation in tunnel hood: standard Temperature control by means of electronic thermostat: switching precision +/- 0.2° C Wear resistant and contactless temperature control: standard safety device according to EC regulation machines EN 60204: limit temperature control: standard Working height, adjustable: 800 - 900 mm Power supply: 400 Volts, 50 Hz, with protective earth conductor Heating capacity, installed, 2-stage switchable: 9.0 + 4.5 kW Rated capacity: 14.5 kVA Nominal current at 400 V: 21.0 amps Total connected load: max. 37.0 amps (incl. add. three phase power supply) Position of control cabinet and operating side: left hand side in working direction

Condition: refurbished (used), Year of construction: 2016, functionality: fully functional, Used machine Manufacturer: Kallfass GmbH Model: Fully Automatic Side Sealing Machine Universa 500 Year of manufacture: 2016 Dimensions: approx. 2150 x 1800 x 1550 mm (L x W x H) Weight: approx. 1050 kg Transverse sealing bar: 500 mm Film: semi-tubular film, approx. 12 - 80 µm Max. film roll outer diameter: 400 mm Max. film roll width: 600 mm Min. product length: 80 mm Passage height: 200 mm Working height: 780 - 930 mm Power connection: 400 V three-phase, 50 Hz with protective earth Rated power: 3.5 kVA Rated current: 5.1 A Fully automatic tubular bag machine for packaging products—regardless of their length—in full wrap and without film overlap. Product feed is via a conveyor belt with simultaneous wrapping in a semi-tubular film using a forming shoulder. Product indexing is controlled by a photoelectric sensor. The infeed conveyor can be easily adjusted for different product widths. Longitudinal sealing is achieved by a continuous side sealing unit. The height of the forming shoulder and the sealing units can be adjusted manually. Manufacturer: Kallfass GmbH Model: Shrink Tunnel Compact 650 S Year of manufacture: 2016 Dimensions: approx. 1850 x 1400 x 1450 mm (L x W x H) Weight: approx. net 580 kg / gross 630 kg Technical Data: Godpfjyw Rn Tjx Ahvsiu Tunnel passage width: 650 mm Tunnel passage height: 200 mm fixed Length of heated tunnel hood: 1200 mm Working height: 800 - 900 mm Power connection: 400 V three-phase Energy consumption: approx. 6 kWh Rated current at 400 V: 21.0 A in standalone operation Compact and cost-effective shrink tunnel featuring a patented ring nozzle heating system with highly effective air volume control. Equipped with a steplessly adjustable plastic modular belt. This tunnel is particularly suitable for shrinking small to medium-sized products at medium output rates. Offer validity: 30 days, subject to prior sale Function guarantee, no warranty

Condition: refurbished (used), Year of construction: 2008, functionality: fully functional, Fully automatic side sealing machine for packaging products – regardless of their length – with full wrapping and without film overlap. The maximum output is 120 cycles/minute. Product feeding is performed via a conveyor belt while simultaneously inserting the product into a center-folded film through a forming shoulder. The infeed conveyor can be easily adjusted for different product widths. The film tube containing the wrapped, aligned products is completely sealed on the side via a side sealing unit. After the product is wrapped with film, transverse sealing is carried out by a continuously heated, follow-along sealing system. The height of the forming shoulder and sealing units is manually adjustable. The remaining film scrap is taken up by a film winder. Wearing parts and defective components have been replaced. The machine has been technically inspected by Kallfass and is fully functional. Gsdpjw E Igvofx Ahvjiu Technical data: Transverse sealing bar: 550 mm Film: center-folded film, approx. 12–80 µm Maximum film roll outer diameter: 400 mm Maximum film roll width: 600 mm Minimum product length: 120 mm Minimum product width: 80 mm Working height: 780–930 mm Tunnel passage width: 450 mm Tunnel passage height: 200 mm Inspection and demonstrations are possible at our premises by appointment. Functional guarantee, no warranty.
