Used Mitutoyo Coordinate Measuring Machine for sale (110)

Condition: like new (used), Year of construction: 2019, Type: QV AKTIVE 202 Model: QV-L202Z1L-D Range (X, Y, Z axis) with Vision Head: 250 x 200 x 150 mm Max. table load: 10 kg Resolution: 0.1 μm Illumination: (White LED) • Contour Pgodpfx Aioxztgksrst • Coaxial • 4-quadrant ring light Magnification system: Zoom optical system with 8 positions, standard 1.5X magnification lens Sensor type: High-resolution CMOS color camera Additional lenses: 1X and 2X magnification Accuracy: E1 (x, y) = (2+0.3 L/100) μm E1(z) = (3+0.5 L/100) μm E2 (XY) = (2.5+0.4 L/100) μm L = measured length (mm)

Condition: ready for operation (used), Year of construction: 1992, Measuring Range X – axis 700 mm Y – axis 1000 mm Z – axis 600 mm Podpfxjgvg I Es Airsgt Accuracy acc. ISO 10360 E = [4,0 + 5,5L/1000] µm at temperature range 18 … 22 °C wax. workpiece weight 800 kg base material granit fixing holes M8 x 1,25 Scalesystem Mitutoyo Linear Scales resolution 0,0005 µm DCC Controller Mitutoyo CMMC-3S DC motors all axis Guideways air earings Tilt&swivel head Renishaw PH1, option PH9 or PH10M Probesystem Renishaw TP200 Computer Windows 10 Workstation Software MCOSMOS-1 V3.5

Condition: not inspected (used), Mitutoyo Quick Scope QS250Z1J Measuring range (X×Y×Z): 200×250×100mm Resolution / length standard: 0.5μm / linear encoder Image transmission unit: 1/3" color CCD camera Measuring accuracy: XY: (2.5 + 6L/1000) μm Z: (5 + 6L/1000) μm Moving speed (max): 80mm/s Acceleration/deceleration (max): 250mm/s² Pjdpfx Ajzb U Anoiregt Glass size: 269 × 311 mm Maximum load capacity: 10kg Illumination: Contour illumination: 12V/30W halogen Reflective illumination: 12V/50W halogen Fiber optic ring illumination: 12V/100W halogen Main dimensions (W×D×H): 465 × 815 × 663mm Weight: 76 kg (169 lbs) Maximum power consumption: 970W Optical system 0.5X–3.5X (20X–137X monitor magnification), 8 steps, 7X zoom. Required operating software Mitutoyo Quick Scope QS250Z1J is the default operating and measuring software for QSPAK

Condition: good (used), Year of construction: 1992, Measuring Range Pjdpfx Ajhrulksirsgt X – axis 700 mm Y – axis 600 mm Z – axis 450 mm Accuracy acc. ISO 10360 E = [4,0 + 5,5L/1000] µm at temperature range 18 … 22 °C wax. workpiece weight 500 kg base material granit fixing holes M8 x 1,25 Scalesystem Mitutoyo Linear Scales resolution 0,0005 µm DCC Controller Mitutoyo CMMC-3S DC motors all axis Guideways air bearings Tilt&swivel head Renishaw PH1 (PH10 on demand) Probesystem Renishaw TP200 Computer Windows 10 Workstation Software MCOSMOS-1 V3.5

Condition: excellent (used), Year of construction: 2015, 3D CNC image processing measuring machine with touch-trigger probe Measuring range (X × Y × Z): 300 x 200 x 200 mm Scale resolution: 0.1 µm Max. table load: 20 kg Image measurement accuracy: EUX,MPE/EUY,MPE = (1.5+3L/1000) µm EUZ,MPE = (1.5+4L/1000) µm EUXY,MPE = (2+4L/1000) µm L: measuring length in mm Optics: programmable zoom changer 1x-2x-6x Illumination: Psdpfx Aexztl Toiregt Transmitted light: white LED Coaxial light: white LED PRL: white LED

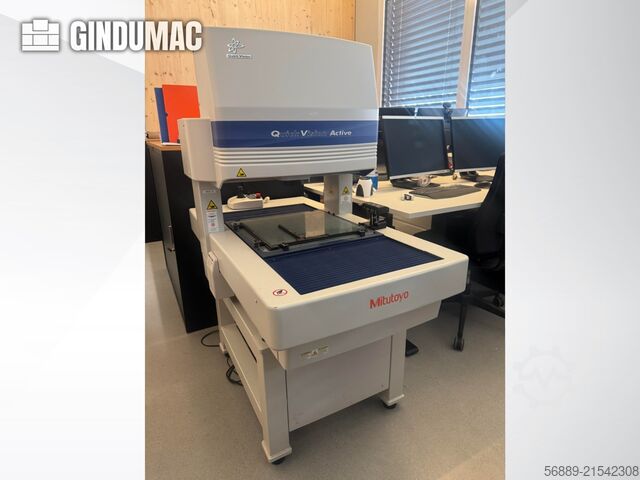

Condition: ready for operation (used), Year of construction: 2020, total height: 1,529 mm, total width: 776 mm, travel distance X-axis: 400 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 200 mm, overall weight: 324 kg, number of axes: 3, This 3-axis Mitutoyo QV-L404Z1L-D was manufactured in 2020. It features an X-axis travel of 400 mm, Y-axis travel of 400 mm, and Z-axis travel of 200 mm. The machine is equipped with advanced measurement capabilities, including video and touch probe measurement methods. If you are looking to get high-quality measurement capabilities, consider the Mitutoyo QV-L404Z1L-D CMM machine we have for sale. Contact us for further details. • Last calibration: 06 September 2022 • X-axis travel: 400 mm • Y-axis travel: 400 mm • Z-axis travel: 200 mm • Resolution: 0.1 µm (0.0001 mm) • Length measurement accuracy XY: (2 + 3L/1000) µm • Length measurement accuracy Z: (3 + 5L/1000) µm • Length measurement accuracy E2XY: (2.5 + 4L/1000) µm • Machine depth: 1303 mm • CNC control: Yes • Control software: QVPak V13.3 Pgjdpfx Asyvqqfoirst • Operating system: Windows 10 64-bit • Measurement display: 3D graphical measurement display • Programming interface: EasyEditor • Edge detection: Advanced recognition algorithms • Camera type: High-resolution CMOS color camera • Communication: USB 3.0 • Zoom system: 7-step zoom lens • Measurement methods: Video measurement; Touch probe measurement; Multi-sensor measurement; Automatic measurement sequences • Measurement capability: Micro and nano feature measurement Additional equipment • Touch probe type: TP20 • Probe modules: 2 standard force modules • Probe module type: TP20 standard force • Stylus holder: 5-way holder • Stylus length: 13 mm • Stylus diameter: 10 mm • Probe changer: MCR20 • Probe changer capacity: 3 ports • Calibration ring: Ø20 mm • Reference sphere: Ceramic master ball Ø15 mm • Machine stand: QVST-4L • Power cable: CH type 1.8 m • Computer type: Dell Precision workstation • Processor: Intel Xeon W-2223 3.6 GHz • Monitors: 2× Dell UltraSharp U2421E • Additional software: QV Partner Manager V3.1 • Statistical software: MeasLink Real-Time Professional V9

Condition: excellent (used), Year of construction: 1999, Mitutoyo Euro C9166 Apex Measuring ranges 900x1600x600mm Accuracy 2,9 + 4L/1000µm Software selectable: - Mitutoyo MCOSMOS-1 V3 (upgrade V5 for € 4.000,--) - EasyCMM I++ Server plus Inca Professional (€ 8.000) Probe Renishaw PH1 with either: - Renishaw Touch probe TP200 - Renishaw Touch Probe TP20 Selectable options: - Renishaw PH10 (T oder M) - New PH10M or Tplus Head and Probe (upgrade) - Bilz Pneumatic Vibration Damping System on demand Installation & Calibration and software training Pgjdshtqxuopfx Airst (plus additional travel expenses) Including 3 Month Warranty on machine and probe (excl. travel expenses)

Condition: excellent (used), Mitutoyo contour&roughness measuring machine Formtracer CS 3000 H4 in very good condition measuring ranges: Z = 5mm (stage 350mm) X = 100mm Machine was completely overhauled und got a used PC (new installed) and nearly new software Formtracepak 5.3 Overhauled measuring table (50x100mm) and self centering vice for € 2.000,-- on demand. Included are a lot of measuring tip (new price appx. € 3.000,--) Pgedpfx Ajp Ecg Rsirot Optionally we offer installation, calibration and softwaretraining Price is for delivery inside european union

Condition: ready for operation (used), Year of construction: 2006, travel distance X-axis: 905 mm, travel distance Y-axis: 2,005 mm, travel distance Z-axis: 605 mm, overall weight: 3,900 kg, number of axes: 5, This 5-axis Mitutoyo Crysta-Apex C9206 was manufactured in 2006. It features an impressive X-axis travel of 905 mm, Y-axis travel of 2005 mm, and Z-axis travel of 605 mm. The machine includes a measuring table size of 1080 x 2720 mm, providing ample space for various applications. If you are looking to get high-quality measurement capabilities, consider the Mitutoyo Crysta-Apex C9206 CMM machine we have for sale. Contact us for further details. • Measuring table: 1080 x 2720 mm Pgsdpfx Aoy Andpeirst

Condition: ready for operation (used), Year of construction: 2018, travel distance X-axis: 900 mm, travel distance Y-axis: 1,600 mm, travel distance Z-axis: 600 mm, overall weight: 2,947 kg, number of axes: 3, This 3-axis Mitutoyo Crysta-Apex S9166 was manufactured in 2018. It features a comprehensive measuring range with X-axis at 900 mm, Y-axis at 1600 mm, and Z-axis at 600 mm. Equipped with CNC control and MCOSMOS-3 CNC V4 software, it includes a Renishaw PH10MQP R2 indexing probe head and SP25M scanning probe system. Additional equipment includes eco-fix CMM fixturing systems and a high-capacity CEE power cable. Consider the opportunity to buy this Mitutoyo Crysta-Apex S9166 CMM machine. Contact us for more information. • Control & software: CNC control; MCOSMOS-3 CNC V4 • Probe system: Renishaw PH10MQP R2 indexing probe head; SP25M scanning probe system; multiple stylus holders (SH25-2); starter probe kit (M3); ceramic calibration sphere Ø20 mm (with factory certificate) • Option: Gear measurement option purchased in 2021 • Condition/usage: Machine was in the quality control room for final inspection • Mounting plates: All aluminum mounting plates installed on the measuring machine Additional equipment • Workstation (PC, keyboard, mouse) • 2× HP 23" monitors (1920 × 1080) • USB dongle / Wibu-Box license • eco-fix CMM fixturing system (kits S and L) • Quick-rail base kit • J/S Box-M Type A • High-capacity CEE power cable • Various buttons, 5-10 pieces (6 adapter plates)Height-adjustable desk1 tool trolley with contents3x large aluminium plates 800x40030 small aluminium plates with various fixtures. 250x250Centre clamp vice / 3-jaw chuck, etc. Pgedpfx Aisydm Hkeret

Condition: excellent (used), Mitutoyo Type: QS250Z Mitutoyo QS250Z CNC Vision Measuring Machine – Year of manufacture: 2017 – incl. software & accessories For sale is a high-quality Mitutoyo QS250Z CNC vision measuring machine from 2017, in excellently maintained condition. This is a precise optical coordinate measuring machine for non-contact measurement of workpieces. Ideal for quality assurance, incoming goods inspection, production, precision engineering, electronics, plastics technology, and much more. What can the device do? The QS250Z is a CNC-controlled optical measuring machine for: - 2D coordinate measurement - Contour and profile measurement - Distance, radius, angle, and diameter determination - Measurement of bores, grooves, edges, and complex geometries - Serial measurements with automated measurement programs - Documentation and report generation via Mitutoyo software Measurement is non-contact via a high-resolution camera system with image processing. Ideal for sensitive or small parts where tactile measurement is unsuitable. Thanks to CNC control, automated measurement procedures are possible – perfect for recurring testing processes. Technical data: Model: Mitutoyo QS250Z Machine type: CNC Vision Measuring Machine Year of manufacture: 2017 Code No.: 359-508-10Y Manufacturer: Mitutoyo Corporation, Japan Electrical data: 200–240 V AC 50/60 Hz Power consumption: approx. 500 W Fuse: 250V T 2.5A Dimensions (approx.): Width: approx. 700–800 mm Depth: approx. 900 mm Height: approx. 1,100 mm Weight (approx.): 150–200 kg Important notice: "The table shown in the photos is not included in the sale." Condition: used Scope of delivery: (see picture) - Mitutoyo QS250Z main unit - Joystick box Psdpfxeynkbaj Airjgt - Software package: - QS-ConfigDisk - QSPAK - FORMTRACERPAK-AP - MiCAT Vision / Form - Manuals & documentation - Various electronic boards (see pictures) - Further accessories as shown (Technical data and information subject to change and error!) For further questions, please feel free to contact us by phone.

Year of construction: 1993, condition: good (used), Measuring Range X – axis 700 mm Y – axis 1500 mm Z – axis 600 mm Accuracy acc. ISO 10360 E = [4,0 + 5,5L/1000] µm at temperature range 18 … 22 °C wax. workpiece weight 800 kg base material granit fixing holes M8 x 1,25 Scalesystem Mitutoyo Linear Scales resolution 0,0005 µm DCC Controller Mitutoyo CMMC-3S DC motors all axis Guideways air earings Tilt&swivel head Renishaw PH1 manual, PH9 or PH10M as option Probesystem Renishaw TP200 Podpfxegvg I To Airogt Computer Windows XPP Workstation Software MCOSMOS-1 V2.4

Condition: ready for operation (used), Year of construction: 2004, total height: 2,730 mm, product length (max.): 1,470 mm, CMM machine manufactured in 2004. This Mitutoyo Crysta-Apex C 776 features a measuring range of 700 mm in both X and Y axes, and 600 mm in Z. It includes advanced components such as a motorized Renishaw probe head and automatic temperature compensation. If you are looking to get high-quality measurement capabilities, consider the Mitutoyo Crysta-Apex C 776 machine we have for sale. Contact us for further details. • Accuracy: MPEE = 1.9 µm + 4·L/1000 (with Renishaw TP200 probe) Pgjdpfsyhgbpsx Airet • Temperature compensation: Automatic temperature compensation (temperature sensor) • Controller: UC200H (including scanning card) Additional equipment • Probe head: Motorised Renishaw PH10M (7.5°), PHC10-3 head controller, PI200 interface • Probing system: Renishaw TP200 with 3× TP200 STD force modules • Probe changer: Renishaw SCR200 with 6 parking positions • Stylus set: Basic stylus set (5 pcs) • Calibration equipment: Ceramic calibration sphere Ø 20 mm • Software: MCOSMOS v4.3 with CAD option; active modules: GEOPAK, CAT1000S, IGES, STEP, STATPAK, Scanning Probes, Laser Probe Support, Export Status Information • Computer system: Industrial PC with Windows 10 operating system

Condition: excellent (used), For sale: precision toolmakers' microscope from renowned Japanese manufacturer Mitutoyo, model TM-101 (Code No. 176-901). This device is designed for inspection of dimensions, shapes, profiles, surfaces, and contours in tool rooms, measurement laboratories, and quality control departments. Manufacturer: Mitutoyo Mfg. Co. Ltd. Japan Type: TM-101 Mitutoyo digital readouts on X and Y axes with ABS and INC functions, preset, and data output Measuring cross-table with rotation and adjustment Lighting functions: Surface, Contour, Main Power supply: AC 220V, 50–60 Hz, 8 VA Robust, stable industrial construction Very good condition, complete device, technically fully functional and ready for operation. Ideal for measuring cutting tools, milling cutters, drills, inserts, inspection of precision components, as well as contour, thread, and geometry measurements of workpieces. Pjdsw R E Hijpfx Airegt

Condition: used, Technical details: x-axis: 1000 mm z-axis: 600 mm diameter: - mm measuring range Y-axis: 972 mm interface: RS-232 tool taper: - weight: 40 kg power consumption: 100 Watt Floor Space WxD: 1,2 x 0,8 m Mitutoyo Linear Height 600 Height Gauge with Wenzel Precision Granite Surface Plate (Optional) The granite surface plate is not included in the sale but can be purchased separately. For sale is a high-quality Mitutoyo Linear Height 600 digital height gauge, designed for accurate 2D measurement tasks in quality control, toolmaking, manufacturing and inspection departments. Mitutoyo Linear Height 600 ·Precision digital height measuring instrument ·Measuring range: 600 mm ·RS232 data output ·Made in Japan ·High accuracy and repeatability ·Ideal for quality assurance and manufacturing environments Measurement Capabilities ·Height measurements ·Internal and external dimensions ·Hole center distances ·Center point determination ·Step measurements ·Diameter measurements ·2D measurement applications ·Angle measurements (with optional accessories) Optional: Wenzel Precision Granite Surface Plate ·Size: 1000 × 630 mm ·Manufacturer: Wenzel Precision ·Inspection date: 07.11.1989 ·Permissible flatness deviation: 0.008 mm Pgjdpfszbqypex Airet ·Measured flatness deviation: 0.005 mm ·Weight: approx. 280 kg An excellent solution for toolrooms, quality control laboratories, precision engineering and manufacturing facilities. *

Condition: excellent (used), functionality: fully functional, measuring range X-axis: 100 mm, measuring range Z-axis: 1 mm, travel distance Z-axis: 550 mm, Mitutoyo roughness measuring machine Surftst SV 3100 H4 in very good condition measuring ranges: Z = 0,8mm (stage 550mm) X = 100mm Machine was completely overhauled und got a used PC (new installed) and nearly new software Formtracepak 4.0 machine will be equiped with a very new roughness sensor (4mN) Pgjdpfx Aisrdg H Uerjt Overhauled measuring table (50x100mm) and self centering vice for € 2.500,-- on demand. Optionally we offer installation, calibration and softwaretraining Price is for delivery inside european union

Condition: like new (used), Year of construction: 2020, functionality: fully functional, machine/vehicle number: 62286233, measuring range X-axis: 400 mm, measuring range Y-axis: 400 mm, measuring range Z-axis: 200 mm, total width: 1,303 mm, total length: 776 mm, total height: 1,004 mm, overall weight: 324 kg, workpiece weight (max.): 20 kg, Equipment: documentation/manual, 📏 As New Mitutoyo QV Active 404 CNC Vision Measuring System for Sale – High-Precision, Non-Contact Metrology Upgrade your inspection capabilities with the Mitutoyo QV Active 404, a cutting-edge CNC vision measuring system designed for fast, accurate, and repeatable 2D and 3D non-contact measurements. This used unit offers premium Mitutoyo performance at a cost-effective price—ideal for precision manufacturing, quality control labs, and R&D environments. Condition: Never Used – Still in original crates 🔧 Product Overview – Mitutoyo QV Active 404 The Mitutoyo Quick Vision Active 404 is part of Mitutoyo’s renowned Quick Vision series, combining fast automatic measurement, superior accuracy, and flexible lighting systems. It’s equipped with CNC stage movement, a high-resolution camera, and QVPAK software, providing automated, high-accuracy vision-based inspection in one compact footprint. This machine is still in its original crates and is in as new condition, making it a perfect solution for any business requiring advanced metrology tools without the cost of new equipment. ✅ Key Features of the Mitutoyo QV Active 404 📐 Automatic 3-Axis Measurement (X/Y/Z) with CNC stage Pedpfxewqrvle Airsgt 🔍 Non-Contact Vision Measurement – Ideal for fragile or micro-scale parts 🧠 QVPAK Software – Industry-leading metrology software for automated routines, reporting, and part programming 💡 Advanced Illumination System – Includes ring light, coaxial light, and programmable sub-stage lighting 🔧 Motorized Zoom Lens for flexible magnification and measurement precision 🖥️ Real-Time Edge Detection for ultra-precise dimensional analysis 📐 Technical Specifications Measurement Range: X400mm / Y400mm / Z200mm Vision Head Range: 400x400x200mm Size of Stage Glass: 466x480mm Max Stage Loading: 20kg Resolution: 0.1 µm Accuracy (E1): ±(2.5 + 4L/1000) µm Touch Probe Accuracy: (2.4+3L/1000) µm Stage Type: Motorized CNC, granite base Camera: High-resolution digital CCD Lighting System: Multi-source - ring, coaxial, contour Magnification Change System: Zoom optical system with 8 positions Lens System: Motorized zoom Sensor Type: High resolution CMOS colour camera Software: Mitutoyo QVPAK Machine Dimensions: 776x1303x1004mm Weight including Stand: 324kg 🧰 Perfect For Precision component manufacturers Aerospace, automotive, medical device inspection Electronics & PCB measurement R&D and dimensional analysis labs Tool & die makers and high-accuracy workshops 📦 What’s Included Used Mitutoyo QV Active 404 CNC Vision Measuring System Machine Stand Work Station Master Ball Stand MCR Attaching Plate Calibration Ring QVPAK Software Dell Computer Wide Screen Monitor Printer Used Mitutoyo QV Active 404 for sale Mitutoyo vision measuring system CNC non-contact measuring machine QVPAK software system Pre-owned Mitutoyo CMM Vision metrology machine UK / EU Mitutoyo Quick Vision Active measuring device Notes: *Specifications are given in good faith but not guaranteed*

Condition: ready for operation (used), Year of construction: 2018, functionality: fully functional, machine/vehicle number: 400181806, measuring range X-axis: 100 mm, travel distance Z-axis: 3,500 mm, TECHNICAL DETAILS Measuring range, X-axis: 100 mm Measuring range, Z2-axis (column), travel: 3,500 mm Measuring range, Z2-axis (horizontal): 360 mm Resolution: 0.04 µm Resolution, X-axis: 0.05 µm Podpfx Ajzkvqdjiregt Resolution, Z2-axis: 1 µm Measuring force: 30 mN (adjustable via weight setting) Drive speed, X-axis: 80 mm/s Drive speed, Z2-axis: 30 mm/s Measuring speed, X-axis: 0.0220 mm/s Straightness, X-axis: 0.8 µm/100 mm Tilt angle, X-axis: 45° Accuracy (20°C), X-axis: (0.8 + 0.01L) µm Accuracy (20°C), Z1-axis: (1.4 + |2H|/100) µm MACHINE DETAILS Operating temperature range: 15 to 25 °C Operating humidity range: 20 to 80 % RH (condensation-free) Storage temperature range: -10 to 50 °C Storage humidity range: 5 to 90 % RH (condensation-free) Dimensions & Weight External dimensions, main unit (W x D x H): 756 x 482 x 1,166 mm External dimensions, control unit (W x D x H): 221 x 344 x 490 mm External dimensions, remote control box (W x D x H): 248 x 102 x 262.2 mm Weight, main unit: 150 kg Weight, control unit: 14 kg Weight, remote control box: 0.9 kg EQUIPMENT Single-sided tapered probe (standard accessory)

Condition: excellent (used), functionality: fully functional, measuring range X-axis: 12 mm, Mitutoyo roughness measuring machine Surftst SJ301 in good condition incl. CEJ stand, but without carrying case and roughness standard (option) measuring ranges: Z = 0,3mm (optional stage 550mm) Pgjdpfoxluiuox Airjt X = 12.5mm Optional: Rougness standard new € 390,-- optional stylus from € 800,-- (different types) Vice (used) € 100,-- some prisms on demand Mitutoyo Stage 178-039 upgrade € 450,--

Condition: reconditioned (used), functionality: fully functional, measuring range X-axis: 12 mm, Mitutoyo roughness measuring machine Surftst SJ201 in good condition Podpox N Szrsfx Airogt with carrying case and roughness standard measuring ranges: Z = 0,3mm (optional stage 550mm) X = 12.5mm Optional: optional stylus from € 800,-- (different types) Vice (used) € 100,-- Mitutoyo Height gage as stage € 200,-- CEJ stage with granite base € 250,-- Mitutoyo Stage 178-039 upgrade € 450,-- some prisms on demand

Condition: excellent (used), Year of construction: 2011, 1.0 pc. used image processing measuring device Pjdpfeyxxy Tox Airogt Manufacturer: MITUTOYO Model: QS200Z Year of manufacture: 2011 Technical data: see photos.

Condition: ready for operation (used), Year of construction: 2001, functionality: fully functional, machine/vehicle number: 1104104, measuring range X-axis: 1,205 mm, measuring range Y-axis: 2,005 mm, measuring range Z-axis: 1,005 mm, workpiece weight (max.): 2,000 kg, workpiece height (max.): 1,115 mm, The measuring table has been supplemented with milled aluminum plates. These plates are equipped with M6 holes in a 50 mm grid pattern, allowing for variable clamping options for workpieces. TECHNICAL DETAILS Measuring range X-axis: 1,205 mm Measuring range Y-axis: 2,005 mm Measuring range Z-axis: 1,005 mm Drive speed in CNC mode Traversing speed: 8–250 mm/s Psdpfx Aisx U Sv Horogt Measuring speed: 1–3 mm/s Drive speed in J/S mode High speed: 0–80 mm/s Low speed: 0–3 mm/s Fine speed: 0.05 mm/s Acceleration Acceleration per axis: 0.1 G Max. acceleration: 0.17 G Resolution: 0.0001 mm Measuring table Material: Granite Working area: 1,408 mm x 2,980 mm Clamping threads: M8 x 1.25 Max. workpiece height: 1,115 mm Max. workpiece weight: 2,000 kg MACHINE DETAILS Dimensions & Weight Main unit dimensions (D x W x H): 3,230 x 2,150 x 3,585 mm Weight (incl. stand and control unit): 5,388 kg Compressed air supply Air pressure: 0.4 MPa Air consumption in normal operation: 100 L/min Air consumption from air source: 150 L/min Temperature conditions Ambient temperature: 16–26 °C Thermal fluctuation per hour: 2.0 K Thermal fluctuation per day: 5.0 K Thermal gradient vertical: 1.0 K/m Thermal gradient horizontal: 1.0 K/m Accuracy Accuracy to ISO 10360-2: E = 4.9 + 5L/1,000 Probing error Probing error ISO 10360-2 (TP2): R = 5.2 µm Probing error ISO 10360-2 (TP200): R = 5.0 µm EQUIPMENT Geopack Cosmos 2.3 software PH 10 probe head TP 200 Change rack Note: The machine was in operation until 2013, after which it was professionally dismantled by the manufacturer. The machine was then stored in an industrial hall. The last factory calibration was carried out in 2013. The calibration certificate is available as an attachment in the listing.

Condition: refurbished (used), Year of construction: 2004, measuring range X-axis: 900 mm, measuring range Y-axis: 2,000 mm, measuring range Z-axis: 600 mm, Mitutoyo CMM Crysta Apex C9206 Measuring ranges 900x2000x600mm Accuracy 1,7 + 3L/1000µm Slightly damaged V-Axis covers (will be replaced or delivered without) Pgedpfxsf S Tmvo Airet Software MCOSMOS-1 V3.5, Windows 10 PC or selectable upgrade to: - Mitutoyo MCOSMOS 4.2 incl Geopak & MCAT1000S or new license - EasyCMM I++ Server plus Inca Professional Probe Renishaw PH10T with either: - Renishaw Touch probe TP200 - Renishaw Touch Probe TP20 Selectable options: - Scanning Probe Renishaw SP25 with PH10M - Probe Change Racks - New PH10M+ Head and Probe (upgrade) - MCOSMOS Offline license MCAT1000P - Bilz Pneumatic Vibration Damping System on demand Installation & Calibration (plus additional travel expenses) Including 3 Month Warranty (excl. travel expenses)

Year of construction: 2010, condition: ready for operation (used), number of axes: 3, This 3-axis Mitutoyo Quick Scope QS-250 Z was manufactured in 2010, featuring a joystick box, various clamping lugs, and profile strips for versatile setup options. It includes MAG1 mounting and both short and long spring clips for precise optical measurement tasks. Consider the opportunity to buy this Mitutoyo Quick Scope QS-250 Z optical measurement machine. Contact us for further details regarding this machine. Additional equipment • Joystick box • Tailstock • Spring-loaded tailstock • Clamping lugs: 35–37, 39–41, 55–57 • Clamping profile strip with end-face connection • Clamping profile strip without end-face connection • Connector with connection slots • MAG1 mounting • Spring clip 15° (short) • Spring clip 15° (long) • Threaded clamping holder • 30 mm cylindrical pin • 40/10 mm guide comb with longitudinal groove only • 120° prism with spring clip • The maximum length measurement deviation in the XY plane is 2.5 + 0.006 µm • Measuring range (X/Y/Z): 200 x 250 x 100 mm • Resolution: 0.5 µm (0.0005 mm) Pgjdpsx D D Abefx Airet • Accuracy XY: (2.5 + 0.006 µm) • Accuracy Z: (5 + 0.006 µm)

Condition: excellent (used), Two digital calipers Pgjdpfjw Tctrex Airet Digital caliper Mitutoyo 551-231-10, measuring range 300mm Digital caliper Mitutoyo 500-181-U, measuring range 150mm The batteries have been replaced or are in good condition. The measuring tools can be demonstrated on site by appointment. We only offer machines that are ready for demonstration in our warehouse, see "more offers from this supplier".
