Used Scm Morbidelli M100 for sale (2)

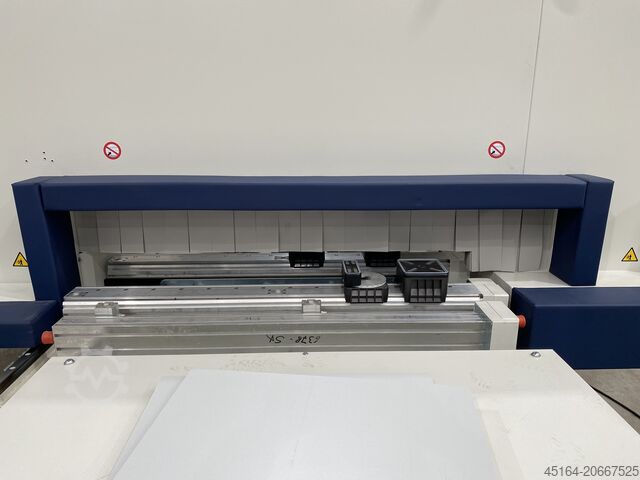

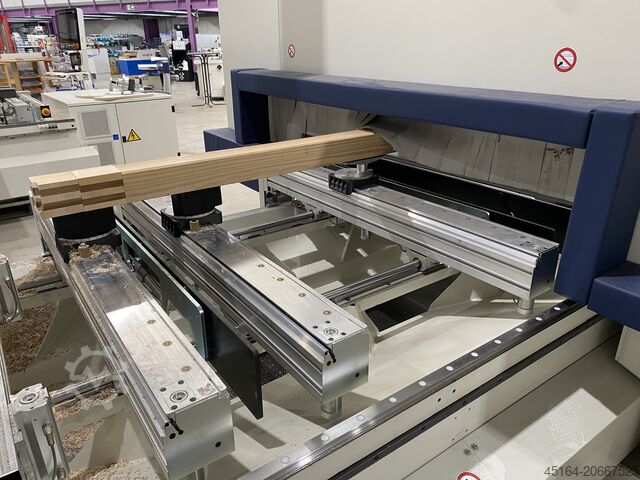

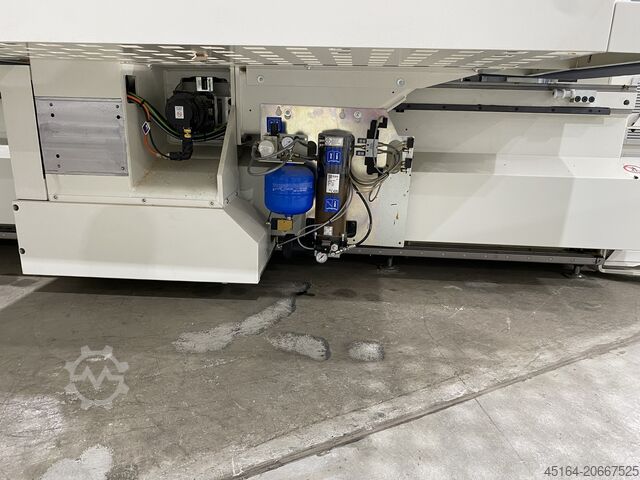

Condition: ready for operation (used), Year of construction: 2018, travel distance X-axis: 3,110 mm, travel distance Y-axis: 1,620 mm, number of axes: 5, number of slots in tool magazine: 11, spindle motor power: 10,000 W, spindle speed (max.): 24,000 rpm, This 5-axis SCM Morbidelli Author M100 CNC Wood Machining Centre was manufactured in 2018. It features a working area along the X-axis of 3110 mm and a maximum panel height of 180 mm. The machine is equipped with 21 vertical spindles and 10 horizontal spindles, providing versatile machining capabilities. If you are looking to get high-quality wood machining capabilities, consider the SCM Morbidelli Author M100 machine we have for sale. Contact us for further details. • Working area / axes: Ledpoz A Ahqjfx Amvjag • Panel length (Y): 1900 mm (2210 mm) • Panel height (Z): 180 mm • Panel length for through machining: 1400 mm • Vector speed X‑Y: Pro‑Space 56 m/min; Pro‑Speed 78 m/min • Worktable: 6–12 beams (TV Flex), 12 vacuum pods (145 × 145 × H75 mm); 2 stops per beam; movable beam length 1600 mm. • Drilling unit (general spec): • 21 vertical spindles, 8,000 rpm • 10 horizontal spindles, 8,000 rpm • Integrated saw Ø125 mm (X), 10,000 rpm • Motor power 2.2 kW • Electrospindle: 10 kW (S6), max 24,000 rpm. • Installation requirements: installed power 23–28.5 kVA; compressed air 450 NL/min; dust extraction 4500 m³/h, 25 m/s, outlet Ø250 mm. • Structure and motion: • Heavy, stress‑relieved, electro‑welded steel frame; all machining in single setup on CNC metalworking machines. • High‑speed four‑row linear guides; three‑circuit recirculating ball systems; X‑axis helical rack‑and‑pinion. • Brushless motors, inverters; machining units mounted on mobile gantry for rigidity. • Transparent polycarbonate safety enclosure. • CNC control and software: • PC‑Office: Windows 7, 17" color LCD, QWERTY keyboard, mobile control panel, Xilog Maestro. • Xilog Maestro features: parametric/graphical/ISO programming; DXF/ASCII import (2D); 3D linear/circular interpolation; spatial linear interpolation; helical interpolation; guided editor; automatic drilling optimization and tool libraries; panel origin offset; simulation; barcode management (software); self‑diagnostics; step‑by‑step manual intervention; graphical unit configuration; machining speed selection; SCM CNC Jerk function. • Safety: CE; PRO‑SPACE system with safety bumpers (automatic stop on potential collision). • Table equipment included/mentioned: rear aluminum reference stops H75 per beam; second central reference stops per beam; front reference stops H75 per beam. • Vacuum system: integrated vacuum pump 90/108 m³/h, 50 Hz. • F23 L drilling unit (listed configuration): • Independent Z‑axis • 13 independent vertical spindles (8 X / 5 Y) • 6 independent horizontal spindles (quick‑release), incl. 4 in Y • 32 mm pitch • Speed 4,500–8,000 rpm (inverter) • Rear‑panel groove/saw unit Ø125 mm, 5,500–10,000 rpm (inverter) • Motor 2.2 kW • Increased Z‑pressure • RO AX advantages: high productivity, precision, finish quality, processing speed; up to 90% reduction in maintenance (approx. 1,000‑hour interval). Additional equipment • TRB14 side‑mounted tool magazine (optional), right side: • Capacity up to 11 tools; max Ø350 mm • Center distance 130 mm • Max tool weight 8 kg; total 48 kg • 4 workpiece lifting supports H75, two lifting levels (above clamps and working level), 20 kg per support • Additional hardware key with USB port

Condition: used, Work area and workpiece capacity Travel range X-axis: 3110 mm Travel range Y-axis: 1620 mm Workpiece passage Y: 1,900 mm Workpiece passage Z: 180 mm Workpiece length in shuttle mode: 1,400 mm Table design: TV FLEX 1600 / FLEXMATIC Number of cross traverses: 6 Positions of traverses: 6 to 12 positions Axis speeds and drive data Maximum vector speed X/Y (PRO-SPACE): 56 m/min Maximum vector speed X/Y (PRO-SPEED): 78 m/min Speed of vertical drilling spindles: up to 8,000 RPM Lsdpfx Amszuwurovsag Speed of horizontal drilling spindles: up to 8,000 RPM Max. speed of main spindle: 24,000 RPM Speed of grooving unit/circular saw: frequency-controlled, approx. 2,500-8,000 RPM CNC control and software Operating system: Windows 7 Display: 21.5" LCD Full-HD (16:9) Operation: Keyboard, mouse and machine control panel Software: Maestro CNC Programming: Parametric programming, graphic programming, ISO code, DXF import Machining functions: Milling, drilling, tool management, machining programs Simulation: Graphic simulation of drilling and milling operations TECPAD: 7" touchscreen for machine functions and error messages Mobile operation: Portable control panel for operation along the machine Drilling and grooving unit F23L Vertical drilling spindles: 13 independent spindles (7 clockwise, 6 counterclockwise) Horizontal drilling spindles: 10 independent spindles Arrangement of horizontal spindles: 4 spindles in the X direction on one side, 3 spindles in the X direction on the opposite side, 2 spindles in the Y direction Integrated sawing unit: Grooving and circular saw unit in the X direction Saw blade diameter: 125 mm Motor power of sawing unit: 2.2 kW (approx. 3 hp) Stroke of vertical drilling unit: 75 mm pneumatic stroke Stroke of horizontal drilling unit: 75 mm pneumatic stroke Frequency inverter: Programmable speed control up to 8,000 RPM 5-axis milling unit and tool changing system Main unit: JQX 5-axis milling unit Spindle type: Hiteco HSK-F63 electric spindle Power: 10 kW rated power Peak power (S6): approx. 9.5-15 kW Maximum speed: 24,000 RPM Bearings: Ceramic bearings Cooling: Liquid-cooled spindle Lubrication: Central automatic lubrication system Rear tool magazine TRB 14 Magazine positions: 14 Travel range: 350 mm Pitch: 115 mm Max. tool diameter: 240 mm Max. total tool weight: 70 kg Front tool magazine FAST 14 Magazine positions: 14 Max. tool diameter: 130 mm Max. tool weight per position: 8 kg Max. total weight: 24 kg Vacuum system, workpiece clamping and positioning Vacuum cups: 12 pcs, permanently mounted Dimensions of cups: 145 x 145 mm Height of cups: 75 mm Vacuum pump: Standard 1 vacuum pump Additional vacuum pump: 90 m³/h Workpiece supports: 4 pneumatic workpiece supports Rear stops: 8 aluminum stops Intermediate stops: 8 aluminum stops Side stop: Left reference stop with laser positioning Preparation for clamping cylinders: Prepared for 6 pneumatic clamping cylinders Extraction and compressed air Connection power: 23 + 28.5 kVA Compressed air consumption: 450 l/min Required extraction capacity: 4,500 m³/h Air velocity in extraction: 25 m/s Extraction nozzle: 250 mm
