Used Scm Dmc Sd 60 for sale (2)

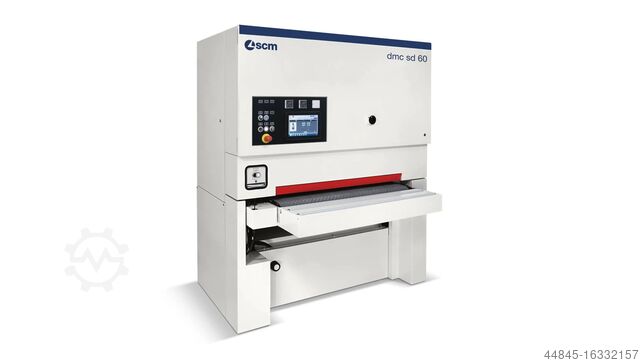

Condition: as good as new (ex-display), Year of construction: 2021, functionality: fully functional, grinding width: 1,350 mm, SCM wide-belt calibrating and fine sanding machine Model dmc sd 60 RCS 135 Technical data: Working width 1,350 mm min./max. working height 4-170 Fsdpfxotwqn So Abgogk Sanding belt width 1,370 mm Sanding belt length 2,150 mm Main motor power 11 (15) kW (HP) Gear motor 0.45/0.8 (0.6/1.1) kW (hp) Feed speed 4.5/9 4.5/9 m/min. Standard equipment: - R140/85 rubber-coated calibrating roller diameter 140 mm 85 SH - 1st pos. - R160/45 rubber-coated sanding drum diameter 160 mm 45 Sh - 2nd pos. - Hard sanding pad with manual adjustment of the working height - Motor power 1 unit 11 kW (15 HP) - Electronic ammeter for the main motor to display the power consumption - Electronic display of the working height - Electronically controlled sanding belt oscillation - Rubber pressure rollers - anti-kickback device in the infeed before the first unit - Rubber feed carpet 60 SH - Roller table with two rollers in the infeed and outfeed of the work table - Carpet feed with two speeds 4.5 / 9 m/min with gear motor - Automatic carpet centering incl. the following special accessories: 1 pc. Version "B" for RCS with: pneumatic activation and deactivation of the roller 1. unit "R" + pneumatic activation and deactivation of the roller 2. unit "CS" + "MESAR" elastic link sanding shoe + pneumatic activation and deactivation of the sanding shoe unit + electronic programming unit "LOGIC 50 + electronic adjustment of the working height 1 pc. CE safety regulations 1 pc. roller table in infeed and outfeed for long workpieces, equipped with 5 non-driven rollers 1 "RA" inclined ribbed steel contact roller 1st unit 1 pc. Main motor 18.5 kW (PS 25)

Condition: new, - NEW -GENERAL FEATURES:machine frame and worktable* steel structure with electrical cabinet at the front of the machine* sanding belt infeed from the left side of the machine* motorized table height adjustment* main motor integrated in the machine frameelectrical equipment* electromechanical control panel on the front left side of the machine* automatic star-delta start for the main motor* motor protection switch for the motors* motors in insulation class IP 54emergency and protective devices* Safety microswitch for excess thickness* Automatic brake for immediate stopping of the units* Emergency stop safety edge in the workpiece infeed* Mushroom switch in the workpiece infeed and outfeed* Lockable main switch* Automatic emergency shutdown of the machine in the event of:- sanding belt breakage- untensioned sanding belt- protection against lateral movement of the sanding belt- lack of compressed air- overload of the main motorsNote: the standard version with 400 volts 50 Hz requires a three-phase power supply zero conductor ground the 400 volt power supply is without neutral, a single-phase transformer from the price list must also be ordered. The same transformer must also be ordered for a machine with a voltage higher than 400 volts, regardless of whether a neutral conductor is present or machine version with 220 or 230 volts (50 or 60 Hz) is subject to additional costs (see price list).BASIC MACHINE STANDARD EQUIPMENT- R140/85 rubber-coated calibrating roller diam. 140 mm 85 Sh - 1st pos.- R160/45 rubber-coated sanding roller diam. 160 mm 45 Sh - 2nd pos.- Hard sanding pad with manual adjustment of the working height- Main motor 11 kW (15 HP)- Electronic ammeter for the main motor to display the power consumption- Electronic display of the working height- Electronically controlled sanding belt oscillation- Rubber pressure rollers- Kickback protection in the infeed in front of the first unit- Rubber feed carpet 60 Sh- Roller table with two rollers in the infeed and outfeed of the work table- Carpet feed with two speeds 4,5 / 9 m/min withgeared motor- automatic carpet centeringworking width mm 1.100Min./Max. working height mm 4 - 170Sanding belt width mm 1,115Sanding belt length mm 2,150Main motor power kW (HP) 11 (15)Gear motor kW (HP) 0.45/0.8 (0.6/1.1)Feed speed m/min 4.5/9Consisting of:10.90.87 European Safety Regulations(Mark C.E.)93.07.31 Volt 400 EU93.12.01 Frequency 50 Hz44.44.19 Version "B" for RCS33.31.50 Roller table in infeed and outfeed for long workpieces62.44.50 10" control panel with "eye-S" software integration31.21.60 "RA" inclined ribbed steel contact roller - 1st unit97.50.71 Main motor 15 kW (PS 20) Fgedpfovwfrnex Abgjk
