Condition: new, Year of construction: 2026, functionality: fully functional, power: 7 kW (9.52 HP), input voltage: 400 V, input frequency: 50 Hz, planing width: 520 mm, number of blades: 4, actuation type: electric, total length of planing tables: 2,250 mm, total width: 880 mm, Equipment: CE marking, documentation/manual, All SCM machines are available – we will be happy to provide you with a quote.

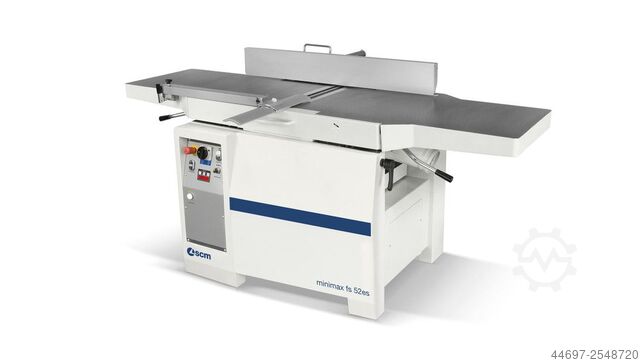

Technical data SCM FS 520 Nova:
Total length of tables: 2250 mm
Working width: 520 mm
Max. material removal: 5 mm
Dimensions of thicknessing table: 850 x 520 mm
Min/max. working height: 3/240 mm
Feed speeds: 5/8/12/18 m/min
Planer cutter diameter/planer knives: 120 mm/4 HSS knives
Speed: 5000 1/min
Self-braking motor: 400 V/50 Hz/S6 - 40 % 7.0 kW
Dust extraction port diameter: 1 x 120 mm
Weight: approx. 650 kg
Long surfacing tables (2250 mm) made in one piece enable easy surfacing of workpieces.
- Work tables are made of cast iron, annealed and stress-free, making them resistant and permanently flat.
- Simultaneous opening and closing of the surfacing tables with a single locking mechanism.
- Powerful industrial motor.
- Fixed dust extraction hood.
- Robust steel/cast iron construction.
- Large surfacing fence 1200 x 150 mm.
Ijdpfx Ajz H N Iljfdetp
- Material feed with four speeds via a separate motor.
- Thicknessing table is raised on 4 robust columns, which are protected by dust bellows.
- Helical infeed roller on thicknesser unit.
- Rubber outfeed roller at the outlet of the thicknesser unit.
- Preparation for long-hole milling unit.
- Digital display for thickness setting (1/10 mm).
- Automatic star-delta switchover.
Condition: new, - extra long - one piece - planing tables (2250 mm) from cast iron
- simultaneous opening and closing of planer tables with locking system
- heavy duty industrial style main motor
- fixed suction hood
- planer fence dimension 1200 x 150 mm with small parts fence
- feeder with 4 feed speeds and separate motor
- thicknesser table mounted on 4 solid spindles and linear guides
- high quality steel anvil roller
- rubber coated outfeed roller
- digital display of thicknessing height
- autom. star triangle switch
techiscal data:
total planer table lenght 2250 mm
max. working width 520 mm
max. chip removal 5 mm
dimensions thicknessing table 850 x 520 mm
min/max. working height 3/ 240 mm
feed speeds 5/ /8 /12/ 18 m/min
planer head dimension 120 mm/ incl. 4 pcs HSS cutter knifes
planer head speed 5000 1/min
Itjdpfx Afscq E Uusdep
main motor 400 V/50 Hz/S6 - 40 % 7,0 kW
suction hood dimension 1 x 120 mm
weight approx. 650 kg
- "Teresa"-cutter block Ø 120 mm, mono block, with 4 knifes
- additional fence for small work pieces
- motorised height adjustment for thicknesser table with digital read out
- thicknesser table with 2 rollers
