Used Scm Nova Si 400 for sale (3)

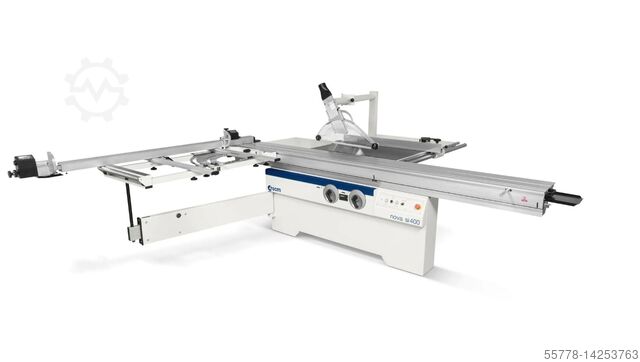

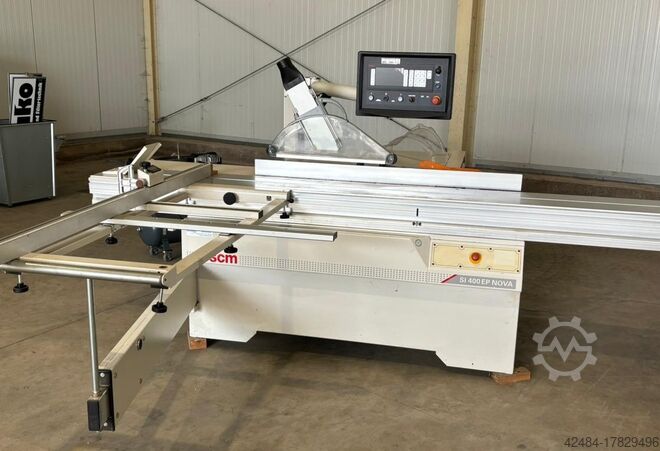

Condition: good (used), Year of construction: 2017, Code: 0384 Brand: SCM Model: SI 400 EP NOVA - CE Standard Electronic 3-axis controlled panel saw with scoring unit for panels, furniture, custom-made furniture , window and door frames, wooden doors, carpentry, plastics, composite materials and various – CE Standard – Year 2017 Technical data: Sliding aluminium alloy carriage length 3200 mm Fixed table dimensions 1040 x 630 mm Squaring capacity 3200 x 3200 mm Blade tilt from 90° to 45° Max blade diameter 400 mm Hole 30 Scoring unit blade diameter 120 mm Hole 30 Max cutting height at 90° 140 mm Max cutting height at 45° 99 mm Blade rotation speed 3000/4000/5000 rpm Scoring blade rotation speed 8500 rpm Cutting width with parallel guide 1270 mm Blade motor power 7 Kw Lredpsy R N Sdefx Akusl Scoring motor power 0,9 Kw Suction inlet diameter under the table 120 mm Suction inlet diameter on the suspended protective hood 80 mm Table extension Parallelogram guard 3 controlled axis: blade lifting - blade tilting - parallel guide Overall dimensions of assembled machine mm 3400 x 3900 x 1600 h Overall dimensions for transport mm 3400 x 2200 x 1600 h Weight kg 780

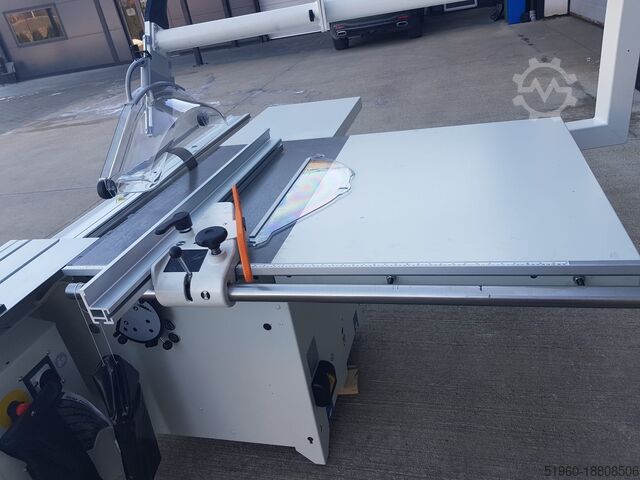

Condition: new, Technical data: Max saw diameter: 400 mm Min saw diameter: 250 mm Saw spindle diameter: 30 mm Scorer diameter: 120 mm Scorer spindle diameter: 20 mm Scorer on a separate engine Manual saw height adjustment Tilting saw at an angle from 0° to 45° Manual adjustment of the saw angle Carriage length: 3200 mm Carriage lock Work table: 1450 mm x 1030 mm Table height: 920 mm Table extensions 2 x Culaga Guard Safety switch Power supply: 380 V Lredpfx Ajv S Uz Iokujl Main engine power: 7 kW Overall dimensions: Length: 3430 mm Width: 1900 mm Height: 1560mm

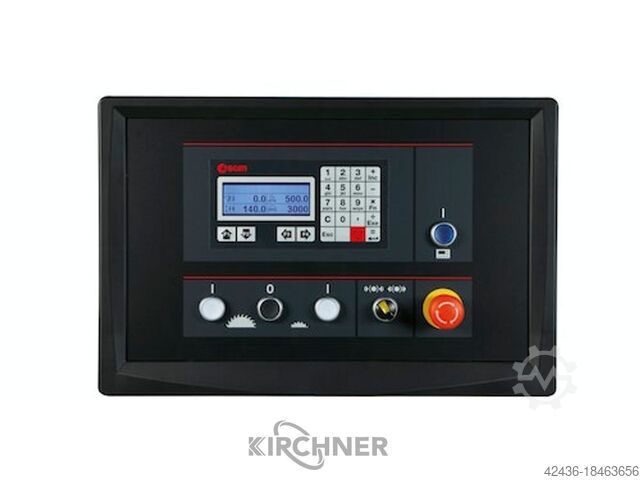

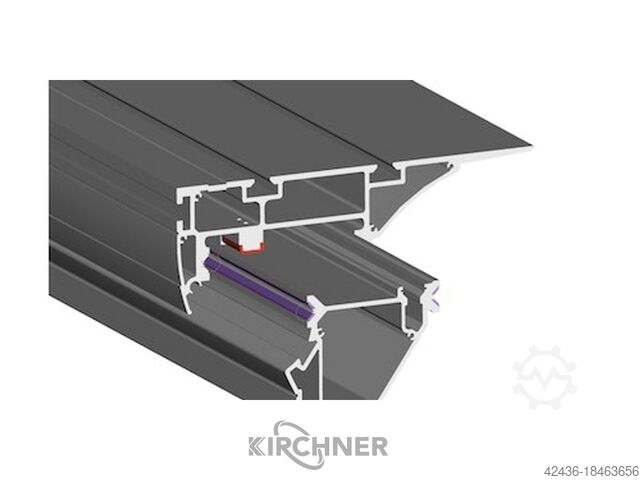

Condition: new, Basic equipment and accessories10-year guarantee on the guide system of the saw carriage- Saw carriage with anodized aluminum profile guide made of hardened,ground and flanged steel guides- Saw carriage length 3200mm- "READY" electronic control, 2-axis control (3rd axis onrequest) with:- Height adjustment and inclination of the saw unit (control of therip fence on request)- Management of the tool data with automatic correction of theCutting height in relation to the angle of inclination of the saw blade- Manual, semi-automatic and automatic mode with 99storable work programs- Additional functions: calculator and hour meter- Trimming frame for quick positioning of the stopmiter cuts- Table extensions in the outlet- Cutting length at the rip fence 1270 mm- 2-axis control with 99 programsMotor 7kW 50Hz (8kW 60Hz)- Motor with direct connection with push buttons- Three main saw blade speeds- Scoring unit with independent motorization, externally adjustable andStops for easy saw blade positioningSecurity/Protection- Emergency stop button on the front- Emergency stop button on the side near the rip fence (Version CE)- Thermal protection switch- Saw blade swing protection (version CE) integrated suction, suction nozzlewith a diameter of 80 mm- Saw blade swing protection with integrated suction, suction nozzle with 80 mmdiameter- Automatic motor brake on the main saw blade (CE version)- Lockable main switch- 110 V auxiliary circuit- CE Declaration of Conformity (CE version)Technical specificationsMax cutting height at 90° (mm) 140 with blade 400Max cutting height at 45° (mm) 97 with blade 400Saw blade tilt (degrees) 45Programmed lifting and swiveling of the saw blade unitSaw blade speed (rpm) 3000- 4000- 5000Scorer speed (rpm) 8500Main engine power (S6 -40%) kW (hp) 50 Hz 7 (9.5)Scoring unit power (S6 -40%) kW (HP) 50 Hz 1.3 (1.7)Format cuts:- with trolley 1600 (mm) n.a.- with trolley 3200 (mm) 3200x3200Cutting width for parallel cuts (mm) 1270Suction nozzle diameter:- on frame (mm) 120- on the saw blade guard (mm) 80- on the riving knife (mm) n.a.Net weight base machine (kg) 1050109999 Execution according to safety regulationsR10078 nova si 400ep CE version930731 volts 400 EU931201 Frequency 50 Hz570343 Digital readout for rip fenceComplete with:- Digital display and magnetic tape570133 Motor 9kW 50Hz (11kW 60Hz) with automatic star/delta switch kW9 HP12 Hz50 (kW11 HP15 Hz60)083202 base109993 MACHINE LANGUAGE: German Lsdpfxsvxr Skj Akusrl
