Used Spinner Vc1150 for sale (3)

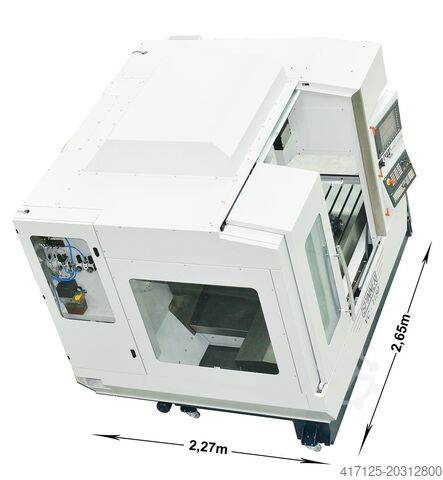

Condition: new, Year of construction: 2025, functionality: fully functional, SPINNER VC1150 Travel paths: X 1150 mm, Y 620 mm, Z 600 mm In “Compact” configuration Extremely robust cross-slide design for high-performance machining With patented guideway cover concept, providing uniquely optimized chip flow and a compact footprint High-performance MILLING SPINDLE up to 10,000 rpm with belt drive For exceptionally high torque Mmax = 119 Nm, Pmax = 16 kW Suitable for universal machining applications in mechanical engineering Tool interface at spindle: SK40 DIN69871 with pull stud DIN69872-A / ISO 7388-3-AD TOOL MAGAZINE with 32 tool stations SIEMENS 840DE control system including: - Operator panel adjustable in height and rotatable for optimal ergonomics - 19" LCD flat color display with multi-touch functionality - Includes engraving cycles - User memory 2 GB - 15 zero point offsets - 1 free USB interface - Standard Ethernet interface PORTABLE HANDWHEEL SHOPMILL 3D simulation of finished part REMAINING MATERIAL DETECTION Nodpfx Asxn R Dasfxjwn DXF reader PROBING FUNCTIONS for integration of measuring probe UNIVERSAL CHIP CONVEYOR VC1150 SPINDLE PREPARATION FOR HIGH PRESSURE for utilization of auxiliary tank up to 22 bar Additional blow air at spindle head PREPARATION FOR SPINNER STANDARD PROBE STANDARD DOCUMENTATION IN GERMAN Operating voltage 3x400V +/-10% Line frequency 50Hz (+/-2%) TN system (5-wire) PACKAGING Notes: The price includes warranty services only within Germany. For new and demo machines, the images shown are not necessarily those of the individual machine, but are from similar machines. Depicted accessories such as clamping devices or tool holders are only included in the delivery scope if listed in the technical description. Request a detailed quote ex works. Visit our factory near Munich or one of our showrooms. We may have additional offers for comparable machines. Subject to prior sale.

Condition: as good as new (ex-display), Year of construction: 2023, functionality: fully functional, machine/vehicle number: VT0650, travel distance X-axis: 1,100 mm, travel distance Y-axis: 620 mm, travel distance Z-axis: 600 mm, rapid traverse X-axis: 30 m/min, rapid traverse Y-axis: 30 m/min, rapid traverse Z-axis: 30 m/min, feed rate X-axis: 30 m/min, feed rate Y-axis: 30 m/min, feed rate Z-axis: 30 m/min, nominal power (apparent): 19 kVA, torque: 119 Nm, controller model: 840D, workpiece length (max.): 1,100 mm, workpiece width (max.): 600 mm, workpiece height (max.): 600 mm, spindle motor power: 19,000 W, spindle nose: SK40, number of spindles: 1, number of slots in tool magazine: 32, Equipment: chip conveyor, rotational speed infinitely variable, SPINNER VC1150 travel paths X1150, Y620, Z600 mm in "Compact" version in particularly heavy cross slide design for high-performance machining with patented guide cover concept therefore uniquely low chip fall and small installation area High-performance MILLING SPINDLE up to 10,000 rpm with belt drive for particularly high torque Mmax=119Nm Pmax=16KW for use in universal machining in mechanical engineering PRODUCTION PACKAGE VC1150-Compact INCREASED SPINDLE POWER from 16KW -> to 19 KW (Pmax) INCREASED RAPID TRAVEL Rapid traverse in X/Y/Z axis increased to 30m/min Tool holder on spindle SK40 DIN69871 with pull bolt DIN69872-A / ISO 7388-3-AD Njdpsvpf A Rjfx Afxown TOOL MAGAZINE with 32 tool stations DIRECT MEASURING SYSTEMS in X/Y/Z axis SIEMENS 840DE control system with the following basic features: - Height-adjustable and rotatable control panel for good ergonomics - 19" liquid crystal flat color screen with multi-touch functionality - incl. engraving cycles - 2 GB user memory - 15 zero point shifts - 1 free USB interface - Ethernet interface standard PORTABLE HANDWHEEL SHOPMILL 3D SIMULATION of the finished part RESIDUAL MATERIAL RECOGNITION DXF reader TOUCH FUNCTIONS for integrating measuring probes Energy saving function incl. automatic machine shutdown UNIVERSAL CHIP CONVEYOR VC1150 PREPARATION of the spindle FOR HIGH PRESSURE for use of the additional tank up to 22 bar HIGH PRESSURE TANK 22 bar with paper belt filter for flushing centrally through the spindle Additional blowing air on the headstock Compressed air centrally through the milling spindle Flushing gun in the work area PREPARATION FOR SPINNER STANDARD MEASURING PROBE Wireless SPINDLE PROBE Electrical PREPARATION FOR EXTRACTION for the installation of a standard extraction system recommended by Spinner STANDARD DOCUMENTATION GERMAN Operating voltage 3x400V +/-10% Mains frequency 50Hz (+/-2%) TN network (5-wire) PACKAGING Notes: The price only includes warranty services within Germany. For new and demo machines, the pictures are not necessarily the pictures of the individual machine but of comparable machines Accessories shown such as clamping devices or tool holders are only included in the scope of delivery if they are listed in the technical description. Ask for a detailed offer ex works. Visit our factory near Munich or one of our showrooms. We may have other offers for comparable machines. The prior sale is expressly reserved.

Condition: ready for operation (used), Year of construction: 2017, Control Unit Brand SIEMENS Model Sinumerik Movement X-Axis Movement 1150 Y-Axis Movement 620 Z-Axis Movement 600 Tools Number of index 3 Type of tool holder SK 40 Additional Equipment High Pressure Probe Blumm Presetting Control Unit Brand SIEMENS Nsdpfx Afsw H D T Iexewn Model Sinumerik Movement X-Axis Movement 1150 Y-Axis Movement 620 Z-Axis Movement 600 Tools Number of index 3 Type of tool holder SK 40 Additional Equipment High Pressure Probe Blumm Presetting This SPINNER VC-1150 Compact was manufactured in 2017. It features a table size of 1400 x 620 mm, with X, Y, Z travels of 1150 mm, 620 mm, and 600 mm respectively. Equipped with a 32-tool magazine, SK 40 taper, high-pressure coolant system, and a SIEMENS CNC control. Consider the opportunity to buy this SPINNER VC-1150 Compact vertical machining centre. Contact us for more information. Application Types Milling
