Used Spinner U5-1530 Compact for sale (2)

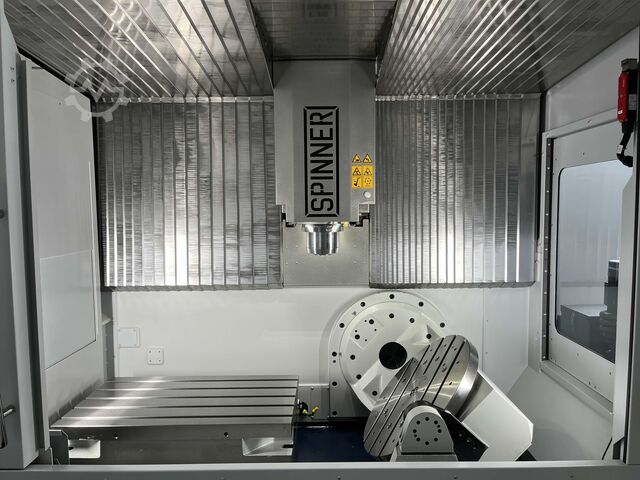

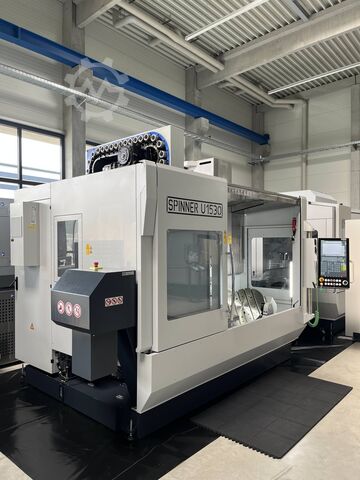

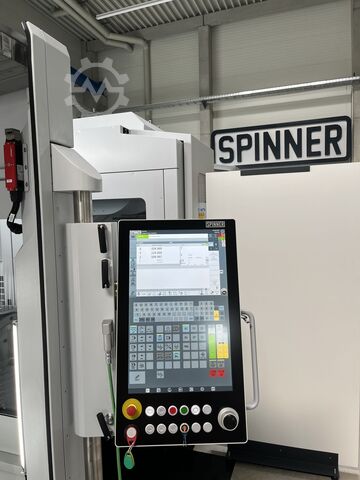

Condition: used, Year of construction: 2019, operating hours: 13,100 h, functionality: fully functional, travel distance X-axis: 1,530 mm, travel distance Y-axis: 530 mm, travel distance Z-axis: 465 mm, rapid traverse X-axis: 30 m/min, rapid traverse Y-axis: 30 m/min, rapid traverse Z-axis: 30 m/min, torque: 135 Nm, controller manufacturer: Siemens, total height: 2,540 mm, total length: 3,650 mm, total width: 2,810 mm, rotary table diameter: 650 mm, spindle speed (max.): 12,000 rpm, coolant supply: 40 bar, number of slots in tool magazine: 32, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, Very well-maintained SPINNER U-1530 Compact with SIEMENS 840 D control with travel distances X=1530mm Y=530mm Z=465mm. SK40 spindle with max. 12,000 rpm and internal coolant supply (IKZ). High-pressure flushing with 22 bar, additional 350-liter tank. Chip conveyor. Compressed air through the spindle as well as at the spindle via M-code. Automatic shut-off of sealing air. Blum measuring probe TC52. Calibration ball for kinematic measurement. • Gressel zero point plate Gredos NRS 6-fold, 400x400 • 3x machine vises Gressel gripos 125 • 1x 5-axis power clamp grepos-5x • 55x SK-40 tool holders with table stand. If you have any questions, please feel free to contact us. Iedpfsytp Aaox Agdjap

Condition: as good as new (ex-display), Year of construction: 2024, functionality: fully functional, travel distance X-axis: 1,530 mm, travel distance Y-axis: 530 mm, travel distance Z-axis: 465 mm, spindle speed (max.): 12,000 rpm, number of slots in tool magazine: 54, TECHNICAL DETAILS Control: Sinumerik One - Spios 24 touch Travel X: 1,530 mm Travel Y: 530 mm Travel Z: 465 mm Spindle and Tool System Number of tools: 54 Milling spindle: High-precision milling spindle, in-line spindle with direct drive, no belt Spindle speed: max. 12,000 rpm Spindle power: 15.2 kW Spindle torque: max. 97 Nm Tool holder: SK40 DIN 69871 Tool changer type: Double gripper Spindle pressure: 22 bar Table System Rotary-tilt table: 2 axes, D = 650 mm Table design: Precision design “T” Fixed table: left in the working area Hydraulic brake: on B and C axes Rotary feed: dual, at the center of the C axis Table load: 500 kg B axis: -5° / 110° Direct measurement system: on B and C axes Direct measurement systems: on X, Y, and Z axes Iaedpfx Agewu Ebisdsp Control Control type: Siemens SINUMERIK ONE Language selection: CNC dialog German, English as second language Touch panel: SPIOS Touch V2 Operation: Multi-Control-Wheel, multifunctional hand-held control unit Software: Machining software: ONE-Dyn. Operate 3A-Fr Programming function: ShopMill step programming Axis machining: 4-axis with rotary axis 3D function: 3D simulation of the finished part Residual material detection: included DXF reader: single license Machining tracking: recording of machining process Kinematic measurement: Cycle 996 Memory upgrade: 2 GB additional user memory Probing functions: for integrating measuring probes MACHINE DETAILS Cooling and Pressure Universal chip conveyor: with coolant tank High-pressure tank: 22 bar Spindle preparation: for high pressure Blow air: additional blow air at the spindle head Spindle probe preparation: available Robot Integration Robot door: available Interface: UNIROB universal robot interface Electrics Operating voltage: 3×400 V ±10 % Mains frequency: 50 Hz (±2%) Mains system: TN system (5-wire system) Standards: Technical design according to CE EQUIPMENT - Chip conveyor - Blow air at the spindle head - Robot door right - UNIROB universal robot interface - BLUM spindle probe
