Used Spinner Cnc Lathe for sale (93)

Condition: ready for operation (used), Year of construction: 2007, Functionality: fully functional, machine/vehicle number: AH0366, turning diameter: 310 mm, spindle speed (max.): 4,500 rpm, travel distance X-axis: 230 mm, travel distance Z-axis: 740 mm, bar diameter: 65 mm, No reserve price - guaranteed sale at the highest bid! TECHNICAL DETAILS X-axis travel: 230 mm Z-axis travel: 740 mm Turning range Swing diameter over bed: 425 mm Max. turning diameter: 310 mm Center distance: approx. 600 mm Spindle Spindle speed: max. 4,500 rpm Spindle bore: 65 mm Spindle head diameter: 100 mm Max. chuck diameter: 250 mm Max. permissible chuck jaw weight: 1.25 kg Spindle bearing diameter: 120 mm Rapid traverse Rapid traverse X-axis: 15 m/min Rapid traverse Z-axis: 24 m/min Tool carrier Turret stations: 6 Tool holder: DIN 69880 / 30 mm Speed of rotating tools: max. 6,000 rpm MACHINE DETAILS Overall length: 5,000 mm Overall width: 1,500 mm Overall height: 1,800 mm Total weight: 4,700 kg Itolhswd Nyzscdwvog EQUIPMENT - LNS Quickload Servo V3 bar loader, built in 2007 - Technical documentation available - VDI 30 tool holders and machine tools shown are not included in delivery - Machine without tailstock

Condition: used, Year of construction: 1998, Spindle hours: 3,500 h Technical specifications: Turning length: 245 mm Face diameter: 120 mm Spindle bore: 42 mm Speed: 6,000 rpm Röhm chuck: ø 125 mm Power: 5.5 kW Floor space required, approx.: 2,000 x 2,000 x 2,200 mm Weight, approx.: 1,400 kg Equipment: - Siemens 810 D control system - Autoturn - Dialog and G-code programming - 12-station turret - 6-station driven VDI 16 - Internal tool measurement - Documentation Itslewlhqnshcdwvjg - Toolsetter is being retested

Condition: good (used), Year of construction: 2005, Ref. -No.: 10475 Manufacturer: SPINNER Type: TC52-MC Year of construction: 2005 Type of control: CNC Control: Siemes 810 D ShopTurn Storage location: Halberstadt Country of origin: Germany Machine-No.: AN0XXXX Islhcdwswiwhqjvstg Turning Speeds: 280/400 RPM Tool holder type: Stahlhalter 9 pcs. Turning Diameter: 280/400 mm Turning Length: 550 mm Tool Taper: VDI 30 Spindle Speed Max.: 5.000 RPM Turret places: 12 Pcs Further information: Three-jaw chuck: Schunk brand Driven tool stations Oil mist extraction Coolant system Cabin, extraction Donaldson Tirit DCE Machine can be inspected under power by arrangement.

Condition: used, Year of construction: 2010, Functionality: fully functional, machine/vehicle number: AU0327, turning length: 500 mm, turning diameter: 280 mm, spindle bore: 53 mm, spindle speed (max.): 5,000 rpm, spindle speed (min.): 10 rpm, total height: 1,900 mm, total length: 1,500 mm, total width: 3,000 mm, quill diameter: 60 mm, quill stroke: 500 mm, feed rate X-axis: 15 m/min, feed rate Z-axis: 24 m/min, overall weight: 3,000 kg, center width: 550 mm, bar diameter: 52 mm, Equipment: documentation/manual, rotational speed infinitely variable, Technical details: Control: Siemens 810 D Drive power - spindle motor: 15.0 kW Total power requirement: 25 kW 12-station VDI 30 turret Cooling water function available Tailstock MK 4 Chip conveyor Itjlhewi U U Ujcdwveg Three-jaw chuck Tool measuring arm not available, can be retrofitted Direct position measuring system Driven tools function

Year of construction: 2004, operating hours: 27,349 h, Condition: used, machine/vehicle number: AN0184, Turning diameter: 280 mm, turning length: 550 mm, travel (X/Z): 200/570 mm, C-axis, FANUC Series 21i-TB control, 12-station tool turret with driven tools, maximum speed: 5,000 rpm, chip conveyor, machine weight: approx. 5,500 kg, Attention: Machine still contains drilling emulsion and must be vacuumed out by the buyer, taken away and disposed of properly!!! Ielhcdwswh Tymovjtg

Condition: good (used), Year of construction: 2011, turning diameter 280 mm turning length 515 mm control Siemens 840D-SL ShopTurn turning diameter over bed 400 mm spindle speed: 6000 UpM spindle bore 42 mm spindle nose 110 mm DIN 55026/A6 spindle drive 10 kW max. torque 64/76 Nm turret (x-stations) 12 tool adaptor VDI 30 tailstock quill taper ISO MK 4 diameter of quill 60 mm quill stroke 125 mm Number of working hours ca. 2800 h weight of the machine ca. 3 t dimensions of the machine ca. 2,1 x 1,35 x 1,8 m Itolhcjwhzqysdwvsg From a training company - top condition - only slightly used: 2 axis CNC lathe with Siemens Sinumerik 840D-solutionLine control system with 15" color screen/ operator panel op15, "Turning with ShopTurn - Work Step Programming" software package, basic "Turning with ShopTurn" package, electronic interface for connecting bar feeds. Turning spindle as integrated motor spindle with water cooling, hydraulic hollow clamping cylinder, tailstock can be automatically coupled to the Z-axis and dragged during the program, hydraulic clamping, still ready for demonstration at the supplier.

Condition: new, Year of construction: 2024, Functionality: fully functional, SIEMENS 840DE control system with 24" touch panel X = 275 mm, Z = 700 mm, Y = +50 / -40 mm Motor spindle up to 4,000 rpm with 65 mm through-bore 16-station BMT45 driven tools Itslhoudapijcdwveg CNC tailstock Chip conveyor Glass scale on the X-axis High-pressure pump 15 bar SCHUNK spindle package NCE 260-81 BMT45 tool holder package (rotating and fixed tools) Packaging Free truck loading with crane

Condition: new, Year of construction: 2024, operating hours: 25 h, machine/vehicle number: AT1395, SPINNER TC600 with travel X=275mm Z=700mm in 45-degree inclined bed design with hardened and ground slideways equipped as a SINGLE-SPINDLE TURNING MACHINE with turret WITH driven tools WITH Y-axis indexing turret - WITH driven tool stations all tool stations can be driven, servo turret Swivel speed adjustable Tool holder on turret system BMT45 Number of tool stations in the turret : 16 SPINDEL 1 in version up to 4,000 rpm - 65mm As integrated motor spindle, with water cooling with hydraulic hollow clamping cylinder, bar capacity 65mm, speed range 0-4,000 rpm , Pmax 34 kW / 325Nm POWER CHUCK make SMW-Autoblok D=250mm 3-jaw, model BHD Set of soft jaws, set of hardened UPPER JAWS FOOT SWITCH CNC-REITSTOCK with integrated bearing as CNC axis movable in axis to main spindle. Programmable contact pressure. FOOT SWITCH for moving the tailstock quill in insertion mode Itoljri I H Ishcdwveg DIRECT MEASURING SYSTEM in X-axis CONTROL FANUC 32iTB with the following basic functions: - Contouring control with Fanuc standard user interface - 15" LCD flat color screen Fanuc control panel, full-key - User memory 256 KByte, max. 64 program numbers - USB interface for loading/saving CNC programs - Ethernet interface - GE Fanuc "turning" cycles for threading, deep drilling, parting off, grooving, - Contour train programming, cutting edge radius compensation, chamfering and corner rounding - Zero offsets G54-59, 64 tool compensation pairs, V-constant - Thread cutting without compensation chuck for central threads in the spindle center and for driven tools. - In the case of the C axis: Polar coordinates and cylinder interpolation - Parallel programming in the background - Dialog interface for simple cycle assignment and contour programming incl. Line graphics - Inch-metric changeover - Electronic handwheel integrated in the control panel - Dialog language for control trilingual German/English/French FIRST LANGUAGE CNC dialog: German DIALOG PROGRAMMING Fanuc Manual-Guide i SIGNAL LAMP at the top of the machine in three colors red/yellow/green as status display LATE CONVEYOR as hinged belt conveyor exiting to the right, incl. integrated coolant tank and feed pump OIL SKIMMER integrated in coolant system Flushing gun MESSTASTER for tool measurement in the work area STANDARD DOCUMENTATION GERMAN consisting of machine manual and CNC manuals supplied in digital form on the control unit. STANDARD PAINTING two-colored in light grey RAL7035 and blue grey RAL5008 Electrical version EUROPA-STANDARD as follows: Operating voltage 3x400V +/-10% Mains frequency 50Hz (+/-2%) TN mains (5-wire) Remarks: The price includes warranty services only within Germany. For new and demo machines, the pictures are not necessarily the pictures of the individual machine but of comparison machines The accessories shown, such as clamping devices or tool holders, are only included in the scope of delivery to the extent listed in the technical description. Ask for a detailed offer ex works. Visit our factory near Munich or one of our showrooms. GGF we have other offers of comparable machines. We expressly reserve the right to prior sale.

Condition: good (used), Year of construction: 2008, Ref. -No.: 10474 Manufacturer: SPINNER Type: TC77 MCY Year of construction: 2008 Type of control: CNC Control: Siemens 840 D Storage location: Halberstadt Country of origin: Germany Machine-No.: AP0XXXXX Chuck diameter: 210 mm Tailstock - diameter: 110 mm Feed speed X / Z: 15/24 mm / min Turning Diameter: 500 mm Max. Torque: 113 Nm Travel -X Axis: 350 mm Travel -Y Axis: 230mm (-110mm +120mm) mm Travel -Z Axis: 1160/1840mm mm Distance Between Centres: 800 / 1500 mm Spindle 1 spindle head diameter (flange): A8 mm Spindle 2 spindle head diameter (flange): A6 mm Quills Morse taper: MK4 Turret places: 12 Pcs Machine length: 3250 mm Machine width: 1980 mm Machine Height: 2090 mm Weight Of The Machine Ca.: 7,5 t Max. swing diameter: 690 mm Itslewiwhkjhcdwvog Further information: Spindle head: A8 Bar capacity: 77mm Bar capacity: 52mm Number of rotating tool positions: 12 Y axis + C axis. Machine can be inspected under power by arrangement.

Condition: used, Year of construction: 2013, machine/vehicle number: AT0677, with CNC control, make SIEMENS, type: 840D-SL, max. turning diameter: 220 mm, max. turning length: 600 mm, with tool turret with 10 driven tool positions with three-jaw chuck, oil mist extraction and chip conveyor Iteljwdbtashcdwvog

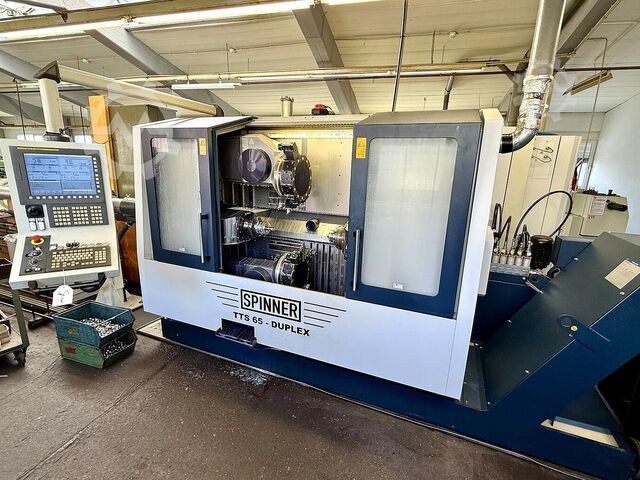

Condition: used, Year of construction: 2018, machine/vehicle number: AS0274A + AS0274B, Spinner TTS65 No. AS0274A, manufactured in 2018 2 machines 190A/190B Synchronous machining TTS42 - Triplex Ijlhcdswffnwowvotg Siemens 840D control with color screen 19

Year of construction: 1998, Condition: excellent (used), Machine-Details Stock-No. 1105-03620 Type of machine CNC Lathe Make SPINNER Type TC 32 Year of manufacture 1998 Type of control CNC Storage location HAGUENAU Country of origin Germany Delivery time Immediate Freight basis ex Site Technical details turning diameter 150 mm turning length 300 mm control SIEMENS 810 D swing diameter 300 mm swing diameter over face slide 150 mm x-axis 400 mm z-axis 285 mm spindle passage 32 mm spindle motor 7,5 kW spindle turning speed - stepless 8000 U/min Ijlhcjh Auf Rjdwvstg Turret positions 12-fach VDI 25 work piece power 1,2 kW toolpiece turning speed range 6000 U/min weight of the machine ca. 1.8 t dimensions of the machine ca. 2 X 1 X 1.6 m Additional information CNC CONTROL SIEMENS 810 D

Condition: used, Year of construction: 2000, max. swing diameter over bed 450 mm max. turning diameter 298 mm centre distance ~ 580 mm control SIEMENS 810D travel -x axis 221 mm travel -y axis 590 mm max. Spindle speed 6.000 U/min. Iolevr Hmvohcdwvotg spindle bearing diameter 85 mm spindle bore 55 mm number of tapers in turret head 12 driven tools turning speeds 6.000 U/min CNC lathe | SPINNER - TC46MC equipped with a turret for driven tools, bar feeder and chip conveyor. The machine is in a well-maintained condition. Please refer to further technical details in the attachement of the offer. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: 46MC | 46-MC | TC-46 | TC 46 MC

Condition: used, Year of construction: 2008, Technical details: turning diameter: 315 mm turning length: 515 mm control: Siemens 810 D centre distance: 550 mm greates pass round over bed: 400 mm spindle bore: 42 mm tool taper: VDI 30 spindle turning speed - stepless: 6000 1/min rapid power traverse in X-and Z direction: 15 / 24 m/min Itsljumzl Sshcdwveg drive capacity - spindle motor: 15,0 kW total power requirement: 25 kW weight of the machine ca.: 3,0 t dimensions of the machine ca.: 2,20 x 1,35 x 1,86 m CNC lathe, turret, 12-pos., motorspindle "directdrive", tailstock MT 4, chipconveyor, collet chuck HAINBUCH, tooleye, direct measuring system, ICZ 15 bar, parts-catcher in front-door, barloader SPINNER Servoload 80-1200, no live-tooling device on turret. spindle overhauled in September 2024 - 0 hours! *

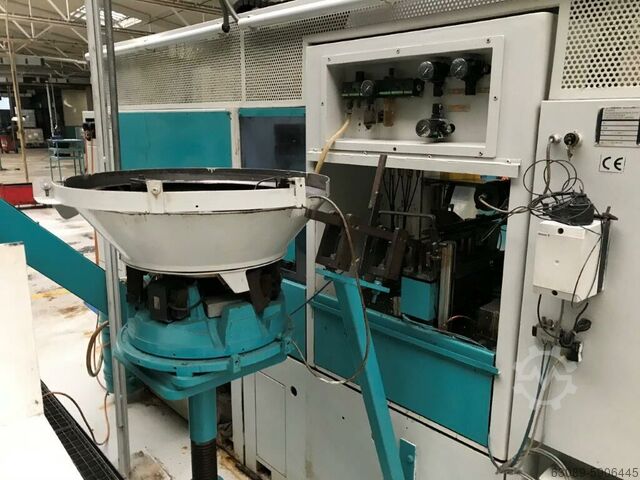

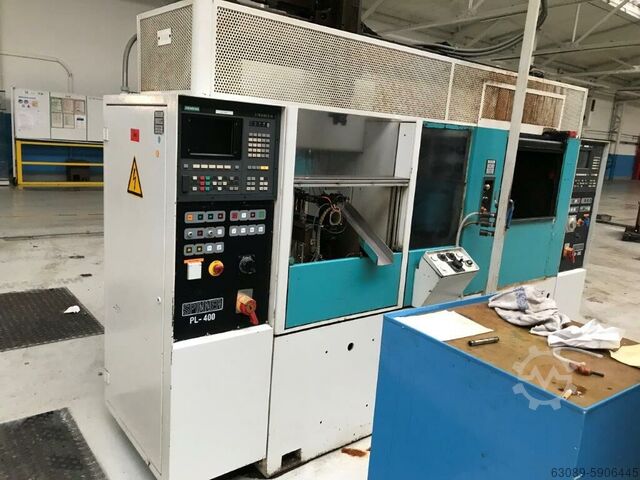

Year of construction: 1995, Condition: used, SPINNER SB-CNC Itjlhcjgykaqodwvsg year 1995, workpiece length max. 200 mm, workpiece output max. 3 parts/min, with control Siemens, type SINUMERIC, portal loading system, SPINNER PL-400

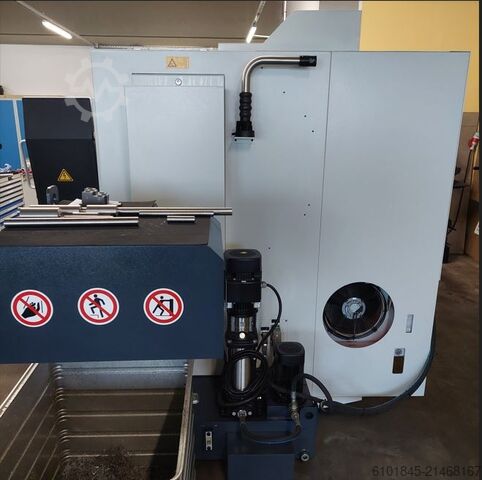

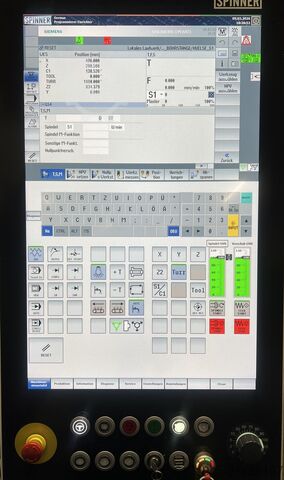

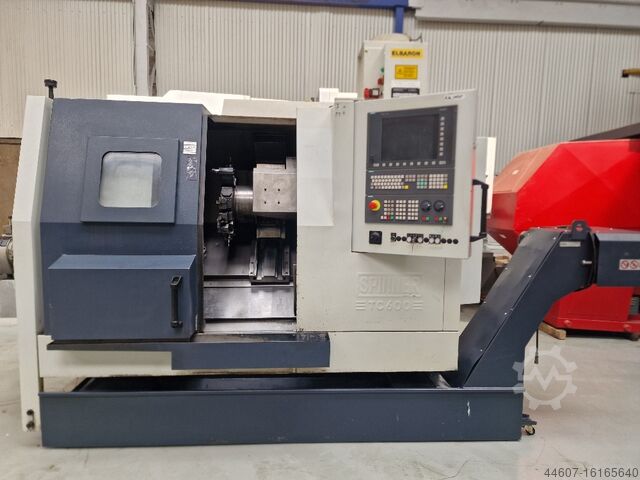

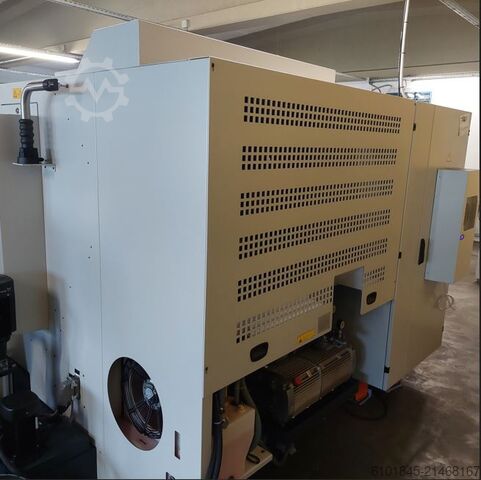

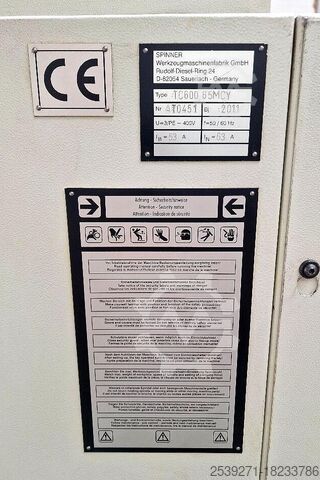

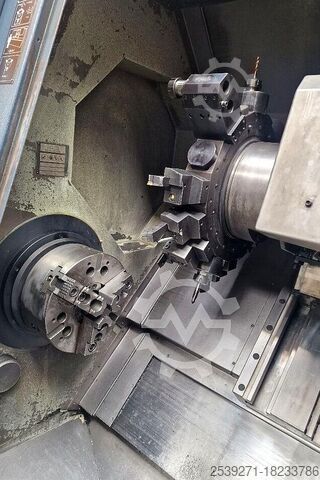

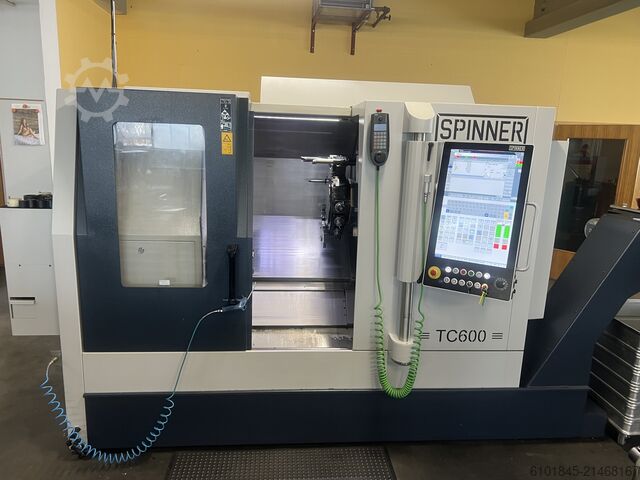

Condition: used, Year of construction: 2011, turning diameter over cross slide: 400 mm, turning length: 650 mm, Spinner TC600 65 MCY Lathe Siemens 840 D Control Turning Diameter 400 mm Turning Length 650 mm Travel X: 275 mm, Y: (+50/-40) mm, Z: 700 mm C-Axis Maximum Rapid Traverse X/Z 15/24 Spindle: Maximum Speed 5000 rpm Chuck Size 210 mm Tailstock Taper Mount: MK4 Turret: Number of Tools: 16, all stations driven. Tool Holder: VDI30 Number of Tools: 16 Maximum Speed 5000 rpm Power (60%) 6 kW Torque (60%) ~30 kN Weight 5000 kg Itelhcetqm Ekjdwveg Dimensions 2.50 m x 1.6 m x 2.5 m

Condition: excellent (used), Year of construction: 2019, Functionality: fully functional, machine/vehicle number: AT1148, turning diameter over cross slide: 400 mm, turning length: 600 mm, turning diameter: 400 mm, spindle bore: 65 mm, spindle speed (max.): 4,000 rpm, spindle speed (min.): 10 rpm, travel distance X-axis: 275 mm, travel distance Z-axis: 700 mm, spindle motor power: 27,000 W, rapid traverse X-axis: 15 m/min, rapid traverse Z-axis: 27 m/min, rotational speed (min.): 6,000 rpm, rotational speed (max.): 10 rpm, total height: 2,090 mm, total length: 3,000 mm, total width: 1,750 mm, feed length X-axis: 275 mm, feed length Z-axis: 700 mm, quill travel distance: 570 mm, quill stroke: 570 mm, swing diameter over cross slide: 600 mm, feed rate X-axis: 15 m/min, feed rate Z-axis: 24 m/min, torque: 348 Nm, overall weight: 6,000 kg, chuck outer diameter: 250 mm, bar diameter: 65 mm, SPİNNER TC 600 65 MC CNC Turning center with C axis Excellent used. Built in spindle. Itjljvzl Ahjhcdwvjg 16 station BMT45 turret Chip Conveyor Internal Coolant supply with 10 bar pressure Electric cabin cooler Programmable servo tailstock Mk4 quil

Year of construction: 1995, Condition: ready for operation (used), Turning diameter: 298mm, orbital diameter: 450mm, travel X/Z: 221mm/590mm, center distance: 580mm, spindle speed: 4500rpm, spindle power: 11kW. Tool holder: VDI 30, tool positions: 12, machine dimensions X/Y/Z: approx. 2700mm/1500mm/1800mm, weight: approx. 4000kg, control: Siemens Sinumerik 840D. The machine cannot be started up. After an internal analysis, a file within the DOS is probably no longer executable. Documentation available. On-site inspection is possible. Ielhcdjv Ac R Eewvjtg

Condition: good (used), Year of construction: 2008, PD/A-V3 with linear tools consisting of: Basic machine PD/A-V3, with linear tools, Siemens, 323mm Control Siemens 840DE PCU Travel paths X=400mm Z=400mm Rotary spindle up to 8,000 rpm / 32mm Spindle nose as flat flange 100mm Clamping cylinder bore 32mm Pneumatic hollow clamping cylinder made by Spinner Network/floppy disk drive/ATA card management for PCU20 Signal lamp on top of machine, red/yellow/green Spindle flushing main spindle SB/PD, 32mm Attachment for microscope on main spindle Microscope optics SB/PD Height adjustment plate Height adjustment holder with Capto C4 Process monitoring Pull-collet device 364E normal Universal stop spindle 32mm Intermediate plate complete Quick tool change system Consisting of: Base holder for linear slide with Capto C4 interface Mechanical clamping force transmission, as a quick clamping device Sister tool programming Consisting of: Parameter mask for pre-selecting the quantity Automatic call of the sister tool after a specified quantity Robot/loading system interface UNIROB-T hardware variant 2 Locking slide Compact robot unit from above Consisting of: - FANUC 6-axis robot - Max. load capacity on the wrist: 5kg - Controller unit - Teach pendant - Base frame, screwed to the side of the machine base frame Double gripper unit Consisting of: - 1 pneumatic parallel gripper for finished parts - 1 vacuum gripper for raw parts in spring-loaded design - For interchangeable suction cups - Vacuum ejector - Sensors - Gripper interface on 3rd robot axis with pneumatics and electrics Turning, cleaning and blow-off station Workpiece feed as bulk material Ijlhcdovy Uu Rewvjtg Pallet unit with two drawers, outside the machine in the robot area - for orderly workpiece storage - Pneumatically operated drawers - Arranged one above the other - With access flap for operator protection - Accommodates two pallets measuring 395 x 295mm - Sensors for pallet recognition Parts rejection for random samples Operating hours 76,300 h

Condition: used, Year of construction: 2008, Technical details: greates pass round over bed: 300 mm turning diameter: 150 mm turning length: 400 mm x-axis: 400 mm z-axis: 400 mm spindle motor: 7,5 kW number of spindle speeds: 8000 Upm control: SIEMENS 840D total power requirement: 13 kW spindle passage: 32 mm CNC-hard turning lathe with workpiece handling (robot), Parts feeder and separation via a spiral conveyor, Pneumatic hollow clamping cylinder make SPINNER, Network/floppy drive/ATA card management for PCU20 Signal lamp on top of machine, red/yellow/green Spindle flushing main spindle SB/PD, Attachment for microscope to main spindle Microscope optics SB/PD Height adjustment plate Height adjustment device with CAPTO C4 Process monitoring collet device 364E standard parts stop device for spindle 32mm Intermediate plate Quick tool change system consisting of: Basic holder for linear slides with Capto C4 device Mechanical clamping force transmission, as a quick-clamping device Sister tool programming consisting of: Parameter mask for quantity preselection Automatic call of the sister tool according to the specified number of pieces Robot/loading system interface UNIROB-T hardware variant 2 Locking slide Compact robot unit from above consisting of: - FANUC 6-axis robot - Max. load capacity: 5kg - Controller unit - Teach pendant - Base frame, screwed to the side of the machine base Double gripper unit consisting of: - 1 piece of pneumatic parallel gripper for finished parts - 1 piece of vacuum gripper for raw parts in a spring-loaded design - For replaceable plunger - Vacuum ejector - Sensors - Gripper interface on the 3rd robot axis with pneumatics and electrics Turning, cleaning and blow-off station Workpiece feeding as bulk material Pallet unit with double drawer, outside the machine in the robot area - for orderly workpiece storage - Pneumatically operated drawers - Arranged one above the other - With access flap for operator protection - Holds two pallets measuring 395 x 295mm - Sensors for pallet detection Parts rejection for random samples Iolhcdsv A Uylswvotg approx. 76.300h "machine on" *

Condition: ready for operation (used), Year of construction: 2011, Functionality: fully functional, turning length: 650 mm, turning diameter: 400 mm, spindle speed (max.): 6,000 rpm, travel distance X-axis: 275 mm, travel distance Y-axis: 80 mm, travel distance Z-axis: 700 mm, TECHNICAL DETAILS Control: Siemens 540 D Turning diameter: 400 mm Turning length: 650 mm Travel X: 275 mm Travel Y: +50/-40 mm Travel Z: 700 mm Max. rapid traverse X: 15 m/min Max. rapid traverse Z: 24 m/min Turning spindle 1 Speed: 5,000 rpm Chuck size: 210 mm, 250/315 mm Spindle power: 18 kW, 22 kW Torque: 150 Nm, 250 Nm Turning spindle 2 Max. speed: 6,000 rpm Chuck size: 165 mm Spindle power: 10 kW Torque: 80 Nm Tailstock Taper mount: MK4 Quill diameter: NC-Body Tailstock stroke: 570 mm Turret Number of tools: 16 Tool holder: VDI30 Rotating tools: 16 (option) Max. speed: 5,000 rpm Power (60%): 6 kW Torque (60%): ~30 Nm MACHINE DETAILS Weight: 5,000 kg Itolhcdwsvprq Iovog Dimensions: 2.50 m x 1.6 m x 2.5 m

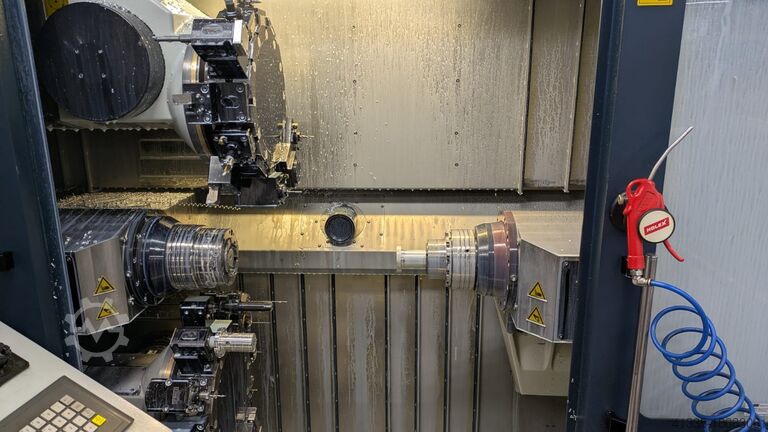

Condition: like new (used), Year of construction: 2019, operating hours: 2,600 h, Functionality: fully functional, Technical details: Turning length 600 mm Turning diameter 250 mm X-travel 180 mm Y-travel 90 mm Z-travel 688 mm Number of turrets 3 Bar capacity 65 mm Spindle speed 5,000 rpm Counter spindle ✔ Milling integration ✔ Itjlhcovta Atsdwvjg Grinding integration ✔ Bar loading magazine: Top Automazioni - X-Files Tool holders: BMT45 Control: Fanuc Series 31i-Model B Chip conveyor: AXA Cooling system with belt filter: Hyfra Extinguishing system: Kraft & Bauer Perfect guideway cover Motor spindles with water cooling Perfect free chip fall through parallel processing with 3 turrets 2 x Y-axis (upper 2 turrets) Each turret can be used on both work on both the main and counter spindles Increased cutting performance through integrated passive vibration damping Can be viewed under power.

Condition: excellent (used), Year of construction: 2021, operating hours: 941 h, Functionality: fully functional, machine/vehicle number: AT1220, Controller FANUC Series 32i Model B Turning dia 400 mm Turning length 650 mm Spindle speed 5000 rpm X travel 275 mm Z travel 700 mm C axis 0,001/360 degree Iolhcdsq T Sigjwvstg Spindle bore D65 mm Spindle power 34 kW Weight 6300 kgs Dimensions LxBxH = 2800 x 1750 x 2090 mm Accessories, features - 3 jaws hydraulic chuck - C axis programmable - hydraulic tailstock - chip conveyor - coolant unit - tool eye - manuals It is ready to buy. Under power in Hungary. It is possible to inspect it under power.

Condition: used, Year of construction: 1998, turning diameter max. 250 mm turning length max. 900 mm control FANUC SERIE 0-T turning spindle Durchlass 75mm chuck diameter 250 mm turning speeds 0-3700 U/min transmission ratio 2 tool numbers 12 feed speeds X/Z 15/20 mm/min quill stroke 100 mm diameter of quill 110 mm tool adaptor MK 4 coolant tank 130 l Isleucgxuohcdwvetg weight - pallet system 5500 kg

Condition: used, Year of construction: 2003, turning diameter max. 420 mm turning length 1090 mm control FANUC Serie 18i-TB turning spindle Durchlass 108 mm 250 / 315 turning speed range 0-3750 U/min Feed speed 18/24 m/min. workpiece 12 quill stroke 100 mm diameter of quill 110 mm taper MK 4 number of driven tools 12 mm turning speeds 3000 U/min 22 nm coolant tank 140 l total power requirement 22/18,5 kW weight of the machine ca. 6500 KG dimensions of the machine ca. m Islhcdoucgylswvjtg
