Used Haas Umc-750Ss for sale (19)

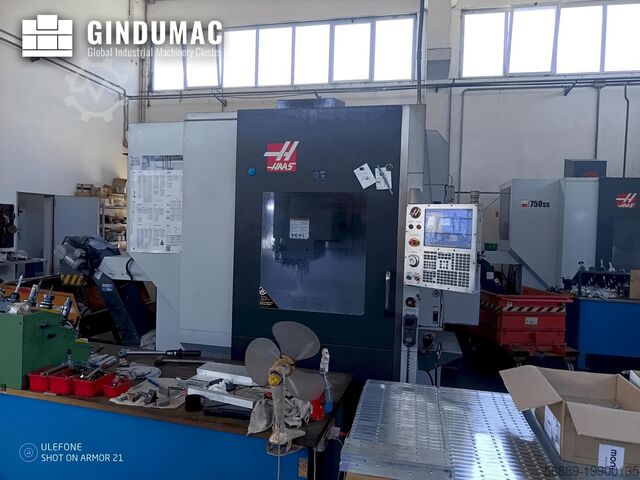

Condition: ready for operation (used), Year of construction: 2015, Main Drive Spindle speed range 15000 Tool taper CT 40 Number of axis 3 Dcslhcdewpybtew Ioi Movement X-Axis Movement 762 Y-Axis Movement 508 Z-Axis Movement 508 Media Chip conveyor Yes Internal cooling Yes This 5-axis HAAS UMC 750SS vertical machining center was manufactured in 2015. It features a spindle speed of 15,000 rpm, a CT 40 cone type, and a tool magazine with 40 + 1 places. Additional features include internal cooling and a chip conveyor. A great opportunity to buy this HAAS UMC 750SS vertical machining center. Contact us for further details regarding this vertical machining center. Application Types Milling

Condition: good (used), Year of construction: 2016, Functionality: fully functional, Description Year of manufacture: 2016 METRIC X-axis 30.00 in 762 mm Y-axis 20.00 in 508 mm Z-axis 20.00 in 508 mm Spindle nose to spanner surface (~ max.) 24.0 in 610 mm Spindle nose to spanner surface (~ min.) 4.0 in 102 mm Spindle S.A.E. METRIC Max. power rating 30.0 hp 22.4 kW Max. speed 12000 rpm Max. torque 90.0 ft-lbf 2000 rpm Drive system Inline direct drive Taper CT40 | BT40 | HSK-A63 CT40 | BT40 | HSK-A63 Bearing Lubrication Air / Oil Injection Air / Oil Injection Cooling Liquid Cooled Liquid Cooled B-Axis – Swivel Angle S.A.E. METRIC Travel 120° to 35° Max. Speed 170°/sec Torque (Continuous) 2240 ft-lbf Braking Torque 2000 ft-lbf Braking Torque 2712 Nm C-Axis – Rotation S.A.E. METRIC Travel 360° Max. Speed 179°/sec Torque (Continuous) 1854 ft-lbf Braking Torque 900 ft-lbf Braking Torque 1220 Nm Max. Workpiece Diameter 27.0 in 686 mm Platter S.A.E. METRIC Clamping surface diameter 19.70 in 500 mm Max. load capacity on clamping surface 660 lb 300.0 kg Max. weight on platter with pallet pool 200 lb 90.7 kg T-slot width 0.626 in to 0.630 in 15.90 mm to 16.00 mm Number of T-slots in standard configuration 7 T-slot center-to-center distance 2.48 in 63 mm Feed rates S.A.E. METRIC Max. feed for cutting 650 ipm 16.5 m/min Rapid traverse on X 1200 ipm 30.5 m/min Rapid traverse on Y 1200 ipm 30.5 m/min Rapid traverse on Z 1200 ipm 30.5 m/min Axis Motors S.A.E. METRIC Max. Thrust X 2750 lbf 12233 N Max. Thrust Y 2750 lbf 12233 N Max. Thrust Z 3400 lbf 15124 N Tool Changer S.A.E. METRIC Type SMTC SMTC Load Capacity 40+1 40+1 Max. Tool Diameter (full) 2.5 in 64 mm Max. Tool Diameter (adjacent positions empty) 5.0 in 127 mm Max. Tool Length (from taper line) 12 in 305 mm Max. Tool Weight 12.0 lb 5.4 kg Tool-to-Tool (Average) 1.80 s 1.80 s Dcolhjwk E Nfocdw Ioi Chip-to-Chip (Average) 2.40 s 2.40 s General Specifications S.A.E. METRIC Coolant Tank Capacity 55 gal 208 L Air Requirements S.A.E. METRIC Air Required† 4 scfm 100 psi 113 L/min 6.9 bar Inline Air Hose 3/8 in 3/8 in Coupling Link (Air) 3/8 in 3/8 in Min. Air Pressure 80 psi 5.5 bar Electrical Specification S.A.E. METRIC Spindle Speed 15000 rpm 15000 rpm Drive System Inline Direct-Drive Inline Direct-Drive Spindle Power 30.0 hp 22.4 kW Input AC Voltage (Three-Phase) – Low 220 VAC 220 VAC Full Load Amps (Three-Phase) – Low 70 A 70 A Input AC Voltage (3 Phase) – High* 440VAC 440VAC Full Load Amps (3 Phase) – High* 35A 35A Dimensions – Shipping S.A.E METRIC Domestic pallet 168.0 in x 92.5 in x 110.0 in 427 cm x 235 cm x 280 cm Export pallet 174.0 in x 92.0 in x 100.0 in 442 cm x 234 cm x 254 cm Weight 14250lb 6463.8kg Domestic Pallet w/70+1 SMTC 168.0 in x 92.5 in x 130.0 in 427 cm x 235 cm x 330 cm Export Crate w/70+1 SMTC 168.0 in x 96.0 in x 141.0 in 427 cm x 244 cm x 358 cm Weight with 70+1 SMTC 18,340 lb 8,319.0 kg Export Crate for Sheet Metal 96 in x 26 in x 44 in 243 cm x 65 cm x 110 cm Weight for sheet metal crate 840 lb 484 kg Spindle and spindle motor new 2024

Condition: ready for operation (used), Year of construction: 2021, Control Unit Brand HAAS Main Drive Spindle speed range 12000 rpm Spindle motor power 22.4 kW Number of axis 5 Movement X-Axis Movement 762 mm Dcelhcdwewg Iaxo Iei Y-Axis Movement 508 mm Z-Axis Movement 508 mm Additional Equipment Coolant tank – 208 liters with mobile cart Programmable coolant pump (M-code controlled) // Programmable Coolant Nozzle (P-COOL) Safe Run – crash and overload detection system Control cabinet surge protection Voltage fault detection module (EPFDM) Second Home Position button Remote Jog Handle with 2m cable (RJH-XL) Memory lock key-switch Rotary axis scales Top cover This 5-axis HAAS UMC-750SS vertical machining centre was manufactured in 2021. It features a 22.4 kW vector drive spindle motor with a 12,000 rpm spindle speed, a 30+1 tool side-mount tool changer and comes equipped with a wireless intuitive probing system (WIPS). Consider the opportunity to buy this HAAS UMC-750SS vertical machining centre. For more information about this machine, please reach out to us. Application Types Milling

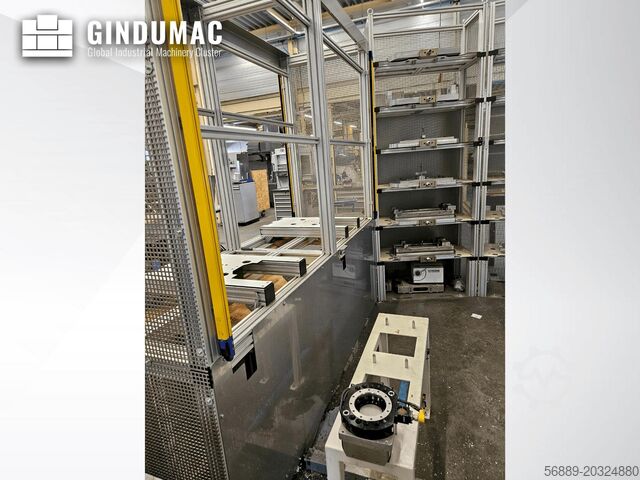

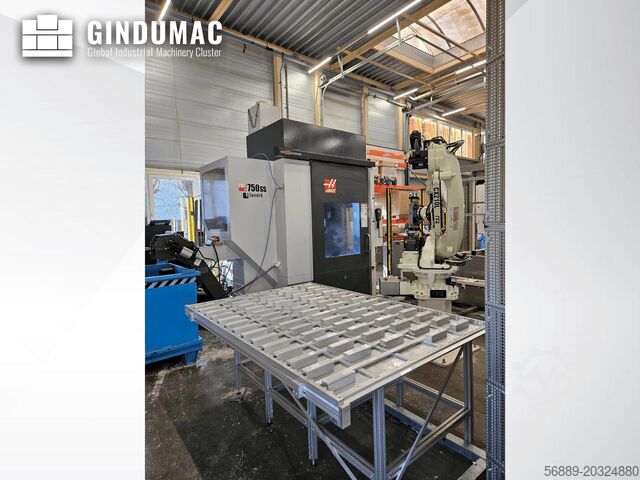

Condition: excellent (used), Year of construction: 2015, Functionality: fully functional, travel distance X-axis: 762 mm, travel distance Y-axis: 508 mm, travel distance Z-axis: 508 mm, rapid traverse X-axis: 35 m/min, rapid traverse Y-axis: 35 m/min, rapid traverse Z-axis: 35 m/min, controller manufacturer: Haas, rotational speed (max.): 15,000 rpm, number of slots in tool magazine: 40, Equipment: chip conveyor, rotational speed infinitely variable, For sale Haas UMC 750SS with automation from Zeroclamp Zerobot 100P . Commissioning 2015 Equipment: * Haas control system * SK 40 * Tool magazine magazine 40-fold * Chip conveyor * Speed 15,000 rpm * IKZ coolant unit 20 bar * Additional coolant filter Djlon R Efyshcdw Isci * Workpiece measuring probe WIPS Renishaw * Automation Zeroclamp * Automatic workpiece clamp * Zero point clamping plate 6 pots * Various support plates for blank handling * Second rack for more component capacity Here it is possible to operate blank handling or clamping device handling. There are many possible applications, we will be happy to advise you.

Condition: good (used), Year of construction: 2022, The machine is in good technical condition, testing possible after prior agreement. 25 micron filter - Chip conveyor belt - Central spindle cooling pressure 300 psi - Wireless tool and workpiece probe - Side tool changer, ISO 40 taper, 30+1 tool - Synchronized threading - Rotary measuring ruler Dcslhewxv Inscdw Iei

Condition: ready for operation (used), Year of construction: 2021, Main Drive Spindle speed range 10000 Spindle motor power 22.4 kW Tool taper ISO40 Number of axis 5 Movement X-Axis Movement 610 mm Y-Axis Movement 406 mm Z-Axis Movement 406 mm Additional Equipment Djlhcswvb Dijdw Ijci Set of tool holders Renishaw probe set Chip conveyor High speed machining TSC-ready Programmable cooling nozzle Additional air conditioning unit for cooling the electrical cabinet This 5-axis HAAS UMC 500 was manufactured in 2021, featuring a 610x406x406 mm working travel and a ø400 mm table that can handle up to 226 kg. It includes a B-axis tilting at -35°/+120° and a full 360° C-axis rotation. The spindle reaches speeds up to 10,000 rpm with a power of 22.4 kW. Extras include a Renishaw probe set, chip conveyor, and additional cooling unit. If you are looking to get high-quality milling capabilities consider the HAAS UMC 500 machine we have for sale. Contact us for more information. Application Types Milling

Condition: used, Year of construction: 2022, X/Y/Z - 610/406/406 mm B-axis 120-35- deg. C-axis rotation 360 deg. (max. part swing 457 mm) Spindle speeds 15.000 rpm Spindle power 22,4 Kw Spindel taper BT 40 15.000 o/m, inline direct-drive 22,4kW Side mounted toolchanger 30 + 1, BT 40 Dcelhcdsv Ina Now Iei 21 bars internal coolant through spindle Chip conveyor Automatic tool & part measuring Automatic calibration Dynamic Work Offsets Ethernet Interface Haas Connect Media Display 1 GB memory 208 L. coolant system Fine filter for coolant Remote Jog hand wheel Syncronized threading Programmable coolant nozzle High Speed Machining Prepared for air up through table Wifi camera Full 5-axis Equipped with: Vacuum table Large tool package (see photos) ONLY BEEN WORKING FOR APPROX 1100 HOURS - APPEARS LIKE BRAND NEW

Condition: good (used), Year of construction: 2015, Traverses XYZ: 762 x 508 x 508mm, 500mm Diameter table, max table weight 300kg, table tilt +120°, -35°, 22.4kW, 12000rpm, Dolhekticxecdw Ijci CT40, 40 station tool changer, coolant, Tool Setter, Programmable coolant, swarf conveyor,

Condition: excellent (used), Year of construction: 2022, Technical Specification of HAAS UMC-750 (2022) • Manufacturer: HAAS • Model: UMC-750 Dsljv Izg Nohcdw Ijci • Year of Manufacture: 2022 • Machine Type: 5-Axis Universal Machining Center Technical Data: • Travel (X / Y / Z): 762 x 508 x 508 mm (30” x 20” x 20”) • Table Size: 630 mm diameter (24.8”) • Maximum Table Load: 300 kg (660 lbs) • Spindle Speed: 12,000 RPM (optional 15,000 RPM) • Spindle Taper: 40 Taper (inline direct-drive) • Spindle Power: 22.4 kW (30 HP) vector drive • Tool Changer Capacity: 30+1 (optional 50+1) • Rapid Traverse Rates: 30.5 m/min (1,200 in/min) • Cutting Feed Rate: 12.7 m/min (500 in/min) • B-Axis Travel (Tilt): +110° to -35° • C-Axis Travel (Rotation): 360° continuous • Automatic Tool Changer: Yes • Coolant System: Standard flood coolant with optional Through-Spindle Coolant (TSC) • Chip Management: Programmable chip auger or conveyor • Control System: Haas CNC Control with Wi-Fi and Ethernet connectivity • Machine Weight: Approx. 6,350 kg (14,000 lbs)• 25 micron filter • Chip conveyor belt • Spindle center coolant pressure 300 psi • Wireless tool and workpiece probe • Side tool changer, ISO 40 taper, 30+1 tools • Synchronized threading • Rotary scale

Condition: good (used), Year of construction: 2013, We offer: Universal Machining Center Manufacturer: Haas Type: UMC-750 Year of Manufacture: 2013 Technical Specifications: Travel: - X-axis: 762 mm Delsvzrwfohcdw Ioci - Y-axis: 508 mm - Z-axis: 508 mm - C-axis: 360° - A-axis: +35° / -110° Main Spindle: - Max. spindle speed: 8,100 rpm - Main spindle drive power: 22.4 kW - Max. torque: 122 Nm Rotary Table: - Table size: 630 x 500 mm - Number of T-slots: 7 - T-slot width: 16 mm - Max. table load: 300 kg Tool Changer: - Tool holder: SK 40 - Number of tool positions: 40 Pos. - Rapid traverse (x/y/z): 25.4 m/min Accessories, tools, and clamping devices shown are only included in the scope of delivery if noted in the additional information. Subject to change and errors in the technical data and information, as well as prior sale.

Condition: good (used), Year of construction: 2013, Parts shown by hand not come. Doljvyrtwehcdw Ioci

Condition: ready for operation (used), Year of construction: 2020, operating hours: 5,717 h, General Data Dslhcjwt Empedw Isci Measurements width 2387 mm Measurements depth 3978 mm Measurements height 2565 mm Machine weight 8200 kg Control Unit Brand HAAS Main Drive Number of axis 5 Movement X-Axis Movement 762 mm Y-Axis Movement 508 mm Z-Axis Movement 508 mm Table Table load 300 kg Media Chip conveyor Yes Additional Equipment Wireless Intuitive Probing System Through-Spindle Coolant This 5-axis HAAS UMC-750 was manufactured in 2020, featuring a 762 mm X-axis, 508 mm Y-axis, and 508 mm Z-axis. It includes a spindle speed up to 12,000 rpm, ISO 40 taper, and a robust 40-position tool changer. The machine supports a maximum table load of 300 kg and offers advanced features like a wireless probing system, chip conveyor, and through-spindle coolant. Consider the opportunity to buy this HAAS UMC-750 universal machining centre. Contact us for more information. Application Types Milling

Condition: like new (used), Year of construction: 2022, operating hours: 355 h, Functionality: fully functional, 5 Axis HAAS UMC500SS Year 2022 Machine is like new, only 355 working hours Spindle 12,000 rpm max 2x Renishaw measuring probe X axis 24.00 in 610 mm Y axis 16.00 in 406 mm Z axis 16.00 in 406 mm B axis 120 ° to 35- ° 120 ° to 35- ° C axis 360 ° BASIC EQUIPMENT: - CNC control, 5 axes, HAAS type (NGC version), compatible with Fanuc - Spindle taper ISO40, CT type - (available in BT version) - Memory capacity 1 GB - Network card - WIFI - Early power failure detection module EPFDM, detects power failures or a serious drop in line voltage, and brings vertical axes to a safe and controlled stop. - HaasConnect - remote monitoring of machine status - Dynamic workpiece zero point shifts and tool axis position control - Production center for 3+2 index machining - 15” LCD monitor and USB port - Memory locking - Spindle cooling system - Temperature compensation of lead screws - ball screws - Protective cabin with sliding front doors and side windows - 30-position side magazine - Spindle taper blow-off system - Threading without compensating holder - High Speed Machining - HSM function for faster 3D shape machining - Installation for connecting compressed air - Electronic handwheel on a cable with a display (so-called fishing rod) - Renishaw tool and part measuring probe (includes VPS, COORD, MACRO) - Coolant system with integrated coolant tank - Automatic central lubrication system - Table calibration kit tilt-rotary - Machine lighting - Top cover of the machine Dslhcdwowah Hle Isci - CABCOOL – control cabinet cooler/air conditioner - Spindle orientation SELECTED OPTIONS Cooling through the spindle, high-power pump /21 bar, 22 l/min/ Belt chip ejector Oil mist extraction system. Possibility of connecting to the ventilation network Programmable angular position of the coolant nozzle Additional 25 μm filter system, necessary for machining cast iron, aluminum, wood, phenolic resin-based materials and other dusty materials Additional chip filter kit that prevents chips from entering the cooling system. Includes a filter (mesh) and a metal chip basket.

Condition: good (used), Year of construction: 2022, Haas UMC 1000 / 5 axles, Year of construction 2022, Haas touchscreen control, Travel X/Y/Z 1016/635/635 mm, spindle speed up to 8,100 rpm, SK 40 holder, 30-position tool changer, Control cabinet air conditioning unit, 3D measuring probe, Dcolhsviuu Nscdw Ioi prepared IKZ, sync. tapping, 2 axes NC swivel rotary table, chip conveyor, Switch-on hours 3800 Spindle hours 1500

Condition: excellent (used), Year of construction: 2016, With B + C axis Working travels 762 x 508 x 508 mm Table diameter 500 mm Spindle taper 40 Spindle speeds -12'000 rpm Dslslhqydjhcdw Ioci Tool changer 40 Pos. Control HAAS Coolant through spindle Misc.accessories MARCELS MASCHINEN CH

Condition: excellent (used), Haas UMC 750 CNC 5-axis machining center Year of construction: 12/2013 x-path 762 mm y-path 508 mm z-path 508 mm b-axis +35 / -110 ° c-axis 360 ° Control system Main spindle: Speed range - main spindle 8100 min/-1 Delhcdsuvigvsw Ijci Drive power - main spindle 22.4 kW Max. Torque 122 Nm Rotary table: Table clamping surface 630 x 500 mm Number of T-slots 7 pcs. T-slot width 16 mm Max. table load 300 kg Tool changer: SK 40 tool holder Number of tool positions 40 Pos. Feed rates: Rapid traverse ( x / y / z ) 25.4 m/min Coolant tank 284 l Installation dimensions approx. (length x width x height) 4.1 x 2.9 x 2.95 m Weight approx. 8.5 t

Condition: ready for operation (used), Year of construction: 2023, Control Unit Brand HAAS Main Drive Spindle speed range 15000 RPM Spindle motor power 22.4 kW Tool taper ISO40 taper Dslhcjwuha Ijdw Isci Media Chip conveyor Yes Additional Equipment Chip Conveyor: Positioned above coolant tank with auto-reverse function This 5-axis HAAS UMC-500SS universal machining centre was manufactured in 2023. It offers advanced capabilities for complex and precise machining tasks. Consider the opportunity to buy this HAAS UMC-500SS universal machining centre. Contact us for more information. Application Types Milling

Condition: ready for operation (used), Year of construction: 2020, Main Drive Dcelhcswkancodw Isi Spindle speed range 15000 RPM Movement X-Axis Movement 1016 mm Y-Axis Movement 635 mm Z-Axis Movement 635 mm Table Min distance between vertical spindle and table 102 mm Max distance between vertical spindle and table 737 mm Additional Equipment Chip Conveyor with Belt Drive Export Packaging 8-Station Pallet Pool for UMC UMC Spare Tool Storage (1 unit) Through-Tool Air Blast (TAB) Auxiliary Coolant Filter Chip Tray Filter Kit This 5-axis HAAS UMC-1000SS was manufactured in 2020. It features a large working envelope with X, Y, and Z axes measuring 1016 mm, 635 mm, and 635 mm respectively. Ideal for complex geometries and multi-sided machining. Consider the opportunity to buy this HAAS UMC-1000SS universal machining centre. Contact us for more information. Application Types Milling

Condition: ready for operation (used), Year of construction: 2013, Control Unit Brand HAAS Djlhowd Uzdscdw Ieci Main Drive Spindle speed range 8100 rpm Tool taper BT40 Number of axis 5 Movement X-Axis Movement 762 mm X-Axis Rapid Traverse 25.4 m/min Y-Axis Movement 508 mm Y-Axis Rapid Traverse 25.4 m/min Z-Axis Movement 508 mm Z-Axis Rapid Traverse 25.4 m/min C-Axis Movement 360 º Table Table load 300 kg Tools Number of index 41 Max weight 5.4 kg Max tool length 406 mm This 5-axis HAAS UMC-750 vertical machining center was manufactured in 2013. Consider the opportunity to buy this HAAS UMC-750 vertical machining center. Contact us for more information. Application Types Milling
