Used Klingelnberg Hnc 35 for sale (9,895)

Condition: used, Year of construction: 1991, max. wheel diameter --- mm gear width --- mm max. module --- min. module --- Control --- Bwodoya Eqaspfx Af Hen total power requirement --- kW weight of the machine ca. --- t dimensions of the machine ca. --- m

Condition: used, Year of construction: 1999, Technical details: max. wheel diameter: 5 - 260 mm gear width: 400 mm max. module: 15 min. module: 0,5 gear hobbing diameter - internal: 30 mm max. helix angle: > 85 ° Aussenverz. max. helix angle: > 45° Innenverz. Testing Range vertical: 400 mm dist. between centers: 5 - 600 mm table diameter: 260 mm max. table load: 100 kg speeds: 30 1/min total power requirement: 1,6 kVA Bwodoqvcnnepfx Af Hen weight of the machine ca.: 900 kg dimensions of the machine ca.: 200 x 1300 x 2150 mm CNC Gear Tester in good condition, out of OEM Test Lab. For measuring of spur and helical toothing, additional of rotationally symetric parts as true running, coaxiality, axial runout, etc. with tool changer ( 4 nos.) *

Condition: ready for operation (used), Year of construction: 2007, functionality: fully functional, wheel diameter: 400 mm, overall weight: 4,000 kg, distance between centers: 550 mm, spindle speed (max.): 3,000 rpm, controller model: Siemens 840 D, TECHNICAL DETAILS Max. wheel diameter: 400 mm Workpiece diameter: 36–400 mm Centre distance: 135–290 mm Max. spindle speeds (infinitely variable): 3,000 rpm Centre width: 100–550 mm MACHINE DETAILS Control: CNC Siemens 840 D Bwodpfx Ajywg Hxef Hsn Dimensions & Weight Space requirement: approx. 2,000 x 3,055 x 2,788 mm Machine weight: approx. 4,000 kg EQUIPMENT Single-flank rolling test Double-flank rolling test Structure-borne noise testing Helical contact testing (double-flank contact) Use of up to 6 test carriages Highest test accuracy and repeatability Machine table with workpiece drive Swivelling pneumatic unit Spray lubrication (Type: Vogel) Oil mist extraction (Type: Elbaron)

Condition: ready for operation (used), Year of construction: 1997, functionality: fully functional, wheel diameter: 275 mm, wheel width: 150 mm, travel distance X-axis: 640 mm, travel distance Y-axis: 870 mm, workpiece diameter (max.): 275 mm, TECHNICAL DETAILS Wheel diameter: 275 mm Wheel width: 150 mm Bodpfoywgy Sex Af Hewn Maximum module: 6 Minimum module: 1.5 Workpiece diameter: 275 mm Maximum face width: 5.5 mm Spiral angle: 0 - 60° Number of teeth: 5 - 120 Minimum gear ratio: 1:1 Maximum gear ratio: 1:10 Milling Depth Axis (X-Axis) Travel: -25 to 640 mm Max. traverse speed: 6 m/min Workpiece Positioning Axis (Y-Axis) Travel: 870 mm Max. traverse speed: 4.5 m/min Axis Shift (Z-Axis) Travel range: +/- 50 mm Max. traverse speed: 0.657 m/min Generating Rotation Axis (A-Axis) Swivel range: 315° Max. swivel speed: 40°/s Workpiece Spindle (B-Axis) Max. workpiece spindle speed: 300 rpm Outer cone (1:4) clamping diameter: 140 mm Inner cone (1:20): 99.218 mm Workpiece spindle bore: 90 mm Workpiece Swivel Axis (C-Axis) Swivel range: -8.5 to 98° Max. swivel speed: 21.5°/s Tool Spindle (D-Axis) Spindle speed: 60 to 350 rpm Tool Positioning Axis (E-Axis) Swivel range: 0 to 360° Max. swivel speed: 19.5°/s Machine Distance (V-Axis) Travel: 150 mm Max. traverse speed: 1.6 m/min MACHINE DETAILS Cutter drive motor Power: 20 kW Workpiece drive Power: 14.5 kW Total connected load: 62 kVA Dimensions & Weight Machine weight: approx. 12 t Space requirement: approx. 4,700 x 4,387 x 2,450 mm EQUIPMENT 13 cutters

Condition: good (used), Year of construction: 2002, max. wheel diameter 275 mm gear width 55 mm max. module 6 min. module 1 Bwjdpfjtumrpex Af Hsn Control 840 C Siemens total power requirement 100 kW weight of the machine ca. 16,7 t dimensions of the machine ca. 5,2 x 2,3 x 2,4 m m

Condition: excellent (used), Year of construction: 1988, functionality: fully functional, Technical Data Grinding/Workpiece Diameter: up to approx. 300 mm (partially up to 350 mm) Grinding Length/Stroke: approx. 550 mm (slide travel) Module range (for hobbing cutter resharpening): min. module approx. 0.5 to max. module approx. 25 Number of flutes: typically 1–99 pieces (depending on tool set) Grinding wheel diameter: approx. 150–300 mm Grinding wheel speed: up to about 2,700 rpm Centre distance (workpiece spindle): typical range 400–800 mm Swivel/Pitch range: e.g. grinding wheel head swivel 0–15° Machine weight and space requirement: approx. 4.2–4.9 t weight; space approx. 3 × 2.6 × 2.3 m Bwjdpfx Aextiunef Hjn Electrical data: operating voltage e.g. 380 V three-phase, control 24 V, auxiliary voltage 220 V

Condition: excellent (used), Year of construction: 1988, TECHNICAL DATA. Max. clamping length: 90 mm Tool clamping height with tapered shank: 50 mm Tool clamping height with straight shank: 45 mm Max. helix angle: 45° Number of clamping positions: 1 to 99 Max. slide travel: 550 mm Max. grinding wheel diameter: 350 mm Min. grinding wheel diameter: 150 mm Grinding wheel speed (variable): up to 2700 rpm Swivel range of grinding spindle axis: 0° to 15° Grinding slide feed rate (variable): 0.05 to 16 mm/min (with 3rd and 4th axis: 0.05 to 8 mm/min) Workpiece spindle taper: ISO Taper No. 40 Bwsdpjwwkacsfx Af Hen Grinding Wheel Data CBN and diamond cup grinding wheel: Ø200 mm → Min. DFF: 66 (3rd axis), 76 (4th axis) Ø250 mm → Min. DFF: 16 (3rd axis), 26 (4th axis) CBN-ES cone grinding wheel: Ø200 mm → Min. DFF: 50 (3rd axis), 60 (4th axis) Ø250 mm → Min. DFF: 0 (3rd axis), 10 (4th axis)

Year of construction: 2002, condition: used, max. wheel diameter 275 mm gear width 55 mm max. module 6 min. module 1,5 control Sinumerik 840C tooth width 5,5 mm spiral angle 0/60 ° max. number of teeth 120 min. number of teeth 5 transmission ratio max. 1:10 transmission ratio min. 1:1 spindle speeds max. 110 mm Bsdpfogtvbpsx Af Hown blade head turning speeds 20-110 1/min total power requirement 100 kW weight of the machine ca. 16700 kg dimensions of the machine ca. 5200x2300x2400 mm

Year of construction: 1987, condition: ready for operation (used), Center width: 400-800mm, rotational speed: 1000-2700/min, workpiece diameter: 10-300mm, grinding wheel diameter: 40-300mm, swivel angle: -45 to 45°, length: 3000mm, width: 2500mm, height: 2275mm, with oil mist separation system Hoffmann (new filter inserts), filter system gravity belt filter Faudi, hydraulic unit, additional grinding head for grinding worm gears, grinding mandrels diameter 50, 40, 27, 22, holder for SK40 and MK5, driver sets for different clamping diameters, operating instructions, circuit diagrams in paper form, an inspection is possible. Bwodpfx Aergahxsf Hjn

Condition: used, floor-plate length 1050 mm floor-plate width 1050 mm floor-plate height 60 mm weight of the machine ca. 0,2 t dimensions of the machine ca. 1050x1050x0,1 m Bedou Sbfkjpfx Af Hown table plate of PFSU 1600, Ø 1050 mm

Condition: good (used), Your contact persons in our company: Mr: Andre Evering Mr: Marcel Brahms Mr: Simon Blank Here we offer you a used load distributor of the manufacturer Dexion for purchase. These can also be used for other manufacturers. The load distributors are designed for a shelf life of 800 mm suitable. Included in the scope of delivery: 01x load distributor, used Material colour: completely galvanized Total length: approx. 980 mm C-profile dimension: approx. 185 x 35 mm Opening for shelf feet: approx. 115 mm Weight / piece: approx. 10,074 Kg To distribute the field loads over a larger area. Our services at a glance: (prices on request) Mounting, construction our general terms of assembly are to be observed Shelf inspection Bsdpfx Asdvad Ejf Hjwn Shelf inspection according to DIN EN 15635 carried out in accordance with the Requirements of BGR 234 visual inspection for all rack systems Delivery with our own vehicle fleet (without unloading)

Condition: excellent (used), Year of construction: 2007, max. wheel diameter 400 mm weight of the machine ca. 4 t Q U O T A T I O N We are pleased to offer you ex our stock, subject to prior sale, and error in technical data : KLINGELNBERG Single- and double-flank rolling test machine with structure-borne sound testing model R 30 year 2007 _____ Workpiece outer diameter min. / max. 36 / 300 mm Center distance between workpiece and counter wheel 135 - 290 mm Spindle speeds max. 3.000 rpm Drive torque max. up to 2196 rpm 20 Nm Drive torque max. 2196 – 3.000 rpm 14,7 Nm Spindle drive 4,62 kW Total drive approx. 10 kW - 400 V - 50 Hz Bodpfx Ajxvdryof Hjwn Total weight approx. 4.000 kg Accessories / Special Features: • The machine is a universal rolling tester designed for the following testing procedures: o Single-flank rolling test o Double-flank rolling test o Structure-borne noise testing in single and double-flank contact o Helix testing in double-flank contact • WINDOWS PC control for measurement data acquisition and analysis with the NoisyS32 testing software • SIEMENS control panel for operating the machine and evaluating the test cycles • Complete enclosure with electrically monitored sliding doors • Attached control cabinet, various accessories, operating instructions • Unfortunately, the license dongle for activating the measurement software is currently missing. We hope to receive it from the supplier of the machine. Condition : very good condition ! Almost unused ! Soon : Please click here to view a video of the machine running : ! Delivery : immediately available, FCA Metzingen Payment : 100 % Net, after conclusion of contract, before loading We always have a large selection gear machines – CNC or conventional - available. Please let us know your requirements.

Condition: ready for operation (used), Year of construction: 2001, functionality: fully functional, grinding wheel diameter: 200 mm, workpiece length (max.): 200 mm, TECHNICAL DETAILS Grinding wheel diameter: 100–200 mm Maximum workpiece length: 200 mm MACHINE DETAILS Control: Siemens 840D or equivalent CNC axes: 3–5 axes Drive power: 5–10 kW Coolant tank: 100–200 litres EQUIPMENT Coolant filtration system Universal applicability for different tool types and geometries High flexibility through CNC programming and adaptable clamping devices Bedpfx Afeya Dy Ho Hjwn Process reliability thanks to integrated cooling and filtration system Easy maintenance due to modular design and central supply units

Condition: like new (used), Year of construction: 2008, volume flow: 3,700 m³/h, power: 2.1 kW (2.86 HP), input frequency: 50 Hz, Systemair KTEX 60-35-4 Atex fan 2.1kw 3700m3 duct mount KTEX fans feature a compact, streamlined design, high-performance forward-curved radial impeller and reliable ATEX-rated AC motors. power 2.1 Kw Voltage 230/ 400V 50Hz 5.8/3.8A IP44 power 2.1 KW Air flow max 3.704 m³/h Pressure: 580 Pa Impeller rotation: 1.392 rpm Bsdpfovu Hrkjx Af Hown Air flow max 3.704 m³/h Minimum static back pressure 225 Pa Conveyed air temperature max 40 °C Maximum temperature of the conveyed air when speed is controlled 40 °C Insulation class F Explosion-proof designation II 2 G Ex eb h IIB+H₂ T3 Gb Certificate Presafe 17ATEX9970X Ambient and pipe temperature -20 to 40 °C Dimensions and weights inlet (height x width) 350 x 600 mm outlet (height x width) 350 x 600 mm Weight 42 kg

Condition: excellent (used), functionality: fully functional, Year of construction: 2005, operating hours: 150 h, excellent condition BIRLIK PBM 35 profile bending machine, pipe bending machine for sale Bodpfx Afjxc N Rhj Hewn manufacturer BIRLIK Makina type: PBM 35 year of manufacture: 2007 Shaft diameters: 50mm Roll diameters: 155mm Upper roller diameter: 148mm Working speed: 4.5m/min Motor power: 1.5kw Voltage: 3phase 380v 50Hz 3.8A Machine width: 700mm Machine length: 900mm Machine height: 1400mm Machine weight: 375kg Bending capacity: I-steel - flat 120 x 15 (d 750) mm I-steel - on the edge 60 x 10 (d 800) mm Angle steel 50 x 5 (d 1200) mm Round material 35.0 (d 800) mm Max. pipe diameter 70 x 2 (d 1200) mm Square material 50 x 40 x 3 mm

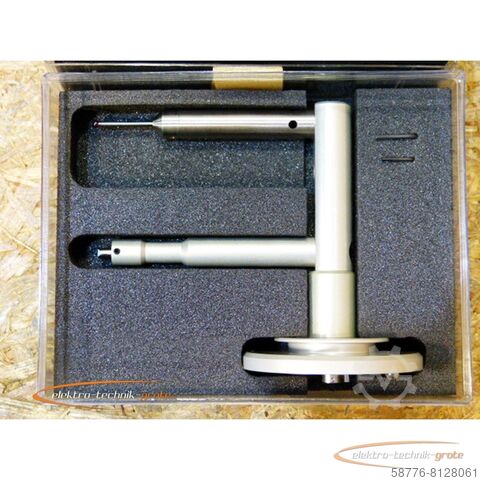

Condition: new, Klingelnberg push rod for CS200 ,unused in original box, 100% functional, scope of delivery according to photos Bjdpfoi Ebv Sjx Af Hewn

Condition: used, The Klingelnberg GKP 90 bevel gear testing machine was designed as a universal machine and is used by manufacturers of gears and transmission technologies for noise and contact pattern testing on bevel and hypoid gears. Technical Data • Diameter: 540 (400) mm • Hypoid: ±50 mm • Pinion spindle diameter: 90 mm • Dimensions (LxWxH): 1,800 x 1,800 x 1,600 mm Bedsxpq Nlepfx Af Hewn • Machine weight: approx. 2,800 kg *Information and data are provided without obligation. Subject to prior sale. Special Features: The machine is intended for noise and contact pattern testing on bevel and hypoid gears of all gear types. By simulating operational conditions, applying various rotational speeds, and switching load states between drive and coast, the optimal installation distance for standstill can be determined. • Digital actual value display for 2 axes • Infinitely variable speed adjustment via frequency inverter • Electrically secured and removable safety guard • Accessories: Large number of workpiece holders • Condition: Very good

Condition: refurbished (used), functionality: fully functional, The Klingelnberg PKE 300 H (PSKE 900) bevel gear testing machine was designed as a universal machine for the flexible machining of gears and is used for single flank rolling tests on bevel gears with evaluation Picture shows machine in actual condition as retrofit / modernized. Bjdjtncnhopfx Af Hswn Performance description: Wheel diameter: 450 (300) mm Axle angle: 90 degrees Hypoid: +/- 60 mm Space requirement approx.: 1.4 x 0.8 x 1.5 mm Machine weight approx.: 1,100 kg Further information on possible options, current purchase price on request. *Information, dates are non-binding, subject to prior sale

Condition: used, Year of construction: 2008, max. wheel diameter 300 mm max. module 8 min. module 0,7 Control SINUMERIK 840 D min/max. pitch cone angle - 90 / + 90 ° workpiece spindle - bore 127 mm grinding wheel diameter 50 - 230 mm spindle speeds (infinitely variable) 7.500 U/min total power requirement 146 kW work piece spindle speed 700 U/min weight of the machine ca. 21 t dimensions of the machine ca. 9,5 x 3,6 x 3,1 m Measuring probefor tooth gap(integrated on the grinding head) External grinding spindle cooling system ELBARON oil mist extraction (integrated in the machine) Hoffmann coolant filter system Was used for the serial production of spiral-toothed ring gears No clamping devices Bwsdpfx Asvxww Ssf Hsn No grinding wheels / grinding wheel flanges No dressing wheels

Condition: used, Year of construction: 1980, max. wheel diameter 2500 mm gear width 0 mm Bwjdet Hw Aaepfx Af Hjn max. module 34 min. module 1 total power requirement ca. 15 kW weight of the machine ca. 15 t dimensions of the machine ca. 4,20 x 2,00 x 2,90 m Extra große ZR-Prüfmaschine, Gegenhalter

Condition: used, Year of construction: 1975, max. wheel diameter 160 - 1.600 mm Bodpfx Afot Hwpte Hown gear width 250 mm max. module 20 min. module 1,5 total power requirement 1 kW weight of the machine ca. 3 t dimensions of the machine ca. m

Condition: ready for operation (used), Year of construction: 2023, operating hours: 150 h, functionality: fully functional, measuring range X-axis: 230 mm, measuring range Y-axis: 230 mm, measuring range Z-axis: 550 mm, workpiece weight (max.): 300 kg, empty load weight: 2,550 kg, TECHNICAL DETAILS Workpiece Data: Module range: min. 0.3 mm – max. 20 mm (0.1 – 20 mm) Helix / lead angle: min. 0° – max. 90° Inspection diameter for gears between centers: max. 400 mm Workpiece diameter: max. 490 mm Vertical measuring range (Z-axis): 550 mm (700 mm) Horizontal measuring range / rolling path (X-axis): ± 115 mm Permissible mass moment of inertia: max. 5 kg·m² Permissible workpiece weight: max. 300 kg Center distance: min. 50 mm – max. 800 mm (50 – 1,000 mm) Bwedsxamnropfx Af Hon Chart Recording: Magnification: 50x / 100x / 200x / 500x / 1,000x / 2,000x / freely selectable Longitudinal magnification: 0.5x – 1x – 2x – 4x – 5x – 10x – 20x Machine Accuracy: VDI/VDE 2612 Part 1 and 2 as well as 2613 Group I At +18 °C to +22 °C, reference temperature 0.5 K/h; 2 K/d; 2 K/m MPEE₀ ISO 10360-2 (2010): 1.8 + L/450 mm VDI2631 Radial guideway deviation: 0.2 µm Roundness Ø100/L: 0.3 µm Flick 15W/U/L: 1.5 µm Flick 50W/U/L: 1.5 µm Straightness Ø70/L: 0.4 µm Coaxiality: 1.2 µm Total runout: 1.5 µm Machine Accuracy At +15 °C to +35 °C Reference temperature: 2 K/h; 12 K/d; 2 K/m MPEE₀ ISO 10360-2 (2010): 1.8 + L/250 mm VDI2631 Radial guideway deviation: 0.4 µm Roundness Ø100/L: 0.5 µm Flick 15W/U/L: 1.8 µm Flick 50W/U/L: 1.8 µm Straightness Ø70/L: 0.6 µm Coaxiality: 1.4 µm Total flatness runout: 1.8 µm Evaluation Software: Spur gears – external and internal helical gearing up to 60° Standards: DIN 3960 / 3962, free tolerances, AGMA 2015, ANSI B92.1, DIN 5480, ISO 1328:1995, JIS B1702:1998, JIS B1702:2016, GBT 10095:2008, ISO 1328:2013 Functions: Profile and flank line, tooth thickness variation, pitch and two-ball measurement, crowning, bevel, trapezoidal and bevel gear teeth Root and tip circle measurements, determination of tip and root diameter over up to six teeth or up to four teeth at three measuring heights or all teeth at one height on a special measuring sheet Gear Measurement Contact pattern measurement: 3 x profile and 3 x flank line Topography: 10 profiles x 10 flank lines (30 x 30 grid points) Measurement of all teeth on separate special measuring sheet Block gear measurement: up to 10 gearings Alignment measurement: up to 6 gearings and apex determination Storage formats: ASCII format, ASCII mka file, ASCII csv file (grid point deviation) Storage capacity: up to 5,000 workpiece measurement programs MACHINE DETAILS: Net weight incl. standard equipment: approx. 2,150 kg Net weight with active vibration isolation: approx. 2,550 kg EQUIPMENT - PC with software included (currently installed on machine) - Measuring probe and extensions are included - 2x calibration spheres - Surface roughness standard - 2x 3-jaw chucks for various diameters - 1x measuring mandrel for aligning the upper and lower measuring tips - Stand for dial gauge - Driver fixture for a wider range of parts - Transport locks

Condition: used, Year of construction: 2011, functionality: limited functionality, laser power: 6,000 W, laser source model: TruFlow 6000, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Laser power: 6,000 W Laser source: TruFlow 6000 MACHINE DETAILS Connection power: 114 kVA Mains connection: 400 V Control voltage: 24 V Fusing: 200 A Compressed air connection: 6 - 14 bar Package dimensions Cabinet: 2600 x 800 x 1200 mm Laser head: 1200 x 1200 x 1200 mm Laser: 3000 x 1600 x 2800 mm 800 x 800 x 2000 mm 1400 x 1000 x 2000 mm Bsdpfjzaqzkox Af Hjwn 2 x 1200 x 800 x 2200 mm Note: The machine's dongle is defective.

Year of construction: 1995, condition: ready for operation (used), functionality: fully functional, total length: 2,100 mm, total width: 730 mm, heating capacity: 7.5 kW (10.20 HP), screw conveyor diameter: 35 mm, machine/vehicle number: DE27307, TECHNICAL DETAILS Capacity: 30 – 80 kg/h Screw diameter: 2 x 35.0 mm L/D ratio: 20:1 Screw speed: 80 rpm Bsdpfxjzargne Af Hswn Gearbox ratio: 12:1 Number of heating zones: 5 Heating power: 7,500 W Number of cooling fans: 5 Extruder discharge height: 1,150 mm MACHINE DETAILS Control system: Analog, contactor-controlled system Drive / Motor: 20 kW (DC) Cooling fan connection: 230 V Gearbox type: Lenze Material: PE, PP, PS, ABS Design: Co-rotating, degassing, vacuum pump Dimensions (L x W): 2,100 x 730 mm Note: Water bath and granulator can be purchased for an additional charge.

Condition: good (used), mileage: 660,000 km, power: 302 kW (410.61 HP), first registration: 03/1999, fuel type: diesel, axle configuration: 8x6, fuel: diesel, gearing type: mechanical, number of gears: 16, emission class: euro2, suspension: steel, total length: 9,000 mm, total width: 2,500 mm, total height: 3,060 mm, Year of construction: 1999, Equipment: ABS, = Additional Options and Accessories = - Leaf suspension - PTO (Power Take-Off) = Remarks = 3-way tipper 8x6 = Further Information = Technical Specifications Number of cylinders: 6 Gross vehicle weight (GVW): 35,000 kg Axle Configuration Suspension: Leaf suspension Front axle 1: Steered; Tire tread left: 30%; Tire tread right: 30% Front axle 2: Steered Rear axle 1: Twin tires; Tire tread left inner: 50%; Tire tread left outer: 50%; Tire tread right inner: 50%; Tire tread right outer: 50% Rear axle 2: Twin tires; Tire tread left inner: 50%; Tire tread left outer: 50%; Tire tread right inner: 50%; Tire tread right outer: 50% Functional Bwsdpfozbut Hox Af Hen Tipper: Left / Rear Condition Technical condition: Good Optical condition: Good Further Information Please contact Andre, Henri or Andre for more information.
