Used Adira Press Brake for sale (8)

Condition: used, Year of construction: 2012, Adira ADIRA PF022040PLS Year of manuf. : 2012 Control : Working length : 4000 mm _____ Description: technical data Bending force:2200 kN Max. bending length:4000 mm Column passage:3150 mm Projection:330 mm Backgauge:Y1, Y2, X, R Laser Safe:available Length:4820 mm Width:2030 mm Dpjod9 Height:3380 mm

Condition: like new (used), Year of construction: 2014, operating hours: 542 h, Functionality: fully functional, total height: 2,960 mm, back gauge travel distance Z-axis: 625 mm, back gauge speed R-axis: 800 mm/s, pressing force: 160 t, total width: 1,840 mm, total length: 4,080 mm, distance between stands: 2,550 mm, bending length: 3,050 mm, power: 15 kW (20.39 HP), Equipment: safety light barrier, Hydraulic Edge Press ADIRA PA 16030 manufactured in Portugal in 2014 ! Machine practically not used ( 542 hours of engine operation ), connected there is a possibility to check " on the move" BASIC TECHNICAL DATA: - pressure force 160 tons - max. bending length 3 050,- mm - distance between walls 2550 mm, - overall dimensions: l. 4080 w. 1840 h 2960 mm, - main motor power 15 kW - weight of the machine tool 8 000 kg SPECIAL FEATURES * Patented HEXA-C frame: low torsion and therefore very precise. * The hydraulics in the semi-hybrid configuration are very energy-efficient because the motor runs at 5 Hz only when idling. * Two high-precision servo valves control parallelism during up and down movement. * Two linear encoders ensure accurate positioning of the press bar. * Adjustable press bar guide made of self-lubricating material. * Electricity and hydraulics with overvoltage protection. * X and R axes operate on backlash-free recirculating ball screws driven by servo motors. Civlmi2Guk * The rear of the machine is protected by a light barrier.

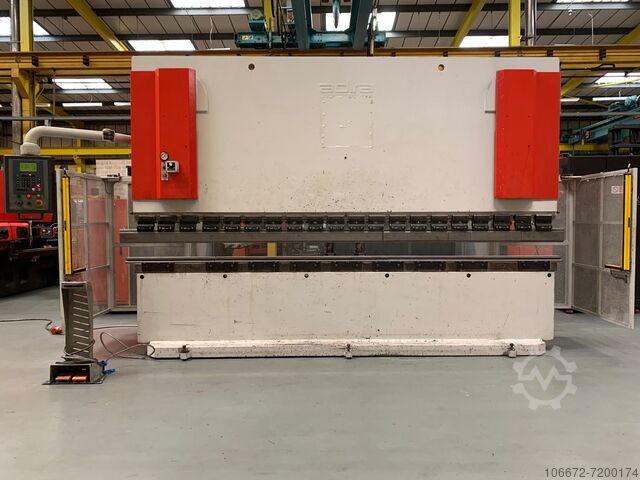

Year of construction: 2004, Condition: like new (used), specification 150 TONS X 4000 4 AXIS CNC HYDRAULIC DOWN STROKING PRESS BRAKE COMPLETE WITH FULL LENGTH TOP AND BOTTOM TOOLING INCLUDING A BOTTOM MULTI VEE BLOCK description TYPE HYDRAULIC DOWNSTROKING BENDING LENGTH 4000 BENDING PRESSURE 150 TONS CONTROL CYBELEC DNC 60 NO OF AXIS 4 AXIS CONFIGURATION X1 Y1 R MAX SPEED 80mm/SEC STROKE 180 mm GUARDS MACHINE MOUNTED ELECTRONIC GUARDS SIDE AND REAR INTERLOCKED FENCING WEIGHT 11200 KG SERIAL NO. 6150/11324 Bucikfo MOTOR SIZE 7.5 KW YEAR OF MAUFACTURER 2004

Condition: good (used), Year of construction: 2010, Pressure 135 t folding length 3050 mm Control system CYBELEC DNC 880S Machine weight approx. 7500 kg Equipment - Controlled axes: Y1, Y2, X, R - 1 set of upper and lower tools - AMADA tool holder - crowning - 2x support arms - foot switch - 2x side safety doors - laser safe - 4x manually adjustable stop fingers Dphuo9

Condition: excellent (used), Year of construction: 2010, Functionality: fully functional, ADIRA QHR-06325 CB STANDARD EQUIPMENT : - Bending depth/angle can be adjusted under pressure with high precision - Extra-large unloading in side frames - Pressure can be easily adjusted at the front - Electrical and hydraulic overload protection - Wide outrigger table, for all types of moulds - Low noise level of the pump - Intermediate pieces with spigot adjustment for Top dies, and suitable for turning them 180° - Protection plates (fencing) left and right, incl. electrical protection control - Protection plate (fencing) at the back of the machine, incl. electrical protection control - Two-hand and foot control - Double-controlled hydraulic valves - Control box controlled by double relays - Centrally seen from the front, manually operated backgauge with digital readout 610 mm, incl. 3 stop fingers B9Pzid32Y - 3 stop fingers with height adjustment by a handwheel, each - 2 for support arms length 500 mm - Multi-V die with 6V grooves - Mute point setting, switch from run-up to bending speed - Stroke length adjustment

Year of construction: 2019, Condition: like new (used), machine/vehicle number: M00000948, with CNC controlled crowning, LazerSafe, safety system, foot pedal, with standard tool set, machine in little used condition used condition Machine will be repaired, inspected, cleaned by a professional and will be fully functional. Test run will be performed. Pressure: 220 t Bending length: 4000 mm Color: turquoise/grey Machine weight: 12250 kg space requirement: 5100 x 1920 x 3080 mm Total power requirement: 15 kW throat: 400 mm column width: 3150 mm drive power: 400 V backgauge: 625 mm forward speed: 130 mm/sec working speed: 8 mm/sec Cclf08E0S9 retraction speed: 85 mm/sec stroke length min./max.: 260 mm R-axis: 150 mm

Year of construction: 2018, Condition: good (used), machine/vehicle number: M00000757, with crowning device make WILA with the following scope of delivery: * standard tool set with die 835 mm and 795mm * oil filling * Foot pedal * LazerSafe safety system/CE, * Two front support arms 500 mm, movable Special features: * Patented HEXA-C frame: low torsion and therefore very accurate. * Hydraulics in semi-hybrid configuration very energy-saving as the motor only runs at 5Hz in idle mode * Two high-precision servo valves regulate the parallelism during up and down motion * Two linear encoders ensure the exact positioning of the press beam * Adjustable guide of the press beam made of self-lubricating material * Electrics and hydraulics with overvoltage protection * X & R axis run on backlash-free ball screws driven by servo motors * Rear side of machine protected by light barrier pressure: 160 t folding length: 3050 mm machine weight: 7700 kg space requirement: 4080 x 1840 x 2960 mm Total power requirement: 15 kW throat 400 mm column width: 2550 mm backgauge: 625 mm table width: 60 mm forward speed: 150 mm/sec Inprkieh working speed: 10 mm/sec retraction speed: 150 mm/sec R axis: 200 mm

Condition: ready for operation (used), Year of construction: 2008, Main Drive Butfycyfza Pressing force 1500 kN Bending length 4000 mm Main motor power 7.5 kW (10.1 HP) at 50 Hz, 9 kW (12.1 HP) at 60 Hz Movement X-Axis Movement 630 mm This ADIRA QIHD-5040 + QIHD-5020 bending was manufactured in 2008. It features a maximum bending length of 4000 mm and a machining length of 4050 mm for the QIHD-5040, and 2000 mm bending length with 2050 mm machining length for the QIHD-5020. Both models offer robust performance with significant force capacities and efficient speeds in pressing and returning. Ideal for high-precision tasks, the ADIRA press machine we have for sale is a valuable addition to any workshop. Contact us for more information. Application Types Bending
