Used Mvd Press Brake for sale (21)

Condition: excellent (used), functionality: fully functional, Year of construction: 2023, 2023 MVD A40-1250 Hydraulic CNC Press Brake With Cybelec Cybtouch 8 Control & Assorted Tooling 4 Axis (Y1-Y2-X-R). Bending Capacity 40 Ton. Maximum Bending Length 1,250mm. Distance Between Columns 1,100mm. Maximum Hydraulic Pressure 260 bar. 'Y' Axis Stroke 210mm. Opening Height (Daylight) 415mm. Backgauge Stroke 'X' 750mm. Motor Power 4kW. S/No: 2306309. Hodpfjyimqdex Afcei With Tooling Package, Safety Light Guards, Foot Switch & 2 Front Support Loading Arms. Approximate Dimensions W2,300 x D1,800 x H2,700mm. Weight 3,500kg.

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2021, machine/vehicle number: 2108338, bending force (max.): 175 t, working width: 3,700 mm, stroke length: 210 mm, throat depth: 410 mm, distance between stands: 3,200 mm, The machine was in use for only 3 years! The original price was €95,000! TECHNICAL DETAILS Bending force: 175 t Working width: 3,700 mm Stroke: 210 mm Throat depth: 410 mm Distance between columns: 3,200 mm X-axis travel: 750 mm Operating speed: 10 mm/s Return speed: 130 mm/s Number of axes: 4 Type of crowning: Motorized Backgauge adjustment: CNC-controlled Backgauge: 750 mm MACHINE DETAILS Control system: ESA S660W Dimensions & Weight Dimensions (L x W x H): 5,305 x 2,430 x 2,840 mm Total weight: 9,800 kg Power: 15 kW (20.39 HP) Hsdpfeydc H Tsx Afcsi Input voltage: 400 V Input current: 30 A Input frequency: 50 Hz EQUIPMENT CE marking Finger guard Foot remote control Emergency stop switch Upper tool Lower tool Safety light curtain European tool clamping system

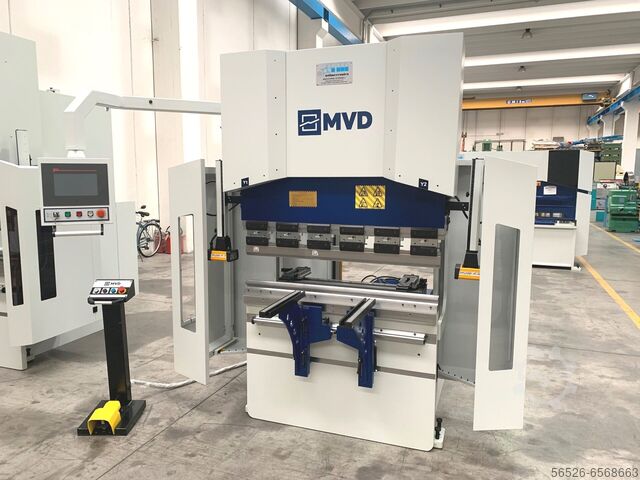

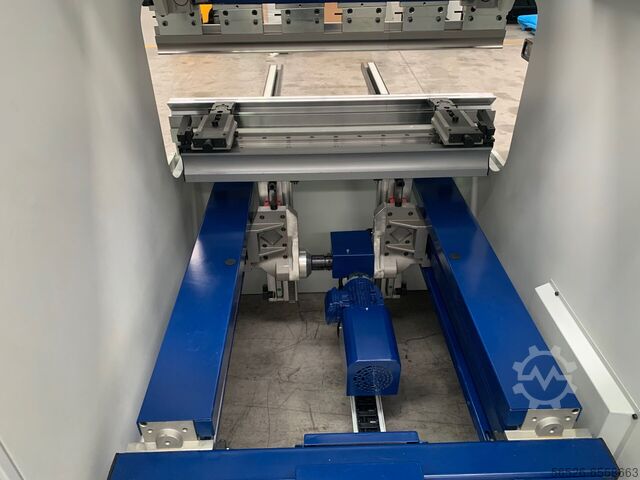

Condition: new, MVD Electric Bending Press Mod. S40. Useful length of bending : mm 1250. Power exerted : Ton 40 Numerical Control : ESA S630 Controlled axes No. 4 ( Y1-Y2-X-R) Max. stroke Y axis : mm 310 Internal clearance : mm 500 Rear register stroke : mm 750 Main motor power : 2 x 4.3 Kw Hsdpfx Aorp E A Tofcji UNIMEC rear register ( Made in Italy ) Optical scales GIVI MISURE ( Made in Italy ) Couplings with quick release type PROMECAM Faster Shorter bending processes Excellent plating results Lower maintenance and production costs Quiet Less energy consumption

Condition: new, functionality: fully functional, Year of construction: 2025, control type: CNC control, degree of automation: automatic, controller manufacturer: ESA, controller model: S 875W, bending force (max.): 220 t, working width: 4,100 mm, stroke length: 310 mm, throat depth: 410 mm, distance between stands: 3,600 mm, operating speed: 10 mm/s, reverse speed: 200 mm/s, number of axes: 8, type of crowning: CNC-controlled, oil tank capacity: 220 l, travel distance X-axis: 750 mm, back gauge adjustment: CNC-controlled, back gauge: 750 mm, number of support arms: 2, Hybrid Bending Press MVD 4100 x 220 Tons HC-Series CNC ESA S 875W 21″ *dxf 3D ready 8 axes (Y1-Y2-X-R-Z1-Z2-X5_conical_A1) Automatic WILA crowning table Dsp Laser GIVI MISURE high-precision optical scales UNIMEC back gauge Upper tool clamp: Promecam Rolleri Type H = 150 mm Multi-cavity die, full length Press force: 220 tons Bending length: 4100 mm Distance between uprights: 3600 mm Throat depth: 410 mm Hjdpfx Afox N Rxcecji Table – ram opening (“light”): 515 mm Working height: 965 mm Y-axis stroke: 310 mm Y-axis descent speed: 200 mm/s Y-axis working speed: 0–10 mm/s Y-axis return speed: 200 mm/s X-axis back gauge stroke: 750 mm Power: 18.5 kW Dimensions (L x W x H): 5600 x 2200 x 3040 mm Approximate weight: 13,700 kg

Condition: excellent (used), functionality: fully functional, Year of construction: 2021, control type: CNC control, degree of automation: automatic, actuation type: hydraulic, controller manufacturer: ESA, controller model: S660W, bending force (max.): 175 t, working width: 3,700 mm, stroke length: 210 mm, throat depth: 410 mm, distance between stands: 3,200 mm, operating speed: 10 mm/s, reverse speed: 130 mm/s, number of axes: 4, type of crowning: motor-driven, travel distance X-axis: 750 mm, back gauge adjustment: CNC-controlled, back gauge: 750 mm, overall weight: 9,800 kg, total length: 5,305 mm, total width: 2,430 mm, total height: 2,840 mm, power: 15 kW (20.39 HP), input voltage: 400 V, input current: 30 A, input frequency: 50 Hz, Equipment: CE marking, emergency stop, european tool clamping system, finger protection, foot remote control, lower tooling, safety light barrier, upper tooling, 2021 MVD A175-3700 Hydraulic Pressbrake with ESA S660W Graphic Control – Very Good Condition For sale is a 2021 MVD A175-3700 Hydraulic CNC Pressbrake, equipped with the advanced ESA S660W Graphic CNC Control. This machine is in very good condition, and is ready for immediate use in production. MVD are globally recognised for their high-precision sheet metal forming machinery, combining durability with operator-friendly CNC controls. The A175-3700 offers exceptional performance for fabricators, subcontractors, and manufacturing companies needing reliable and accurate bending of sheet materials. Machine Make: MVD Machine Model: A175-3100 Machine Type: CNC Pressbrake Machine Capacity: 3700 x 175T Machine Year: 2021 Machine Control: ESA S660W CNC Graphic Control ✅ Key Features 175-ton hydraulic pressbrake with 3700 mm bending length ESA S660W Graphic CNC Control – intuitive 2D/3D programming, touchscreen interface 4-axis CNC (Y1, Y2, X, R) for flexible production High precision crowning system for consistent bending angle Heavy-duty welded steel frame for stability and long-term accuracy European-style tooling system – quick and easy tool changes Safety light guards for operator protection Excellent condition – 2021 model, lightly used Hedpfx Afoxddw Ejcji 📐 Technical Specifications – MVD A175-3700 Press Capacity: 175 tonnes Bending Length: 3700 mm Distance Between Frames: 3200 mm Stroke (Ram Travel): 210 mm Daylight Opening: 465 mm Throat Depth: 410 mm Table Width: 90 mm Axis Configuration: Y1, Y2, X, R (4-axis CNC) Control: ESA S660W Graphic CNC – touchscreen with 2D/3D programming Backgauge Travel: 750 mm Approach Speed: 180 mm/s Bending Speed: 10 mm/s Return Speed: 130 mm/s Main Motor Power: 15 kW Machine Dimensions (L×W×H): 5305 × 2430 × 2840 mm Weight: 9,800 kg 🌍 Condition Year of Manufacture: 2021 Control: ESA S660W Graphic CNC Axes: 4-axis (Y1, Y2, X, R) Condition: Very Good Ready for inspection and delivery 🔑 Summary This 2021 MVD A175-3700 Hydraulic CNC Pressbrake with ESA S660W Graphic Control offers 175 tonnes of power, 3700 mm bending capacity, and advanced multi-axis CNC control for accurate and repeatable bending. An ideal choice for workshops and production facilities requiring a reliable, modern, and precise pressbrake.

Condition: new, New "CE". Lenght : mm 1250 Hedpfx Aehkr A Dofcoi Exercise power : Ton 40 CNC ESA S 630 Touch 10" 2D Controlled axes No. 4 (Y1-Y2-X-R) Y axis stroke : mm 210 Opening width : mm 415 Backgauge stroke: mm 750 Upper and lower tools included. Motor power: kw 4 Approximate weight: Kg 3500 Dimensions: mm : mm 2.300 x 1800 x 2700 (h).

Condition: new, Synchronized Hydraulic Press Brake MVD Mod. I-Bend A 3100 135 Videographic Numerical Control Touch Screen ESA S630 Controlled axes No. 4 (Y1-Y2-X-R) Motorized compensation table Promecam type tool attachment with quick release lever Multi-beam barriers NEW ELECTRONICS DSP LASER Motorized rear register mm 750 Bending length mm 3100 Power exerted Ton 135 Groove mm 410 Stroke mm 210 Opening mm 415 ROLLERI multi-slot upper tools and lower dies supplied Hodjfh Nz Hepfx Afcoi

Condition: new, MVD Synchronized Hydraulic Bending Press Mod. I-Bend B 3100 175 ESA S860 Touch color videographic numerical control Controlled axes No. 7+1 ( Y1-Y2-X-R-Z1-Z2-A1 ) WILA motorized compensation table Multi-beam barriers NEW ELECTRONICS DSP LASER Hodefh Nz Espfx Afcsi UNIMEC high-speed motorized rear register (Made in Italy) GIVI MISURE optical scales (Made in Italy) Bending length mm 3100 Power exerted Ton 175 Recess mm 410 Stroke mm 260 Opening mm 465 Upper tools and lower die ROLLERS supplied

Condition: new, Hydraulic synchronized bending press MVD Mod. I-Bend B 4100 220 ESA S650 Color Video Graphic Numerical Control Controlled axes No. 7 ( Y1-Y2-X-R-Z1-Z2-X5) WILA motorized compensation table Multi-beam barriers NEW ELECTRONIC DSP LASER Hsdpfx Asfh Nzzsfcoi High speed motorized rear register UNIMEC (Made in Italy) GIVI MEASURES optical lines (Made in Italy) Folding length mm 4100 Exercised power Ton 220 Cable mm 400 Stroke mm 260 Opening mm 465 Upper tools and lower die ROLLERI supplied

Condition: new, Hydraulic synchronized bending press MVD Mod. I-Bend B 2100 60 ESA S630 Colour Numerical Video Graphic Control Controlled axes No. 4 ( Y1-Y2-X-R-) Multi-beam barriers NEW ELECTRONIC DSP LASER High speed motorized rear register UNIMEC (Made in Italy) GIVI MEASURES optical lines (Made in Italy) Bend length mm 2100 Power exerted Ton 60 Cable mm 410 Stroke mm 260 Opening mm 465 Upper tools and lower die ROLLERI supplied Hodpfx Afjfh Nz Recoi

Condition: excellent (used), Brand: MVD Model: D320-3700 Tonnage: 320 Tons Working width: 3700 mm Year of manufacture: 2021 Stroke: 410 mm Installation height: 615 mm Throat depth: 510 mm Controlled axes: Y1, Y2 and X+R+Z1+Z2+X5 axis Distance between uprights: 3200 mm Approach speed Y-axis: 210 mm/sec Control: Delem DA69T Safety: DSP Laser Safe Hjdpfx Afsw Hx S Sjcoi Upper tool clamping: Wila NSCL hydraulic clamping Lower tool clamping: Wila NSCR hydraulic clamping and crowning

Condition: new, MVD SERIES B - 3,100x135Tn SERIES B - 4 Axes Large press brake for achieving outstanding bends and flawless workpieces The body and upper beam are of steel construction, designed according to minimum and optimum strength criteria. Hodpfx Afsxfzpzjcsi Model: B135/3100 Bending force: 135 tons Bending length: 3100 mm Distance between uprights: 2600 mm Ram stroke: 260 mm Daylight: 465 mm Throat depth: 410 mm Table height: 940 mm Length x Width x Height: 4690 x 2340 x 2980 mm Approach speed: 210 mm/s Return speed: 130 mm/s Bending speed: 10 mm/s Oil tank capacity: 180L Main motor: 11 kW Weight: 7,750 kg Standard features: CNC 3 axes Y1, Y2, X 260 mm stroke, 410 mm throat depth ESA S630 CNC control unit ± 0.03 mm precision SERVO-driven, motorized rear gauge X = 750 mm Promecam quick-release punch holder Sliding front sheet support arms Special narrow bottom table by MVD (European type) GIVI optical linear scales Standard punch tooling (H: 67, 850 R:08) Standard die tooling (60x60 mm, 4 Vee V=16-22-35-50 mm, 85°, H:60) LED lighting in RAM Optional features: Choice of X-axis backgauge options with 2-4-6-8 stops Wide bottom table for Multi Vee forming dies Anti-deflection crowning with original Wila wedges AKAS or DSP front laser safety systems Additional backgauge fingers Front laser safety

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2021, machine/vehicle number: 2107308, controller model: Elgo P40T, working width: 3,100 mm, cutting angle (min.): 0.5 °, cutting angle (max.): 3 °, sheet thickness (max.): 13 mm, The machine was only in use for 3 years! The original price was €52,000! TECHNICAL DETAILS Working width: 3,100 mm Cutting angle (min.): 0.5° Cutting angle (max.): 3° Stroke rate (min.): 8 strokes/min Stroke rate (max.): 20 strokes/min Sheet thickness (max.): 13 mm Aluminum sheet thickness (max.): 10 mm Steel sheet thickness (max.): 13 mm Stainless steel sheet thickness (max.): 8 mm Back gauge adjustment: CNC controlled Back gauge: 1,000 mm MACHINE DETAILS Control: Elgo P40T Dimensions & Weight Total weight: 12,000 kg Dimensions (L x W x H): 4,000 x 2,200 x 2,100 mm Power: 22 kW Input voltage: 400 V Input current: 45 A Input frequency: 50 Hz Type of input current: Three-phase EQUIPMENT CE marking Finger guard Foot remote control Hodpoydc Nbjfx Afcsi Emergency stop button Safety light curtain

Condition: new, functionality: fully functional, Year of construction: 2025, The 4100×220 ton model is perfect for processing medium-thick sheet metal thanks to its large bending bed, making it ideal for series production and complex component manufacturing. • CNC numerical control with multi-axis management (6 axes) for synchronized movements and high precision • Robust steel mechanical frame • Motorized back gauge with servo control for accurate positioning • High-precision sensors and optical scales (GIVI) Hsdpfx Afoyk Ul Ijcoi • Intuitive graphical CNC control system with automatic optimization of the bending sequence • Adjustable front supports for improved operator ergonomics • Promecam tool holders for quick tool change • Thanks to WILA CNC-controlled crowning and 6-axis control, the machine ensures outstanding bending quality even on long sheets and heavy gauges, enhancing productivity and repeatability TECHNICAL DATA: Press brake: MVD CNC 6 axes Model: B 220 Series Year: 2025 Condition: New CNC 6 Axes: ESA 650 Touch Screen Crowning: Wila CNC-controlled Bending force: 220 Ton Bending length: 4100 mm Distance between uprights: 3600 mm Stroke: 260 mm Opening: 465 mm Throat depth: 410 mm Table height: 970 mm Approach speed: 180 mm/s Return speed: 140 mm/s Working speed: 10 mm/s Oil tank: 290 l Main motor: 18.5 kW Dimensions: 5620x2530x3035 mm Weight: 12,750 kg

Condition: new, HYDRAULIC SHEAR MVD MOD iSHEAR B 06-4000 COMPLETE WITH REAR PNEUMATIC SUPPORT. CNC ESA S 625 TECHNICAL SPECIFICATION Material cutting capacity 450N/mm2 06 mm Material cutting capacity 700N/mm2 04 mm Cutting length 4100 mm Fixed cutting angle 1.5° Hedjfh R Inepfx Afcoi Blade press cylinders 18 Strokes per minute 10 - 14 Hollow 250 mm Motor power 10 kw Millimeter square and two sheet supports 1000 mm Rear register stroke 1000 mm Approximate weight 11000 kg

Condition: excellent (used), functionality: fully functional, Year of construction: 2021, control type: CNC control, degree of automation: semi-automatic, actuation type: hydraulic, controller manufacturer: Elgo, controller model: P40T, working width: 3,100 mm, cutting angle (min.): 0.5 °, cutting angle (max.): 3 °, stroke rate (min.): 8 1/min, stroke rate (max.): 20 1/min, sheet thickness (max.): 13 mm, sheet thickness aluminum (max.): 10 mm, sheet thickness steel (max.): 13 mm, sheet thickness stainless steel (max.): 8 mm, back gauge adjustment: CNC-controlled, back gauge: 1,000 mm, power: 22 kW (29.91 HP), input voltage: 400 V, input current: 45 A, input frequency: 50 Hz, type of input current: three-phase, overall weight: 12,000 kg, total length: 4,000 mm, total width: 2,200 mm, total height: 2,100 mm, number of support arms: 2, Equipment: CE marking, emergency stop, finger protection, foot remote control, safety light barrier, 2021 MVD B13-3100 Guillotine Shears with Elgo P40T Control – Very Good Condition For sale is a 2021 MVD B13-3100 Hydraulic Guillotine Shear, equipped with the advanced Elgo P40T CNC Control. This machine is in very good condition, having been installed in 2021. Hjdpfjxddzqsx Afcsi The MVD B-Series shears are built for precision, productivity, and reliability, offering powerful hydraulic cutting performance with CNC-controlled accuracy. Perfect for fabrication shops, subcontractors, and sheet metal production. Machine Make: MVD Machine Model: B13-3100 Machine Type: Hydraulic Guillotine Machine Capacity: 3m x 13mm Machine Year: 2021 ✅ Key Features 3100 mm cutting length – handles large sheet sizes with ease 13 mm sheet capacity (mild steel) – robust heavy-duty performance Elgo P40T CNC Control – programmable backgauge, stroke, and cutting settings Hydraulic swing beam design – consistent and accurate cutting results CNC backgauge system with motorised adjustment Rugged welded frame for stability and precision Front sheet supports and squaring arm for operator convenience Safety light guards for operator protection Very Good condition – 2021 model, very low hours 📐 Technical Specifications – MVD B13-3100 Guillotine Shears Cutting Length: 3100 mm Capacity (Mild Steel): 13 mm Capacity (Stainless Steel): ~8 mm Backgauge Travel: 1000 mm (CNC controlled) Control: Elgo P40T CNC touchscreen – programmable stroke, backgauge, cutting angle Stroke per Minute: 8–20 (adjustable) Cutting Angle: 0.5°–2.5° adjustable Throat Depth: ~100 mm Main Motor Power: 22 kW Hydraulic System: High-pressure precision hydraulics Dimensions (L×W×H): ~4000 × 2200 × 2100 mm Weight: ~12,000 kg 🌍 Condition Year of Manufacture: 2021 Control: Elgo P40T CNC Model: MVD B13-3100 Condition: Very Good – lightly used Ready for inspection and immediate delivery 🔑 Summary This 2021 MVD B13-3100 Hydraulic Guillotine Shear with Elgo P40T CNC Control offers 3100 mm cutting length, 13 mm capacity, and CNC accuracy. A modern, reliable, and powerful sheet metal cutting solution ideal for fabrication, subcontracting, and production facilities.

Condition: new, Year of construction: 2024, Hydraulic shear MVD I-SHEAR C 3100 - 10 Hsdpfx Afofh R Ilocei complete with pneumatic rear sheet metal support. CNC ESA S 625 TOUCH SCREEN CUTTING ANGLE ADJUSTMENT AUTOMATIC INTERSPACE-BLADE ADJUSTMENT Material cutting capacity 450N/mm2 10 mm Material cutting capacity 700N/mm2 6 mm Cutting length 3100 mm Distance between shoulders 3600 mm Variable cutting angle 0.5 - 3 ° Blade press cylinders 14 Strokes per minute 7 - 13 Hollow 250 mm Motor power 22 kw Millimeter square and two sheet supports 1000 mm Rear register stroke 1000 mm with PNEUMATIC SHEET SUPPORT. Approximate weight : 10.5 Ton

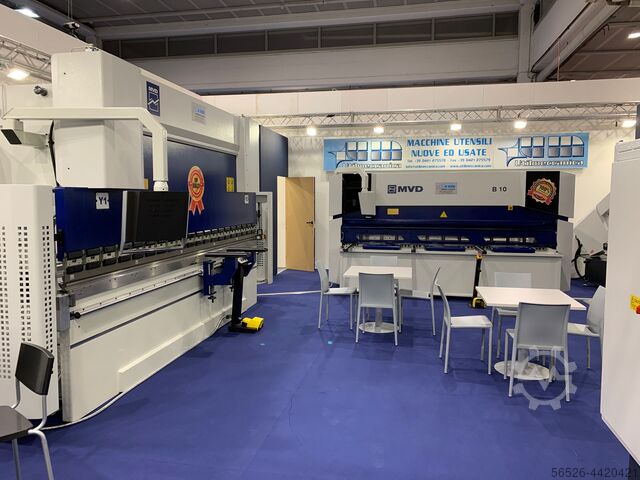

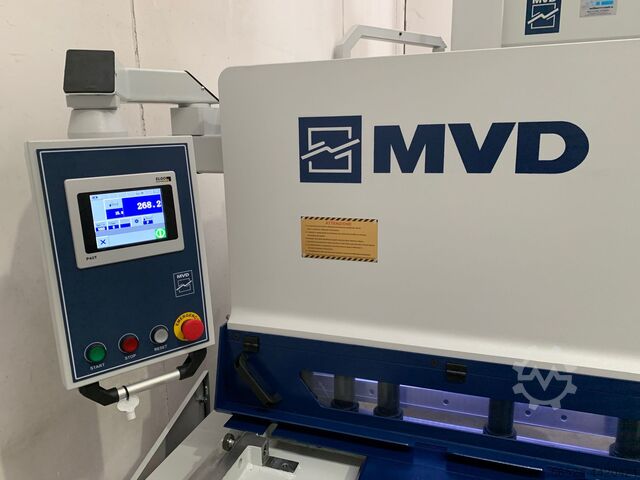

Condition: new, Hydraulic shear MVD 3100 X 6 mm Hjdpfx Afjfh R Igecsi complete with rear sheet metal pneumatic support Material cutting capacity 450N/mm2 6 mm Material cutting capacity 700N/mm2 4 mm Cutting length 3100 mm Distance between shoulders 3330 mm Fixed cutting angle 1.9 ° Pressing cylinders 14 Strokes per minute 18- 23 250mm hollow Motor power 10 kw Millimetric square and two sheet metal supports 1000 mm 1000 mm stroke rear register with SHEET TYRE SUPPORT. Approximate weight 6000 kg

Condition: new, MVD Synchronized Hydraulic Bending Press Ready in stock unless sold out! Mod. I-Bend D 3100/320 Color Videographic Numerical Control ESA S875 W *dxf Controlled axes No. 8 ( Y1-Y2-X-R-Z1-Z2-X5_A1) WILA motorized compensation table Multi-beam barriers NEW ELECTRONICS DSP LASER Hsdpfxorqvtmj Afcsi UNIMEC high-speed motorized rear register (Made in Italy) GIVI MISURE optical scales (Made in Italy) Bending length mm 3100 Power exerted Ton 320 Recess mm 510 Stroke mm 410 Opening mm 635 Upper tools and lower die ROLLERS supplied

Condition: new, Synchronized hydraulic bending press MVD Ready in stock except when sold! Mod. I Bend D 4100/320 Videographic Numerical Control ESA W660 color Controlled axes Nr. 7 ( Y1-Y2-X-R-Z1-Z2-X5) WILA motorized compensation table Multi beam barriers NEW ELECTRONIC DSP LASER UNIMEC high speed motorized rear register (Made in Italy) GIVI MISURE optical scales (Made in Italy) Bending length mm 4100 Exercised power Ton 320 Hollow mm 510 Stroke mm 410 Opening mm 635 Upper tools and lower die ROLLERS supplied Hjdpfefh N Agox Afcoi

Condition: as good as new (ex-display), Year of construction: 2024, machine/vehicle number: 2502073, table height: 865 mm, back gauge travel distance Z-axis: 1,000 mm, overall weight: 6,000 kg, total length: 4,630 mm, total width: 2,965 mm, total height: 1,990 mm, cutting length (max.): 3,100 mm, positioning accuracy: 0.1 mm, table width: 500 mm, For sale is an MVD B06-3100 hydraulic swing beam shear. Technical Specifications: - Cutting capacity (450 N/mm²): 6 mm - Cutting capacity (700 N/mm²): 4 mm - Cutting length (A): 3100 mm - Cutting angle: 1.5° - Number of clamps: 14 - Stroke rate / high-speed: 15/18 min - Throughput (B): 3330 mm - Table height (C): 865 mm - Table width (D): 500 mm - Throat depth (E): 250 mm - Backgauge travel: 1000 mm - Overall length (F): 4630 mm - Overall height (H): 1990 mm - Overall width (G): 2965 mm - Oil tank capacity: 160 L - Motor power: 10 kW - Weight: 6 tons Standard Features: 1. ELGO P40T Touch NC control 2. Rexroth/Hoerbiger hydraulic system 3. Manual cutting gap adjustment 4. 1,000 mm NC-controlled, programmable backgauge with motor control 5. Adjustable speed (single and double) 6. 250 mm throat depth 7. Programmable backgauge retraction movement 8. Foldable for parts longer than 1,000 mm 9. Cutting length adjustment allows for shorter strokes and thus an increase in the number of strokes 10. Ball transfer units in the table 11. Upper knife with 2 cutting blades, lower knife with 4 cutting blades Hjdpfx Afjwd Sf Tjcji 12. Special joint system to reduce maintenance 13. Front support arms with scale, stop, and 1,000 mm T-slots 14. Rear and side protective grilles 15. Cutting line lighting 16. Hinged finger guard (1,000 mm) 17. Foot pedal 18. Movable swivel arm and control cabinets 19. Emergency stop button Optional equipment: 1. Pneumatic sheet support device (Type 1) 2. Automatic cutting gap adjustment with CNC 3. Angle stop 0-180º 4. Laser cutting line illumination 5. Blade for stainless steel processing
