Used Elb Schliff Surface Grinding Machine for sale (66)

Condition: ready for operation (used), Year of construction: 1989, grinding length: 1,500 mm, grinding width: 900 mm, grinding wheel diameter: 500 mm, table length: 1,500 mm, table width: 740 mm, grinding wheel width: 100 mm, CNC Surface Grinding Machine Machine type: Elb Schliff SWDE 012 NPC-K Year of manufacture: 1989 TECHNICAL DATA: Max. grinding length: 1,500 mm Max. grinding width: 900 mm Max. working height with new grinding wheel: 800 mm Max. working height with worn grinding wheel: 880 mm Max. workpiece weight: 1,000 kg static Gbjdpfxjwzlkqe Aa Iog Max. table load: 1,500 kg/m dynamic Grinding wheel diameter: 500 mm Grinding wheel width: 100 mm Table size: 1,500 x 740 mm Features: Paper band filter Wet grinding unit Electronic dressing device Cross clamping Grinding spindle mounting: Taper 75 Magnetic chuck: 1,500 x 900 No rotary table

Condition: ready for operation (used), Year of construction: 1989, functionality: limited functionality, machine/vehicle number: 47107/000, grinding length: 600 mm, grinding width: 250 mm, total height: 1,920 mm, total length: 2,800 mm, total width: 1,770 mm, feed length X-axis: 630 mm, feed length Y-axis: 400 mm, feed length Z-axis: 250 mm, table length: 900 mm, table load: 300 kg, table width: 200 mm, power: 85 kW (115.57 HP), input voltage: 400 V, Equipment: documentation/manual, Elb grinding machine, in working order. Everything has been replaced by a CNC. Godpfx Asu It R Rja Isbg Machine is functional but dismantled and therefore cannot be tested on site.

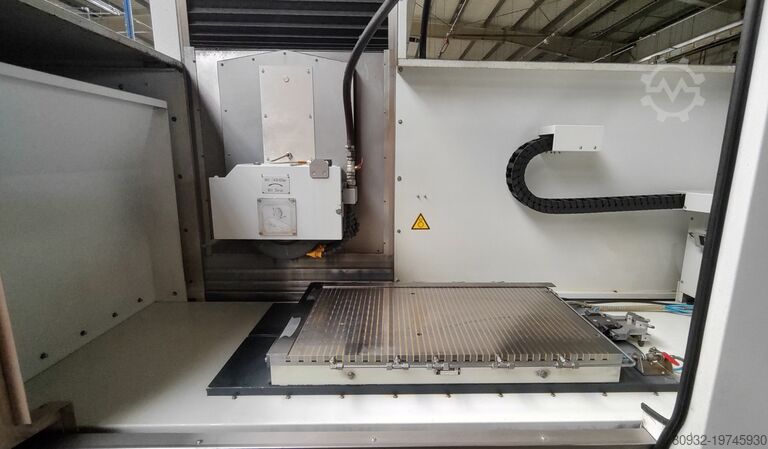

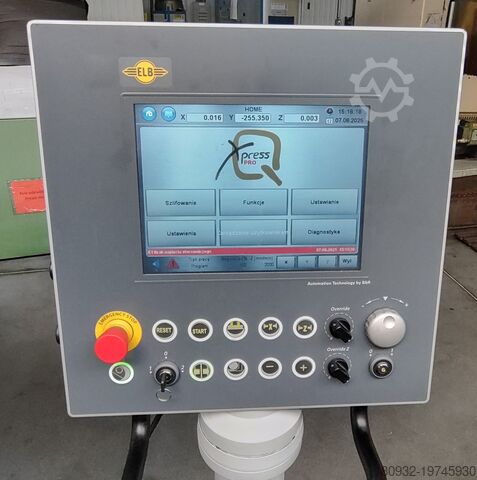

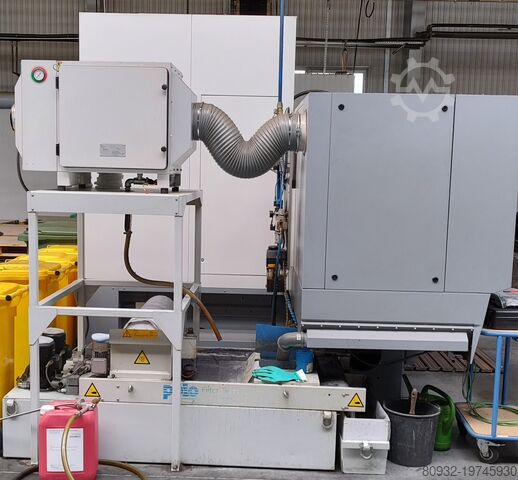

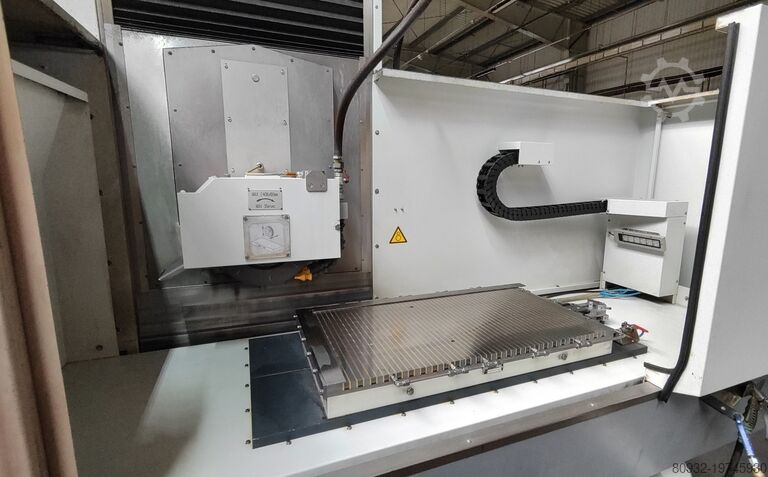

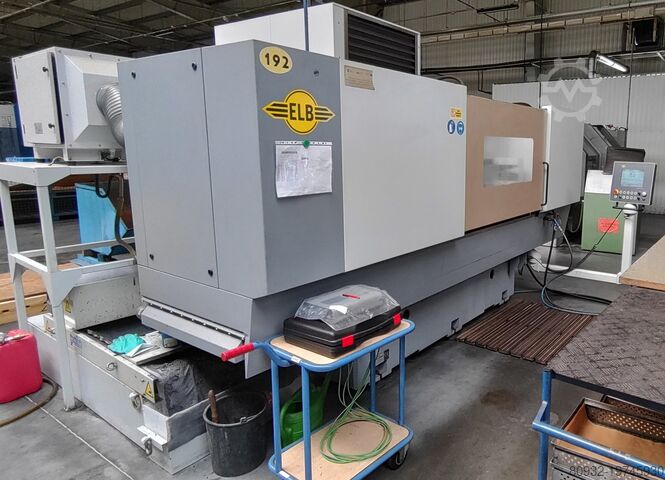

Condition: used, Year of construction: 2018, functionality: fully functional, machine/vehicle number: 53 064, Machine: ELB smsrtLine BD10 ZRT XC-PRO Serial number: 53 064 Year of manufacture: 2018 Control: Sinumerik System 8. Spindle speed: 145-3500 rpm. Gbodpfx Aajw Ixfme Iog Tool holder: 60/75 Travel X: 500 Y: 700 Z: 800

Condition: like new (used), ELB SMART BD10 STC is a CNC surface/profile grinder engineered for high precision, accuracy and reliability. Capacities: table 1360×590 mm, X1100 Z670 Y400 mm, grinding 1000×600 mm, table load 1000 kg. Specs: wheel Ø400×100 mm (bore127), 1450 rpm, spindle 10 kW, table 2–30 m/min stepless, feeds up to 2000/1500 mm/min, vertical rapid 1 m/min, 3×400V 50Hz, total 30 kW; machine ~6900 kg; dims 3550×2410×2660 mm. Accessories: coolant, paper filtration, oil‑mist extractor, magnetic plate 800×600, redressing/profile roll devices, wheel/flange sets, electronic handwheel. Achieves tight tolerances; suited to automotive, aerospace, toolmaking, medical, watchmaking. Godpfxsxyaauo Aa Ijbg

Condition: used, Year of construction: 1980, machine/vehicle number: 19780, grinding length:600 mm grinding width:300 mm workpiece height:375 mm number of spindle speeds:1000 - 3000 UpM grinding wheel dimensions::300 x 50 x 76,2 mm grinding spindle drive:2,8 - 8,4 kW weight of the machine ca.:3,5 t CNC-controlled, 3D-controlled profile-dressing unit, Unicom ELB-CNC control with integrated 024 CNC Unicon electric hand wheel, display screen, analogue spindle load display, stepless adjustable cross feed, coolant device with magnetic-roller chip collector, full housing, separate electrical cabinet, additional grinding wheel with flange Gbsdpecxxrzjfx Aa Iog

Condition: used, Technical details: grinding length: 630 mm grinding width: 250 mm workpiece height: 300 mm Table dimensions: 2050 x 340 mm magnetic plate size: 600 x 250 (110V) mm feed range: Tisch: 0,005 - 0,045 mm/Hub feed of spindle: 0,001 - 0,045 mm/Hub dimensions of grinding wheel: Ø 220 x 46 mm total power requirement: 8,5 kW dimension machine xH: 2,1 x 1,8 x 1,9 m dimension coolant device LxWxH: 0,8 x 0,31 x 0,5 m -Longitudinal table stroke = 700mm -transverse travel of table = 800mm Coolant pump * Gbsdpfx Aaou Ngkmo Iog

Condition: used, Year of construction: 1996, grinding length 1.000 mm Gsdpfoxx A Dmsx Aa Iebg grinding width 550 mm workpiece height 400 mm table surface area 1.580 x 550 mm table load capacity 950 kg magnetic clamping plate 1.000 x 550 mm x-Travel 1.200 mm table feed 1 - 30 m/min vertical feeds: 1 - 300 mm/min z-axis 470 mm cross feed 1 - 2.000 mm/min dimensions of grinding wheel 400 x 100 x 127 mm grinding wheel speeds 1.500 - 3.500 U/min grinding spindle drive 11,00 kW total power requirement 23,00 kW weight of the machine ca. 7,50 t dimensions of the machine ca. 4,50 x 3,20 x H2,90 m Coolant system with coolant pump integrated in the hydraulic tank, exhauster.

Condition: used, Type Amb 6/4 VAI-Z In our assessment, the machine is in good used condition and can be inspected under power by appointment. Gsdexzuyrjpfx Aa Isbg Accessories, tools, and clamping devices shown are only included in the scope of delivery if this is noted in the additional information. Subject to changes and errors in the technical data and specifications, as well as prior sale!

Condition: used, Year of construction: 1990, grinding length 1500 mm grinding width 550 mm workpiece height 400/450 mm table-size 1900 x 450 mm mm table speeds 1 - 25 m/min cross feed autom. 0 - 60 mm/Hub grinding wheel size 400 x 100 x 127 mm grinding spindle speed 1400/2800 U/min total power requirement 15 kW voltage 380 V weight of the machine ca. 5 t Machine was reconditioned and modernized in 2015 with modern control. Machine has cooling arrangement, auto. vert. feed, dressing arrangement and Gbjdpfx Aswlvirsa Ieg wheel flanges.

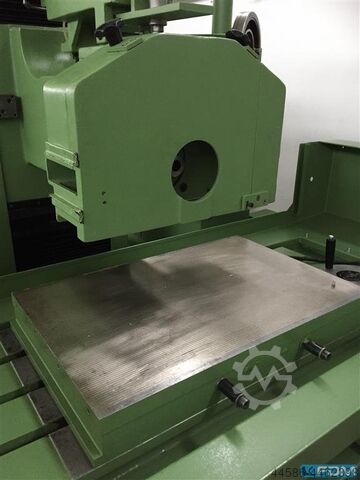

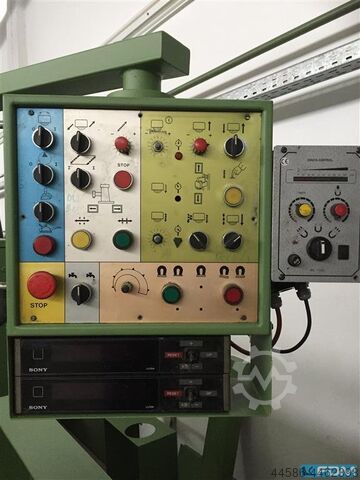

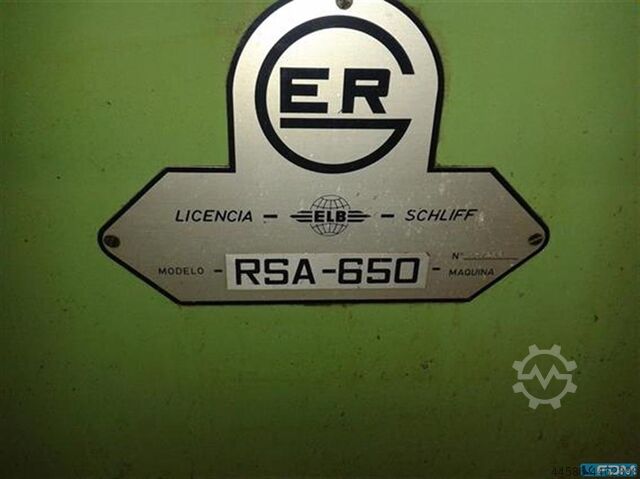

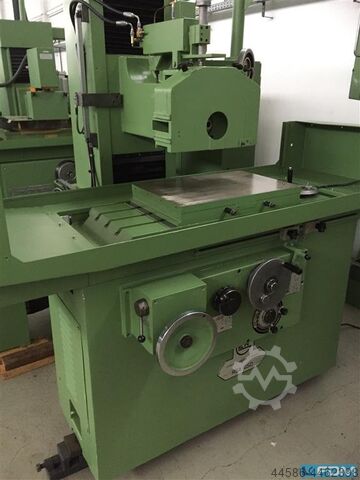

Condition: used, grinding length:650 mm grinding width:450 mm workpiece height:425 (ohne Magnetplatte) mm max. workpiece weight:600 kg weight of the machine ca.:3,8 t total power requirement:15 kW machine dimensions approx. WxHxD:3,0 x 2,4 x 2,3 m Used/reconditioned surface grinding machine, make GER, type RSA-650. Automatic infeed in all 3 axes. Machine geometrically overhauled, repainted (RAL6011, green), all functions tested, accuracy checked. OVERHAUL SCOPE: Machine completely disassembled, all components thoroughly cleaned and tested for complete functionality. Main spindle newly mounted, concentricity 3 µ. All guideways newly scraped in new machine geometry. Wear parts replaced, defective components repaired or replaced. Reassembly, complete functional test and internal acceptance. Machine repainted. Machine in perfect condition, ready for production. MEASURED GEOMETRIC ACCURACIES: Actual geometric accuracy after overhaul, measurement with dial gauge. Geometry of machine axes X and Z X = longitudinal axis 650 mm Z = transverse axis 450 mm Measurement magnet traversed with dial gauge. X axis = Max. Deviation 0,008 mm Z axis = Max. Deviation 0,005 mm INCL. THE FOLLOWING ACCESSORIES: -Electro-magnetic clamping plate, with fine longitudinal pole pitch. dimensions 600 x 400mm -demagnetizing device -Complete coolant device with paper band filter - Digital display of the vertical axis (Y-axis), make Sony -Technical documentation in English language Gbodpfx Aasfkg H To Ieg -1 pieces grinding wheel holders -1 piece grinding wheel dresser, mounted above the grinding wheel with manual infeed and automatic (hydraulically operated) transverse movement - 1 set of setting elements You can find more information in the attachment. Payment: 100% before loading the machine Warranty: 6 months on the geometry and the new parts demonstrably installed. No general legal warranty.

Condition: used, Year of construction: 1982, grinding length:500 mm grinding width:225 mm workpiece height:400 mm Gjdpscxxtmofx Aa Isbg total power requirement:5,5 kW weight of the machine ca.:3,4 t NC81 NC-control, table belt drive 100-25000 mm/min., automatic feed, electronic dressing unit 020 NC-K with RPM-compensation, coolant pump, emergency cut-off

Condition: ready for operation (used), Sanding length 800 mm Sanding width 350 mm Sanding height 350 mm Total power requirement approx. 5.5 kW Automatic depth feed Automatic cross feed Gbsdpfx Aaju Aht Ns Ieg Machine weight approx. 2,600 kg

Condition: used, total height: 2,550 mm, total length: 4,300 mm, total width: 1,700 mm, Empty weight: 3.500 kg Price: On request - Documentation available: No - CE certificate present: No - Drive system: Conventional - X-axis travel [mm]: 1700 - Y-axis travel [mm]: 330 - Z-axis travel [mm]: 530 - Table width [mm]: 1900 - Table depth [mm]: 400 - Magnet width [mm]: 1000 - Magnet depth [mm]: 400 - Max. grinding wheel diameter [mm]: 250 Gbedjx E R Dqspfx Aa Ieg - Control: Conventional - Transport dimensions: 4300mm x 1700mm x 2550mm (l x w x h) - Transport weight [kg]: 3500kg - Transport packages [pcs.]: 2 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Condition: ready for operation (used), Elb SWE 6 VA II Worklenth without magnetic table: 600 mm Grindingwidth: 400 mm Longitudinal travel X-axis (autom.): 600 mm Gedpfx Aaex Dd Idj Isbg Cross-travel Y-axis (autom.): 400 mm Travel Z-axis (autom.): 450 mm Dimensions of the table: 1100 x 450 mm Dimensions magnetic table: 700 x 200 mm Max dia grindingstone: 300x50x76 mm Spindlespeeds: 1400 x 1800 rpm Motorpower: 5.5 kW, total 13 kW Tension needed: 400V

Condition: used, total height: 2,100 mm, total length: 1,850 mm, total width: 1,550 mm, Empty weight: 2.300 kg - Documentation available: Yes - CE certificate present: No - Serial number: 116710373 - Power [kW]: 2.5 - X-axis travel [mm]: 450 Gbsdpfx Aaswya Nro Isg - Y-axis travel [mm]: 250 - Z-axis travel [mm]: 280 - Table width [mm]: 750 - Table depth [mm]: 250 - Magnet width [mm]: 450 - Magnet depth [mm]: 250 - Max. grinding wheel diameter [mm]: 240 - Max. spindle speed [rpm]: 2900 - Motor power: 2.5kW - Transport dimensions: 1850mm x 1550mm x 2100mm (l x w x h) - Transport weight [kg]: 2300kg - Transport packages [pcs.]: 2 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Condition: ready for operation (used), empty load weight: 3,300 kg, additional equipment features: Diamant tools, + afzuiging + koelmelk groep Grindingwidth: 375 mm Longitudinal travel X-axis (autom.): 600 mm Cross-travel Y-axis (autom.): 375 mm Travel Z-axis (autom.): 350 mm Dimensions magnetic table: 600 x 350 mm Max dia grindingstone: 300 x 50 x 76.2 mm Spindlespeeds: 2900 rpm Motorpower: 9 kW Tension needed: 400V Gbjdpfjxp Skdox Aa Isg Cooling system: yes
