Used Gildemeister Nef 320 for sale (231)

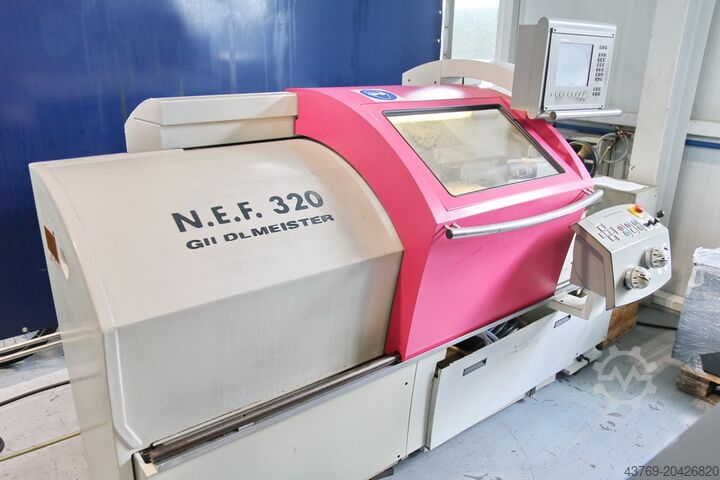

Condition: good (used), Year of construction: 1999, Gildemeister NEF 320 / cycle lathe, Bvmghumv Year of manufacture 1999, Manual Plus control, center width 750 mm, circulation Ø over bed 320 mm, spindle speed up to 4,000 rpm, 2 gear stages, Multifix steel holder, tailstock, accessories,

Condition: good (used), Year of construction: 2000, Functionality: fully functional, CNC lathe Make: GILDEMEISTER Type: NEF 320 Year of construction: 2000 With accessories Bpzlaycj

Condition: good (used), Year of construction: 1999, Type: NEF 320 Year of construction: 1999 Operating hours: 12.889 Control system: HEIDENHAIN Rotation diameter over bed: 320 mm Rotation diameter over cross slide: 150 mm Bro3Bihcfae Slide path flat: 185 mm Center distance: 750 mm Spindle holder: MK 6 Speed range: 10 - 4,000 min-1 Gear stages: 2 Total power: 9 kW Machine weight: approx. 2,000 kg Dimensions (L x W x H): 2,450 x 1,668 x 1,825 mm Tools (optional): various tools Machine is fully functional and can be inspected under power.

Condition: excellent (used), Swing over bed 212 mm Csexpx7Zr0 Distance between centers 750 mm Spindle speeds 10-4'000 rpm Control: HEIDENHAIN Manual Plus Misc. accessories MARCELS MASCHINEN CH

Condition: good (used), Year of construction: 2001, Manufacturer: Gildemeister Model: NEF 320 Year of manufacture: 2001 Control: Siemens 810 D - Manual Turn Chuck diameter : 200 mm Turning diameter : 150 mm _____ Description of the machine: Rotation diameter: 320 mm Um2Zrirpp9 turning diameter: 150 mm Center distance: 750 mm Spindle speed: 4,000 rpm Torque: 410 Nm Tool holder: Parat holder Chuck: Quick-action chuck Tailstock: Manual Coolant pump: 2.3 bar

Condition: new, diameter ( 210 ) mm total power requirement 0 kW weight of the machine ca. ? kg dimensions of the machine ca. m Flange + clamping tube Data see photo Fzjeqgk

Condition: good (used), Year of construction: 2005, operating hours: 23,300 h, Functionality: fully functional, Viewing under power possible! X / Z-axis 260 / 1000 mm Rotation diameter over bed 500 mm Swing diameter over cross slide 290 mm Speed 3000 rpm Drive 12 kW Spindle bore 70 mm Chuck diameter 315 mm Tool carrier Parat Dqmlin Quill diameter 80 mm Quill stroke 180 mm Quill holder MK5 Rapid traverse X / Z-axis 8/10 m/min Space requirement L x W x H 4500 x 2800 x 1800 mm Machine weight 2700 kg Accessories: approx. 15 Parat turning tool holders, 3-jaw chuck Schunk ROTA-S 315 with various hard and soft clamping jaws, Multifix quick-change system with some turning tool holders, turning chuck guard Technical data without guarantee! Subject to prior sale.

Condition: good (used), CNC lathe Gildemeister NEF CT40 Dqnjqh year 1990 Oper. no. 57739 Control EPL 2. Turning length 1000mm. Rotation bed 400mm. Spindle bore 72mm. Speeds 20 - 4000 rpm. Sauter 8-station turret with VDI 40. Forkard F200 chuck. Tailstock MK4. Documentation available. Space requirement: L 360cm, W 180cm, H 180cm, weight 4000kg. With many accessories (see pictures). Good original condition, ready for immediate use. Inspection under power possible at any time. (Errors in the technical data reserved!

Condition: used, Year of construction: 1996, turning diameter over bed 710 mm turning dia. over face-slide 420 mm turning length 2000 mm control Manual Plus 3110 Heidenhain spindle bore 92 mm Dqnax7 main spindle speeds: 16 - 1800 U/min cross movement 385 mm spindle head DIN 55027 - Size 11 spindle diameter in front bearing 140 mm power capacity at 100 % load 22,00 kW 2750 Nm feed x/z-axis 1 - 5000 mm/min rapid traverse X-axis 6,00 m/min rapid traverse Z-axis 8,00 m/min tailstock quill taper MT 5 quill stroke 210 mm diameter of quill 110 mm total power requirement 40,00 kW weight of the machine ca. 5,60 t dimensions of the machine ca. 5,00 x 3,00 x H2,50 m

Condition: good (used), Year of construction: 2002, Functionality: fully functional, turning length: 1,000 mm, turning diameter over cross slide: 290 mm, turning diameter: 500 mm, spindle bore: 70 mm, rotational speed (min.): 3,000 rpm, total length: 3,330 mm, total width: 1,620 mm, overall weight: 3,100 kg, turning diameter over bed slide: 500 mm, Equipment: rotational speed infinitely variable, DMG 520 K Multifix holder little used center distance 1000mm Rotation over bed 500mm Rotation over cross slide 290mm Coeqcw2Hq8 Spindle head DIN 55027 spindle bore 70mm 12 KW 920 Nm 3100 KG

Condition: used, Year of construction: 2006, machine/vehicle number: 0151006361, Auction 492 lot no.: 185 Dqjvd2 This item is part of an industrial auction. You can bid now. Description: CNC lathe Make: Gildemeister Type: NEF 520 Year of manufacture: 2006 Serial no.: 0151006361 Description: Travel X 800 mm, Turn. Ø max. 288 mm, with 3-jaw chuck, Multifix steel holder, 2-axis digital readout, manufactured by Heidenhain

Condition: excellent (used), Year of construction: 2010, CNC lathe GILDEMEISTER NEF 400 2010 Cqmpal0X turning diameter 350 mm turning length 650 mm Swing diameter over bed 385 mm Swing diameter over cross slide 350 mm Distance spindle nose - tailstock 902.5 mm Main spindle: Speed range - main spindle 0 - 4,500 min/-1

Condition: used, Year of construction: 1998, turning length 2000 mm turning diameter 710 mm turn - diameter over facing slide 415 mm spindle bore 92.0 mm cross movement 385 mm turning speeds 16.0 - 1800 U/min tail stock MK 6 quill stroke 210 mm Number of working hours 40.825 h coolant capacity 80.0 Liter spindle head DIN 55027 GR 11 control MANUAL - PLUS CNC total power requirement 22.0 kW weight of the machine ca. 5600 kg range L-W-H 4530 x 2005 x 1865 mm from a maintenance workshop good condition (!!) Equipment: - HEIDENHAIN "CNC Manual Plus" CYCLES control - 4-way tool holder with inserts - AC main drive - cross slide with AC drive - fixed steady rest - front control panel including emergency stop button * with handwheel for X and Z axis * button for unlocking protective covers * button for cycle start/stop * button for setting the gear stage - tailstock can be moved manually using the drag device - coolant system with movable tray - chip protection cover manually operated - protective cover for chuck - central lubrication Bsjxwvhj0Oy - original operating instructions

Condition: used, CNC lathe GILDEMEISTER type NEF CT 40 CNC control Eltropilot EPL 2 Machine no. No. 08380 Year of construction 1986 Turning diameter 400 mm Turning length 600 mm Center height over bed 260 mm Rotation diameter over cross slide 225 mm Cross slide movement = face travel 235 mm Longitudinal slide movement = longitudinal travel 520 mm Ulmddikn9Z Bed width 320 mm Spindle bore 72 mm Spindle passage in draw tube 56 mm Tailstock quill diameter 80 mm Tailstock quill stroke 100 mm Feed speed X and Z 0 - 4000 mm/min. Rapid traverse speed X-axis 4 m/min. Rapid traverse speed Z-axis 4 m/min. Spindle speed 20 to 2500 rpm infinitely variable Tool turret 12-position VDI 30 Motor power spindle drive 24 kW Total power consumption 30 KW Mains connection 400 Volt, 50 Hz, 85 Amp. - 3-jaw power chuck BERG KH 175, Ø 175 mm - Hydraulic hollow clamping device BERG, type OHSS 140/56 T for lathe chuck or collet chuck device - SAUTER 12-position tool disk turret with VDI 30 - Workpiece pick-up device - Indirect measuring system via rotary encoder - Tailstock with MK4 holder - Chip conveyor with integrated coolant device - 54257 operating hours read off the counter (main switch on) - 5 tool holders VDI 30 - 1 set of hard chuck jaws and 9 sets of soft lathe chuck jaws - Operating instructions Machine footprint with chip conveyor L x W x H 5400 x 1800 x 1800 mm Space requirement of the basic machine L x W x H 3300 x 1800 x 1800 mm Space required for chip conveyor L x W x H 2600 x 650 x 1300 mm Weight of basic machine 3.4 tons Weight of chip conveyor approx. 500 kg Good condition

Condition: used, Year of construction: 2005, turning diameter Ø 385 / 350 mm turning length 650 mm control Fanuc 210i Ctf29B77 total power requirement 8 / 11,5 kW weight of the machine ca. 4 t dimensions of the machine ca. 4,,5 * 2 * 2 m

Condition: good (used), Year of construction: 2002, turning length: 1,500 mm, Cycle-controlled lathe Gildemeister NEF 520 Year 2002 center distance 1500 mm Control Heidenhain Manuall-Plus Multifix size C Bsjwrnekwci 8-fold disk turret Fabr. Sauter

Condition: good (used), Year of construction: 2004, operating hours: 29,701 h, Functionality: fully functional, For sale is a cycle lathe of the brand Gildemeister and type NEF 520 The machine is fully operational and in good condition Wao779V3 More pictures and video available on request Technical data Year of construction: 2004 Operating hours: 29,701 h Rotation diameter over bed: 500 mm Rotation diameter over cross slide: 290 mm Face travel: 260 mm Center distance: 1,000 mm Control: Manual Plus Heidenhain Speed range - main spindle 8: 3,000 min/-1 Drive power - main spindle: 12 kW Max. Torque: 920 Nm Gear stages: 2 Gear stage 1 8: 750 min/-1 Gear stage 2 32: 3,000 min/-1 Spindle head: 8 / DIN 55027 Spindle bore: 70 mm Spindle diameter in front bearing: 120 mm Spindle nose: ME 80 Chuck diameter: 250 mm Tool holder: Multi-Fix C Quill diameter: 80 mm Quill stroke: 180 mm Quill holder: MK 5 Rapid traverse X: 8 m/min Rapid traverse Z: 10 m/min VC X: max. 5,000 mm/min VC Z: max. 5,000 mm/min Total power requirement: 24 kVA Machine weight approx.: 2.7 t Space requirement: approx. 4.5 x 2.8 x 1.8 m On request, transport throughout Europe can be organized for an additional charge. Prices plus VAT Viewing possible by appointment. Contact us, our team will be happy to help you. Trade-in or exchange possible! Machines purchase / sale PURCHASE / SALE OF PRODUCTION & METALWORKING MACHINES AND MUCH MORE. Do you need a high-quality but inexpensive metalworking machine for your production? Or do you want to sell yours? For further information or contact options, please visit our website

Condition: used, Technical details: turning diameter over bed: 400 mm turning dia. over face-slide: 225 mm turning length: 600 mm x-axis: plan: 260 mm longitudinal traverse (z-axis): 640 mm control: Bahnsteuerung 2-Achsen revolution per minute: 20 - 4000 U/min spindle bore: 72 mm external spindle dia. in forward position: 100 mm Torque: 150 rapid power traverse in X-and Z direction: 10 / 10 m/min feed speed: X/Z: 5 / 5 m/min. tool turret - number of stations: 12 Stationen / Stations tailstock taper ISO: MK 4 tailstock quill stroke: 100 mm electrics - voltage/frequency: 380 V / 50 Hz V/Hz interface: ja total power requirement: 22 kW Weight approx.: 3,5 t dimension machine xH: ca. 3,1 x 1,8 x 1,7 (ohne Späneförderer) m Dqmzi2 Die Maschine befindet sich derzeit in der technischen Abteilung. Anwendung: Diese Verticaldrehmaschine ist eignet zur 2-achsigen Bearbeitung (Drehen, Bohren; Fräsen, Y-Achse) von Futterteilen. Hochdruck-Kühlmitteleinrichtung Späneförderer Bürener mit Ölnebelabscheider IFM (elektrostatische Absaugung) Werkstückbe-und Entladeeinrichtung *

Condition: used, Year of construction: 2000, turning length 1500 mm turning diameter 500 mm turn - diameter over facing slide 290 mm spindle bore 70.0 mm cross movement 260 mm turning speeds 10.0 - 3000 U/min tail stock MK 5 quill stroke max. 180 mm spindle head DIN 55027 GR 8 Number of working hours 27.700 h total power requirement 11.0 kW weight of the machine ca. 3100 kg 0L72Tgt range L-W-H 3400 x 1953 x 1825 mm from a maintenance workshop good condition (!!) Equipment: - HEIDENHAIN CNC CYCLES control unit - FORKHARDT 3-jaw chuck Ø 250 mm including clamping jaws - 4-way tool holder with many inserts (!!) - AC main drive with electromagnetic ZF gear - cross slide with AC drives - fixed steady rest - front control panel including emergency stop button * with handwheel for X and Z axis * button for unlocking protective covers * button for cycle start/stop * button for setting the gear stage - coolant system with movable tray - tailstock with movable quill (handwheel) - manually lockable chip protection cover at the front - chip protection rear wall - protective cover for chuck - central lubrication - machine vibration feet - machine interior lighting - original operating instructions

Condition: ready for operation (used), Year of construction: 2003, Functionality: fully functional, Turning diameter: 246 mm turning length: 600 mm Swing diameter over bed: 400 mm Rotation diameter over cross slide: 300 mm Eavukbt Control: Siemens 840D powerline Speed range main spindle: 6,000 min/-1 Drive power main spindle: 16 kW Max. bar diameter: 52 mm C-axis: 360° Counter spindle speed range: 6,000 min/-1 Drive power counter spindle: 7.5 kW C-axis: 360° Tool turret: 12 pos. Number of driven tool stations: 12pos. Speed range of the driven tools: 5,000 min/-1 Drive power of driven tools: 10 kW Tool holder: VDI30 Rapid traverse X-axis: 60 m/min Rapid traverse Z-axis: 45 m/min Machine weight approx.: 3,700 kg

Condition: used, Year of construction: 2004, Gildemeister NEF 520 cycle lathe, Year of manufacture 2004, Gxc220Y Heidenhain Manual Plus 4110 control, 8-station turret, VDI 30, spindle speed up to 3050 rpm, tailstock, quill stroke 180 mm, chip conveyor, spindle clearance up to 70 mm, coolant device,

Condition: excellent (used), Year of construction: 2008, Condition: very good condition, fully funtional Motohours of spindel 3274 Circulating diameter above the bed: 400mm Control System Siemens 840D – Simodrive Number of tools: 8 Spindle diameter 65 Machine dimensions: 2600 mm × 1650 mm × 1800 mm Ccnnxdpj Machine weight: 2800kg on photo: accessories and various tool holders - in price Loading agreement EXW

Condition: used, Year of construction: 2001, Functionality: fully functional, center width: 1,000 mm, turning diameter over bed slide: 500 mm, For sale is a cycle-controlled lathe of the Gildemeister brand and type NEF 520 K The machine is fully functional, the guides are somewhat worn but still functional Technical data: Gildemeister universal lathe NEF 520K Year of manufacture: 2001 Control: Siemens Touch Panel Rotation Ø over bed: 500mm Rotation Ø over facing slide: 290mm Face travel: 260mm Center distance: 1000mm Drive power 12 KW 1st gear stage 8 - 750 rpm 2nd gear stage 32 - 3000 rpm Bobgvrkrhgt Quill Ø: 80mm Quill holder: MK5 Quill stroke: 180mm Three-jaw manual chuck: Ø250mm Four-jaw manual chuck: Ø250mm Tool holder: Multifix size C Fixed vice with jaws and rollers, guide Ø10 - 115 On request, loading and transport can be organized for an additional charge All prices plus VAT Viewing possible by appointment. Contact us, our team will be happy to help you. Trade-in or exchange possible! Machines purchase / sale PURCHASE / SALE OF PRODUCTION & METALWORKING MACHINES AND MUCH MORE. Do you need a high-quality but inexpensive metalworking machine for your production? Or do you want to sell yours?

Condition: used, Year of construction: 2000, operating hours: 45,517 h, Control Heidenhain Manual PLUS Rotation diameter over bed 500 mm Swing diameter over facing slide 290 mm Face travel 260 mm Center distance 1,000 mm Manual Plus Heidenhain control Main spindle: Speed range - main spindle 8 - 3,000 min/-1 Drive power - main spindle 12 kW Max. Torque 920 Nm Gear stages 2 Gear stage 1 8 - 750 min/-1 Gear stage 2 32 - 3,000 min/-1 Spindle head 8 / DIN 55027 Spindle bore 70 mm Usable bar diameter - mm Spindle diameter in front bearing 120 mm Blqfsu80alq Spindle nose ME 80 Chuck diameter 250 mm Tool holder: Type Multi-Fix C Tailstock: Quill diameter 80 mm Quill stroke 180 mm Quill holder MK 5 Feed rates: Rapid traverse X: 8 m/min Rapid traverse Z: 10 m/min Feed speed X: max. 5,000 mm/min Feed speed Z: max. 5,000 mm/min Total power requirement 24 kVA Machine weight approx. 2.7 t Space requirement approx. 4.5 x 2.8 x 1.8 m U0Gfnjnpsd Accessories Documentation Multifix basic holder Three-jaw chuck In bearing Overhaul required due to bearing damage on Z-spindle

Condition: ready for operation (used), Year of construction: 2003, Turning diameter 500mm, turning length 1,500mm, manual plus control, Krjcmqj
