Used Gleason P2800 for sale (4)

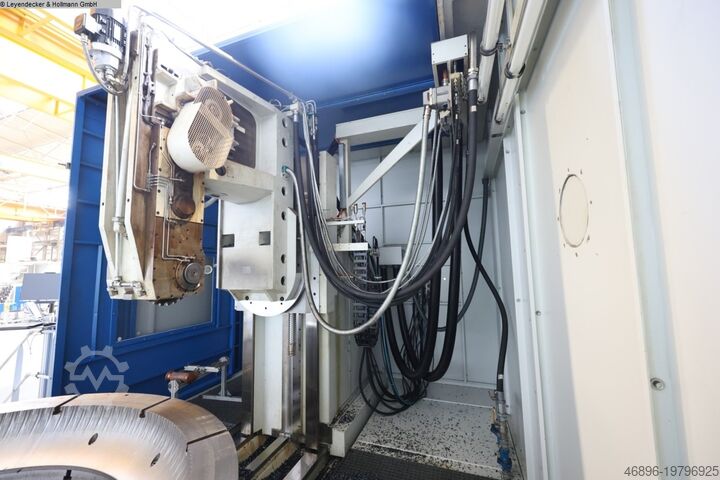

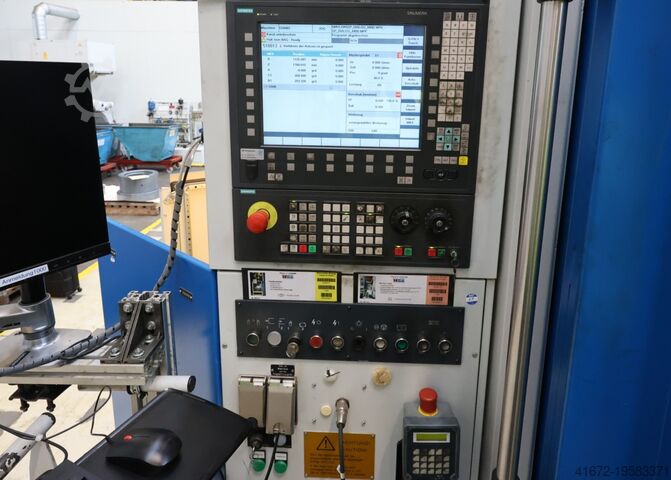

Year of construction: 2007, condition: ready for operation (used), Control Unit Brand SIEMENS Model SIEMENS 840D Additional Equipment Siemens Path Control SINUMERIK 840 D, featuring 5 axes, 1 spindle, electronic gear, and integrated safety functions Motorized Milling Heads for internal and external gears with a swivel range of degrees External Gears: Min. Diameter: 950 mm / Max. Diameter: 2800 mm Hpsdpjx D E Skjfx Ahzoa Cutter Arbor Cone: HSK-B160 (Hollow Shank Taper According to DIN 69063) This 5-axis CNC milling machine manufactured in 2007 features a Siemens SINUMERIK 840 D controller with electronic gear and integrated safety functions. It can handle workpieces up to 2800 mm in diameter and offers motorized milling heads with a swivel range of / degrees. Ideal for both internal and external gears, consider the opportunity to buy this Gleason Pfauter P 2800 CNC milling machine. Contact us for more information about this machine. Application Types Other Machine Tools

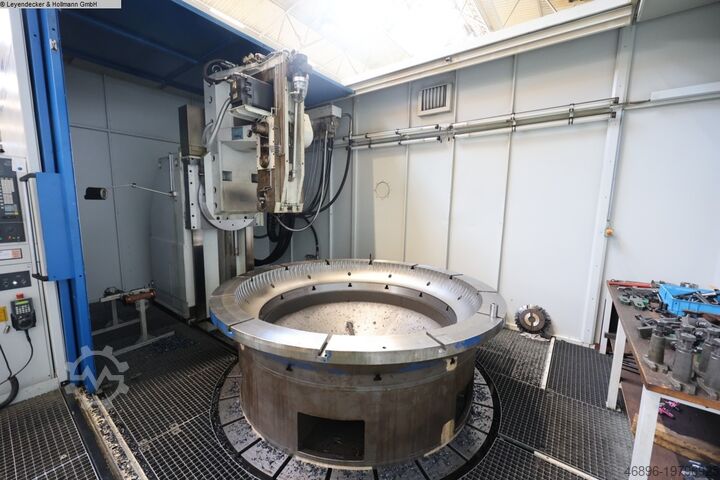

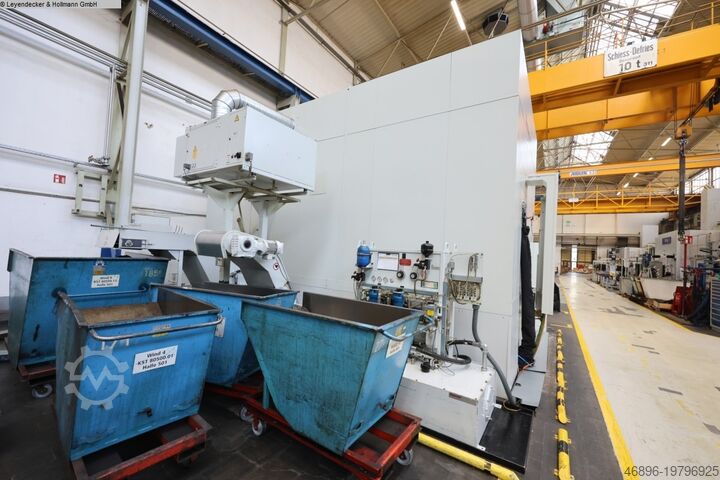

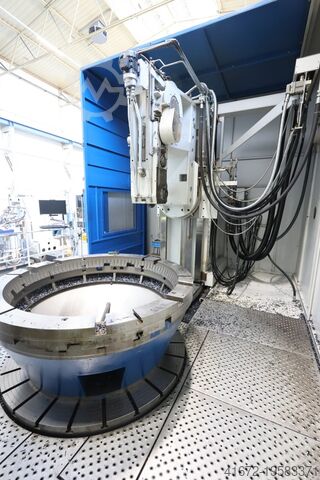

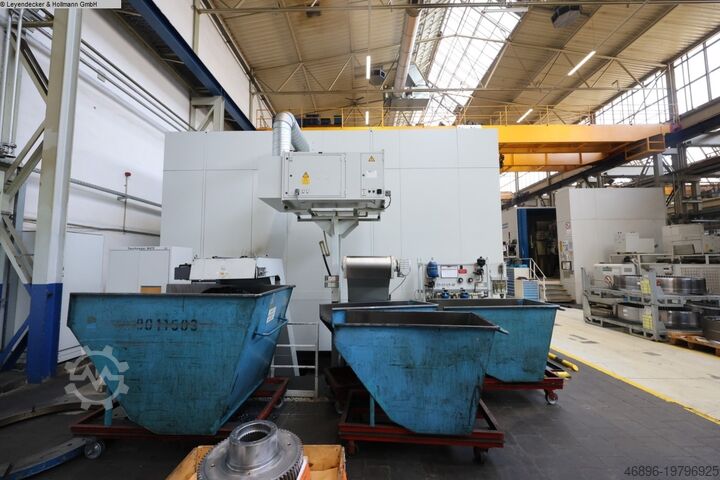

Condition: used, Year of construction: 2007, workpiece diameter nominal 2400 mm max. workpiece diameter 2800 mm Hodjw Rf S Sspfx Ahzepa max. module 30 mm control Siemens Sinumerik 840 D dividing plate diameter 2200 mm table diameter 2500 mm Table hole Diameter / depth 800 / 875 mm max. table load 40000 kg Table rpm 4,5 min-1 clamping length max. 375 mm clamping diameter max. 350 mm cutter diameter max. 2800 mm Cutter arbor cone HSK-B160 swivelling range milling head + 30/-45° Distance Cutter - Workpiece 615 / 1600 mm weight of the machine ca. 57 t Slide drives: - Feed & rapid traverse speed: - axial 4000 mm/min - radial 3000 mm/min - tangential 3000 mm/min Equitment/Accessories: - IFK2 internal milling head - Milling arbor with spacers - chip conveyor - Oil mist extraction - technical Documentation

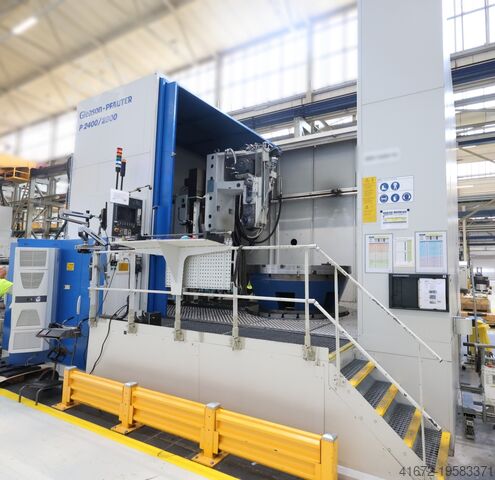

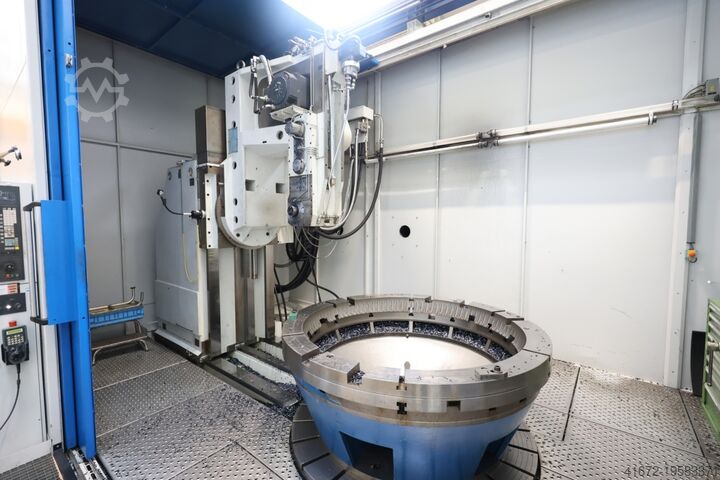

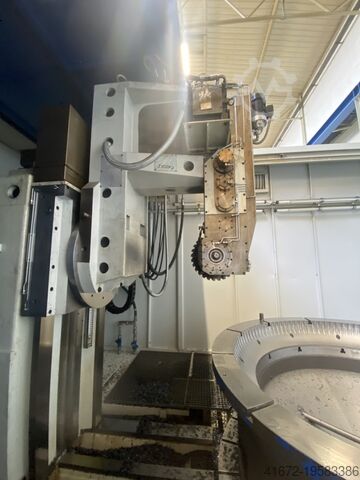

Condition: used, Year of construction: 2007, control Siemens Sinumerik 840 D weight 57.000 kg voltage 400 V Gleason PFAUTER CNC gear hobbing machine P 2400/2800 for gear cutting of cylindrical and worm gears as well as all other regularly occurring rollable profiles and shapes on the cylindrical workpiece circumference. Large gear hobbing machines from Gleason offer maximum productivity for roughing and finishing cylindrical gears for many industries: wind turbines, industrial gearboxes, mining and shipbuilding, gear machining and many more. The power range of the drive takes future tool developments into account. Of Hsdpfswzyp Isx Ahzjpa course, the gear hobbing head drive is also backlash-free. These machines are particularly well suited for use with state-of-the-art, cutting materials, regardless of whether dry or wet machining is preferred. The machine can be used for dry or wet machining and is also equipped with the appropriate chip conveyor for both machining methods. The machine is equipped with an internal profile milling head as a motorised milling head. --> Working range and technical data Nominal workpiece diameter: 2.400 mm --> Largest millable diameter approx.: 2.800 mm --> Smallest/largest distance between cutter and workpiece axis: 100/1.200 mm --> Largest axial slide travel (special design): 1.300 mm --> Largest clampable cutter (internal milling head): --> Diameter max: 440 mm --> Max. cutter width: 90 mm --> Swivel range of the internal profile milling head/vertical axis: +/- 15° --> Milling mandrel taper: HSK-B160 --> Maximum milling cutter travel: 300 mm --> Table diameter: 2.500 mm --> Part wheel diameter: 2.200 mm --> Table bore --> Diameter: 800 mm --> Depth: 875 mm --> Maximum table load approx.: 40.000 kg --> Max. feed and rapid traverse speeds: --> axial (Z-axis): 4.000 mm/min --> radial (X-axis): 3.000 mm/min --> tangential (Y-axis): 3.000 mm/min --> Milling cutter cooling lubrication device/electric centrifugal pump: approx. 150 l/min --> Increased drop height of magnetic chip conveyor: 1,600 mm --> Increased main stand: 1,300 mm axial slide travel --> Internal profile milling head as motor milling head instead of standard motor milling head --> Max. millable profile depth in steel with approx. 600 N/mm² strength: approx. 65 mm --> Infinitely variable milling speed: 50 - 150 min?¹ --> Max. milling cutter diameter: 440 mm --> Min. milling cutter base circle diameter: 310 mm --> Max. milling cutter width: 90 mm --> Min. internal diameter at 0° bevel angle: 800 mm+) --> Max. workpiece height at 0° bevel angle: 600 mm --> Max. workpiece ring thickness (including clamping device): 500 mm

Condition: used, Year of construction: 2008, control Siemens 840D Hpodpfswzypnex Ahzsa
