Used Grob Milling Machine for sale (54)

Condition: new, Year of construction: 2022, operating hours: 235 h, Control: Fanuc 31iB Maximum module: 2.3 (in direct relation to installed rollerhead diameter) Uwryk8B0 Roller head diameter (mm): 90 Workpiece spline diameter range (min. root-Ø to max. major-Ø) (mm): 20 - 80 Max. spline length (mm): 250 Possible number of splines in continuous/indexing pitch mode: freely programmable Space between spindle nose and roller head carrier (LW, in mm): 200 - 1’950 Workpiece and chuck diameter (mm): 315

Condition: excellent (used), Year of construction: 2001, machine/vehicle number: GM 3941/02, In total there are 3 x Grob BZ500 available (Please state your offer price) Sale only within Europe, incl. Turkey Price without packing; delivery condition: FCA (machine location) ===== Technical data see handout. D7Pwz9O Any warranty right is excluded. For the correctness of technical data and year of manufacture, for the completeness of accessories and tooling, as well as for the adherence to all safety as well as environmental protection requirements specified in the accident prevention regulations, we do not take over guarantee. No sale to private persons. Sales only within Europe, incl. Turkey Price without packaging; Delivery condition: FCA (machine location) ===== Technical data please see handout in attachment. German text leading language. Without any guaranty and warranty, including completeness of tools & accessories as well as environmental and safety regulations. No private sales.

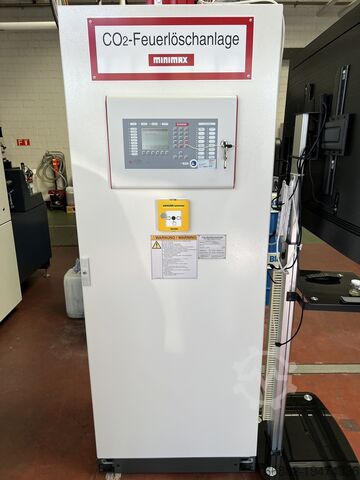

Year of construction: 2015, Condition: used, diameter / mm Cutting (quantity) / weight 15000 kg Control Siemens 840D Production line - Modular Special Machine (MSM) with clamping device 1 double spindle machining centre Make: GROB Type: Special machine GM4650 Year: 2015 Control: Siemens, type 840D sl Bel2Gy2Vah8 CO2 fire extinguishing system, air filter LTA, oil treatment, make: Ruez, type MBF-1000 AS, year 2015 - Operating hours 43,774, spindle hours 1,598 Technical data Machine length: 8400mm Machine width: 2500mm Machine height incl. LIP: 2150mm Machine weight: 15.000kg

Condition: refurbished (used), Year of construction: 2023, Functionality: fully functional, Retrofit of the machine in 2023 Bipnx0Kvxcg - Complete repainting - Replacement of the electrical control system with SIEMENS PLC - incl. interface for robot loading - Hydraulics checked - Drive train checked - Main bearing and support bearing geometrically checked - Slide guide geometrically checked - All defective mechanical parts have been replaced TECHNICAL DETAILS Rolling pressure: 5t Feed: hydraulic Rolling time: SPS Rolling spindle speeds: 40 - 80 - 140 rpm Rolling spindle diameter: 28 mm Pick-up length: 60 mm Workpiece diameter: 2 - 25 mm MACHINE DETAILS Electrical connection: 4 kW Weight: approx. 1t

Condition: ready for operation (used), Year of construction: 2005, Functionality: fully functional, We use this machine in our subcontracting department. The machine is equipped with a loading and unloading conveyor and fully automated with a gantry type loader. The machine is mainly used for cold forming of splines in sheet metal parts, it also has a spinning option (form-ing disks into drums). Control: Fanuc 840 D This machine is also suitable for solid material applications, max. module: ~ 5.5 Roller head diameter (mm): 205 Workpiece spline diameter range (min. root-Ø to max. major-Ø) (mm): 30 – 230 Max. spline length (mm): ~120 Possible number of splines in indexing pitch mode: 18 – 36, expandable to 46 Dl3Lk9 Space between spindle nose and roller head carrier (LW, in mm): 56 - 1086 Workpiece and chuck diameter (mm): ~300

Condition: used, Year of construction: 2022, GROB G350 - PW Year of manuf. : 2022 Control : Siemens Siemens 840 Dsl Speed : 16000 rpm Movement X/Y/Z : 600/770/805 mm Tool holder : HSK 63 _____ Description: In General: Year of construction:2022 Control system:Siemens 840 Dsl - GROB4Pilot Dpb07Z Traverse path X/Y/Z:600/770/805 mm Speed:16,000 rpm Tool holder:HSK 63 Spindle: Technology:Motorised spindle Speed:16,000 rpm Max. power:approx. 32 kW Max. torque:approx. 206 Nm Tool holder:HSK-63 NC swivel table: A-axis:-185°/+45° C-axis:360° Measuring systems:Direct Clamping surface:400 x400 mm Max. table load:approx. 300 kg Workpiece clamping system:4x fluid connection Tool magazin: Technology:magazine Number of stations:50 Max. tool length:365 mm Equipment: Measuring systems:Direct in all axes Chip removal:Chip conveyor Coolant supply:IKZ system, 40 bar Workpiece measurement:Infrared measuring probe Tool breakage monitoring:Electromechanical Automation:Pallet changer with set-up stations

Condition: as good as new (ex-display), Year of construction: 2023, Functionality: fully functional, machine/vehicle number: S2479855210219, travel distance X-axis: 800 mm, travel distance Y-axis: 1,020 mm, travel distance Z-axis: 970 mm, controller manufacturer: Siemens, controller model: ONE, workpiece height (max.): 525 mm, workpiece diameter (max.): 900 mm, workpiece weight (max.): 600 kg, rotational speed (min.): 800 rpm, spindle speed (max.): 14,500 rpm, coolant supply: 80 bar, number of slots in tool magazine: 243, tool length: 750 mm, input voltage: 400 V, Equipment: chip conveyor, rotational speed infinitely variable, Highlights: F3I7Mvh - Powerful mill- turn motorized spindle with 14.500 rpm | 58 KW | 261 NM - Palette storage systems PSS-R900 with 10 storage locations - 243 tools in the system Basic machine G550 T Generation 2 Power supply 400 V, 50 Hz, TN-S Work area door, automatic, for manual and automatic loading/unloading Decentralized work area mist collector: 800 m³ Machine control system SIEMENS SINUMERIK ONE GSC Advanced Time-controlled start of warm-up program - programmable at the HMI EES function to realize CN program on an external data carrier (SIEMENS) Tilting table unit (A'-axis) Rotary table with pallet clamping system GROB (B'-axis) Motorized spindle HSK-T 100, 14,500 rpm, 225/261 Nm, 50/58 kW, oil-air lubrication GROB spindle diagnostics GSD Double disk-type tool magazine HSK-A 100 for extra-long tools with 72 pockets in total Additional tool magazine TM180 HSK-A 100 with 180 tool pockets Tool cleaning device Tool coding, system BIS-M (BALLUFF) Electromechanical tool breakage detection device Laser measurement system LaserControl LC52-DIGILOG for mill and turn tools, A'=0° (BLUM-NOVOTEST) Rotary pallet storage system PSS-R900 with 10 storage locations Setup station PSS-R900, high-precision setup station, rotated manually Air gun at setup station Cutting fluid return of rotary pallet storage system PSS-R Lighting in the setup station of the PSS pallet storage system Support EES-Aufruf PSS-R450-1800 Tool requirement planning PSS-R450-1800 Support GSC swivel axis calibration PSS-R450-1800 4 Pallet´s 630 x 630 mm, with star-configured T-slots, without pallet changer hook Additional pallets can be selected optionally Slat band chip conveyor, discharge height 1,100 mm High-pressure cutting fluid system (10-80 bar, IKZ) Continuous cooler for cutting fluid with an air cooled cooling unit (13 kW) Compressed air feed through spindle center Changeable cutting fluid pressure increase for the motorspindle nozzles Cutting fluid recirculation on weekends Oil skimmer for cutting fluid care Air gun at the work area Flush gun at the work area Flushing unit (Z-axis) Machine accuracy package 1 Work area camera for machine control panel GROB⁴Pilot Preparations for use of radio signal receiver (RENISHAW) Radio touch probe RMP600 (RENISHAW) Remote machine diagnostics with access control switch 12-month warranty *The machine pictures contain special equipment that differs from the quotation, such as clamping devices and roller shutter

Condition: like new (used), Functionality: fully functional, Grob GmbH Screw jack with cubic running nut design and TR spindle, MJ3 213680 27726, MJ3 GN 1F KGS3220 0165 FP BL RP19 MG140 B A SoFETT 2E Model: MJ321368027726 Ubsuyh0X0F Typ: MJ3GN1FKGS32200165FPBLRP19MG140BASoFETT2E Condition: As good as new

Condition: used, Year of construction: 2012, x-travel 800 mm y-travel 950 mm z-travel 1020 mm Control SIN840D sl B - axis 360 x 0,001 ° A - axis -185 / +45 x 0,001 ° feed x-axis 1 - 65.000 mm/min feed y- axis 1 - 50.000 mm/min Feed z- axis 1 - 80.000 mm / min. rapid traverse X/Y/Z 60 / 50 / 80 m/min spindle turning speed - stepless 1 - 18.000 U/min power capacity at 100 % load 29,00 kW power capacity at 40 % load 38,00 KW max. torque at 40% / 100% load 46,00 / 34,00 Nm spindle diameter in front bearing 70 mm tool taper HSK-A63 tool magazin: 2x 60 Dqnapp tool length - max. 360 / 400 mm tool diameter 68 mm tool diameter with 2 vacant positions 160 mm tool total weight 8,00 kg Chip to chip time 4,2 sec. size of pallet 2x 630x630 mm workpiece weight 700 kg interference diameter 900 mm total power requirement 50,00 kW weight of the machine ca. 25,00 t dimensions of the machine ca. 7,00 x 4,00 x H3,50 m 5-axis machining center with SIEMENS Sinumerik 840D SL control, integrated KNOLL coolant system KF150, coolant high-pressure 80bar, coolant through the spindle, chip conveyor, pallet changer, RENISHAW OMP60 measuring probe, electromechanical tool length check, HT8 manual operating device, BLUM-Laser, GROB Spindle-diagnosis (GSD) workpiece pallets with ROEMHELD Speedy classic4 zero-point clamping system, integrated workpiece clamping, kinematics-set. The machine can be inspected under power.

Condition: excellent (used), Year of construction: 2015, operating hours: 15,000 h, machine/vehicle number: GM4638/01-01, Give. CNC horizontal machining center Make: GROB Type: Truck rear axle machining center Bi9Mycp2Rzd

Condition: excellent (used), Year of construction: 2019, Functionality: fully functional, 5-axis CNC machining center GROB G350a Siemens Sinumerik 840D sl 2 pallets, 2-fold pallet changer Pallet size: 400 x 400 mm Travels: X: 600 mm Y: 770 mm Z: 805 mm Swivel table A-axis Rotary table with pallet clamping system Grob (B-axis, PW) Milling spindle HSK-A63 Milling spindle drive power: 32/25Kw Max. Torque: 206 Nm Max. Spindle speed: 16,000 rpm Coarse spindle diagnosis GSD Tool magazine with 90 tool slots Tool cleaning device Tool length measurement Renishaw workpiece measurement, RMP60 Machine status light Pallet set-up station, manually rotatable Set-up station door, additional control panel Preparation for hydraulic workpiece clamping system Swivel axis calibration GSC Energy efficiency package EED HAT 8 teach pendant Sinumerik MDynamics technology package - Milling Premium cooling lubricant package - Scraper belt chip conveyor, discharge height 1,100 mm - Filter system - Tank - High pressure pump 80 bar - Low pressure system Coolant cooler 13 kW Compressed air through the spindle center External compressed air supply Ci8Bspw9 Oil skimmer for lubricant maintenance Work area floor flushing Blow-out gun, coolant gun Z-axis flushing device Compressed air cleaning bar for safety disk

Condition: used, Year of construction: 2002, machine/vehicle number: GM 3974/02-07, spindle speed::max. 12000 tool taper:HSK 80 . b-axis:360 x 0,001 ° worktool support (A-axis):+40 / -95 ° weight of the machine ca.:25 500 Kgs. x-travel:800 mm y-travel:700 mm Bskagtqgxka z-travel:630 mm dimensions of the machine ca.:6200 x 3000 mm pallet size::500 x 500 mm no. of tools in the magazine:61 Nos. Horizontal Machining Center with CNC Control System SIEMENS 840 C in well maintained condition.

Condition: as good as new (ex-display), Year of construction: 2017, Functionality: fully functional, machine/vehicle number: S253105521883, travel distance X-axis: 800 mm, travel distance Y-axis: 1,020 mm, travel distance Z-axis: 970 mm, controller manufacturer: Siemens, controller model: 840D sl, spindle speed (max.): 30,000 rpm, coolant supply: 40 bar, number of slots in tool magazine: 311, tool mount: 63 mm, tool length: 700 mm, tool weight: 8,000 g, input voltage: 400 V, Equipment: chip conveyor, rotational speed infinitely variable, Highlights: - Powerful motorized spindle with 30.000 rpm - 311 | HSK 63-A tools in the system - PSS-R900 with 13 storage locations Basic machine G550 AB generation 2 Power supply 400 V, 50 Hz, TN-S Work area door, automatic, for manual and automatic loading/unloading Decentralized work area mist collector SIEMENS SINUMERIK 840D sl control system Swivel axis calibration GSC Classic Tilting table unit (A'-axis) Rotary table with pallet clamping system GROB (B'-axis) Motorized spindle HSK-A 63 30,000 rpm, 48/63 Nm, 40/53 kW, oil-air lubrication GROB spindle diagnostics GSD Double disk-type tool magazine HSK-A 63 for extra-long tools with 126 pockets in total Additional tool magazine TM200 HSK-A 63 Tool cleaning device Tool coding, system BIS-M (BALLUFF) Electromechanical tool breakage detection device Laser measurement LaserControl Micro Compact NT for milling tools, A'=-180° (BLUM) Pallet storage system PSS-R900 with 13 storage locations Air gun at setup station GROB⁴Automation Tool requirement planning 13 Palette`s 630 x 630 mm, grid holes High-pressure cutting fluid system (5-40 bar, IKZ) Continuous cooler for cutting fluid with an air cooled cooling unit (13 kW) Compressed air feed through spindle center Changeable cutting fluid pressure increase for the motorspindle nozzles Cutting fluid recirculation on weekends Oil skimmer for cutting fluid care Air gun at the work area Flush gun at the work area Crdp7Qzx88 Part clamping system in work area - KP1: Pressure oil, proportional valve technology and volume counter 30-190 bar (H3.1) - KP2: Pressure oil, proportional valve technology and volume counter 30-190 bar (H3.1) - KP3: Pressure oil, proportional valve technology and volume counter 30-190 bar (H3.1) - KP4: Pressure oil, proportional valve technology and volume counter 30-190 bar (H3.1) Part clamping system in setup station of pallet storage system PSS - KP1: Pressure oil, proportional valve technology and volume counter 30-190 bar (H3.1) - KP2: Pressure oil, proportional valve technology and volume counter 30-190 bar (H3.1) - KP3: Pressure oil, proportional valve technology and volume counter 30-190 bar (H3.1) - KP4: Pressure oil, proportional valve technology and volume counter 30-190 bar (H3.1) - KP5: Compressed air, manual pressure regulation, 0.5-5 bar (P1.1) - KP6: Compressed air, manual pressure regulation, 0.5-5 bar (P1.1) Machine status light, 3-colored Machine accuracy package 1 Radio touch probe RMP600 (RENISHAW) Remote machine diagnostics with access control switch 12-month warranty

Condition: good (used), Year of construction: 2012, Control Heidenhain iTNC 530 Working area: 800 mm x 1020 mm x 970 mm (x/y/z) Table diameter: 630 x 630 mm Table load: 700 kg Workpiece diameter - max.: 900 mm Rotary table (A-/B-axis) A-axis: -185 / +45 ° B-axis: 360 ° Total power requirement: 42 kVA Machine weight approx.: 22 t Chip conveyor Belt filter system - Motor spindle: 16,000 rpm Drive power: 25/35 kw Max. Torque: 160/223 Nm Spindle holder: HSK-A63 Tool changer: 120-position C2Bvaxbgv - Measuring probe - Kinematics package - Tool length checking device - BLUM laser measuring system Tool monitoring - electric handwheel - Suction - 80 bar IKZ system

Condition: excellent (used), Year of construction: 2012, operating hours: 14,221 h, Functionality: fully functional, machine/vehicle number: G350 - 1226, travel distance X-axis: 600 mm, travel distance Y-axis: 770 mm, travel distance Z-axis: 890 mm, rapid traverse X-axis: 65 m/min, rapid traverse Y-axis: 42 m/min, rapid traverse Z-axis: 90 m/min, torque: 6,483 Nm, controller manufacturer: Heidenhain, controller model: iTNC 530, table width: 400 mm, table length: 400 mm, table load: 340 kg, rotary table diameter: 400 mm, overall weight: 15,000 kg, spindle speed (min.): 1 rpm, spindle speed (max.): 12,000 rpm, operating hours of spindle: 14,221 h, coolant supply: 80 bar, spindle nose: HSK 63, number of slots in tool magazine: 40, input voltage: 400 V, type of input current: three-phase, Equipment: chip conveyor, Grob G350 Universal Twin Pallet 5-axis Horizontal Machining Centre U2Ksqaadjb Heidenhain iTNC-530 CNC Control System Serial number: G350-1226 X-axis: 600 mm Y-axis: 770 mm Z-axis: 890 mm Swivel/rotary table: A-/B-axis Pallet size: 400 x 400 mm Pallet changing system: 2-pallets Max. Pallet load: 340 kg Speed range up to: 12,000 1/min Spindle drive power: 160/ 223 Nm Rapid traverse: X-axis 65 - Y-axis 42 - Z-axis 90 m/min Tool magazine: HSK 63 with 40 positions Max. Tool diameter all pockets occupied: 72 mm Max. Tool diameter with free space: 160 mm Max. Tool length: 365 mm Max. Tool weight: 12 daN Machine weight approximately: 15 tonnes Equipment: Pallet changing system: A & B twin pallets; zero-point clamping. Heidenhain electronic handwheel HR 520. Work area door, manually operated for manual loading/unloading. Hydraulic ports through the table. Work area lighting. Electromechanical tool length device. Infrared measuring probe. Coolant through the spindle at 80 bar. Manual control unit. Work area extraction. Chip conveyor. Coolant system Until January 2021 the machine was being used in Grob’s own production area. As of 3rd August 2020, in Grob’s production area NC power on: = 48,819 Machine hours: = 41,218 Spindle running hours: = 13,532 As of 10 October 2024 NC power on: = 69,970 – Difference in 3 years 21,151 Machine hours: = 41,890 – Difference in 3 years 662 Spindle running hours: = 14,221 – Difference in 3 years 689

Condition: used, Year of construction: 2000, Grob BZ 600, Year of manufacture 2000, Siemens 840 D control system, Travel X1/X2/Y/Z 800/800/700/630 mm, Beh2Vsm 61-position tool changer, HSK 80 tool holder, spindle speed up to 12,500 rpm, Pallet size 630 x 630 mm, chip conveyor, separate coolant system, accessories,

Condition: good (used), Year of construction: 2009, Control system: SIEMENS 840D sl Travel X/Y/Z 600/770/675 Motor spindle 35/47 Nm1 Spindle speed 18,000 rpm Tool holder HSK-A 63 Magazine places 40 places 3D probe M&B Infrared Touch Probe IRP25.41 Blum-Messdorn 87.0634-035.163.A2 Machine hour 41242 Spindle hour 9327 Brx3Nxn80Iw Swivel/rotary table (A/B axis) Integrated coolant system and chip conveyor Integrated hydraulic unit Cooling unit for spindle Rotary table (B-axis) and control cabinet Torque specification at 100 % or 40 % ED Accessories: Handwheel; Blum laser measuring system IKZ Suction unit

Condition: used, Year of construction: 2011, machine/vehicle number: G550-1024, x-travel:800 mm y-travel:950 mm z-travel:1020 mm weight of the machine ca.:17 t dimensions of the machine ca.:6 x 3 x 3,2 m Diameter of the table:770 mm max. table load:800 kg tool taper:HSK-A63 max. tool length:465 mm no. of tools in magazin:60 spindle turning speed range:12.000 U/min feed power:8 kN kp power capacity:25/35 kW 5 axis B2Wv308Yt0 G550-1024 HSK A-63 Grob (Bezeichnung G550-1024): 4529h 1 spindle

Year of construction: 2024, Condition: new, machine/vehicle number: N2073615010068, Highlights: - High performance motorized spindle 16,000 rpm - Triple disk- type tool magazine with 117 tool pockets - Laser measurement system BLUM for milling tools _____ Basic machine G150 Travel path of the X-axis 450 mm Travel path of the Y'-axis 670 mm Travel path of the Z-axis 665 mm Power supply system 400 V, 50 Hz, TN-S Work area door, automatic, for manual and automatic loading/unloading Decentralized work area mist collector 800 m³ 9Io8Bba3Vz Machine cooling system GCU (24 kW) with aur- cooled cooling unit Modified door at machine column in case of integration of an automation system SIEMENS SINUMERIK 840D sl with GROB4Pilot Swivel axis calibration GSC Advanced Hand- held controller HT8 GROB kinematic measurement inspection equipment standard interface version 1.7 (GROB) GROB- cycle: Advanced tool change UTL- TC (5- axis) Tilting table unit (A'-axis) Rotary table (B-axis) with GROB pallet clamping system Motorized spindle HSK-A 63, 16,000 rpm, 159/206 Nm, 25/32 kW, oil-air lubrication GROB spindle diagnostics GSD Triple disk-type tool magazine HSK-A 63 with 117 tool pockets Tool cleaning device Electromechanical tool breakage detection device Laser measurement system (BLUM) LaserControl for milling tools Pallet 320 x 320 mm, grid with tapped holes Pallet with 6 fluid connections Scraper-type conveyor, discharge height 1,100 mm High-pressure cutting fluid system (5-40 bar, IKZ) Compressed air feed through spindle center Additional externam compressed air supply with flexibel hose Changeable cutting fluid pressure increase for the motorspindle nozzels Cutting fluid recirculation on the weekend Oil skimmer for cutting fluid care Air gun at the work area Flush gun at the work area Volume cutting package with detection element and flushing function Renishaw radio touch probe RMP400 Machine accuracy package 1 12-month warranty

Condition: used, Year of construction: 2015, operating hours: 8,000 h, GROB G550 machining center with TM167 background magazine TECHNICAL DATA Control: Siemens 840 SL Hard disk: 30 GB Travel distances X-axis: 800 mm Y-axis: 1020 mm Z-axis: 970 mm A-axis: -185°/+45° B-axis: 360° Rapid traverse X/Y/Z: 65 / 50 / 80 m/min Rotary table, diameter: 770 mm Interference circle, diameter: 900 mm Load capacity: 700 kg 6-fold rotary feed-through Pneumatics: Yes Spindle speed: 16`000 rpm Power: 32 kW Torque: 206 Nm Tool holder: HSK-A 63 Tool changer E2Ovqti Number of positions: 50 Max. Tool diameter: 72 mm Max. Tool diameter with 2 free positions: 150 mm Max. Tool diameter with 3 free spaces: 160 mm Max. Tool diameter with 4 free spaces: 225 mm Max. Tool diameter with 5 free spaces: 250 mm Max. Tool length: 465 mm Max. Tool weight: 8 kg Background magazine Number of positions: 167 (TOTAL: 217) Dynamic loading of the chain: Yes Spindle hours:

Condition: good (used), Year of construction: 2010, travel distance X-axis: 660 mm, travel distance Y-axis: 775 mm, travel distance Z-axis: 675 mm, Grob G 350 / 5 axles, Beh9Fmq Year of manufacture 2010, Heidenhain iTNC 530 control system, Travel X/Y/Z 660/775/675 mm, 2 axes NC swivel rotary table, Ww 40 times, HSK 63 holder, Spindle speed up to 16,000 rpm, IKZ - internal high-pressure cooling, chip conveyor, interchangeable pallet,

Condition: reconditioned (used), Year of construction: 2011, Functionality: fully functional, machine/vehicle number: U232183501068, travel distance X-axis: 600 mm, travel distance Y-axis: 770 mm, travel distance Z-axis: 675 mm, rapid traverse X-axis: 65 m/min, rapid traverse Y-axis: 32 m/min, rapid traverse Z-axis: 90 m/min, controller manufacturer: Heidenhain, controller model: iTNC 530, workpiece diameter (max.): 600 mm, workpiece weight (max.): 300 kg, spindle speed (max.): 12,000 rpm, coolant supply: 80 bar, spindle motor power: 52,000 W, number of slots in tool magazine: 213, tool mount: 63 mm, tool length: 300 mm, tool diameter: 150 mm, tool weight: 8,000 g, Equipment: chip conveyor, QUALITY CHECKED | USED MACHINE Highlights: - 213 HSK63-A Tools in the System - 11 Palettes 400x400 mm in the System - Internal coolant pressure 80bar Basic machine G350 AB Generation 0 Travel path of the X-axis 600 mm Travel path of the Y'-axis 770 mm Travel path of the Z-axis 675 mm Power supply 400 V, 50 Hz, TN-S Decentralized mist collector unit for the work area Machine cooling system with air-cooled cooling unit HEIDENHAIN iTNC 530 machine control Optimizing the machine kinematics with KinematicOpt Tilting table unit (A'-axis) Rotary table with pallet clamping system GROB (B-axis, 5-axes) Motorspindel HSK-A 63, 12.000 min-1, 64/83 Nm, 40/52 kW GROB spindle diagnosis GSD Single disk-type tool magazine HSK-A 63 with 40 tool pockets Additional Toolmagazine ZM182 Tool cleaning device Electromechanical tool breakage detection device Pallet storage system for 11 pallets | Schuler LSP10 Cixxyebvr8 Year manufacturing: 2009 Loading Station Mastercontrol Control: Beckhoff.Twin CAT Master Software: SATG Schuler Loading Station Mastercontrol Control: Beckhoff.Twin CAT Master Software: SATG Schuler Pallets 400x400 with different pallet surface finishes Scraper conveyor, discharge height 1,100 mm High-pressure cutting fluid system (10-80 bar, IKZ) Continuous cooler for cutting fluid with an air cooled cooling unit Compressed air feed through spindle center Oil skimmer for cutting fluid care Air gun at the work area Flush gun at the work area Flushing unit (Z-axis) Infrared touch probe (HEIDENHAIN) Machine status light, 3-colored 3-month warranty on the machine G350-1068 + ZM182 3-month warranty on the mechanics and hardware components (without software) for the Schuler LSP10 pallet storage system

Condition: new, machine/vehicle number: N2495835010039, Highlights: - Possibility to retrofitting a GROB PSS-R300 palette storage system - Powerfull motorizied spindel with 16.000 rpm - 90 tools in the system Basic machine G350a Power supply 400 V, 50 Hz, TN-S Work area door, automatic, for manual and automatic loading/unloading Decentralized work area mist collector Stainless-steel internal work area enclosure Fluid cabinet doors SIEMENS SINUMERIK 840D sl with GROB4Pilot Tilting table unit (A'-axis) Rotary table with pallet clamping system GROB (B-axis, 5-axes) Motorized spindle HSK-A 63, 16,000 rpm, 159/206 Nm, 25/32 kW, oil-air lubrication Br73Elkx8De Compact double disk-type magazine HSK-A 63 with 90 tool pockets Tool cleaning device Electromechanical tool breakage detection device Palette 400 x 400 mm, grid holes, without pallet changer hook Scraper-type conveyor, discharge height 1,100 mm High-pressure cutting fluid system (5-40 bar, IKZ) Compressed air feed through spindle center Air gun at the work area Flush gun at the work area Compressed air cleaner bar for safety screen in work area door Remote machine diagnostics with access control switch 12-month warranty

Condition: excellent (used), Year of construction: 2014, Highlights: - Powerful HSK-A 63 Motorizied spindle with 16.000 rpm - A/B Round- Axis re-placed - Manufacturer checked usedmachine Basic machine G350 AB Generation 0 Travel path of the X-axis 600 mm Travel path of the Y'-axis 770 mm Travel path of the Z-axis 805 mm Power supply 400 V, 50 Hz, TN-S Decentralized work area mist collector Work area door, automatic Machine control HEIDENHAIN iTNC 530 Optimizing the machine kinematics with KinematicOpt Collision monitoring DCM Collision (HEIDENHAIN) Tilting table unit (A'-axis) Rotary table with T-slots (B'-axis), Customized coupling system TK57 Motorized spindle HSK-A 63, 16,000 rpm, 159/206 Nm, 25/32 kW Single disk-type tool magazine HSK-A 63 with 34 tool pockets Additional tool magazine TM99 HSK-A 63 with 99 tool pockets Tool cleaning device Electromechanical tool breakage detection device Laser measurement system LaserControl NT A‘=-180°(BLUM) Scraper-type conveyor, discharge height 1,100 mm High-pressure cutting fluid system (38 bar, ICS) Compressed air feed through spindle center Changeable cutting fluid pressure increase Oil skimmer for cutting fluid care Air gun at the work area Flushing gun Rotary distributor in B'-axis rotary table Infrared touch probe m&h Dn3Fux Remote machine diagnostics Warranty for Quality Checked Used Machine, 3 month

Condition: excellent (used), Year of construction: 2012, Highlights: - Powerful HSK-A 63 Motorizied spindle with 16.000 rpm - A/B Round- Axis re-placed - Manufacturer checked usedmachine Basic machine G350 AB Generation 0 Travel path of the X-axis 600 mm Travel path of the Y'-axis 770 mm Travel path of the Z-axis 805 mm Power supply 400 V, 50 Hz, TN-S Decentralized work area mist collector Machine control SIEMENS SINUMERIK 840D sl Standard interface 1.7 (GROB) Machine protection system CMS 100 (BRANKAMP/MARPOSS) Zyklus 996 Tilting table unit (A'-axis) Rotary table with pallet clamping system GROB (B’-axis, PW) Motorized spindle HSK-A 63, 16,000 rpm, 159/206 Nm, 25/32 kW GROB spindle diagnostic GSD Single disk-type tool magazine HSK-A 63 with 34 tool pockets Additional tool magazine TM171 with 171 tools Tool cleaning device Tool coding system BIS-C (BALLUFF) Electromechanical tool breakage detection device Pallet change system for 2 400 x 400 mm pallets Setup station doo, automatic, for automatic load and unload systems Scraper-type conveyor, discharge height 1,100 mm High-pressure cutting fluid system (38 bar, ICS) Compressed air feed through spindle center Oil skimmer for cutting fluid care Flushing unit for the base of the work area Air gun at the work area Flushing gun part clamping system in the work area  KP1: Pressure oil, manual pressure reduction, 30-200 bar (H1)  KP2: Pressure oil, manual pressure reduction, 30-200 bar (H1)  KP3: Pressure oil, manual pressure reduction, 30-200 bar (H1)  KP4: Pressure oil, manual pressure reduction, 30-200 bar (H1) D7Uin2C Part clamping system in the setup station  KP1: Pressure oil, manual pressure reduction, 30-200 bar (H1)  KP2: Pressure oil, manual pressure reduction, 30-200 bar (H1)  KP3: Pressure oil, manual pressure reduction, 30-200 bar (H1)  KP4: Pressure oil, manual pressure reduction, 30-200 bar (H1)  KP5: Compressed air, manual pressure regulation, 0.5-5 bar (P1)  KP6: Compressed air, manual pressure regulation, 0.5-5 bar (P1) Infrared touch probe m&h Machine status light Remote machine diagnostics, without access control switch Warranty for Quality Checked Used Machine, 3 month
