Used Mep Shark 281 for sale (8)

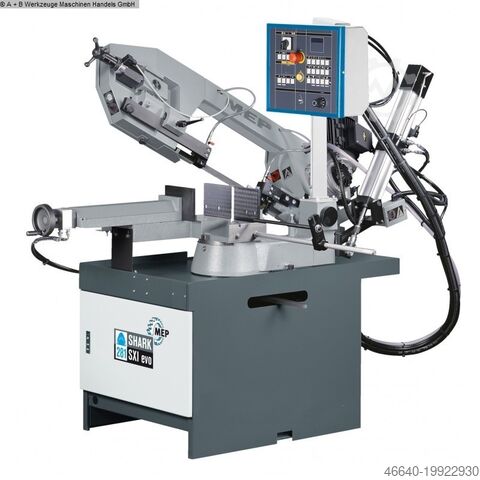

Condition: new, Model Name Nledpfx Afjgvkglsxeh Shark 281 SXI evo

Condition: new, cutting diameter 250 mm capacity 90 degrees: flat 280 x 220 mm capacity 90 degrees: square 220 x 220 mm turning speed range: 36 / 72 m/min dimensions of saw-band 2950 x 25,4 x 0,9 mm weight of the machine ca. 0,4 t Dimensions (LxWxH) 1,5 x 0,9 x 1,5 Semi-automatic function: Vice closes and motor starts, saw head lowers for the cut, motor switches off, saw head rises, Vise opens. Some features: New centralized switch console on an articulated arm. Latest generation hydraulic control unit, highly powerful and Nlodpfjfg E H Rox Afxoh with low energy consumption. Base frame with pull-out coolant container. The machine complies in all areas CE regulations!

Condition: new, MEP SHARK 281 CCS metal band saw with semi-automatic lowering. Item number: SH281CCS motor power 1,5/1,8 kW band opening 285 mm band dimensions 2950x27x0,9 mm weight 375Kg Speed 36/72 m/min. cutting surface 0° 250 / 230x230/ 280x200 cutting area 45° right 190 / 180x180/180x180 Cutting surface 45° left Cutting surface 60° right Cutting surface 60° left Description: -Saw band arch, vise unit and base made of resistant cast iron. -Precision degree marking on the cast iron structure -Electrical system (with fully identifiable electrical wiring and low voltage 24 V system) -Switching handle IP 55 for manual cycles (if present) -Rotating scraper brush for the saw band Njdpfscgbp Ijx Afxolh -Closing unit with vice for fast approaching -Accurate stops with adjustment for miter cuts at 0°, 45°, 60° on the left side -bi-metal saw band 2950 x 27 x 0,9 mm -Wrench, instructions for use and instructions for ordering spare parts in the user's language -SHARK 281 with manual operation and SHARK 281 CCS with manual operation and cut with automatic head feed by own weight. -CCS (Cut Control System) with (A switch for manual and automatic cutting - B) regulation of cutting speed - C) hydraulic brake with tank - D) end stop for stopping the belt) also available as an option for machines already in production. -Vice with quick adjustment -Hydraulic transducer for belt tension indication -Electric coolant pump for cooling and lubrication of the saw band and manageable coolant tank above the base frame -For the versions with pneumatic vice (MA), the opening and closing of the vice is done with a manual valve (available as an option with pedal control) MEP SHARK 281 SXI evo [Semi-automatic] Part number SH281SXI motor power 1,5/1,8 kW belt opening 285 mm belt dimensions 2950x27x0,9 mm weight 435 kg Speed 36/72 m/min. cutting surface 0° 250 / 230x230 / 280x200 cutting area 45° right 190 / 180x180 / 180x180 Cutting surface 45° left Cutting surface 60° right Cutting area 60° left Description Semi-automatic function: Vise closes and motor starts, saw head lowers for cut, motor shuts off, saw head raises, vise opens. Some features: - New centralized control panel on articulated arm. - Latest generation hydraulic control unit, highly efficient and with low energy consumption. - Base with extractable coolant tank. The machine complies with CE regulations in all areas! For further technical data, please refer to the attached PDF document.

Condition: new, Model Name Njdogvkchopfx Afxolh Shark 281 CCS

Condition: new, cutting diameter 250 mm saw band length 2950 x 27 x 0,9 mm table height ca. 800 mm band speed 36/72 m/min total power requirement 1,5/1,8 kW weight of the machine ca. 0,37 t dimensions of the machine ca. m MEP sawing machine: Saw band bow, vice unit and base made of durable cast iron Precision grade marking on the cast iron structure Electrical system (with fully identifiable electrical wiring and Low voltage system 24 V) Switch handle IP 55 for manual cycles (if available) Rotating scraper brush for the saw band Clamping unit with vice for quick approach Accurate stops with adjustment for miter cuts at 0°, 45°, 60° left Bi-metal saw band 2950 x 27 x 0.9 mm Keys, instructions for use and instructions for ordering spare parts in the User language SHARK 281 with manual operation and SHARK 281 CCS with manual operation and cutting with automatic head feed by its own weight. CCS (Cut Control System) with (A switch for manual and automatic Cutting – B) Cutting speed regulation – C) Hydraulic brake with tank – D) End stop for stopping the belt) also optional for already produced machines available. Vice with quick adjustment Nlodpfx Asfg E H Ijfxjh Hydraulic converter for belt tension display Electric coolant pump for cooling and lubricating the saw band and manageable coolant tray above the base frame In the versions with a pneumatic vice (MA), the opening takes place and Closing the vise with a manual valve (with pedal control as option available)

Condition: new, cutting diameter 250 mm capacity 90 degrees: flat 280 x 200 mm capacity 90 degrees: square 230 x 230 mm capacity 45 degrees: round 190 mm capacity 45 degrees: flat 180 x 180 mm capacity 45 degrees: square 180 x 180 mm capacity 60 degrees: flat 110 x 110 mm capacity 60 degrees: square 110 x 110 mm capacity 60 degrees: round 120 mm vice 285 mm turning speed range: 36 / 72 m/min saw band length 2.950 x 27 x 0,9 mm total power requirement 1,5/1,8 kW weight of the machine ca. 370 kg. dimensions of the machine ca. 1620 x 1360 mtr. Nlodpjxaa H Isfx Afxsh Equipment: - robust electro-hydraulic band saw (INDUSTRY) - one-sided miter cut up to 60° - automatic saw bow lowering * with continuously adjustable feed * limit switch at the end of the cut - manual cutting function selectable - 2x saw band speeds - saw band guide made of hard metal plates - 1x saw band - 1x angle stop - moving chip removal brush - control panel - front right - hydraulic pressure box for saw band tension * with analogue pressure display (manometer) - machine base - operating instructions in German SPECIAL ACCESSORIES INCLUDED: - MEP LubeCut micro dosing device

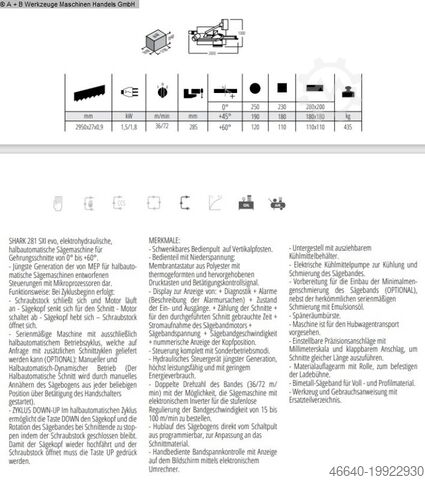

Condition: new, cutting diameter 250 mm capacity 90 degrees: flat 280 x 200 mm capacity 90 degrees: square 230 x 230 mm capacity 45 degrees: round 190 mm capacity 45 degrees: flat 180 x 180 mm capacity 45 degrees: square 180 x 180 mm capacity 60 degrees: round 120 mm capacity 60 degrees: square 110 x 110 mm capacity 60 degrees: flat 110 x 110 mm vice 285 mm turning speed range: 36 + 72 m/min dimensions of saw-band 2950 x 27 x 0.9 mm Control MEP NC coolant tank 95.0 l total power requirement 1.5 / 1.8 kW weight of the machine ca. 435 kg dimensions of the machine ca. 1000 x 2000 mm Features: - Robust electro-hydraulic semi-automatic band saw (INDUSTRY) Nledpfxsw U U Uws Afxjh - With miter cuts up to 60° - MEP EVO microprocessor control for controlling all functions * Front right, rotatable - Optional manual or automatic saw bow lowering * Continuously adjustable saw bow lowering - Saw blade guide made of carbide plates - Hydraulic saw blade tensioning - including digital value display - 2 saw blade speeds - 1 bi-metal saw blade - Coolant system - 1 angle stop - Chip removal brush - Machine base with forklift pockets - Operating instructions in German Functioning of semi-automatic operation: - Electro-hydraulic clamping of the vise - Electro-hydraulic lowering of the saw bow - Electro-hydraulic raising of the saw bow - Electro-hydraulic opening of the vise

Condition: new, cutting diameter 250 mm saw band length 2950 mm cutting width 280 mm dimensions of saw-band 2950 x 27 x 0,9 mm capacity 90 degrees: flat 280 x 200 mm capacity 90 degrees: square 230 mm capacity 45 degrees: round 190 mm capacity 45 degrees: flat 180 x 180 mm capacity 45 degrees: square 180 mm capacity 60 degrees: round 120 mm capacity 60 degrees: flat 110 x 110 mm Nedpfoppgddex Afxjlh capacity 60 degrees: square 110 mm total power requirement 1,5 / 1,8 kW weight of the machine ca. 0,4 t Powerful miter band saw for cuts from 0 ° to 60 ° left -CCS (CutControlSystem) for automatic cutting. (Stepless regulation of the Feed and switch-off at the end of the cut) Description: -Manual cutting cycle -AUTOMATIC CUT: (via selector switch) with stepless settings of the Lowering speed and adjustment of the cutting pressure via compensating spring -Stable, torsion-resistant and low-vibration saw frame made of cast steel -Vice with quick release - Carbide band guides for maximum cutting precision -Large dimensioned deflection discs, adjustable made of cast steel -Hydraulic unit for the saw band tension and monitoring with display on Manometer (belt tension = 900 kg) -Clearly arranged control panel with all controls -Electric coolant pump for cooling and lubricating the saw band -Schipping brush for cleaning the saw band
