Used Mep Shark 332-1 Sxi Evo for sale (5)

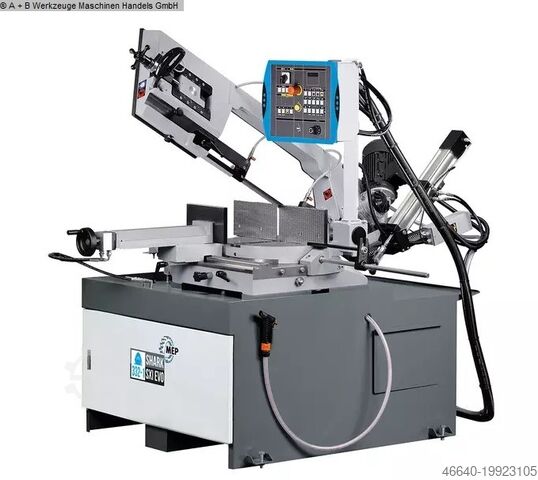

Condition: new, cutting diameter 300 mm capacity 90 degrees: flat 330 x 260 mm capacity 90 degrees: square 260 x 260 mm capacity 45 degrees: flat 270 x 200 mm capacity 45 degrees: round 260 mm capacity 45 degrees: square 250 x 250 mm capacity 60 degrees: flat 170 x 170 mm capacity 60 degrees: square 170 x 170 mm capacity 60 degrees: round 180 mm turning speed range: 40 / 80 m/min dimensions of saw-band 3320 x 27 x 0,9 mm engine output 1,5 / 1,8 kW weight 670 kg Electro-hydraulic semi-automatic band saw SHARK 332 SXI EVO with semi-automatic-dynamic, manual function, has a MEP-28 control for miter cuts from 45° right to 60° left. Some features: New centralized switch console on an articulated arm. Low voltage control panel: Polyester membrane keyboard with thermoformed highlighted Push buttons and actuation control signal. Display to show: * Diagnostics (messages in the user language) * Alarms (description of alarm causes) * State of inputs and outputs * Counting cuts * Time taken for the cut made * Current consumption of the saw blade motor * Saw blade tension * Blade speed * Numerical display of head position. Switch handle IP55 of manual 24V cycle. Complete program of all special cutting cycles. Identification of other possible special cutting cycles for special ones Applications New, latest generation hydraulic control unit, extremely powerful and with low energy consumption. Turntable (on roller bearings of 420 mm with preloaded thrust bearings assembled). Double belt speed (40/80 m/min.) with control Intended to accommodate an electronic inverter for the Continuous regulation of the belt speed from 20 to 90 m/min. Stroke of the saw bow can be programmed directly from the control panel Adaptation to the cutting material. Clamping device can be moved laterally to the left and right Quick release vice. Manually operated strap tension control with display on the screen electronic converter. Base designed to completely contain the coolant, even with maximum angle cuts. The coolant pan (provided with an electric pump for lubrication and Cooling of the saw band) and the chip drawer (can be replaced by a Chip conveyor to be replaced - see special accessories) are in the base Bledpfsfg E H Uox Ad Aeg frame built-in. Preparation for installing the minimum blade lubrication kit (Optional, in addition to the conventional standard lubrication with emulsion oil. Chip clearing brush. The machine is intended for pallet truck transport. Adjustable length stop for cuts of the same length Material support arm with roller for attaching the loading platform Bimetal saw band for solid and profile material. Tools and instructions for use in the respective user language.

Condition: new, 36/72 m/min capacity 90 degrees: round 300 mm capacity 90 degrees: square 260 mm capacity 90 degrees: flat 330x260 mm capacity 60 degrees: round 180 mm capacity 60 degrees: square 170 mm capacity 60 degrees: flat 170x170 mm capacity 45 degrees: round 260/200 mm Bedpfx Aoyv Nmlsd Ajlg capacity 45 degrees: square 250/180 mm capacity 45 degrees: flat 270x200/200x160 mm dimensions of saw-band 3650x27x0,9 mm total power requirement 1,5/1,8 kW Overall size 2130x1400x1950 mm Weight 670 kg Semi-automatic function: - Vice closes and engine starts - Saw head lowers for the cut - Engine shuts off - Saw head lifts, vice opens Semiautomatic dynamic system: Manual lowering of the saw blade to the desired position and cycle start over the hand switch. Upper position is saved automatically.

Condition: new, Model Name Bledpegvkafefx Ad Ajg Shark 332-1 SXI evo

Condition: new, cutting diameter 300 mm capacity 90 degrees: flat 330 x 260 mm capacity 90 degrees: square 260 x 260 mm capacity 45 degrees: flat 270 x 200 mm capacity 45 degrees: round 260 mm capacity 45 degrees: square 250 x 250 mm capacity 60 degrees: flat 170 x 170 mm capacity 60 degrees: square 170 x 170 mm capacity 60 degrees: round 180 mm turning speed range: 40 / 80 m/min dimensions of saw-band 3650 x 27 x 0,9 mm engine output 1,5 / 1,8 kW weight 670 kg Equipment: - robust electro-hydraulic semi-automatic band saw (INDUSTRY) - with miter cuts from 45° right to 60° left * Miter adjustment via large turntable - MEP microprocessor control EVO to control all functions * front right, rotatable - optional manual or automatic lowering of the saw bow * stepless adjustment of the saw bow lowering - saw band guide made of hard metal plates - hydraulic saw band tension - including digital value display - 2x saw band speeds - 1x BI-metal saw band - 1x angle stop - chip removal brush - machine base frame with forklift pockets - operating instructions in German Functioning of semi-automatic operation: - electro-hydraulic clamping of the vice - electro-hydraulic lowering of the saw bow - electro-hydraulic raising of the saw bow - electro-hydraulic opening of the vice SPECIAL ACCESSORIES INCLUDED: - MEP LubeCut micro dosing device Blsdpsxaagbofx Ad Aog

Condition: new, cutting diameter 300 mm capacity 90 degrees: flat 330 x 260 mm capacity 90 degrees: square 260 x 260 mm capacity 45 degrees: flat 270 x 200 mm capacity 45 degrees: round 260 mm capacity 45 degrees: square 250 x 250 mm capacity 60 degrees: flat 170 x 170 mm capacity 60 degrees: square 170 x 170 mm capacity 60 degrees: round 180 mm turning speed range: 40 / 80 m/min dimensions of saw-band 3650 x 27 x 0,9 mm engine output 1,5 / 1,8 kW weight 670 kg Equipment: - robust electro-hydraulic semi-automatic band saw machine (INDUSTRY) - with miter cuts from 45° right to 60° left * Miter adjustment via large turntable - MEP microprocessor control EVO to control all functions Blodjxaav Aspfx Ad Ajg * front right, rotatable - optional manual or automatic lowering of the saw bow * stepless adjustment of the saw bow lowering - saw band guide made of hard metal plates - hydraulic saw band tension - including digital value display - 2x saw band speeds - 1x BI-metal saw band - coolant device - 1x angle stop - chip removal brush - machine base frame with forklift pockets - operating instructions in German Functioning of semi-automatic operation: - electro-hydraulic clamping of the vice - electro-hydraulic lowering of the saw bow - electro-hydraulic raising of the saw bow - electro-hydraulic opening of the vice
