Used Proth Surface Grinding Machine for sale (9)

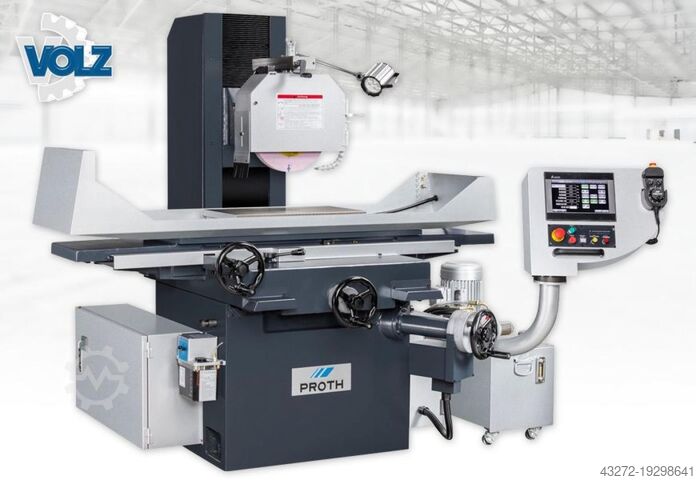

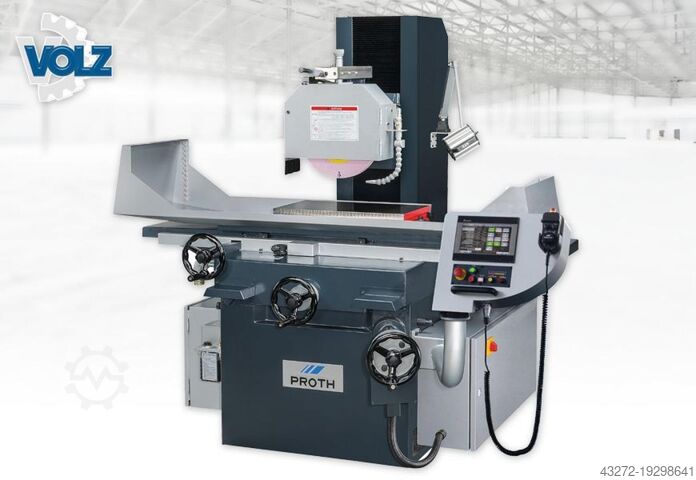

Condition: good (used), Year of construction: 2006, 1 used surface grinding machine Kjdpfx Ahoz S Ud Djionc Manufacturer: PROTH Type: PSGS-3060 BH Serial No.: 0G02G-05 Year of manufacture: 2006 Technical data Grinding wheel diameter: approx. 400 mm Magnetic chuck: approx. 600 × 300 mm Control system: PROTH Hydraulic unit: included Equipment Magnetic chuck for clamping ferromagnetic workpieces Hydraulic unit PROTH control system

Condition: like new (used), Year of construction: 2011, functionality: fully functional, machine/vehicle number: EB1206, total height: 1,800 mm, total length: 1,700 mm, total width: 2,600 mm, Proth PSGS-2550AH surface grinding machine. Like new. Never used!! Fully functional. Magnetic clamping plate: 500x250x80mm Max. workpiece weight: 320kg Travel distances: Longitudinal: 600mm Transverse: 280mm Spindle speed: 1500 RPM Hydraulic longitudinal feed: 1-25m/min Transverse feed: 0.1-10m/min Automatic vertical adjustment, computer-controlled Weight: approx. 1350kg Electronic handwheel Demagnetization Cross-grinding attachment Knedpfxszcdy Es Ahisc Coolant system Machine base made of high-quality MEEHANITE cast iron, stress-relieved multiple times, resulting in unique rigidity and smooth operation. Includes documentation, balancing device, grinding wheels and flanges, and leveling feet.

Year of construction: 1987, condition: ready for operation (used), Sanding length: 700mm, sanding width: 330mm, max. workpiece height: 450mm, table dimensions X/Y: 280mm/600mm, table speed: 25m/min, sanding wheel dimensions: 305mm/25mm/76.2mm, spindle power: 3PS, machine dimensions X/Y/Z: approx. 2100mm/1600mm/2000mm, weight: approx. 2000kg. Documentation available. On-site inspection is possible. Knedsu Nllvopfx Ahioc

Condition: good (used), PROTH PSGS-3060AH surface grinder Grinding surface: 300 × 600 mm Cross travel × longitudinal travel: 340 × 700 mm Spindle center height above the table: approx. 500 mm Table longitudinal feed rate: 1 to 25 m/min Standard grinding wheel: Ø355 × 25 × Ø127 mm Spindle speed: 1,500 / 1,800 rpm at 50/60 Hz Spindle motor: 2.2 kW / 3 HP Net weight: approx. 1,650 kg Dimensions of packaged machine: approx. 2.28 × 1.74 × 2.06 m Kedpfxezxg Uvs Ahijnc

Condition: like new (used), Year of construction: 2021, functionality: fully functional, Table dimensions: 500 × 250 mm Max. longitudinal travel: 600 mm Max. cross travel: 280 mm Max. vertical travel: 340 mm Distance spindle center–table: 500 mm Max. grinding area: 250 × 500 mm Table speed (longitudinal): 1–25 m/min Knedsz Szhcepfx Ahijc Cross feed: 0.1–10 mm/stroke Continuous cross feed: 1000 mm/min Grinding wheel dimensions: Ø355 × 25 × Ø127 mm Grinding spindle speed: 1500/1800 rpm Grinding spindle power: 2.2 kW Hydraulic pump power: 0.75 kW Graduation of vertical handwheel: 0.005 mm Machine weight: approx. 1350 kg Accessories, Equipment - Operationspanel with touchscreen - Magnetic chuck: 500 × 250 mm - Integrated dressing unit - Wet grinding device with paper band filter - External hydraulic unit - Portable electronic handwheel - Machine light - Automatic vertical feed - Machine documentation The machine was barely used and is available for immediate sale.

Condition: good (used), Year of construction: 1990, functionality: fully functional, grinding length: 1,200 mm, grinding width: 500 mm, total height: 2,540 mm, total length: 4,250 mm, total width: 2,270 mm, rapid traverse X-axis: 20 m/min, travel distance X-axis: 1,350 mm, grinding spindle speed: 1,500 rpm, power: 7.5 kW (10.20 HP), For sale is a PROTH PSGC-50120AHR surface grinding machine. The item is in good condition. Working area & travel distances: Max. travel (cross x longitudinal): 560 x 1350 mm Grinding area / table surface: 500 x 1200 mm Max. distance from spindle center to table surface: 700 mm Max. height from table surface to the bottom edge of the standard grinding wheel: 522 mm Axis movements & feeds: Longitudinal movement (X-axis): Table speed (hydraulic): 1 – 25 m/min Cross movement (Z-axis): Intermittent cross feed (electromechanical): 0.1 – 15 mm/feed Kodpszb Er Hefx Ahienc Continuous cross feed (rapid traverse): 2000 mm/min (at 50 Hz) / 2400 mm/min (at 60 Hz) Handwheel feed per revolution: 5 mm (scale division: 0.02 mm) Vertical feed (Y-axis): Rapid traverse (optional/equipment): 200 mm/min Handwheel feed per revolution: 0.25 mm (scale division: 0.002 mm) Grinding spindle & grinding wheel • Grinding wheel dimensions: 355 x 50 x 127 mm • Spindle speed (50 Hz / 60 Hz): 1500 / 1800 rpm • Spindle motor: 7.5 kW (optional 11 kW) / 10 HP Transport dimensions & weights: Machine weight (net): approx. 6,100 kg Machine weight (gross/transport weight): approx. 7,500 kg Transport dimensions (L x W x H): 4.25 x 2.27 x 2.54 m Hydraulic motor: 3.7 kW / 5 HP

Year of construction: 2021, condition: ready for operation (used), travel distance X-axis: 1,350 mm, travel distance Y-axis: 560 mm, overall weight: 6,100 kg, total width: 2,200 mm, total height: 2,600 mm, spindle motor power: 7,500 W, product length (max.): 4,600 mm, spindle speed (max.): 1,500 rpm, table length: 1,200 mm, table load: 1,880 kg, table width: 500 mm, number of axes: 3, This 3-axis Proth PSGC-50120AHR surface grinding machine was manufactured in 2021. It features a table size of 500 x 1,200 mm and a maximum travel of 560 x 1,350 mm. The machine has a continuous table load capacity of 1,200 kg and includes a digital readout system retrofitted in 2022. If you are looking to get high-quality grinding capabilities, consider the Proth PSGC-50120AHR machine we have for sale. Contact us for further details. - Max. Distance Spindle Center to Table: 700 mm- Table Load Capacity (Continuous): 1,200 kg- Table Load Capacity (Non-continuous): 1,880 kg- Weight of Electromagnetic Plate: 315 kg- Installation Height Table to Bottom Edge of Grinding Wheel: 522 mm- Hydraulic Longitudinal Feed: 1 - 25 m/min- Step Cross Feed: 0.1 - 15 mm/stroke- Continuous Stepless Cross Feed: 50 - 1,500 mm/min- Handwheel Rotation Cross: 5 mm/rev (Graduation: 0.02 mm)- Handwheel Rotation Vertical: 0.25 mm/rev (Graduation: 0.002 mm)- Automatic Vertical Feed: AD 1- Spindle Speed: 1,500 RPM (Infinitely variable)- Spindle Motor: 7.5 kW (400V, 4P, 15A, 50Hz)- Cross Feed Motor: 0.37 kW / 0.7 kW (220V, 6P, 2.1A, 50Hz)- Rapid Feed Motor: 0.75 kW (110V, 6P, 6.1A, 50Hz)- Hydraulic Pump Motor: 3.7 kW- Transformer Tr1: 825 VA- Transformer Tr2: 2,000 VA- Drive Power (Antriebsleistung): 400V, 3P, 34.05A, 50Hz- Coolant System: Coolant device with paper filter and magnetic separator (Capacity: 100 liters)- Mist & Dust Extraction System: Model PSGC-50120AHR, Tank Capacity: 100 l, Output: 50-60 l/min, Motor: 0.55 kW, 400V, 1.8A, 50Hz, Weight: 120 kg- Digital Readout (DRO): 2-Axis Digital Readout on Y-Axis (SINO SDS6-2V, SN: 7201723C0032, Scale: KA-300 1µm - 670 mm) retrofitted in 05/2022- Grinding Wheel Dimensions: 400 x 50 x 127 mm / 355 x 50 x 127 mm (Included KINIK 405 x 50 x 127 mm 32A 46 J 9 V, 33 M/S)- Number of Axes: 3 Axes (X, Y, Z movements with 2-Axis DRO on Y)- Optional Equipment & Features: Parallel dresser (head mounted), Table dressers, Balancing arbor, Balancing scale, Electric handwheel, LED lighting, Alignment feet, 6x Grinding wheel flanges total, Complete hydraulic and electrical system- Travel dimensions: 4.1W x 2.7D x 2.96H m)- Optional spare grinding wheels (including ZISCHE and KINIK brands) and various wheel flanges in stock/storage rack Kedpj Aa Ay Usfx Ahijnc

Condition: excellent (used), Year of construction: 2018, functionality: fully functional, machine/vehicle number: EB1507, grinding length: 600 mm, grinding width: 350 mm, total height: 1,900 mm, total length: 1,900 mm, total width: 1,900 mm, workpiece weight (max.): 320 kg, grinding height: 312 mm, grinding wheel diameter: 355 mm, distance table to spindle center: 490 mm, table speed: 25,000 mm/min, table load: 320 kg, type of input current: three-phase, grinding wheel width: 25 mm, overall weight: 1,700 kg, grinding spindle motor power: 2,200 W, travel distance X-axis: 700 mm, travel distance Y-axis: 490 mm, travel distance Z-axis: 340 mm, rotational speed (max.): 1,500 rpm, grinding spindle speed: 1,500 rpm, input voltage: 400 V, Equipment: documentation/manual, - Factory number: EB 1507 - Automatic vertical feed - Headstock adjustment - Belt filter system - Coolant system - Machine light Grinding length 600 mm Grinding width 300 mm Workpiece height 312 mm Table size 600 x 300 mm Maximum workpiece weight 320 kg Distance grinding spindle center - table 490 mm Table travel, longitudinal 700 mm Table travel, transverse 340 mm Table feed rate 1 - 25 m/min Speed range - grinding wheel 1500 rpm Drive power - grinding motor 2.2 kW Grinding wheel dimensions 355 x 25 x 127 mm Magnetic chuck 610 x 305 mm Kjdpfszrinlex Ahionc Headstock adjustment device Operating voltage 400 V Total power consumption 3.0 kW Machine weight approx. 1.7 t Space requirement approx. 1.90 x 1.90 x 1.90 m Hydraulic unit 0.60 x 0.35 x 0.75 m Coolant system 0.70 x 0.40 x 0.80 m

Condition: excellent (used), Year of construction: 2008, X/Y/Z travel: 900 x 400 x 200 mm Table size: 800 x 400 mm Knedpfx Ajv Irwrehiec
