Used Scm Double End Tenoner for sale (628)

Condition: good (used), Double-end tenoner, brand SCM, model Concept 2000, complete with electronic feed and height adjustment. Chipbreaker on the right and left spindles. Timing shaper cutter + fixed shaper cutter on the right and left spindles. Shaper cutter with grinding wheel on the right and left spindles. Belt sanding unit on the left spindle. Inverters on all shaper cutters. Working width 3000 mm. Pin ejection with selector. Track shoe width 50 mm for processing narrow parts. Machine in perfect condition, ready for use. Ijdozfprkopfx Ah Ajti

Condition: excellent (used), Independent machine (standing alone) and/or Universal machine (First & Second in a line) Electronic Programmer EasyLing Safety and sound-proof enclosure No. 3+3 Vertical columns to support the working units Min. useful working width (mm) 240 Max. useful working width (mm) 3100 Min. useful working tickness (mm) 3 Max. useful working tickness (mm) 150 Distance between center-axes of the disappearing dogs (mm) 800 Adjustable (min/max) feeding speed (m/min) 4 - 24 Total installed power No. 4 Working groups (for each machine's side): Scoring Unit Jumping Scoring Unit 1 x Kw 3 (RPM 6000) Hogging Unit 1 x Kw 6 (RPM 6000) 0-10° Jumping Milling Unit 1 x Kw 6 (RPM 6000) 0°-90° Itedpfx Aewhmdfsh Aji Milling-Shaping unit 1 x Kw 6 (RPM 6000) 0°-90°

Condition: excellent (used), Year of construction: 2007, I sell the double end cutting and tenoning machine SCM CONCEPT NT. Working width up to 3000mm Iedpfstv Rxbox Ah Aoti Configuration left side / fix: 1 pc. cutting saw aggregate 1 pc. moulding aggregate 1 pc. moving jumping moulding aggregate Configuration right side / moving: 1 pc. cutting saw aggregate 1 pc. moulding aggregate 1 pc. moving jumping moulding aggregate Material pressure feeding band from top Throughfeed machine. Very good condition. Available immediately.

Condition: excellent (used), Independent machine (standing alone) and/or Universal machine (First & Second in a line) It is 2nd DET in the X10023 LINE Electronic Programmer OMRON Safety and sound-proof enclosure Electric and command cabinet No. 3+3 Vertical columns to support the working units As a second machine, it accepts panels 1900 mm deep Itsdpfx Ahsyz Si Ho Aei Min. useful working width (mm) 300 Max. useful working width (mm) 2500 Min. useful working thickness (mm) 6 (ca.) Max. useful working thickness (mm) 60 Distance between center-axes of the disappearing dogs (mm) 400 Adjustable (min/max) feeding speed (m/min) 4-24 Total installed power Kw 65 No. 3 Working groups (for each machine's side): - 1 Jumping vertical NC Milling Unit (useful height 300 mm), belt drive motor (9.2 kW at 3000 rpm) - 1 Standard vertical NC Milling Unit (useful height 500 mm ca.), belt drive motor (9.2 kW at 3000 rpm) - 1 Jumping vertical NC Milling Unit (useful height 300 mm), belt drive motor (9.2 kW at 3000 rpm) NOTE: These 3 main vertical Milling units are NC controlled, with horizontal and vertical adjustment - 1 Free space

Condition: excellent (used), Independent machine (standing alone) and/or Universal machine (First & Second in a line) It is the 1st Double End Tenenor in the X10023 LINE Electronic Programmer OMRON Safety and sound-proof enclosure Electric and command cabinet No. 2+2 Vertical columns to support the working units Min. useful working width (mm) 300 Max. useful working width (mm) 2000 Min. useful working thickness (mm) 6 Max. useful working thickness (mm) 60 Distance between center-axes of the disappearing dogs (mm) 400 Adjustable (min/max) feeding speed (m/min) 4-24 Total installed power Kw 60 Iedpfsyz Siaex Ah Aoti No. 4 Working groups (for each machine's side): - 1 Jumping vertical NC Milling Unit (useful height 300 mm), belt drive motor (9.2 kW at 3000 rpm) - 1 Standard vertical NC Milling Unit (useful height 300 mm), belt drive motor (9.2 kW at 3000 rpm) - 1 Jumping vertical NC Milling Unit (useful height 300 mm), belt drive motor (9.2 kW at 3000 rpm) NOTE: These 3 main vertical Milling units are NC controlled, with horizontal and vertical adjustment - 1 Vertical Milling Unit (1.5 kW at 1470 rpm)

Condition: excellent (used), Independent machine (standing alone) and/or Universal machine (First & Second in a line) Itsdpfx Aogz Alxjh Asi Electronic Programmer With separate electric and command panel Safety and sound-proof enclosure No. 1 Vertical column to support the working units Min. useful working width (mm) 220 Max. useful working width (mm) 3000 Min. useful working tickness (mm) 6 Max. useful working tickness (mm) 60 Distance between center-axes of the disappearing dogs (mm) 400 Adjustable (min/max) feeding speed (m/min) 4-24 Total installed power Kw 40 No. 3 Working groups (for each machine's side): 1 Jumping Scoring Unit Kw 2,2 / Kw 3,2 1 Hogging Unit Kw 5,5 / Kw 7,3 (RPM 3000 / 6000) 1 Jumping Milling Unit Kw 4 / Kw 5,8 (RPM 3000 / 6000)

Condition: excellent (used), Independent machine (standing alone) and/or Universal machine (First & Second in a line) Electronic Programmer Safety and sound-proof enclosure - OPTIONAL No. 4+4 Vertical columns to support the working units Min. useful working width (mm) 150 (ca.) Max. useful working width (mm) 3100 (ca.) Max. useful working thickness (mm) 180 (ca.) Distance between center-axes of the disappearing dogs (mm) 500 (ca.) Adjustable (min/max) feeding speed (m/min) 8-40 (ca.) No. 8 Working groups (for each machine's side): 1 Jumping Scoring Unit 1 Hogging Unit 1 Jumping Milling Unit 1 Milling-Shaping unit Isdoifz H Nepfx Ah Aeti 1 Corners Rounding unit (contour trimming) with 2 vertical motors 1 Belt sanding unit (with abrasive disc) 1 Belt sanding units (with abrasive papers)

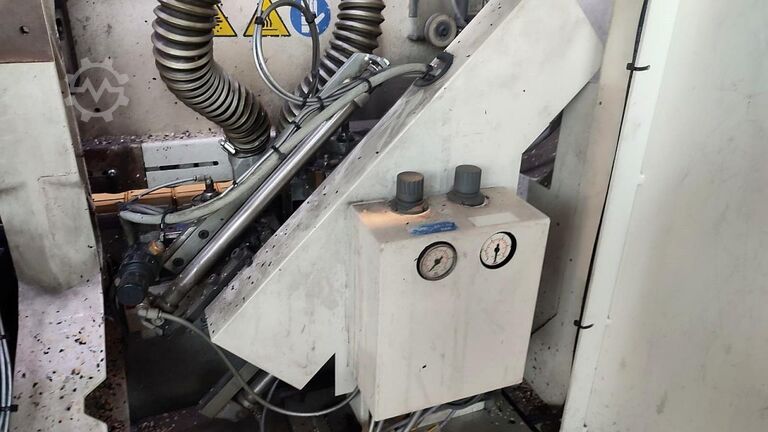

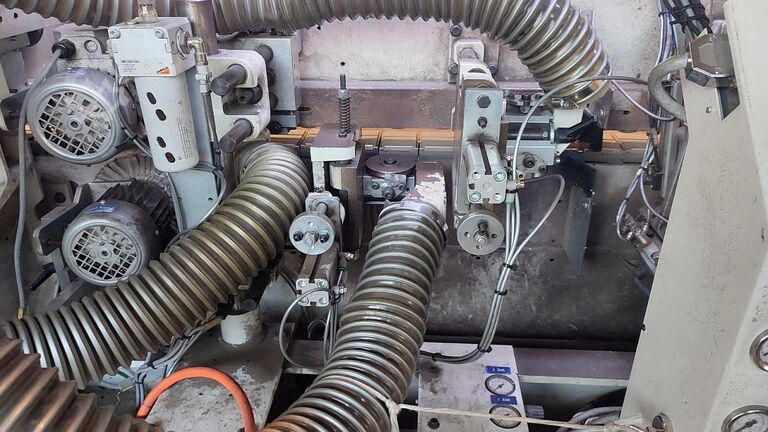

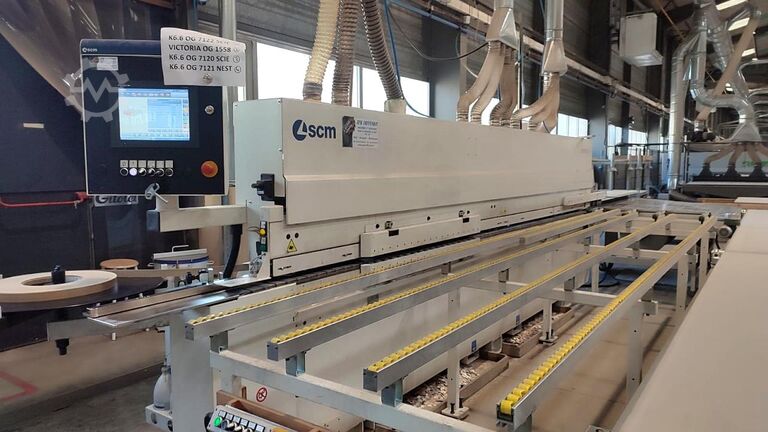

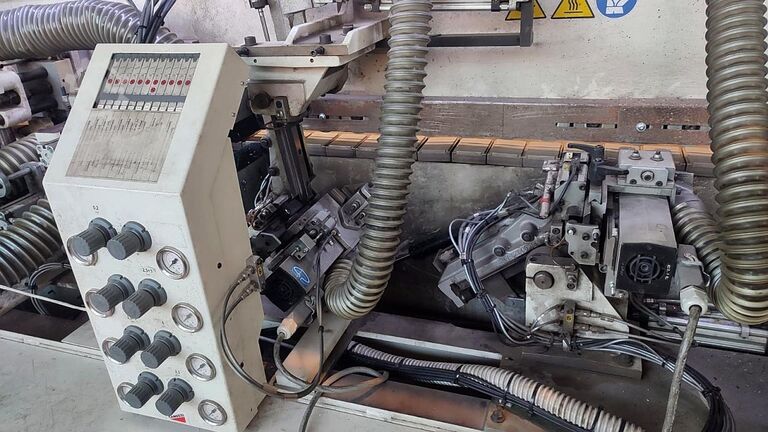

Condition: used, Ferwood Code: RU0011365 - Manufacturer Code: 0000506990B - Condition: Used - Compatible Machine: SQUADRABORDA SCM/STEFANI - If interested we offer an overhaul service, contact us. Ijdpfsva Avcsx Ah Aoti

Condition: used, functionality: fully functional, spindle diameter: 30 mm, – Italian manufacture – CE marking – long worktables TECHNICAL PARAMETERS: – spindle diameter: 30 mm – spindle height: 150 mm – maximum tool diameter: 350 mm – five spindle speeds: 3000 / 4500 / 6000 / 7000 / 10,000 rpm – height adjustment Itodjw Ip R Hopfx Ah Aei – electric brake – motor power: 5.5 kW – table size: 730 x 1200 mm – two auxiliary tables: 410 x 670 mm – table height from base: 925 mm – extraction port diameter: 2 x 120 mm – machine dimensions (L/W/H): 261 / 100 / 120 cm – weight: 800 kg

Condition: used, machine/vehicle number: 008238, X axis working area: 3660 mm Y axis working area: 1550 mm Working Table: Flat table Iedpfx Aox A E Tfoh Aoti Main Electrospindle power: 12 KW Number of controlled axes: 3 axes Total number of drilling spindles: 12 Total number of tool changer positions: 15

Condition: used, machine/vehicle number: 008132, Type of edging: Thin edge, Thick edge Gluing System: EVA Hotmelt Premilling Unit: yes Corner Rounding Unit: yes Max feed speed: 18 m/min Itedpfjw Idc Rjx Ah Aji Maximum panel thickness: 60 mm Operating Units: 7 nr

Condition: used, machine/vehicle number: 008108, Max width workable: 1050 mm Max length workable: 2400 mm Max height workable: 250 mm Itodpew Iddujfx Ah Aei

Condition: used, machine/vehicle number: 005583, X axis working area: 3680 mm Y axis working area: 2040 mm Iodpfxjtwgiro Ah Ajti Working Table: Flat table Main Electrospindle power: 13 KW Number of controlled axes: 3 axes Total number of drilling spindles: 11 Total number of tool changer positions: 12

Condition: excellent (used), Year of construction: 2021, Sale on behalf of customer. SCM Gabbiani P80 Panel Saw – Year 2021 – 4300 x 4300 mm For sale is a state-of-the-art SCM Gabbiani P80 panel saw, manufactured in 2021 and in excellent condition. The machine was used in an active carpentry workshop and impresses with its precision, speed, and high reliability in daily operations. Technical Specifications: Cutting length: 4300 mm Cutting width: 4300 mm (large version) Cutting height / blade protrusion: 80 mm Main saw blade diameter: Ø 340 – 370 mm Scoring saw blade diameter: Ø 200 mm Main saw blade speed: approx. 4,650 rpm Scoring blade speed: approx. 5,850 rpm Drive & Power: Main motor: approx. 7.5 – 15 kW (depending on configuration) Scoring unit: approx. 1.3 – 1.5 kW Total connected load: approx. 12 – 15 kW Voltage: 400 V / 50 Hz Speeds: Saw carriage: 6 – 60 m/min (stepless) Pusher speed: up to 60 m/min Pneumatics & Extraction: Compressed air requirement: approx. 300 NL/min / 7 bar Extraction capacity: approx. 2,200 – 2,400 m³/h Itsdpeylp S Eefx Ah Aei Extraction ports: 4 x 120 mm Features & Equipment: Air flotation tables for easy handling of large panels Floating clamps for precise cutting Scoring unit for chip-free cuts PC/PLC control (Maestro system possible) Robust industrial design for high workload High repeatability and cutting quality Material suitability: Suitable for: Chipboard MDF / HDF Multiplex / plywood Coated panel materials The machine is fully operational and ready for use. Viewing possible anytime by appointment. Location: Germany If you are interested, please get in touch – further photos, videos, or detailed information are available upon request. Dismantling and delivery can be arranged at additional cost.

Condition: excellent (used), Year of construction: 2005, functionality: fully functional, type of input current: three-phase, A Great machine for the most efficient and efficient production of windows and doors. Itjdpfjzif Euox Ah Aei

Condition: excellent (used), Year of construction: 2005, functionality: fully functional, workpiece height (max.): 300 mm, type of input current: three-phase, workpiece width (max.): 220 mm, This machine is in very good condition, was not used as much as anticipated. Isdozifmljpfx Ah Ajti

Condition: used, Year of construction: 2016, MORBIDELLI AUTHOR M400 MAIN FEATURES 5-AXIS MACHINING UNIT "PRISMA: QUALITY AND PRODUCTIVITY AT THE HIGHEST LEVEL XILOG MAESTRO SOFTWARE: EXTREMELY SIMPLE MATIC PROGRAMMING" WORKTABLE: ONE POSITIONING FOR MULTIPLE MACHINING OPERATIONS TECHNICAL DATA AUTHOR M400 AXES Working area X-axis (inside stop) mm 3,680 Working area Y-axis (max. loadable piece on rear stops) mm 1,680 Workpiece passage Z / number of Z axes mm 170 / 1 Workpiece length with pendulum machining mm 1,650 Travel speed X-Y axes Pro-Speed m/min 85 Z-axis speed m/min 30 INSTALLATION Installed power KVA 62÷82 Compressed air requirement NL/min 400 Extraction air requirement m³/h 4,430 Extraction air speed m/s 25 Extraction nozzle diameter mm 250 GENERAL CHARACTERISTICS CNC-controlled drilling and milling center in gantry design and work table with workpiece supports, for carrying out: - vertical drilling on the panel surface - horizontal drilling on all four sides of the workpiece - groove milling with disc milling cutters - general milling work 3-4-5 axes MACHINE STRUCTURE The basic structure is a monolithic construction made of thick-walled steel. It is stiffened by welded reinforcements across the entire machine bed, making it extremely stable. The table shape used, with a large base, is the secret to ensuring lasting precision and stability. The machine layout allows the user optimal workflow with a minimum of space requirements. The mobile gantry support is made of a solid monoblock. It is positioned in the X direction on prismatic ground guides via recirculating ball slides. On this mobile unit carrier, the work unit is mounted on prismatic, ground guides and recirculating ball slides. All axes are moved on large-section prism linear guides and recirculating ball bearings with a large contact surface, ensuring optimal gliding even at the highest speeds and accelerations. Precise and rapid positioning of the movable gantry (X-axis) is achieved by a pinion and rack with helical teeth. Large-section recirculating ball screws ensure precise positioning of the work unit along the movable gantry (Y and Z axes). MOTORS, DRIVES AND INVERTERS Perfect mechanical dynamics and maximum positioning accuracy are controlled by high-quality drives and brushless motors, designed to achieve speeds of up to 90 m/min while ensuring the best finishing quality. CONTROL The control unit consists of a numerical control for milling and drilling machines with "Xilog Maestro" graphical user interface based on the Windows 7 Office operating system. 17-inch LCD color screen. QWERTY keyboard. Tilting control panel. Machine interface with Xilog Maestro software. Xilog Maestro Features Programming Parametric graphic programming Import of DXF files (2D; SPLINE, POLYLINE 3D geometries), linear or circular interpolation in three axes, linear in space, spiral in the selected plane. Programming with graphic and syntax aids for drilling and milling operations Automatic optimization of drilling operations and tool change cycles Possibility of Plate zero point shift for drilling on inclined or curved plate sides Iodpfoy Dta Sjx Ah Asti

Condition: used, Year of construction: 2007, Working area: 2780 x 1140 mm (vertical milling) 2500 x 950 mm (horizontal drilling) X-Y travel: 2980 x 1271 mm Z-axis travel: 200 mm Passage height: 180 mm The structure of the base body is a monolithic construction made of thick-walled steel. It is stiffened by welded triangular plates across the entire machine bed, making it extremely stable. The triangular shape used for load-bearing parts, with a large base, is the secret to ensuring lasting precision and stability. The machine layout allows the user optimal workflow despite minimal space requirements. The base body constructed in this way therefore offers the machining unit a balanced and secure base with particularly good load distribution. The mobile unit carrier is made of a solid monoblock. It is positioned in the X direction on prismatically ground guides via recirculating ball slides. On this mobile unit carrier, the working unit is mounted on prismatic, ground guides and the recirculating ball slide. Description of the units and accessories (basic) Drilling unit: Drilling head with 10 + 4 spindles · 6 individually accessible vertical spindles in X · 4 individually accessible vertical spindles in Y · 2 horizontal spindles in X (1 + 1) · 2 horizontal spindles in Y (1 + 1) · Speed: 4,000 rpm · Power: 2.2 kW · Grid: 32 mm · Drill chuck: M 10 with 11 mm fitting · Extraction nozzle: D = 160 mm Vertical milling unit (position 2) · Tool chuck HSK 63F · Speed 1,500 - 24,000 rpm continuously adjustable via inverter · Motor power 4.4 kW (6 HP) from 12,000 rpm (S1) · Right-hand / left-hand rotation · Ceramic bearings · Scope of delivery: 4 tool chucks (right) without collet chuck · Tool changer · Side-mounted tool magazine 7-way (TR7) with full encapsulation to prevent chipping · 7 tool positions for HSK 63F tool holder arranged in a row · maximum tool diameter D=120 mm · maximum weight per holder 4.5 kg · maximum tool weight of all tools 20 kg (TR7) · angular gears can be accommodated Horizontal milling unit (position 1) Horizontal unit with two opposite outputs for milling and grooving. · Speed 9,000 - 18,000 rpm continuously variable via inverter · 1 output for collet 3-20 mm (ER 32) · 1 output for saw/collet 3-12 mm (ER20) (For saw D = 120 mm / bore 50 mm) · Motor power 3 kW (4 HP) · Max. tool diameter front milling: 20 mm · Max. tool length front milling: 110 mm · Max. tool diameter rear milling: 12 mm · Max. tool length rear milling: 80 mm · Max. saw blade diameter: 100 mm · Bore saw blade (ER 32): 50 mm · Mandrel diameter saw blade (ER 20): 12 mm Work table The work table is designed to guarantee the operator maximum freedom of movement. The vacuum quick clamping system ensures maximum flexibility with precise positioning and optimal grip of the workpieces. · 4 supports 900 mm continuously adjustable in X · 8 vacuum suction cups round D = 110 mm continuously adjustable in Y (2 per support) · 2 stops in X (1 x left / 1 x right) · 1 stop in Y per support (total 6) · The retractable reference stops are controlled via CNC. · Scope of delivery: 4 plug-on adapters for suction cups · Pendulum machining standard (2 working areas) Axis movement The drive system in X, Y and Z is carried out via ground ball screws of the highest precision class. The ball drive screw of the X-axis is located exactly in the center Itedpfxex Twdyo Ah Asi

Condition: used, Year of construction: 2006, · Working area: 2,650 x 1,240 mm · X-Y travel: 2,995 x 1,385 mm · Z-axis travel length: 200 mm · Clearance height: 180 mm C-axis deactivated – 3-axis machine The base structure is a monolithic construction made of thick-walled steel. It is reinforced throughout the entire machine bed with welded-in triangular plates, which makes it extremely stable. The use of the triangle shape with a broad base for load-bearing parts is the key to lasting precision and stability. The machine layout allows the operator an optimal workflow despite minimal space requirements. The resulting base frame thus provides the machining unit with a balanced and secure foundation, ensuring excellent load distribution. Ijdjx Twccepfx Ah Asti The mobile unit carrier is built as a solid monoblock. It is positioned in X-direction on ground prismatic guides with recirculating ball carriages. The working unit is again mounted on ground prismatic guides and a recirculating ball carriage on this mobile unit carrier. Description of aggregates and accessories (basic equipment) Drilling unit: Drill head with 12 + 6 spindles · 7 individually selectable vertical spindles in X · 5 individually selectable vertical spindles in Y · 4 horizontal spindles in X (2+2) · 2 horizontal spindles in Y (1+1) · Speed: 4,000 rpm · Power: 2.2 kW · Grid: 32 mm · Drill interface: M 10 with 11 mm fitting Grooving saw unit in X: · Integrated in drill head · Grooving saw blade with max. diameter 120 mm Main milling unit (Position 2): · Tool holder HSK 63F · Speed: 1,500 - 24,000 rpm stepless via inverter · Motor power 4.4 kW (6 HP) from 12,000 rpm (S1) · Motor power 6.6 kW (9 HP) from 12,000 rpm (S6) · Clockwise/counterclockwise rotation · Ceramic bearings · Includes: 4 pcs. tool holders (right) without collet Tool changer R8L: Automatic tool changer for 8 tools. Mounted on the rear unit carrier for quick tool access. · Number of tool stations: 8 · Max. tool diameter: 120 mm · Max. weight per tool: 4.5 kg · Max. total weight all tools: 22 kg · Holder for 1 angle gear · Moves in X direction Horizontal milling unit (Position 1): Horizontal unit with two opposing outputs for milling and grooving. · Speed: 9,000 – 18,000 rpm stepless via inverter · 1 output for collet 3-20 mm (ER 32) · 1 output for saw/collet 3-12 mm (ER20) (for saw D=120 mm / bore 50 mm) · Motor power: 3 kW (4 HP) · Max. front milling tool diameter: 20 mm · Max. front milling tool length: 110 mm · Max. rear milling tool diameter: 12 mm · Max. rear milling tool length: 80 mm · Max. saw blade diameter: 100 mm · Saw blade bore (ER 32): 50 mm · Saw blade arbor diameter (ER 20): 12 mm Work table: The work table is designed to guarantee the operator maximum freedom of movement. The quick vacuum clamping system provides maximum flexibility for precise positioning and optimal holding of workpieces. · 6 supports, 1000 mm, steplessly adjustable pneumatically in X direction · 12 round vacuum cups D = 110 mm, steplessly adjustable in Y (2 pcs. per support) · 2 stops in X (1 left / 1 right) · 1 stop in Y per support (6 in total) · Retractable reference stops are CNC controlled · Pendulum machining standard (2 work zones) --- other clamping systems available as options --- Axis movement: The drive system in X, Y and Z is via ground recirculating ball screws...

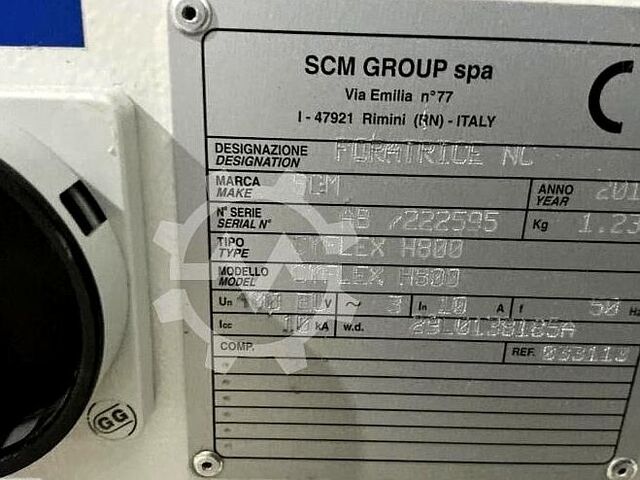

Condition: used, Year of construction: 2015, total height: 1,850 mm, total length: 2,300 mm, total width: 1,950 mm, Colour: White Empty weight: 1.240 kg - Year: 2015 - Documentation available: No - CE marking present: Yes - CE certificate present: No - Serial number: AB/222595 - Main motor power [kW]: 2.2 - Number of controlled axes [pcs]: 12 - Working range X [mm]: 3050 - Working range Y [mm]: 800 - Working range Z [mm]: 60 - X-axis max stroke [mm]: 1040 - Y-axis max stroke [mm]: 1030 - Z-axis max stroke [mm]: 100 - Number of milling spindles [pcs]: 8 - Spindle diameter [mm]: 10 - Min. spindle speed [rpm]: 1000 - Max. spindle speed [rpm]: 4000 - Horizontal drilling unit: Yes - Horizontal drilling spindles [pcs]: 6 - Max. drilling depth [mm]: 18 - Vertical drilling unit: Yes - Vertical drilling spindles [pcs]: 8 - Max. drilling depth [mm]: 30 - Saw unit present: Yes - Safety feature: - Voltage [V]: 400 - Current consumption [A]: 10 - Transport dimensions: 2300mm x 1950mm x 1850mm (l x w x h) - Transport weight [kg]: 1240kg - Transport packages [pcs.]: 1 Financial information Isdpfjzavvgox Ah Aeti VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Glenn Smeets

Condition: ready for operation (used), Year of construction: 2017, Edgebander manufactured in 2017. This SCM Olimpic K360 T-ER1 features a feed speed of 11 m/min and accommodates edge thicknesses from 0.4 to 6 mm. It includes a pre-milling unit with counter-rotating diamond heads, an EVA glue unit, and a buffing unit. If you are looking to get high-quality edge banding capabilities, consider the SCM Olimpic K360 T-ER1 machine we have for sale. Contact us for further details. • Feed speed: 11 m/min • Edge thickness: 0.4–6 mm • Panel thickness: 8–60 mm • Min. workpiece: 140 x 90 mm • Power supply: 400 V / 3~ / 50 Hz, 23 AAggregates: • Pre-milling: 2 counter-rotating diamond heads (up to 3 mm removal) • EVA glue unit • Pressure zone with driven roller + 2 pressure rollers • End-cutting unit K-2 (straight/bevel, automatic switching) • Top/bottom trimming: flush, radius, chamfer Iedpfx Ahjzmgvio Aeti • Corner rounding R1/R2 • Profile and flat scrapers • Buffing unit • Anti-adhesive fluid system (2 fluids) • Edge roll feeder

Condition: ready for operation (used), functionality: fully functional, TECHNICAL DETAILS Workpiece Processing Min. panel thickness: 8 mm Max. panel thickness: 60 mm Min. edge thickness: 0.4 mm Max. edge thickness: 12 mm Max. feed rate: 20 m/min Units Pre-milling unit End trimming unit Number of motors in end trimming unit: 2 Rough milling unit, top and bottom Number of motors in rough milling unit: 2 Edge rounding unit Number of motors in edge rounding unit: 2 Edge trimming unit Isdpfx Ajzmtldsh Asti Glue application unit Buffing unit Number of motors in buffing unit: 2 MACHINE DETAILS Electrical Power Total connected load: 20 kW EQUIPMENT Preheating lamps for workpiece sides Edge roller magazine Glue reservoir for EVA hot melt adhesive Spray unit

Condition: excellent (used), Year of construction: 2012, functionality: fully functional, working width: 240 mm, spindle diameter: 40 mm, working height: 120 mm, overall weight: 5,050 kg, power of feed motor: 11 W, spindle speed (max.): 8,300 rpm, spindle speed (min.): 8,300 rpm, jointer table length: 2,500 mm, number of spindles: 6, Four side planer SCM TOPSET XL: Ijdpfjizxf Hsx Ah Aoti - working width: 240 [mm] - working height: 120 [mm] - number of spindles: 6 - spindle diameter: 40 [mm] - feed speed: 6-60 [m/min] Planer in very good condtion. First owner!

Condition: excellent (used), Year of construction: 1997, Very well-maintained 4-sided planer, with low usage. Maximum working width: 230 mm Maximum working height: 120 mm Spindle motor power: U: 5.5 kW L and R: 7.5 kW O: 5.5 kW Iodpozlk U Hofx Ah Asti Equipped with Tersa planing heads.

Condition: used, Year of construction: 1996, Mortise spindle Tree 50mm Itsdpfezlcx Rsx Ah Aji Tool for profiling up to 350mm Sold as is, without cleaning or inspection.
