Used Studer S31 for sale (3)

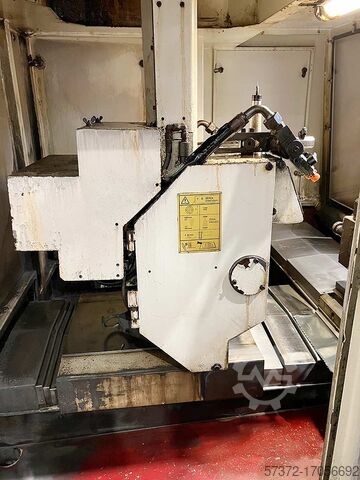

Condition: used, Year of construction: 2000, grinding diameter: 340 mm, workpiece weight between centers: 80 g, controller manufacturer: GE FANUC, controller model: 16IT, CONTROLS .. CNC controls GE FANUC 16IT WORKING RANGE CYLINDRICAL GRINDING .. swing diameter (max): 340 mm .. workpiece weight between centers (max): 80 kg WORKING RANGE EXTERNAL GRINDING .. grinding diameter (max): 340 mm .. grinding length: 650 mm WORKPIECE SPINDLESTOCK .. c-axis: yes TAILSTOCK .. distance betw. centers (max): 650 mm SPINDLESTOCK GRINDING SPINDLE .. X-axis travel: 370 mm .. Z-axis travel: 800 mm .. tilting range (B-direction) min: -30 ° .. rotating range B-axis up to: 225 ° .. spindle revolutions (min): 1 /min .. spindle revolutions (max): 1500 /min GRINDING TOOL .. type of grinding tool: wheel .. diameter (max): 500 mm .. borehole: diameter: 203 mm .. width: 63 mm ELECTRICAL SPECIFICATIONS .. mains power supply: 20 kVA .. mains voltage: 400 V .. mains frequency: 50 Hz DIMENSIONS / WEIGHTS .. space requirements -left/right-: 5000 mm .. total weight approx.: 9500 kg ATTACHMENTS (GRINDING) .. internal grinding spindle: yes Equipment: 2 external grinding spindles Hsdpfx Aboxtiwvemsw 1 internal grinding spindle - C-axis for curve or polygon grinding - Dressers: 1x fixed diamond on the tool holder, 1x dressing spindle on the tool holder, 1 swivel dresser - Studer Quickset, - Movomatic ES400 connection for measuring unit, (without measuring probe) - 1 tailstock, - 1 swivel dresser, - The machine can be converted to a jaw chuck - No water treatment, as it is installed on a central system

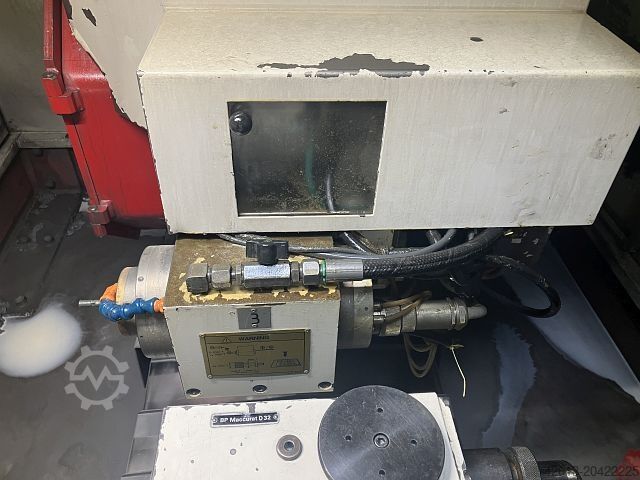

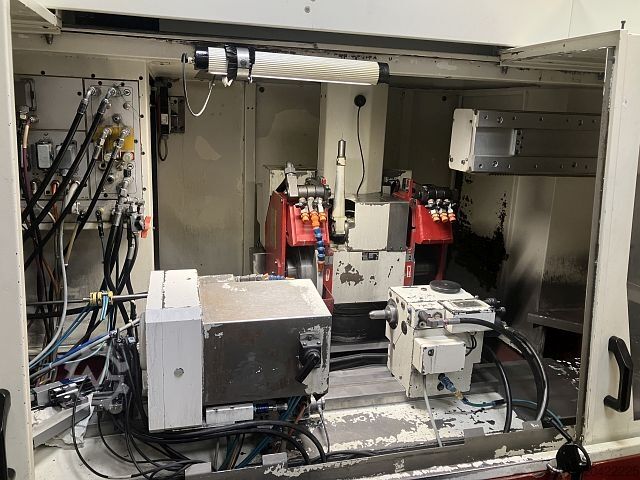

Year of construction: 1999, condition: ready for operation (used), Center height: 175mm, grinding length: 650mm, B-axis: -15°/195°, workpiece speed: 1750rpm, grinding wheels T1/T2: 500mm/400mm, bore: 203mm, max. workpiece weight: 80kg, workhead: MK4, tailstock: MK3. Machine dimensions X/Y/Z: approx. 3000mm/3000mm/2100mm, weight: approx. 4000kg, operating hours: 56300h, control: GE Fanuc Series 16i-T. Documentation available. On-site inspection is possible. Expected to be available from February/March 2025. Hsdpeuku Syofx Abmow

Year of construction: 2007, condition: ready for operation (used), This STUDER S31 CNC cylindrical grinding machine was manufactured in 2007. It features a robust Granitan S103 bed, a center distance of 1000 mm, and a center height of 175 mm. Equipped with a universal swiveling turret grinding spindle head and a high-frequency motor spindle, it offers precision and versatility. Consider the opportunity to buy this STUDER S31 CNC cylindrical grinding machine. Contact us for more information about this machine. Application Types Hjdpfextq Txex Abmow Grinding
