Used Studer S30 for sale (11)

Condition: defective spare-parts repository (used), Year of construction: 2001, functionality: not functional, Unfortunately, the machine is not functional due to an electrical problem. Mechanically, everything is in order. The machine has two external grinding wheels and one internal grinding attachment. The B-axis has a 2.5-degree gear. Knsdpfx Asz Ikz Nsg Aec

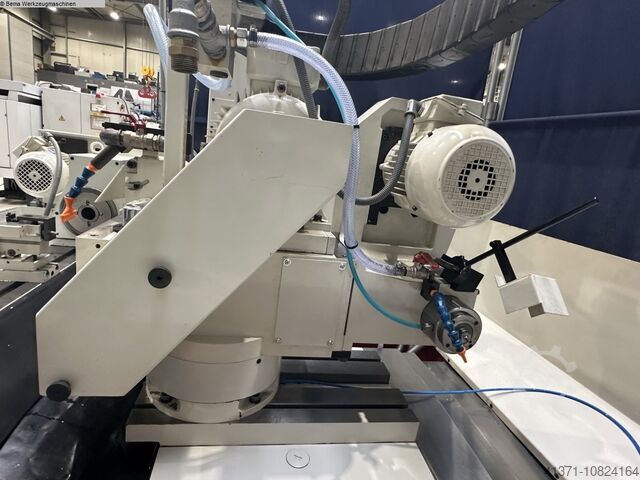

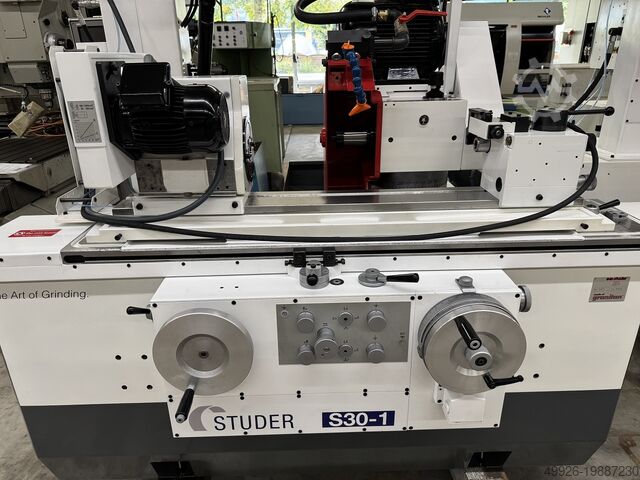

Condition: reconditioned (used), Year of construction: 2006, year of last overhaul: 2026, ⚙️ STUDER S30-1 CE – High-precision cylindrical grinding machine | Complete retrofit We offer a STUDER S30-1 CE for high-precision external and internal cylindrical grinding operations. The machine has undergone a complete retrofit by MIRA Retrofit, including the inspection and refurbishment of its main components, as well as a careful adjustment and fine-tuning process. The result is a machine that is ready for operation, with a high level of precision, reliability, and stability, and performance comparable to that of a new machine. Key specifications: 🔹 Distance between centers: 650 mm 🔹 Height between centers: 175 mm 🔹 Grinding: external and internal 🔹 Condition: complete retrofit – ready for operation 🔧 Inspection and fine-tuning All components have been carefully inspected and adjusted to ensure high geometric accuracy and reliable, stable operation. 📸 Photographs of our finished machine. Kjdpfxezuzylj Ag Ajnc 🚚 Available for immediate delivery. For more information, technical documentation, pricing, or any questions about the machine, please do not hesitate to contact us. MIRA Retrofit SA

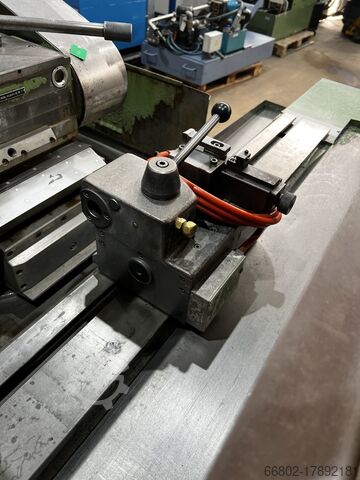

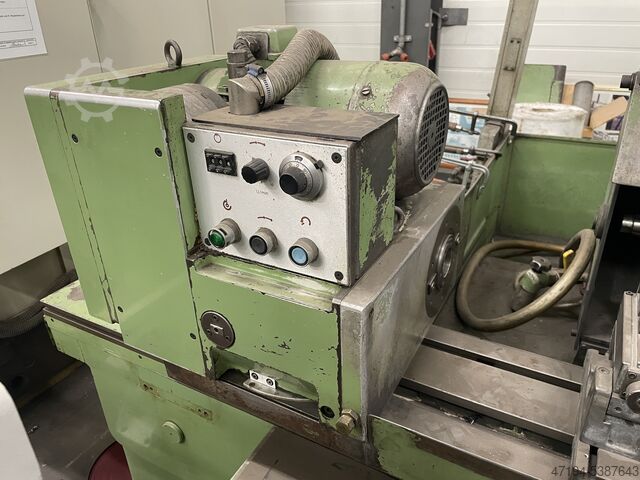

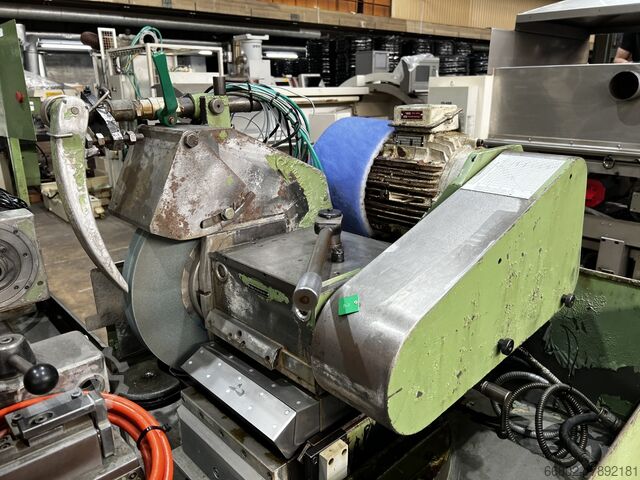

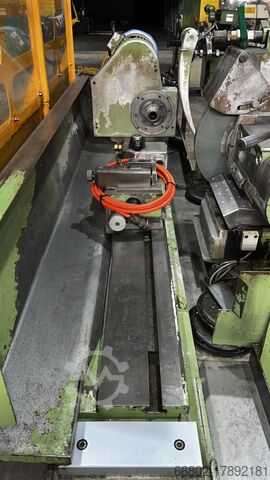

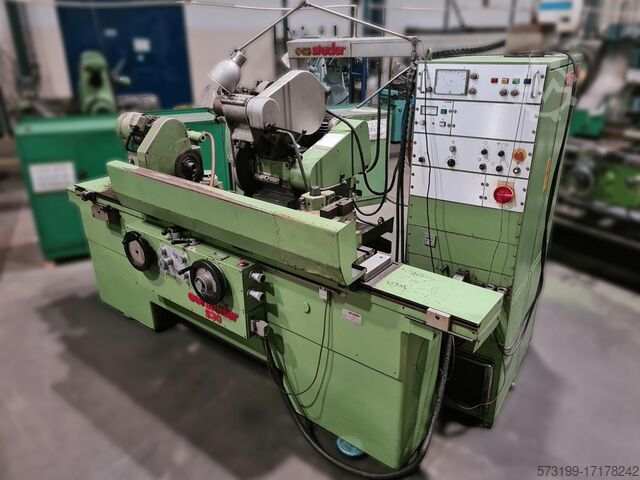

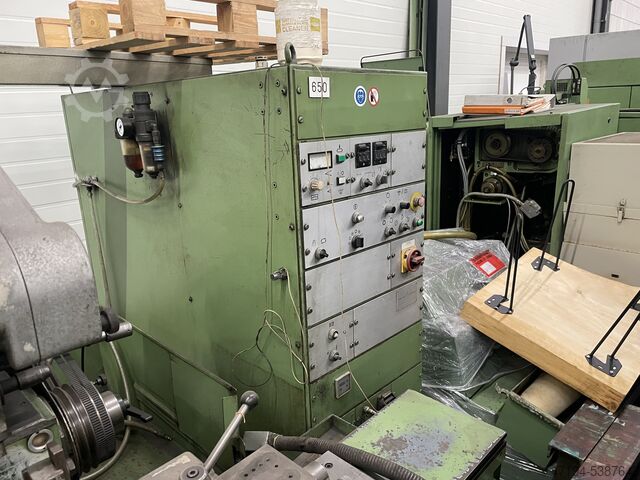

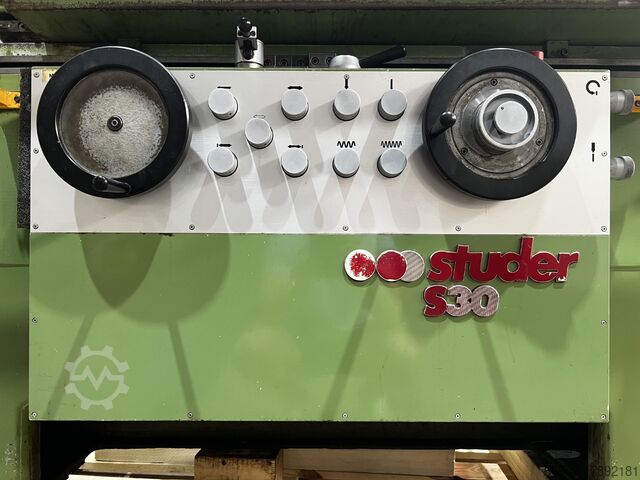

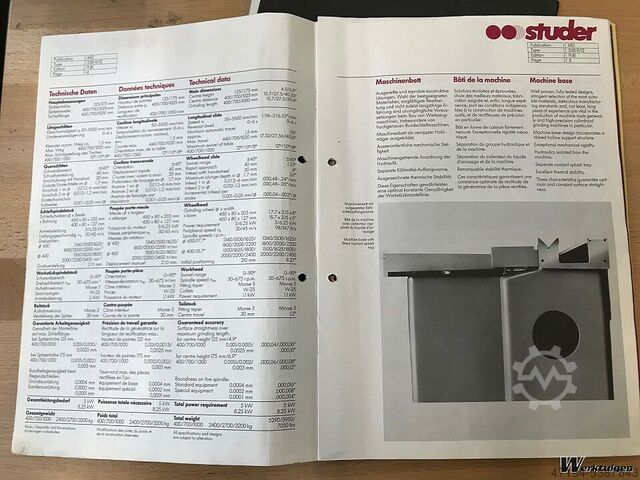

Condition: good (used), Studer S30-12 cylindrical grinding machine TECHNICAL DATA Main dimensions Center height: 125 mm Center width: 400 / 700 / 1025 mm Largest longitudinal slide path: 400 / 700 / 1000 mm Longitudinal slide Table speed: 50 - 5000 mm/min Reversing delay: 0-6 s Smallest automatic travel: 1.5 mm Max. stroke: 400 / 700 / 1020 mm Max. Table inclination: 12 / 30 / 78° Cross slide Swivel range: +- 45° Quick adjustment: 40 mm Feed path with handwheel: 20 mm Largest plunge depth: 1.7 mm Sanding headstock Grinding wheel diameter x width x bore: 450 x 80 x 203 mm Speed: 1340 / 1500 1625 / 1800 / 2000 / 2200 rpm Coarse adjustment: 210 mm Workpiece headstock Swivel range: 0 - 90 Speed range: 30 - 675 rpm Mounting cone: Morse 5 Collets: W25 Kodsvca Izjpfx Ag Ajnc Tailstock Mounting cone: Morse 3 Adjustment travel of the center: 30 mm Total power requirement: 5 / 8.25 kW No liability is assumed for the correctness, completeness and up-to-dateness of the information.

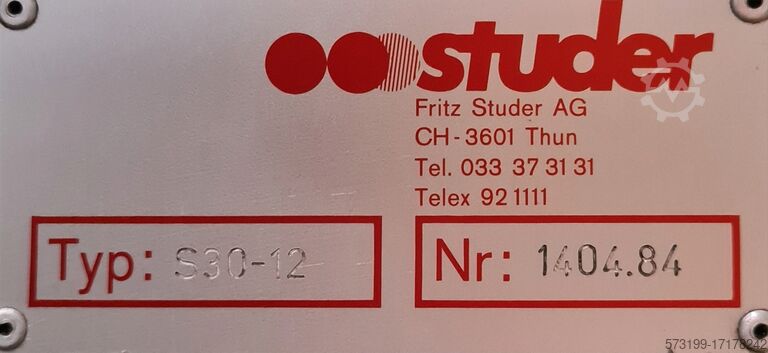

Condition: excellent (used), Year of construction: 1983, functionality: fully functional, machine/vehicle number: 1404, total width: 1,690 mm, total length: 3,410 mm, total height: 1,915 mm, overall weight: 3,000 kg, TECHNICAL DATA Capacity - Height of centres: 125/175mm - Distance between centers: 400mm; 700mm; 1025mm - Max.travel of longitudinal slide: 400mm; 700mm; 1025mm Table - Table speed steplessly adjustable: 0.5 - 5.5 m/min. - Reversal dwell of table: 0-6 sec. - Minimum automatic stroke approx.: 1.5mm Ksdpoupiycefx Ag Aonc - Maximum swivel of table: 400 deg.- 12 ; 700 deg. -10; 1025 deg.- 8 - Travel per revolution of handwheel: 25mm Workhead - Swivel towards grinding wheel: 90 deg. - Spindle speed, steplessly variable: 30 - 675 RPM - Spindle nose taper: Morse 5 - Collet shank diameter: 25mm - Diameter of 3-jaw chuck: 160mm Wheelhead - Grinding wheel L.H. or R.H.: - Diameter (special exec. 6.25kW/8.4 HP): 400 (450) mm - Maximum width: 50 (80) mm - Bore: 127 (203) mm - Spindle speeds (3-step Vee-belt pulley) - Grinding wheel dia 400: 1500/1625/1800/2000/2200/2400 RPM - Grinding wheel dia 450 (8.4HP): 1340/1500/1625/1800/2000/2200 RPM - Grinding wheel motor approx.: 3kW - Grinding wheel motor, special for 450 dia wheel approx.: 6.25kW - Rapid travel of wheelhead: - Hydr.approach and retraction: 40 mm - Additional adjustment with hand leveler: 210 mm - Swivel of the whole cross slide L.H. and R.H.: 45 deg. - Interminent feed, steplessly adjustable (on dia) at left or right hand table reversal, or both: 0.001 - 0.05 mm/sec. - Plunge feed, steplessly adjustable (on dia): 0.0002 - 0.1 mm/sec. - Maximum depth of plunge on dia: 1.7 mm Motor rating - Wheel spindle, standard: 3 kW - Wheel spindle special rating: 6.25 kW - Workhead: 0.55 kW - Hydraulics: 0.55 kW - Coolant pump, standard: 0.17 kW - Coolant pump, inteclon: 1.1 kW Workpiece weight - Maximum between centers: 80 kg Extras: grinding wheels, coilets, other additional equipment, user manuals

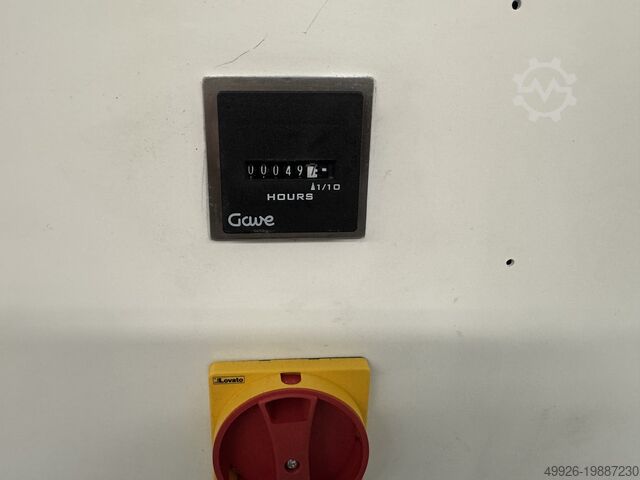

Condition: refurbished (used), Year of construction: 2025, operating hours: 50 h, machine/vehicle number: 3018-04, Country of manufacture: Switzerland Voltage: 380/50/3 Net weight: 3100 kg Overall dimensions: 230x155x170 cm Installed power: 13 kVA Customs tariff position: 8460.2920 TECHNICAL SPECIFICATIONS MAIN DIMENSIONS Distance between centers: 650 mm Grinding capacity SpW+bs: -80 Stroke: 700 LONGITUDINAL SLIDE Max stroke: SpW+50 mm Minimum automatic feed: 1.5 mm Speed: 50-5500 mm/min Reversal delay: 0-6 sec Maximum table swivel: 12°/10°/8.5°/6° Pneumatic relief for table and workhead CROSS SLIDE Max stroke: 300 mm Rapid traverse: 60 mm Plunge grinding depth in diameter: 3.4 mm Feed 1: 0.012-6 mm/min Feed 2: 0.012-1.2 mm/min Feed per pulse: 0.001-0.05 mm GRINDING WHEEL HEADSTOCK Left-side wheel, external grinding: 400x80x127 mm Drive power: 5.5 kW Peripheral speed: 35 m/s RPM: 1670/2110 min-1 Internal grinding device for belt-driven spindles, including drive unit: 1.5 kW WORKHEAD Swivel range: 0-90° Continuously variable RPM: 30-1000 min-1 Internal taper: Morse 5 Collets: W-25 Drive power: 0.55 kW Maximum workpiece weight between centers: 130 kg Grinding load between centers: 100 Nm TAILSTOCK Internal taper: Morse 3 Quill stroke: 35 mm Kjdpfx Ajw T Sd Teg Asnc Fine adjustment for cylindricity correction: ± 40 μm TECHNICAL CHARACTERISTICS: GUARANTEED WORKING ACCURACY Straightness of the generator over 630 mm: 0.003 mm Roundness during chuck grinding: 0.0003 mm CONNECTION VALUES Maximum absorbed power: 13 kVA Maximum permitted voltage fluctuation: -15%/+10% Maximum permitted frequency variation: ± 3% Required compressed air pressure: 5 bar Unless otherwise stated or in case of error or omission, these technical details are provided without engagement.

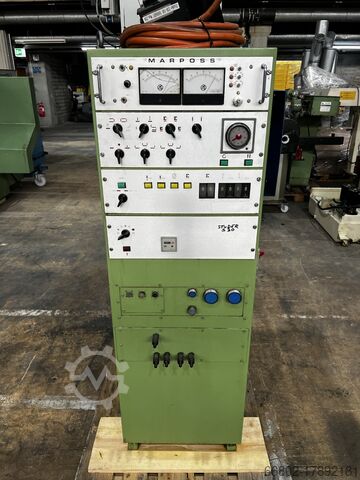

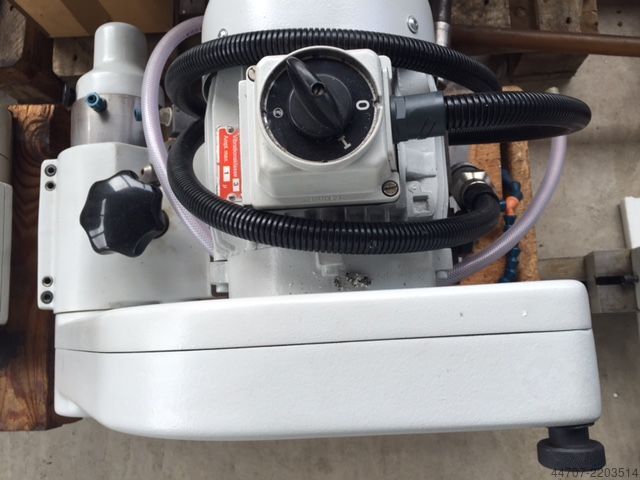

Condition: used, Year of construction: 2004, grinding diameter 250 mm grinding length 650 mm centre height 125 mm Maschine wird mit Wartung und neuer Geometrie verkauft Betriebsstunden bisher 12260 Reitstock mit Feinverstellung Schleifspindelstock schwenkbar mit 5° Hirtverzahnung Papierbandfilter Marposs Messeinrichtung Innenschleifeinrichtung Kjdoywntyepfx Ag Ajnc

Condition: refurbished (used), Year of construction: 2005, functionality: fully functional, machine/vehicle number: 019.3790, Machine undergoing repair/overhaul = estimated delivery time approximately 8-10 weeks. Knedszbqzaopfx Ag Ajc Technical data + accessories, see separate PDF.

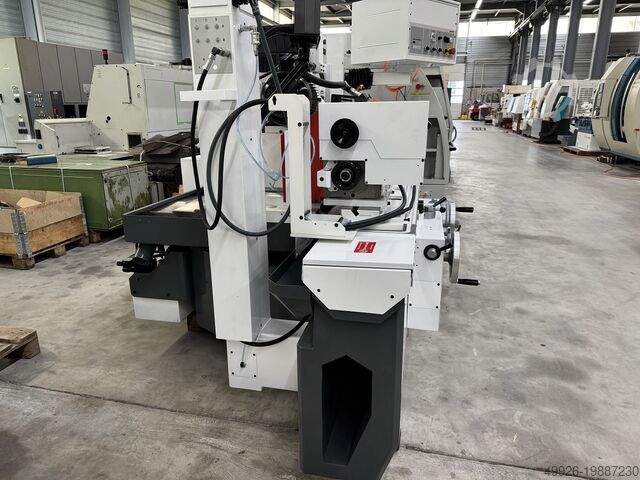

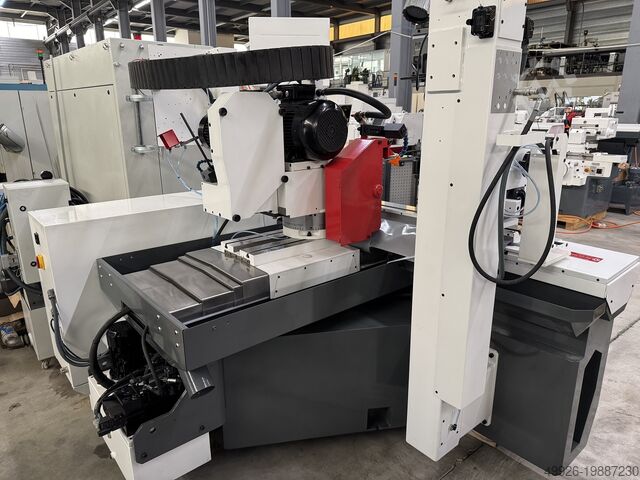

Condition: refurbished (used), Year of construction: 2025, Studer S30 Maximum distance between centers: 125 mm Distance between centers: 650 mm Workpiece weight: 80 kg Additional optional features: - Completely new control cabinet with basic PLC and panel - Conversion to ball screw drive incl. PLC Pro (cycle-controlled) - "Workpiece memory" PLC Pro for 10/15/30/50 workpieces - Glass scale in X and Z axes - Swivelable internal grinding device - Motor spindle for internal grinding device - Frequency converter for external grinding spindle - Frequency converter for internal grinding spindle - In-process grinding sensor - Guard for external grinding spindle - Safety door - manually operated - Grinding wheel flange - LED spotlight with flexible arm - Matching coolant system Knodpfxsd Hdxwe Ag Aoc

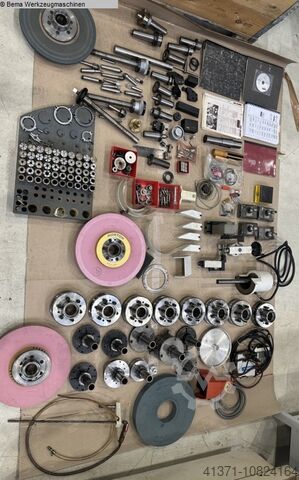

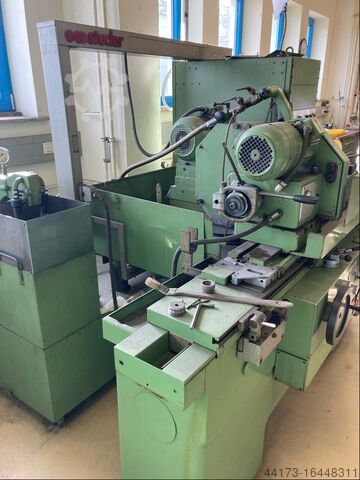

Condition: refurbished (used), machine/vehicle number: 3439.39, Universal cylindrical grinding machine for external and internal cylindrical grinding. • Distance between centers: 650 mm • Height between centers: 175 mm • Completely overhauled (refurbished) – The machine was completely disassembled and rebuilt component by component. Guide rails were reconditioned, bearings were replaced, new control cabinet and new electrical installation, complete new paint job, and geometrical readjustment for maximum precision. • Equipped with a digital measuring system (Fagor). • Machine condition comparable to a new machine, ready for immediate use. • Extensive accessories included in the scope of delivery, as shown in the photos. • Demonstration under power and test run possible at any time. Availability: Available for immediate delivery! Kjdpfxoxxy A Ts Ag Ajnc

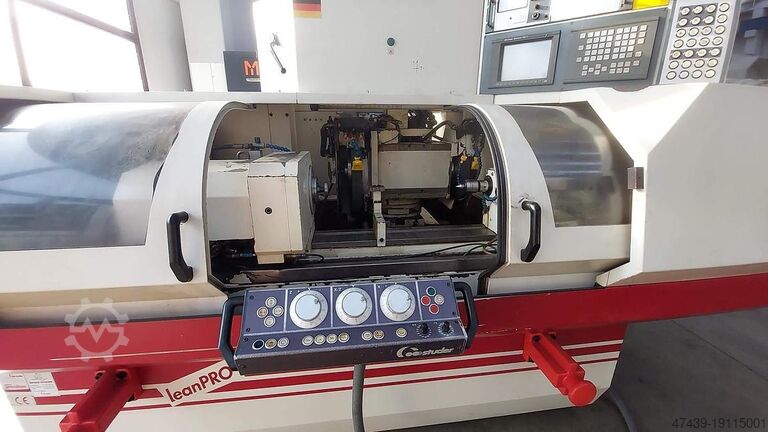

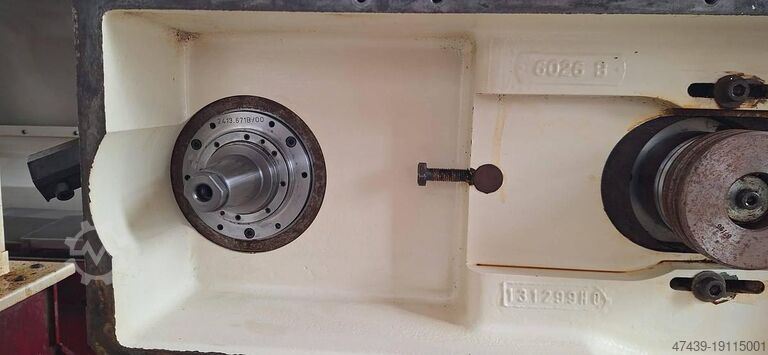

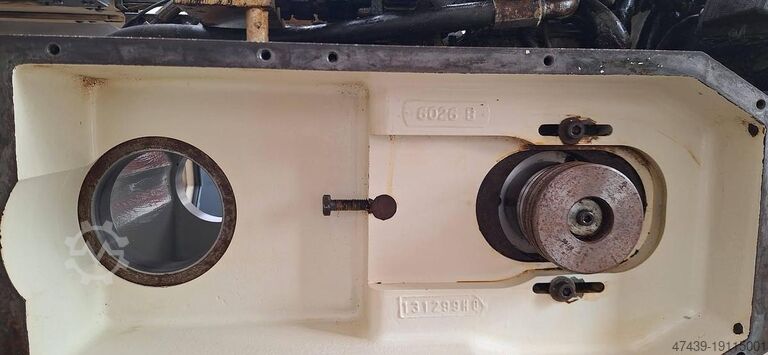

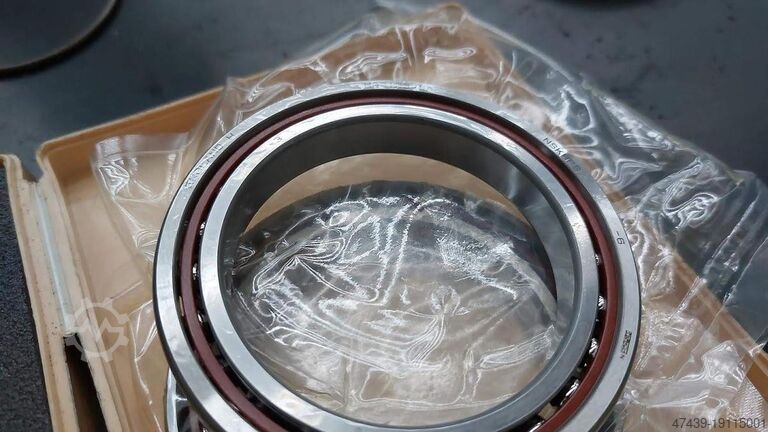

Condition: ready for operation (used), Year of construction: 1998, functionality: fully functional, machine/vehicle number: LEAN PRO, FANUC 16 T FULLY FUNCTIONAL RANGE OF ACCESSORIES Knedpfx Agezfx D Ne Ajc FILTRATION SYSTEM MIST EXTRACTOR MACHINE MANUALS

Condition: used, Surface grinder Center height 125 mm Distance between centers 650 mm Grinding wheel diameter 250 mm Grinding disc diameter 400 mm Total power requirement 8 kW Weight approx. 2500 kg Kjdpfsgfqn Njx Ag Asnc This is a machine from Machines4you.
