Used Traub Tnx65 for sale (6)

Condition: good (used), Year of construction: 2007, Traub TNX 65/42 Milling and Turning Center Mfd. 2007 Serial #7060107 Commissioned in 2010 TX 8i-S control (Mitsubishi/Traub based control with Mitsubishi drives and motors) 15 CNC axis’s (4) X-Y-Z turrets with 10 positions each. Up to 20 tools per turret 65 mm thru hole main and sub spindle (sub spindle has coolant flush) Foot pedal control for clamp/unclamp of spindle chucks Servo driven gantry receiver Hydraulic swivel w/ pneumatic finished part and bar remnant gripper Finished part conveyor belt RESY paper band coolant filter Knoll Coolant tank with BKW refrigerated coolant temperature control 20 Bar High pressure and 8 Bar Low pressure coolant pumps Knoll chip conveyor FMB Turbo 5-55 magazine bar feeder (new in 2010) 2) Single stick turning tool holders 2) Double stick turning tool holders 1) Cut-off tool holder 1) Overdriven double radial live ER Collet tool holder 1) Overdriven radial live ER Collet tool holder 4) Radial live ER Collet tool holders 1) Radial live End Mill tool holder 1) Angle adjustable live ER Collet tool holder 2) Radial live Shell Mill tool holders 2) Axial live End Mill tool holders 6) Axial live ER Collet tool holders 43) Additional tool holders on separate list (see supplemental attachment) Hainbuch main spindle collet chuck Rohm sub spindle 2 jaw chuck Prjdpfx Ageq Npqmoqjd 2 Spare sets of spare Z-axis ball screws and bearing packs.

Condition: used, Year of construction: 2005, Technical details: turning diameter: 275 mm turning length: 900 mm spindle passage: 65 mm power capacity at 100 % load: 25/20 kW spindle turning speed range: 1 - 5000 U/min spindle diameter in front bearing: 110 mm c-axis: 1 - 500 U/min. number of workpiece supports: 4 tool turret: 1 x-axis: 290 mm y-axis: 165 mm z-axis: 360 mm b-axis: 360 ° rapid speed: 18/30 m/min number of tools: 2x2 + 2x2 number of driven tools: 2x2 + 2x2 mm toolpiece turning speed range: 8000 / 2000 U/min power capacity: 25% ED 5,8 kW tool taper: TRAUB 60 tool turret: 2/3/4 x-axis: 170 mm z-axis: 600/950 mm y-axis: +/- 60 mm rapid speed: 18/15/30 m/min number of driven tools: 10 mm toolpiece turning speed range: 1 - 6000 U/min power capacity: 25% ED 5,8 kW tool taper: DIN 69880 40 x 63 total power requirement: 95 kW weight of the machine ca.: 16 t Predpfx Agjwp D Nboqsd dimensions of the machine ca.: 10,0 x 3,5 x 3,0 m with CNC TRAUB TX 8i, Barloader TRAUB Stamag DNH61 / 3000, Main and Sub spindle with C-axis 1 support with B-axis 3 turret supports dust exhauster, coolant attachment with coalescence-seperator and chip conveyor 2 pc. 3-jaw chuck SMW KNCS-N 170-43 2 pc. HAINBUCH Spanntop chuck 40 pc. various tool holder non-driven 6 pc various tool holder driven Spare parts package *

Condition: used, Year of construction: 2005, turning diameter 275 mm turning length 900 mm control TRAUB TX8i spindle passage 65 mm power capacity at 100 % load 25,20 kW power capacity at 40 % load 30,20 KW max. torque at 40% / 100% load 180 / 135 Nm spindle turning speed - stepless 1 - 5.000 U/min spindle diameter in front bearing 110 mm C-axis 1 - 500 U/min worktool support No. 1 x-axis 290 mm y-axis 165 mm z-axis 600/950 mm B - axis 360 ° rapid traverse X/Y/Z 18 / 18 / 30 m/min feed capacity X/Y/Z 10 / 10 / 7 kN number of tools 2x2 + 2x2 number of driven tools 2x2 + 2x2 mm toolpiece turning speed range 8.000 / 2.000 U/min power capacity at 25 % load 5,80 kW max. torque at 25% load 4x18,6 / 4x74 Nm tool taper TRAUB Ø60 worktool support No.2 / No.3 / No.4 x-axis 170 mm z-axis 600/950 mm y-axis +/- 60 mm rapid traverse X/Y/Z 18 / 15 / 30 m/min feed capacity X/Y/Z 10 / 10 / 7 kN tool turret - number of stations 10 number of driven tools 10 mm toolpiece turning speed range 1 - 6.000 U/min power capacity at 25 % load 5,80 kW Predpfxjw E Nnbo Agqjd max. torque at 25% load 18,60 Nm tool taper DIN 69880 Ø40x63 bar loader DNH61 / 3000 Bar length 1.000 - 3.200 mm bar material dia. 18 - 63 mm hexagon max.45 mm total power requirement 95,00 kW weight of the machine ca. 16,00 t dimensions of the machine ca. 10,00 x 3,50 x H3,00 m With TRAUB TX 8i control unit, main and counter spindle with C-axis, 3 turrets, 1 vertical-tool-carrier with B-axis, dust exhauster, chip conveyor, coolant system with coalescence-separator. Barfeeder TRAUB Stamag DNH61 /3000 2 pc. 3-jaw chuck SMW KNCS-N 170-43 2 pc. HAINBUCH Spanntop chuck 40 pc. various tool holder non-driven 6 pc various tool holder driven Spare parts package Machine can be inspected under power.

Condition: used, TECHNICAL DETAILS - Number of spindles : 2 - Number of axes : 12 - Number of turrets : 3 MAIN SPINDLE - Spindle nose : A2-6 - Spindle power : 24 [kW] - Spindle speeds : 5.000 [rpm] - Max. bar diameter : 65 [mm] - Max. chuck diameter : 175 [mm] - C axis indexing precision : 0,001 [°] COUNTER-SPINDLE - Spindle nose : A2-5 - Spindle power : 28 [kW] - Spindle speeds : 7.000 [rpm] - Max. bar diameter : 42 [mm] - C axis indexing precision : 0,001 [°] - Travel : 700 [mm] UPPER LEFT TURRET - Number of positions : 10 - Number of motorized positions : 10 - X/Z stroke : 175 / 650 [mm] - Y stroke : +/- 40 [mm] - Tool type : VDI 30 - Live tools speed : 6.000 [rpm] - Live tools power : 5,5 [kW] LOWER LEFT TURRET - Number of positions : 10 - Number of motorized positions : 10 - X/Z stroke : 175 / 650 [mm] - Y stroke : +/- 40 [mm] - Tool type : VDI 30 - Live tools speed : 6.000 [rpm] - Live tools power : 5,5 [kW] LOWER RIGHT TURRET - Number of positions : 10 - Number of motorized positions : 10 - X/Z stroke : 175 / 650 [mm] - Y stroke : +/- 40 [mm] - Tool type : VDI 30 Pedpfouhadzsx Agqsrd - Live tools speed : 6.000 [rpm] - Live tools power : 5,5 [kW] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 95 [kW] WEIGHT & DIMENSIONS - Machine floor space : 5.450 x 2.318 [mm] - Machine height : 2.258 [mm] - Machine weight : 10.000 [kg] MACHINE HOURS - Number of working hours : 50000 [h] EQUIPMENT - CNC : Traub TX8i-S - Electronic handwheel - 3 colors status lamp - Coolant tank : RESY * with high-pressure pump * with paper filtering unit - Chips conveyor - Parts catcher - Parts conveying strip - Number of turning tool holders : 6 - Number of fixed tool holders : 33 - Collet chuck : 2 HAINBUCH

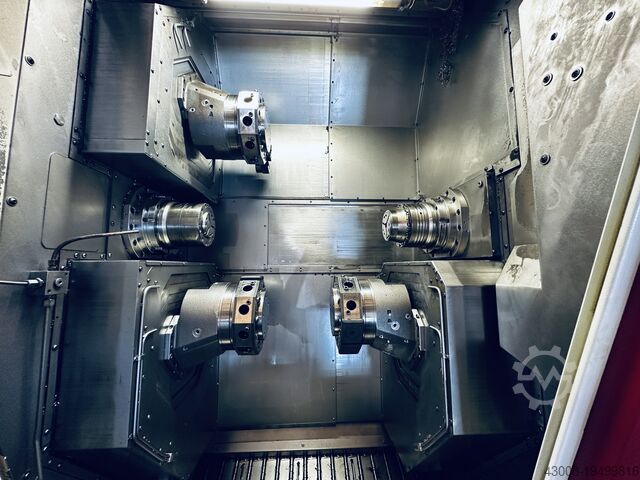

Condition: used, Year of construction: 2011, operating hours: 51,400 h, functionality: fully functional, Traub CNC Lathe TNX65, TX8i-s, Year 2011 Model: TNX 65 Year of manufacture: 2011 Control: TX 8i-s Main/spindle and counter-spindle bar capacity up to 65 mm, 3 turrets, 3 x Y-axis, driven tools, 2 x C-axis, counter spindle, chip conveyor, band filter, coolant system, parts conveyor, new hydraulic pump Pjdpfowxc Hkox Agqjrd Extensive accessories; approx. 4 driven tool holders, 15 fixed holders Breuning short bar loader Approx. 114,586 power-on hours Approx. 51,400 production hours Good condition Connected to power, available for inspection Delivery time approx. 2 weeks, by arrangement

Condition: used, Year of construction: 2006, operating hours: 37,000 h, functionality: fully functional, TRAUB TNX65 with bar feeder and accessories Year of manufacture: 2006 Operating hours: 37,000 h Control: TX8i - Two tool turrets resealed - High-pressure pump replaced - Machine fully functional - Geometry within manufacturer's tolerances Accessories: - 2x Hainbuch chucks - Various tool holders (see images) - Breuer bar feeder (1200 mm) - Number of spindles: 2 - Number of turrets: 2 MAIN SPINDLE - Spindle nose: A2-6 - Spindle drive power: 24 kW - Spindle speed: 5,000 rpm Prsdewm Igfopfx Agqed - Max. bar diameter: 65 mm - Max. main spindle chuck diameter: 175 mm - Minimum C-axis resolution: 0.001 [degrees] COUNTER SPINDLE - Spindle nose: A2-5 - Spindle drive power: 28 [kW] - Spindle speed: 7,000 [rpm] - Max. bar diameter: 42 [mm] - Minimum C-axis resolution: 0.001 [degrees] - Travel: 700 [mm] LEFT UPPER TURRET - Number of positions: 10 - Number of motorized positions: 10 - X/Z travel: 175 / 650 [mm] - Y travel: +/- 40 [mm] - Tool type: VDI 30 - Driven tool speed: 6,000 [rpm] - Driven tool power: 5.5 [kW] RIGHT LOWER TURRET - Number of positions: 10 - Number of motorized positions : 10 - X/Z travel: 175 / 650 [mm] - Y travel: +/- 40 [mm] - Tool type: VDI 30 - Driven tool speed: 6,000 [rpm] - Driven tool power: 5.5 [kW] ELECTRICAL SUPPLY - Supply voltage: 400 [V] - Total drive: 95 [kW] WEIGHT AND DIMENSIONS - Space requirement: 5,450 x 2,318 [mm] - Machine height: 2,258 [mm] - Machine weight: 10,000 [kg]
