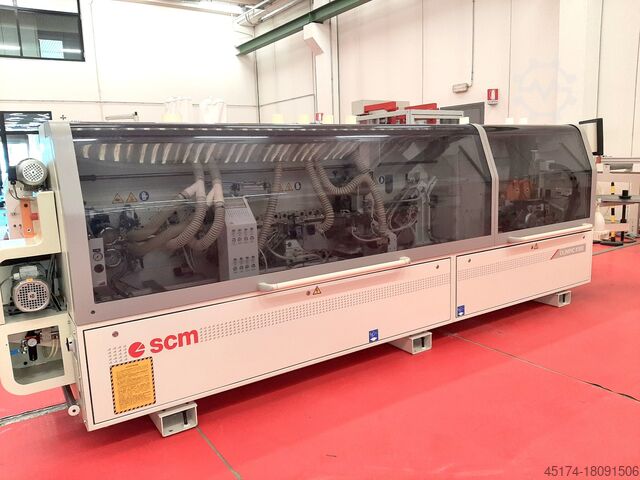

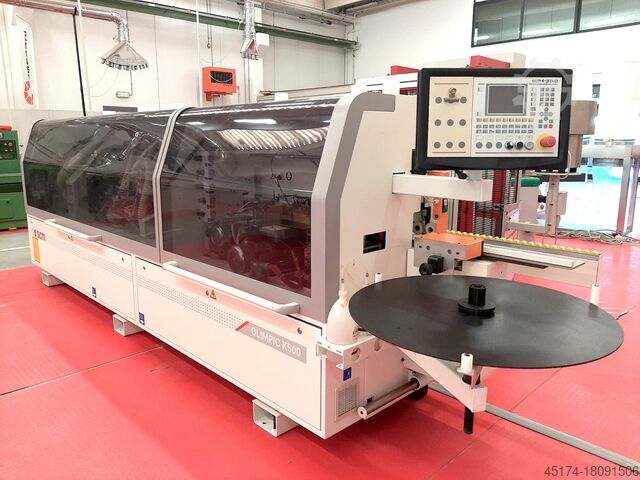

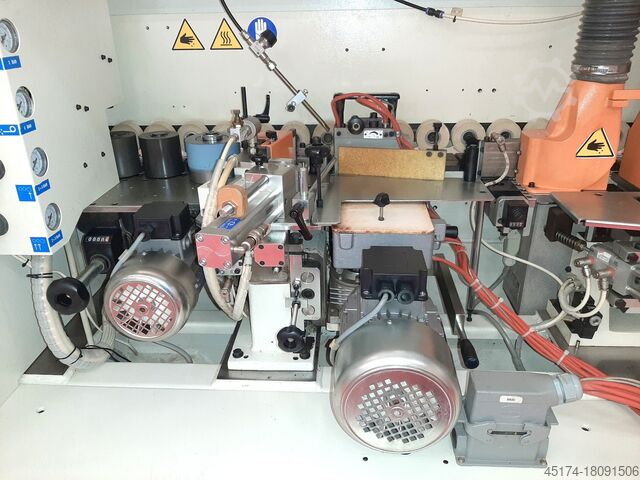

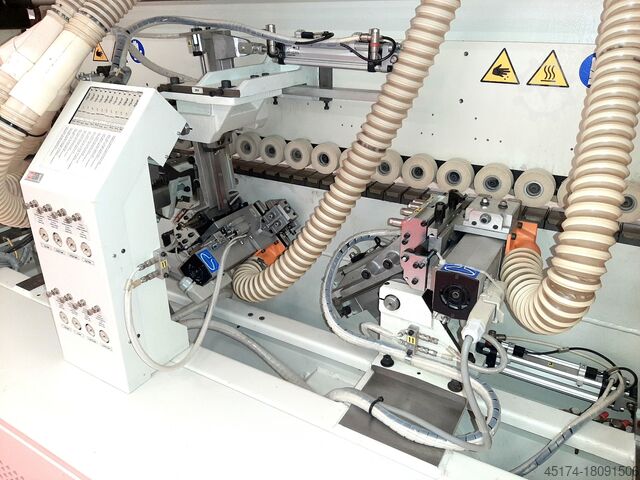

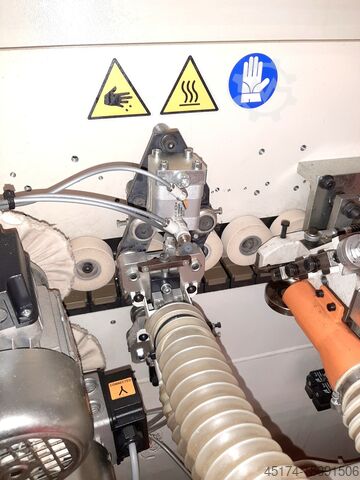

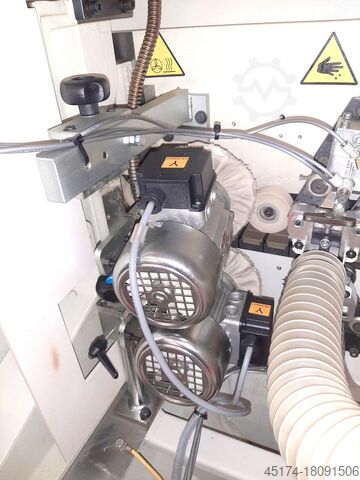

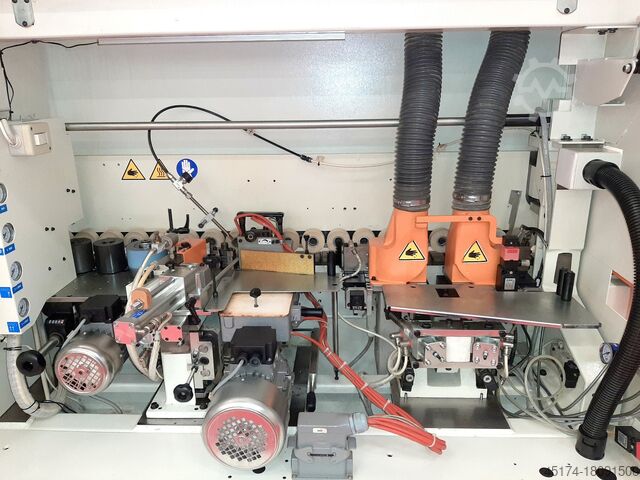

Edgebander

SCM OLIMPIC K 500 T/ER-2

Condition: excellent (used), Year of construction: 2007, functionality: fully functional, Brand: SCM Model: OLIMPIC K 500 T/ER-2 - CE Automatic edge banding machine with sanding unit for wooden, veneer, PVC, melamine, ABS edges – suitable for furniture manufacturing, joinery, custom fittings, panels, kitchens, bathroom furniture, and various other applications Technical specifications: Min./max. panel height: 8–60 mm Panel height with corner rounding unit: 10–45 mm Edge thickness: 0.4–8 mm Edge thickness from coil: 0.4–3 mm Minimum panel width: 55 mm Feed speed: 11 m/min Pressure beam with motorized vertical movement Panel support rail Sound-insulated safety enclosure Hsdjxnvr Aepfx Ahujng Fluid inlets Components: Anti-adhesive spraying unit with two nozzles – two tanks for anti-adhesion liquid Pre-milling units with two high-frequency motors – H64 mm diamond tools – diameter 100 mm, bore 30 mm, height 65 mm – copying set Gluing unit VC 560 for edge application on panels up to 60 mm – glue pot capacity: 1.5 kg – exchangeable glue pot End trimming unit with two independent motors, each 0.35 kW at 12,000 rpm – motor tilt from 0° to 15° – 2 saw blades, diameter 115 mm – front copying devices Tilting trimming/bevelling unit for removing top and bottom edge overhang – 2 motors at 0.55 kW – 12,000 rpm – tilt range from 0° to 25° – two-position pneumatic set for quick change between thin or radius edges Corner rounding unit with two motors on prismatic guides – for rounding and trimming thin or thick edges – 2 motors at 0.55 kW – 12,000 rpm Edge scraping unit for optimal finishing of ABS/PVC edges with rotary copying and extraction hood, scrap collection cassette Glue scraping unit – removes glue residues from the lower and upper panel surfaces Buffing unit for cleaning and polishing plastic edges – motor 0.25 kW – brush diameter 150 mm Compressed air: 7 bar Overall dimensions: 5500 x 1150 x 1550 (H) mm Weight: 1,780 kg Recently serviced New diamond pre-millers New copying wheels...

Condition: excellent (used), SINGLE SIDE EDGE BANDER (Left) Edges (band in rolls) thickness (Min/Max) mm 0,4 / 3 Edges thickness in strips / lippings (min/max) mm 0,4 / 8 (12)* Panels thickness (min/max) mm 8 / 60 Numerical Control "StarTouch" + "Touch 7" Feeding speed m/min 12-18 Top pressure system with rubber belt (C.N.) Spraying unit (Anti-sticking liquid) AAR In-feed fence, adjustable by N.C. "EASY SIZE PLUS" Pre-milling Unit (vertical joint trimmers) 2 x Kw Lamps to heat the workpieces side Glueing Unit (P.U.R. Glue + Quick Melt system) "VC/800" - "VC/6" + "AirFusion AF15" Band Pressure zone (N.C. adjustment) Hnedpfx Aexlqntshuog Edge coils supporting unit - 1 Snipping (end-cutting) K/SEL Rough Trimming unit RS/K Fine Trimming unit RI / 800 (3 pos.) Multi Function Unit (Profile contour Trimming Unit) “4 EDGE” KIT Spraying Unit (for sliding liquid) Profile edge scraping unit RAS/1000 Glue scraper RCA / 2C Milling grooving unit K-100 (1 x Kw 1,8) 90° Hot Air Heater (to reactivate the color of plastic tape) Panels Return System "SAG" Mod. SPINNER 47 / 63

Condition: as good as new (ex-display), Year of construction: 2021, functionality: fully functional, overall weight: 915 kg, type of input current: three-phase, input voltage: 400 V, input current: 24 A, input frequency: 50 Hz, Worktable dimensions 3465x710mm, height 875mm Gluing thickness roller edges 0.4 - 3mm Glue-on thickness strip edges up to 5mm, min - max. workpiece thickness 8-50mm min. Workpiece length/width with roller edges 190/110mm min. Length of panel 120mm Feed speed 9 m/min Feed motor 0.55 kW Working air pressure of pneumatics 6.5 bar Suction hood glue container 80mm 2 suction hoods Flush trimming unit 60mm 2 extraction hoods Pre-milling unit 80mm Working temperature 20-190C° Equipment: Pre-milling unit (jointing) Rounding unit (corner copying) Gluing unit, applying and pressing on the edge (self-lubricating glue pot) Trimming unit, for cutting off 90° of the protruding edge at the front and rear Flush trimming unit (joining) Scraper unit Buffing unit Surface scraper Hsdpfjuacqzox Ahueng Automatic application of the strip edges with edge magazine Kit for quick change of the glue container Device for heating the panel edge Non-stick agent spraying unit Spraying unit for finishing the edge

Condition: used, Year of construction: 2020, total height: 2,500 mm, total length: 5,000 mm, total width: 2,400 mm, Empty weight: 2.500 kg CNC machining centre SCM Morbidelli N100 12 A Brand SCM Type Morbidelli N100 12 A Year of construction 2020 Serial number AM00002846 Hnsdpfx Ahjwwa Hloueg Machining table dimensions 2486x1255 mm (LxW) Groove pattern 40 mm distance Distance between holes vacuum cups 120 mm Equipped with 3 reference gauges Table has 1 vacuum field Table working range X axis 2486 mm Y axis 1255 mm Z-axis 150 mm Stroke of the units X axis 3120 mm Y axis 1685 mm Z axis 250 mm Movement of the axes  Maximum vectorial speed in rapid traverse XY axis 35 m/min Stroke of Z axis 250 mm Panel pass 150 mm Hiteco milling unit Motor power 5.5 kW (7.5 HP) Tool holder HSK-63-F Milling spindle speed 1500-24000 rpm Tool changer 8 positions Central exhaust connection 250 mm Control unit Windows EmbeddedStandard 7 64 bit  21.5 LCD touch screen XILOG-MAESTRO software package  Including vacuum pump Capacity 250 m3/h Power 5.5 kW Max. vacuum 0.9 bar Noise level 81 db (A) Total dimensions 5000x3000x2500 (LxWxH) Total weight 2500 KG - Year: 2020 - Documentation available: Yes - CE marking present: Yes - CE certificate present: No - Serial number: AM00002846 - Transport dimensions: 5000mm x 2400mm x 2500mm (l x w x h) - Transport weight [kg]: 2500kg Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Glenn Smeets

Condition: used, Year of construction: 2020, functionality: fully functional, workpiece height (max.): 45 mm, edge thickness (max.): 3 mm, type of input current: three-phase, Further technical data: Ball-bearing turntable for edge banding rolls, Ø 740 mm Edge thickness: 0.4 – 3 mm Workpiece height: 8 – 45 mm Extendable workpiece support up to 450 mm Manually adjustable workpiece height m-motion and x-motion PLUS control systems (highest setting repeat accuracy, programmable) Robust processing units in new design, solid machine base, precise extraction system Additional equipment: Hodpfoxdb U Usx Ahuong Surface scraper Spraying unit for cleaning agent LED lighting package Tempora 45.03 Spraying unit for release agent Cross-cut saw unit with 45° travel path and radius processing Pneumatic-mechanical infeed lock 75 x-motion PLUS package Tempora 45.03

Condition: used, Number of spindles 5 St. Working width 20 - 230 mm Working height 8 - 120 mm Length of the planing table 2000 mm Feed motor 1,1 kW Feed speed stufenlos regelbar 2 - 12 m/min. 1 WEINIG VARIOMAT planer and moulder including multifunction / slotting table ----- Machine will be cleaned and functionally tested before delivery ! Technical manufacturer's description: ----- Working width: 20 - 230 mm Working height: 8 - 120 mm 1st spindle horizontal, bottom ----- Motor with brake: 5.5 kW Diameter 40 mm Speed ??6000 rpm Tool radius 125 - 145 mm Axis adjustment range 5 mm Folding device including rebate cutter MarathonCoating for table insert before and after the 1st lower spindle 2nd spindle vertical, right ----- Motor with brake: 11 kW Common motor with left vertical spindle Diameter 40 mm mm Speed ??electronically adjustable 3000 - 6000 rpm (for 11 kW/15 HP) Tool cutting radius for longitudinal machining 93-232 mm Minimum tool diameter at stop plane: 93 mm Maximum tool diameter behind stop plane: 180 mm Maximum throat depth 45 mm Axially adjustable travel 30 mm Insertion segment, including additional stop lip 125 mm Insertion segment, including additional stop lip 150 mm 3rd vertical spindle, left POWERLOCK/HSK ----- Shared motor with 1st right spindle PowerLock tool holder Shared speed with right vertical spindle Tool cutting radius for longitudinal machining 93-232 mm Maximum throat depth 45 mm Minimum throat depth with tool cutting radius 200 mm: 20 mm Axially adjustable travel under table 30 mm Insertion segment 125 mm Insertion segment 150 mm 4th spindle, horizontal, top ----- Motor with brake: 5.5 kW Diameter 40 mm Speed ??6000 rpm Tool cutting radius 125-200 mm Maximum chamfering depth 30 mm Minimum chamfering depth with a tool cutting radius of 200 mm: 20 mm Axially adjustable range 30 mm Hnedpjwugpbefx Ahueg Glazing bead removal after the upper spindle 5th spindle, second, horizontal, bottom ----- Motor with brake: 4 kW Diameter 40 mm Speed ??6000 rpm Tool cutting radius 125-200 mm Maximum chamfering depth 15 mm Axially adjustable range 10 mm Machine operation ----- Both axes of all spindles - with the exception of the first lower spindle - are equipped with mechanical digital displays. Central radial adjustment with mechanical digital display of the feed rate along with the pressure in front of the upper spindle. The pressure after the upper spindle can be adjusted separately. Memory function ----- For saving the setting values ??of profiles Tool holder axes and pressure elements before and after the upper tool holder with electronic dual displays: Function: -Saving the setting values ??of the finished profile at the touch of a button under a profile number - When the profile number is selected again, the electronic dual displays show the setting values - By manually adjusting the tool holders and pressure elements, the displays are aligned - 99 memory locations 3 axial CNC-controlled adjustment and positioning of the spindles in conjunction with the memory function. For spindles 2, 3, an...

Condition: used, Year of construction: 2009, Used SCM edgebander model OLIMPIC K1000 Control panel with membrane keyboard Technical data: Min. panel height: 8 mm Max. panel height: 55 mm Min. edge thickness (roll): 0.4 mm Max. edge thickness (roll): 3 mm Max. edge thickness (solid wood): 12 mm Configuration: Strip edge magazine Glue pot capacity 1.5 kg, with independent motor Hsdpsxrndxjfx Ahueng No. 4 pressure rollers with pneumatic feed, first roller with independent motor Edge roll guillotine End trimming unit with 2 independent motors, tiltable 0-15° - each 0.35 KW - 12,000 rpm Overlapping trimming unit with 2 motors, each 0.65 KW - 12,000 rpm - tools with reversible knives Tiltable corner rounding unit for flat/radius finishing; 2 motors each 0.5 KW - 12,000 rpm, electro-pneumatic positioning - tools with reversible knives Electro-pneumatic exclusion of the unit Glue scraper unit Machine length: 4,310 mm Year of manufacture: 2009 CE marked

Condition: used, Lange B90 KFE Edge thickness: 0.4 - 3 / 5 mm Control panel: PLC touch panel Pre-milling unit for workpiece edge preparation before the gluing section Hnodpsxl Aw Tsfx Ahueg Automatic edge magazine for roll materials Teflon-coated quick-change glue pot for hot-melt adhesive granulate Workpiece height: 8 - 50 mm Fine-adjustable glue roller Guillotine shears up to 3 mm for pre-cutting roll material Pressure unit End trimming unit Multi-function milling unit for flush trimming, radius milling, and bevel milling Corner copying unit for head edges up to 2 mm, activatable from the control panel Radius scraper blade Flat scraper blade Buffing unit Spraying device at infeed and outfeed Year of manufacture: 2018 Machine is OPERATIONAL and in GOOD CONDITION Ex works price NET €15,000.00

Condition: new, Year of construction: 2025, Dimensions (L/W/H) 2650x640x1400 mm Weight 700 kg Hjdpfx Aevz E T Hohuong Total power requirement 5 kw

Condition: used, machine/vehicle number: 008228, Type of edging: Thin edge, Thick edge Gluing System: EVA Hotmelt Max feed speed: 8 m/min Hnodpfx Aoxfhvzehusg Maximum panel thickness: 40 mm Operating Units: 4 nr
