Used Bystronic Laser Cutting Machine for sale (156)

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2008, operating hours: 42,664 h, machine/vehicle number: 8560012, stroke length: 265 mm, travel distance X-axis: 600 mm, travel distance Z-axis: 2,900 mm, pressing force: 320 t, travel distance R-axis: 250 mm, TECHNICAL DETAILS Pressure force: 320 t Bending length: 4100 mm Clearance between the columns: 3750 mm Thrust: 400 mm Stroke: 265 mm Installation height: 550 mm Table width: 60 mm Oil content: 600 l Axes & travel paths Controlled axes: Y1, Y2, X, R, Z1, Z2 X-axis travel path: 600 mm R-axis travel path: 250 mm Z-axis travel path: 2900 mm MACHINE DETAILS Machine dimensions (LxWxH): 5000 x 2300 x 4020 mm Machine weight: 29,000 kg EQUIPMENT - Hydraulic crowning Iedov E I Smepfx Ad Djtp - Side protective grilles - Protective grilles behind the machine - Light barrier FIESSLER Machine is delivered without tools

Year of construction: 2008, condition: ready for operation (used), General Data Machine weight 48000 kg Iodpfx Adjwwxlts Dotp Control Unit Brand BYSTRONIC Model MMC BYBEND Main Drive Spindle motor power 30 kW Bending length 6000 mm Additional Equipment Accessories: Various tooling This Bystronic BEYELER XPERT 400 x 6200 press brake was manufactured in 2008. It features a bending length of 6000 mm and a bending force of 400 Ton. The machine includes a CNC Bystronic MMC BYBEND and various tooling, ensuring versatility in operations. Consider the opportunity to buy this Bystronic BEYELER XPERT 400 x 6200 press brake. Contact us for more information. Application Types Bending

Condition: good (used), BYSTRONIC HYDRAULIC BENDING MACHINE 3100X150 TON, MAX STROKE 315 mm, RAPID STROKE DOWN 190 mm/s, WORKING CYCLE 10 mm/s, RAPID STROKE UP 150 mm/s, DIMENSIONS: 415X200X290cm (h) WEIGHT 11,000 KG Y1 Y2: hydraulic cylinder axes. X forward and backward axis of the register. R upward and downward axis of the register. Iodpfxovxipgo Ad Dstp Z1 and Z2 axes of the movement to the right and left of the stops. X1 or relative X which is the axis of the movement forward and backward of a single stop. 7 axes. The control also manages the hydraulic crowning, which can be considered the eighth axis.

Year of construction: 2019, condition: good (used), Dust extraction,welding fume extractor,cartridge filter self-cleaning,pneumatic,vacuum for plasma,laser,sandblasting,sodding,blasting and all kinds of dry dust. Brand: TEKA / Bystronic Model: Filtercube 4H / FilterBys Version 2 Year of manufacture: 2019 Filter cleaned by microprocessor controller with compressed air pulses during operation thus high efficiency of the device. Low compressed air demand thanks to the system "Power-Spray" The Filtercube central filter unit equipped with cartridge filters is the ideal solution for almost all problems in the area of smoke and dust filtration. Fan on the clean side which reduces the risk of explosion to a minimum. Application: central extraction system for multiple welding stations extraction system for welding robots extraction system for thermal cutting and grinding tables system for general hall filtering (push-pull system, displacement system) extraction system in combination with an extraction table extraction system for grinding of non-exploitable materials Parameters: 5.5 Kw fan Capacity 3800 m3/h Vacuum pressure 3250 Pa Inlet diameter : 250 mm Filtration area of 100 m2 Equipped with "DUST-VAC" unit , which automatically pumps the dust into a separate tank. Possibility to order new filter cartridges tailored to the customer's needs Technical documentation included. Itsdpfonyhvqex Ad Dsp

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2009, operating hours: 38,732 h, working width: 3,100 mm, travel distance X-axis: 600 mm, back gauge speed R-axis: 200 mm/s, back gauge travel distance R-axis: 250 mm, pressing force: 130 t, TECHNICAL DETAILS Control: MMC ByBend Itodpfxov E Iu Uo Ad Dsp Working area Bending length: 3100 mm Column clearance: 3200 mm Pressing force: 130 t Working height: 1060 mm Thrust: 250 mm Stroke: 400 mm Installation height: 915 mm Axes & travel paths Controlled axes: Y1 - Y2 - X1 - X2 - R1 - R2 - Z1 - Z2 X-axis travel path: 600 mm X-axis travel speed: 500 mm/s R-axis travel path: 250 mm R-axis travel speed: 200 mm/s Y-retraction: 150 mm/s Y-working speed: max. 1-10 mm/s Y-rapid traverse: 150 mm/s Back stop: 1200 mm MACHINE DETAILS Machine dimensions (LxWxH): 4440 x 2950 x 3100 mm Machine weight: approx. 13,400 kg EQUIPMENT - Tool holder with hydro cushion (top) and 3-point die holder (bottom) with hydraulic tool clamp - Sliding table for flattening operations - BWS-T protective devices as access protection at the rear (Sick safety curtain) & BWS at the front - Bending aid at the rear (0-75°) with brush inserts, H, A, W axes continuously programmable - Pair of stop fingers (complex) - Side stop for dies - Table extension (station) left for supports - Additional plates for dies V=60 and larger - Additional foot switch for second operator or station - Articulated arm for control Extensive tool package included in delivery

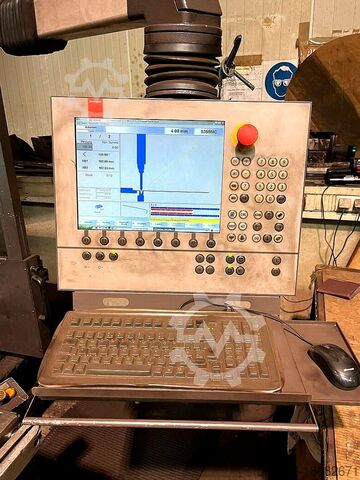

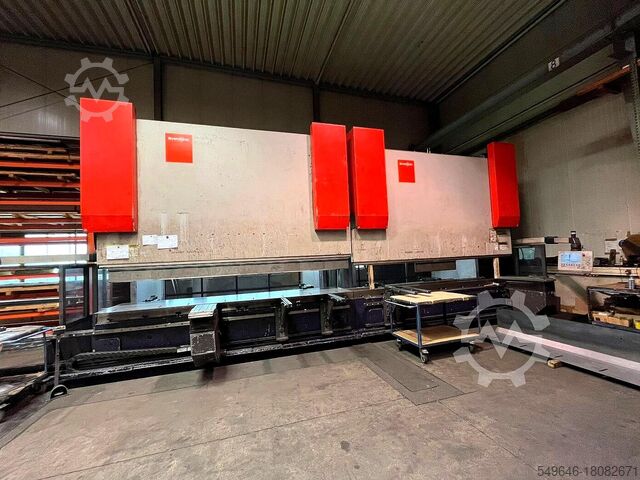

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2009, stroke length: 665 mm, travel distance X-axis: 700 mm, travel distance Z-axis: 2,900 mm, pressing force: 800 t, surfacing fence length: 8,200 mm, travel distance R-axis: 250 mm, TECHNICAL DETAILS Pressure: 2 x 400 t Bending length: 2 x 4100 mm X-axis travel: 700 mm R-axis travel: 250 mm Z-axis travel: 2900 mm Stroke: 665 mm Projection: 400 mm Installation height: 850 mm Clearance between the uprights: 3600 mm MACHINE DETAILS Total output 30 kW Weight 76,000 kg Equipment/accessories: - Operator terminal with 15" TFT-LCD flat screen, network card, Windows XP and MMC-Bybend software - Tilt adapter and double articulated arm for control system - Pressure reference for automatic compensation of side stand deflection - Dynamic hydraulic crowning of the lower beam, DNC-controlled - Automatic dynamic press pressure control - Material thickness measurement - Tool overload protection - Temperature monitoring - Stainless steel scale on the upper beam - AKAS laser system, manually adjustable in height - Electrically monitored side safety guards - Rear safety guard with sliding door Iodovi I Ntspfx Ad Dotp - Integrated hour and stroke counter - Linear guide on the lower beam with 2 parking spaces of 250 mm each - Double guide on the upper beam - 2 x manually adjustable front support arms made of steel, length 1000 mm - slim table T5, height 145 mm - punch holder type "R" mechanical - 2-axis back gauge with X and R - Inclination adapter for operator terminal
