Used Mazak Laser Cutting Machine for sale (369)

Condition: good (used), Year of construction: 2000, Parts shown by hand not come. Hsdpfjx Atyaox Al Sjl Tool cabinet and cutting tools not come. Only tool holders will come.

Condition: good (used), Year of construction: 2003, X 1740mm, Y 766mm, Z 660mm 10000 rpm Hodpfxswyblzs Al Ssl Parts shown by hand not come.

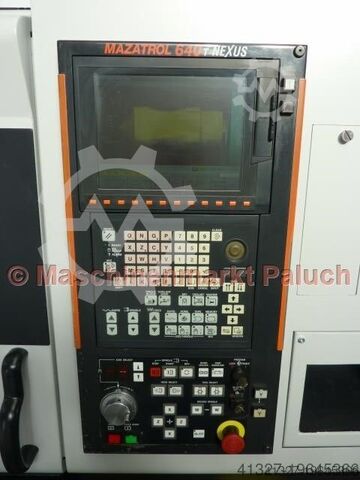

Condition: excellent (used), Year of construction: 2004, MAZAK QUICK TURN NEXUS 200MS-Y Max. machining diameter: 380 mm Max. machining length: 511 mm Max. milling speed: 4,500 rpm Max. spindle speed: 5,000 rpm Max. bar diameter: 65 mm Machine is equipped with: - CNC control Mazatrol 640T Nexus Hodjw Du S Aepfx Al Sol - KITAGAWA three-jaw chuck BB-208 for main spindle, diameter 210 mm - KITAGAWA three-jaw chuck B-206 for 2nd spindle, diameter 169 mm - Tool Eye - C-axis - Y-axis - Interface for bar feeder - Automatic parts catcher - Reinforced coolant pump - Chip conveyor - 8 fixed tool holders - 2 driven tool holders

Condition: used, Year of construction: 2008, Mazatrol Matrix CAM PC workstation with full-featured 5-axis license (incl. PCI card & PC) Description: A complete, ready-to-use PC workstation with the powerful Mazatrol Matrix CAM software is for sale. The license is perpetual and hardware-bound via a PCI card. The system was used on 5-axis machines (Integrex e-1060 V8/II) and includes rare high-end options. The PC has been recently reinstalled and is fully functional. Ideal for companies with an older Mazak machine park looking for an independent programming solution. Details on license & options: The following key options are unlocked and active (see photos): - 40 SIMULTANEOUS 5 AXIS (simultaneous 5-axis machining) - 49 TILTED WORKING PLANE - 55 TOOL CENTER POINT CONTROL Additional basic options such as EIA, Smoothing Control, Spiral, etc. (see photo of the options menu) Hodox Sq Nmepfx Al Ssl Scope of delivery: - PC system: Windows 7 Pro x86 (32 Bit), Intel i5-3470 3.2 GHz, 4 GB RAM, AMD Radeon HD7570 GPU. - The fully functional computer with installed operating system (Windows 7 Pro_x86) and pre-installed software. - PCI license card: The physical license hardware installed in the PC. - Original packaging: The original packaging of the software as shown. Documentation: Manual, original CDs/media

Condition: excellent (used), Year of construction: 2017, MAZAK QUICK TURN 250MY Max. turning diameter: 380 mm Max. milling speed: 5,000 rpm Max. spindle speed: 4,000 rpm Max. bar capacity: 80 mm Machine is equipped with: - Mazatrol SmoothG CNC control - KITAGAWA three-jaw chuck BB-210, diameter 254 mm - Tool Eye - C-axis - Y-axis Hedsyki Taepfx Al Sol - automatic parts catcher - interface for bar feeder - signal light (3-color LED) - reinforced coolant pump - chip conveyor - standard MAZAK tool package

Year of construction: 2007, condition: ready for operation (used), - USED - 8-AXIS CNC LATHE WITH MILLING HEAD, DOWN TURRET HEAD AND COUNTER SPINDLE MAX ROTATING DIAMETER: 660 mm MAX TURNING LENGTH: 1495 mm MAX TURNING DIAMETER: 660 mm BAR CAPACITY: 65 - 65 mm SPINDLE: 35-5000 rpm; 22 kW; 254 mm COUNTER SPINDLE: 35-5000 rpm; 18,5 kW; 254 mm HEAD: CAPTO C6 ; -30°+195° ; 15-12000 rpm; 18,5 kW X-AXIS TRAVEL: 580 mm X2-AXIS TRAVEL: 150 mm Y-AXIS TRAVEL: 160 mm Z-AXIS TRAVEL: 1545 mm Z2-AXIS TRAVEL: 1490 mm B-AXIS TRAVEL: 1550 mm RAPID FEEDS X-Y-Z: 38 - 26 - 38 m/min TURRET HEAD: 9 POS TOOL MAGAZINE: CHAIN-TYPE ; 80 POS Hedeyy Thzjpfx Al Sol HIGH PRESSURE COOLANT: 18 Bar CONTROL UNIT: MAZATROL MATRIX WEIGHT: 11800 Kg OVERALL DIMENSIONS: 5090 x 3270 x 2830 mm ACCESSORIES: SWARF CONVEYOR ; PAPER FILTER ; TOOL SETTER

Condition: used, Year of construction: 2007, swing dia. 430 mm Distance between the spindles 1450 mm control MAZATROL 640T x-axis 310 mm z-axis 605 mm spindle tunring speed 4.000 U/min In our opinion, the machine is in good used condition and can be inspected under power by appointment. Technical Features & Accessories: - Gantry Loader Hodsyb S Nrspfx Al Ssl Accessories, tools, and clamping devices shown are only included in the scope of delivery if noted in the additional information. Subject to changes and errors in the technical data and information, as well as subject to prior sale!

Condition: excellent (used), Year of construction: 1989, I am selling a CNC lathe Mazak QuickTurn 20N. Lathe in bdb condition. Equipment: MAZATROL T-2, control MAZATROL CAM-T-2. Hedpfju U R E Asx Al Sol

Condition: excellent (used), Year of construction: 2021, functionality: fully functional, 1 x MAZAK VARIAXIS i-800 1 x MAZAK VC PRIMOS 400 L 1 x CELLRO ELEVATE with FANUC R-2000-165 Robot MAZAK VARIAXIS i-800 Smooth X control system Pallet changer, 2 pallets 5-axis simultaneous machining Travels: X-axis: 730 mm Y-axis: 800 mm Z-axis: 560 mm A-axis: -120° to +30° C-axis: ±360° Max. spindle speed 10,000 rpm SK-50 tool holder, DIN 69871 - Tool magazine for 120 tools - Preparation for hydraulic clamping incl. clamping function on pallet - Knoll coolant system KF400/2300 - Paper band filter - Preparation for 70 bar - High-pressure pump 70 bar - Renishaw NC4 laser - Air purge at NC4 laser - Mazak Monitoring B, incl. Renishaw RMP600 probe - Robot interface (Advance/Profibus) and more. MAZAK VC PRIMOS 400 L Vertical machining center Year of manufacture 2020, installed 2021 Mazatrol Smooth C control Axis travels: X: 500 mm Y: 400 mm Z: 350 mm Table size: 600 x 400 mm Max. table load: 300 kg Milling spindle AC 11 kW Max. spindle speed: 12,000 rpm 14 tools, BT30 taper - Mazak Monitoring B, incl. Renishaw OMP40 measuring probe - Synchronized thread cutting - Drilling cycle with torque-dependent chip break - Rapid traverse with constant tilt angle - Robot interface (Advance/Profibus) - Profibus-DP and more. CELLRO ELEVATE E-110-165 Robot cell with part storage Elevate B 2000 mm – H 4000 mm Fanuc robot R-2000 165F iC Max. handling weight: 90 kg Automatic gripper change system Manual gripping force adjustment Workpiece rotation station Hsdpfx Aeywg U Njl Sol Workpiece measuring station SPC trays for measuring parts during the process

Condition: excellent (used), Year of construction: 2018, operating hours: 5,000 h, functionality: fully functional, Smooth X Hodpfsywg Szjx Al Sol X-axis: 3,000 mm Y-axis: 800 mm Z-axis: 720 mm B-axis: 220° C-axis: 360° max. spindle speed: 18,000 rpm SK-40 Number of tool stations: 48 Rotary table diameter: 500 mm Mayfran chip conveyor, ejector High-pressure pump 15 bar incl. fine filter

Condition: used, TECHNICAL DETAILS - Number of axes : 3 MILLING SPINDLE - Tool holder type : ISO40 - Spindle speeds : 12.000 [rpm] - Spindle power : 18,5 [kW] LINEAR AXES - Travels on X/Y/Z axes : 1050 / 530 / 510 [mm] - Rapid traverses rates (X/Y/Z) : 42 [m/min] - Cutting feed rates (X/Y/Z) : 1 - 8000 [mm/min] TOOL CHANGER - Auto. Tool Changer type : Bras chargeur - Tool magazine capacity : 30 TABLE - Table dimensions : 1300 x 550 [mm] - Maximum weight upon table : 1200 [kg] Hedpeycxudofx Al Sjl - Distance table / spindle nose (min./max.) : 150 - 650 [mm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 41.15 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 2.880 x 2.950 [mm] - Machine height : 2.808 [mm] - Machine weight : 6800 [kg] MACHINE HOURS - Number of hours under power : 16317 [h] - Number of working hours : 3904 [h] EQUIPMENT - CNC : MAZATROL MATRIX NEXUS 2 - Interface : PCMCIA / RS232 - Electronic handwheel - 3 colors status lamp - Coolant tank * with high-pressure pump - Coolant through spindle - Chips conveyor - Tool probe - Workpiece probe

Condition: like new (used), Year of construction: 2018, functionality: fully functional, MAZAK QUICK TURN 250MY 1000U Max. turning diameter: 380 mm Max. turning length: 991 mm Max. milling speed: 5,000 rpm Max. spindle speed: 4,000 rpm Max. bar diameter: 80 mm Hodpfx Alsyllrns Sjl Machine is equipped with: - CNC control Mazatrol SmoothG - KITAGAWA three-jaw chuck BB-210, diameter 254 mm - Tool Eye - C-axis - Y-axis - NC tailstock - Reinforced coolant pump - Chip conveyor - 8 static tool holders - 2 driven tool holders

Condition: used, Year of construction: 2023, x-travel 3000 mm y-travel 820 mm z-travel 720 mm Control Mazatrol Smooth G spindle taper SK 40 spindle turning speed range 35 - 12.000 U/min spindle motor 15 kW distance spindle centre table top edge 140 - 860 mm table load 2500 Kg rapid travel x/y/z 50 m/min table width 3500 mm table length 820 mm table height over floor 870 mm T-slots 7 T-slot - width 18 mm T-slot - distance 100 mm tool change unit 48 tool changing time 4,7 sec wotkpiece diameter with 2 vacant positions 130 mm workpiece diameter at full load 80 mm max. tool weight 8 kg tool length - max. 350 mm air pressure - required 5 - 9 bar Air volume 260 l/min Hodpfx Aleyvvlue Sel electrics - voltage/frequency 400 / 50 V/Hz coolant tank 500 l total power requirement 46,7 kW weight of the machine ca. 15,4 t dimensions of the machine ca. 5,3 x 3,6 x 3,3 m Standard machine including the following optional extras: - Provision for dual oil mist extraction - Air cooling via the rotating milling spindle - 48-tool magazine - Pulse handwheel - 3-colour LED signal light - Additional work area lighting - Air blow-off device on the milling spindle - High-pressure coolant supply through the spindle (15 bar) - Provision for MAZAK Monitoring - Chip conveyor with left-hand ejection (Crowther) - Manual grease gun - Grease cartridge - Mazak API - Drilling cycle with automatic chip breaking - Synchronous thread cutting - Rapid traverse with constant angle of inclination STANDARD ACCESSORIES Adaptation for the European market USB port (1 port) Mazak standard colour Work area lighting SAFETY FEATURES Operator door with interlock switch Work area cladding The splash guard enclosure encloses the work area from the side. Fully enclosed work area Protection against chips, coolant and access to the work area during automatic machining. Safety precautions in accordance with global standards COOLANT SUPPLY Coolant supply via spindle (pump pressure = 5 bar) Complete coolant system includes pumps, valves, pipework and nozzles for the efficient production of high-quality components. FACTORY AUTOMATION Automatic start/stop and warm-up function Automatic activation of a warm-up via digital timer MEASURING SYSTEM Tool length measurement and tool breakage detection NUMERICAL CONTROL Horizontally adjustable NC control panel Relocation Detector Mazatrol SmoothG control 19" colour LCD screen (touch screen) Mazak Tornado tapping/drilling cycle (Mazatrol) EIA/ISO input function Tool path verification in the background 3D coordinate conversion Shape compensation for rotating axes Mazacc-2D software (contour correction) Mazacc-3D software package MAZACC-3D high-speed software package (NO456) is additionally required. Control system with high smoothing Interface for LAN SD memory card interface Smooth Standard Software for M/C - NO443 B) MAZACC-2D software (workpiece shape compensation) - NO444 D) MAZACC-3D high-speed software package - NO445 B) Shape compensation for rotating axes - NO497 D) High-precision control for finishing - Seamless corner point control - Variable acceleration control - Ultra-high-speed machining mode - NO498 Rapid traverse paths, rounding function Absolute positioning system - All dimensions, weights and performance specifications are subject to change - - Used machine without warranty - - Subject to prior sale -

Condition: used, overall weight: 2,700 kg, MAZAK QUICK TURN 8 Serial number: 69867 Year of manufacture: 2010 Tool changer: 6 stations Control system: MAZATROL CAM T-2 Weight: approx. 2700 kg Chip conveyor: TSL BAKIMOTO D60W150ST-DN The scope of delivery includes: Hedpfeyxb Hisx Al Ssl Workshop cabinet with machine accessories Indexable inserts Turning tools Tool holders Clamping jaws Selection of screws

Condition: used, Year of construction: 2011, travel distance Z-axis: 2,150 mm, MAZAK QT NEXUS 450IIM year of production 2011 control MATRIX NEXUS C axis driven tools travel: Z axis 2150mm X axis 310mm Maximum turning diameter 580 mm Hydraulic chuck Kitagawa BB218 Spindle passage 165mm Maximum spindle speed 2000rpm -Tailstock -Probe -Chip conveyor with tub and pump -Holders Hjdpfx Aljvt A Ras Sol -Documentation

Condition: ready for operation (used), Year of construction: 2018, spindle speed (max.): 5,000 rpm, travel distance X-axis: 225 mm, travel distance Z-axis: 605 mm, overall weight: 4,950 kg, controller manufacturer: MAZATROL, controller model: Smooth C, number of axes: 2, Horizontal turning machine manufactured in 2018. This Mazak QUICK TURN 200MA L features a maximum workpiece diameter of Ø 360 mm and a maximum workpiece length of 535 mm. It is equipped with a spindle speed of 5,000 rpm and a turret with 12 VDI positions. If you are looking to get high-quality turning capabilities, consider the Mazak QUICK TURN 200MA L machine we have for sale. Contact us for further details. • Max Workpiece Diameter: Ø 360 mm • Max Workpiece Length: 535 mm • Max Bar Capacity: Ø 65 mm • Spindle Nose: A2-6 • Spindle Bore: Ø 76 mm • Turret Tool Station: 12 VDI positions Additional equipment Hodpfx Aoyuyh Ael Sel • Chip extractor Technical Specification Counter Spindle Yes Driven Tools Yes

Condition: good (used), Year of construction: 2015, functionality: fully functional, machine/vehicle number: 265864, turning diameter: 350 mm, spindle speed (max.): 5,000 rpm, spindle speed (min.): 35 rpm, travel distance X-axis: 195 mm, travel distance Z-axis: 560 mm, spindle motor power: 15 W, feed rate X-axis: 30 m/min, feed rate Z-axis: 33 m/min, torque: 233 Nm, distance table center to spindle nose: 687 mm, Equipment: documentation/manual, Mazatrol Smart Control. Spindle speed 5000 rpm. X/Z travel 195mm/560mm. Fitted with 215mm diameter. Hsdpjvfm H Asfx Al Ssl 3 jaw-powered chuck 12-station turret. Tailstock. Tool setter. Part catcher.

Condition: like new (used), Year of construction: 2006, machine/vehicle number: 184620, Control: Mazatrol 640 Nexus X-way: 560 mm Y-way: 410 mm Cdnxm9qiuu Z-way: 510 mm Table size: 900x410 mm Spindle cone: Sk40 Tool changer: 30 pl. Spindle speed: 12000 1/min IKZ: 15 bar Chip conveyour Hodpfxokn Dxqj Al Sjl Machine weight: 5010 kg

Condition: used, Year of construction: 2013, travel distance X-axis: 730 mm, travel distance Y-axis: 730 mm, travel distance Z-axis: 740 mm, controller manufacturer: Mazatrol, controller model: Matrix Nexus, workpiece weight (max.): 700 kg, total height: 2,814 mm, total length: 4,690 mm, total width: 2,330 mm, table width: 500 mm, table length: 500 mm, overall weight: 11,000 kg, spindle speed (max.): 18,000 rpm, Equipment: documentation/manual, CNC Horizontal Machining Centre CNC Control Mazatrol Matrix Nexus Pallet table size 500 x 500 mm Number of pallets 2 Table load 700 kg Movement X-Y-Z-axis 730x730x740 mm Table indexing 0,001 ° Spindle taper CAT 40 Spindle speed 18.000 1/Min Spindle motor 30/22 kW Magazin capacity 40 Hsdpfx Aljytc Nmj Sjl If you have any questions concerning the machine, please do not hesitate to contact us by phone or e-mail.

Condition: used, Year of construction: 2015, x-travel 560 mm y-travel 430 mm z-travel 510 mm control Mazatrol Smart table surface area 900 x 430 mm max. table load 500 kg number of spindle speeds 40-12000 U/min rapid speed 42000 mm/min tool magazine with 30 Plätzen max. tool diameter 125 mm weight of the machine ca. 4800 kg Just 4,362 hours of pure machining! Capacity: External dimensions of the machine table: 900 x 430 mm Travel range X/Y/Z axis: 560/430/510 mm Distance from spindle head to table surface: Min: 150 mm Max. 660 mm Spindle: Spindle speed: 40-12000 (two electrical stages) Feed rate: Rapid traverse speed: 42000 mm/min Cutting feed rate: 1-8000 rpm ATC magazine: Tool magazine slots: 30 Tool shank type: MAS BT-40 Max. tool diameter: with adjacent tools: 80 mm without adjacent tools: 125 mm Max. total weight of tools in magazine: 120 kg Equipment/accessories: Hodeyukgiopfx Al Sol Coolant system Vices (not shown in the photo) Tool holders Tools Documentation

Condition: excellent (used), Year of construction: 2001, x-travel 185 mm Hjdpfx Aloyukf Sj Ssl z-travel 360 mm b-travel 460 mm control Mazatrol 640 T Maximum swing diameter 550 mm Maximum turning diameter 280 mm workpiece weight max. 200 kg bar capacity 51 mm main spindle speed 35-6000 U/min milling head speed 25-4500 U/min rapid power traverse in X-and Z direction 30/33 m/min Rapid traverse B axis 30 m/min tool turret 12 Plätze weight of the machine ca. 4100 kg Capacity: Chuck size: 6 inches Max. swing diameter: 550 mm Standard turning diameter: 221 mm Max. turning diameter: 280 mm Max. bar capacity: 51 mm Distance between spindle nose and turret edge: 80–535 mm Main spindle: Speed: 35–6000 rpm Spindle bore: 61 mm Counter spindle: Speed: 35–6000 rpm Spindle bore: 52 mm Turret: Number of tools: 12 pieces Tool size: External turning tool: 20 mm Internal turning tool: 32 mm Milling drill: 16 mm Milling tap: M12 End mills: 16 mm Milling spindle speed: 25–4,500 rpm Equipment/Accessories: Tool holders Tools Powered tools Turning tool holders Coolant system Chip conveyor Documentation

Condition: used, Year of construction: 1999, Turning length 1575 mm X 450 mm Y +/- 90 mm Z 1575 mm Max. swing 510 mm Hsdpfxsuimaxo Al Sel Max. turning diameter 400 mm Spindle bore 76 mm Spindle speeds 3000 rpm on main spindle Spindle speeds 6000 rpm on mill spindle Tool changer w/ 40 stations Hydraulic tailstock Control: Mazatrol Pc Fusion 640 MT Equipped with: Hydraulic 3-jaw chuck Chip conveyor App. 20 holders for turning

Condition: used, Year of construction: 2020, turning diameter 380 mm turning length 511 mm control Mazatrol SmoothG turning diameter over slide 276 mm max. swing diameter over bed 675 mm Standard machining diameter 276 mm bar material dia. 65 mm x-axis 234 mm rapid traverse X-axis 30 m/min z-axis 625 mm rapid traverse Z-axis 33 m/min turning speeds 35 - 5000 U/min spindle nose A2-6 spindle bore 76 mm Motor output (40%ED) 26 KW 22 KW Max. Torque 465 Nm turning speeds 6000 U/min Main drive power 11 KW Max. Torque 90 Nm Milling spindle speeds ( driven tools) 35-6000 1/min torque on milling spindle max: 47 Nm power capacity - milling spindle 5,5 (40% ED) kW Milling spindle power 3,7 kW Numbers of tools 12 (angetrieben) Tool cross section (outside) 25 qmm Boring bar- Ø 40 mm Drill- Ø 20 mm Mill- Ø 20 mm Tap- Ø M20x2,5 Switching time one turret station ca. 0,20 sec coolant tank 180 l connected load 46,2 kW weight of the machine ca. 5,9 t dimensions of the machine ca. 2,7 x 1,9 x 1,9 m incl. the following accessories: - Signal light (3-colour LED), rectangular - High-performance coolant system (1.1 kW) Flow rate max. 17.6 l/min, pressure (at pump) 5 bar. - Additional coolant nozzle main spindle - Preparation for oil mist extraction electrical/mechanical flange 98mm - Preparation for bar feed - Robot interface (Advance/Profibus) - Chip conveyor with low ejection height - Overload monitoring system - Drilling cycle with torque-dependent chip breaking - Preliminary use of a hollow clamping cylinder on counter spindle - Hollow clamping device incl. draw tube + cylinder - Clamping chuck Hainbuch Spanntop Nova Axfix mini size 52 - Chuck Hainbuch Spanntop Nova Axfix special mini size 52 - 2 x collets - Changing device for collet chuck STANDARD ACCESSORIES Automatic on/off and warm-up function Air blowing device on the chuck on the counter spindle Use of linear systems with guide carriage USB connection (1 connection) Set of manuals in electronic form on CD C-axis main spindle Input accuracy 0.0001° Hjdstugggjpfx Al Sel Spindle positioning counter spindle without C-axis Input accuracy 0.001° Tool turret with 12 stations VDI, Operator door with locking switch Double foot switch for both main and counter spindle Hydraulic pressure interlock Fully enclosed work area Work area lighting Safety precautions in accordance with global standards High-performance coolant system (520W) Flow rate max. 11.5 l/min. Complete coolant system Automatic opening/closing of the chuck jaws Automatic tool eye Absolute positioning system Preparation for chip conveyor (lateral) Synchronisation of main and counter spindle Synchronised tapping with milling spindle Relocation Detector Mazatrol SmoothG control 19" LCD colour screen (touch screen) User macro (600 variables) EIA/ISO input function Optional stop (optional stop) Tool path check in the background Thread cutting function (G33) Polar coordinate input (EIA) Drawing data direct input function Interface for LAN SD memory card I/F - Second-hand machine without warranty - All dimensions, weights and performance specifications are non-binding

Condition: used, turning diameter max. 360 mm turning length 505 mm control Mazatrol SmoothC max. swing diameter over bed 660 mm swing diameter over slide guides max 255 mm bar material dia. max. 80 mm turning speed range - spindle 35 - 4000 U/min max. torque on the spindle 358 Nm x-axis 225 mm rapid traverse X-axis 30 m/min z-axis 605 mm rapid traverse Z-axis 33 m/min spindle nose A2-8'' spindle bore 91 mm spindle hollow 80 mm Milling spindle speeds ( driven tools) 5000 1/min torque on milling spindle max: 47 Nm power capacity - milling spindle 5,5 (40%ED) kW tailstock quill taper MT 5 Travel- tailstock 565 mm Axial pressure max 5000 Nm Tool turret 1 Numbers of tools 12 (angetrieben) turning tool - shaft cross cut 25 x 25 mm tool taper BMT Required air-pressure 5 / 160 bar / l/min voltage 400 V coolant tank 180 l engine output 18,5 (30min Betrieb) kW Rated power (100% continuous operation) 15 kW weight of the machine ca. 6 t dimensions of the machine ca. 3,6 x 2 x 1,8 m Machine incl. the following special accessories: Chip conveyor on the right side Productivity package C - special according to storage machine This package includes: High-performance coolant system (1.1 kW) Flow rate max. 17.6 l/min Preparation for chip conveyor (lateral) Automatic tool eye STANDARD ACCESSORIES Transformer for the European market Use of linear systems with guide carriage SD MEMORY I/F(1P) + USB MEMORY I/F(1P) 1 x USB memory interface (1 slot) Spindle bore 91 mm Set of manuals in electronic form on CD Mazak standard colour CE marking, metric, 50 Hz C-axis input accuracy 0.0001° NC controlled tailstock Tailstock pressure adjustment Tailstock with fixed quill MK5 SAFETY DEVICES Operator door with interlock switch Double foot switch Hydraulic pressure lock Fully enclosed work area Work area lighting Safety precautions according to global standard COOLANT SUPPLY Grundfos coolant pump type MTA (0.25kW / 7.6L/min) Complete coolant system Automatic switch-off via circuit breaker triggering Hsdpfsv Dxw Rjx Al Sel MESSSYSTEM Absolute positioning system NUMERICAL CONTROL Synchronous tapping with milling spindle Relocation Detector Mazatrol SmoothC 10.4’ colour screen User macro (600 variables) EIA/ISO input function Tool path check in the background Thread cutting function (G33) Polar coordinate input (EIA) Drawing data direct input function Interface for LAN Various tool holders - All dimensions, weights and performance data are non-binding - Used machine without warranty -

Condition: used, turning diameter 340 mm turning length 575 mm control Mazatrol SmoothEZ max. swing diameter over bed 695 mm Standard machining diameter 235 mm bar material dia. max. 65 mm x-axis 215 mm rapid traverse X-axis 30 m/min y-axis 100 mm rapid traverse Y-axis 10 m/min z-axis 605 mm rapid traverse Z-axis 30 m/min turning speeds 35 - 5000 U/min spindle nose A2-6 spindle bore 76 mm Motor output (40%ED) 15 KW 11 KW Max. Torque 167 Nm turning speeds 35 - 6000 U/min spindle nose A2-5 Motor output (40%ED) ca. 7,5 KW Power (continuous operation) 5,5 KW Max. Torque 53 Nm Milling spindle speeds ( driven tools) 20 - 4500 1/min torque on milling spindle max: 47 Nm power capacity - milling spindle 5,5 (40% ED) kW Milling spindle power 3,7 kW Numbers of tools 12 (angetrieben) Tool cross section (outside) 25 qmm Boring bar- Ø 40 mm Drill- Ø 20 mm Mill- Ø 20 mm Tap- Ø M20 coolant tank 225 l Chuck diameter main spindle 8 '' Chuck diameter counter spindle 6 '' w-axis 585 mm rapid travel W 30 m/min c-axis 555 weight of the machine ca. 4,9 t dimensions of the machine ca. 2,8 x 2 x 1,8 m Special accessories: - Chip conveyor, hinged belt, side ejector - Production package, this package includes Preparation for bar feed Automatic parts catcher (Ø:80mm x L:120mm x 2.5 kg) 15 bar high-pressure coolant system Preparation for chip conveyor (lateral) Signal light (3-colour LED), rectangular C-axis counter spindle 0.0001° Automatic tool eye 8" power chuck Kitag. BR08 & Cyl. SR1566C (HD1) GENERAL MACHINE OPTIONS Air blowing device on the chuck (counter spindle) Transformer for the European market Linear roller guides SD MEMORY I/F(1P) + USB MEMORY I/F(1P) 1 x USB - Memory Interface (1 slot) CE marking CE marking, metric, 50 Hz Counter spindle positioning 0.0001 degrees without C-axis Tool turret with 12 stations Y-axis control ADDITIONAL PROCESS SOFTWARE Smooth restart function / restart mode Set of manuals in electronic form on CD Main spindle motor AC 15 kW (20 hp) 2nd spindle motor AC 7.5kW (20 hp) Main spindle motor AC 7.5kW MAIN SPINDLE C-axis main spindle Input accuracy (contour/index) 0.0001° Mazak standard colour (F white(fine)/S black) Automatic switch-off via circuit breaker trip Double foot switch Hydraulic pressure interlock RFID door interlock Safety foot switch with locking mechanism Safety measures according to worldwide standard Work area lighting Complete coolant system Hjdpfxowngklo Al Ssl Automatic opening/closing of chuck jaws (main and counter spindle) Feedback of the chuck status (main and counter spindle) Feedback of the chuck status via sensors. 8" power chuck 6" power chuck (counter spindle) Absolute positioning system Synchronous tapping with milling spindle Relocation Detector NC control Mazatrol SmoothEz 15" colour Lcd (touch screen) User macro (common variables: 600 pairs) EIA/ISO package EIA/ISO - input function EIA/ISO - additional functions Bolt line interpolation 3D tool compensation Workpiece coordinate rotation Geometric function Scaling External data input/output Tapping function (G33) Reverse feed rate G93 G37 Tool length measurement Polar coordinate input (EIA) Optional stop Additional workpiece coordinate systems 300 pieces User macro (600 variables) Mazak tapping/drilling cycle EIA/ISO - input function Scaling External data input/output Thr...
