Used Mazak Laser Cutting Machine for sale (387)

Condition: like new (used), Year of construction: 2024, operating hours: 150 h, Smooth Ai Control Max. turning diameter: 600 mm Ijdpoxvqm Rofx Ad Dstp Max. turning length: 850 mm Travel paths: X-axis: 535 mm Y-axis: 210 mm Z-axis: 900 mm B-axis: -30° to 210° (0.0001° increments) Main spindle motor: 11 kW Max. main spindle speed: 6,000 rpm Max. bar capacity: 52 mm Max. counter spindle speed: 6,000 rpm Milling spindle motor: 12 kW Capto C6 Max. milling spindle speed: 12,000 rpm B-axis, 0.0001° resolution Tool magazine for 38 Capto C6 tools IKZ interface 70 bar Knoll KF150/950 compact filter system 70 bar high pressure pump Mayfran MT10 chip conveyor 5-axis machining package for Smooth Ai Cylinder interpolation 5-axis simultaneous machining on the counter spindle Synchronized tapping G84.2 and G84.3 Thread chasing function Mazak API Full C-axis on counter spindle (0.0001°), C1 + C2 synchronization Linear scale for X-axis Linear scale for Y-axis Mazak Monitoring B, Renishaw RMP60 probe 3-jaw chuck main spindle, Kitagawa BB206 3-jaw chuck counter spindle, Kitagawa B206

Condition: used, Year of construction: 2005, turning diameter: 660 mm, controller manufacturer: MAZATROL, controller model: 640 MT PRO, number of spindles: 2, CONTROLS .. CNC controls MAZATROL 640 MT PRO BASIC FUNCTIONS .. number of spindles: 2 .. live positions: yes WORKING RANGE TURNING .. turning diameter (max): 660 mm .. worpiece length max.: 1045 mm MAIN SPINDLE .. spindle revolutions (max): 4600 /min .. drive power: 22 kW .. c-axis: yes COUNTER SPINDLE .. spindle revolutions (max): 5000 /min .. drive power: 18.5 kW .. c-axis: yes X/Z SLIDE .. rapid traverse Z: 50000 mm/min .. rapid traverse X: 50000 mm/min Isdpfexwkx Aex Ad Dstp .. rapid traverse Y: 40000 mm/min .. - rotation speeds (max): 12000 /min .. - drive power: 18.5 kW TOOL MAGAZINE .. number of positions: 40 .. tool diameter max.: 90 mm .. - with free neighbour positions: 125 mm .. tool length max.: 300 mm .. tool weight max.: 10 kg X1 axis: 580 mm X2 axis: 150 mm Y axis: 160 mm Z1 axis: 1,045 mm Z2 axis: 1,010 mm W axis: 1,050 mm B axis: -30 to 210° Special equipment • Chip conveyor • Tooleye • 15 bar high-pressure pump • Milling spindle synchronised thread cutting • 5-axis simultaneous machining • Preparation for multiple and flash tool holders • Interface for bar loader • Conveyor belt for finished parts • Preparation for Renishaw system • 3-jaw chuck for main and counter spindle

Condition: good (used), Year of construction: 2007, Maximum cutting diameter 820mm, maximum cutting length 1500mm, Itedpfx Asu Rb Snod Dop C axis 0.0001 degrees, B axis -30/+210 degrees, 40 ATC, spindle speed 1,600 rpm, Milling speed 10,000rpm., main spindle 37Kw, spindle taper din50, Y axis -/+ 250mm, Mazatrol Matrix control, swarf conveyor

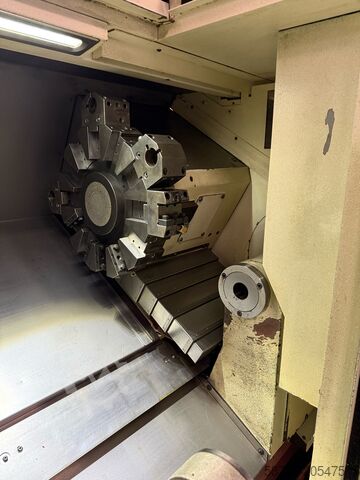

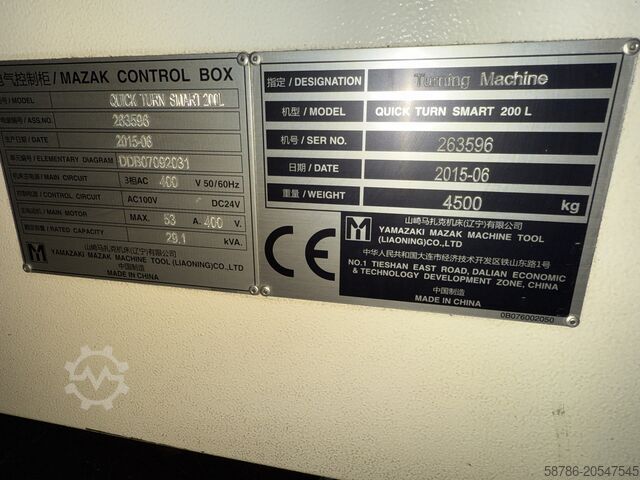

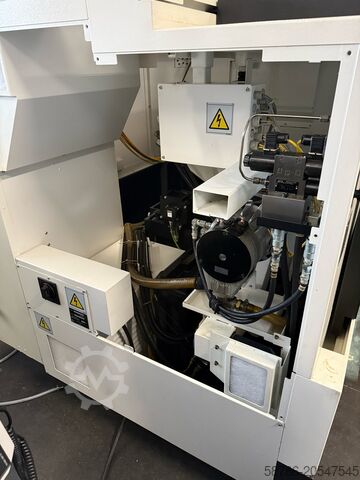

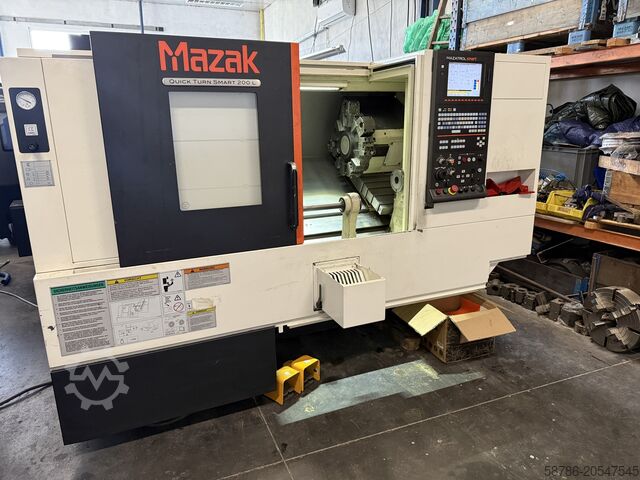

Condition: excellent (used), Year of construction: 2015, 2-axis Mazak QT200 Smart Year of manufacture: 2015 Z-axis travel: 560 mm Maximum turning diameter: 350 mm Spindle bore: 65 mm Kitagawa BB208 chuck Programmable tailstock Tool probe Parts catcher Bar feeder interface Itsdpfx Aoxxb T Hed Dop Only 3,500 operating hours With the machine: -documentation -chip conveyor, coolant tank and pump

Condition: ready for operation (used), Year of construction: 1999, Mazak Super Quickturn 200M (1999) C Axis and Milling 8" Chuck Cylinder Mazak tool length measuring system Full set of manuals Parts Catcher Tailstock Mazatrol & EIA programming Swarf Conveyor Iedsw Rl Ugepfx Ad Dotp Bar feeder preparation No bar feeder included This item is physically in stock and can be seen in full working order, at our showroom. Delivery and installation can be arranged at extra costs.

Condition: good (used), Year of construction: 2007, functionality: fully functional, Control: Mazatrol640T Max. machining diameter: 320 mm Bar capacity: 51 mm Travel X/Y/Z: 240/100/495 mm Main spindle speed: 5,000 rpm Motor power: 22 kW Sub spindle Speed: 5,000 rpm Motor power: 22 kW 2 x 16-station turrets with driven tools Options: LNS short bar loader Quick Load Servo III Itedpfxswc Agro Ad Dep Automatic parts catcher Chip conveyor

Condition: used, Year of construction: 2016, functionality: fully functional, travel distance X-axis: 1,050 mm, travel distance Y-axis: 530 mm, travel distance Z-axis: 510 mm, rapid traverse X-axis: 42 m/min, rapid traverse Y-axis: 42 m/min, rapid traverse Z-axis: 42 m/min, nominal power (apparent): 41 kVA, controller model: Mazatrol Matrix Nexus 2, workpiece weight (max.): 8 kg, total height: 2,808 mm, total length: 2,880 mm, total width: 2,929 mm, table width: 550 mm, table length: 1,300 mm, table load: 1,200 kg, rotational speed (max.): 12,000 rpm, overall weight: 6,800 kg, operating hours of spindle: 9,271 h, spindle nose: 150-660, tool length: 350 mm, tool diameter: 80 mm, input voltage: 400 V, type of input current: three-phase, Equipment: chip conveyor, Mazak Vertical Machining Center VCS 530C – Well-maintained, inspected & ready for immediate use For sale is a Mazak VCS 530C vertical machining center in excellent, well-maintained technical condition. The machine has undergone regular servicing and is in outstanding optical and mechanical shape. It is fully functional, thoroughly checked, and immediately ready for operation. The Mazak 530C stands out with its high-quality features, including a 4th axis, allowing complex workpieces to be machined precisely and efficiently, providing enhanced flexibility. Additionally, the automatic door offers increased user comfort, resulting in reduced setup times and increased safety during operation. The integrated coolant system (KSS unit) ensures optimum chip evacuation, which in turn leads to longer tool life and excellent surface finishes. Combined, these features deliver a powerful package focused on productivity, precision, and reliability. With our all-inclusive service package, we can personally handle the complete process upon request—from delivery to commissioning of your new machine. This includes unloading, placement, and precise alignment of the machining center. Thereafter, our experienced service technicians will carry out professional commissioning, perform all necessary function checks, and ensure that your Mazak VCS 530C operates reliably and accurately. We also offer tailored training programs for your staff so you can make optimal use of the machine from day one. Even after installation, we remain your competent point of contact—whether for maintenance, technical questions, or future upgrades. With our all-inclusive package, you have nothing to worry about—we ensure everything runs smoothly so you can focus completely on your production. Iedpfxsxu Hhze Ad Dotp Additionally, you can acquire extraction systems, attachments, and accessories from us, including high-quality Donaldson extraction units to make your production even more efficient and cleaner. Our service commitment: Quality, expertise, and customer satisfaction are our top priorities. Our team consists of qualified and experienced technicians specialized in Mazak machinery and other equipment. We place great emphasis on personal support and are happy to assist you any time, even after your purchase. You are also welcome to inspect and test the machine under power at our facility at any time. You are cordially invited to visit us and see for yourself the condition and functionality of the machine. With us, you are in the best hands—professional, reliable, and passionate about machinery! PS CNC Service Germany GmbH & Co. KG All specifications are subject to change without notice.

Condition: ready for operation (used), Year of construction: 2007, operating hours: 34,200 h, General Data Machine weight 7100 kg Control Unit Brand MAZATROL Model MATRIX NEXUS Main Drive Number of axis 4 Movement X-Axis Movement 1050 mm Y-Axis Movement 510 mm Z-Axis Movement 510 mm Table Table load 1200 kg Tools Number of index 30 Iedpfx Asxwqwfod Dstp This 4-axis Mazak NEXUS VCN 510C-II was manufactured in 2007. It features a Mazatrol Matrix NEXUS CNC control, X-axis travel of 1050 mm, Y-axis travel of 510 mm, Z-axis travel of 510 mm, and a 4th axis KITAGAWA rotary table. The machine has a table size of 1300 × 550 mm and can handle a maximum load of 1200 kg. Consider the opportunity to buy this Mazak NEXUS VCN 510C-II vertical machining centre. Contact us for more information. Application Types Milling

Condition: good (used), Year of construction: 2005, travel distance X-axis: 1,050 mm, travel distance Y-axis: 510 mm, travel distance Z-axis: 510 mm, Mazak VCN 510 C, year of manufacture 2005, Heidenhain iTNC 530 control, travel X/Y/Z 1050/510/510 mm, 30-position tool changer, SK 40 spindle taper, coolant through spindle 20 bar, table size 1300 x 550 mm, max. table load 1200 kg, chip conveyor, electronic handwheel. Itsdpfxsxu U R Rj Ad Dep

Condition: used, Year of construction: 2016, travel distance X-axis: 1,500 mm, travel distance Y-axis: 800 mm, controller manufacturer: MAZATROL, CONTROLS .. CNC controls MAZATROL WORKING RANGE -CUBIC- .. number of processing axes (excl parallel axes): 3 .. X-axis travel: 1500 mm .. Y-axis travel: 800 mm .. Z-axis travel: 660 mm Isdsxvn Skjpfx Ad Djtp .. distance spindle nose - table surface (max.): 820 mm TABLE .. table surface (left-right): 1740 mm .. table surface (front-back): 750 mm .. workpiece load (max): 2500 kg SPINDLE / HEAD .. spindle revolutions (min): 35 /min .. spindle revolutions (max): 10000 /min .. tool fixture: ISO SK 50 TOOL MAGAZINE .. number of positions: 30 .. tool diameter max.: 125 mm .. - with free neighbour positions: 210 mm .. tool length max.: 380 mm .. tool weight max.: 20 kg AUTOMATIC WORKLOAD EQUIPMENT .. number of store positions: 2 ELECTRICAL SPECIFICATIONS .. mains power supply: 74 kVA .. mains voltage: 400 V .. mains frequency: 50 Hz DIMENSIONS / WEIGHTS .. space requirements -left/right-: 3948 mm .. space requirements -front/back-: 8256 mm .. total height: 3500 mm ATTACHMENTS .. chip conveyor: yes .. coolant unit: no .. through spindle coolant attachment: yes .. closed cabin: yes .. European CE standards: yes Machine comes without coolant system but with a high-pressure pump. The magnetic plates are not included but can be purchased if you are interested. Includes precisely calibrated and ready-to-use Brankamp monitoring system

Condition: good (used), Year of construction: 1999, operating hours: 1,887 h, functionality: fully functional, machine/vehicle number: 142031, spindle speed (max.): 5,000 rpm, Mazak Super Quickturn 200 (1999). Serial Number: 142031. Date: 1999. Weight: 5000kg/11,000lbs. Mazak tooleye measuring system. Itjdpfx Ajtz A Dfjd Dep Tailstock. Swarf Conveyor. Parts Catcher. 12 Station Turret. Mazatrol PC-Fusion- CNC 640T control panel. Main Spindle Max 5000RPM. Collet Chucks and Collets. Hydrafeed barfeeder NOT included. This item is physically in stock and can be seen in full working order, at our showroom. Delivery and installation can be arranged at extra costs.

Condition: excellent (used), Year of construction: 2000, CNC Lathe MAZAK SUPER QUICK TURN 200 Year of manufacture: 2000 Working area: Max. swing diameter: 525 mm Max. turning diameter: 350 mm Max. turning length: 514 mm Bar work up to max. diameter: 51 mm Main spindle: Speed range: 35 – 5,000 rpm Main drive power: 18.5 kW Constant torque: 333 Nm Spindle nose: A2 – 6 inch Spindle bore: 61 mm Turret: Standard version: 12 stations Travel: Turret travel: X-axis: 190 mm Z-axis: 535 mm Isdpfxexvb E De Ad Detp

Condition: used, Year of construction: 2014, functionality: fully functional, travel distance X-axis: 1,050 mm, travel distance Y-axis: 530 mm, travel distance Z-axis: 510 mm, rapid traverse X-axis: 42 m/min, rapid traverse Y-axis: 42 m/min, rapid traverse Z-axis: 42 m/min, nominal power (apparent): 11 kVA, workpiece weight (max.): 8 kg, total height: 2,808 mm, total length: 2,880 mm, total width: 2,929 mm, table width: 550 mm, table length: 1,300 mm, table load: 1,200 kg, rotational speed (max.): 12,000 rpm, overall weight: 6,800 kg, operating hours of spindle: 16,024 h, spindle nose: 150-660, tool length: 350 mm, tool diameter: 80 mm, input voltage: 400 V, type of input current: three-phase, Equipment: chip conveyor, Mazak Vertical Machining Center VCS 530C – well-maintained, inspected & ready for operation For sale is a Mazak VCS 530C vertical machining center in well-kept, technically flawless condition. The machine has always been serviced regularly and is in very good visual and technical condition. It is fully functional, thoroughly inspected, and immediately ready for operation. With our all-inclusive service package, we personally handle the entire process for you upon request – from delivery right up to commissioning your new machine. This includes unloading, setting up, and aligning the machining center. Afterwards, our experienced service technicians will carry out professional commissioning, perform all necessary function checks, and ensure that your Mazak VCS 530C runs reliably and precisely. We also offer customized training sessions for your employees, so you can utilize the machine optimally from day one. Even after installation, we continue to support you – whether with maintenance, technical inquiries, or future expansions. With our all-inclusive package, you don’t have to worry about a thing – we ensure everything runs smoothly so you can focus entirely on your production. Additionally, you can purchase extraction units, attachments, and accessories from us, including high-quality Donaldson extraction systems to make your production more efficient and cleaner. Our service commitment: Quality, expertise, and customer satisfaction are our top priorities. Our team consists of qualified and experienced technicians, specialized in Mazak machines as well as other brands. We place great value on personal support and are happy to assist you at any time, even after your purchase. You are also welcome to visit and inspect the machine under power at our facility. You’re cordially invited to see the condition and functionality for yourself on site. With us, you’re in the best hands – professional, reliable, and passionate about machines! Itodpfxjxuqrkj Ad Dep PS CNC Service Germany GmbH & Co. KG All details without guarantee.

Condition: ready for operation (used), Year of construction: 2007, operating hours: 70,676 h, General Data Measurements width 5100 mm Measurements depth 5800 mm Measurements height 3400 mm Iedpfx Ajxvfitod Dstp Machine weight 17000 kg Control Unit Brand MAZATROL Model Matrix This 5 axis Mazak Variaxis 630-5X was manufactured in 2007. A universal machining centre featuring a 2-pallet changer, 80-tool magazine, and a Renishaw probe. It supports a 70 bar internal cooling system, enhancing operational efficiency. Ideal for those looking to enhance their machining capabilities. Contact us for more information about this machine. Application Types Milling

Condition: excellent (used), Year of construction: 2004, MAZAK QUICK TURN NEXUS 200MS-Y Max. machining diameter: 380 mm Max. machining length: 511 mm Max. milling speed: 4,500 rpm Max. spindle speed: 5,000 rpm Max. bar diameter: 65 mm Machine is equipped with: Isdpfxjw Du S Aj Ad Dstp - CNC control Mazatrol 640T Nexus - KITAGAWA three-jaw chuck BB-208 for main spindle, diameter 210 mm - KITAGAWA three-jaw chuck B-206 for 2nd spindle, diameter 169 mm - Tool Eye - C-axis - Y-axis - Interface for bar feeder - Automatic parts catcher - Reinforced coolant pump - Chip conveyor - 8 fixed tool holders - 2 driven tool holders

Condition: used, Year of construction: 2017, spindle speed (max.): 45,000 rpm, controller manufacturer: MAZAK, controller model: SMOOTH G, number of spindles: 2, CONTROLS .. CNC controls MAZAK SMOOTH G BASIC FUNCTIONS .. number of spindles: 2 .. number of turrets: 2 .. live positions: yes MAIN SPINDLE .. spindle revolutions (max): 45000 /min .. drive power: 22 kW .. spindle bore diameter: 65 mm .. spindle positioning: 0.0001 ° .. c-axis: yes COUNTER SPINDLE .. spindle revolutions (max): 5000 /min .. drive power: 22 kW .. spindle positioning: 0.0001 ° .. c-axis: yes X/Z SLIDE .. Z-axis travel: 1225 mm .. X-axis travel: 207 mm .. Y-axis travel: 100 mm .. distance spindle tool holder (max): 344 mm .. number of tool positions (total): 12 .. number of live positions: 12 .. - rotation speeds (max): 6000 /min X/Z SLIDE .. Z-axis travel: 1280 mm .. X-axis travel: 141 mm .. Y-axis travel: 70 mm .. rotating range B-axis up to: 0.0001 ° .. distance spindle tool holder (max): 210 mm .. number of tool positions (total): 12 .. number of live positions: 12 .. - rotation speeds (max): 6000 /min Accessories - 1 set of tool holders - 1 pc. 3-jaw chuck Kitagawa BB08 for main spindle - 1 pc. collet chuck Hainbuch 52mm, axfix Itodexvn R Topfx Ad Dop - 1 piece bar loader, Hydrafeed Multifeed MX-1B

Condition: excellent (used), With C-axis, with driven tools MAZAK Mazatrol 640T control Turning length -982 mm Swing Diameter -610 mm Turning diametre 264 mm Spindle speeds - 4'000 rpm Tool changer with 12 driven positions Misc. accessories Iedpfxeu R Nd Eo Ad Djtp MARCELS MASCHINEN CH

Condition: used, Electric spare parts Mazak Mazatech V-10 Complete electric cabinet and operating panel Itsdpfoxtq N Hjx Ad Dep Control Mazatrol M32 Free loading onto truck Fixed price

Condition: used, Year of construction: 2000, Turning length 1000 mm Max. swing 640 mm dia. Itsdpfx Adep Ui N He Dep Max. turning 540 mm dia. Spindle bore 51 mm Max. Spindle speeds 4000 rpm (same for subspindle) Max. spindle speeds on milling spindle 6000 rpm No. of stations in tool changer 40 pcs. Control: PC Fusion 640 MT Equipped with: Gantry loader 10 pcs. tool holders

Condition: ready for operation (used), Year of construction: 2016, General Data Measurements width 4210 Measurements depth 6900 mm Measurements height 3400 mm Machine weight 21500 kg Control Unit Brand MAZATROL Model SMOOTH G Main Drive Itodsxmlkxopfx Ad Dep Spindle speed range 10000 Number of axis 4 Movement X-Axis Movement 1050 mm X-Axis Rapid Traverse 60 m/min Y-Axis Movement 900 mm Y-Axis Rapid Traverse 60 m/min Z-Axis Movement 980 mm Z-Axis Rapid Traverse 60 m/min Workpiece Workpiece X 1050 mm Workpiece Y 1300 mm Table Min distance between vertical spindle and table 100 mm Max distance between vertical spindle and table º1000 mm Table load 1500 kg Tools Max weight 30 kg Max tool diameter 125 (250) mm Max tool length 630 mm Additional Equipment Chip Conveyor Tool Presetting Air Blow on the Spindle Remote Handwheel This 4-axis Mazak HCN-6800 horizontal machining center was manufactured in 2016. Ideal for precision machining, it offers robust construction and reliability. Consider the opportunity to buy this Mazak HCN-6800 horizontal machining center. Contact us for more information. Application Types Milling

Condition: like new (used), Year of construction: 2019, functionality: fully functional, machine/vehicle number: 302652, overall weight: 4,670 kg, Equipment: documentation/manual, MAZAK machine for sale, available for inspection in CZ-69613 Sardice always between 8 am and 2 pm. Iodjwrbikspfx Ad Detp The selling price is excluding VAT and excluding transport and dismantling.

Condition: used, Year of construction: 2017, turning diameter: 658 mm, controller manufacturer: MAZATROL, controller model: SMOOTH X, number of spindles: 2, CONTROLS .. CNC controls MAZATROL SMOOTH X BASIC FUNCTIONS .. number of spindles: 2 .. number of turrets: 1 WORKING RANGE TURNING .. turning diameter (max): 658 mm .. bar diameter (max): 80 mm .. worpiece length max.: 1519 mm MAIN SPINDLE .. spindle revolutions (max): 4000 /min .. drive power: 30 kW .. c-axis: yes COUNTER SPINDLE .. spindle revolutions (max): 4000 /min .. drive power: 26 kW .. c-axis: yes X/Z SLIDE .. Z-axis travel: 1585 mm .. X-axis travel: 615 mm .. Y-axis travel: 250 mm .. rotating range B-axis up to: 210 ° .. rapid traverse Z: 50000 mm/min .. rapid traverse X: 50000 mm/min .. rapid traverse Y: 40000 mm/min X/Z SLIDE .. rotating range B-axis up to: 0.0001 ° .. - rotation speeds (max): 12000 /min .. - drive power: 24 kW TOOL MAGAZINE .. number of positions: 72 Iedexu Ufzspfx Ad Detp .. tool diameter max.: 90 mm .. - with free neighbour positions: 125 mm .. tool length max.: 400 mm .. tool weight max.: 12 kg DIMENSIONS / WEIGHTS .. space requirements -left/right-: 4910 mm .. space requirements -front/back-: 2800 mm .. total height: 2720 mm .. total weight approx.: 16900 kg ATTACHMENTS (TURNING) .. hydraulic system: yes .. European CE standards: yes

Condition: used, Year of construction: 2001, functionality: fully functional, MAZAK - Variaxis 200 Offer Details Stock number: 1039-9049 Machine type: Vertical Machining Center Manufacturer: MAZAK Model: Variaxis 200 Year of manufacture: 2001 Control unit: Mazatrol Fusion 640M Location: D-59302 Oelde Country of origin: Japan Delivery: immediate Freight terms: ex location Additional information: CNC Vertical Machining Center MAZAK - Variaxis 200 - 5-axis WE OFFER YOU: - Shop-inspected machines - Loaded on truck, free of charge - NO auction fee - Delivery available (surcharge applies) - Unloading and commissioning (surcharge applies) Technical Details Travel (X): 510 mm Travel (Y): 510 mm Travel (Z): 460 mm Control: Mazatrol Fusion 640M Main spindle: Max. speed: 12,000 rpm Drive power - main spindle: 22 / 15 kW Spindle taper: ISO 40 Spindle diameter: 80 mm Acceleration 0 - 12,000 rpm: 1.7 sec Table clamping area: 500 x 400 mm T-slots: 5 x 18 mm T-slot spacing: 80 mm Distance spindle / table: 190 - 650 mm Max. workpiece size: 500 x 500 x 405 mm Max. table load: 300 kg Swivel range A-axis: +30 / -120° Rotary range C-axis: +/- 360° Tool changer: Number of tool stations: 40 positions Max. tool diameter: 80 mm Max. tool diameter with adjacent positions free: 125 mm Max. tool length: 300 mm Max. tool weight: 8 kg Chip-to-chip time: 4.5 sec Feed rates: Feed speed X/Y/Z: 1 - 50,000 mm/min Rapid traverse X/Y/Z: 50 m/min Indexing A + C: 0.001° Swivel time 90°: A/C: 1.9 / 1.5 sec Total power requirement: 51 kVA Machine weight approx.: 7.5 t Space requirement approx.: 3.4 x 3.7 x 2.8 m Accessories Hydraulic unit Coolant system Iedpfxoxtpa Rs Ad Dstp Chip tray Tool measurement Documentation

Condition: excellent (used), Year of construction: 2022, functionality: fully functional, Options: Chip conveyor Renishaw RMP 60 Itsdewnbn Sjpfx Ad Dsp 15 bar coolant Air blow-off Performance package 8 MB memory expansion 2 additional M codes Central partition Portable handwheel 4th axis preparation 3-color lamp

Condition: used, Year of construction: 2002, functionality: fully functional, MAZAK - SQT 250 MS Offer Details Stock No.: 1039-9042 Machine type: CNC Turning and Milling Center Manufacturer: MAZAK Model: SQT 250 MS Year of manufacture: 2002 Control: PC Fusion CNC 640 T Location: D-59302 Oelde (Germany) Country of origin: England Delivery: to be agreed Freight terms: ex works Additional Information: CNC Turning and Milling Center MAZAK - Super Quick Turn 250 MS - Main and sub spindle - Driven tools - C-axis WE OFFER YOU: - Workshop-tested machines - Free loading onto truck - NO auction fees - Delivery possible (at extra charge) - Unloading and commissioning (at extra charge) Technical Details Turning diameter (max.): 300 mm Turning length (max.): approx. 550 mm Control: PC Fusion CNC 640 T Standard turning diameter: 276 mm Swing diameter (max.): 525 mm Distance spindle nose – turret face: 115 – 690 mm Main spindle: Speed range – main spindle: 35 – 4,000 rpm Drive power – main spindle: 22 kW Max. torque: 351 Nm Spindle nose: A2-6'' Itedpfx Asxtn H Aed Dsp Spindle bore: 76 mm Max. bar capacity: 64 mm Chuck diameter: max. 250 mm C-axis: 360° Turret: Number of tool stations: 12 positions Tool mounting: VDI 40 Shank diameter: 25 mm Drill shank diameter: 40 mm Turret indexing time: 0.2 / 0.6 sec. Driven tools: Speed range – driven tool stations: 25 – 4,500 rpm Drive power – driven tool stations: 3.7 kW Max. torque: 35 Nm Sub spindle: Speed range – sub spindle: 35 – 4,000 rpm Drive power – sub spindle: 7.5 kW Max. torque: 57 Nm Chuck diameter: max. 150 mm Travel: X-axis: 190 (185 + 5) mm Z-axis: 575 (580 + 5) mm Sub spindle travel B: 585 (580 + 5) mm C-axis: 360° Feeds: Rapid traverse X/Z: 30 m/min Rapid traverse C: 400 min⁻¹ Rapid traverse B: 18 m/min Feed range X/Z: 0 – 5,000 mm/min Feed range C: 1 – 2,000 °/min Total power requirement: 34 kVA Machine weight: approx. 5.9 t Space requirement, approx.: 5.0 x 3.0 x 2.5 m Accessories Documentation Chip conveyor Coolant system Sub spindle C-axis (360°) Three-jaw chuck 250 / 150 mm 12-position turret Tool measuring arm Driven tool stations Extraction unit Fixed tool holders Driven tool holders
