Used Mazak Laser Cutting Machine for sale (388)

Condition: ready for operation (used), Year of construction: 2005, Control Unit Brand MAZATROL Model 640M General Data Measurements width 3485 mm Measurements depth 4424 mm Measurements height 3442 mm Machine weight 11500 kg Main Drive Spindle speed range 40 - 12000 Number of axis 3 Movement Itodoxn U E Uepfx Ad Djp X-Axis Movement 1740 mm Y-Axis Movement 760 mm Z-Axis Movement 660 mm Table Outer length 2000 mm Outer width 760 mm Table load 1400 kg This 3-axis Mazak VTC-300C vertical machining center was manufactured in 2005. It features a spindle speed range of 40 - 12,000 RPM and a robust table capable of handling loads up to 1400 KG. With dimensions allowing for significant movement (X: 1740 mm, Y: 760 mm, Z: 660 mm) and equipped with a 30-piece ATC, this machine is ideal for complex machining tasks. If you are looking to get high-quality milling capabilities, consider the Mazak VTC-300C machine we have for sale. Contact us for more information. Application Types Milling

Condition: excellent (used), Year of construction: 2012, functionality: fully functional, Manufacturer: Mazak Design: Vertical Machining Center Model: Variaxis 630II Control: Mazatrol MATRIX Year of Manufacture: 2012 Additional Equipment - Tool magazine for 120 tools - Signal lamp – machining completion: yellow - Synchronized tapping - Rapid traverse with constant tilt angle during movement - 3D coordinate transformation - Multiple pallet system (6 pallets integrated in the system) - 70 bar preparation, incl. interface for high-pressure unit Mayfran Consep 2000 II with chip conveyor Accessories/Features - Manuals - Operator door with interlock switch - Work area enclosure for a clean machining environment - Upper cover for chip throw protection - Work area lighting - Coolant supply – cooling for ball screw spindle - Complete coolant system - Spindle coolant unit - Measurement system: tool length measurement and tool breakage detection Max. workpiece diameter: 730 mm Max. workpiece height: 500 mm Ijdpfxoxxzygo Ad Dotp Travel X-axis: 630 mm Travel Y-axis: 765 mm Travel Z-axis: 510 mm Swivel range A-axis: from -120° to +30° (CNC controlled) Swivel range C-axis: +/-360° (CNC controlled) Max. distance spindle nose–table top (table horizontal): 740 mm Min. distance spindle nose–table top (table horizontal): 230 mm Max. distance spindle nose–table center (vertical): 690 mm Min. distance spindle nose–table center (vertical): 180 mm Max. table load: 500 kg Main Spindle Spindle taper: SK40 Max. speed: 12,000 rpm Min. speed: 35 rpm Rated power (15 min. duty): 26.4 kW Rated power (30 min. duty): 22.0 kW Rated power (100% continuous): 15.0 kW Feeds Rapid traverse (X-/Y-/Z-axis): 52 m/min Rapid traverse (A-/C-axis): 18,000°/min Feed rates (X-/Y-/Z-axis): 52 m/min Feed rates (A-/C-axis): 9,000°/min Number of simultaneous axes: 5 axes Indexing time (A-axis): 1.1 sec / 90° Indexing time (C-axis): 1.1 sec / 90° Table Table diameter: 630 mm Table width: 500 mm Number of T-slots: 5 T-slot spacing: 100 mm Table height: 950 mm Tool Changer Number of tool stations: 30 Tool selection method: random, shortest-path Tool shank: SK40 Max. tool diameter (adjacent stations occupied): 80 mm Max. tool diameter (adjacent stations free): 125 mm Max. tool length: 360 mm Tool change time (chip-to-chip): 3.6 s Dimensions Length x width: 4125 mm x 2495 mm Height: 3235 mm Weight: 13,500 kg

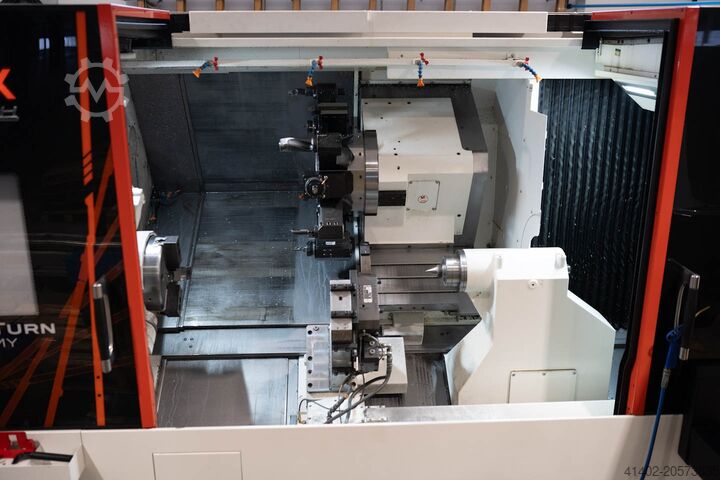

Condition: excellent (used), Year of construction: 2023, turning length: 1,500 mm, Mazak Quick Turn 350 MY - Turning & Milling Center, year of manufacture 2023, Mazatrol Smooth G control, travel X/Z 270/1625 mm, Y-axis travel 150 mm, C-axis 0.0001°, through-spindle coolant 15 bar, maximum bar diameter main spindle 102 mm, spindle speed 3,300 rpm, 12-station turret, driven tools, programmable tailstock, chip conveyor, prepared for bar feeder, steady rest, high-pressure cooling, Tooleye, parts catcher, automatic on/off with warm-up function. Itedpoxx Nynofx Ad Dep

Condition: used, Year of construction: 1996, MAZAK SUPER QUICK TURN 10 MS CNC LATHE MAKE MAZAK, MADE IN JAPAN MODEL SUPER QUICK TURM 10 MS YEAR 1996 CONTROL MAZATROL T PLUS MAX SWING 435mm SWING OVER CARRIAGE 370mm MAX. MACHINING DIA 230mm MAX. BAR WORK DIA 42mm MAX DISTANCE BETWEEN SPINDLES 705mm SPINDLE MOTOR AC11kw (15HP) SPINDLE SPEED 6000rpm 2ND SPINDLE MOTOR AC5.5kw (7.5HP) 2ND SPINDLE SPEED 6000 rpm ROTARY TOOL MOTOR AC2.2kw (3HP) ROTARY TOOL SPEED 3000 rpm TURRET TOOL CAPACITY 12 TOOLS STATIONS RAPID TRAVERSE RATE X,Z:30m/min (1180IPM),C: 400rpm MACHINE DIMENSION L x W x H, 2705mm x 1465mm x 1835mm MACHINE WEIGHT 3850kg PLUS C-AXIS SUB SPINDLE Isdpjxnpp Isfx Ad Dstp DRIVEN TOOLS (3 NO.S) PARTS CATCHER SWARF CONVEYOR TOOL SETTING PROBE COLLET CHUCK BUILT IN TRANSFORMER FULL SET OF MANUALS GOOD WORKING ORDER

Condition: good (used), Year of construction: 2006, functionality: fully functional, Stock-No. 1022-E06344 Type of machine Machining Center - Vertical Make MAZAK Type MTV-655/80N Year of manufacture 2006 Type of control CNC Storage location NRW / Germany Country of origin Japan Delivery time Immediately Freight basis ex foundation Mazatrol 640 M CNC Control Travels: X-axis 2000 mm Y-axis 650 mm Z-axis 650 mm Spindle speed 6000 rpm with two gear stages Tool holder SK 50 Spindle motor power 18.5 kW Table size: 2240 x 650 mm Machine weight 12000 kg Equipment: Dual pallet changer (2PC) 4-axis Kitagawa rotary table Tool changer with 60 tool positions Zero Clamp zero-point clamping system Itodpfjxxbgmex Ad Dep Renishaw 3D touch probe Mayfran chip conveyor Coolant system with 70 bar pressure Internal tool cooling ILT internal extraction system with air filter

Condition: used, Machine type: CNC Horizontal Machining Center Model: FH6800 Manufacturer: MAZAK Control: Mazatrol 640M Year of initial operation: 2010 Location: Germany Options: - Number of tool magazine pockets: 80 pcs - MAZAK Monitoring B (Renishaw probe) - Software options package “Performance” - NC rotary table (C-axis) 0.001 degree - Chip conveyor Mayfran Consep 2000 - Through-spindle coolant (IKZ) pressure: 20 bar Iedpsxxzlvefx Ad Detp Travel X-axis: 1,050 mm Travel Y-axis: 800 mm Travel Z-axis: 880 mm Rapid traverse X/Y/Z-axis: 40 m/min Pallet size: 630 x 630 mm Max. spindle speed: 7,000 rpm Coolant supply: 20 bar

Condition: ready for operation (used), Year of construction: 2002, Control Unit Brand MAZATROL Model PC-FUSION-CNC 640MT Main Drive Number of axis 5 Tools Number of index 40 Type of tool holder Capto C6 Iodpfsxwqwrox Ad Detp This 5-axis MAZAK Integrex 300-II Y was manufactured in 2002. If you are looking to get high-quality turning capabilities, consider the MAZAK Integrex 300-II Y machine we have for sale. Contact us for further details regarding this machine. Application Types Turning

Condition: good (used), Mazak 4th axis Itjdpfx Adsxwt Tvs Djp Table 500 mm C axis In good condition.

Condition: used, Year of construction: 2006, Technical Data: • Table size: 2,240 mm × 810 mm (≈ 88.19″ × 31.89″) • Maximum table/workpiece load: 3,000 kg evenly distributed • Maximum spindle speed: 6,000 min⁻¹ (standard) • Spindle taper: CAT No. 50 or BT50 (depending on market) Iodpfxexw Uxas Ad Djtp • Spindle power/torque (standard): e.g. 18.5 kW and 759 N·m at 40% duty cycle / 30 min rating; for high-performance variant: 26 kW and 1,067 N·m. Y-axis (travel): 810 mm according to manufacturer's data. Maximum workpiece height: 870 mm according to catalog specification. Travel ranges (typical): As specified in a datasheet: X-axis 2,032 mm, Y-axis 810 mm, Z-axis 750 mm approx. – depending on version. Machine dimensions / weight (including CNC): e.g. approx. 5,685 mm × 4,096 mm footprint (for a specific version) Control system: Equipped with “MAZATROL” CNC control (touchscreen, graphical user interface) – for intuitive operation Weight approximately 14,000 kg according to catalog specification. All details are provided without guarantee.

Condition: excellent (used), Year of construction: 2023, 2023 Mazak Optiplex 4020 Fiber III 6kW Laser Processing Machine With Mazatrol Control Maximum Workpiece Dimension 4,000 x 2,000mm. Maximum Load Capacity 1,600kg. Maximum Material Thickness Mild Steel 25.4mm, Stainless Steel 25.4mm, Aluminium 19.05mm. Axis Travel 'X'=4,085mm, 'Y'=2,070mm, 'Z'=110mm. Rapid Traverse 'X & 'Y'=120m/min. Positioning Accuracy 'X & 'Y'=0.05mm Per 500mm, 'Z'=0.05mm Per 100mm. Repeatable Accuracy 'X & 'Y'=0.03mm. S/No. 310080 (2023). NOTE - Loading can not be done by the crane on site, buyer responsible to arrange for loading. Buyer will require a versa lift to load to their transport. Ijdpfx Adjxc H H Ts Dstp With Donaldson DFPRE6 SPKTRP Dust Extraction Unit, IPG LC 170.01-A.3.5/6 Chiller Unit, Light Safety Curtains & Signal Tower. Overall Dimensions L10,744 x W4,049 x H2,010mm. Weight 21,200kg. Please note: Machine is currently under power, however it will be professionally decommissioned and moved to our storage facility for collection.

Condition: good (used), Year of construction: 1999, functionality: fully functional, CNC Machining Center Machine Type: MAZAK VTC 30 C Itodpfexxudfex Ad Djp Year of Manufacture: 1999 CNC Control: MAZATROL M-PLUS Machine Condition: Used, well-maintained, fully operational General Information: The MAZAK VTC 30 C is a vertical machining center (VMC) from the renowned Mazak VTC series. It is especially suitable for precise milling, drilling, and tapping operations on metal and plastic components. Technical Specifications: - Working Area: - X-axis: approx. 760 mm - Y-axis: approx. 400 mm - Z-axis: approx. 400 mm - Table Size: approx. 1020 x 410 mm - Max. Table Load: approx. 400 kg - Spindle: - Speed: up to 8,000 rpm - Drive: direct drive - Tool Holder: CAT 40 / BT 40 - Tool Changer: 20-fold (20 positions) - Positioning Accuracy: ±0.01 mm - Repeatability: ±0.005 mm Special Features: - Robust construction for high precision and continuous operation - Fully hydraulic table and stable cast iron structure - Suitable for machining aluminum, steel, and plastics - Good spare parts availability due to the well-known Mazak series - User-friendly programming for both series and single-part production - Integrated simulation and diagnostic software Condition: - Machine has been regularly serviced - Spindle and guideways have been tested and are fully functional - Cooling and lubrication systems are intact - Optional accessories available upon request

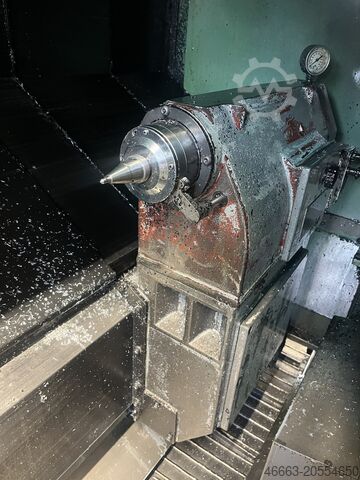

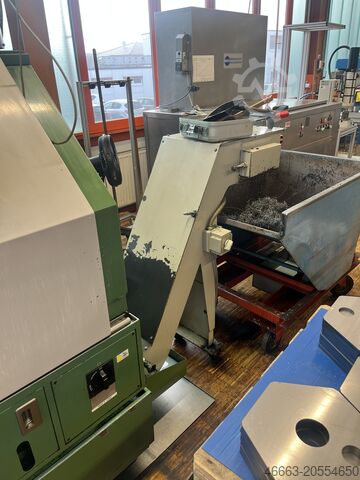

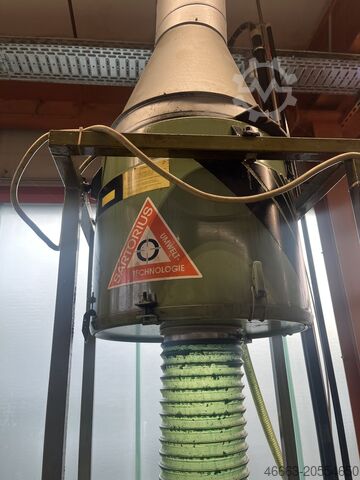

Condition: good (used), Year of construction: 1990, Internal Article No.: 25075 CNC Lathe Mazak QT28N Year: 1990 Control: T32-2 Ijdpfxsxxk R Ie Ad Dotp The machine is equipped as follows: - Kitagawa B210 power chuck - Various tool holders - Measuring arm - Oil mist extraction + Machine accessories and documentation (Various top jaws for the power chuck, tool holders and inserts, documentation) Technical data: - Turning diameter: 320 mm - Turning length: 972 mm - Bar work up to max. diameter: 70 mm - Speed range: 30 – 3,000 rpm - Spindle bore: 80 mm - Turret: 8 stations / 16 positions - Turret travel: x-axis: 200 mm z-axis: 1,020 mm - Tailstock travel: 835 mm - Quill taper: MT 5 - Quill stroke: 130 mm - Total connected load: 41 KVA - Machine weight: approx. 5,500 kg - Machine dimensions (LxWxH): approx. 350 x 200 x 200 cm

Condition: ready for operation (used), Year of construction: 2002, General Data Measurements width 2700 mm Measurements depth 4200 mm Measurements height 2650 mm Machine weight 11500 kg Control Unit Brand MAZATROL Model PC-FUSION-CNC Movement X-Axis Movement 560 mm Y-Axis Movement 610 mm Z-Axis Movement 560 mm Additional Equipment Maximum Tool Diameter: 150 mm /Maximum Tool Length: 375 mm/ Maximum Tool Weight: 12 kg Tool Capacity: 64 positions This 4-axis Mazak FH-4800 horizontal machining center was manufactured in 2002. It offers robust and precise machining capabilities, ideal for a variety of applications. Consider the opportunity to buy this Mazak FH-4800 horizontal machining center. Contact us for more information about this machine. Itedexwzx Hopfx Ad Dep Application Types Milling

Condition: used, Year of construction: 2016, travel -x axis 350 mm travel -y axis 550 mm travel -z axis 510 mm travel -A axis -120 / +30 ° Itedpfx Adow Ahyws Djp c-axis 360 ° control MAZATROL Matrix Nexus 2 number of spindle speeds 12.000 U/min numbers of positions in the tool changer 30 tool taper SK 40 weight of the machine ca. 7,0 t 5-axis machining center | MAZAK - VARIAXIS j-500 equipped with internal coolant supply (15 bar) , a swivel axis, and a rotary table (ø 500). The machine has only approx. 4.000 H spindle hours. The machine is in a very well-maintained condition. A machine video from the production plant will be shared on request. Please refer to further technical details in the attachement of the offer. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: VARIAXIS j500 | VARIAXIS j 500 | VARIAXISj500

Condition: good (used), Year of construction: 2014, Swing over bed 660mm, maximum machining diameter 350mm, maximum machining length 1060mm, bar capacity 65mm, spindle speed 5,000rpm, 12 station turret, Mazatrol Smart control, swarf conveyor, & 3 jaw chuck. Itedpfjxup Nbsx Ad Dep

Condition: good (used), Year of construction: 2000, Mazak VTC 200, year of manufacture 2000, Mazatrol 640 M CNC control, travel X/Y/Z 1600/510/510 mm, 30-position tool changer, tool holder SK 40, spindle speed up to 10,000 rpm, coolant system, 3D infrared measuring probe, tool measurement device. Iedsxwukvopfx Ad Dstp

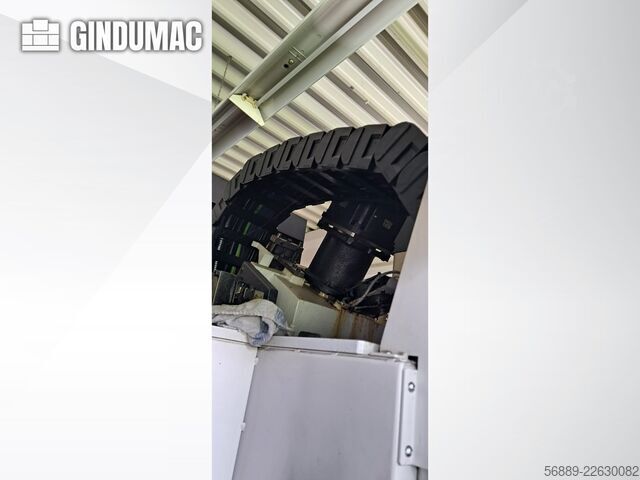

Condition: excellent (used), Year of construction: 2004, MAZAK INTEGREX 200-III ST 5 Axis Turning Centers Lathe, s/n 174623, w/ MAZATROL 640MT Pro Control, 40” Center Distance, 2.5” Bar Capacity, 26” Swing, 26” Turning Diameter, Travels: X-22.83”, Y-6.3”, Z-41.14”, B Axis Head Tilt: 225°, C Axis Index: 0.001°, 5,000 RPM Spindle Speed (Main/Sub), Live Tooling, 12,000 RPM Live Tooling Spindle Speed, 40-ATC, KM63 Taper, Sub Spindle, Oil Matic Oil Temp Regulator, Chip Conveyor Isdpfju A Dglex Ad Djtp

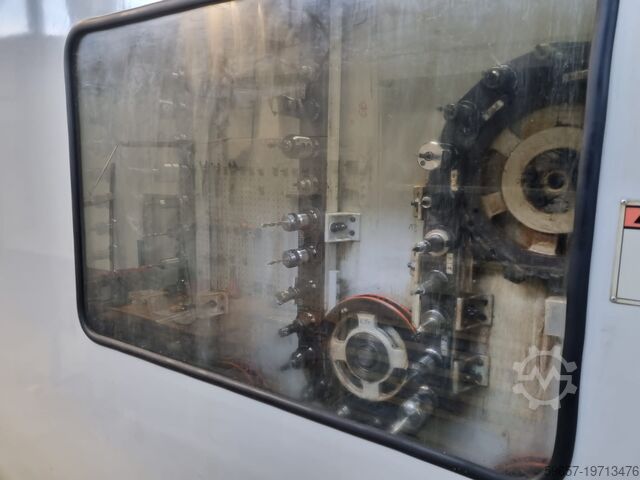

Condition: good (used), Year of construction: 2003, CNC Machining Centre - Horizontal Manufacturer: Mazak Machine Model: FH 5800 Control: Mazatrol Year of manufacture: 2003 Itjdpfx Ajw Hxrfod Dop TECHNICAL DATA Travels - X-axis: (mm) 710 - Y-axis: (mm) 610 - Z-axis: (mm) 660 Rapid traverse X/Y/Z: (m/min) 50 Tool Changer Tool Magazine - Number of tool stations: 120 Pallet System - Number of pallets: 6 - Pallet size: (mm) 500 x 500 EQUIPMENT FEATURES + Chip conveyor + Paper band filter Specifications and technical details subject to change and error.

Condition: ready for operation (used), Year of construction: 2018, Control Unit Brand MAZATROL Itsdpfx Asxwflwod Dop Additional Equipment Workpiece air blast / Air through spindle in running / High pressure coolant system (Europe) / Preparation for chip conveyor (right) Chip conveyor right hand Mayfran / Mazak monitoring system B (RMP60) / Manual pulse generator 1 (detachable) / Ethernet operation function / Signal tower (3 colors lights) This 5-axis Mazak VTC 800/30SR was manufactured in 2018 and features a robust 48-tool magazine, high-pressure coolant system, and a NC rotary table with 360,000 positions. Ideal for complex 5-axis machining with its advanced synchronization and interpolation capabilities. If you are looking to get high-quality milling capabilities consider the Mazak VTC 800/30SR machine we have for sale. Contact us for more information about this machine. Application Types Milling

Condition: used, Year of construction: 2011, Lathe Mazak Quick Turn Smart 300, Year 2011 Control system: Mazatrol Smart Mazak Quick Turn Smart300 Operating hours: Not available Installation dimensions: 5x2.7x2.5 m Maximum turning diameter: 420 mm Year: 2011 Maximum turning length: 560 mm CE certified Drive power: 22 kW Driven tools: No Turret type: 12-station Chuck size: Diameter 250 mm Itedpfx Asw E Eqlod Dep Lathe Mazak Quick Turn Smart 200, Year 2014 Control system: Mazatrol Smart Mazak Quick Turn Smart200 Operating hours: Not available Installation dimensions: 4x2x2.5 m Maximum turning diameter: 350 mm Year: 2014 Maximum turning length: 560 mm CE certified Drive power: 11 kW Driven tools: No Turret type: 12-station Chuck size: Diameter 200 mm

Condition: ready for operation (used), Year of construction: 2016, Control Unit Brand MAZATROL Additional Equipment Coolant Gun / Alarm SMS Modem / Easy Workpiece Airblast / Renishaw TS27R on LHS / Auto Pecking Cycle with Load Detection FITOOL Tip Point Control/Simultaneous 5 Axis / FITOOL Radius Compensation/5 Axis / EIA Dynamic Compensation 2 /3D Co-ordinate Conversation / Ethernet Operation Function / Bicyclindrical Interpolation Ijdpfx Adjxwfl Do Detp This 5-axis Mazak Variaxis i-700 was manufactured in 2016, featuring a 40-tool magazine, high-pressure coolant system, and a spindle speed of 18000 RPM. It includes advanced options like synchronized tapping, Renishaw TS27R probe, and simultaneous 5-axis capabilities. Ideal for complex machining tasks. Contact us for more information about this machine. Application Types Milling

Condition: ready for operation (used), Year of construction: 2020, Control Unit Brand MAZATROL Additional Equipment Itsdpjxwflqsfx Ad Dop Knoll Chip Conveyor Hinge Type 640 5-1 ( Knoll Filter System KF200 1250 / Magnetic Conveyor / Pump "Cover Coolant" 100 L/min 2 Bar / High Pressure Pump 31 L/min 70 Bar / Pump "Flood Coolant" 40 L/min 5 Bar / Electric Switch Cabinet / Coolant Gun This 5-axis Mazak Variaxis i-700 was manufactured in 2020, featuring a 40-tool magazine, high-speed spindle at 18000 RPM, and advanced capabilities like 5-axis radius compensation and 3-D coordinate conversion. Ideal for complex machining tasks, it also includes a Knoll chip conveyor and high-pressure coolant systems. If you are looking to get high-quality milling capabilities consider the Mazak Variaxis i-700 machine we have for sale. Contact us for more information about this machine. Application Types Milling

Condition: ready for operation (used), Year of construction: 2017, Control Unit Brand MAZATROL Movement X-Axis Movement 615 mm Itjdpfx Aoxwflkjd Dsp Y-Axis Movement 260 mm Z-Axis Movement 1585 mm W-Axis Movement 1574 Additional Equipment Overload detection system / M-coolant (equipped) prep M-thru 7MPa / Mazak Monitoring System B (RMP600) / Mazacheck / C-axis through milling head during rotation / M-code to be switched coolant/air thru / Ethernet operation function / B) Cylindrical & Polar Coordinate (EIA) / 5-Axis Machining Package for SmoothX / Signal Tower (3 colors lights, square) / 2nd Spdl C-Ax. Sync (fact. install only) / Raw/tube connection parts til 1 & 2nd spindle / Mayfran, Consep2000 side / Mayfran, Variflow HP Pack #1 (7 variable flow/pressure stages), 7.5 K/ Mayfran, HP Twin in-line cartridge filter upgrade / Mayfran, coolant gun This 5-axis Mazak Integrex i-400S was manufactured in 2017, featuring a 1500 mm bed, 72 Capto-tool magazine, and a Mazak Monitoring System B. It includes a 5-axis machining package for SmoothX and Ethernet operation functionality. If you are looking to get high-quality turn-mill capabilities, consider the Mazak Integrex i-400S machine we have for sale. Contact us for more information. Application Types Turning

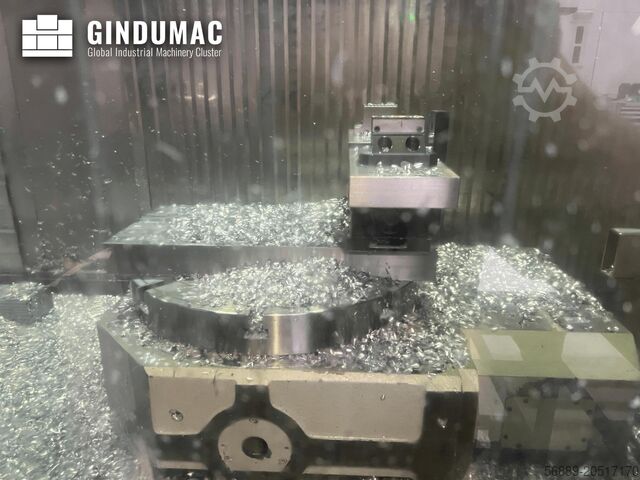

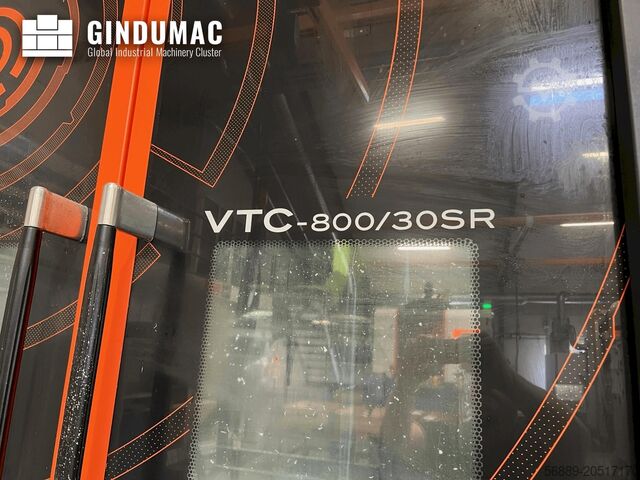

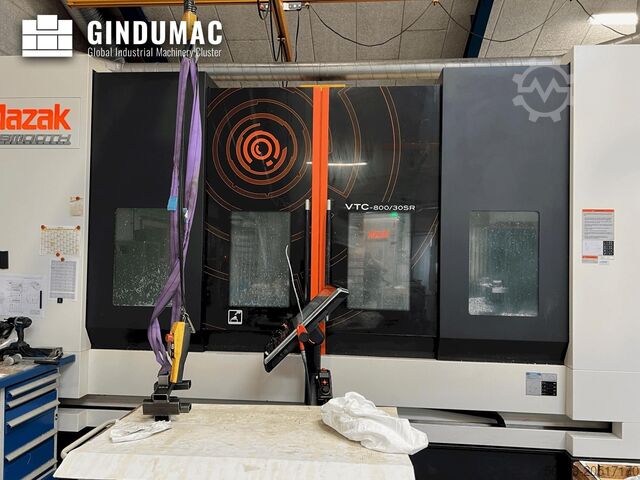

Condition: ready for operation (used), Year of construction: 2012, Control Unit Brand SIEMENS Model 840 D Main Drive Number of axis 4 Itsdpfx Adsxu Rwyj Djp This 4-axis Mazak VTC 800/30SR was manufactured in 2012. It features a high-pressure coolant system at 15 bar, a 48-tool magazine, and dual auto tool length measurement units. Equipped with Siemens software, a Visiport, and an RMP60 probe, it's ideal for precise vertical machining tasks. If you are looking to get high-quality milling capabilities, consider the Mazak VTC 800/30SR machine we have for sale. Contact us for more information. Application Types Milling

Condition: ready for operation (used), Year of construction: 2014, Control Unit Brand SIEMENS Model 840D Main Drive Number of axis 5 This 5-axis Mazak VTC 800/30SR was manufactured in 2014, featuring a robust 155-tool ATC, 15 bar through-spindle coolant, and a KUKA robot for enhanced automation. It includes a technology package for 5-axis milling and a robot interface, making it ideal for complex machining tasks. If you are looking to get high-quality milling capabilities, consider the Mazak VTC 800/30SR machine we have for sale. Contact us for more information about this machine. Application Types Itedpoxu Rwtsfx Ad Djp Milling
