Used Scm Double End Tenoner for sale (581)

Condition: used, Year of construction: 2005, Working area: X=2970 mm / Y=1725 mm Axis travel speeds: X=60 Y=45 Z=25 m/min Weight: 3200 kg Storage location: Nattheim Pgedsw Dcccjpfx Agqow

Condition: used, Year of construction: 2008, IDM Level HD is an industrial single-sided edgebanding center designed for edge processing in standard furniture manufacturing. Pedpfexztmdsx Agqjgw The HD model features a more robust construction, making it suitable wherever consistent edge quality is required at higher feed speeds. This machine enables complete workpiece processing in a single pass—from pre-milling and adhesive application to the final edge refinement. Owing to its modular arrangement of working units, the machine can process ABS/PVC edges as well as veneer. The machine is pre-owned, fully cleaned, inspected, and ready for installation. Technical specification: • Pre-milling unit: 2 counter-rotating motors to trim the leading edge before edgebanding • Gluing unit: EVA glue pot, electronic temperature control • Pressure zone: main pressure roller + additional pressure rollers • End trimming saws: 2 motors, clean trimming of edge ends • Top and bottom trimming units: profiling, precise trimming of ABS/PVC edge • Front corner rounding unit: radius machining of panel corners • Rear corner rounding unit: finishing of corners at workpiece outfeed • Radius scrapers: final smoothing of edge radius • Flat scrapers: finishing of edge surfaces • Buffing unit: 2 discs for final polishing of the edge • Complete extraction system: connection points for all working units • Pneumatic pressures and adjustments: secure workpiece hold and precise regulation • Manual fine adjustment: analog readout wheels and micrometric adjustments for precision set-up

Condition: excellent (used), Year of construction: 2008, functionality: fully functional, MACHINE IS EXCELLENT CONDITION Podevi Rd Tjpfx Agqjgw DAILY WORKING IN THE PRODUCTION max 2-3 hours , MACHINE WILL BE REPLACED WITH BIGGER NEW MACHINE MACHINE IS AWAILIBLE IMEDIATELY. TECHNICAL DATA IS PRESENT ON PHOTOS WE SHIP MACHINE WORLD WIDE FOR THE CUSTOMERS

Condition: new, Multipurpose combination machine with aluminum sliding table for sawing, milling, surface and thickness planing, and optional long-hole boring Torsion-resistant steel and cast iron construction Machine table made of cast iron, hardened and ground Smooth-running anodized aluminum sliding table, 10-year SCM warranty on slideway wear Large crosscut frame with extendable aluminum telescopic fence and flip stops Combination saw and mitre fence with 45° quick adjustment Max. saw blade diameter 315 mm with optional scoring unit, tiltable from 90° to 45° Helical steel feed roller for consistent timber feed during thickness planing Four spindle speeds, manually selectable Standard with forward/reverse spindle rotation Three independent motors for each working unit Sliding table with ball contact system Fitted with the proven million-fold SCM ball contact system Consistently smooth operation due to hardened and ground guides Not susceptible to dust and dirt thanks to minimal contact point between ball and trapezoidal rail The extraction ports for surface and thickness planing are located on the same (right) side, so the same extraction hose can be used for both planing operations. Helical steel infeed rollers for constant and even workpiece feed Massive anti-kickback pawls for operator safety 3-knife cutterblock ensures optimum planing results Crosscut length: 1600 mm Pgjdpfjiiyppsx Agqjw Max. saw blade diameter with scorer: 315 mm Max. cutting height at 90° / 45°: 100/79 mm Max. crosscut width left of blade: 1660 mm Cutting width at rip fence: 800 mm Saw shaft speed: 3500 rpm Saw blade tilt: 90° - 45° Working width: 300 mm Surface table length: 1260 mm Cutterblock diameter / number of knives: 72 mm / 3 pcs Table dimension: 300 x 450 mm Min. / Max. working height: 3 mm / 220 mm Max. stock removal: 4 mm Feed speed: 7 m/min Spindle diameter: 30 mm Usable spindle length: 100 mm Max. retractable tool diameter: 180 mm Spindle speed: 3500/6000/8000 rpm Motor power: 3 x 4 kW, 400 V, 50 Hz Extraction port diameter: 4 x 120 mm Saw blade guard extraction port Ø: 60 mm Weight: 430 kg OPTIONS: - Professional fences EUR 300.-- Saw fence with quick lock and micrometric adjustment Surface planer fence 90° ÷ 45° continuously adjustable - Scoring unit incl. blade EUR 292.-- - Handwheel with digital readout for thickness table positioning EUR 129.-- - Mobility kit EUR 119.-- - 2 additional handwheels for unit adjustment EUR 45.-- - TERSA cutterblock, diameter 72 mm EUR 212.-- - Xylent spiral cutterblock with 3 rows of knives EUR 717.-- - Aluminum long-hole boring device EUR 390.-- - 2 flip stops for crosscut fence EUR 150.--

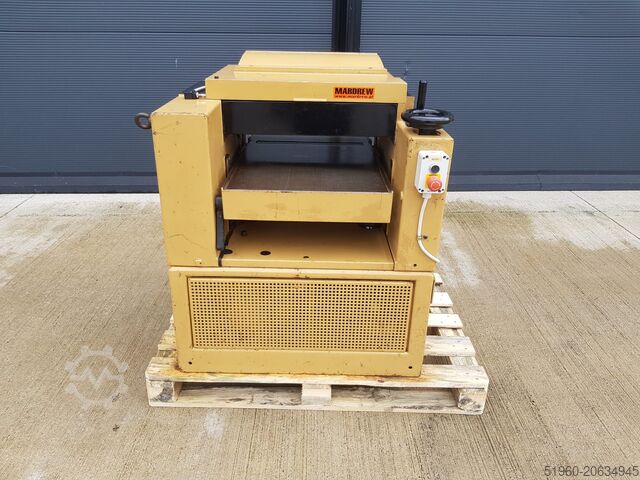

Condition: used, Technical data: Max planing width: 500 mm Max planing height: 200 mm Cutterhead diameter: 120 mm Number of knives: 4 Number of table rollers: 1 Manual lifting Power supply: 400 V Motor power: 4 kW Overall dimensions: Podpexz Dmbefx Agqogw Length: 1100 mm Width: 1000 mm Height: 1050 mm

Condition: good (used), functionality: fully functional, spindle diameter: 30 mm, milling spindle length: 140 mm, height adjustment type: electric, type of input current: three-phase, rotational speed (min.): 3,000 rpm, rotational speed (max.): 10,000 rpm, SCM T130E Spindle Moulder Spindle diameter: 30 mm Spindle length: 140 mm Variable spindle speed: 3000/4500/6000/7000/10000 RPM Main motor power: 7.5 kW Electronic spindle height adjustment via switch 4-roller feed unit Podpfsxzyltox Agqsgw Feed speed adjustment via variator CE certificate DTR technical documentation

Condition: used, Year of construction: 2007, Travel range: X=4400 Y=2195 Z=440 mm Working area in X=3650 mm Y=1560 mm Clearance: 330 mm Electrospindle SCM Power 2000, high speed milling spindle with 13 kW power Rotary axis Vector (C-axis) Cleaning blower for tool on the milling unit Tool holder HSK 63 F Speed range 600 - 24,000 rpm, stepless via inverter Motor power 8.5 kW Tool holders: 6 pcs Tool changer: Rapid 12 (12 positions) Vacuum pump 250 m³/h / 5.5 kW Max. vacuum: 0.9 bar Reference stop at the sides of the table Drilling unit with 11 spindles (7 vertical / 4 horizontal) Control: NUM Series 1000 User interface: XILOG Plus PC Office hardware WINDOWS XP Professional Total connected load: max. 27.5 kW Weight: 5200 kg Storage location: Nattheim Pedpfsw Dcb Ssx Agqjgw

Condition: excellent (used), Year of construction: 2022, operating hours: 41,000 h, functionality: fully functional, SCM edge banding machine equipped with servomotors. In excellent condition, but we are switching to another brand... 12" touchscreen control panel Three spray stations (infeed, central, and polishing outfeed) Servo-driven adjustment of infeed fence Servo-driven adjustment of workpiece height DIA tools (60 mm height) on the pre-milling unit SGP-E glue pot with upper guide End trimming unit with the possibility of R-edge trimming Milling unit with stepless adjustment of R1/R2 radius Scraper unit with stepless adjustment of R1/R2 radius Corner rounding unit with stepless control via the system The machine is still in operation Pgedpfx Agsxy Ht Ujqjw Price negotiation possible...

Condition: like new (used), working width 630 mm stepless feed adjustment 4-knife cutterhead maximum workpiece height 240 mm electric height adjustment 7.5 kW motor star-delta start Pgsdpsxztfysfx Agqjw 380V power supply

Condition: used, heavy-duty surface planer SCM F 520 planing width 520 mm table length 2,960 mm hydraulic height adjustment of infeed table via foot pedal, with micrometer display for chip removal 4-knife safety cutterblock sharp and hollow joint adjustment main motor 4 kW Pgodpfx Agsxzdgueqsw electric motor brake CE version Machine is FULLY FUNCTIONAL and in GOOD CONDITION from vocational school available from stock in Lieboch

Condition: used, Technical data: Max planing width: 630 mm Pgjdpfxexz Dlke Agqow Max planing height: 300 mm Cutterhead diameter: 120 mm Number of knives: 4 Number of feed rollers in the table: Feed speed: 5/8/12/18 m/min Electric height adjustment Extraction port: 150 mm Power supply: 400 V Motor power: 7 kW Overall dimensions: Length: 1280 mm Width: 630 mm Height: 1200 mm

Condition: good (used), Year of construction: 1994, functionality: fully functional, planing width: 630 mm, overall weight: 1,000 kg, planing height: 300 mm, number of blades: 4, number of planer blades: 4, Thickness Planer SCM S630 – Year of Manufacture 1994 For sale is an SCM thickness planer, model S630 with a 7.5 kW motor, in very good condition. Highlights: - Motor: 7.5 kW - Working width: 630 mm - Planing height up to 300 mm - Electric table height adjustment with digital display of clearance height - 4-knife cutterblock with CENTROFIX reversible knife system - 2 x virtually new rubber outfeed rollers - Continuously variable feed speed Pjdpfow S I Ifjx Agqogw - Robust mounting on 4 spindles - Extraction port Ø 150 mm Price: €6,300 net The machine is immediately ready for use and is ideally suited for professional woodworking applications. You will receive an invoice with VAT shown separately. Price ex warehouse Haldensleben. Shipping by freight forwarder possible.

Condition: used, Year of construction: 2012, Basic machine Olimpic K 800 "T-ERL" (47) 1 pc. BASIC EQUIPMENT: - Ribbed steel machine frame with tubular reinforcements for optimal work unit support - Pivoting control panel - Support roller conveyor with ball bushing guides along the entire machine length - Protective and sound-absorbing hood with separate doors between the gluing and finishing units - Extractor nozzles located on the sound-absorbing hood - Electrical system with lockable main switch - Emergency/stop buttons at the inlet and outlet - Inverter for electric spindles. PLATE FEED SYSTEM - Feed chain with rubber glide shoes, mounted on a 1 1/4-inch industrial chain with a high friction coefficient - The chain slides on two guides made of hardened and ground steel, one round and one flat, to guarantee straight feed and protect against lateral misalignment. --- Automatic central lubrication of the feed chain - The upper pressure beam is made of thick-walled steel construction. Complete with double rows of bearing rollers and protective device for the printing rollers - manual lifting of the printing unit with automatic working unit positioning when changing the plate thickness - mech. Digital display for checking the selected panel thickness. ORION 100 CONTROL SYSTEM. Control device complete with PLC, allows fast, easy, and error-free execution of custom processing programs (max. 60 programs). Manages the pneumatic positioning of the units, if present on the machine. (The control system does not include pneumatic positioning). - Alphanumeric keyboard and display - Function keys for quick control of the processing units - Ambient temperature range from 0 to +45° C. MAIN FUNCTIONS - Control of the processing units and automatic activation of the motors - Control and regulation of the glue pot temperature - Selection of longitudinal and transverse processing without program change - Simple and guided diagnostics for easy troubleshooting - Statistics on absolute data and individual processing: number of pieces, edge consumption, total chain feed distance - Unit of measurement selectable in mm or inches. Technical data OLIMPIC K800 T-ER L Edge thickness: 0.4 to 8 mm Max. gluing thickness of the roll edge: 3 mmFeed speed: 12/18 m/minWorking height: 8 to 60 mmMax. dimensions of the edge cut: 135 mm²Turntable diameter: 780 mmMax. oversize compared to the panel thickness: 4 (2+2) mmMin. panel width (with 210 mm min. length): 55 mmMin. panel length (with 100 mm min. width) - with strip or roll edges max. 3 mm: 140 mm - with solid wood edges: 200 mmMin. distance between consecutive panels at 11 (16) m/min: 750 (850) Standard equipment - Pre-milling unit in the infeed RT-E- Gluing station VC-800- Trimming unit KSEL- Flush trimming unit, tiltable RI/800- Rounding unit ROUND K- Scraper unit RAS-V- ½ free space for surface scraper- 1 S free space for surface scraper or Universal milling or buffing unit - 1 free space for air nozzle unit. European safety regulations (C.E. mark). 1 unit. Voltage 400 EU. 1 unit. Frequency 50 Hz. 1 unit. "Autoset" for ER2, T-ERS, and T-ERL models. 1 unit. Allows all necessary adjustments to be made from the control panel for each machining change. Includes: - time-controlled pressure unit - pneumatic and independent pivoting of the mitre saw blades (front/rear) - pneumatic remote adjustment for the RI/800 flush trimming unit. Pgodexq Apgspfx Agqsw

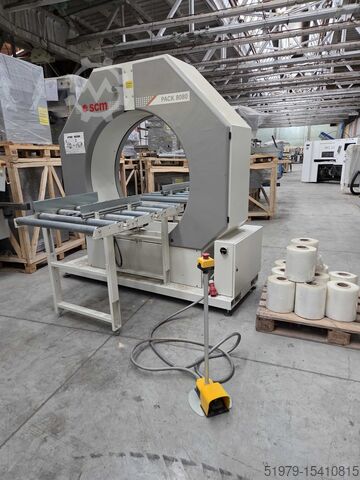

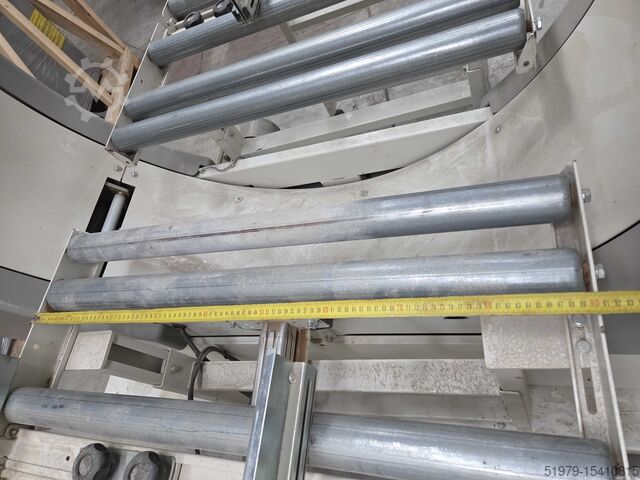

Condition: like new (used), Year of construction: 2012, functionality: fully functional, I sell the horizontal foil wrapping packing machine Producer: SCM GROUP, Italy Model: PACK 8080 Year: 2012 / like NEW, almost not used before Working circle diameter 1300mm. Working tables width 900mm. Feeding manual with tables total length 2,60m Pgedpfx Aer Alx Usgqew Assembled, ready for work. Avialable immediately. On stock.

Condition: excellent (used), functionality: fully functional, cutting width (max.): 1,550 mm, saw blade diameter: 300 mm, SCM SI12 TW combination panel saw and spindle moulder Sliding table length: 1500 mm Scoring unit Vertical adjustment of the spindle Vertical adjustment of the saw blade Blade angle adjustment up to 45 degrees Cutting width right: 1450 mm Maximum blade diameter: 300 mm Spindle moulder diameter: 35 mm Spindle speeds: 3000/4500/6000/8000/10000 rpm Pgodpoxzcmtefx Agqow Saw speed: 4000 rpm Spindle motor power: 4 kW Saw motor power: 4 kW

Condition: used, Technical data: Working width: 900 mm 1 calibration unit Roller diameter: 120 mm 2 calibration unit Pgedpfx Agsxz An Roqew Roller diameter: 120 mm Workpiece height: 160 mm Extraction outlet diameter: 2 x 160 mm Electric height adjustment Emergency stop switch Main motor power: 9 kW Voltage: 380 V Overall dimensions: Length: 1550 mm Width: 1460 mm Height: 1800 mm

Condition: used, Year of construction: 2022, Sliding table: 3200 mm, cutting width: 1000 mm, CNC parallel fence, scoring unit, angle stop with digital display, electro-motorically tiltable and height adjustable, control panel at eye level. Storage location: Nattheim. Pedpfxoxqtvqe Agqsgw

Condition: excellent (used), SCM P64 four-sided planer Technical specifications: Max planing width: 190 mm Max planing height: 120 mm Diameter of the spindles: 35 mm Number of spindles: 4 Order of spindles: bottom 5.5 kW right + left 5.5 kW top 5.5 kW Gear pulling shafts: 3 Pgsdpsvafdpefx Agqsw Extraction spigot diameter: 150 mm Feed on gimbals Working table lubrication pump Electric lifting of the body Power supply: 400 V Overall dimensions: Length: 3500 mm Width: 1230 mm Height: 1730 mm

Condition: used, Year of construction: 2023, Exhibition machine Garbsen HORIZONTAL PANEL SAW GABBIANI P Manufacturer: SCM Type: GABBIANI P80 Year of manufacture: 2023 1 unit MAIN FEATURES INDIVIDUALLY SELECTABLE AIR CUSHION TABLES: AN INDISPENSABLE TOOL SIDE SAFETY DEVICES: MORE SPACE FOR WORKING FLOATING GRIPPERS: GUARANTEED PERFECT CUT TECHNICAL DATA GENERAL INFORMATION gabbiani p80 Saw blade projection mm 80 Working table height mm 950 Standard number of grippers 5 Number of grippers for versions 33/38/43 9 / 10 / 10 Number of grippers for versions 33/38/43 with FlexCut 1 unit (single gripper with double fingers included) 10 / 11 / 11 CUTTING DIMENSIONS Version 33 mm 3300x2100 Version 33 (Opt.) mm 3300x3200 Version 38 mm 3800x3200 Version 38 (Opt.) mm 3800x3800 Version 43 mm 4300x3200 Version 43 (Opt.) mm 4300x4300 AXIS SPEED Variable saw carriage speed m/min 6 – 60 Variable pusher speed () m/min 60 MAIN SAW BLADE Motor power (S6 -40%) - 50hz (star-delta start) kW (HP) 7 (9) (11) Speed – 50 hz rpm 4650 Saw blade diameter mm 340 Shaft diameter main saw blade mm 80 SCORING BLADE Motor power (S6 -40%) - 50hz kW (HP) 1.5 (2) Speed – 50 hz rpm 5850 Scoring blade diameter mm 200 Shaft diameter scoring blade mm 80 INSTALLATION Installed power kW 12÷15 Base machine voltage Euro voltage (400 V / 50 hz) Compressed air demand NL/min 300 Required compressed air pressure bar 7 Extraction air requirement m3/h 2440 Extraction air speed m/sec 20 Extraction port diameter mm 4x120 () Note: in countries where EU standards apply, the forward pusher feed speed is limited to 25 m/min. GENERAL CHARACTERISTICS Fully automatic, PC/PLC-controlled horizontal panel saw suitable for cutting solid wood, MDF, chipboard, plywood, and similar materials. Frame and working table – Machine frame is a steel tube construction – Working table of rib-reinforced steel with Bakelite coating – Longitudinal fence on the left side Saw carriage made of steel, consisting of: – a motor for the main saw blade and a motor for the scoring blade – vertical lifting of the saw blade on linear ball bearing guides and shoes – running rollers of hardened and ground steel – balanced mass distribution for optimal cut quality – running direction towards the longitudinal fence – saw carriage drive via rack and pinion – carriage travel on cylinder guides – cylinder guides of hardened and ground steel (5-year warranty), protected by special dust wipers – pneumatic switch for fast and safe main and scoring blade change Pressure beam – pressure beam with uniform pressure across the entire cut length, recesses to prevent collision with grippers; pneumatic height adjustment via high-precision rack and pinion, pressure adjustable from 1.5 to 6 bar – dual extraction system with one unit above the pressure beam for cleaning the work table and one unit below on the saw carriage – side automatic aligner with pneumatic cylinder over the entire length. Sliding on linear ball bearing guides and shoes. * Travel distance: 1200 mm * minimum working width: 60 mm * maximum working width: 1200 mm Positioning pusher and rear part of the machine – Positioning pusher full length, powered by a robust drive shaft. Positioning pusher control... Pgjdexyl U Repfx Agqjw

Condition: used, Technical data: Max. saw blade diameter: 400 mm Min. saw blade diameter: 250 mm Pgodpoxzq U Sefx Agqow Saw spindle diameter: 30 mm Scoring unit Manual saw blade height adjustment Tilting saw blade from 0° to 45° Manual saw blade tilt adjustment Sliding table length: 3300 mm Worktable: 1200x700 mm Table height: 840 mm Table extensions: 510 mm Extraction nozzle diameter: 110 mm Fence: 900 mm Ruler length: 2200 mm Power supply: 400 V Main motor power: 4 kW Overall dimensions: Length: 3300 mm Width: 3500 mm Height: 845 mm

Condition: used, Year of construction: 2016, TECHNICAL DATA AXES Max. workpiece dimensions X-Y-Z mm 3050 x 800 x 50 Min. workpiece dimensions X-Y-Z mm 300 x 90 x 10 Drilling/slotting working area mm 0 x 800/0 x 800 X axis stroke mm 750 Max. travel speed of X-Y axes m/min 25 DRILLING UNIT Vertical spindles Number 7 (4X-4Y one common) Horizontal spindles (along the Y axis) Number 2 (1+1) Horizontal spindles (along the X axis) Number 1 Fixed grooving saw (direction) X Grooving saw diameter mm 100 Max. grooving saw thickness mm 5 Motor power kW (HP) 1.5 (2) Spindle speed rpm 3350 Grooving saw speed rpm 4300 INSTALLATION Power supply V (Hz) 380 / 400 (50 / 60) Installed power KVA 4.5 Compressed air requirement bar 6 Compressed air consumption Nl/cycle 90 Extraction requirement m3 / h 1200 Extraction air speed m / sec 20 Extraction nozzle diameter mm 80+80 F10L Drilling unit Includes: - 7 independent vertical spindles - Drill chuck D10 mm - Distance between spindles 32 mm - 2 horizontal drilling heads, 1 in X direction with one drill, 1 double drilling head in Y direction (1 + 1 drill chuck D10 mm) - Speed 3350 rpm - 1 integrated sawing unit in X (max. Diameter 100 mm) - Saw blade speed 4300 rpm - Motor power 1.5 kW - Vertical pneumatic travel per spindle 70 mm - Horizontal pneumatic travel of the drilling unit. Positioning of the workpiece and drive of the work unit: A CNC-controlled suction cup clamps the workpiece and positions it sequentially under the work unit during machining. Movement in the X and Y axes takes place on THK guides with transmission to reinforced toothed rails. Movement in the Z axis is pneumatically controlled on ball-bushing guides with adjustable stop positioning. The positioning of the work units is carried out using technology and drives with DC motors. CNC CONTROL The control system was specially developed for use in drilling and milling machines. CN - 7" color screen with touchscreen function - Alphanumeric keyboard - Self-diagnosis and any error messages or malfunctions that may occur, in the operator's language Programming - Programming via the CN - Automatic optimization of drilling operations - Option of plate zero point shift - Option of saving and importing drilling programs via USB dongle - Option of importing drilling programs from CAD-CAM external software Configuration - User interface in the same language as the instruction manual Graphic representation of the unit configuration Vacuum suction cups "B-Power Vacuum suction cups with double vacuum connection, recommended for particularly porous panels (e.g. MDF light). Machine user interface software Xilog Maestro USB Hardware and software requirements: - Operating system: Windows XP Professional (SP2), Windows Vista or Windows 7 - Processor: Intel compatible, 2GHz min; Multicore processor recommended - Memory capacity: 1GB min., recommended 2GB - Free disk space: 5GB - Graphic card: Compatible OpenGL (The code includes a DVD for installation and a USB key) Xilog Maestro Features Programming - Parametric, graphic programming - Assisted programming with graphic and syntax help for drilling operations - Possibility to create and save machining macros Integrated additional functions - Self-diagnosis and possible error messages or malfunctions, in the operator's language - User interface in Pgjdpfovvi I Rox Agqow

Condition: used, Year of construction: 2018, Startech cn MAIN FEATURES FLEXIBLE AND CUSTOMIZED PRODUCTION COMBINED WITH SPEED AND PRECISION DRILLING FROM ABOVE WITH REFERENCE TO THE TOP OF THE PLATE ALLOWS ABSOLUTELY PRECISION MACHINING NUMERICAL CONTROL WITH 7" COLOR SCREEN: SIMPLE AND INTUITIVE TECHNICAL DATA Startech CN AXES Max. workpiece dimensions X-Y-Z mm 3050 x 800 x 50 Min. workpiece dimensions X-Y-Z mm 300 x 90 x 10 Drilling/slotting work area mm 0 x 800/0 x 800 X-axis stroke mm 750 Max. travel speed of the X-Y axes m / min 25 DRILLING UNIT Vertical spindles number 7 (4X-4Y one of them common) Horizontal spindles (along the Y axis) Number 2 (1+1) Horizontal spindles (along the X axis) Number 1 Fixed groove saw (direction) X Diameter of the groove saw mm 100 Max. thickness of the groove saw mm 5 Motor power kW (HP) 1.5 (2) Spindle speed rpm 3350 Speed of the groove saw rpm 4300 INSTALLATION Power supply V (Hz) 380 / 400 (50 / 60) Installed power KVA 4.5 Compressed air demand bar 6 Compressed air consumption Nl/cycle 90 Extraction demand m3 / h 1200 Extraction air speed m / sec 20 Extraction nozzle diameter mm 120 GENERAL CHARACTERISTICS Universal CNC drilling machine with work table with fixed gantry and movable workpiece for performing the following machining operations: - Vertical drilling on the panel surface - Horizontal drilling on all four sides of the workpiece - Groove Milling with integrated groove saw in the "X" direction. Self-supporting structure. Machine frame made of tubular steel to provide a large base for the work table. The structure is positioned on three self-leveling feet. The electrical control cabinet is integrated into the machine frame. "Easy Motion" central Bakelite support table: - an MDF sector for through-hole drilling, automatically pivoting for horizontal drilling - an infeed roller that facilitates panel loading - a rear roller conveyor that facilitates panel sliding - left and right stops - a central aligner with manual adjustment. The left and right stops are required to drill the two opposite sides of the panel horizontally in the "X" direction. Panel positioning along the X axis is achieved by means of suction cups. Unit support. This is a gantry structure made of tubular steel. The main machining unit is installed on the gantry. F10L drilling unit includes: - 7 independent vertical spindles - Drill chuck D10 mm - Distance between spindles 32 mm - 2 horizontal drilling heads, 1 in X direction with a single drill, 1 double drilling head in Y direction (1 + 1 drill chuck D10 mm) - Speed 3350 rpm - 1 integrated sawing unit in X (max. diameter 100 mm) - Saw blade speed 4300 rpm - Motor power 1.5 kW - Vertical pneumatic travel per spindle 70 mm - Horizontal pneumatic travel of the drilling unit Positioning of the workpiece and drive of the machining unit A CNC-controlled suction cup clamps the workpiece and positions it sequentially under the machining unit during machining. The movement in X and Y axis is carried out on THK guides with transmission on reinforced toothed Movement in Z axis is carried out pneumatically on "ball-bushing" guides with positioning on stop adjustable via the positioning of the working units is carried out via technology and drives with -CONTROL The control was specially developed for use Pgjdpfsvwbp Aex Agqsw

Condition: used, Year of construction: 2011, Working size in X-direction: 2770 mm Working size in Y-direction: 1220 mm Working thickness (Z-dimension): 80 mm Machine design: Gantry-type machine Main spindle power: 11.0 kW Main spindle speed: 1500 - 24000 rpm Vector controlled spindle: Yes Clamping system: HSK 63 F Spindle cooling: Air cooling Number of axes: 3 Tool changer: Yes Tool changer positions: 10 Pgjdpsvvi Htjfx Agqjw Keyboard: Yes Mouse: Yes Programming system: Xilog Plus DXF interface: Yes Online connection possible: Yes CD-ROM drive: Yes Table type: Matrix table Stop system: Stop cylinders Number of vacuum pumps: 1 Vacuum pump capacity: 250 m³/h Safety: Safety tread mats Storage location: Sonnefeld

Condition: used, Year of construction: 2004, Storage location: Nattheim Pgodsvvi Hyjpfx Agqew

Condition: used, Year of construction: 2020, CNC-CONTROLLED MACHINING CENTER WITH MULTIFUNCTIONAL TABLE - WORK CELL VERSIONX400 CELLDrilling and milling made for you!The numerically controlled machining center is equipped with a wide range of milling/drilling tools to meet every need in the processing of wood and similar materials.- More powerful, with drilling spindles with 8,000 rpm and . Technology, the toughest spindle available on the market, with over 1,000 maintenance-free hours of use. Better and more comprehensively equipped, with various configuration options thanks to the multifunctional table to optimally equip the machine according to your needs. Easier and more understandable programming thanks to the integrated MAESTRO CNC CAD-CAM module. Easier to use: the work table is accessible at all times, the electrical cabinet and vacuum pump are integrated, and in the PRO SPACE configuration there are no guards. Supporting structure. The supporting structure consists of a particularly strong monolithic steel base, heavily ribbed and very rigid. The particularly wide support was specifically designed to give the machine stability, ensuring consistent precision regardless of the working conditions and eliminating the need to anchor the machine to the floor. The base forms a large and solid support for the mobile column: the work unit is thus equipped with a balanced, stable, and durable support that can withstand the most extreme stresses, ensuring higher quality performance and greater precision. The mobile gantry consists of a single, solid unit anchored to the base on both sides and slides on pyrotechnic guides with top-quality ball-return slides. The dual motorization along the X-axis ensures top performance even under demanding working conditions. The movement of the lower moving unit (X-axis) and the working unit along the rod of the moving unit (Y-axis) is achieved thanks to a rack/pinion transmission with helical teeth. this creates a greater tooth-to-tooth thrust which achieves greater acceleration and greater speed along the X and Y axes. The specially designed helical gearing ensures less wear on the mechanical components and less noise. The vertical Z axis is driven by a screw with ball return which ensures perfect balance with dynamic loading and strong acceleration and deceleration. The main milling unit is directly coupled to the Z axis carriage and ensures absolute quality of finishes as any vibrations are completely eliminated. Translation along the X-Y-Z axes is carried out by brushless motors driven by static inverters; These ensure: - Reduced processing times thanks to improved acceleration - Better positioning accuracy thanks to the high-resolution encoder - Zeroing of setup operations when switching on the machine thanks to absolute encoders - Zeroing of general maintenance operations since there are no brushes with the "brushless" system The management of the axis displacement and, in general, of the machine's working elements is carried out by an industrial NS module with digital D Pgsdpfx Ajvvi N Isgqew
