Used Doosan Machining Center for sale (312)

Condition: good (used), Year of construction: 2008, Table size 1600 x 750 mm, table load 1500 kgs, Traverses XYZ 1525 x 762 x 625 mm, rapid feedrates 24m/min, Spindle power 18.5 Kw, spindle speed 6,000rpm, 40 station ATC, spindle taper BT50, Isdpfx Aoxwytcogqoa through spindle coolant, swarf conveyor, Fanuc 21i control.

Condition: like new (used), Year of construction: 2022, Year of manufacture: 2022 New FANUC touch control system 12,000 rpm Iodpfxexggcie Agqea 2x Renishaw probes BT 40 High-pressure through-spindle cooling Travel (X / Y / Z): 770 / 410 / 510 mm Table: 920 x 410 mm Maximum spindle speed: 12,000 rpm Tool magazine: 30 positions NC system: DN SOLUTIONS Fanuc i Plus

Condition: excellent (used), Year of construction: 2021, functionality: fully functional, machine/vehicle number: MV0092-002171, travel distance X-axis: 1,300 mm, travel distance Y-axis: 670 mm, travel distance Z-axis: 625 mm, rapid traverse X-axis: 36 m/min, rapid traverse Y-axis: 36 m/min, rapid traverse Z-axis: 30 m/min, table width: 1,500 mm, table length: 670 mm, table load: 1,300 kg, spindle speed (max.): 12,000 rpm, spindle motor power: 18,500 W, number of slots in tool magazine: 30, For sale a used CNC milling machine DOOSAN DNM6700 in very good condition. The machine is only 4 years old and still looks and works great. The reason for sale is unifying all the company machines DOOSAN DNM 6700 – Technical Specifications X-axis travel: 1300 mm Y-axis travel: 670 mm Z-axis travel: 625 mm Rapid Traverse Rates X-axis: 36 m/min Y-axis: 36 m/min Z-axis: 30 m/min Servo Motors X / Y / Z: 3 kW each Table Table size: 1500 × 670 mm Max table load: 1300 kg T-slots: 4 × 125 mm, 18 H8 Spindle Motor (continuous / 10 min): 11 / 18.5 kW Spindle speed: 12,000 rpm Max spindle torque: 118 Nm Taper: ISO 40, 7/24 (BIG-PLUS BT40 in equipment list) Iedpoxzgcrefx Agqoa Tool Changer Tool magazine type: CAM-type Capacity: 30 tools Tool holder: BIG PLUS BT40 Max tool Ø: 80 mm (125 mm with adjacent pockets empty) Max tool length: 300 mm Max tool weight: 8 kg Tool-to-tool change: 1.3 s Chip-to-chip: 3.9 s Coolant System Tank capacity: 325 L Pump: 0.25 kW, 0.04 MPa, 150 L/min LUBRICATION: Tank capacity: 1.4 L Pump output: 1.67 MPa × 0.15 L/min (60 Hz) Air & Power Requirements Air: 0.54 MPa × 250 NL/min Power: 3-phase, AC 220 V, 60 Hz, 42.55 kVA DIMENSIONS: Footprint: 2597 × 3350 mm Height: 3100 mm Weight: 8500 kg CONTROL: -FANUC STANDARD EQUIPMENT: Hydraulic unit Cooling system Work light Door interlock Leveling pads Operator 3-color signal lamp Screw-type chip evacuation system Parameter manual & operation manual Chip conveyor + coolant tank & chip tray (from expanded equipment list) EXTRA OPTIONS: 15" screen Preparation for 4th axis Through-spindle coolant 20 bar (3.7 kW, 2.0 MPa) Spindle head cooling system Oil skimmer Absolute position encoder Spindle 12,000 rpm CAM-type 30-tool magazine

Condition: refurbished (used), Year of construction: 2006, travel distance X-axis: 1,020 mm, travel distance Y-axis: 510 mm, travel distance Z-axis: 625 mm, rapid traverse X-axis: 36,000 m/min, rapid traverse Y-axis: 36,000 m/min, rapid traverse Z-axis: 32,000 m/min, controller manufacturer: FANUC, controller model: Series 0i-MC, spindle speed (max.): 12,000 rpm, spindle motor power: 18 W, BRAND: DOOSAN-DAEWOO MODEL: MYNX NM-510 CATEGORY: VERTICAL MACHINING CENTERS YEAR OF MANUFACTURE: 2006 CNC CONTROL: FANUC Series 0i-MC MACHINE WEIGHT: 7,500 kg MACHINE DIMENSIONS: - Length: 4,165 mm - Width: 2,600 mm - Height: 3,043 mm Spindle Spindle taper: ISO 40 Spindle speed: 12,000 rpm Spindle motor power (cont./30 min): 15 / 18.5 kW Working Capacity X axis: 1,020 mm Y axis: 510 mm Z axis: 625 mm Distance spindle nose – table surface: 150 – 775 mm Distance spindle center – column: 557 mm Table Table dimensions: 1,200 x 500 mm Table load capacity: 800 kg Feed Rates Rapid traverse (X/Y/Z axes): 36,000 / 36,000 / 32,000 mm/min Cutting feed rate (X/Y/Z axes, linear interpolation, max): 8,000 mm/min Tool Changer Iodsxxlmwopfx Agqsa Tool holder taper: DIN 69871-A40 Shank: DIN 69872-A40 Tool magazine capacity: 30 stations Maximum tool diameter (adjacent tools full/empty): Ø 90 / Ø 150 mm Maximum tool length: 300 mm Maximum tool weight: 8 kg Accessories Coolant tray + high pressure pump (15 bar) with through-spindle coolant Chip conveyor Spindle line air conditioner + transformer Manuals, electrical diagrams, and CE Declaration

Condition: like new (used), Year of construction: 2019, functionality: fully functional, machine/vehicle number: MV0098-000226, travel distance X-axis: 520 mm, travel distance Y-axis: 360 mm, travel distance Z-axis: 350 mm, rapid traverse X-axis: 48 m/min, rapid traverse Y-axis: 48 m/min, rapid traverse Z-axis: 56 m/min, nominal power (apparent): 16 kVA, controller manufacturer: FANUC, workpiece weight (max.): 200 kg, spindle speed (max.): 12,000 rpm, operating hours of spindle: 200 h, number of slots in tool magazine: 21, tool diameter: 200 mm, input voltage: 380 V, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, The machine is in perfect condition, with only 200 spindle hours since new. It never had a collision. It is possible to inspect the machine under power and verify its geometry. Free packaging and loading on truck. Iodpfsxpuwmjx Agqsa Included in the package: 3D probing system Tool measurement probe (the stylus is damaged — we can replace it) Through-spindle coolant (TSC) Chip conveyor 21-tool magazine

Condition: excellent (used), Year of construction: 2001, functionality: fully functional, travel distance X-axis: 1,020 mm, travel distance Y-axis: 510 mm, travel distance Z-axis: 625 mm, controller manufacturer: Fanuc, controller model: 21-M, table width: 1,200 mm, table length: 500 mm, overall weight: 7,800 kg, spindle speed (max.): 8,000 rpm, 3-axis machining center Manufacturer: Daewoo Doosan Model: Mynx 500 Year of manufacture: 2001 Control: Fanuc 21-M S/N: XXXXX Spindle hours: n/a Technical data: ----- - Table size: 1,200 x 500 mm Iedpfsxvd T Dox Agqea - Travels X-Y-Z: 1,020 x 510 x 625 mm - Spindle: 8,000 rpm with spindle oil cooler - Tool holder: SK40 - Tool magazine with 24 stations - Coolant through spindle: yes - Chip conveyor - Central lubrication - Footprint (LxWxH): 3.20 x 2.35 x 2.70 m - Weight: approx. 7.8 t Accessories: ----- - Documentation - Handwheel - Coolant gun

Condition: good (used), Year of construction: 2009, Traverses XYZ 850 x 700 x 750 mm, Pallet size 500 x 500mm, pallet load 500 kgs, 60 ATC, BT40 spindle taper, Ijdewq Iwxjpfx Agqea Fanuc 31i- control. Spindle power 22Kw, B axis 0.001 Degrees, 14000 rpm spindle, swarf conveyor, Through Spindle Coolant.

Condition: excellent (used), Year of construction: 2008, functionality: fully functional, travel distance X-axis: 1,020 mm, travel distance Y-axis: 510 mm, travel distance Z-axis: 510 mm, rapid traverse X-axis: 36 m/min, rapid traverse Y-axis: 36 m/min, rapid traverse Z-axis: 30 m/min, controller manufacturer: Fanuc, controller model: Oi-MC, workpiece weight (max.): 800 kg, total height: 2,700 mm, total length: 4,080 mm, total width: 2,400 mm, table width: 510 mm, table length: 1,200 mm, table load: 800 kg, overall weight: 7,000 kg, spindle speed (max.): 12,000 rpm, coolant supply: 15 bar, spindle motor power: 15,000 W, spindle nose: BT40, number of spindles: 1, number of slots in tool magazine: 30, type of input current: three-phase, Equipment: chip conveyor, rotational speed infinitely variable, Doosan NM510 Vertical Machining Centre Machine Type: 3 Axis Vertical Machining Centre Year: 2008 Control: Fanuc Series Oi-MC Condition: Very Good Includes Swarf Conveyor Chiller MCF20 Coolant Filter Autolube 6 x Tool Holders Notes Vice and clamping block in photos not included Technical Specifications Table Size: 1200 x 510mm Table Load: 800kg Travel (X-Axis): 1020mm Travel (Y-Axis): 510mm Travel (Z-Axis): 510mm Max Spindle Speed: 12,000rpm Spindle Power: 18.5/15/11kW Spindle Taper: BT 40 Rapid Traverse (X/Y/Z): 36/36/30m/min Tool Storage Capacity: 30 tools Tool Change Time (T-T/C-C): 1.7/3.5sec Machine Dimensions: 4080 x 2400 x 2700mm Machine Weight: 7,000kg Iedpfxsv Iq Ezo Agqsa

Condition: used, Year of construction: 2022, DOOSAN DNM 4500 Year of Manufacture: 2022 Control: Siemens 828D touch screen 2x Renishaw probes 12,000 rpm max Through-spindle cooling Travel in X axis: 800 mm Iedpoxq Rbwefx Agqsa Travel in Y axis: 450 mm Travel in Z axis: 510 mm Maximum workpiece weight: 600 kg Tool magazine: 30 positions SK40 - 2x Renishaw probes - Chip conveyor - Coolant tank with pump - Documentation

Condition: refurbished (used), Year of construction: 2004, functionality: fully functional, travel distance X-axis: 1,300 mm, travel distance Y-axis: 650 mm, travel distance Z-axis: 625 mm, rapid traverse X-axis: 24,000 m/min, rapid traverse Y-axis: 24,000 m/min, rapid traverse Z-axis: 20,000 m/min, controller manufacturer: FANUC, controller model: Series 21i-MB, table load: 1,000 kg, spindle speed (max.): 8,000 rpm, spindle motor power: 15 W, BRAND: DAEWOO MODEL: MYNX 650 CATEGORY: VERTICAL MACHINING CENTRES YEAR OF MANUFACTURE: 08/2004 CNC CONTROL: FANUC SERIES 21i-MB MACHINE WEIGHT: 6,500 kg MACHINE DIMENSIONS: Length: 4,110 mm / Width: 3,190 mm / Height: 3,100 mm Spindle: Spindle taper: ISO 40 Spindle speed: 8,000 rpm Spindle motor power (cont./30 min): 11/15 kW Working Capacity: X-axis: 1,300 mm Y-axis: 650 mm Z-axis: 625 mm Distance spindle centre–table top: 75 / 775 mm Distance spindle nose–table centre: 150 / 775 mm Table: Table size: 1,400 x 650 mm Table load capacity: 1,000 kg Feed Rates: Rapid traverse X / Y axes: 24,000 mm/min Rapid traverse Z axis: 20,000 mm/min Cutting feedrate X/Y/Z axes (linear interpolation): max. 8,000 mm/min Tool Changer: Tool taper: DIN 69871-A40 Shank: DIN 69872-A40 Tool magazine capacity: 30 stations Max. adjacent tool diameter: Ø 90 mm Max. alternate tool diameter: Ø 150 mm Maximum tool length: 300 mm Maximum tool weight: 8 kg Other: Manuals, electrical diagrams, and CE Declaration Chip conveyor, coolant tank (300 L) Automatic high-pressure cooling system through the spindle line at 20 bar Ijdpfx Agjxxlifoqoa Transformer MACHINE OVERHAULS PERFORMED: - New Y-axis ball screw, including bearing replacement - X-axis ball screw overhauled, including bearing replacement - Complete overhaul of anti-friction material (Turcite B) on X and Y axes - Complete spindle line overhaul with belt, seal, and bearing replacement - Complete replacement of X and Y axis lubrication system - Complete internal repainting and Lexan replacement - Full overhaul of telescopic covers on X/Y/Z axes

Condition: like new (used), Year of construction: 2019, operating hours: 253 h, functionality: fully functional, travel distance X-axis: 800 mm, travel distance Y-axis: 450 mm, travel distance Z-axis: 510 mm, table load: 600 kg, spindle speed (max.): 12,000 rpm, Machining centre from year 2019 with only 253 cutting hours! TECHNICAL DETAILS Travels Travel X: 800 mm Travel Y: 450 mm Travel Z: 510 mm Rapid traverses Rapid traverse X: 36 m/min Rapid traverse Y: 36 m/min Rapid traverse Z: 30 m/min Ijdpfoxlip Nox Agqoa Worktable Worktable dimensions: 1,000 x 450 mm Maximum table load: 600 kg Spindle Head: 12,000 rpm BT 40 Tool changer: 30 positions Rotary axis 4th axis: Tsudakoma Rotary axis diameter: 160 mm MACHINE DETAILS Control: Fanuc iSeries Operating hours Cutting hours: 253 h Operating hours: 300 h EQUIPMENT Chip conveyor

Condition: as good as new (ex-display), Year of construction: 2016, GANTRY MILLING MACHINE / DOUBLE COLUMN MACHINING CENTER DOOSAN TECHNICAL SPECIFICATIONS – IN GOOD CONDITION and fully operational Brand: Doosan Model: BM 2740 CNC: Fanuc 31 Year: 2016 X: 4000 mm Y: 2700 mm Z: 800 mm Spindle taper: BT50 – 10,000 rpm Tool magazine: 30 positions ATC PRICE AND FURTHER INFORMATION ON REQUEST. (CNC, SIEMENS, HASS, LAGUN, FAGOR, CINCINNATI, HEIDENHAIN, MACHINING, PINACHO, MORI SEIKI, MILLING MACHINE, LATHE, GRINDER, BORING MACHINE, PRESS, LASER, SHEAR, PRESS BRAKES) Ijdpfovnrndox Agqoa

Condition: used, Year of construction: 2012, machine/vehicle number: MB0001-000031, travel distance X-axis: 2,000 mm, travel distance Y-axis: 1,500 mm, travel distance Z-axis: 1,200 mm, rapid traverse X-axis: 12 m/min, rapid traverse Y-axis: 12 m/min, rapid traverse Z-axis: 12 m/min, feed length Y-axis: 6 mm, feed rate X-axis: 6 m/min, feed rate Y-axis: 6 m/min, feed rate Z-axis: 6 m/min, controller manufacturer: FANUC, controller model: 32i Model A, workpiece diameter (max.): 2,550 mm, workpiece weight (max.): 7,000 kg, total height: 4,200 mm, total length: 5,540 mm, total width: 5,930 mm, table width: 1,400 mm, table length: 1,600 mm, overall weight: 29,000 kg, spindle speed (max.): 3,000 rpm, distance table center to spindle nose: 1,750 mm, spindle motor power: 26 W, spindle nose: BT50, number of slots in tool magazine: 60, tool length: 600 mm, tool diameter: 250 mm, tool weight: 30 g, B Axis: 1 degree Control: FANUC 32i-Model A Distance from Spindle Nose to Table Top: 0 - 1500mm Distance from Spindle Nose to Table Centre: 550 - 1750mm Machine Dimensions: 5540 x 5930 x 4200mm Machine Weight: 29000kg Maximum Cutting Feedrate: 6m/minute Maximum Tool Diameter: 250mm Maximum Tool Length: 600mm Maximum Tool Weight: 30kg Maximum workpiece weight: 7000kg Rapid Feedrates: WXYZ: 6 x 12 x 12 x 12m/minute Spindle Diameter: 110mm Spindle Motor Power: 26/22kW Spindle Speed: 3000rpm Isdpfxsxm Sxve Agqea Swing: 2550mm Table Size: 1400 x 1600mm Tool Change Capacity: 60 Station Tool Size: BT50 Traverses XYZ: 2000 x 1500 x 1200mm W Axis: 500mm Coolant, Low Volt Light, Swarf Conveyor, Long Reach Right Angled Milling Head, Tool Length Measurement Probe, Renishaw Work Probe, Fully Enclosed machine guards.

Condition: good (used), Year of construction: 2008, Brand : DOOSAN Model : MYNX 750 Type : VERTICAL Cnc: FANUC 21 iMB Hours : 7.300 h Table size : 1600 x 750 mm X Travel : 1500 mm Iodpfot H Nbuox Agqja Y Travel : 760 mm Z Travel : 650 mm Spindle speed: 12.000 rpm Taper type: BT 40 Number of tools: 30 Equipped with chip conveyor

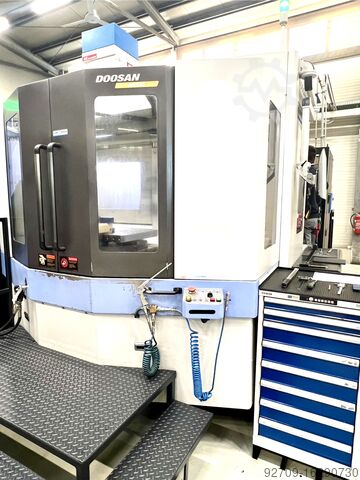

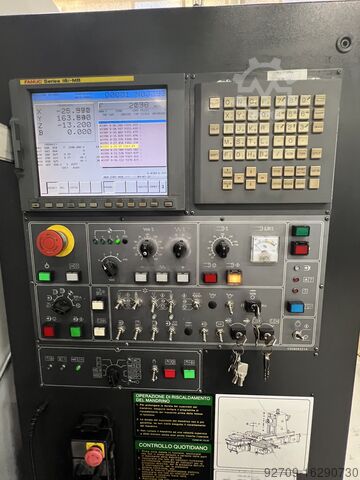

Condition: excellent (used), Year of construction: 2008, functionality: fully functional, CNC Fanuc 18i - MB TRAVELS: X axis: mm 850 Y axis: mm 700 Z axis: mm 750 Distance from spindle center to pallet top: mm 50 - 750 Distance from spindle nose to table center: mm 150 - 900 TABLE: Pallet size: mm 500 x 500 Pallet loading capacity: kg 500 Pallet surface: 24 – M16 x P 2.0 Pallet index degree: deg 1 SPINDLE: Max spindle speed: Rpm 14.000 Spindle taper: ISO 40 Max spindle torque (25% ED): Nm 220,5 FEEDRATE: Rapid traverse rate (X, Y, Z): m/min 60 Cutting feedrate: mm/min 30.000 AUTOMATIC TOOL CHANGER: Type of tool shank: MAS403 BT40 Tool storage capacity: 120 Max tool length: mm 400 Max tool weight: kg 10 Method of tool selection: Fixed address Tool change time (tool-to-tool): sec 1 Tool change time (chip-to-chip): sec 3,5 AUTOMATIC PALLET CHANGER: Number of pallet: 7 Type: Rotary shuttle Pallet change time: sec 7,5 Pallet rotation in loading station: deg 90 MOTOR: Spindle motor (30 min): kW 18,5 / 22 Feed motor (X, Y, Z, B): kW 7,0/7,0/7,0/2,7 MACHINE SIZE: Machine height: mm 3.000 Machine dimension: mm 5.600 x 2.700 Ijdpevw Uyusfx Agqea Machine weight: kg 15.000 Machine equipped with: • High pressure through the spindle 35 bar • Chip conveyor • Instruction manuals and CE declaration

Condition: refurbished (used), Year of construction: 2010, functionality: fully functional, travel distance X-axis: 1,300 mm, travel distance Y-axis: 650 mm, travel distance Z-axis: 625 mm, rapid traverse X-axis: 36,000 m/min, rapid traverse Y-axis: 36,000 m/min, rapid traverse Z-axis: 30,000 m/min, controller manufacturer: HEIDENHAIN iTNC-530, controller model: iTNC-530, spindle speed (max.): 10,000 rpm, spindle motor power: 22 W, BRAND: DOOSAN MODEL: VM-640 CATEGORY: VERTICAL MACHINING CENTERS YEAR OF MANUFACTURE: 11/2010 CNC CONTROL: HEIDENHAIN ITNC-530 MACHINE WEIGHT: 9,000 kg MACHINE DIMENSIONS: Length: 4,200 mm; Depth: 2,800 mm; Height: 2,900 mm Spindle Taper size: ISO-40 Spindle speed: 12,000 rpm Spindle motor power (cont./30 min.): 18.5/22 kW Working Capacity X axis: 1,300 mm Y axis: 650 mm Z axis: 625 mm Distance spindle nose – table surface: 150 ÷ 775 mm Table Table dimensions: 1,400 x 650 mm Maximum table load: 1,000 kg Feed Rates Rapid traverse (X / Y axes): 36,000 mm/min Rapid traverse (Z axis): 30,000 mm/min Working feedrates (X / Y / Z axes): 1 ÷ 15,000 mm/min Tool Changer Tool taper: DIN 69871 – A40 Shank: DIN 69872 – A40 Tool magazine capacity: 30 stations Max. tool diameter (adjacent stations full/empty): Ø 90 / Ø 150 mm Max. tool width: 300 mm Max. tool weight: 8 kg Other Equipment Chip conveyor Coolant tank with wash pumps High-pressure coolant pump through spindle Spindle line air conditioning unit Transformer Manuals, Electrical Schematics, and CE Declaration Iedpfxexxlfye Agqea The following maintenance has been performed on the machine: - X axis ballscrew overhauled and bearings replaced - Geometry recovered with hand-scraping of Turcite on X/Y axes - Complete internal repaint and Lexan replacement - Complete overhaul of X/Y/Z axis telescopic covers - Lubrication system overhauled

Condition: excellent (used), Vertical machining center model Doosan DNM 400 II available from the end of September, year 2014, in excellent condition. Equipped with Fanuc CNC, high-pressure pump, 12,000 rpm spindle in perfect condition, DIN40, 30 tools, automatic doors, tank with LNS chip conveyor. Roller guideways. Iodpfow Uk I Hsx Agqea

Condition: used, TECHNICAL DETAILS - Number of axes : 5 MILLING SPINDLE - Tool holder type : BT40 - Spindle power : 24/32 [kW] - Spindle speeds : 12000 [rpm] - Number of spindle hours : 9122 [h] LINEAR AXES - Travels on X/Y/Z axes : 650/765/520 [mm] - Rapid traverses rates (X/Y/Z) : 40/40/36 [m/min] - Cutting feed rates (X/Y/Z) : 18/18/18 [m/min] A ROTARY AXIS - Travel : 150 [°] (+/-) - Rapid traverse rate : 20 [rpm] - Cutting feed rate : 7200 [mm/min] B ROTARY AXIS - Travel : 360 [°] (+/-) - Indexing precision : 0.001 [°] - Rapid traverse rate : 30 [rpm] - Cutting feed rate : 7200 [mm/min] TOOL CHANGER - Auto. Tool Changer type : Bras chargeur - Tool magazine capacity : 120 - Tool exchange time : 1 [sec] TABLE - Table dimensions : 500 X 500 [mm] - Maximum weight upon table : 500 [kg] - Distance table / spindle nose (min./max.) : 160/680 [mm] PALLET CHANGER - Pallet size : 500 x 500 [mm] - Pallets number : 2 - Pallet exchange time : 30 [sec] POWER SUPPLY - Total installed power : 54 [kW] MACHINE HOURS - Number of hours under power : 24226 [h] - Number of working hours : 9122 [h] EQUIPMENT - CNC : Heidenhain TNC530 - Interface : RS232 / USB / PCMCIA - Electronic handwheel - 3 colors status lamp - Coolant tank * with high-pressure pump : 20 [bars] Iodsuhbz Uopfx Agqea - Coolant through spindle - Chips conveyor - Spindle cooling unit - Tool probe : Renishaw - Electric transformer

Condition: good (used), Year of construction: 2013, Traverses X Y Z: 1020 x 540 x 535mm, Table 1200 x 540mm, Spindle speed 8000 rpm, Spindle taper BT50, Spindle Motor 20kW, FANUC I series Control, 24 Station ATC, through spindle coolant, swarf conveyor, Low Volt light. Iedpfxjxv Udgj Agqja

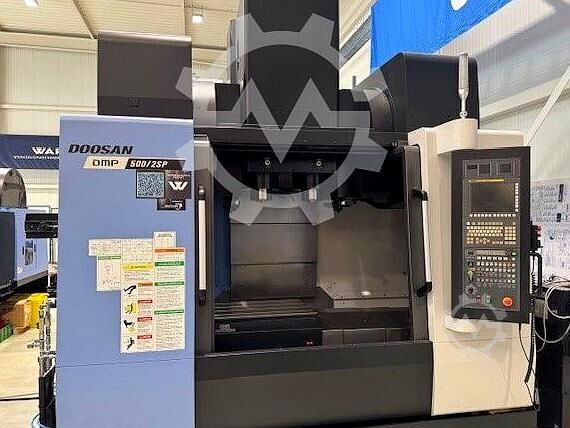

Condition: as good as new (ex-display), Year of construction: 2017, operating hours: 1,649 h, functionality: fully functional, machine/vehicle number: MV0108-000036, travel distance X-axis: 1,040 mm, travel distance Y-axis: 520 mm, travel distance Z-axis: 600 mm, workpiece weight (max.): 800 kg, table width: 1,200 mm, table length: 520 mm, spindle speed (max.): 12,000 rpm, number of slots in tool magazine: 60, CNC machining center for mass production of small parts featuring two vertical spindles (operating in parallel) TECHNICAL DETAILS Travel X-axis: 1,040 mm Travel Y-axis: 520 mm Travel Z-axis: 600 mm W-axis: 20 mm Rapid traverse X-axis: 40 m/min Rapid traverse Y-axis: 40 m/min Rapid traverse Z-axis: 36 m/min Spindle Type: ISO #40, 7/24 Taper Torque: 117.8 Nm Spindle speed: 12,000 rpm Spindle motor power: 11 - 18.5 kW Spindle orientation: Built-in sensor Drive type: Direct drive Work table Isdpfsw Ucx Rex Agqja Table surface: T-slots (4-125 x 18H8) Table size: 1,200 x 520 mm Maximum workpiece height: 680 mm Maximum workpiece weight: 800 kg Distance spindle to table: 150 - 750 mm Automatic Tool Changer Tool holder: MAS403 BT 40 Number of tool stations: 2 x 30 Tool selection: Memory Random Max. tool diameter: 80 mm Max. tool diameter (with adjacent stations empty): 150 mm Max. tool length: 300 mm Max. tool weight: 8 kg Max. tool tightening torque: 5.88 Nm Tool-to-tool change time: 1.7 s Chip-to-chip time: 3.5 s MACHINE DETAILS Power supply: 380 V Rated power: 60 kVA Full load current: 105 A Short-circuit capacity: 5 kA Overall height: 3,510 mm Overall length: 2,400 mm Overall width: 2,750 mm Total weight: 8,500 kg EQUIPMENT - Control: FANUC - W-axis for tool length setting - Distance between spindle centers: 400 mm - Two tool changers with 30 tools each - Tool holder: BIGPLUS BT 40 - High-pressure through-spindle coolant: 2 MPa and 4 kW - Tool breakage monitoring - Portable handwheel - 4th axis preparation

Condition: good (used), Year of construction: 2009, travel distance X-axis: 1,250 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 1,000 mm, table width: 800 mm, table length: 800 mm, Year of manufacture: 2007 and 2009 XYZ travel: 1250 x 1000 x 1000 mm B axis: 360 x 1 degree Pallet size: 800 x 800 mm Tool holder: SK 50 Spindle speed: 6000 rpm Magazine: 60 positions IKZ (internal coolant supply) Technical machine data: - Maximum workpiece height: 1200 mm - Number of magazine positions: 60 - Tool holder: A50, DIN 69871 B, max. tool length: 550 mm - Max. tool diameter: 250 mm / with free adjacent space, max. tool weight: 25 kg - Macro package - Tool offsets: 200 - Fanuc 18 - Extractor - Hinged belt chip conveyor Iedjw Rd S Ropfx Agqja - Machines have 20,000 and 25,000 cutting hours - Number of pallets: 2 - Weight: 21,000 kg

Condition: excellent (used), Year of construction: 2023, operating hours: 1,260 h, functionality: fully functional, Doosan Puma DNM 5700 Isdow Tni Eepfx Agqsa Control system: Heidenhain TNC 620 Clamping area of table: 1300x570 mm Travel X-axis: 1050 mm Travel Y-axis: 570 mm Travel Z-axis: 510 mm Spindle speed: 0 - 12,000 rpm Number of driven axes: 4 Coolant pressure: 20 bar Spindle taper: SK 40 Max. load of table: 1,000 kg Tool magazine: YES Number of magazine positions: 30 Machine weight: 6,500 kg Measurement probe Operating hours: 1,260 h

Condition: excellent (used), Year of construction: 2011, axis stroke (X,Y,Z) 742 x 435 x 510 mm Number of spindle head vertical / St. Number of spindles head horizontal / St. The DOOSAN DNM 400 is a vertical CNC machining center designed for precise Iedpfowmxflox Agqoa milling operations in metalworking. It is particularly suitable for small to medium-sized workpieces and offers a solid combination of performance, accuracy and reliability. All technical documents for the machine are available and included. Accessories included. Control: HEIDENHAIN iTNC 530 Travel ranges X-axis: 742 mm Y-axis: 435 mm Z-axis: 510 mm Rapid traverse X-axis: 36 m/min Y-axis: 36 m/min Z-axis: 30 m/min Max. cutting feedrate: 1~15,000 mm/min Ball screw (Diameter × Lead) X-axis: 40 × P12 mm Y-axis: 40 × P12 mm Z-axis: 40 × P10 mm Accuracy Positioning accuracy: ±0.005 mm over the full stroke Repeatability: ±0.002 mm Table size: 920 × 435 mm Min./Max. spindle-to-table distance: 150~660 mm Max. table load: 600 kgf Table surface configuration: 4-125 × 15H8 Max. workpiece height: 465 mm

Condition: good (used), Year of construction: 2016, Traverses X Y Z; 1300 x 670 x 625mm, Table size 1500 x 670mm, maximum table load 1300 kgs. min-max height spindle to table 150-775mm, spindle speed 12,000rpm, spindle taper BT40, Ijdpfxexwytvj Agqoa 30 station ATC spindle power 18.5 Kw, Fanuc i series control, Through spindle coolant,4th axis Table

Condition: good (used), Year of construction: 2010, Traverses XYZ: 1020 x 540 x 510mm, table size 1200 x 540mm, Iodjxzt Hwjpfx Agqja ISO40 spindle taper, spindle speed 12000 rpm, FANUC i Control, spindle motor power 15kW, 30 station ATC with side arm, Through Spindle Coolant, Low Volt Light, Swarf conveyor, with 4th axis.
