Used Hyundai Cnc Lathe for sale (135)

Condition: good (used), Year of construction: 2014, Maximum turning diameter 800mm, maximum swing 890mm, maximum turning length 800mm, table power 30Kw, table speed 2,000 rpm, Milling power 7.5Kw, milling speed 3,000rpm, C axis 0.001 degrees, 12 station turret, Fanuc Series 32i, tool setter, coolant, tooling and swarf conveyor. Lslhcev Enwisdwxeri

Condition: excellent (used), Year of construction: 2014, Functionality: fully functional, PRODUCTION DATE 10.2014 WORKING TIME 56527 hdzoin CONTROL FANUC 0I-TD MACHINE MAIN PARAMETERS CHUCK DIAMETER Ø210 mm MAX. TURNING DIAMETER Ø355 mm MAX. TURNING LENGTH 440 mm SPINDLE PASSAGE DIAMETER Ø65 mm Ljlhcjv Ezc Sjdwxjri MAX. SPINDLE SPEED 4000 rpm SPINDLE POWER MAX/CONTINUOUS 15/11 kW TORQUE MAX/CONTINUOUS 286/210 Nm TRAVEL X/Z 220/440 mm RAPID FEED X/Z 36/36 m/min COOLING 20 bar TAILSTOCK TAPER MT4 TRAVEL 400 mm TOOL HEAD NUMBER OF TOOLS 12 pcs. HOLDER SIZE FROM 25X25 mm HOLDER SIZE ID Ø40 mm TOOL CHANGE TIME 0.2 s/step DIMENSIONS WEIGHT 4400 Kg SPACE OCCUPIED width/depth 2760/1685 mm MEDIA MAX. POWER CONSUMPTION 25 kVA

Condition: used, TECHNICAL DETAILS - Number of axes : 2 MAIN SPINDLE - Spindle nose : A2-6 - Spindle power : 15 [kW] - Spindle speeds : 4000 [rpm] - Max. bar diameter : 65 [mm] - Max. turning diameter : 410 [mm] - Max. diameter on bench : 550 [mm] TURRET - Number of positions : 12 - X/Z stroke : 210 / 430 [mm] POWER SUPPLY - Supply voltage : 380 [V] - Total installed power : 21 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 2.405 x 1.650 [mm] - Machine height : 1.870 [mm] - Machine weight : 4100 [kg] Ljlhcouhbnujdwxsri MACHINE HOURS - Number of hours under power : 13865 [h] - Number of working hours : 1216 [h] EQUIPMENT - CNC : Fanuc i Series - Chips conveyor - Bar loader : LNS ALPHA 552 - Electric transformer

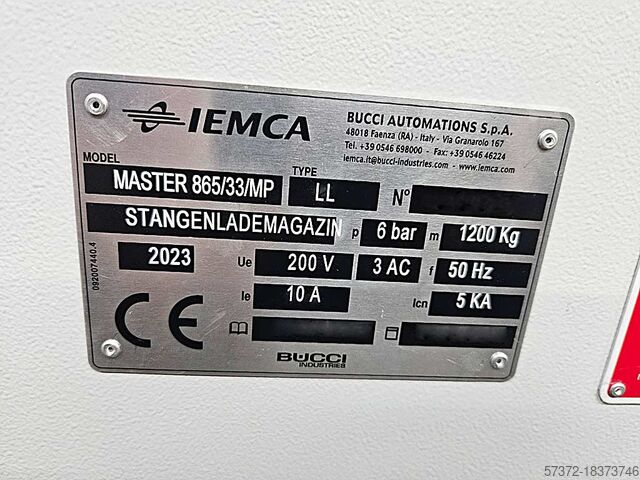

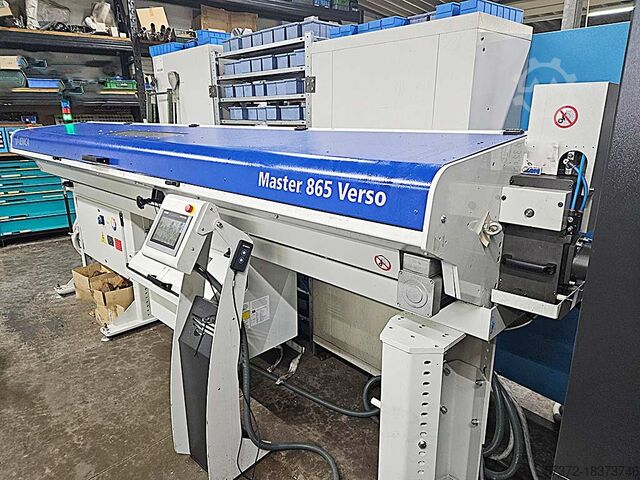

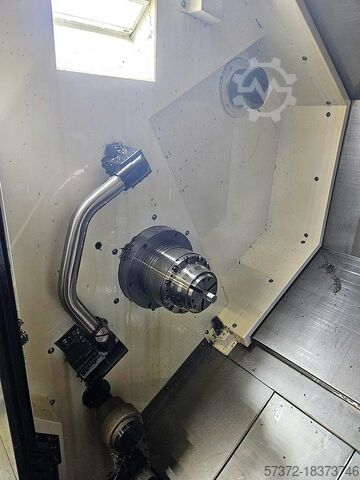

Condition: ready for operation (used), A CNC double-spindle lathe Hyundai with a new bar loader Iemca (Bucci) is available. 1) CNC lathe Hyundai HD2200 SY, turning diameter: 300mm, turning length: 610mm, spindle passage: 65mm, speed: 4000rpm, power: 18.5kW, chuck size: 8 inch, counter spindle passage: 52mm, speed: 6000rpm, chuck size: 5 inch, Y-axis: +/-55mm, tool positions: 24, rapid traverse X/Y/Z: 24m/10m/30m/min, operating hours: 3330h, manufactured parts: 44478. 2) Bar loader Iemca (Bucci) Master 865/33/Mp, year of manufacture: 2023, round bar diameter range: 8mm-65mm, hexagonal bars: 7mm-55mm, square bars: 10mm-45mm, bar length range: 800mm-4300mm, remaining piece length with diameter below 65mm min./max.: 110mm/400mm. Documentation available. On-site inspection is possible. Lrolevu Ddwehcdwxji

Condition: new, turning length: 2,070 mm, turning diameter: 600 mm, spindle speed (max.): 1,500 rpm, spindle motor power: 18 W, total height: 1,950 mm, Equipment: rotational speed infinitely variable, The HYUNDAI Wia L5100LY has excellent rigidity through the use of a wedge-shaped Y-axis. Specialized in heavy machining through the use of a main spindle with 2-stage gear (max. torque 2,990 N·m) High rigidity through flat guides and a turning length of 2,070 mm. Powerful large BMT 75 turret. Lelhevwizgjcdwxjri

Condition: used, Year of construction: 2018, turning diameter 300 mm Ljlhcdet Tq Ehjwxori turning length 900 mm control Fanuc total power requirement kW weight of the machine ca. t dimensions of the machine ca. m

Condition: excellent (used), Year of construction: 2018, Swing over carriage 355mm, Bar capacity 65mm, Maximum machining diameter 310mm, Maximum cutting length 521mm, Spindle speed 4,000 rpm, Milling speed 5,000rpm, C axis 0.001 degrees, spindle power 22/18.5 Kw, Ljlhcdwerztr Rjxori 12 station turret, Fanuc 32i control, swarf conveyor, tool setter , 3 jaw chuck

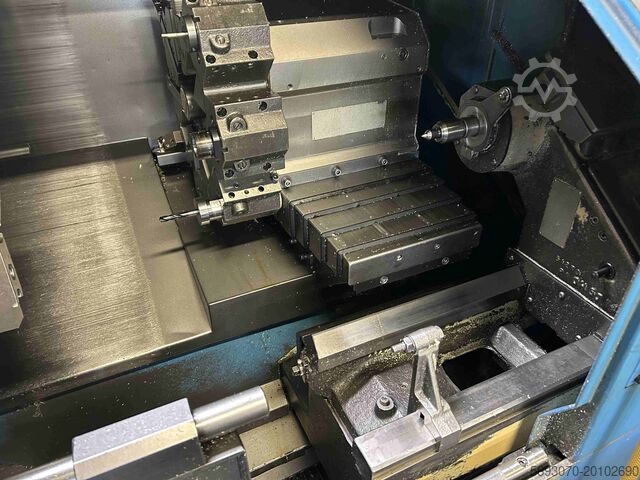

Condition: good (used), Year of construction: 1998, Functionality: fully functional, turning length: 500 mm, Lathe Hyundai HIT-S18 Control Siemens 840 C Lroleviunpshcdwxei Year of construction 1998 Chip conveyor 8-position turret 3 jaw chucks Fully automatic tool presetter Travels X 180 mm Z 510 mm Turning diameter 254 mm Turning length 500 mm Spindle speed 3600 rpm

Condition: excellent (used), Year of construction: 2018, For sale is a Hyundai WIA L300A lathe. Flat guides in X and Z, very accurate and extremely stable machine. -Siemens control: Shopturn -Max turning diameter: 500mm -Max swing diameter: 750mm -turning length: 720mm -spindle nose: A2-8 -bar capacity: 76mm -Turret: 12 positions -Drill rod holder for 50mm drill rods -External turning tool for 25mm square shank Three-jaw chuck: 250mm -Quill MK5 Main spindle, 2-stage gearbox: 750 NM torque -USB interface -Tool measuring arm -Chip conveyor -Coolant pump 6 bar -Bar loader interface Prepared -Signal light -Air conditioning system for control cabinet Lrolhcstu Hvdsdwxoi -Weight 6300Kg A special tool is currently still installed. (These are the hydraulic lines and rotary transfer above and in the middle of the turret). This will be removed before the sale. Just like the special tool holders... the original holders are in storage with us and will be sent with the machine... these are all unused. The machine has produced turned parts in series. Only fits turned with 0.025mm tolerance on a length of 180mm. We have 3 of these machines, as the series only runs in small quantities, we have decided to sell one of the 3 machines. The machine will be cleaned properly before loading...

Year of construction: 2000, Condition: excellent (used), Machine-Details Stock-No. 1105-03830 Type of machine CNC Lathe Make HYUNDAI Type HIT 20 M Year of manufacture 2000 Type of control CNC Storage location FRANKREICH Country of origin KORREA Lslhcdjki Uzdjwxeri Delivery time immediately Freight basis ex stock Price Technical details turning diameter 325 mm turning length 400 mm control SIEMENS 810 D greates pass round over bed 500 mm travel -x axis 215 mm travel -z axis 420 mm rapid speed 24 m/min turning speed range 30 - 4500 U/min tool turret 12 FACH VDI40 spindle bore 52 mm taper in tailstock-quill MK 4 tailstock quill diameter 80 mm tailstock quill stroke 130 mm power capacity 15 kW voltage 380 V/ 50 Hz total power requirement 23,5 kVA weight of the machine ca. 4.5 t Additional information 3 AXIS LATHE - control:SIEMENS 810 D - hydraulic 3-jaw chuck Ø 204 mm - tail stock - div. tool holder WITH MOOWING TOOLS - coolant equipment

Condition: new, turning length: 200 mm, turning diameter: 300 mm, spindle speed (max.): 4,000 rpm, spindle motor power: 18 W, total height: 1,950 mm, Equipment: rotational speed infinitely variable, Hyundai WIA LF2600M QuickII front turning center Lelhcdsrqfk Hswxeri Fanuc 31i-B 2x spindle, machining Ø300mm x 200mm, drive power 18,5KW, rpm 4000 2x turret BMT55, 12 stations each, driven tools 7.4 KW Portal loader R/L with turning station 2x stocker R/L with 14 pallets each, parts Ø200mm x 450mm tool breakage control

Condition: good (used), Year of construction: 2018, Swing over carriage 390mm, Bar capacity 65mm, Maximum machining diameter 335mm, Lrolhcderbh Ubowxji Maximum cutting length 455mm, Spindle speed 4,500 rpm, Milling speed 5,000rpm, Y axis -/+ 50mm, C axis 0.001 degrees, spindle power 15/11 Kw, 12 station turret, Fanuc 32i control, parts catcher, swarf conveyor, tool setter , 3 jaw chuck.

Condition: new, turning length: 670 mm, turning diameter: 230 mm, spindle bore: 65 mm, spindle speed (max.): 5,000 rpm, travel distance X-axis: 165 mm, travel distance Y-axis: 100 mm, travel distance Z-axis: 660 mm, spindle motor power: 22 W, total height: 2,100 mm, total length: 3,600 mm, total width: 2,000 mm, Equipment: rotational speed infinitely variable, CNC lathe with 2 turrets and counter spindle and Y-axis Ljljrkk Raehcdwxeri

Condition: new, turning length: 610 mm, turning diameter: 300 mm, spindle bore: 65 mm, spindle speed (max.): 4,000 rpm, travel distance X-axis: 215 mm, travel distance Y-axis: 110 mm, travel distance Z-axis: 680 mm, spindle motor power: 18 W, total height: 1,820 mm, total length: 3,000 mm, total width: 1,650 mm, power: 0.001 kW (0.00 HP), Equipment: rotational speed infinitely variable, new machine Lrolhjrdvddjcdwxji

Condition: new, turning length: 610 mm, turning diameter: 300 mm, spindle bore: 65 mm, spindle speed (max.): 3,500 rpm, travel distance X-axis: 215 mm, travel distance Y-axis: 110 mm, travel distance Z-axis: 680 mm, spindle motor power: 18 W, total height: 1,950 mm, total length: 3,400 mm, total width: 1,650 mm, Equipment: rotational speed infinitely variable, new machine Lrelhcdsrdvfmewxji

Condition: excellent (used), Year of construction: 2012, USED HYUNDAI-WIA KBN135 - YOM 2012 FIRST INSTALLED 2014 HEAVY DUTY, HIGH QUALITY, TRAVELLING TABLE LIVE SPINDLE CNC BORING & MILLING MACHINE WITH HARDENED & GROUND BOX GUIDEWAYS MACHINE CONSTRUCTION & FEATURES  ONE PIECE HEAVY DUTY CAST IRON BED CONSTRUCTION FOR HIGH ACCURACY & RIGIDITY.  INFEEDING COLUMN, CROSS BED DESIGN FOR INCREASED ACCURACY & LOAD CARRYING CHARACTERISTICS.  LINEAR AXIS & ROTARY B AXIS MEASUREMENT SCALES FOR HIGH PRECISION MACHINING.  HEAVY DUTY 3 SPEED HIGH TORQUE MAIN SPINDLE.  HEAVY DUTY HARDENED & GROUND BOX GUIDEWAYS FOR INCREASED STABILITY & RIGIDITY.  PRE-TENSIONED DOUBLE ANCHORED BALLSCREWS.  W-AXIS TRAVEL 700 MM WITH 135 MM HIGH TORQUE SPINDLE.  NOTE: TOOLING, FIXTURE PACKAGE & COGSDILL CH CONTOURING & BORING HEADS AVAILABLE BY SEPARATE NEGOTIATION INCLUDED FACTORY FITTED MACHINE OPTIONS  ATC - AUTOMATIC TOOL CHANGER - 40 STATION  CHIP - BUCKET STANDARD  ATC – HEAVY TOOLS 30 KGS  CNC.OP – MANUAL GUIDE-I (NC FANUC 31i)  CHIP – CONVEYOR SIDE HINGED  CS – THROUGH SPINDLE COOLANT SYSTEM 15 BAR  GUA – COOLANT PROTECTION COVER  GUA – SURROUND FENCE  GUA – TABLE GUARD CE SPEC  POW – 50 KVA TRANSFORMER AND CABLE  SPGB – SPINDLE MOTOR – 22.0 / 26.0 KW  SPGB – SPINDLE SPEED 2,000 RPM  MS – LINEAR SCALES X, Y & Z AXES  MS – NCRT ENCODER TABLE Working Surface 2,000 x 1,800 MM Lrjlhcevaz Svjdwxsi Maximum Table Load 10,000 KGS Minimum Indexing Angle 0.001° TRAVERSES X-Axis 3,000 MM Y-Axis 2,000 MM Z-Axis 1,600 MM W-Axis 700 MM Distance from Column to Spindle Centre 0 ~ 2,000 MM Distance from Table Surface to Spindle Centre 800 ~ 2,400 MM SPINDLE Spindle Quill Diameter Ø 135 MM Spindle Nose Taper #50 Spindle Speed 2,000 RPM Spindle Drive Method 3 STEPPED GEAR FEED Maximum Cutting Feed rate 4,000 MM / MIN Rapid Traverse (X-Axis) 8 M / MIN Rapid Traverse (Y-Axis) 8 M / MIN Rapid Traverse (Z-Axis) 8 M / MIN Rapid Traverse (W-Axis) 8 M / MIN Slide Type HARDENED & GROUND BOX GUIDEWAYS ATC Tool Storage Capacity 40 Maximum Tool Weight 30.0 KGS Maximum Tool Size Ø 130 X 600 MM Maximum Tool Size (no adjacent tool) Ø 260 X 600 MM Tool Shank BT-50 3 | Page Tool Selection Method FIXED ADDRESS MOTOR Spindle Drive Motor (Fanuc) (Max/Cont.) 22.0 / 18.5 KW TANK CAPACITY Coolant Tank 400 L Lubricating Tank 8.5 L Hydraulic Tank 200 L POWER SUPPLY Electric Power Consumption 64 KVA Air Consumption (0.5MPa) 250 LITRE / MIN Voltage 415V / 50HZ / 3PH Thickness of Power Cable OVER 50 MM² MACHINE Floor Space (L x W) 6,320 x 6,900 MM Height 4,800 MM Weight 37,200 KGS

Condition: excellent (used), Year of construction: 2019, ### Technical Data F660M #### Machine Specifications  - Table Size (L × W): 1600 × 650 mm (62.99 × 25.99 in)  - Travels:    - X-Axis: 1400 mm (55.1 in)    - Y-Axis: 660 mm (26 in)    - Z-Axis (Spindle Stroke): 635 mm (25 in)  - Spindle:    - Speed: 45–15,000 rpm    - Taper: NT40    - Power: 26 kW (34.8 HP)    - Bearings: Super-precision deep groove ball bearings (front), cylindrical roller bearings (rear)  - Speeds:    - High-Speed:      - X/Y: 36 m/min (1417.3 ipm) - Z: 30 m/min (1181.1 ipm) - Feed rate (cutting): 1–15,000 mm/min - Accuracy: - Positioning accuracy: ±5 µm over the entire travel range - Repeatability: ±2 µm - Tool changer (ATC) - Capacity: 24 tools (standard), 30 tools (option) - Tool dimensions (max.): - Diameter: Ø95 mm (3.74 in) - Length: 250 mm (9.84 in) - Weight: 8 kg (17.6 lbs) - Changeover times: - Tool-to-tool: 2.6 seconds Chip-to-chip: 6.6 seconds #### Installation - Dimensions (L × W × H): 3500 × 2560 × 3021 mm (137 × 100.8 × 118.9 in) - Weight: 9,500 kg (20,944 lbs) - Floor load: ≥7 tons/m² - Concrete foundation: Minimum thickness 600 mm Lelhcdwsv Rfnpsxjri #### Drives and Pumps - Servomotors: - X/Y-axis: 3.1 kW (4.16 HP) - Z-axis: 3.1 kW (4.16 HP) - Pumps: - Coolant pump: 250 W (0.33 HP) - Flushing pump: 400 W (0.53 HP) - Lubrication pump: 50 W (0.07 HP) #### Power supply - Mains voltage: AC 220 V ±10%, 3-phase, 60 Hz - Power requirement: 45 kVA - Fuse: 150 A #### Accessories (standard) - 24-station ATC (twin arm), coolant system (350 l), spindle cooling, control panel (SIEMENS 828D), tool set, protective cover. #### Options - Oil bath cooling, broken tool detection, 30-axis ATC (ARM type), spindle power upgrade (22/26 kW). #### Notes - Specifications are subject to change without notice. - Installation may only be carried out by authorized personnel.

Condition: used, Technical details: x-travel: 800 mm y-travel: 460 mm z-travel: 620 mm control: YASNAC-J50M table-size: 1100 x 460 mm table load capacity: 800 kg tool taper: BT40 Revolution per minute: 30 - 10 000 U/min. spindle head: MAS / BT 40 distance spindle nose and table: 150 mm feed speeds infinitely variable: 8 m/min. rapid traverse:: x+y+z: 30+30+24 m/min tool changer with: 24 spindle hours: 1317 h operating hours - idle run: 7148 h air-pressure connection: ja bar total power requirement: 30 (kVA) Weight approx.: 5,0 t dimension machine xH: 2,9 x 2,5 x 2,85 m dimension swarf conveyor LxWxH: 3,0 x 0,9 x 1,3 m Lrolhcsu Idf Ejdwxei other technical characteristics: max. drill Ø 40mm Facing 245 cc/min (cc/min) Thread cutting up to M 36 Compressed air connection Equipment: Chip conveyor with cooling water tank Interior lighting Operation via swivelling control panel CTS Machine feet Accessories: approx. 26 clamping spigots *

Condition: excellent (used), Year of construction: 2015, Functionality: fully functional, turning height: 1,700 mm, workpiece weight (max.): 10,000 kg, turning diameter over cross slide: 2,040 mm, turning diameter: 2,000 mm, feed length X-axis: 2,000 mm, feed length Z-axis: 1,661 mm, faceplate diameter: 1,600 mm, feed rate Z-axis: 3 m/min, total height: 6,177 mm, total width: 5,638 mm, total length: 3,937 mm, rapid traverse X-axis: 12 m/min, rapid traverse Z-axis: 12 m/min, type of input current: AC, rotational speed (max.): 258 rpm, rotational speed (min.): 1 rpm, torque: 16,070 Nm, table load: 10,000 kg, table diameter: 1,600 mm, year of last overhaul: 2024, Equipment: rotational speed infinitely variable, - CNC unit (FANUC 32i-A) - Automatic tool exchange unit (ATC) Use Pot quantities (18 Pot) For the linear cutting Standard tool holder Tool holder for the linear cutting - Chuck - Cutting oil Tank - Air Gun unit - Tool & Bed washing unit - Splash guard (Splash guard) - Hydraulic unit - Axis Slide Cover - Working lamp - warning lamp Lrslhcdwjulk D Ioxsi - Ladder and Hand Rail - Tool box for the standard maintenance - Manual MPG - Chip Conveyer

Condition: ready for operation (used), Year of construction: 2006, operating hours: 11,342 h, Functionality: fully functional, turning length: 530 mm, turning diameter: 255 mm, spindle motor power: 11 W, spindle speed (min.): 30 rpm, spindle speed (max.): 6,000 rpm, spindle bore: 39 mm, travel distance X-axis: 220 mm, travel distance Z-axis: 550 mm, rapid traverse X-axis: 36 m/min, rapid traverse Z-axis: 36 m/min, Equipment: documentation/manual, rotational speed infinitely variable, 5-axis CNC lathe with sub spindle and driven tools Lrjljvk U T Iohcdwxsi

Condition: good (used), In good technical condition and fully functional. Max. turning length 285 mm Max. Turning diameter 160 mm Lolhcdouqxxwswxjri Max. Diameter over bed 300 mm Diameter above the cross punch 300 mm Distance between centers 285 mm Type CNC Siemens 840 X-axis 100 mm Z-axis 290 mm Max. Workpiece weight 30 kg Spindle head Spindle caliber 40 mm Number of turning heads 1 Number of tools on the rotary head 8 Number of rotating tools 8 Adjustable speed 6000 rpm Shaft motor power 11 kW Horse - no Rod feeder no Length x width x height 2000.0 × 1100.0 × 1300.0 Weight 2700 kg

Condition: excellent (used), Year of construction: 2019, Hyundai-Wia LV1100RM vertical turning centre with C axis and Driven Tools CNC Control FANUC 0iT INCLUDED MACHINE OPTIONS CHIP - Bucket Standard CHIP - Conveyor Side Hinged CNC.OP - Manual Guide-I (NC FANUC 0i) CS - High Pressure Coolant System 30 Bar CS - Jet Coolant System GUA - Auto Door Std Cylinder LI - Call Lamp (3 Colour) POW - 80 KVA Transformer and Cable PRO - Quick Tool Setter - Removable MACHINE CONSTRUCTION & FEATURES • One Piece Heavy Duty Cast Iron Bed Construction for High Accuracy & Rigidity • 800 [630] Rpm High Power Main Spindle • 3,000 Rpm Driven Tooling Speed • Heavy Duty Cutting with Excellent Performance • Rigid Turret on Right Side • 24 x 24 M/min Rapid Traverse • Left Hand or Right Hand Configuration (LM RM) MACHINE CAPACITIES Swing Over the Bed - Ø 1,355 MM Swing Over the Carriage - Ø 1,250 MM Maximum Turning Diameter - Ø 1,160 MM Maximum Turning Length - 1,000 MM SPINDLE Chuck Size - Ø 813 MM Spindle Bore - Ø 110 MM Spindle Speed - 800 RPM Motor (Max/30 min/10min) - 45.0 / 55.0 / 60.0 KW Torque (Max/Cont.) - 6,490 / 5,310 NM Spindle Type - BELT Spindle Nose - Ø 380 FLAT C-Axis Indexing - 360˚ (0.001˚) FEED Travel X - 620 MM Travel Z - 1,000 MM Lrjlhcdwotlpdksxji Rapid Speed X - 24 M / MIN Rapid Speed Z - 24 M / MIN Slide Type - Hardened & Ground Box Guideways TURRET Number of Tools -12 Tool Size - OD 32 MM² Tool Size - ID Ø 80 MM Indexing Time - 0.6 SEC / STEP LIVE TOOL Motor (Max/Cont) - 11.0 / 7.5 KW Milling Tool Speed - 3000 RPM Torque (Max/Cont) - 70 / 47.8 NM Collet Size (ER50) - Ø 34 MM Type - BMT 85P TANK CAPACITY Coolant Tank - 420 L Lubricating Tank - 4 L POWER SUPPLY Electric Power Supply - 52 KVA Thickness of Power Cable - Over 50 MM² Voltage - 415 V / 50 HZ / 3PH MACHINE Floor Space (L x W) - 2,922 X 4,325 MM Height - 3,728 MM Weight - 22,000 KG STANDARD SUPPLIED MACHINE FEATURES • Ø 813 mm Solid 3 Jaw Power Chuck • 420L Coolant Tank • Set of Soft Jaws • Door Interlock • Chuck Clamp Foot Switch • Total Splash Guard • 2 Step Hydraulic Pressure • Call Light • Standard Coolant • Tool Box • Bed Flushing • Levelling Pads & Bolts • Operation Manuals • Electrical & Mechanical Drawings STANDARD SUPPLIED TOOLING OD Tool Holder - 4 Face Tool Holder - 1 ID Tool Holder - 5 U-Drill Tool Holder Cap - 1 Axial Driven Tool - 1 Radial Driven Tool - 1 Boring Bar Sleeve (Ø20,25,32,40,50,60) - 1 Each Drill Sleeve (MT3,MT4,MT5) - 1 Each Adaptor Set - 1

Condition: excellent (used), Year of construction: 2018, Functionality: fully functional, USED HYUNDAI-WIA KBN135C CNC HORIZONTAL BORING MACHINE - YOM 2018 MACHINE CONSTRUCTION & FEATURES  One Piece Heavy Duty Cast Iron Bed Construction for High Accuracy & Rigidity.  Infeeding Column, Cross Bed Design for Increased Accuracy & Load Carrying Characteristics.  Linear Axis & Rotary B Axis Measurement Scales for High Precision Machining.  Heavy Duty 3 Speed High Torque Main Spindle.  Heavy Duty Hardened & Ground Box Guideways for Increased Stability & Rigidity.  Pre-Tensioned Double Anchored Ballscrews. INCLUDED FACTORY FITTED MACHINE OPTIONS  ATC - AUTOMATIC TOOL CHANGER - 40 STATION  CHIP - BUCKET STANDARD  CHIP - CONVEYOR SIDE HINGED  CNC.OP - MANUAL GUIDE-I (NC FANUC 31i)  CS - COOLANT SUB TANK  CS - THROUGH SPINDLE COOLANT SYSTEM 20 BAR  GUA - COOLANT PROTECTION COVER  GUA - SURROUND FENCE  GUA - TABLE GUARD CE SPEC  POW - 50 KVA TRANSFORMER AND CABLE  SPGB - SPINDLE MOTOR - 22.0 / 26.0 KW  SPGB - SPINDLE SPEED 2,000 RPM TABLE Working Surface 2,000 x 1,800 MM Maximum Table Load 15,000 KGS Minimum Indexing Angle 0.001° TRAVEL X-Axis 3,000 MM Y-Axis 2,000 MM Z-Axis 1,600 MM W-Axis 700 MM Distance from Column to Spindle Centre 0 ~ 2,000 MM Distance from Table Surface to Spindle Centre 800 ~ 2,400 MM SPINDLE Spindle Quill Diameter Ø 135 MM Spindle Nose Taper #50 Spindle Speed 2,500 RPM Spindle Drive Method 3 STEPPED GEAR FEED Maximum Cutting Feedrate 4,000 MM / MIN Rapid Traverse (X-Axis) 10 M / MIN Rapid Traverse (Y-Axis) 10 M / MIN Rapid Traverse (Z-Axis) 10 M / MIN Rapid Traverse (W-Axis) 8 M / MIN Slide Type HARDENED & GROUND BOX GUIDEWAYS ATC Tool Storage Capacity 40 Maximum Tool Weight 20 KGS Maximum Tool Size Ø 125 X 600 MM Maximum Tool Size (no adjacent tool) Ø 250 X 600 MM Tool Shank BT-50 Tool Selection Method FIXED ADDRESS MOTOR Spindle Drive Motor (Fanuc) (Max/Cont.) 26.0 / 22.0 KW Spindle Torque (Fanuc) (Max/Cont.) 3,677 / 3,112 NM TANK CAPACITY Coolant Tank 400 L Lubricating Tank 8.5 L Hydraulic Tank 200 L POWER SUPPLY Electric Power Consumption 42 KVA Air Consumption (0.5MPa) 250 LITRE / MIN Voltage 415V / 50HZ / 3PH Thickness of Power Cable OVER 50 MM² MACHINE Floor Space (L x W) 6,800 x 7,510 MM Height 5,369 MM Weight 46,500 KGS STANDARD SUPPLIED MACHINE FEATURES 5 Controlled Axes – X, Y, Z, W, B Linear Measurement Scales (X, Y & Z-Axes) 4 Simultaneous Controlled Axes Rotary Scale (B-Axis) B-Axis Table 0.001˚ Machine Guidance (HW-MCG) Spindle Cooling System Tool Monitoring (HW-TM) 40 Station ATC Energy Saving System (HW-ESS) T-Slotted Table Machine Monitoring System (HW-MMS) Table Index Pin (4 X 90˚) Machine Condition Selection (HW-MCS) Table Auto-Clamp Device Adaptive Feed Control (HW-AFC) Screw Type Chip Conveyor Conversational Programming - Smart Guide-i Spindle Warm Up Function Front around table guard & external heavy duty fencing Electrical & Mechanical Manuals Call Light (1 Colour) Operation & Programming Manuals Work Light Remote MPG W & Y-Axis Clamp Device Levelling Pads Lrolhcdwova Adgoxoi

Year of construction: 2012, Condition: ready for operation (used), Main Drive Number of spindles 1 Spindle speed range 4000 rpm Spindle motor power 15/11 kW Number of axis 2 Lslhcdwet Sy Ivoxsri Movement X-Axis Movement 210 mm Z-Axis Movement 330 mm Additional Equipment Hole through Spindle: 65 mm Chuck Diameter: 8 inch Main Drive Number of spindles 1 Spindle speed range 4000 rpm Spindle motor power 15/11 kW Number of axis 2 Movement X-Axis Movement 210 mm Z-Axis Movement 330 mm Additional Equipment Hole through Spindle: 65 mm Chuck Diameter: 8 inch This Hyundai Wia E200C lathe was manufactured in 2012. It features a working diameter of 550 mm, a maximum workpiece length of 300 mm, and a hole through the spindle of 65 mm. With a spindle power of 15/11 kW and a speed of 4000 rpm, the Hyundai Wia E200C machine we have for sale is a robust choice for precision machining. Contact us for further details regarding this lathe. Application Types Turning

Condition: like new (used), Year of construction: 2007, HYUNDAI WIA KH63G - YOM 2008/ FIRST INSTALLED 2010 - SERIAL NUMBER G3641-071 MACHINE CONSTRUCTION & FEATURES • Twin Pallet Horizontal Machining Centre. • One Piece Heavy Duty Cast Iron Bed Construction for High Accuracy & Rigidity. • Heavy Duty Oil Cooled 2 Stepped Geared High Torque Spindle. • Shuttle Type Pallet Changer. • Pre-Tensioned Double Anchored Ballscrews. TABLE Table Size 630 X 630 MM Maximum Load Capacity 1,000 KGS Maximum Working Size Ø 1,120 X H 875 MM Minimum Index Angle 1° FEED X-Axis 950 MM Y-Axis 825 MM Z-Axis 760 MM Distance from Table Surface to Spindle Centre 175 ~ 935 MM Distance from Table Centre to Spindle Nose 0 ~825 MM Guide Type HARDENED & GROUND BOX GUIDEWAYS SPINDLE Spindle Taper #50,DIN 69871 Spindle rpm 4,500 RPM Spindle Motor Output (Max/Cont.) 26.0 / 22.0 KW Spindle Torque (Max/Cont.) 1,267 / 1,071 NM Type 2 STEPPED GEAR FEED RATE Cutting Feed Rate X, Y and Z-Axis 5 M / MIN Rapid Feed Rate X, Y and Z-Axis 20 M / MIN ATC Number of Tools 60 Tool Type ISO 50, DIN69871 Maximum Tool Diameter Ø 110 MM Max. Tool Diameter without Adjacent Tools Ø 245 MM Maximum Tool Length 600 MM Maximum Tool Weight 20 KGS Tool Selection Method FIXED ADDRESS Lslhcou A Td Tjdwxsri Tool Change Time – Tool to Tool 6 SEC Tool Change Time – Chip to Chip 11 SEC APC Number of Pallets 2 APC Type SHUTTLE TANK CAPACITY Coolant Tank 400 L POWER SUPPLY Electric Power Supply 36 KVA Voltage 415 V / 50 HZ / 3PH MACHINE Floor Space (L x W) 3,530 X 5,320 MM Height 3,106 MM Weight 14,000 KGS STANDARD SUPPLIED MACHINE FEATURES • Total Splash Guard • Door Interlock • APC (2 Pallets) • Remote MPG • Coolant Tank • Internal Chip Conveyor (2 Sets) • Work Light • Tapped Holes in Pallets • Levelling Pads and Bolts • Operation/Programming Manuals • Call Light • Selection of Spindle Tooling
