Used Mazak CNC lathe for sale (317)

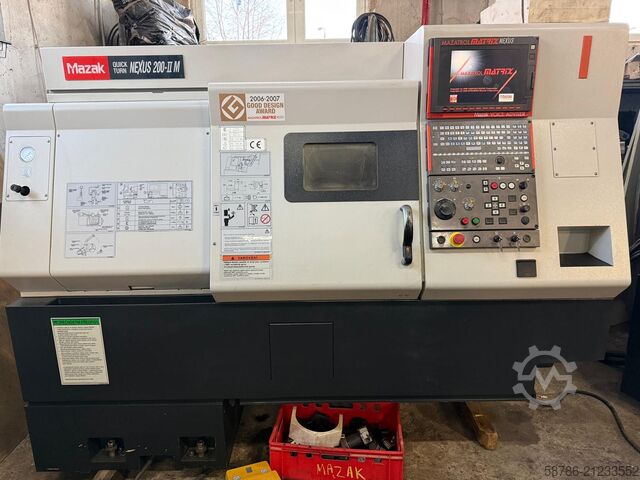

Condition: excellent (used), Year of construction: 2015, functionality: fully functional, MAZAK QUICK TURN NEXUS 200-II MSY Max. machining diameter: 380 mm Max. machining length: 511 mm Max. milling speed: 4,500 rpm Max. spindle speed: 5,000 rpm Max. bar diameter: 65 mm Machine is equipped with: - CNC control system Mazatrol Matrix 2 - Hydraulic HAINBUCH chuck, combination type, size 65 for main spindle - Hydraulic HAINBUCH chuck, combination type, size 65 for counter spindle - Tool Eye - C-axis - C-axis counter spindle, input accuracy 0.0001° - Y-axis - Interface for bar feeder Gkedjzczd Uopfx Aixoa - Automatic parts catcher - Reinforced coolant pump - MAYFRAN chip conveyor - 8 pcs. fixed tool holders - 2 pcs. driven tool holders

Condition: reconditioned (used), Year of construction: 2012, functionality: fully functional, MAZAK QUICK TURN NEXUS 250-II MY Max. turning diameter: 380 mm Max. machining length: 504 mm Max. milling speed: 4,500 rpm Max. spindle speed: 4,000 rpm Max. bar diameter: 74 mm Machine is equipped with: - CNC control Mazatrol Matrix Nexus 2 - KITAGAWA three-jaw chuck B-210, diameter 254 mm - Tool Eye - C-axis - Y-axis - automatic parts catcher - NC tailstock - reinforced coolant pump - MAYFRAN chip conveyor - 8 fixed tool holders Godpjyy Ad Eofx Aixoka - 2 driven tool holders

Condition: used, Year of construction: 1990, functionality: fully functional, turning length: 250 mm, turning diameter: 160 mm, travel distance X-axis: 100 mm, travel distance Z-axis: 290 mm, The machine is fully workable but the sub spindle is out of order, the Tool Eye is manual swivable Mazatrol T 32-2 CNC control main spindle: collet chuck device 8-fold revolver bar loading device Technische Daten / technical details: max. Drehdurchmesser / max. turning diameter 160 mm max. Schwingdurchmesser / max. rotary diameter 300 mm Gksdpfx Aiozmfdxoxoa Drehlänge / turning length 250 mm X-Weg / X-travel 100 mm Z-Weg / Z-travel 290 mm Durchlass / spindle hole 40 mm Drehzahl / spindle speed 45-4500 UpM /rpm Gewicht der Maschine / weight 3500 kg Technische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich - Technical data, accessories and description of the machine are not binding.

Condition: used, Year of construction: 1999, functionality: fully functional, turning length: 497 mm, turning diameter: 300 mm, travel distance X-axis: 180 mm, travel distance Y-axis: 100 mm, travel distance Z-axis: 575 mm, Mazatrol PC Fusion CNC 640T CNC control 3-jaw chuck 12-fold revolver C-axis driven tools Y-axis tool presetting device (tool eye) tail stock chip conveyor coolant device bar loading device for 3m bars 14 fixed tool holders 8 driven tool holders Technische Daten: / technical details max. Drehdurchmesser / max. turning diameter 300 mm max. Schwingdurchmesser / max rotary diameter 525 mm Gsdpfxozmd Tlj Aixoka max. Drehlänge / max. turning length 497 mm Drehzahl / spindle speed 35-4000 UpM/ rpm Anzahl der Revolverplätze / numbers of tool places 12 X-Verfahrweg / x-travel 180 mm Z-Verfahrweg / z-travel 575 mm Y-Verfahrweg / y-travel +-50 mm Futterdurchlass / spindle hole diameter 62 mm Eilganggeschwindigkeit X, Z / rapid feed X, Z 30, 30 m/min. Gewicht der Maschine ca. / weight ca. 5500 kg Technische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich - Technical data, accessories and description of the machine are not binding.

Condition: used, Year of construction: 2004, Mazak Integrex E-650H x 2000 CNC Multi-Tasking CNC Lathe. S/No. 168658 (2004) with Mazatrol Fusion 640MT Pro Control, Max Swing 920mm, Spindle Motor 45kW, Rotary Spindle Motor 37 kW, Max Spindle Speed 1600rpm, Spindle Bore 260mm Dia, X/Y/Z Travels 1025/650/2106mm, B-Axis -30deg/+210deg, C-Axis 360deg, Rapids X/Y/Z 40/40/40m/min, Max Rotary Tool Spindle Speed 10,000rpm, Tailstock Travel 1858mm, Tailstock Quill Stroke 160mm, Tailstock Centre MT6, Automatic 80 Position Toolchanger, Spindle Taper Capto C8, Cromar Swarf Conveyor. Country of Origin: Japan Please Note: There are no loading facilities on site, dismantling and loading will be at the cost of the purchaser. Gjdpfjzhmt Dox Aixjka Location: This lots is located in Birmingham, UK. Please see individual lot for loading information and charges. All/Any tooling is being offered as specifically described.

Condition: like new (used), Year of construction: 2022, MAZAK QUICK TURN 250MY SmoothG Max. turning diameter: 380 mm Max. turning length: 504 mm Max. milling speed: 5,000 rpm Max. spindle speed: 4,000 rpm Max. bar diameter: 80 mm The machine is equipped with: - CNC control: Mazatrol SmoothG - KITAGAWA 3-jaw chuck, BB-210, diameter 254 mm Gkodpfx Ajzk I Tqeixja - Tool Eye - C-axis - Y-axis - Interface for bar feeder - Automatic parts catcher - NC tailstock - Reinforced coolant pump - Chip conveyor - 8 pcs. fixed tool holders - 2 pcs. powered tool holders The machine has only 900 hours of pure machining time!!!

Condition: excellent (used), Year of construction: 2016, operating hours: 1,527 h, functionality: fully functional, MAZAK QT-COMPACT 300ML CNC lathe / CNC turning center Manufacturer: Mazak Model: QT-COMPACT 300ML Control: MAZATROL Smooth C Application / Field of use: Training facility for aspiring mechanical engineers / machining mechanics Operating hours: 1,527 hours of machining time Technical data: Max. turning diameter: 695 mm Max. turning diameter over slide: 340 mm Spindle bore: 82 mm Spindle speed main spindle: 4,500 rpm Chuck: Kitagawa Ø 250 mm Turret: 12 stations Driven tools / M-drive: 4,500 rpm Tailstock: present, with centering point Tool measurement: Tool measuring arm / Tool-Eye visible in the work area Equipment: MAZATROL Smooth C control CNC inclined-bed lathe Main spindle with 3-jaw Kitagawa chuck Ø 250 mm 12-position tool turret Driven tools / M-drive Tailstock with centering point Tool measuring arm / Tool-Eye visible Work area lighting Enclosed work area Coolant system available Gjdpfezkwvhjx Aixska Bar loader interface / automation connection available Machine currently operating in stand-alone mode without a connected bar loader Several tool holders available Internal coolant supply through the spindle available (IKZ) Tool package according to data: 1 × angled tool holder 2 × straight tool holders Not available: No bar loader connected (not included or not present) No counter spindle No Y-axis No chip conveyor

Condition: used, Year of construction: 2000, Year of manufacture: 2000 Control: Mazatrol 640 Documents included Chip conveyor TECHNICAL DATA – MAZAK INTEGREX 200SY Performance / Capacity Max. swing: Ø 540 mm Chuck size: 8" Max. machining diameter: Ø 540 mm Max. machining length: 1018 mm Max. outside diameter for bar material: Ø 51 mm Main spindle Spindle nose: JIS A2-6" Spindle bore diameter: Ø 61 mm Spindle speed: 35 – 5000 rpm (Standard) / 35 – 4500 rpm (Option: 5000)* Motor power (30 min. rating): 22 kW (18.5 kW*) Max. torque: 350 Nm (35.7 kgf·m) Sub spindle (counter spindle) Spindle nose: JIS A2-6" Spindle bore diameter: Ø 44 mm Spindle speed: 35 – 5000 rpm Motor power (10 min. rating): 7.5 kW Max. torque: 57 Nm (5.8 kgf·m) Turret / Tool data Turret type: With ATC, spindle turret External turning tool size: □ 25 mm Internal turning tool size: Ø 40 mm Milling tool: Max. Ø120 × 250 mm length Indexing time (90°): 0.5 s Milling spindle speed: 15 – 6000 rpm (Option: 10000) Milling spindle motor power: 7.5 kW Max. milling spindle torque: 62.29 Nm (6.35 kgf·m) Feed axes X-axis: Travel 530 mm / Rapid traverse 30,000 mm/min Z-axis: Travel 1065 mm / Rapid traverse 33,000 mm/min Gjdpfx Aisyh E Irexeka Y-axis: Travel 140 mm / Rapid traverse 15,000 mm/min Z2-axis: Travel 1005 mm / Rapid traverse 20,000 mm/min Media / Control Coolant tank volume: 250 L Power consumption (continuous): 32.7 kVA Machine dimensions / Weight Overall length: 3485 mm Overall width: 2105 mm Overall height: 2416 mm Weight: 73,575 N (7,500 kgf)

Condition: excellent (used), Year of construction: 2004, MAZAK QUICK TURN NEXUS 200MS-Y Max. machining diameter: 380 mm Max. machining length: 511 mm Max. milling speed: 4,500 rpm Max. spindle speed: 5,000 rpm Max. bar diameter: 65 mm Machine is equipped with: - CNC control Mazatrol 640T Nexus - KITAGAWA three-jaw chuck BB-208 for main spindle, diameter 210 mm - KITAGAWA three-jaw chuck B-206 for 2nd spindle, diameter 169 mm - Tool Eye - C-axis - Y-axis - Interface for bar feeder Gkedpow Du S Ajfx Aixja - Automatic parts catcher - Reinforced coolant pump - Chip conveyor - 8 fixed tool holders - 2 driven tool holders

Condition: good (used), Year of construction: 2004, turning length: 1,000 mm, Manufacturer: MAZAK Type: QTN 250 Control: MAZATROL 640T NEXUS Year of Manufacture: 2004 Specifications Metric US Standard Max. Turning Diameter 675 mm X-Axis 230 mm Z-Axis 1025 mm Spindle Bore 77 mm Speed 4000 rpm Spindle Power 26 kW Gkodpswaiinsfx Aixsa Tool Changer 12-Hole Quill Mount 5 Mk Dimensions (Estimate) Length 3800 mm Width 1800 mm Height 2000 mm Weight 5200 kg Please note: The information on this page has been obtained to the best of our knowledge and belief, and where possible, from the manufacturer. The information is provided in good faith, but its accuracy cannot be guaranteed. Accordingly, it does not constitute a representation or contractual terms. We recommend that you check all important details.

Condition: used, Year of construction: 1995, turning diameter 510 mm turning length 1000 mm control Mazatrol type Mazatrol T plus turning speeds 35-3500 U/min spindle passage 88 mm Tool changer 20 Pos. Spindle capacity 35 KW centre distance 1029 mm x-travel 450 mm z-travel 1029 mm weight of the machine ca. 7,5 t - Spindle nose: A2-8 - Axis C - Maximum feed: X = 12 m/min - Y = 10 m/min - Z = 18 m/min The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. Gsdpfx Aieyqu Hxjxska About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team

Condition: used, Year of construction: 2007, swing dia. 430 mm Distance between the spindles 1450 mm control MAZATROL 640T x-axis 310 mm z-axis 605 mm spindle tunring speed 4.000 U/min In our opinion, the machine is in good used condition and can be inspected under power by appointment. Technical Features & Accessories: - Gantry Loader Accessories, tools, and clamping devices shown are only included in the scope of delivery if noted in the additional information. Subject to changes and errors in the technical data and information, as well as Gkjdpfoyb S Nrjx Aixsa subject to prior sale!

Condition: ready for operation (used), Year of construction: 2004, functionality: fully functional, machine/vehicle number: 172087, turning diameter: 660 mm, spindle bore: 76 mm, spindle speed (max.): 5,000 rpm, controller model: MAZATROL Fusion 640 MT, spindle torque (max.): 349 Nm, TECHNICAL DETAILS Maximum turning diameter: 660 mm Main spindle Speed range: 35–5,000 rpm Power (10 min / continuous operation): 22 / 15 kW Maximum torque: 349 Nm Spindle bore: 76 mm Chuck diameter: 210 mm C-axis indexing: 0.0001° Sub-spindle Speed range: 35–5,000 rpm Power (10 min / continuous operation): 18.5 / 15 kW Maximum torque: 326 Nm Chuck diameter: 210 mm C-axis indexing: 0.0001° Cooling Coolant tank volume: 300 l Pump capacity: 20 l/min Pump pressure: 5 bar Compressed air requirement: 5 bar, 500 l/min MACHINE DETAILS Control model: MAZATROL Fusion 640 MT Total power consumption: 66 kVA Operating voltage: 400 V / 50 Hz EQUIPMENT Technical documentation Chip conveyor with cooling system 20-position tool magazine B-axis (positioning in 0.001° increments) C-axis Y-axis Gkjdpszgufrofx Aixoa Milling spindle Angular positioning of the sub-spindle Synchronization of main and sub-spindle Tool setting system (Tool Eye) Interlock for the front door Complete cooling system Interface for IC memory card

Year of construction: 2012, condition: good (used), Mazatrol Smart CNC control 3-jaw chuck C-axis driven tools 12-fold revolver Tool Eye tail stock coolant device chip conveyor Technische Daten / technical details: max. Umlaufdurchmesser / max. swing diameter 660 mm max. Drehdurchmesser/ max. turning diameter 350 mm max. Drehlänge / max. turning length 532 mm Planweg (x) / cross way (x) 225 mm Längsweg (z) / longitudinal way (z) 560 mm Drehzahlbereich / spindle speed 5000 UpM /rpm Drehzahl angetriebene Werkzeuge / speed of driven tools 4500 UpM / rpm Gjdpfxoiyx Dis Aixoka Werkzeugrevolver / turret head 12 fach /holes Eilgang X/Z / rapid feed X/Z 30/33 m/min Antriebsleistung Spindel / drive capacity spindle 15 kW Gewicht der Maschine ca. / weight 4500 kg Technische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich - Technical data, accessories and description of the machine are not binding.

Condition: used, Year of construction: 2002, turning diameter 280 mm turning length . mm control Mazatrol 640 T x-travel 190 mm y-travel 309 mm z-travel 330 mm turning speeds 4000 U/min feed 30 m/min number of tools 12 bar loader ja total power requirement 24 kvA weight of the machine ca. 3,5 t dimensions of the machine ca. . m The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. Gkodpfx Aezdu T Doixea We look forward to your visit. Your Markus Hirsch Team

Condition: excellent (used), Year of construction: 2007, turning length: 1,545 mm, turning diameter over cross slide: 660 mm, spindle bore: 65 mm, travel distance X-axis: 580 mm, travel distance Y-axis: 160 mm, travel distance Z-axis: 1,545 mm, Make: MAZAK Type: INTEGREX 200-4 ST Control: MAZATROL MATRIX Year: 2007 Multi-Tasking Machining in a Single Machine Setup Sub spindle for overtaking with full C-Axis The INTEGREX IV series can finish all machining processes. High speed, advanced milling spindle that can tilt up to 240 degrees swiveling. Lower turret with rotary tool spindle so livew tooling Chip conveyor with coolant and 15 Bar iKZ Double chuck KNCS-N 210-53 SMW Autoblock MAZAK Flex -GL150F Gantry Loader Gripping range 200 x 120 length x 15 Kg Max. turning Ø: 660mm X-Axis: 580mm Y-Axis: 160mm Z-Axis: 1545mm B Axis: 270° Spindle bore: 65mm Speedrange: 5000Rpm Spindle power: 22kW Subspindle speeds:5000Rpm Subspindle bore: 65mm Subspindle power: 18.5kW Gkjdpfjx S Hm Isx Aixea ATC / revolver: 40 B-Axis Toolsystem:Capto C6 B-Axis Speedranges:12000Rpm Length: 5200mm Width: 2550mm Height: 2600mm Weight: 14000kg

Condition: excellent (used), Year of construction: 2015, travel distance X-axis: 850 mm, travel distance Y-axis: 550 mm, travel distance Z-axis: 510 mm, rapid traverse X-axis: 30,000 m/min, rapid traverse Y-axis: 30,000 m/min, rapid traverse Z-axis: 30,000 m/min, total length: 8,000 mm, total width: 3,325 mm, table width: 500 mm, table length: 600 mm, table load: 500 kg, overall weight: 12,000 kg, spindle motor power: 11,000 W, 5-axis CNC machine (VMC) MAZAK - VARIAXIS J600-5X MACH-ID 9484 Make: MAZAK Type: VARIAXIS J600-5X Control: MAZATROL matrix 2 Year: 2015 5 Axis Manufacturing cell with automation LANG 20 positions Renishaw 3D Taster with pre-setter ball LANG Preperation system with  vacuum 25 Units LANG pallet with vice / clamp / chucks Only 7155 Working hours ! New EUR 500.000 X - Travel: 850mm Y - Travel: 550mm Z - Travel: 510mm A - Axis: -120 to +30° B - Axis: - 120 to +30° Table Length: 600mm Table Width: 500mm Table load: 500 Table Ø: 600mm Feed rate X-Axis: 30000mm/min. Feed rate Y-Axis: 30000mm/min. Feed rate Z-Axis: 30000mm/min. Feed rate B-Axis: 30Degrees/min Spindle Taper: 40ISO/Bt/Mk Power on spindle: 11kW Speeds / ranges: 12000Rpm ATC / revolver: 30 Coolant through spindle / Bar:20 Number of controlled axis: 5 Chip conveyor: Yes Coolantsystem: Yes Length: 8000mm Width: 3325mm Height: 3060mm Weight: 12000kg Gedpjyyybhofx Aixska Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: good (used), Year of construction: 2009, travel distance X-axis: 1,120 mm, travel distance Y-axis: 510 mm, travel distance Z-axis: 510 mm, rapid traverse X-axis: 36,000 m/min, rapid traverse Y-axis: 36,000 m/min, rapid traverse Z-axis: 36,000 m/min, table width: 510 mm, table length: 1,460 mm, table load: 800 kg, Renishaw measuring probe MP-12 IKZ 15 Bar Interface set Gkjdpfsw Rm Dijx Aixsa Performabnce software package Monitoring B prepared not included X - Travel: 1120mm Y - Travel: 510mm Z - Travel: 510mm Table Length: 1460mm Table Width: 510mm Table load: 800 Feed rate X-Axis: 36000mm/min. Feed rate Y-Axis: 36000mm/min. Feed rate Z-Axis: 36000mm/min. Spindle Taper: 40ISO/Bt/Mk Power on spindle: 18.5kW Speeds / ranges: 12000Rpm ATC / revolver: 30 Coolant through spindle / Bar:Yes Number of controlled axis: 3 Chip conveyor: Yes Coolantsystem: Yes Length: 3300mm Width: 2850mm Height: 2800mm Weight: 6100kg

Condition: ready for operation (used), Year of construction: 2005, operating hours: 41,000 h, functionality: fully functional, machine/vehicle number: 178979, turning length: 309 mm, turning diameter: 280 mm, travel distance X-axis: 190 mm, travel distance Z-axis: 330 mm, controller model: Mazatrol 640T Nexus, No minimum price – guaranteed sale to the highest bidder! The technical data is based on the manufacturer's specifications. The seller cannot guarantee its accuracy! TECHNICAL DETAILS Max. turning diameter: 280 mm Max. machining length: 309 mm Swinging diameter: 550 mm Travel range X-axis: 190 mm Travel range Z-axis: 330 mm Spindle bore: 61 mm Rapid traverse rates X/Z: 30/33 m/min MACHINE DETAILS Control system: Mazatrol 640T Nexus Main circuit: 3-phase AC Main circuit voltage: 400 V Frequency: 50/60 Hz Control circuit AC: 100 V Control circuit DC: 24 V Main motor current draw: 31 A Gkjdpfx Aisy Sln Rexsa Main motor voltage: 400 V Rated power: 24 kVA Weight: 3,500 kg Operating hours: approx. 41,000 h Note: The bar feeder is not included in the offer.

Condition: good (used), Year of construction: 1990, functionality: fully functional, machine/vehicle number: 93200, turning length: 500 mm, turning diameter: 270 mm, spindle bore: 70 mm, spindle speed (max.): 3,600 rpm, spindle speed (min.): 36 rpm, travel distance X-axis: 180 mm, travel distance Z-axis: 510 mm, overall weight: 4,200 kg, Working length 500 mm Max. working diameter 270 mm Gkodpfx Aiey Ibipsxsa Swing over bed 440 mm Spindle speeds 36 - 3600 rpm Spindle bore 70 mm Number of tools 8 pcs X-axis travel 180 mm Z-axis travel 510 mm Control MAZATROL T - 32

Condition: used, Year of construction: 2017, turning diameter 340 mm turning length 1000 mm control Mazatrol SmoothC Gjdpfxoy E Txde Aixoka

Condition: used, Year of construction: 1996, operating hours: 7,827 h, functionality: fully functional, machine/vehicle number: 119713, turning diameter over cross slide: 160 mm, turning length: 244 mm, turning diameter: 160 mm, spindle bore: 45 mm, spindle speed (max.): 6,000 rpm, spindle speed (min.): 1 rpm, travel distance X-axis: 155 mm, travel distance Z-axis: 290 mm, spindle motor power: 10,000 W, rapid traverse X-axis: 30 m/min, rapid traverse Z-axis: 30 m/min, rotational speed (max.): 6,000 rpm, total height: 1,780 mm, total length: 2,000 mm, total width: 1,330 mm, quill travel distance: 150 mm, quill diameter: 55 mm, quill stroke: 150 mm, workpiece weight (max.): 25 kg, overall weight: 2,700 kg, bar passage: 40 mm, chuck outer diameter: 154 mm, bar diameter (max.): 45 mm, spindle diameter: 50 mm, Equipment: documentation/manual, rotational speed infinitely variable, The Mazak Quick Turn 10 is a compact CNC lathe manufactured by the Japanese company Mazak. It has been specifically developed for the precise machining of small and medium-sized turned parts and is widely used in mechanical engineering, toolmaking, as well as in series production. Gjdoyt E Nvopfx Aixska The machine features a robust slant-bed design, a tool turret, and the dialog-based Mazatrol control system, which enables fast programming directly at the machine. This makes it suitable both for single parts and small series production. Control: Mazatrol T-Plus Standard chuck: Kitagawa N-06A0515 The quoted price does not include dismantling, packaging, or shipping. Sale ex location, subject to prior sale. The machines are sold in used condition; any warranty and guarantee are excluded.

Condition: good (used), Year of construction: 2012, Max cutting diameter 584mm, 845mm swing, 165mm bar capacity, 2,000rpm spindle 24 station turret, 30kW motor power, 3 jaw chuck, Gsdsyu N Tzopfx Aixska Mazatrol Matrix Nexus control, tool setter, tailstock, swarf conveyor, fixed steady

Condition: ready for operation (used), Year of construction: 1985, Mazak Slant Turn 40 MC CNC lathe with chip conveyor. Year of manufacture 1985, weight 8 tons. Control system Mazatrol T3, with three-jaw chuck, tool turret, tailstock. Ready for use, can be viewed while still powered. Gksdpfxjvzgyhe Aixja

Condition: used, Year of construction: 2020, turning diameter 380 mm turning length 511 mm control Mazatrol SmoothG turning diameter over slide 276 mm max. swing diameter over bed 675 mm Standard machining diameter 276 mm bar material dia. 65 mm x-axis 234 mm rapid traverse X-axis 30 m/min z-axis 625 mm rapid traverse Z-axis 33 m/min turning speeds 35 - 5000 U/min spindle nose A2-6 spindle bore 76 mm Motor output (40%ED) 26 KW 22 KW Max. Torque 465 Nm turning speeds 6000 U/min Main drive power 11 KW Max. Torque 90 Nm Milling spindle speeds ( driven tools) 35-6000 1/min torque on milling spindle max: 47 Nm power capacity - milling spindle 5,5 (40% ED) kW Milling spindle power 3,7 kW Numbers of tools 12 (angetrieben) Tool cross section (outside) 25 qmm Boring bar- Ø 40 mm Drill- Ø 20 mm Mill- Ø 20 mm Tap- Ø M20x2,5 Switching time one turret station ca. 0,20 sec coolant tank 180 l connected load 46,2 kW weight of the machine ca. 5,9 t dimensions of the machine ca. 2,7 x 1,9 x 1,9 m incl. the following accessories: - Signal light (3-colour LED), rectangular - High-performance coolant system (1.1 kW) Flow rate max. 17.6 l/min, pressure (at pump) 5 bar. - Additional coolant nozzle main spindle - Preparation for oil mist extraction electrical/mechanical flange 98mm - Preparation for bar feed - Robot interface (Advance/Profibus) - Chip conveyor with low ejection height - Overload monitoring system - Drilling cycle with torque-dependent chip breaking - Preliminary use of a hollow clamping cylinder on counter spindle - Hollow clamping device incl. draw tube + cylinder - Clamping chuck Hainbuch Spanntop Nova Axfix mini size 52 - Chuck Hainbuch Spanntop Nova Axfix special mini size 52 - 2 x collets - Changing device for collet chuck STANDARD ACCESSORIES Automatic on/off and warm-up function Air blowing device on the chuck on the counter spindle Use of linear systems with guide carriage USB connection (1 connection) Gkedpfxotugggo Aixoa Set of manuals in electronic form on CD C-axis main spindle Input accuracy 0.0001° Spindle positioning counter spindle without C-axis Input accuracy 0.001° Tool turret with 12 stations VDI, Operator door with locking switch Double foot switch for both main and counter spindle Hydraulic pressure interlock Fully enclosed work area Work area lighting Safety precautions in accordance with global standards High-performance coolant system (520W) Flow rate max. 11.5 l/min. Complete coolant system Automatic opening/closing of the chuck jaws Automatic tool eye Absolute positioning system Preparation for chip conveyor (lateral) Synchronisation of main and counter spindle Synchronised tapping with milling spindle Relocation Detector Mazatrol SmoothG control 19" LCD colour screen (touch screen) User macro (600 variables) EIA/ISO input function Optional stop (optional stop) Tool path check in the background Thread cutting function (G33) Polar coordinate input (EIA) Drawing data direct input function Interface for LAN SD memory card I/F - Second-hand machine without warranty - All dimensions, weights and performance specifications are non-binding
