Used Trennjaeger Cold Saw for sale (23)

Condition: good (used), functionality: fully functional, . Credpfxjza Hnmj Aipjc Fully hydraulic automatic circular saw, manufactured by TRENNJAEGER . Technical data : Saw motor, pole-switchable 1.5 / 2.0 kW Saw blade 275 mm 6 cutting speeds 16 , 20 , 25 m/min + 32 , 40 , 50 m/min . - Integrated hydraulic system - Protective housing, limit switch-protected - 6 sawing speeds . .

Year of construction: 1989, condition: ready for operation (used), A longitudinal circular splitting saw is offered. Saw blade Ø: 400mm, cutting length: 400mm, cutting depth: 130mm, integrated coolant system, swiveling saw head for miter cuts, manual feed, base cabinet. Inspection possible by arrangement. Cjdpsy Tat Rofx Aipjrc

Condition: used, functionality: fully functional, very robust gearbox, motor 1.0 / 1.8 kW Cedpfxsy Iv Hij Aipsrc Saw blades: 360 mm Slow-running model with 6 cutting speeds: 8 / 10 / 12.5 m/min 16 / 20 / 25 m/min Test cutting at our facility with the following specifications: Cutting capacity at 90 degrees with blade size 360 mm: Round profile: 110 mm Solid round material: 80 mm Flat profile: 200 x 80 mm Weight approx. 560 kg

Condition: excellent (used), Year of construction: 2022, functionality: fully functional, saw blade diameter: 400 mm, cutting height (max.): 145 mm, cutting range round steel at 45°: 120 mm, type of input current: AC, Robust cold circular saw with pneumatic workpiece clamping Clamping, sawing, return to initial position, opening in automatic mode Stepless feed rate adjustment Minimum quantity lubrication system + coolant unit Saw blade diameter from 375 to 425 mm Mitre adjustment 45° - 90° - -45° - -30° Cutting capacity with saw blade diameter 400 mm: Flat: 210 x 120 mm Mitre cut: 145 x 120 mm Crsdpfxsy Httdo Aipsc Round: 140 mm diameter Mitre cut: 120 mm Pole-changing three-phase motor for saw blade – circumferential speed 22 + 44 m/min Voltage: 400 V

Condition: excellent (used), Year of construction: 2004, 1 used, very well-maintained fully hydraulic circular cold saw automatic with flat vertical guides Max. saw blade diameter: 325 mm Cutting capacity at 90°: Cjdpfx Aoy E Uk Ijiperc - Round: 100 mm - Square: 85 x 85 mm - Rectangle, flat: 165 x 85 mm Infinitely variable speed range: 20 - 100 rpm Max. saw blade dimensions: 325 x 3.0 x 40 mm Single stroke feed: up to max. 550 mm Multiple stroke feed: for lengths over 550 mm Working height: 930 mm Drive power: 3 kW / 400 V Machine dimensions (L x W x H): 2150 x 1450 x 1950 mm Weight: approx. 650 kg Accessories / Special Features: • Fully hydraulic design • Fully automatic operation, single cuts also possible • Vise feed • 90° cutting angle • Infinitely variable speed range 20 - 100 rpm • Length setting via programming on the control panel • Cutting speed and feed can be continuously adjusted on the control panel during operation • Single and multiple stroke feed • Adjustable flat vertical guides • Coolant system • Micro-spray system • 1 used saw blade included • CE compliant Siegfried Volz Werkzeugmaschinen Rüschebrinkstr. 151-153 DE - 44143 Dortmund - Wambel / Germany

Condition: excellent (used), Offered here is a heavy, well-preserved cold circular saw from the company Trennjäger. Data: Saw blade: 275 x 2.5 x 40 T8 = Z110 Two speeds Angle adjustment: from 90°-0 Equipment: Crsdpfx Ajg Rxh Doipsc Hydraulic vice hydraulic feed (infinitely variable) Integrated coolant system

Condition: used, saw blade diameter 560/660/710 mm cutting diameter 170/220 mm cutting range B:1000/1250 x H 220/120 mm Cedpfxoxnc U Rs Aiporc cutting speed 7- 48 m/min clamping devices hydraulic pneumatic 20- 315 mm dimensions 2,9 x 2,2x 1,95 m weight of the machine ca. 2,8 t Used plate saw - part fixures - new security componens - external control panel - long cut 1250 mm/ hight 120 mm possible with removed miter stop

Condition: ready for operation (used), functionality: fully functional, Saw motor, pole-changeable, 1.0 / 1.6 kW 6 cutting speeds: Crsdpsyu Hy Sofx Aipec Motor stage 1/2: 8, 10, 12.5 m/min and 16, 20, 25 m/min Cutting capacity at 90 degrees with blade size 360 mm: round: 110 mm flat: 200 x 80 mm Saw blades: 315 / 360 mm Saw feed: hydraulic Material feed: hydraulic, min. 10 mm Material clamping: hydraulic 2 additional saw blades --> --> Special price: EUR 4,150 net, loaded free of charge!

Condition: used, Year of construction: 2003, saw blade diameter 510 mm cutting diameter 150 mm capacity 90 degrees: flat 450 x 150 mm capacity 90 degrees: square 150 mm turning speeds 29 / 58 m/min. total power requirement 4,2 kW weight 1,55 t range L-W-H 1,8 x 1,7 x 1,7 mm Long-cut cold circular saw, semi-automatic - with miter adjustment left 50°, right 60° - digital cutting angle display - hydraulically adjustable feed speed Cjdpfsyrhurox Aiperc - hydraulic workpiece clamping - 4 spare saw blades

Condition: used, Year of construction: 1990, saw blade diameter 400 mm Credpfx Aiouia Hrepoc cutting length 400 mm cutting diameter 130 mm speeds 9,5 - 48 U/min peripheral speed 12 - 60 m/min 130 mm 125 mm 400 x 125 mm 130 mm 110 mm rechts 200 x 125 mm links 280 x 125 mm total power requirement 4 kW weight of the machine ca. 1,5 t dimensions of the machine ca. 1,2 x 2,0 x 1,7 m

Condition: used, Year of construction: 1988, saw blade diameter 400 / 460 mm cutting length 650 mm cutting diameter 150 mm capacity 45 degrees: flat 450 x 150 mm capacity 90 degrees: flat 650 x 150 mm Slide cross 855 mm work height max. 950 mm total power requirement 1,3 / 1,6 kW Crjdpfx Aet H Spboipoc weight of the machine ca. 1800 kg dimensions of the machine ca. 2300 x 1050 x 1900 mm

Condition: excellent (used), Cold circular saw Trennjäger, model VC 260 HA. Saw blade diameter: 315 mm. Cutting capacity: 90 mm. Cutting area for flat material: 160 x 65 mm. 380 Volt, 1.4 kW. Width: 1500 mm, depth: 1000 mm, height: 1400 mm. Supplied with a spare blade. Cjdpfx Aioxwt Tpjpjrc

Condition: used, saw blade diameter 275 mm cutting diameter 90 mm stroke mm capacity 45 degrees: flat 150 x 100 mm cutting speed 16/32 m/min Cedpfx Aijd Ih Taepjrc miter cut 45 ° total power requirement kW weight of the machine ca. t dimensions of the machine ca. m

Condition: good (used), Year of construction: 2005, functionality: fully functional, TRENNJAEGER TUS 470 with ball screw and heavy-duty spur gear for burr-free cold sawing of profile, panel, square, and round material in straight and miter cuts, pivotable on both sides from 90 degrees to 45 degrees to 30 degrees, with digital angle display (built in 2005) - Cutting range with saw blade ᴓ 450 mm: 90°, 45° right/left, 30° right/left - Round 140 mm 140 mm 130 mm - Square 110 x 110 mm 110 x 110 mm 110 x 110 mm - Rectangular 290 x 40 mm 190 x 40 mm 130 x 40 mm - Rectangular Profiles 290 x 70 mm 190 x 70 mm 130 x 70 mm This increases by approximately 10 mm for a saw blade ᴓ 470 mm - Maximum clamping range of the machine: 290 x 150 mm - Working height: 900 mm Machine is supplied without infeed and outfeed Codpfx Ajv Ryaaeipsrc

Condition: used, Year of construction: 1993, 3 Rollers Bending Machine ZOPF TRENNJAEGER RS 302 ME Csdpfxoza Eyne Aiperc Year of construction: 1993 Capacity: 1/4'' to 1 1/2'' - Ø 10 mm to Ø 60 mm Rectangular tube 50 x 30 x 3 Square tube 40 x 40 x 3 (see description on photo) Delivered with: 1 set of rollers 1'' - 6/4'' - 1 1/4'' + various (see photos) Voltage: 380 V Dimensions (L x W x H): 1000 x 1000 x 1600 mm Weight: approx 200 kg

Condition: used, Original roller conveyor / measuring stop for LTS 400 and LTS 460, available in 2 m and 3 m versions. Crodoy St H Uepfx Aipjc

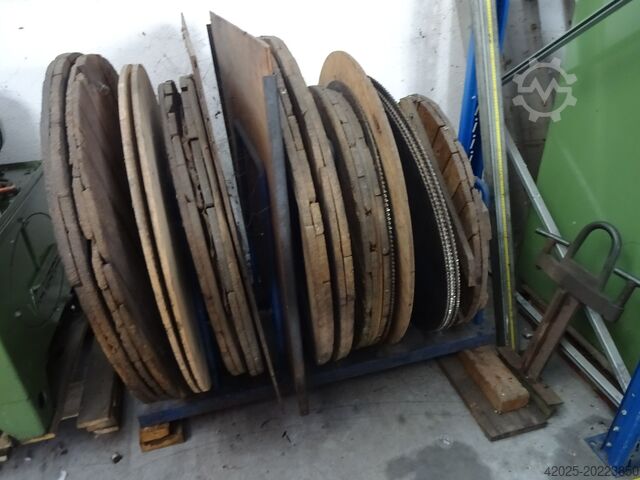

Condition: used, mainly discs for PMC 12 with a diameter of just under 1000 mm Crjdpjyuppijfx Aipsc

Condition: good (used), Year of construction: 2001, Separator TEBA 240 DG Round 240 mm Rectangular 230 x 230 mm Motor 1,5kW Dimensions: 1,950 x 1,650 x 1,000 mm Crsdpfx Aiou Ekw Nspsc Mitre saws 90° / -45° / +45°/ +60° Cutting speed: 40/80 m/min.

Condition: used, length ~ 600 mm width ~ 700 mm height ~ 1.000 mm Crsdpfx Ajulfftsipjc saw-blade dia. max. ~ 300 mm Sharpening machine cut-off saw for sharpening small circular saw blades.

Condition: good (used), Year of construction: 1993, TRENNJÄGER metal circular saw with mitre function Crsdpfsx U Dl Tjx Aipoc Includes longitudinal stop! Saw blade diameter: 400 mm Cutting length: 400 mm Cutting diameter: 130 mm Year of manufacture: 1993 380 V Power: 4.5 kW

Condition: excellent (used), machine/vehicle number: 68131, Cut-off saw Ø max .: 300 mm here cutting area round: 100 mm Saw head can be swiveled up to: 45 ° Codpfjfug Exex Aiporc Vice clamping range up to: 160 mm Cutting saw speed: 2500 rpm Drive motor: 230 V, 1.1 kW Required space: 850 x 750 x 1500 mm Weight: 126 kg

Condition: excellent (used), Saw blade diameter: 360 mm Cutting range at 90° round: 110 mm Cutting range at 90° rectangular: 110 x 400 mm Cutting range in miter at 45° round: 110 mm Cjdpfx Ajv D Hzkoiperc Cutting range in miter at 45° rectangular: 110 x 280 mm Cutting speed: 16 - 50 m/min Drive motor: 380 V, approx. 1.5/2 kW Space required: 2600 x 1150 x 1600 mm Weight: approx. 1000 kg

Condition: good (used), Year of construction: 2010, machine/vehicle number: F3554, Offer 25228 Hydraulic Horizontal – Two-column Guided Mitre Band Saw Machine Technical Data: Cjdpfewvrvisx Aipsrc - Automatic operation cycle for cutting process, hydraulic lifting/lowering of the saw frame, hydraulic automatic material feed - Saw blade dimensions: 4400 x 34 x 0.9 mm - Infinitely variable cutting speed: 15 – 88 m/min - Infinitely variable cutting pressure adjustment: 10 – 15 bar - Lowering speed: 0 – 300 m/min - Cutting range 90°: - Round at 90°: 360 mm - Square-flat: 360 x 430 mm - Hydraulic material clamping - Hydraulic automatic material feed - Coolant system - Drive: 400 V / 3 kW - Space requirement approx.: W 2200 x H 1850 x D 1300 mm - Weight approx.: 1100 kg - Roller table: 2000 mm
