Used Stenner Bandsaw for sale (13)

Year of construction: 1970, condition: good (used), functionality: fully functional, Stenner RESAW VHL 48 manufacture Stenner UK S/N J2103 year 1970 (original photos coming soon) Principal Dimensions and data: Diameter of saw pulleys: 48"= 1220mm Width of saw pulley face-standard 5" (127mm) Width of saw pulley face-optional 5 1/2" (140mm) Maximum width of saw - standard 5 1/2" (140mm ) Kjdpevuhumefx Ahaenc Maximum width of saw-optional 6" (150mm)A Minimurn length of saw 25" 8" (782mm) Maximum height of top saw guide above table 28" (710mm) Table height from floor level 31 1/2" ( 800mm 9 Overall height from floor level 9.1" ( 2770mm) Overall width 8.1" (2460mm) Speed of saw pulleys,r.p.m. 8,000 (2440m/min) Horse power range 30 kW Size of fast and loose pulleys 20"x6 1/2" Feed speeds, standard; f.p.m. or m/min. 0-140 (0-42.6m) Shipping Specification : Standard Machine : Net weight, lbs. 3583 kg The VHL 48 is a band resaw of advanced design embodying many new features resulting from a close study of user-operator requirements, and the necessity to provide fast and accurate sawing coupled with ease of operation, reduced operator fatigue, low maintenance, and increased safety. The design caters fully for these essential factors which contribute to a markedly high level of operating efficiency. The machine is primarily designed for the planning mill and joinery shops. The thin bandsaw gives the machine a high timber recovery rate; the loss due to saw kerf being very low. Compared with a circular radial-arm resaw, the VHL is faster, less wasteful, and uses less power for a given class of work general The VHL is made only as, a left-hand machine, i.e. the saw pulleys run in an anti-clockwise direction when looking in the direction of the feed. The drive is normally arranged to give a saw speed of 8,000 feet permin. (2440m l/min.) Main Drive The main drive is applied to the bottom saw pulley spindle which is prepared for vee belt, flat belt, or flat belt fast and loose pulleys to suit the proposed driving unit. Complete electric motor drives, up to 40 H. P. and for most current supplies can be provided; they include two vee pulleys, set of vee belts, belt guard, motor with slide rails, starter and a master stop button which is fitted to the machine base close to the sawyer's position. horizontal rollers The horizontal rollers are 6" (152mm) diameter and extend the full opening on the fence side and 6" (152mm) beyond the table on the open side; they are normally free-running idle rollers. They can be supplied hydraulically driven as optional equipment, either with the machine or after installation; the rollers are then driven in synchronism with the main feed rolls, by a separate motor. The drive is arranged so that the open-side roller at the outfeed end rotates in the reverse direction to facilitate the return of timber to the sawyer. The roller in front of the saw is moveable sideways to permit rapid saw changing.

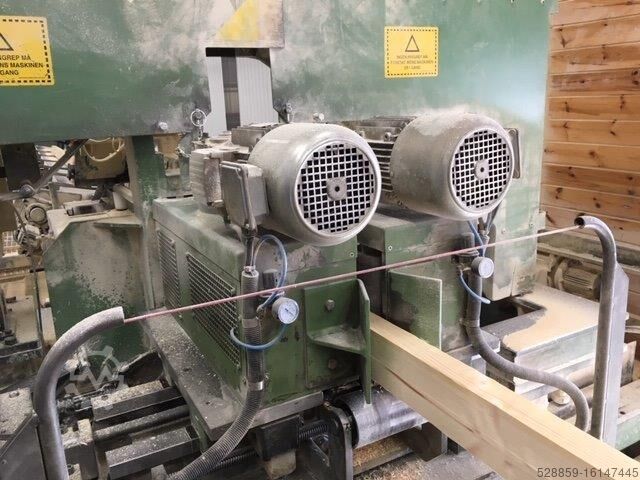

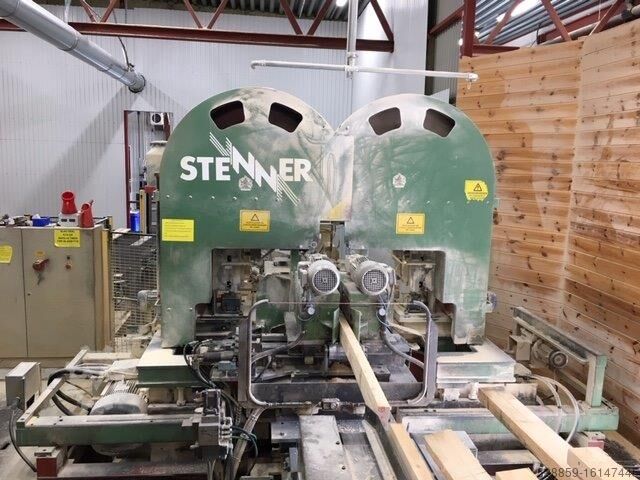

Condition: used, The Stenner VH105 double bandsaw with two movable saw blocks that allow one of them to be placed behind the feed system to cut with one saw or to feed timber through the saw without sawing, both without removing the saw blade. - Manufacturer: Stenner, Kodpfxstp E Uzj Ahaenc - Model: VHET105, - Saw pulley diameter: 1050 mm, - Saw blade width: 130 mm, - Feed speed: 10 – 80 m/min, - Distance between saws: 5 mm, - Distance between saws max: mm: 400 mm.

Condition: used, total height: 2,400 mm, total length: 2,000 mm, total width: 950 mm, Year of manufacture: 2002 Colour: Blue Weight: 1.500 kg - Year: 2002 - CE marking present: Yes - Serial number: AY11051 - Saw direction: vertical - Main motor power [kW]: 15.0 - Wheel diameter [mm]: 915 - Max. cutting to feed roller opening [mm]: 230 - Max. cutting to stop opening [mm]: 260 - Max. cutting width to column [mm]: 300 - Max. total opening [mm]: 480 - Max. cutting height [mm]: 330 - Table width [mm]: 1010 - Table length [mm]: 740 - Max. band saw width [mm]: 100 - Min. band saw length [mm]: 5385 - Max. band saw length [mm]: 5485 - Min. band saw thickness [mm]: 0.8 - Max. band saw thickness [mm]: 1 - Feed roller type: Manual - Extraction port diameter [mm]: 150 Knjdpfozudb Esx Ahaec - Voltage [V]: 400 - Current consumption [A]: 28 - Fuse [A]: 32 - Power [kW]: 15.0 - Transport dimensions: 2000mm x 950mm x 2400mm (l x w x h) - Transport weight [kg]: 1500kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Yorick Diebels

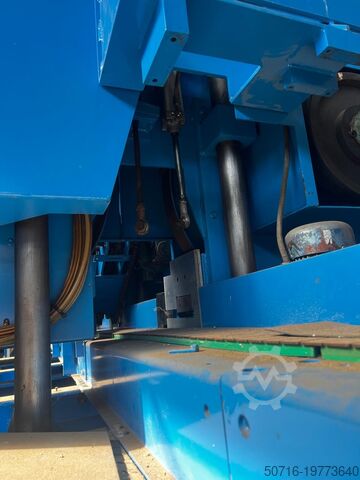

Condition: good (used), Year of construction: 2006, functionality: fully functional, STENNER MHS9 MK2 HORIZONTAL RE SAW LINE. Kedjzwh Hwspfx Ahajnc This complete 9 head line comes with 12 metre infeed and 8 metre outfeed. Tilting heads which are ideal for Feather Edge board production 915MM diameter wheels Max width blade 100MM Saw speed 35M/S Max width timber 305/450MM Max height 305MM Main motors 9x 18.5KW Variable feed speed 15-60M/MIN Operator control station Also if required we have a Systems TM rotary auto stacker which is avaliable at extra cost All nine heads have new upgraded power feed wheels with sprockets, chain tension rollers and alloy blade guides for improved faster production. All guards have new sawdust exhaust outlets for added fire protection. Comes with 80% of orginal dust extraction trunking and operator cross over steps. All additions/improvements costing over 20k GBP. Comes with blades. It does not come with the cross transfer deck shown in video Production of 1.8m long Feather Edge boards is circa 36 m3 sawn per hr. This is a serious piece of equipment for large volume production and it is uncommon for a such machinery to come onto the market for sale. To be collected by customer from site Northamptonshire UK. Crane lorry essential Offers in excess of £80,000 GBP

Condition: used, Year of construction: 1993, functionality: fully functional, Complete Sawmill / Sawing Line E.GILLET–KARA-STENNER Description: For sale: complete E.GILLET–KARA-STENNER sawing line for professional timber processing. Kodpfx Ahezhbr Isaonc The line includes log handling, sawing, board discharge, cross transport and length cutting equipment. Suitable for a sawmill or wood processing company looking for a complete production line rather than separate individual machines. Included equipment: 1. E.GILLET wide band saw 2. KARA YS-VI, LS-240 circular saw 3. STENNER 105 wide band saw 4. Log conveyor — 26 m 5. Log conveyor — 7 m 6. Log splitter / log divider 7. Roller table — 16 m 8. Board unloading table 9. Cross conveyor — 8 m 10. RKG 1-400 cut-off / length cutting saw 11. Roller table — 6 m If you have any questions or need more information, feel free to send us a message or give us a call.

Condition: used, functionality: fully functional, cutting width (max.): 130 mm, Stenner VHJ band resaw, machine size 105, made by Stenner of Tiverton, one of the UK's most respected names in sawmilling machinery. It's a heavy-duty, cast-iron industrial resaw that has been used and maintained in a professional sawmill, with full records kept throughout its working life. Specification • Make / Model: Stenner VHJ, machine size 105 • Serial number: AB 7508 • Motor: 18.5 kW MEZ three-phase motor (type C180M04), 400V • Braking: Fitted with electric motor braking for fast blade run-down, in line with UK PUWER requirements for woodworking machinery • 3-phase supply required Condition Fully operational. Last serviced 30 March 2026, with the next service not due until March 2027. Kedpjz E Hknofx Ahaenc Maintenance history • Regular documented safety inspections every year since 2016 • Professional servicing by specialist engineers, including services in 2022, 2023, 2024 and March 2026 • Wheels professionally refaced on site by Perman Stanley Ltd (saw pulley refacing specialists) in April 2023, with alignment and setup checked • Further service in December 2023 • Service and repair in April 2024 Copies of the service invoices are available to serious buyers. The written pre-operation checks, start-up and shutdown procedure, and safe operating procedure can be passed on with the machine. Included A number of sharpened blades, so the saw is ready to cut straight away. Collection Collection only. The buyer arranges transport and lifting equipment. (Assistance can be provided with removal, lifting and loading) Viewing welcome by appointment, and you're welcome to see it running under power. Please ask any questions before bidding.

Condition: used, total height: 3,270 mm, total length: 2,700 mm, total width: 2,250 mm, Colour: Green Weight: 4.000 kg Price: On request - Serial number: U5624 - Main motor power [kW]: 22.0 - Wheel diameter [mm]: 1200 - Max. cutting to feed roller opening [mm]: 450 Knjdpfjz Rz E Sjx Ahaoc - Max. cutting to stop opening [mm]: 330 - Max. cutting height [mm]: 320 - Table width [mm]: 1000 - Table length [mm]: 1150 - Max. band saw width [mm]: 130 - Voltage [V]: 400 - Current consumption [A]: 46.5 - Fuse [A]: 63 - Power [kW]: 22.0 - Transport dimensions: 2700mm x 2250mm x 3270mm (l x w x h) - Transport weight [kg]: 4000kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Yorick Diebels

Condition: excellent (used), Year of construction: 1997, functionality: fully functional, power: 15 kW (20.39 HP), total height: 2,300 mm, total length: 1,500 mm, total width: 900 mm, overall weight: 1,500 kg, table height: 955 mm, Equipment: CE marking, documentation/manual, motor brake, Vertical band saw / resaw Manufacturer: Stenner Type: ST 9 Heavy-duty vertical band saw for resawing and trimming of squared timber, planks, and boards Typical applications: sawmill, timber trade, carpentry, pallet manufacturing, planing mill Saw blade and rollers: Diameter of saw blade rollers: 915 mm Saw blade width: 100 mm Minimum saw blade length: 5280 mm Maximum saw blade length: 5380 mm Cutting performance: Maximum wood width: 370 mm Maximum cutting width (standard): 230 mm Maximum distance from saw line to fence: 305 mm Fence swivels 0 – 35° Drive and feed: Motor: 15 kW (optional equipment) Kodpfx Ahez Eigfjaenc Feed rate: variable, 7.5 – 30 m/min Dust extraction: Dust extraction port diameter: 150 mm Extraction volume: 1455 m³/h Dimensions and weight: Working height: 955 mm Dimensions (approx.): 1500 x 900 x 2300 mm (L x W x H) Machine weight (approx.): 1500 kg Basic concept: - Vertical band saw for resawing and trimming of solid wood - Fence swivels 0 – 35° for bevel and wedge cuts - Feed rate can be adjusted variably from 7.5 to 30 m/min - Saw blade rollers 915 mm, saw blade width up to 100 mm - Wood type: softwood / hardwood

Condition: good (used), machine/vehicle number: Stenner Resaw Bandrack, functionality: fully functional, total height: 2,350 mm, total length: 5,410 mm, total width: 1,700 mm, table height: 1,100 mm, Equipment: motor brake, Good working condition and ready to use. Solid, reliable machine ideal for sawmill. Please get in touch via my mobile, if you require any further information or would like to arrange a viewing. Can be seen working or please view it on the YouTube Link Kodpfxozrpaus Ahaenc

Condition: good (used), 6 Head Multi-head Horizontal Bandsaw Saw pulley diameter: 915mm Sawblade width (max): 100mm Standard saw speed 35m/s Timber width Max: 305mm – 450mm Maximum opening saw to chain bed: 305mm Feed chains to saw lines 292mm Main motor: 6x 18.5kw Feed speeds (variable): 15 – 60m/min std, 7.5 – 30m/min (optional) Type of feed: internal overhead feed system with driven chains synchronised with chain bed Ksdpozwfxwjfx Ahajnc Operators control station including speed control and start stop controls Working height 800mm

Condition: good (used), Feed speed 10-80 m/min Kedpfxoy Sgyhs Ahaonc Saw wheel diameter 1050 mm Bandsaw width 130mm Saw motor power 2 x 30 kW Hydraulic feed with centering. 7.5kW hydraulic pump Saw blade lubrication tank 2 x 6l Voltage 400 volts 50 Hz Weight approx. 10,000 kg

Condition: used, Year of construction: 1997, Line 3 Stenner MHS9 machines from 1997 Kjdpfx Ahjw Nrhkjaonc

Condition: new, Year of construction: 2024, Radial Band Saw Kjdpfx Ajmbbivehaenc
