Used Homag Edgebander for sale (484)

Condition: excellent (used), Year of construction: 2021, Angular sawing plant Numerical Control PowerControl V2.1 - CADmatic 5 (Tapio ready) No. 1 Rollers table for pre-loading (useful mm 2200 x 4500 approx) Lifting table (mm) 4300 x 2200 1st Rear-pusher, with No. 4 clamps/grippers 1st Panel Saw - Max cutting width mm 4300 Max blade projection (mm) 125 Scoring Unit (max. diameter saw / power) mm 180 (Kw 2,2) Main Sawing Unit (max. diameter saw / power) mm 450 (Kw 28) Adjustable speed of the saw carriage (m/min) 1 - 150 m/min 2nd Rear-pusher, with No. 8 clamps/grippers 2nd Panel Saw - Max cutting width mm 2200 Max blade projection (mm) 125 Scoring Unit (max. diameter saw / power) mm 180 (Kw 2,2) Main Sawing Unit (max. diameter saw / power) mm 450 (Kw 28) Adjustable speed of the saw carriage (m/min) 1 - 150 m/min Dedpfx Akjx Aqdcetskn No. 2 Front supporting tables with Air blowing system (2 x mm 800 x 2810) Total installed power A 102 OPTION: No. 1 Waste grinder

Condition: excellent (used), FLEXIBLE C.N.C. WORKING CENTER 3 axes (X-Y-Z) Movable panel (workpiece), static working head - Horizontal position of the panel (workpiece) Numerical Control PowerControl (Software woodWOP) Safety cabin (enclosure) of the working head Separate electric and command cabinet No. 2 Workpieces fixing clamps (for the panels introduction in the working area) Dkodpfx Akslkdpmoton WEEKE Prepositioning Unit - to position workpieces in machines with clamp grippers faster. In-feeding working table (panel support) and Out-feeding table (with motorized belts) With pushing system to automatically infeed the workpiece Minimum workpieces dimensions (X - Y - Z) mm 200 x 70 x 8 (2 x 4 mm) Maximum workpiece dimensions (X -Y- Z) mm 2500 x 1000 (option mm 1300) x 80 (2 x 40 mm) Two panels simultaneously processables (in Z axe) WORKING GROUPS (TOP): 2V32, 2H8X/Y2, N2 X-Y90,F2-ETP-6 KW No. 1 Vertical electro-spindle ETP-6 (power Kw 6) No. 1 Circular Grooving Saw (90° on X-Y axe) dia. mm 125 No. 23 Vertical drilling spindles (power Kw 2.3) No. 5 Horizontal drilling spindles (4 in X + 1 in y) WORKING GROUPS (BOTTOM) No. 1 Vertical electro-spindle ETP-6 (power Kw 6) No. 1 Circular Grooving Saw (90° on X-Y axe) dia. mm 125 No. 23 Vertical drilling spindles (power Kw 2.3) No. 5 Horizontal drilling spindles (4 in X + 1 in y)

Condition: excellent (used), AUTOMATIC MULTI-BORER "WEEKE" In line with another machine possible Numerical Control Power Control Software WoodWop (TOPDRILL BST 500) Dodpfx Aoh Ryhnjktokn Through-feed motorized transport belts (No.) 2 (with adjustable speed) Horizontal units/supports (No.) 2 Drilling heads/Blocks for each horizontal unit (No.) 2 Spindles for each horizontal drilling head (No.) 11 Max. working width (mm) 3000 Min. working width (mm) 250 Bottom vertical units/supports (No.) 6 Drilling heads/blocks for each bottom vertical unit (No.) 2 Spindles for each drill head of the bottom vertical supports (No.) Various Top vertical units/supports (No.) 2 Drilling heads/block for each top vertical unit (No.) 2 Spindles for each drill head of the top vertical supports (No.) Vertical top pressure clamps (No.) 6 Transport belt to evacute chips (wastes) Quota (axes) digital display Total installed power (Kw) 26

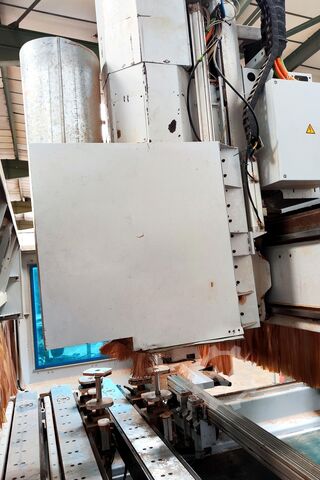

Condition: excellent (used), C.N.C. WORKING CENTER (POINT TO POINT) 4 axis (5 axis with FLEX 5) Gantry-drive (axe X) machine Numerical Control Control Powertouch (PC85) Software woodWOP Safety cabin (enclosure) of the working head Working table with pods and rails Mod. K-Table Support rails (No.) 8 Table dimensions (mm) 1340 Automatic deplacement by CNC (X axis) of the Supports rails LED system (on the rails) for the vacuum pods positioning Clamps for workpieces fixing - POWERCLAMP Automatic Tools Changing System Tools storage plate (No. of folds-positions) 18 Max. useful working area (X - Y - Z) mm 4000 x mm 1550 x mm 60 Max. useful working area (X - Y - Z) in edge banding (mm) 4000 x mm 1500 x mm 60 No. 2 Working areas - Vacuum pump (capacity m3/h) 100/140 Separate electric and command cabinet Motorized carpet to evacuate chips and wastes Total installed power (52 A) WORKING GROUPS (TOP): No. 17 Independent vertical boring spindles (High Speed 7500) No. 4 Independent horizontal boring spindles (No.2 in X-axe + No. 2 in Y-axe) Drilling head motor-power (Kw) 2,2 No. 1 Vertical electro-spindles HSK63. Vertical electro-spindles motor power (KW 15) No. 1 Edge Banding head on board (axe Y) Power Edge, Glueing Unit (Hot Melt + Quick Melt Unit) Edges (tape) thickness in rolls (min/max) mm 0,4 - 3 Edge coils supporting unit (N. 1 reels/Coils) Pre-End cutting unit Crosshead aggregate (4 horizontal drilling spindles) N° 1 Circular saw aggregate (diam. mm 125) Combined aggregate (Flush-Trimming/Scraping) Dkodpfsw Dc Niox Aktsn

Condition: excellent (used), Numerical Control Power Control + Software Cadmatic 4 Professional N° 1 Infeed roller tracks (ca.) 18,000 mm + (OPTIONAL: Infeeder with chains) Lifting table (mm) 5600 x 2200 VAC loader (sliding bridge) with fan suction for loading special or delicate panels 1° Rear-pusher, with No. 6 clamps/grippers Turning device (rotating unit) at 90° 1° Panel Saw - Max cutting width mm 5600 (cutting line with air cushion) Max blade projection (mm) 170 Scoring Unit (max. diameter saw / power) mm 200 (Kw 2,2) Main Sawing Unit (max. diameter saw / power) mm 570 ( Kw 30) Adjustable speed of the saw carriage (QS) (m/min) 1 - 150 m/min 2° Rear-pusher, with No. 7 (+1) clamps/grippers 2° Panel Saw - Max cutting width mm 2200 (cutting line with air cushion) Max blade projection (mm) 170 Dkjdpfx Aksf Nkv Sstsn Scoring Unit (max. diameter saw / power) mm 200 (Kw 2,2) Main Sawing Unit (max. diameter saw / power) mm 570 (Kw 30) Adjustable speed of the saw carriage (QS) (m/min) 1 - 150 m/min Waste evacuation system with grinder (Kw 19.5) No. 2 Front supporting tables with Air blowing system (mm 800 x 2160) Plastic wheels coated with special material to avoid scratching delicate panels Automatic unloading System of the cut panels (N° 2 roller conveyors) Typ 68/20 and Typ 58/24 + N° 3 tables with motorised belts: 2 x Typ 255/56/2 and 1 x Typ 27/56) Total power Kw 110 ca.

Condition: excellent (used), Numerical Control Power Control + Software Cadmatic 4 Professional No. 1 Infeed roller tracks (ca.) 32,000 mm Lifting table (mm) 5600 x 2200 VAC loader (sliding bridge) with fan suction for loading special or delicate panels 1° Rear-pusher, with No. 6 clamps/grippers Turning device (rotating unit) at 90° 1° Panel Saw - Max cutting width mm 5600 (cutting line with air cushion) Max blade projection (mm) 190 Scoring Unit (max. diameter saw / power) mm 200 (Kw 2,2) Main Sawing Unit (max. diameter saw / power) mm 600 ( Kw 36) Dkedpfovnq H Esx Akton Adjustable speed of the saw carriage (QS) (m/min) 1 - 130 m/min 2° Rear-pusher, with No. 14 clamps/grippers 2° Panel Saw - Max cutting width mm 2200 (cutting line with air cushion) Max blade projection (mm) 190 Scoring Unit (max. diameter saw / power) mm 200 (Kw 2,2) Main Sawing Unit (max. diameter saw / power) mm 600 (Kw 36) Adjustable speed of the saw carriage (QS) (m/min) 1 - 130 m/min Waste evacuation system with grinder (Kw 19.5) No. 2 Front supporting tables with Air blowing system (mm 800 x 2160) Plastic wheels coated with special material to avoid scratching delicate panels Automatic unloading System of the cut panels: N° 2 x Liftomat HAU-A 25/12 Automatic Stacking System with 8 stations

Condition: excellent (used), Panel Beam Saw - With rear lifting table Numerical Control POWER CONTROL Software CADmatic 4 Professional Lifting scissor table (mm) 3800 x 2200 Rear pushers (N.) 1 With clamps / grippers 7 Turning device (rotating unit) at 90° Max. cutting width (mm) 3800 Dedpfx Akjh Imvhstjkn Useful stroke of the pushing system (mm) 3800 Max blade projection (mm) 95 Scoring Unit (max saw diameter / power) mm 180 / Kw 2,2 Main Sawing Unit (max saw diameter / power) mm 380 / Kw 13,5 Adjustable speed of the saw carriage (m/min) 1 - 130 Front supporting tables with Air blowing system (N.) 3 (2160mm x 650mm) Total power (Kw) 28 (ca.)

Condition: excellent (used), Independent machine (standing alone) and/or Universal machine (First & Second in a line) Dkjdpfjh Nx U Njx Akton Numerical Control ( CNC) NC 21, Software Homatic Safety and sound-proof enclosure No. 3+3 Vertical columns to support the working units Min. useful working width (mm) Max. useful working width (mm) 3000 Max. useful working tickness (mm) 100 (ca.) Max. depth of the panel (mm) for automatic infeed 1250 Distance between center-axes of the disappearing dogs (mm) 1000 Adjustable (min/max) feeding speed (m/min) 8 - 25 (ca.) No. 4 Working groups (for each machine's side): 1 Jumping Scoring Unit (1 x Kw 1,5 ca.) 1 Hogging Unit (1 x Kw 4,5 ca.) 1 Jumping Milling Unit (1 x Kw 4,5 ca.) 1 Free Space

Condition: excellent (used), LINE (half line) of Double-side Sizing-Milling & Edge Banding, with max working width mm 2500, with automatic fast handling system. Composed of the following machines: A) DOUBLE LOADER (BRIDGE-FRAME) "BARGSTEDT" TBH 270 / D / 25 / 12 B) TURNING DEVICE FOR PANELS (LENGTHWISE TO CROSSWISE) "HOMAG" TDL /310 /25 /12 C) Double-side SIZING and EDGE BANDING machine "HOMAG" Mod. KFL 526/9/A3/25 Dkjdpfx Ajrnrrboktjn D) TURNING DEVICE FOR PANELS (CROSSWISE TO LENGTHWISE) "HOMAG" TDL 510/25/12 E) DOUBLE UNLOADER (BRIDGE-FRAME) "BARGSTEDT" TSH 270 / D / 25 / 12 With LINE CONTROLLER - WOODLINE CONTROL PC52

Condition: excellent (used), Angular sawing plant Numerical Control Cadmatic 4 professional Rollers table for pre-loading No. 1 (mm 2200 x 4400) Lifting table (mm) 2200 x 4300 Dodpspuh Dkefx Aktskn 1st Rear pusher, with clamps No. 4 1st Panel Saw Max cutting width (mm) 4300 Max blade projection (mm) 125 Scoring Unit (max. diameter saw / power) mm 180 (Kw 2,2) Main Sawing Unit (max. diameter saw / power) mm 450 (Kw 18) Adjustable speed of the saw carriage (m/min) 0-150 2nd Rear pusher, with clamps No. 8 2nd Panel saw Max cutting width (mm) 2200 Max blade projection (mm) 125 Scoring Unit (max. diameter saw / power) mm 180 (Kw 2,2) Main Sawing Unit (max. diameter saw / power) mm 450 (Kw 18) Adjustable speed of the saw carriage (m/min) 0-150 Front supporting tables with Air blowing system No. 2 With extra long air blowing table to facilitare the evacuation of the cut panels Total power Kw 52.6

Condition: refurbished (used), Numerical Control Type Power Control Software No. 2 Through-feed motorized conveyoring belts No. 2 Horizontal units/supports (with Digital quota/axes display) No. 2 Drilling heads for each horizontal unit (1 x Kw 1,5) No. 11 Splindles for each horizontal drilling head Max. working width (mm) 3000 Min. working width (mm) 250 No. 6 Bottom vertical units/supports (with Digital quota/axes display) No. 2 Drilling heads/blocks for each bottom vertical unit (2 x Kw 1,5) N. 11 Spindles for each drilling head of the bottom vertical supports Dkodpfevhcbzox Aktjn No. 2 Top vertical units/supports (with Digital quota/axes display) No. 2 Drilling heads/blocks for each top vertical unit (2 x Kw 1,5) N. 11 Spindles for each drilling head of the top vertical supports No. 6 Vertical top pressure clamps Motorized carpet to evacuate chips and wastes Total installed power (Kw) 50 / 60 (ca.)

Condition: excellent (used), "SOFTFORMING" LEFT-side SINGLE-SIDE SIZING and EDGE BANDING Edges (tape) thickness in rolls (min/max) mm 0,4 / 3 Panels thickness (min/max) mm 8 / 60 Numerical Control / Software PC 22 / WoodCommander Adjustable feeding speed (m/min ) 10 - 40 Working line (work units support tables), manual adjustment mm 30 - 80 SIZING PART: Spraying unit (Anti-sticking liquid) Double Hogging Units KD 10 (2 x Kw 6,6) Fine Trimming unit for softforming (2 x Kw 1,85) 0°-20° Dkedpfx Akst N H Taotjn Belt sanding unit (abrasive papers) for straight edge KS 10(mm 120 x 2100) Free space mm 700 EDGE-BANDING PART: Glueing Unit (Hot Melt + Quick Melt Unit) E34 softforming Pressing rollers (revolver) both for straight and shaped edges (softforming) G (4 stations) With top and bottom rolling knives (In-lay) Edge coils supporting unit E3 (No. 6 of reels) Snipping (end-cutting) unit HL 84 (2 x kW 0,8) 0°-30° (max 25 m/min) 1st Fine Trimming unit 2 units x (2 x kW 0,55) 0°-30° pneumatic 2nd Fine Trimming unit 2 units x (2 x kW 0,55) 0°-30° pneumatic Milling grooving unit UF11 (1 x kW 4) 0°-90° Profile Scraping unit PN20 (Pneumatic adjustment) Finish processing unit (Glue scraper + Buffing unit) FA11

Condition: excellent (used), Double side - Independent Machine (or 1st and/or 2nd in a line) Edges (band in rolls) thickness (Min/Max) mm 0,3 / 3 Panels thickness (min/max) mm 12 / 40 Working width (min/max) mm 225 / 2500 Numerical Control POWERCONTROL PC23 Power Touch /Software WoodCommander Adjustable feeding speed (m/min) 15 - 40 Distance (center-axes) of the Disappearing Dogs (mm) 1000 Working line (work units support tables), manual adjustment mm 30 – 80 SIZING PART (for each side): Anti-chipping Milling Unit (1 x Kw 4,5) Hogging Units KD 11 (2 x Kw 6,6) + Free Space EDGE-BANDING PART (for each side): Glueing Unit (Hot Melt + Quick Melt Unit) A3 + QA65 Edge coils support (No 2 reels) Band Pressure zone (adjustable by N.C.) Type A Snipping (end-cutting) HL PK30 (2 x kW 0,8), speed 30 m/min Rough Trimming unit BF20 (2 x kW 0,55) Multi Function Unit (Profile contour Trimming unit) FF30 + FF32 (4 x kW 0,4) with FlexTrim Free Space Profile edge scraping unit PN 20 Dodpfxsv Rpdno Aktokn Finish processing unit (Glue scraper + Buffing unit) FA 21. Spraying Unit (for polishing liquid) No. 3 Milling grooving unit SF20 (1 x Left + 2 x Right) (3 x kW 6,6) (N.C. adjustment)

Condition: excellent (used), Year of construction: 2021, 4-SIDE EDGE BANDING LINE Workpieces dimensions: min. mm 195 x 250 x 60 / max. mm 1200 x 2500 x 60 Composed of the following machines: O12044a) Infeed table "HOMAG" Mod. TBL 100/25/12 with motorized rollers O12044b) 1st Double-side Sizing & Edge Banding machine "HOMAG" Mod. EDGETEQ D-610 (KFL 525/5/A3/15) Dksdpex Aqbhefx Aktsn O12044c) Turning Station "HOMAG" Mod. TDL 310 / 25 / 12 (from lengthwise to crosswise) O12044d) 2nd Double-side Sizing & Edge Banding "HOMAG" Mod. EDGETEQ D-610 (KFL 526/6/A3/25)

Condition: as good as new (ex-display), FULL LINE of Double-side Sizing-Milling & Edge Banding. Composed of the following machines: O06027A) Gantry-portal Loader (Double pick-up station) "BARGSTEDT" Mod. TBH 250/D/25/12 O06027B) 1st Double-side Sizing & Edge Bander "HOMAG" Mod. KFL 525 / 6 / A3/ 15 O06027C) L shaped connecting roller conveyor "HOMAG" Mod. TWL 310 / 25 / 12 O06027D) 2nd Double-side Sizing & Edge Bander "HOMAG" Mod. KFL 526 / 9 / A3 / 25 O06027E) Connecting Roller Conveyor "HOMAG" Mod. TBL 100 / 25 / 25 O06027F) Connection transfer (on rails) "HOMAG" Mod. TWL 120 / 30 / 02 S O06027G) Connection transfer (on rails) "HOMAG" Mod. TWL 120 / 34 / 02 S Dodpfxewxvdce Aktokn O06027H) Gantry-portal Stacker (Double pick-up station) "BARGSTEDT" Mod. TSP 410/D/25/12

Condition: excellent (used), YZ0105) PANEL SAW WITHOUT REAR LIFTING TABLE Mod. HPP 300/56/56 PROFILINE Numerical Control Power Control POWER TOUCH. Software CADmatic 4 - Professional Rear pushers (N.) 1 - (PACK PREMIUM). With No. 11 clamps / grippers (1 x Power Concept) Max. cutting width (mm) 5600. Useful stroke of the pushing system (mm) 5600 Max. blade projection (mm) 80 Scoring Unit (max. diameter saw / power) mm 180 / Kw 1,5 Main Sawing Unit (max. diameter saw / power) mm 350 / Kw 11 (option Kw 18) Adjustable speed of the saw carriage (m/min) 1 - 150 No. 5 Front supporting tables with Air blowing system (mm 500 x 2810) Labels Printer: PICA II 108 YZ0106) AUTOMATIC REAR STORAGE SYSTEM for PANELS Mod. TFL 211/10/05 Total Space Required (with panel saw) mm 10640 x mm 55660 Dsdpofg Ewzefx Aktjkn Mobile upper bridge (on X-axis), with mobile carriage (on Y-axis) and relative vacuum suction cup assembly (mobile on Z-axis) max. speed Mobile upper bridge (on X axis) 110 m/min moving carriage speed (on Y axis) 130 m/min vacuum suction cup group speed (mobile in Z axis) 70 m/min Vacuum suction cup group, 90° rotating Automatic management system TLF (by scanner) of the cut panels (but remaining in the warehouse) minimum dimensions mm 800 x mm 2000 Stack dimensions Min mm 2600 x mm 800 / Max mm 5600 x mm 2200 Stack height: mm 1000

Condition: excellent (used), Double side - Independent Machine (or 1st and/or 2nd in a line) Edges (band in rolls) thickness (Min/Max) mm 0,3 / 3 Panels thickness (min/max) mm 12 / 40 Working width (min/max) mm 225 / 2500 Numerical Control NC 21 / HOMATIC Adjustable feeding speed (m/min) 15 - 50 Safety and sound-proof enclosures/cabins Distance (center-axes) of the Disappearing Dogs (mm) 500 SIZING PART (for each side): Spraying unit (Anti-sticking liquid) Anti-chipping Milling Unit 1 x Kw 4,5 Hogging Units KD 11 (2 x Kw 6,6) LEFT SIDE: Jumping Milling Unit (for grooving) SF 20 (Kw 6,6 x 1) 0°-90° RIGHT SIDE: Free space EDGE-BANDING PART (for each side): Glueing Unit (Hot Melt Glue + Quick Melt system) A3 + A34 Edge coils support (No 6 reels) Band Pressure zone "A" (1 + 4 rollers) Dkedpfx Akohvi E Iotjn Snipping (end-cutting) unit HL 04 (2 x kW 0,18) Rough Trimming unit 2 x Kw 0,55 (0°-35°) Multi Function Unit (Profile contour Trimming unit) FK 11 - 2 x Kw 0,4 Profile edge scraping unit PN 20 Glue scraping unit (Pneu) Buffing unit (2 x Kw 0,25)

Condition: excellent (used), Double side - Independent Machine (or 1st and/or 2nd in a line) Edges (tape) thickness in rolls (min/max) mm 0,6 - 3 Panels thickness (min/max) mm 8 - 60 / Working width (min/max) mm 225 - 3000 Numerical Control Power Control PC 22 /Software: Wood Commander Adjustable feeding speed (m/min ) 15 - 32 Distance (center-axes) of the Disappearing Dogs (mm) 400 SIZING PART (for each side): Anti-chipping Milling Unit 1 x Kw 4,5 / Hogging Units KD 11 (2 x Kw 6,6) EDGE-BANDING PART (for each side): Glueing Unit (Hot Melt + Quick Melt Unit) A3 + SERVO Band Pressure zone "A" Edge coils supporting unit (No. 2 reels) Snipping (end-cutting) unit HL 84 (2 x Kw 0,22) Rough Trimming unit (2 x Kw 0,55) Fine Trimming unit 2 x Kw 0,4 Corner Rounding unit (Contour Trimming) FF 12 (4 x Kw 0,4) Dedep N D Ngepfx Aktjkn LEFT SIDE: 2 x Jumping Milling Unit (for grooving) UF11 (Kw 4 x 2) 0°-90° RIGHT SIDE: 1 x Jumping Milling Unit (for grooving) UF11 (Kw 4 x 1) 0°-90° Profile edge scraping unit PN10 (PNEU) Finish processing unit (Glue scraper + Buffing unit) FA 11

Condition: excellent (used), SINGLE-SIDE Sizing-Milling & Edge Banding Line PRE-FORMING (DIRECT POSTFORMING), composed of the following machines: Dkedpfx Aenzhxqekten A) Double station bridge loader "TREVISAN", with motorised roller conveyor B) Single-side Sizing & Edge Banding "HOMAG" Mod. Profi VFL79/3/P/A Preforming Edges (tape) thickness in rolls (min/max) max mm 0.35 (for U and L profiles) Panel thickness (min/max) mm 16 / 30 (optional mm 50) Working width (min/max) min mm 150 - Variable feeding speed (m/min) 10 - 32 Numerical control / PC 22 software / WoodCommander 01°) Horizontal milling unit (for top incision) Kw 2,2 02°) Hogging Unit (Kw 15) 0°-15° (for pre-hogging from above) 03°) Milling Shaping Unit Kw 6,6 (top rebate milling) with Hydro-clamp 04°) Milling Shaping Unit Kw 6,6 (bottom rebate milling) 0°-120° (with Hydro-clamp) 05°) Milling Shaping Unit Kw 0.7 (radius milling for profile finishing) 06°) Milling Shaping Unit Kw 1.85 (U profile milling) HSK25 07°) Milling Grooving unit UF 11 (Kw 4) for grooving or rebate milling 08°) Milling Shaping Unit Kw 2,2 (milling for chamfering and laminate overhang at top) 09°) Milling Shaping Unit Kw 2,2 (milling for the bottom bend groove) 10°) RIGHT SIDE: Milling Shaping Unit Kw 6,6 (grooving & rebate milling) panel width mm 160 - 1050 11°) RIGHT SIDE: Fine trimming unit (2 x Kw 1) for top and bottom edging and finishing (0°-25°) 12°) Cleaner / Blower (Kw 0,55) of postformed piece 13°) Laminate overhang control (to detect laminate breakages) 14°) Glueing Unit (P.U.R) Glue (PU34+QA34) spray glue application (with nozzles) 15°) Pressure zone for "L" profile (VF Direct) for panels up to max. thickness 50 mm 16°) Pressure zone for "U" profile (for spacer profile R = 2.5 mm) 17°) Upper Circular Knife 18°) Fine Trimming Unit / Finishing Unit (2 x Kw 0.55) HSK25 (0°-30°) 19°) Oscillating upper cleaner (1 x Kw 0.25) C) Double station bridge unloader "TREVISAN", with motorised roller conveyor

Condition: excellent (used), C.N.C. WORKING CENTER with 4 axes (X-Y-Z-C) for routering, boring, cutting and edge banding Goose-neck type - Front emergency carpets Numerical Control Type PowerControl PC 85 - Software WoodWop No. 10 Supports/Rails (mm 1340) LED system (on the rails) for the vacuum pods positioning Automatic Tools Changing System (Store at No. 18 folds) Max. useful working area (X - Y - Z) mm 6175 x 1550 x 60 Max. useful working area (X - Y - Z) in edge banding mm 6000 x 1475 x 60 No. 2 Working areas - No. 2 Vacuum pumps (capacity m3/h 100 each) Motorized carpet to evacuate the wastes from the working process Total installed power KW 27 Working groups (top) No. 17 Independent vertical boring spindles (power of the drilling head Kw 2,2) No. 4 Independent horizontal boring spindles No. 1 Vertical main Electro-spindle HSK F63 Kw 11 No. 1 Circular Saw 0°-90°) diam. (mm) 125 No. 1 Edge Banding head on board (axe Y) Power Edge, Glueing Unit (Hot Melt + Quick Melt Unit) Edges (tape) thickness in rolls (min/max) mm 0,4 - 3 Edge coils supporting unit (N. 2 reels/Coils) Dksdpfx Akoh Ucn Roton

Condition: excellent (used), Numerical Control Type Power Control Software TOPDRILL BST 500 No. 2 Through-feed motorized conveyoring belts No. 2 Horizontal units/supports (with Digital quota/axes display) No. 1 Drilling head for each horizontal unit (1 x Kw 1,5) No. 21 Splindles for each horizontal drilling head Max. working width (mm) 2500 Min. working width (mm) 250 No. 4 Bottom vertical units/supports (with Digital quota/axes display) No. 2 Drilling heads/blocks for each bottom vertical unit (2 x Kw 1,5) N. 11 Spindles for each drilling head of the bottom vertical supports No. 4 Vertical top pressure clamps Djdpfxeivawpe Aktjkn Motorized carpet to evacuate chips and wastes Total installed power (Kw) 20

Condition: excellent (used), LINE (half line) of Double-side Sizing-Milling & Edge Banding, with max working width mm 2500, with automatic fast handling system. Composed of the following machines: O02006A) PANEL INFEED roller table "HOMAG" PROFI TBL100/30/12 O02006B) TURNING DEVICE FOR PANELS (LENGTHWISE TO CROSSWISE) "HOMAG" PROFI TDL /310 /25 /12 Dkedpfxev D U Ure Akten O02006C) Double-side SIZING and EDGE BANDING machine "HOMAG" Mod. PROFI KFL 526/10/A3/25 O02006D) TURNING DEVICE FOR PANELS (CROSSWISE TO LENGTHWISE) "HOMAG" PROFI TDL 510/25/12

Condition: excellent (used), DOUBLE-SIDE EDGE BANDER - Min/max edges (band) thickness in rolls mm 0,3 - 3 - Min/ max panels thickness mm 12 - 40 - Min /max working width mm 250 - 2500 - Numerical Control: Power Control PC 22 - Feeding speed (adjustable) m/min 10 - 32 - Top motorized pressure belt - Anti-sticking liquid spraying unit - Pre-Milling Unit (Vertical joint trimmers) 2 x Kw 4 at 9.000 RpM - Glueing Unit (Hot Melt + Quick Melt system): A3 - Pressure Zone (manual adjustment): "A" - Edge coils supporting unit with N. 2 coils - Snipping Unit: HL 84 (2 x Kw 0,22 at 12.000 RpM) - Fine Trimming Unit (2 x Kw 0,4 at 12.000 RpM) - Finish processing unit (Glue scraper + Buffing unit): FA 11 - Spraying & polishing unit Dodpfjwk Hp Tex Aktskn

Condition: excellent (used), A) Furniture Carcasse (Case) Continous Press Clamp (with CNC) "LIGMATECH" Mod. MDE 110/28/08 - Motorized conveyoring and carcasse-assembling Carpet (through-feed the Clamp) - Adjustable feeding speed m/min 12-40 - CNC Power Control 22 T - Total installed power Kw 14 - Total length of the machine mm 6220 Machine ables to process furniture cabinets (corpus) with dimensions: - Min/Max Length (Min/Max): mm 250 /2800 - Min/Max Depth - Width (Min/Max): mm 120 /800 - Min/Max Height (Min/Max): mm 280 /1320 B) Motorized transport carpet Mod. MTB 200/20/08 (length mm 2000) Dodpfelkbn Iox Aktekn C) Motorized transport carpet Mod. MTB 200/20/08 (length mm 2000)

Condition: excellent (used), Double side - Independent Machine (or 1st and/or 2nd in a line) Edges (band in rolls) thickness (Min/Max) mm 0,3 / 3 Panels thickness (min/max) mm 8 / 40 Working width (min/max) mm 225 / 2500 Numerical Control PC 22 /Software WoodCommander Adjustable feeding speed (m/min) 15 - 40 Safety and sound-proof enclosures/cabins Distance (center-axes) of the Disappearing Dogs (mm) 1000 SIZING PART (for each side): Anti-chipping Milling Unit (1 x Kw 4,5) Hogging Units KD 11 (2 x Kw 6,6) Milling Unit (vertical Joint Trimmers) UF 20/S2 (2 x Kw 4) EDGE-BANDING PART (for each side): Glueing Unit "ZERO JOINT" SCHUGOMA Kantenking (Option: EVA glue/ PU glue) Edge coils support (No 2 reels) Band Pressure zone (adjustable by N.C.) Type A Snipping (end-cutting) HL 84 (2 x kW 0,22), speed 25 m/min Rough Trimming unit BF10 (2 x kW 0,55) Multi Function Unit (Profile contour Trimming unit) FK11 (2 x kW 0,4) Dodpfsuhv R Dox Aktjkn Profile edge scraping unit (Multi-profile, adjustable by N.C.) MN 21 Finish processing unit (Glue scraper + Buffing unit) FA 11. Spraying Unit (for polishing liquid) No. 2 Milling grooving unit SF20 (2 x kW 6,6) Motorised panel infeed roller conveyor, with panel identification system "HOMAG" Mod. POWER TBL 100/20/25
