Used Krauss Maffei Extruder for sale (211)

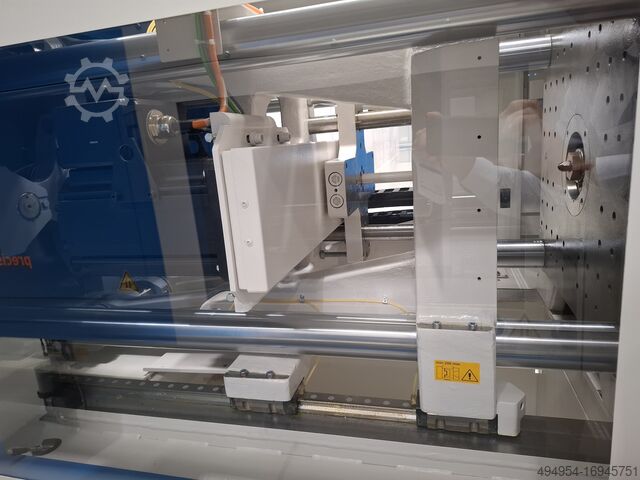

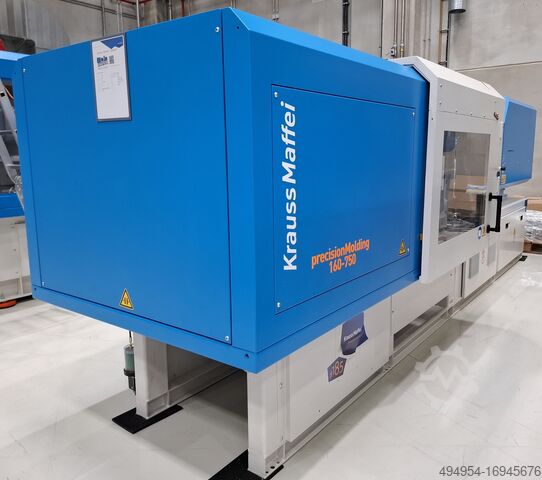

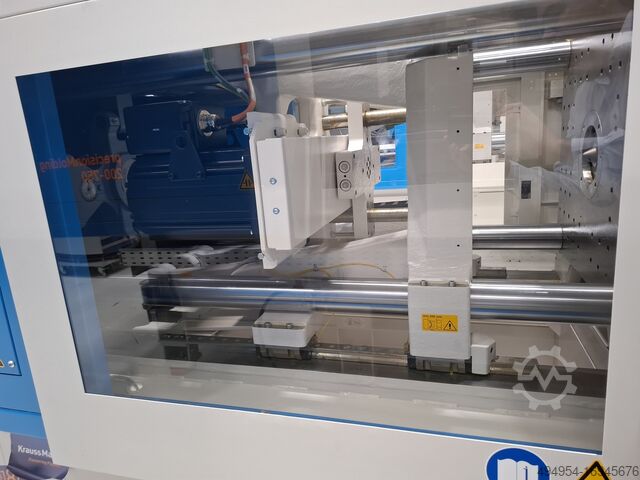

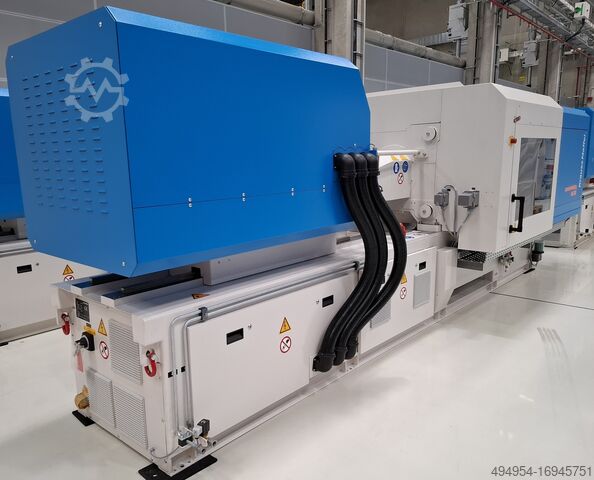

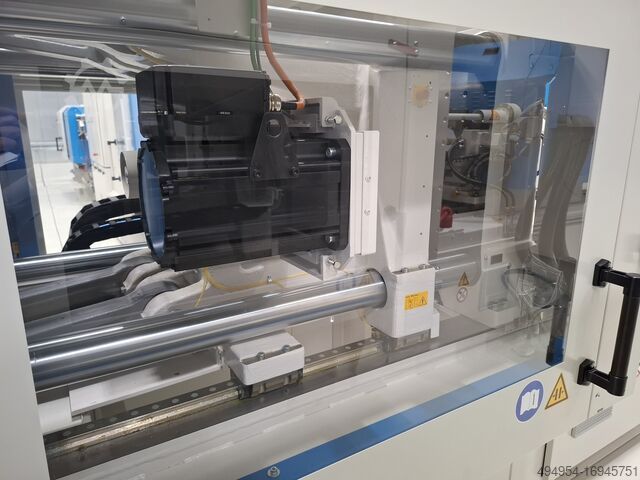

Condition: new, Year of construction: 2025, Injection Moulding Machine – Krauss Maffei KM 160-750 CX Year of manufacture: 2025 Fully hydraulic clamping system. MC 6 control system based on an industrial computer with real-time Ethernet technology, equipped with an integrated 21.5" operator panel with colour touchscreen display. Plasticising Unit Complete plasticising unit for thermoplastics, screw diameter 50 mm, with check valve and open nozzle Nozzle radius: 10 mm Nozzle orifice: 4 mm Technical data (standard version) Clamping Unit Clamping force: 1,600 kN Opening force: 86 kN Platen dimensions (H x V): 820 x 845 mm Tie bar spacing (H x V): 520 x 520 mm Opening stroke: 650 mm Minimum mould height: 300 mm Maximum daylight: 950 mm Pedpfoxdd N Ujx Agqord Ejector stroke: 150 mm Ejector force front/rear: 23 / 10 kN Injection Unit Screw diameter: 50 mm L/D ratio: 20.2 Injection pressure: 1,892 bar Shot volume: 393 cm³ Shot weight (PS): 357 g Injection speed: 90 mm/s Injection rate (standard): 177 cm³/s Screw speed (standard): 265 rpm Electro-hydraulic System Pump motor power: 22 kW Installed heater power: 15.5 kW Dry cycle time according to Euromap 6: 2.1 s Oil tank capacity: 400 l Linear Robot – Krauss-Maffei LRX 100 Payload < 10 kg (gripper + drives + parts) Part removal on operator-offside Axes: X-axis (from mould): 620 mm, servomotor Y-axis (vertical, with brake): 1,200 mm, servomotor Z-axis (crosswise): 1,500 mm, servomotor Dimensions and Weight Net weight (with control cabinet): 6.10 t Machine dimensions (L x W x H): 4.93 x 1.62 x 2.04 m

Year of construction: 2008, condition: good (used), For sale is a Krauss Maffei brand injection molding machine type KM 110-380 The machine is in a good to very good condition, all maintenance and inspections have been performed Technical data: Year of manufacture 2008 Extended tie bars Pneumatic valve gate 2X Hydraulic core puller 31000 operating hours Cylinder D35mm Mould closing force: kN 1100 Mold opening force: kN 70 Euromap63 interface for version > 1-04-09 Nitrogen battery present Included component Wedge shoes with bolts and nuts Double bit wrench Declaration of conformity cpl switchboard Certificate USB memory stick Ejector coupling-mechanical Enclosed in the control cabinet Pedpeibyatofx Agqsrd All prices plus VAT Machines purchase / sale PURCHASE / SALE OF PRODUCTION & METALWORKING MACHINES ETC. Do you need a high-quality but inexpensive metalworking machine for your production? Or do you want to sell yours? For more information or to contact us, please visit our website

Condition: good (used), Year of construction: 2006, operating hours: 65,000 h, clamping force: 2,000 kN, screw diameter: 55 mm, Hydraulic core pull 2x Hot Runner 4x Prodpfx Aotqifnjgqed Air valves

Condition: good (used), Year of construction: 1995, operating hours: 60,000 h, functionality: fully functional, screw diameter: 40 mm, clearance between the columns: 470 mm, Krauss Maffei injection moulding machine type KM110-390 C1 for sale. The machine is in very clean condition, as it was used for manufacturing medical products (see clean room in the photos). Maintenance was carried out by Krauss Maffei up to the end. The machine is immediately ready for use and has already been dismantled. Prodpsxbar Hsfx Agqed Loading by forklift. - Approx. 60,000 operating hours - Serial no. 114104 - Year of manufacture: 1995 - 40mm screw - 1,100 kN clamping force - 470x470 mm tie bar distance - Core pull connector: 1 - Dimensions: 4.5x1.5x2.2 meters - Weight: 5,800 kg If you have any questions, please feel free to contact us at any time.

Condition: good (used), Year of construction: 2004, functionality: fully functional, Clamping force: 1250 kN Screw diameter: 35 mm Tie bar spacing: 470 mm Podpewthfusfx Agqjrd Shot weight: 142 g Minimum mould height: 300 mm Total weight: approx. 6,000 kg

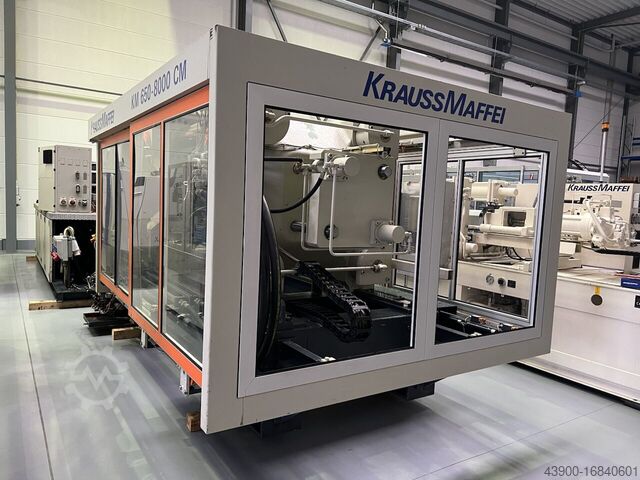

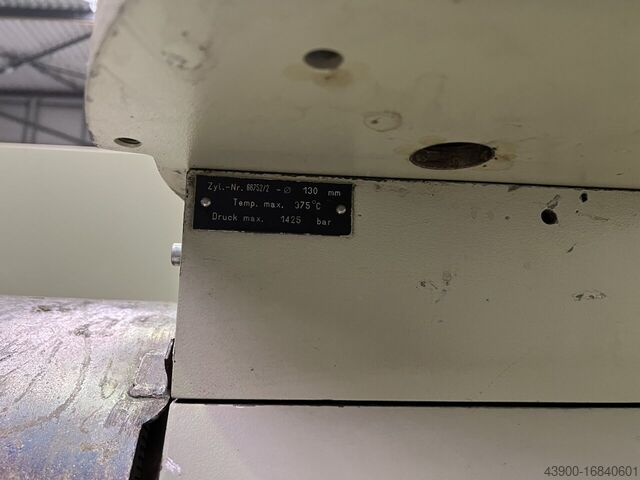

Condition: ready for operation (used), Year of construction: 1997, Stock-No. 13602 Manufacturer Krauss Maffei Type of machine KM 650 – 8000 CM Year 1997 Working hours 80000 h Controlversion MC 3-F Screentext German Location Eschweiler - Germany Clamping unit: Clamping force 6500 kN Mould opening force, max. 346 kN Travel force movable platen opening 169 kN Travel force movable platen closing 144 kN Size of mould platens (h x v) 1704 x 1700 mm Distance between tie bars (h x v) 930 x 930 mm Mould opening stroke 1150 mm Mould height min 600 mm Max. daylight 1750 mm Hydraulic ejector - stroke 250 mm Ejector force 226 kN Injection unit: Screw diameter 130 mm Ls/D ratio 20 Injection pressure 1296 bar Stroke volume 6172 ccm Shot weight (PS) 5617 gr. Injection rate 1540 ccm/s Screw speed 138 1/min Plasticising rate max. 238 g/s Nozzle pressure 246 kN Electric and Hydraulic Equipment: Nominal capacity of pump motor 132 kW Installed heating capacity 70 kW Adjustable barrel heating zones 7 Dimensions and weights: Dimensions of the machine ca. 12,00 x 2,80 x 2,70 m Total machine weight 43000 kg Accessories: - Anti vibration pads Additional Options: - 1 x air valve - 2 x core pulls on movable plate Prsdpoub S R Hsfx Agqsd - 2 x core pulls on fix plate - 8 x hotrunner controller - Robot interface according to Euromap 67

Condition: excellent (used), Year of construction: 2008, Krauss Maffei KM 1100–12000 MX Injection Moulding Machine Year of manufacture: 2008 Additional equipment: Wittmann robot General description: The machine is equipped with a fully hydraulic clamping system. Control: MC5 with color monitor, integrated operator panel, and three built-in USB ports. Plasticising unit: Complete unit for thermoplastics in a wear-resistant version, screw diameter 120 mm, non-return valve, open nozzle. Technical data Clamping unit Mould clamping force: 11,000 kN Mould opening force: 770 kN Dimensions of clamping plates (h × v): 2210 × 1910 mm Tie bar clearance (h × v): 1550 × 1250 mm Mould opening stroke: 2000 mm Mould height (min–max): 600 – 1200 mm Platen stroke: 2600 mm Ejector stroke: 300 mm Ejector force: 220 / 110 kN Podpfx Agoxcputsqsrd Injection unit Screw diameter: 120 mm Injection pressure: 1758 bar Injection volume: 6786 cm³ Max. shot weight (PS): 6175 g Screw speed (standard/option): 103 / 145 rpm Injection rate (standard): 1118 cm³/s Injection rate (with accumulator): 1696 cm³/s Electro-hydraulic equipment Pump motor power: 132 kW Heater power: 82 kW Number of heating zones (barrel): 7 Number of dry cycles according to Euromap: 802 / h Oil tank capacity: 2440 l Dimensions and weight Net weight (incl. control cabinet): 73 t Machine dimensions (L × W × H): 12.47 × 3.65 × 2.82 m

Condition: new, Year of construction: 2023, functionality: fully functional, machine/vehicle number: 61036721, clamping force: 6,500 kN, screw diameter: 70 mm, clearance between the columns: 1,110 mm, displacement volume: 1,078 cm³, injection pressure: 1,877 bar, injection weight: 981 g, opening stroke: 3,200 mm, plate height: 1,540 mm, drive type: Hydraulisch, clear span: 3,200 mm, tool weight: 2,200,000 g, Injection Moulding Machines Directly from the Manufacturer! As the manufacturer KraussMaffei, we offer you our certified and flexible stock machines: The hydromechanical two-platen clamping unit of the GXW machine sets new standards in terms of quality and productivity. With the sophisticated GuideX sliding shoe, forces are ideally absorbed and the service life of the moulds is extended. The innovative GearX locking system engages instantly and reliably. Powerful, user-friendly and value-retaining. TECHNICAL DATA: KM 650 / 2000 / 2000 GXW G06 (Order 38618339) CONTROL SYSTEM - MC 6 with 24'' TFT color screen with multitouch functions CLAMPING UNIT - Clamping force: 6500 kN - Max. mould opening force: 455 kN - Daylight opening (h x v): 1110 x 960 mm - Platen size (h x v): 1540 x 1440 mm - Mould installation height min. - max.: 1550 mm (without centre platen) - Opening stroke: 3200 mm - Max. mould opening distance: 1650 mm - Max. mould weight: 22,000 kg INJECTION UNIT 1 SP2000 - Screw diameter / type: 60 mm / thermoplastics - Effective L/D ratio: 23.3 - Injection pressure: 2420 bar - Shot volume: 792 cm³ - Shot weight at max. stroke for PS: 720 g - Injection speed: 140 mm/s - Injection throughput: 396 cm³/s - Screw drive speed: 285 rpm - Plasticizing throughput: 72.2 g/s - Nozzle contact force: 82 kN INJECTION UNIT 2 SP2000 - Screw diameter / type: 70 mm / thermoplastics - Effective L/D ratio: 20 - Injection pressure: 1877 bar - Shot volume: 1078 cm³ - Shot weight at max. stroke for PS: 981 g - Injection speed: 140 mm/s - Injection throughput: 539 cm³/s - Screw drive speed: 285 rpm - Plasticizing throughput: 98.3 g/s - Nozzle contact force: 82 kN ELECTRICAL PARAMETERS - Connected load: 341 kW - Power supply: 400 V / 50 Hz, 3 phases with neutral conductor WEIGHT & DIMENSIONS - Net weight: 43.5 t - L x W x H: 11.89 x 3.22 x 2.77 m ADDITIONAL EQUIPMENT - Wear-resistant plasticizing unit - BluePower full insulation for plasticizing cylinder - Open nozzle - BluePower ServoDrive - Pneumatic valve: 1-fold (BWAP), 1-fold (FWAP) - Pneumatic cascade valves: 6-fold (BWAP), 6-fold (FWAP) - Hydraulic core pull: 2-fold (BWAP), 2-fold (FWAP) - Mould heating: 96 zones (3.5 kW each) - Euromap interface for handling: E18 - Euromap central computer interfaces: E67, E77, E78, E63, E82.1 Pedew U N Ixopfx Agqord - Adaptive Process Control (APC+) - Graphic analysis package - Sliding table with turning unit, servo-driven - Vertical centre platen - Parallel clamping & opening during injection process with bar parallelism control between FWAP and centre platen or BWAP and centre platen - ColorForm interface signal interface for connecting an RPM unit - Electrical interface for HRS-Flexflow system - Electrical interface and hydraulic valves for "1-K dummy operation" - Interface for connecting a CoMo-Kistler Injection Basic System with good/bad part separation The machine is located at our plant in Parsdorf and is available at short notice. Further additional options can be offered on request. We look forward to your enquiry.

Condition: excellent (used), Year of construction: 2021, travel distance X-axis: 620 mm, travel distance Y-axis: 1,200 mm, travel distance Z-axis: 1,500 mm, Handling KRAUSS MAFFEI LRX EasyControl 50 Stock no.: 503571 Machine type: Handling device Manufacturer: KRAUSS MAFFEI Model: LRX EasyControl 50 Year of manufacture: 2021 Technical Machine Advantages: - Areas of application: simple pick & place automation tasks - Special features: speed, precision, durability, efficiency, long service life - Working area: cuboid-shaped area - Payload: 5 kg - Wrist axes: pneumatically and servo-motor-driven - Control system: EasyControl (appearance and handling similar to MC6) - Transfer options: non-operator side - Available CNC control languages: DE, ES, CN, CZ, PL, IT, SL, PT, US English Qualitative Machine Advantages: - Flexible stand-alone design for hardware and operation Pjdow Rpb Depfx Agqjrd - Optimal accessibility due to the decentralized control cabinet concept - Impressive precision with rack-and-pinion drive - Compact and lightweight: new wrist axes - Fast and flexible with the central media portal - New concept for a high degree of safety - Operated with a focus on comfort - EasyControl – intuitive operation and programming Connected load: 20 kVA C-axis: 0-90°, pneumatically actuated Stroke X-axis: 620 mm Stroke Y-axis: 1200 mm Stroke Z-axis: 1500 mm Interface: EUR 67 Payload: 5 kg

Condition: excellent (used), Year of construction: 2007, functionality: fully functional, KM 500-3500 C2 Year of manufacture: 2007 Operating hours in automatic mode: 60,000 h Psdpow Rflrjfx Agqjrd Clamping unit Clamping force: 5,000 kN Mounting plate dimensions: 1270 x 1310 mm Distance between tie bars: 900 x 800 mm Min./max. mold height: min. 480 mm Maximum opening stroke: 1,650 mm Injection unit Screw diameter: 80 mm Injection volume: 1,543 cm³ Shot weight: 1,404 g Injection pressure: 2,205 bar Electrical and hydraulic equipment Nominal pump motor power: 90 kW Heating capacity: 44 kW Dimensions and weight Net weight with control cabinet: 27,090 kg Dimensions (L x W x H): 7.65 m x 2.55 m x 2.55 m

Year of construction: 2002, condition: ready for operation (used), Clamping force: 2500kN, clear tie bar distance: 630mm/630mm, opening stroke: 1150mm, min. mold installation height: 330mm, screw diameter: 60mm, specific injection pressure: 2000bar, max. stroke volume: 670cm³, connected load: 74kW, control: MC4. Machine dimensions: 5700mm/2200mm/2300mm, machine weight: 12.5t, operating hours: 47,572h. Available from February 2025, including special accessories, Krauss Maffei LRX-S 100, 8x hot runner control points, 4x core pull, blow-out unit, pressure accumulator, hydraulic tie-bar pulling device, energy-saving circuit, ALS interface, 20mA interface and color dosing device interface. On-site inspection is possible, documentation available. Psdpfx Ajuiykdsgqsrd

Condition: ready for operation (used), Year of construction: 2009, functionality: fully functional, clamping force: 6,500 kN, screw diameter: 70 mm, Clamping unit: Clamping force 6500 kN Mould opening force, max. 346 kN Travel force movable platen opening 169 kN Travel force movable platen closing 144 kN Size of mould platens (h x v) 1520 x 1470 mm Distance between tie bars (h x v) 1000 x 930 mm Mould opening stroke 1150 mm Mould height min 675 mm Max. daylight 1825 mm Hydraulic ejector - stroke 135 mm Ejector force 226 kN Injection unit: Screw diameter 70 mm Ls/D ratio 23 Injection pressure 2389 bar Stroke volume 1097 ccm Shot weight (PS) 998 gr. Injection rate 393 ccm/s Screw speed 218 1/min Plasticising rate max. 83 g/s Nozzle pressure 173 kN Electric and Hydraulic Equipment: Nominal capacity of pump motor 75 kW Pjdpjv Stbmofx Agqjrd Installed heating capacity 36 kW Adjustable barrel heating zones 7 Dimensions and weights: Dimensions of the machine ca. 8,70 x 2,90 x 2,80 m Total machine weight 44000 kg Accessories: - Anti vibration pads Additional options: - 1 x air valve - 8 x pneumatic sequentional valves - Accumulator - 2 x hydr. core pulls on movable plate - 2 x hydr. core pulls on fix plate - Robot interface according to EUROMAP 67

Condition: excellent (used), Year of construction: 2007, Krauss Maffei KM 250-1900 C1 Injection Moulding Machine Year of manufacture: 2007 ✅ General Information Manufacturer: Krauss Maffei Model: KM 250-1900 C1 Year of manufacture: 2007 Clamping system: Fully hydraulic Control system: MC4 with color monitor, operator panel, and floppy disk drive 🔹 Clamping Unit Clamping force: 2,500 kN Opening force: 160 kN Platen movement force: opening 86 kN, closing 68 kN Platen dimensions: 995 x 1,050 mm Tie bar spacing: 630 x 630 mm Mould open stroke: 820 mm Min. mould height: 330 mm Max. opening width: 1,150 mm Ejector stroke: 200 mm Ejector force: 58/28 kN 🔹 Injection Unit Screw diameter: 70 mm Injection pressure: 1,778 bar Shot volume: 1,047 cm³ Shot weight (PS): 953 g Screw speed: 218/306 rpm Injection rate: 400 cm³/s Throughput (PS): 75 g/s (standard), 105 g/s (high speed) 🔹 Electro-hydraulic Equipment Pjdpfx Aexak Ucsgqerd Pump motor power: 55 kW Barrel heaters: 30 kW (6 zones) Dry cycles according to Euromap: 1,400 1/h Oil tank capacity: 720 l 🔹 Dimensions & Weight Net weight (incl. control cabinet): 14.2 t Dimensions (L x W x H): 6.21 x 2.04 x 2.38 m

Condition: new, Year of construction: 2023, functionality: fully functional, machine/vehicle number: 61036943, clamping force: 800 kN, screw diameter: 40 mm, displacement volume: 201 cm³, injection pressure: 1,860 bar, injection weight: 183 g, mold height (min.): 150 mm, ejector force: 22,000 N, ejector stroke: 100 mm, opening stroke: 750 mm, installation height: 400 mm, total length: 4,750 mm, total width: 1,670 mm, total height: 1,850 mm, overall weight: 5,600 kg, heating capacity: 11.5 kW (15.64 HP), drive type: Vollelektrisch, clear span: 735 mm, tool weight: 600,000 g, Injection moulding machines directly from the manufacturer! As the manufacturer KraussMaffei, we offer you our inspected and flexible stock machines: The base injection molding machine, precisionMolding, is the perfect entry-level solution for all-electric injection molding, enabling fast and innovative responses to market demands. It combines high performance, straightforward operation, and short delivery times. This machine can be applied in a wide range of industries, such as packaging, electrical and electronics, medical technology, and automotive. Your benefits: – Optimized price-performance ratio for a broad spectrum of applications – High energy efficiency thanks to the all-electric machine design – Fast delivery times enabled by the basic machine concept with a wide range of options Prsdpfew Ur I Uox Agqjd TECHNICAL DATA: KM 80 / 380 PA G01 (Order 38670020) CONTROL SYSTEM • MC P1 with 15" TFT color touchscreen with multitouch functionality CLAMPING UNIT • Clamping force: kN 800 • Max. mold opening force: kN 120 • Clearance (h x v): mm 470 x 420 • Mounting platen (h x v): mm 610 x 560 • Mold installation height min. - max.: mm 150 - 400 • Opening width: mm 750 • Max. mold opening stroke: mm 350 • Ejector drive: electric • Ejector stroke: mm 100 • Ejector force forward/back: kN 22 / 22 • Ejector speed forward/back: mm/s 300 / 300 • Max. mold weight: kg 600 INJECTION UNIT • Screw diameter / type: mm 40 / Standard • Effective L/D ratio: 20.0 • Injection pressure: bar 1860 • Shot volume: cm³ 201 • Shot weight at max. stroke for PS: g 183 • Injection speed: mm/s 200 • Injection flow: cm³/s 251 • Screw drive / speed: rpm 334 • Plasticizing rate (standard): g/s 24.7 • Nozzle contact force: kN 34 ELECTRICAL PARAMETERS • Connected load: kW 20.6 • Installed heating power: kW 11.5 • Power supply: V / Hz 400 / 50, 3-phase with neutral WEIGHT AND DIMENSIONS • Net weight with control cabinet: t 5.6 • Length x width x height: m 4.75 x 1.67 x 1.85 ADDITIONAL EQUIPMENT • Low-wear plasticizing unit • BluePower full insulation for plasticizing cylinder • Open nozzle • Air valve, single (BWAP) • Pneumatic control for hot runner shut-off, single • Electrical interface for cascade control, 4-fold • Euromap interfaces for handling: E18, E63 • Euromap interface (central computer): E67, E77 • Water manifold, 4-fold • Automatic central lubrication • Adaptive Process Control (APC) • Injection-compression molding function • Graphic analysis package The machine is located at our factory in Parsdorf and is available at short notice. Further additional options can be offered upon request. We look forward to your inquiry.

Condition: excellent (used), Year of construction: 2007, functionality: fully functional, Technical Data Year of manufacture: 2007 Clamping Side Clamping force: 13,000 kN Max. opening stroke/installation height: 2,300 mm Max. distance between mounting plates: 4,000 mm Min./max. mold installation height: 1,000 - 1,700 mm Max. platen height: 1,910 mm Min. mold size: 1,020 x 820 mm Clear tie bar spacing: 1,500 mm Nozzle radius: R40 mm Mold weight: 29,000 kg Ejector stroke: 350 mm Pedpsw Rfkhefx Agqord 1st Injection Side Screw diameter: 120 mm Shot volume: 6,786 ccm 2nd Injection Side Screw diameter: 105 mm Shot volume: 5,195 ccm NC5 Control Core pulls AWS/DS: 1/1

Year of construction: 2022, condition: ready for operation (used), A new injection molding machine including robot is available. 1) Krauss Maffei injection molding machine, year of manufacture: 2022, clamping system: hydromechanical clamping system with 2 platens. Plasticizing: 8100, screw diameter: 105mm, nozzle radius: 35mm, nozzle bore: 6mm, clamping force: 1700t, control: MC6. 2) Industrial robot Kuka IR 1200 R3100.2 F/K, max. payload: 120kg, reach: 3100mm, repeatability: +/-0.05mm, control: KR C5. Documentation available. On-site inspection is possible. Prodpfxjvpvlce Agqed

Condition: ready for operation (used), Year of construction: 2006, operating hours: 77,000 h, functionality: fully functional, clamping force: 5,000 kN, screw diameter: 100 mm, Clamping force 5000 kN Mould opening force, max. 280 kN Travel force movable platen opening 137 kN Travel force movable platen closing 136 kN Size of mould platens (h x v) 1270 x 1200 mm Distance between tie bars (h x v) 900 x 800 mm Mould opening stroke 1170 mm Mould height min 480 mm Max. daylight 1650 mm Hydraulic ejector - stroke 250 mm Ejector force 95/48 kN Injection unit: Screw diameter 100 mm Ls/D ratio 18 Injection pressure 1411 bar Stroke volume 2411 ccm Shot weight (PS) 2194 gr. Injection rate 801 ccm/s Screw speed 189 1/min Plasticising rate max. 161 g/s Nozzle pressure 173 kN Electric and Hydraulic Equipment: Nominal capacity of pump motor 90 kW Installed heating capacity 44 kW Adjustable barrel heating zones 7 Oil Reservoir capacity 1075 ltr. Dimensions and weights: Dimensions of the machine ca. 7,50 x 2,50 x 2,50 m Total machine weight 27090 kg Predpjwgni Hsfx Agqod Max. mould weight 7900 kg Accessories: - Anti vibration pads - 2 x 8 fold water flow regulator Additional Options: - 2 x hydr. core pull on movable plate - 2 x hydr. core pull on fix plate - Robot interface according to Euromap 12 - 16 x hotrunner controller - 1 x air valve on movable plate

Condition: excellent (used), Year of construction: 2008, Krauss Maffei Injection Moulding Machine KM 300-1000 CX Year of manufacture: 2008 Manufacturer: Krauss Maffei Control system: MC 5 with colour monitor, integrated control panel, and disk drive station Clamping system: fully hydraulic Plasticising unit SP 1000 Screw diameter: 50 mm Non-return valve, open nozzle Nozzle radius: 15 mm, bore: 3 mm Clamping unit Clamping force: 3000 kN Pjdpsw U Rcdjfx Agqsrd Opening force: 169 kN Platen dimensions (H × V): 995 × 1050 mm Tie bar spacing: 630 × 630 mm Mould opening stroke: 820 mm Minimum mould height: 330 mm Maximum daylight (max. mould open width): 1150 mm Ejector stroke: 200 mm Ejector force (forward/backward): 58 / 28 kN Injection unit Screw diameter: 50 mm L/D ratio: 22.0 Injection pressure: 2304 bar Injection volume: 432 cm³ Shot weight (PS): 393 g Injection speed: 170 mm/s Injection flow rate: 334 cm³/s Screw speed (standard): 370 rpm Plasticising rate (at standard screw speed): 54.3 g/s Electro-hydraulic equipment Pump motor power: 45 kW Heater capacity: 18.7 kW Number of heating zones: 5 Dry cycle time / stroke per Euromap 6: 2.8 s / 441 mm Oil tank capacity: 720 l Dimensions and weight Net weight (including control cabinet): 12.5 t Dimensions (L × W × H): 6.11 × 2.17 × 2.25 m

Condition: new, Year of construction: 2023, functionality: fully functional, machine/vehicle number: 61036936, clamping force: 800 kN, screw diameter: 35 mm, displacement volume: 135 cm³, injection pressure: 1,837 bar, injection weight: 123 g, mold height (min.): 150 mm, ejector force: 22,000 N, ejector stroke: 100 mm, opening stroke: 750 mm, installation height: 400 mm, total length: 4,750 mm, total width: 1,670 mm, total height: 1,820 mm, overall weight: 5,900 kg, heating capacity: 8.9 kW (12.10 HP), drive type: Vollelektrisch, clear span: 470 mm, tool weight: 600,000 g, Injection molding machines direct from the manufacturer! As the manufacturer KraussMaffei, we offer you our tested and flexible stock machines here: The basic injection molding machine, precisionMolding, offers the perfect entry-level solution for all-electric injection molding, enabling you to react quickly and innovatively to market requirements. It combines high performance, simple operation and short delivery times. It can be used in a wide range of applications, e.g. in the packaging industry, the electrical and electronics industry, medical technology and the automotive industry. Your benefits: - Optimized price-performance ratio for a wide range of applications - High energy efficiency thanks to all-electric machine concept - Realization of demanding delivery times thanks to basic machine concept with a wide range of options TECHNICAL DATA: KM 80 / 250 PA G01 (order 38670013) (machine no.: 61036936, new, year of manufacture 2023) CONTROL  MC P1 with 15" TFT color screen with multi-touch functions CLAMPING UNIT  Clamping force kN 800  Mold opening force, max kN 120  Clear width (h x v) mm 470 x 420  Clamping platen (h x v) mm 610 x 560  Tool installation height min. - max. mm 150 - 400  Opening width mm 750  Mold opening stroke max. mm 350  Ejector drive electric  Ejector stroke mm 100  Ejector force forwards/backwards kN 22 / 22  Ejector speed forwards/backwards mm/s 300 / 300  Max. Mold weight kg 600 SPRING UNIT  Screw diameter / type mm 35 / standard  Effective Ls/D ratio 20.0  Injection pressure bar 1837  Stroke volume cm³ 135  Shot weight at max. stroke for PS g 123  Injection speed mm/s 200  Injection flow rate cm³/s 192  Screw drive/speed 1/min 382  Plasticizing flow (standard screw)4) g/s 19.5  Nozzle contact force kN 30 ELECTRICAL PARAMETERS  Connected load kW 17.8  Installed heat output kW 8.9  Power supply V / Hz 400 / 50 3 phases with neutral conductor WEIGHT AND DIMENSIONS Pjdpeuggb Defx Agqerd  Net weight with switch cabinet t 5.9  Length x width x height m 4.75 x 1.67 x 1.82 ADDITIONAL EQUIPMENT  Low-wear plasticizing  BluePower fully insulated plasticizing cylinder  Open nozzle  Air valve 1 - fold (BWAP)  Pneum. Control hot runner valve gate 1 - compartment  Electrical interface cascade 4-fold  Electrical preparation for hydraulic auxiliary unit  Euromap interfaces handling E18, E63  Euromap interface (central computer) E67, E77  Water battery 4 - compartment  Automatic central lubrication  Adaptive Process Control (APC)  Spray embossing circuit  Graphic analysis package  Swivel device Injection unit The machine is located in our factory in Parsdorf and is available at short notice. Further additional options can be offered on request. We look forward to your inquiry.

Condition: excellent (used), Year of construction: 2005, KM 500/2700C2 Technical Specifications Clamping Side: Clamping Force: 5000 kN Tie Bar Dimensions (H x V): 900 x 800 mm Minimum Installation Height: 480 mm Maximum Platen Distance: 1650 mm Centering: 200 mm Predpfev Uzq Uox Agqsd Mold Weight: 7900 kg Injection Side: Screw Diameter: 80 mm Displacement: 1433 cc Injection Pressure: 1829 bar Equipment: MC 4 Control System Core Pulls: 2+2 Machine is sold without robots and peripherals!

Condition: ready for operation (used), Year of construction: 2005, operating hours: 58,350 h, functionality: fully functional, clamping force: 3,000 kN, screw diameter: 60 mm, Clamping unit: Clamping force 3000 kN Mould opening force, max. 160 kN Travel force movable platen opening 86 kN Travel force movable platen closing 68 kN Size of mould platens (h x v) 995 x 1050 mm Distance between tie bars (h x v) 630 x 630 mm Mould opening stroke 820 mm Mould height min 330 mm Max. daylight 1150 mm Hydraulic ejector - stroke 200 mm Ejector force 58 kN Injection unit: Screw diameter 60 mm Ls/D ratio 21 Injection pressure 2000 bar Stroke volume 679 ccm Shot weight (PS) 618 gr. Injection rate 325 ccm/s Screw speed 259 1/min Plasticising rate max. 58 g/s Nozzle pressure 110 kN Electric and Hydraulic Equipment: Nominal capacity of pump motor 45 kW Installed heating capacity 23 kW Adjustable barrel heating zones 6 Reservoir capacity 720 ltr. Dimensions and weights: Dimensions of the machine ca. 6,20 x 2,20 x 2,40 m Total machine weight 14370 kg Max. mould weight 3430 kg Podsw H Rvispfx Agqord Accessories: - Anti vibration pads - 8-fold water flow Additional Options: - 1 x Air valve - 2 x Core pulls - 8 x hotrunner controllers - Robot interface according to Euromap 12

Condition: new, Year of construction: 2023, functionality: fully functional, machine/vehicle number: 61036683, clamping force: 1,600 kN, screw diameter: 50 mm, displacement volume: 393 cm³, injection pressure: 1.892 bar, injection weight: 358 g, mold height (min.): 200 mm, ejector force: 33,000 N, ejector stroke: 100 mm, opening stroke: 950 mm, installation height: 500 mm, total length: 5,650 mm, total width: 1,820 mm, total height: 1,950 mm, overall weight: 9,700 kg, heating capacity: 15.5 kW (21.07 HP), drive type: Vollelektrisch, clear span: 570 mm, tool weight: 600,000 g, Injection molding machines direct from the manufacturer! As the manufacturer KraussMaffei, we offer you our tested and flexible stock machines here: The basic injection molding machine, precisionMolding, offers the perfect entry-level solution for all-electric injection molding, enabling you to react quickly and innovatively to market requirements. It combines high performance, simple operation and short delivery times. It can be used in a wide range of applications, e.g. in the packaging industry, the electrical and electronics industry, medical technology and the automotive industry. Your benefits: - Optimized price-performance ratio for a wide range of applications - High energy efficiency thanks to all-electric machine concept - Realization of demanding delivery times thanks to basic machine concept with a wide range of options TECHNICAL DATA: KM 160 / 750 PA G01 (order 38670011) (machine no.: 61036683, new, year of manufacture 2013) CONTROL  MC P1 with 15" TFT color screen with multi-touch functions CLAMPING UNIT  Clamping force kN 1600  Mold opening force, max kN 120  Clear width (h x v) mm 570 x 520  Clamping platen (h x v) mm 770 x 720  Tool installation height min. - max. mm 200 - 500  Opening width mm 950  Mold opening stroke max. mm 450  Ejector drive electric  Ejector stroke mm 100  Ejector force forwards/backwards kN 33 / 33  Ejector speed forwards/backwards mm/s 300 / 300  Max. Mold weight kg 1200 SPRING UNIT  Screw diameter / type mm 50 / standard  Effective Ls/D ratio 20.2  Injection pressure bar 1892  Stroke volume cm³ 393  Shot weight at max. stroke for PS g 358  Injection speed mm/s 200  Injection flow rate cm³/s 393  Screw drive/speed 1/min 267 Pjdpfeugfupsx Agqsrd  Plasticizing flow (standard screw)4) g/s 36.5  Nozzle contact force kN 42 ELECTRICAL PARAMETERS  Connected load kW 31.2  Installed heat output kW 15.5  Power supply V / Hz 400 / 50 3 phases with neutral conductor WEIGHT AND DIMENSIONS  Net weight with switch cabinet t 9.7  Length x width x height m 5.65 x 1.82 x 1.95 ADDITIONAL EQUIPMENT  Open nozzle  Air valve 1 - compartment (BWAP)  Pneum. Control hot runner valve gate 1 - compartment  Euromap interface handling E18  Automatic central lubrication  Adaptive Process Control (APC)  Injection compression molding circuit  Graphic analysis package  Swivel device Injection unit The machine is located in our factory in Parsdorf and is available at short notice. Further additional options can be offered on request. We look forward to your inquiry.

Condition: excellent (used), Year of construction: 2007, Manufacturer: Krauss Maffei Type: KM 650-3500-700 CZ Year of manufacture: 2007 Control system: MC 4 Clamping Unit: Clamping force: 650 t Opening stroke: 1,150 mm Minimum mold installation height: 600 mm Maximum platen daylight: 1,750 mm Tie bar spacing (h x v): 1,100 x 900 mm Platen dimensions (h x v): 1,510 x 1,370 mm Prodpfjw Rd U Eox Agqod Centering (nozzle-ejector plate): 200 / 200 mm 1st Injection Unit: Screw diameter: 80 mm Maximum shot weight in PS: 1,400 g Shot volume: 1,543 cm³ Injection pressure: 2,205 bar 2nd Injection Unit: Screw diameter: 45 mm Shot weight in polystyrene: 278 g Shot volume: 305 cm³ Injection pressure: 2,336 bar Accessories: 2 x air valves 16-fold cascade 3 x core pullers on moving platen 3 x core pullers on fixed platen 20 x hot runner controllers Robot interface: Euromap 67 Dimensions: Total weight: 34,500 kg Overall size (L x W x H): 7.8 x 2.5 x 2.5 m Operating hours: 45,400 h Machine can also be operated as a single-component machine (1K).

Condition: new, Year of construction: 2023, functionality: fully functional, machine/vehicle number: 61036940, clamping force: 1,600 kN, screw diameter: 50 mm, displacement volume: 393 cm³, injection pressure: 1.892 bar, injection weight: 358 g, mold height (min.): 200 mm, ejector force: 33,000 N, ejector stroke: 100 mm, opening stroke: 950 mm, installation height: 500 mm, total length: 5,650 mm, total width: 1,820 mm, total height: 1,950 mm, overall weight: 9,700 kg, heating capacity: 15.5 kW (21.07 HP), drive type: Vollelektrisch, clear span: 570 mm, tool weight: 600,000 g, Injection molding machines direct from the manufacturer! As the manufacturer KraussMaffei, we offer you our tested and flexible stock machines here: The basic injection molding machine, precisionMolding, offers the perfect entry-level solution for all-electric injection molding, enabling you to react quickly and innovatively to market requirements. It combines high performance, simple operation and short delivery times. It can be used in a wide range of applications, e.g. in the packaging industry, the electrical and electronics industry, medical technology and the automotive industry. Your benefits: - Optimized price-performance ratio for a wide range of applications - High energy efficiency thanks to all-electric machine concept - Realization of demanding delivery times thanks to basic machine concept with a wide range of options TECHNICAL DATA: KM 160 / 750 PA G01 (order 38670011) (machine no.: 61036683, new, year of manufacture 2013) CONTROL  MC P1 with 15" TFT color screen with multi-touch functions CLAMPING UNIT  Clamping force kN 1600  Mold opening force, max kN 120  Clear width (h x v) mm 570 x 520  Clamping platen (h x v) mm 770 x 720  Tool installation height min. - max. mm 200 - 500  Opening width mm 950 Prjdeugfw Dopfx Agqsd  Mold opening stroke max. mm 450  Ejector drive electric  Ejector stroke mm 100  Ejector force forwards/backwards kN 33 / 33  Ejector speed forwards/backwards mm/s 300 / 300  Max. Mold weight kg 1200 SPRING UNIT  Screw diameter / type mm 50 / standard  Effective Ls/D ratio 20.2  Injection pressure bar 1892  Stroke volume cm³ 393  Shot weight at max. stroke for PS g 358  Injection speed mm/s 200  Injection flow rate cm³/s 393  Screw drive/speed 1/min 267  Plasticizing flow (standard screw)4) g/s 36.5  Nozzle contact force kN 42 ELECTRICAL PARAMETERS  Connected load kW 31.2  Installed heat output kW 15.5  Power supply V / Hz 400 / 50 3 phases with neutral conductor WEIGHT AND DIMENSIONS  Net weight with switch cabinet t 9.7  Length x width x height m 5.65 x 1.82 x 1.95 ADDITIONAL EQUIPMENT  Low-wear plasticizing  BluePower fully insulated plasticizing cylinder  Open nozzle  Air valve 1 - fold (BWAP)  Pneum. Control hot runner valve gate 1 - compartment  Electrical interface pneum. Cascade 4-fold  Euromap interface handling E18 + E67  Euromap interface (central computer) E67, E77  Water battery 4 - compartment  Electrical preparation for hydraulic auxiliary unit  Automatic central lubrication  Adaptive Process Control (APC)  Injection compression molding circuit  Graphic analysis package  Swivel device for injection unit The machine is located in our factory in Parsdorf and is available at short notice. Further additional options can be offered on request. We look forward to your inquiry.

Condition: new, Year of construction: 2023, functionality: fully functional, machine/vehicle number: 61036946, clamping force: 800 kN, screw diameter: 40 mm, displacement volume: 201 cm³, injection pressure: 1,860 bar, injection weight: 183 g, mold height (min.): 150 mm, ejector force: 22,000 N, ejector stroke: 100 mm, opening stroke: 750 mm, installation height: 400 mm, total length: 4,750 mm, total width: 1,670 mm, total height: 1,850 mm, overall weight: 5,600 kg, heating capacity: 11.5 kW (15.64 HP), drive type: Vollelektrisch, clear span: 735 mm, tool weight: 600,000 g, Injection molding machines direct from the manufacturer! As the manufacturer KraussMaffei, we offer you our tested and flexible stock machines here: The basic injection molding machine, precisionMolding, offers the perfect entry-level solution for all-electric injection molding, enabling you to react quickly and innovatively to market requirements. It combines high performance, simple operation and short delivery times. It can be used in a wide range of applications, e.g. in the packaging industry, the electrical and electronics industry, medical technology and the automotive industry. Your benefits: - Optimized price-performance ratio for a wide range of applications - High energy efficiency thanks to all-electric machine concept - Realization of demanding delivery times thanks to basic machine concept with a wide range of options TECHNICAL DATA: KM 80 / 380 PA G01 (order 38670023) CONTROL  MC P1 with 15" TFT color screen with multi-touch functions CLAMPING UNIT  Clamping force kN 800  Mold opening force, max kN 120  Clear width (h x v) mm 470 x 420  Clamping platen (h x v) mm 610 x 560  Tool installation height min. - max. mm 150 - 400  Opening width mm 750  Mold opening stroke max. mm 350  Ejector drive electric  Ejector stroke mm 100  Ejector force forwards/backwards kN 22 / 22  Ejector speed forwards/backwards mm/s 300 / 300  Max. Mold weight kg 600 SPRING UNIT  Screw diameter / type mm 40 / standard  Effective Ls/D ratio 20.0  Injection pressure bar 1860  Stroke volume cm³ 201  Shot weight at max. stroke for PS g 183  Injection speed mm/s 200  Injection flow rate cm³/s 251  Screw drive/speed 1/min 334  Plasticizing flow (standard) g/s 24.7  Nozzle contact force kN 34 ELECTRICAL PARAMETERS Prsdpfsud H Dmjx Agqjd  Connected load kW 20.6  Installed heat output kW 11.5  Power supply V / Hz 400 / 50 3 phases with neutral conductor WEIGHT AND DIMENSIONS  Net weight with switch cabinet t 5.6  Length x width x height m 4.75 x 1.67 x 1.85 ADDITIONAL EQUIPMENT  Low-wear plasticizing  BluePower fully insulated plasticizing cylinder  Open nozzle  Air valve 1 - fold (BWAP)  Pneum. Control hot runner valve gate 1 - compartment  Electrical interface cascade 4-fold  Euromap interface handling E18, E63  Euromap interface (central computer) E67, E77  Water battery 4 - compartment  Automatic central lubrication  Adaptive Process Control (APC)  Spray embossing circuit  Graphic analysis package The machine is located in our factory in Parsdorf and is available at short notice. Further additional options can be offered on request. We look forward to your inquiry.
