Used Index Milling Machine for sale (142)

Condition: ready for operation (used), Year of construction: 2002, functionality: fully functional, WE OFFER AN VERY NICE CONDITION INDEX WITH FULL EQUIPMENT AND TOOLINGS. MACHINE IS IN FULLY WORKING CONDITION. Gsdpfevkx Nyox Ac Ajtt WE OFFER AN NICE CONDITION INDEX WITH Control FANUC 21i-TA DRIVEN TOOLS AND EQUIPMENT Max. turning diameter 310 mm max. turning length 1,470 mm Hollow clamping cylinder diameter 80 mm HOLE TROUGH SPINDEL 95mm Rapid traverse 12 m/min Tool positions 16-way turret / 4 driven C-axis division 1-locking bolt 2.5 degrees 2-locking bolt 0.5 degrees Speed range level 1: 20-2000 rpm level 2: 40-4000 rpm Total power requirement 40 kW Machine weight approx. 6 t Dimensions 5,350 with chip conveyor x 2,000 x 2,500 mm Control FANUC 21i-TA Year of manufacture 2002 Incl. chip conveyor Incl. tailstock Incl. steady rest Incl. documentation FOR CUSTOMER WE CAN ORGANIZE AS WELL TRANSPORT TO THEIR COMPANY..WORLDWIDE DELIVERY TO LOAD MACHINE NEED 7 LOADING METERS ON TRUCK.

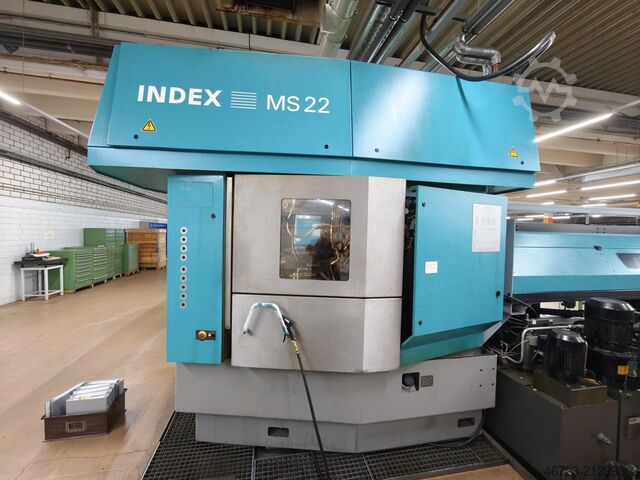

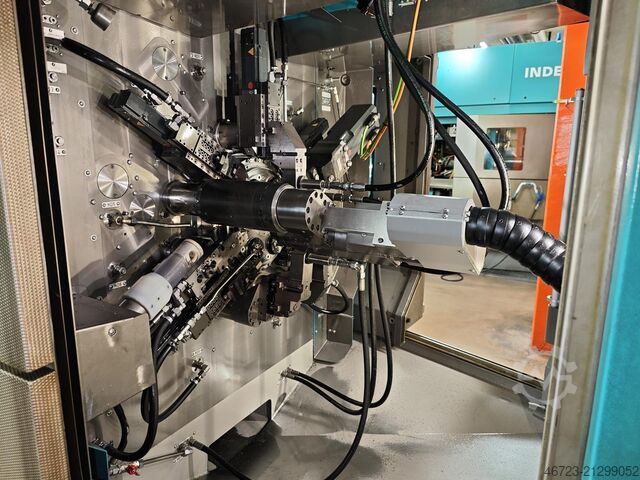

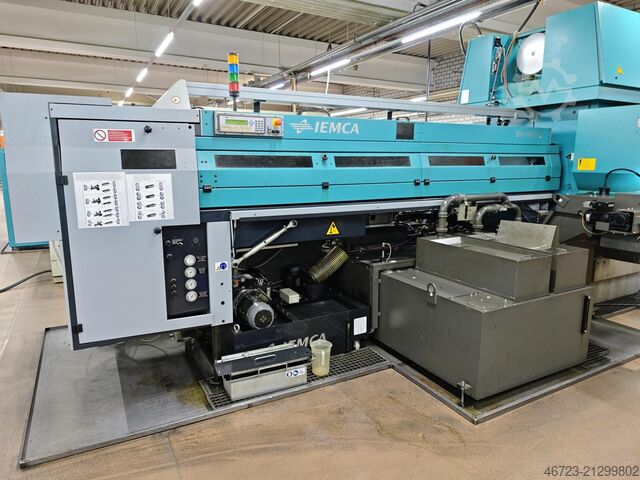

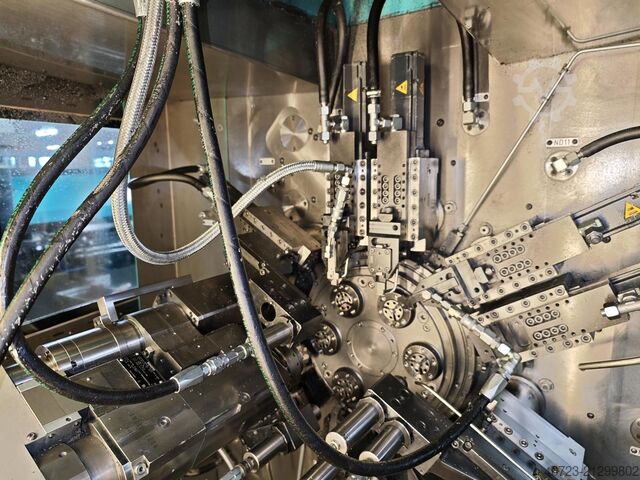

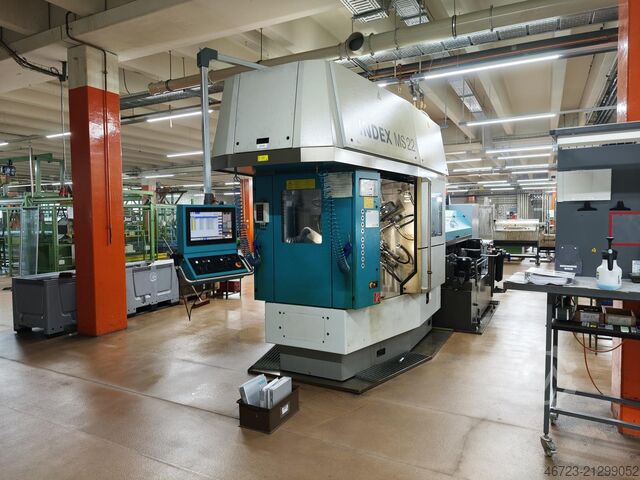

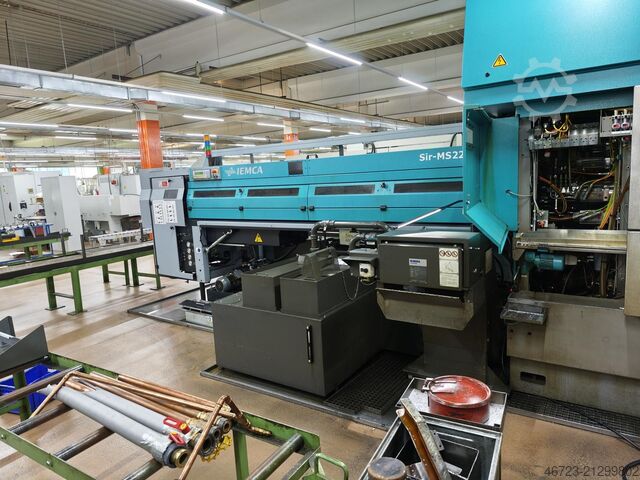

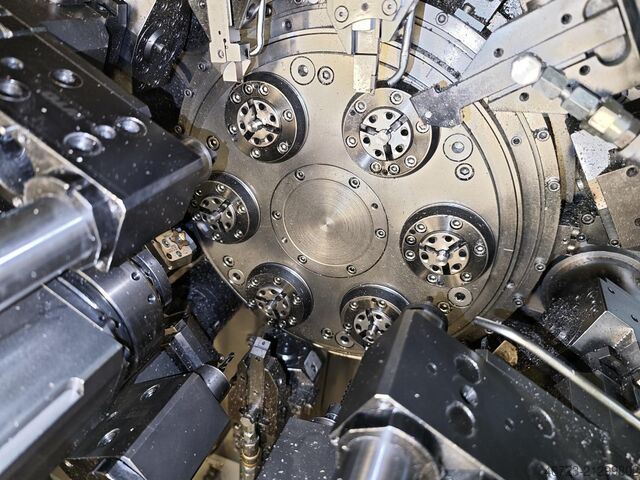

Condition: excellent (used), Year of construction: 2024, INDEX MS22-8 Mfd. 2024 2 NCU (4) Y-Axis SL Control Cutting hours: 1,000 Turnkey Available Located in Europe 4-Meter IEMCA SIR MS22-8/43/P Rack loader 50 Hz D9-13-19-25 Bar length 4300 mm with drilling unit and minimum quantity lubrication unit additional end-of-bar sensor Bar stock 500mm (D12-D24) Bar stock 340 mm (D5-D11). Additional storage chain for 22 bars with Profinet interface. 1 11007253 (21711) 1 set (8 pieces) bar stock pushers, external clamping for bar stock diameters D7-D10 mm, Gtedpfox Ddcuox Ac Ajt internal clamping for bar stock diameters D13-D18 mm, consisting of: 8 bar stock pushers D12 8 rotating sleeves D12 1 10287026 (21712) 1 set (8 pieces) bar stock pushers, external clamping for bar stock diameters D11-D16 mm, internal clamping for bar stock diameters D19-D24 mm, consisting of: 8 bar stock pushers D18 8 rotating sleeves D18 1 10536056 (21713) 1 set (8 pieces) bar stock pushers for bar diameters D17 mm-D22 mm, consisting of: 8 bar stock pushers D23 8 rotating sleeves D23 1 10414481 (21702) 1 set (8 pcs.) of internal clamping sleeves D12mm for bar diameters D13 mm - D18 mm Drill diameter D8 mm. 1 10472413 (21704) 1 set (8 pcs.) of external stops D12 mm for bar diameters D13 mm - D18 mm pre-machined. 1 10264327 (21703) 1 set (8 pcs.) of internal clamping sleeves D18mm for bar diameters D19 mm - D24 mm Drill diameter D15mm. 1 10058206 (21705) 1 set (8 pcs.) of external stops D18 mm for bar diameter D19 mm - D24 mm pre-machined. 1 12123486 Drill for drilling unit consisting of: 1 indexable insert drill D 15 mm 10 indexable inserts for steel 2 solid carbide drills D 8 mm

Condition: excellent (used), Year of construction: 2020, functionality: fully functional, turning length: 1,000 mm, turning diameter: 90 mm, spindle motor power: 40,000 W, spindle speed (max.): 4,000 rpm, torque: 190 Nm, total height: 2,550 mm, total length: 4,325 mm, total width: 2,350 mm, bar diameter (max.): 90 mm, overall weight: 14,000 kg, Equipment: documentation/manual, rotational speed infinitely variable, Main and sub spindle C-axis VDI 30 turret (Turret II) Drill breakage control Godjx T A Drspfx Ac Aott High-pressure system Cooling unit Eco-Fluid coolant lubrication system KNOLL chip conveyor Irco Breuning short bar loader

Condition: used, Year of construction: 2005, turning diameter 140 mm turning length 600 mm control Siemens 840 D PowerLine distance between spindles 615 mm Max. rpm 5.000 min/-1 power capacity - main spindel 20 / 27 kW max. Torque 105 / 145 Nm C-Axis 0,001 ° chucking diameter 140 - 160 mm spindle head ISO 702/1 A5 max. bar capacity 65 mm spindle bearing diameter 110 mm Max. rpm 5.000 min/-1 power capacity - Sub spindle 20 / 27 kW max. Torque 105 / 145 Nm C-Axis 0,001 ° chucking diameter 140 - 160 mm spindle head ISO 702/1 A5 max. bar capacity 65 mm x-travel 150 mm z-travel 600 mm spindle bearing diameter 110 mm Number of Turret 3 pos. tool taper VDI 25 x 48 DIN 69880 number of toolpositions 3x 12 pos. Number of driven toolspositions 3x 12 pos. Spindle speed - driven tools max. 6.000 min -1 power capacity - driven tools 8 kW max. Torque 16 Nm x-travel 1/2/3: 110 mm z-travel 1/2/3: 360 mm y-axis 1/2/3: 70 mm Godpsx R En Iofx Ac Ajtt b-axis 2x +/-1 ° rapid traverse ( X / Y / Z ) 25 / 12 / 50 m/min total power requirement 53 kVA weight of the machine ca. 6,5 t dimensions of the machine ca. 8,0 x 3,5 x 2,5 m High-Performance - CNC - Turning- and MillingCenter INDEX - C65 SpeedLine - Main- and Subspindle - 3 turrets - 2(3) y-Axis +/-35mm - 2 b-corrective-Axis (+/-1°) - 3x 12 driven tool positions - IRCO - Profimat 65.6

Condition: used, _____ Description: Year of manuf. : 2009 Control : Siemens C200-4D SL In General: Year of construction:2009 Control system:Siemens 840 Dsl (C200-4D SL) Bar capacity:65 mm Milling spindles:18,000 rpm Main spindle: Technology:Motorised spindle Speed:5,000 rpm Max. power:35.5 kW Torque max.:170 Nm C-axis:0.001° Z-axis:390 mm Bar capacity:65 mm Clamping cylinder:Hollow clamping cylinder Chuck:3-jaw chuck Sub spindle: Technology:Motorised spindle Speed:5,000 rpm Max. power:35.5 kW Torque max.:170 Nm C-axis:0.001° X-axis:600 mm Z-axis:390 mm Bar capacity:65 mm Chuck:3-jaw chuck Tool carrier I: Technology:Milling spindle on cross slide Speed:18,000 rpm Tool holder:HSK 40 X-axis:350 mm Y-axis:160 mm (+/- 80 mm) B-axis:230° Tool carrier II: Technology:Milling spindle on cross slide Speed:18,000 rpm Tool holder:HSK 40 Y-axis:160 mm(+/- 80 mm) B-axis:230° Tool magazin: Technology:Chain magazine Number of stations:80 pieces Tool changer:Double gripper Gtedpfevxmy Nox Ac Aet Tool length max.:180 mm Equipment: Chip disposal:Chip conveyor Coolant supply:IKZ system with filter Parts removal:Gantry-type pick-up Bar loader interface:Electrically prepared Tool monitoring:Drill breakage monitoring

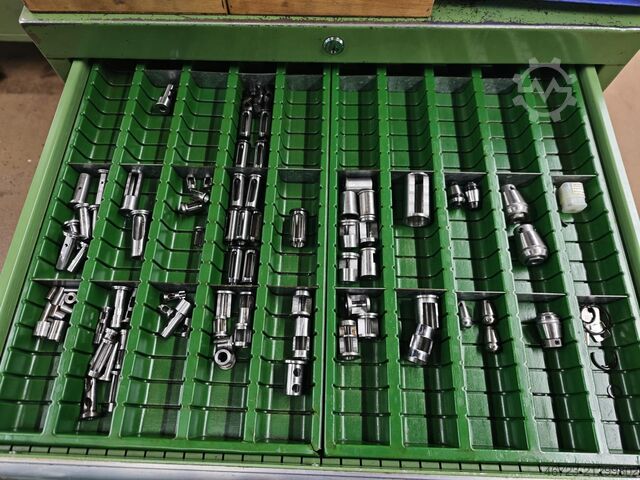

Condition: good (used), functionality: fully functional, A lot of parts for Index K-16 machine collets, curves, tool holders, shafts, gears, slides, distance rings, end switches, etc. See attached photos. Gedpfsx Ty Uuex Ac Ajtt

Condition: used, Year of construction: 2003, Technical details: Gedpfx Ajx Dlhlec Ajtt turning diameter: 270 mm weight of the machine ca.: 6,5 t max. swing diameter: 590 mm with automatic loading and unloading system, chip conveyor G300 with "spindle bore clamping capacity 90mm" in tailstock version The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools. *

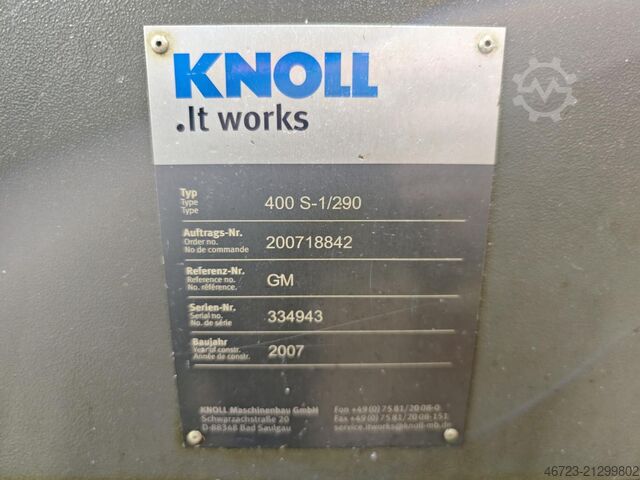

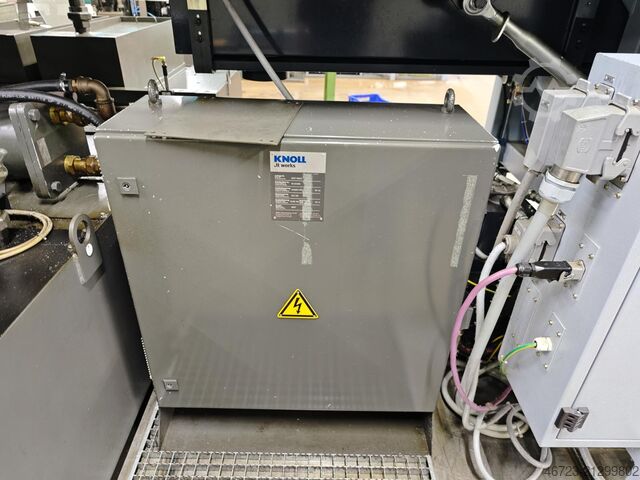

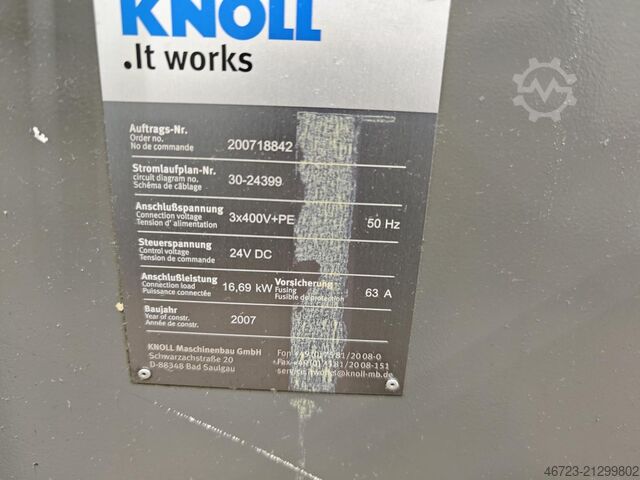

Condition: good (used), Year of construction: 2006, INDEX MS52C CNC Multi-Spindle Mfd. 2006 Control: Siemens 840D 6 Spindles 52mm Capacity Equipped as pictured Under power Knoll System Chip Conveyor Riedel Chiller Gjdpfx Ajt Rkzwoc Aott 3.6 meter (12ft) IEMCA SIR Bar Feed SIR MS52/F Type 38 XL Mfd. 2005

Condition: good (used), Year of construction: 1998, functionality: fully functional, turning length: 400 mm, turning diameter: 60 mm, spindle speed (max.): 6,000 rpm, overall weight: 4,800 kg, Equipment: documentation/manual, rotational speed infinitely variable, Main spindle Ø 60 mm Counter spindle Ø 42 mm 2 turrets with 14 stations each Milling spindle on upper turret Gtedjx Ez Ndepfx Ac Ast LNS Hydrobar – bar feeder

Condition: used, Year of construction: 2012, swing diameter 560 mm turning length 800 mm control C200-4D Siemens 840 D spindle head 8 DIN 55026/55021 ISO 7027/1 bar capacity 90 mm spindle diameter in front bearing 140 mm turning speed range - spindle ~ 3.500 U/min drive capacity - spindle motor 100% / 40%: 43 / 57 kW Torque 275 / 363 Nm Indexing 2,5 ° C-Axis 0,001 ° Number of Turrets 1 number of toolpositions 12 pos. Spindle speed - driven tool stations ~ 6.000 min -1 power capacity - driven tool-stations 11 kW tool taper 40 x 63 mm DIN 69880 Torque 21,5 Nm travel -x axis 300 mm travel -z axis 800 mm rapid traverse X/Z: 30 / 22,5 m/min feed power X: 7.200 N feed power Z: 9.000 N dia. of quill 65 mm Cone SK 30 longitudinal travel 800 mm rapid traverse 10 m/min total power requirement 51 kVA weight of the machine ca. ca. 14 t dimensions of the machine ca. 7,3 x 4,0 x 2,6 m CNC Turning- and Milling Center Godpfx Ajx Emp Noc Aett INDEX - G 250 - Precision package for main or counter spindle - Selected spindle housing - Bearingless clamping cylinder - Precision balancing of work spindle, clamping cylinder, and collet clamping

Year of construction: 2008, condition: ready for operation (used), Main Drive Number of axis 4 Spindle Speed 3000 RPM Spindle motor power 67 kW Movement X-Axis Movement 640 mm Gedpfx Acsx D D Eco Ajtt Z-Axis Movement 2000 mm Y-Axis Movement 210 mm B-Axis Max 360 º C-Axis Movement 360 º Tools Max weight 5 kg This 4-axis Index G 400 horizontal turning machine was manufactured in 2008. It features a maximum turning diameter of 630 mm, a length capacity of 2000 mm, and supports a workpiece weight up to 300 kg. Equipped with a high-speed milling spindle at 6000 rpm and a main spindle speed of 3000 rpm, it offers robust machining capabilities. Consider the opportunity to buy this Index G 400 horizontal turning machine. Contact us for more information. Application Types Turning

Condition: excellent (used), Year of construction: 1994, CNC Lathe Automatic Index GS42 Control: Index C200-8 (Sinumerik 880) Gjdpfx Acox E Sqlo Astt Spindle bore: 42 mm, two machining turrets Turret 1 – X=120 mm, Z=220 mm, 12 tool stations (6 driven), part handover Turret 2 – X=120 mm, Z=80 mm, 8 tool stations (4 driven) Dynamic C axis Bar feeder with magazine INDEX MBL 3500 mm, including complete set of reduction sleeves Set of clamping collets – 10 pcs Driven tool holders – 5 pcs Standard VDI20 tool holders – 5 pcs The machine is 100% operational and in excellent condition (maintains tolerances up to 0.001 mm)

Condition: ready for operation (used), Year of construction: 1996, functionality: fully functional, turning length: 800 mm, turning diameter over cross slide: 500 mm, turning diameter: 400 mm, rotational speed (max.): 4,000 rpm, INDEX GU800 CNC Lathe with C-Axis, Driven Tools & Chip Conveyor Description: For sale is an INDEX GU800 CNC turning/milling machine with extensive equipment. The machine is in full working order, runs smoothly, and shows no errors. Equipment & Details: - Siemens Sinumerik control with color display - Turning spindle with C-axis for milling operations - Turret with 16 tool positions, including driven tools - Tailstock available - 2-speed spindle gearbox (manual belt change) - Tool holder VDI40 - Forkardt 250 mm chuck - Maximum swing diameter: 500 mm - Maximum turning length: 1000 mm - Spindle bore: 65 mm - LED interior lighting - Chip conveyor included Gtedpsxzqccefx Ac Aot - Documentation & programming manual available Condition: ✔️ Fully operational ✔️ Ready for immediate use Inspection & Collection: By appointment – the machine is currently connected and can be demonstrated in operation. Location: Wathlingen / Celle (Lower Saxony, Germany) ENQUIRIES BY EMAIL ONLY!!!

Condition: used, Year of construction: 2014, INDEX C200 CNC Lathe Gtsdpfx Acoxxm Hfe Aot 3 Turrets 2 spindles Fanuc Control: 31i-Model B Axial Motorized Switches: 6 pcs Radial Motorized Switches: 13 pcs Tool Holders: 11 pcs Boring Bar Holders: 21 pcs Pin: 1 pcs Loader Bushings + Sleeves: Ø51/Ø46/Ø41 New MBL loader bushings: 2 sets 2 optical scales overhauled by HEIDENHAIN 1 Balluff Socket Gantry Arms Box with various sensors and proximity switches and cables Motorized Belts: 6 pcs Set of anti-vibration bushings for MBL loaders Start-up time: On time: 37946 Hydraulic hours: 37,500 Production time: 26,500 With MBL Bar Feed

Year of construction: 2008, condition: ready for operation (used), A defective CNC turning and milling machine Index with main and counter spindles is available. Travel path X/Y/Z: 630mm/210mm/2000mm, turning diameter: 630mm, turning length: 2000mm, speed: 3000U/min/6000U/min, max. workpiece weight: 300kg, chuck diameter: 315mm/400mm, tool holder: HSK-63A, tool stations: 2x32. Machine dimensions X/Y/Z: approx. 6500mm/3200mm/2800mm, weight: approx. 23000kg, control: Index C200-4D (Siemens Sinumerik 840D). The ball screw of the machine is defective. Dokumentation vorhanden. An on-site inspection is possible. Gtodjxyzgcopfx Ac Aet

Condition: excellent (used), INDEX ABC 65 is an INDEX CNC Turning‑Milling‑Drilling Center designed for high precision, accuracy and reliability. Capacity: 2 turning spindles, 2 turrets; spindle bore 65 mm; spindle diameters 140/110 mm; travels Z300 X140 Y100 mm; turret positions 10/9 (back 8). Specs: main spindle stepless 0–6000 rpm, 25/35 kW, torque 80/120 Nm; back spindle 6000 rpm, 5/9 kW; driven tools 7.5/9 kW; tool shank 45 mm; indexing 0.4 s; rapids X30/Z50 m/min; power supply 3x400 V 50 Hz; installed power 41 kW; weight ~6500 kg; dims 3600×1280×1950 mm. Accessories: 300 l coolant, 80 bar high‑pressure, paper filter, lamp, collet device, USB, parts conveyor, chip conveyor, toolholder set. Achieves tight tolerances; ideal for automotive, watchmaking, aerospace, medical and toolmaking. Gsdsxx U Svjpfx Ac Aett

Condition: ready for operation (used), Year of construction: 2003, functionality: fully functional, machine/vehicle number: 500522, spindle speed (max.): 3,500 rpm, overall weight: 6,500 kg, spindle diameter: 140 mm, counter spindle speed (max.): 3,500 rpm, TECHNICAL DETAILS Control: Siemens Sinumerik / Index C200-4D Main Spindle Gjdpsxvq Rpofx Ac Astt Spindle bore with collet clamping: 90 mm Spindle diameter at front bearing: 140 mm Spindle nose ISO 702/1 (Size): 8 Chuck diameter: 250/315 mm Max. rated turning diameter: 270 mm Max. swing diameter: 590 mm Speed: max. 3,500 rpm Counter Spindle Spindle bore with collet clamping: 90 mm Spindle diameter at front bearing: 140 mm Spindle nose ISO 702/1 (Size): 8 Chuck diameter: 250/315 mm Speed: max. 3,500 rpm Min. distance collet: 20 mm Rapid traverse: 22.5 m/min Turret Number of tools: 12 MACHINE DETAILS Dimensions & Weight Footprint: approx. 8/10.5 m² Height: 2,150 mm Machine weight approx.: 6.5 t EQUIPMENT Tailstock Automatic loading and unloading system

Condition: excellent (used), Machine in very good condition. It has worked to the end, now it is on warehouse not connected to power. Machine in 100% completed Hu3Nhjg Gtedpfx Aovllbrec Ast Parts conveyor, chips conveyor, bar feeder available. Spindels bore 42 mm IRCO feeder bar All manuals and documentation available

Condition: good (used), Year of construction: 2004, spindle passage 60 mm turning length 280 mm control 840 D Siemens turning speed range - drive spindle 6300 U/min drive capacity - spindle motor 3,3 kW turret 1 Scheibenrevolver no. of tools in turret 1 8 worktool system DIN 69 880 / 25mm x-travel 90 mm z-travel 280 mm feed power 5500 N rapid traverse 24 m/min power capacity - milling spindle 5000 kW turret Schwalbenschwanz no. of tools in turret 2 6 x-travel 81 mm z-travel 80 mm feed power 5500 N rapid traverse X-axis 16 m/min rapid traverse Z-axis 24 m/min weight of the machine ca. 2,5 t dimensions of the machine ca. 6,0 x 2,0 x 2,0 m TThe INDEX ABC machine is a compact lathe for short turned parts made from bar stock. It has an inclined bed design with two independent turrets. The top turret is primarily intended for internal machining and machining, while the lower turret is used for external machining. The turret arrangement enables collision-safe working and simple programming programming with high tool availability. The large free space in the working area enables a favourable chip fall The work area consists of two turrets: ‘Turret 1’ - Disc turret with 7 radially arranged tool holders Ø 25 mm DIN 69880 and a holder for the reinforced synchronised spindle on the turret station 8. tools with 1’ holders can also be used with an equalising holder can also be used. The turret is prepared for the V-ledge system. - Synchronised spindle for rear end machining, simultaneous parallel machining with main spindle. Ø42 collet chuck or 3-jaw gripper chuck for internal and external clamping and external clamping. Jaw stroke 0.6 mm. Clamping diameter (external) 75 mm. - Back-boring device. Starting from the centre of the working spindle in clockwise direction, 3 stationary back-boring tools are back boring tools are arranged. These are located in the pitch circle of the synchronised spindle. The back machining is carried out simultaneously with the machining on the the working spindle. Two additional tools can also be used, can be equipped with a tool feed drive. ‘Revolver 2’ - Turret with 6 symmetrical dovetail holders and each station with 2 locating holes for cylindrical shank per station. The following tool systems can be used. - stationary tools that can be moved in the Z direction - Driven tools with cylindrical shank Ø25 (can be used in two positions per station) can be used) - including bar loader LM 3200 - Gtsdpfxowbvhaj Ac Ast + various accessories (various Ø guide half-shells/tool holders) Technical data: - Material bar diameter: (Ø 25 / Ø 36 / Ø 52)- --> round Ø 8 - 25.4 / 8 - 36 / 8 - 52 mm --> square SW Ø 6 - 14 / 6 - 20 / 6 - 20 mm --> hexagon SW Ø 7 - 22 / 7 - 30 / 7 - 41 mm --> octagonal SW Ø 7 - 22 / 7 - 32 / 7 - 40 mm --> bar length max. 3200 mm --> from bars Ø 25 mm, min. 2,500 mm --> up to rods Ø 25 mm, min. 1,500 mm --> bar support = approx. 300 = 6 bars Ø 52 mm Mass (bar loader) = 700 kg

Condition: used, Year of construction: 2024, INDEX MS22-8 Mfd. 2024 2 NCU (4) Y-Axis SL Control Cutting hours: 1,000 Turnkey Available Located in Europe 4-Meter IEMCA SIR MS22-8/43/P Rack loader 50 Hz D9-13-19-25 Bar length 4300 mm with drilling unit and minimum quantity lubrication unit additional end-of-bar sensor Bar stock 500mm (D12-D24) Bar stock 340 mm (D5-D11). Additional storage chain for 22 bars with Profinet interface. 1 11007253 (21711) 1 set (8 pieces) bar stock pushers, external clamping for bar stock diameters D7-D10 mm, internal clamping for bar stock diameters D13-D18 mm, consisting of: 8 bar stock pushers D12 8 rotating sleeves D12 1 10287026 (21712) 1 set (8 pieces) bar stock pushers, external clamping for bar stock diameters D11-D16 mm, internal clamping for bar stock diameters D19-D24 mm, consisting of: 8 bar stock pushers D18 8 rotating sleeves D18 1 10536056 Gtodpfexnrtcox Ac Aot (21713) 1 set (8 pieces) bar stock pushers for bar diameters D17 mm-D22 mm, consisting of: 8 bar stock pushers D23 8 rotating sleeves D23 1 10414481 (21702) 1 set (8 pcs.) of internal clamping sleeves D12mm for bar diameters D13 mm - D18 mm Drill diameter D8 mm. 1 10472413 (21704) 1 set (8 pcs.) of external stops D12 mm for bar diameters D13 mm - D18 mm pre-machined. 1 10264327 (21703) 1 set (8 pcs.) of internal clamping sleeves D18mm for bar diameters D19 mm - D24 mm Drill diameter D15mm. 1 10058206 (21705) 1 set (8 pcs.) of external stops D18 mm for bar diameter D19 mm - D24 mm pre-machined. 1 12123486 Drill for drilling unit consisting of: 1 indexable insert drill D 15 mm 10 indexable inserts for steel 2 solid carbide drills D 8 mm

Year of construction: 1997, condition: ready for operation (used), Turning diameter: 200mm, turning length: 400mm, turning diameter: 420mm, bar diameter: 60mm, max. spindle chuck diameter: 160mm, speed: 5000rpm, turret: 2, positions: 2x14, rapid traverse X/Z: 20m/min/30m/min. Machine dimensions X/Y/Z: approx. 7500mm/2100mm/2100mm, weight: approx. 4500kg. Documentation available. On-site inspection is possible. Gsdpfx Aceu T Rgko Aott

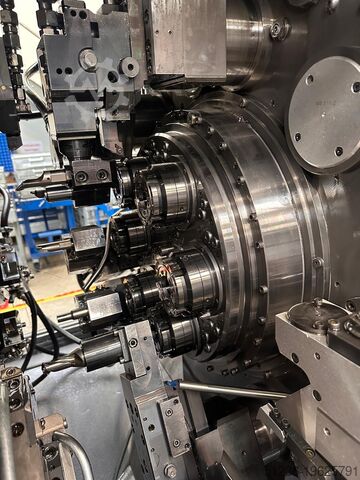

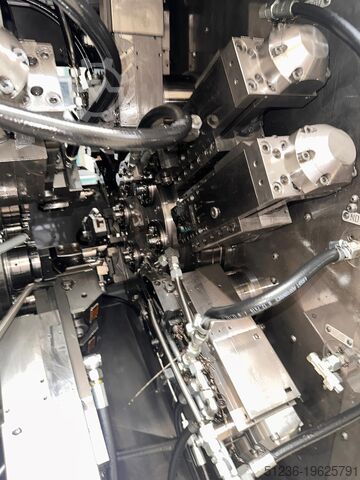

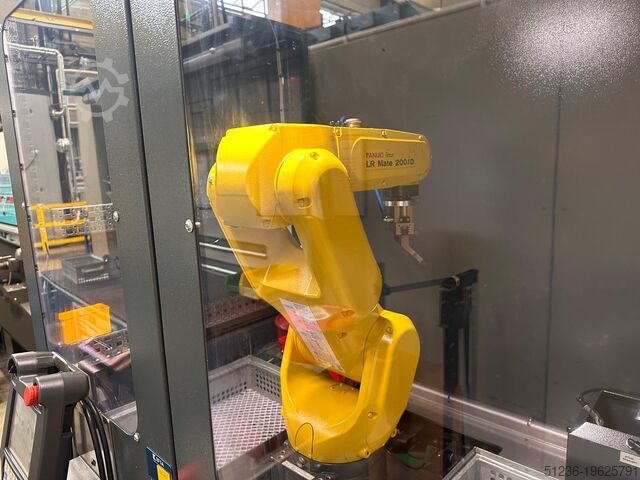

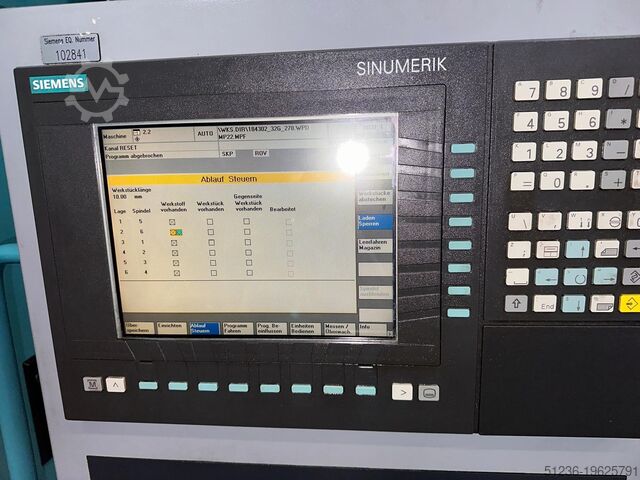

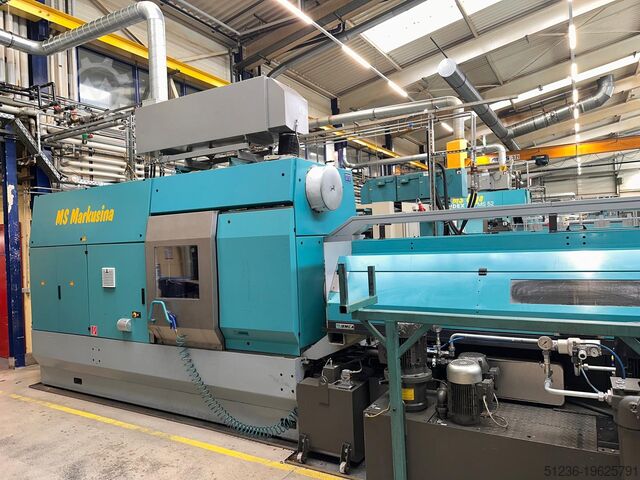

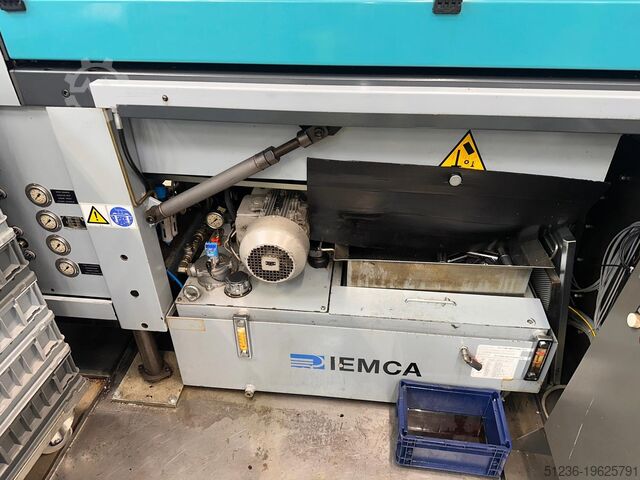

Condition: used, Year of construction: 2003, INDEX MS32G Gedsw A S H Ujpfx Ac Aott Overhauled completely: 2020 Original mfd. 2003 6 Spindles 32mm Capacity Siemens 840D control Equipped as pictured Kraft & Bauer fire extinguishing system All spindles on the machine were overhauled 2 years ago incl. clamping cylinder except for one on the GSP. - GSP is equipped with Hainbuch Spanntop and used Röhm jaw chucks - No tools are included - No FZ tubes / no bar pusher - Last year, spindle encoders on the HSP incl. GSP were completely renewed. Equipped with Lenord & Bauer IEMCA SIR-MS32/33/P See attached specifications.

Year of construction: 1997, condition: ready for operation (used), Turning diameter: 200mm, Unrun diameter: 260mm, Turning height: 200mm, Spindle clearance: 30mm, Spindle speed: 7500rpm, Power: 10kW, Torque: 49Nm. Travel X/Z: 520mm/200mm, rapid traverse X/Z: 30m/min, tool positions: 14, tool holder: VDI 30, drive tool speed: 6000rpm. Machine dimensions X/Y/Z: approx. 2100mm/2100mm/2300mm, weight: approx. 3300kg, control: Siemens Sinumerik. The X-axis of the machine makes running noises. Documentation available. On-site inspection is possible. Gtjdpfx Aovpvinjc Ast

Condition: excellent (used), Year of construction: 2021, INDEX MS22-8 Mfd. 2021 (Commissioned 2022) Double NCU (2) Synchrons MBL Bar Feed 3.3 Meters Estimated Hours: 10,000 Contact us for full specifications Gtedpfx Aswt Unvsc Ajt

Condition: excellent (used), Year of construction: 2011, functionality: fully functional, INDEX MS40-6 CNC Multi-Spindle Year of Manufacture: 2011 Commissioned: 2012 Control: Siemens 840D (Dual NCU) Bar Capacity: 40 mm Slide Units Position 1.1: X / Z NC controlled Position 1.2: X / Z NC controlled Position 2.1: X / Z NC controlled Position 2.2: X / Z NC controlled Position 3.1: X / Y / Z NC controlled (Y ± 21 mm) Position 3.2: X / Z NC controlled Position 4.1: X / Z NC controlled Position 4.2: X / Z NC controlled Position 5.1: X / Z NC controlled Position 5.2: X / Z NC controlled Position 6.1: X / Z NC controlled Position 6.2: X / Z NC controlled Position 6.3: X NC controlled, Z fixed Bar Feed IEMCA SIR MS40/33/P magazine bar loader Workpiece Handling Parts chute at spindle position 6 Workpiece conveyor at spindle position 6 Synchronization unit at spindle position 6.1 Gedoxndgzjpfx Ac Aett Parts ejector Coolant feed preparation through counter spindle Back-Working Attachment at slide position 6.2 Up to 3 fixed toolholders Auxiliary Drive Preparation Electrical preparation for 2 auxiliary drives with electronic shaft (positions 1–3), synchronous with main and counter spindle Electrical preparation for 2 auxiliary drives with electronic shaft (positions 4–6), synchronous with main and counter spindle Compatible with auxiliary drives with incremental encoder (double module) Chip & Coolant System Hinge-belt chip conveyor (cross type), discharge height 1200 mm, front discharge with lift pump for filter unit Coolant filtration unit (50 Hz): Coolant tank: 800 L Vacuum rotation filter: 650 L capacity Plate heat exchanger for coolant cooling Heat exchanger pump: 80 L/min 7 bar Low-pressure pump: 300 L/min 4 bar High-pressure pump: 55 L/min 40 bar Safety & Environmental Automatic CO₂ fire extinguishing system with optical/thermal detection Preparation for central exhaust system Shut-off flap for central oil mist extraction Control Options & NC Functions 16/16 freely programmable I/O interface Transmit / Tracyl function (milling cylindrical paths on OD and face) Dual transmit function for Y-axis transformation NC option: counter spindle / polygon turning with electronic shaft Process Monitoring Integrated ARTIS monitoring system based on torque, current, or power evaluation Up to 4 channels (max. 8 drives) monitoring 4 tools simultaneously at stations 1–3 Up to 4 channels (max. 8 drives) monitoring 4 tools simultaneously at stations 4–6
