Used Biglia Cnc Lathe for sale (27)

Condition: excellent (used), Year of construction: 1997, functionality: fully functional, Description WE SELL AN STUNNING NICE CONDITION CNC BIGLIA WITH TOOLS AND ACCESSORIESS CONDITION IS AS ALMOST NEW. VERY LITLLE USED. Gjdpfx Aevk Ezcja Iett FANUC SERIES 18-T Maximum turning diameter: 520 mm Maximum turning length: 500 mm Bar turning diameter: 80mm X axis travel: 210 + 5 Z axis travel: 500 + 10 Spindle speed: 4000 rpm Spindle motor: 11-15 Kw (50%) Spindle connection: ASA 6 Spindle hole: 80 mm Self-centering diameter: 250 mm Turret: number 12 stations Tailstock: CM 4 Dimensions: 3500 x 1670 x 1650 mm Weight: 4600 Kg HOLE TROUGH SPINDLE: 82 m YEAR:1997

Condition: ready for operation (used), Year of construction: 2005, operating hours: 9,400 h, functionality: fully functional, machine/vehicle number: 8662, turning length: 380 mm, turning diameter: 400 mm, spindle bore: 55 mm, spindle speed (max.): 5,000 rpm, spindle speed (min.): 100 rpm, travel distance X-axis: 160 mm, travel distance Y-axis: 440 mm, travel distance Z-axis: 380 mm, spindle motor power: 11 W, rapid traverse X-axis: 20 m/min, rapid traverse Y-axis: 12 m/min, rapid traverse Z-axis: 20 m/min, total height: 1,900 mm, total length: 3,500 mm, total width: 1,650 mm, type of input current: three-phase, overall weight: 3,300 kg, bar passage: 45 mm, spindle nose: ASA 5", coolant pump power: 75 W, tailstock quill diameter: 85 mm, number of tool stations in tool turret 1: 12, Equipment: documentation/manual, CNC Lathe Biglia B301 – Used & Refurbished in Excellent Condition Year 2005, used and refurbished, ideal for precision machining of small and medium-sized components. A compact, robust, and reliable machine equipped with a 12-position bidirectional turret, automatic tailstock, and hinged belt-type chip conveyor. Suitable for machine shops and companies seeking a high-quality, ready-to-use CNC lathe. Main technical specifications: - Model: Biglia B301 - Year: 2005 Capacity: - Max swing diameter: 400 mm - Maximum bar machining diameter: 45 mm - Maximum secondary operation diameter: 220 mm - Maximum machining length: 380 mm Spindle: - Spindle nose: ASA 5” - Spindle bore: 55 mm - Chuck: 3-jaw Autoblok 210 BH - Spindle speed: 100 – 5000 rpm - Spindle motor power: 11 – 15 kW Travel: - X-axis travel: 160 mm - Z-axis travel: 380 mm - B-axis travel: 440 mm Rapid traverse: - X/Z-axis rapid traverse: 20 m/min - B-axis rapid traverse: 12 m/min Turret and tailstock: - Turret: bidirectional, 12 positions - Automatic tailstock: yes - Quill diameter: 85 mm - Taper: MT4 Weight and dimensions: - Machine weight: 3,300 kg - Dimensions: 3,500 × 1,650 × 1,900 mm (h) Gedevw Agvepfx Aa Ijtt Included accessories: - Hinged belt chip conveyor - 12 static toolholders - Parts catcher Condition and availability: - Used machine, tested and in perfect working order - Ready for delivery - Can be inspected on appointment at our facility - Available for movement and operational tests by appointment at our premises Ideal for: precision metalworking, series production, and applications on steel, aluminum, brass, and engineered materials.

Condition: ready for operation (used), Year of construction: 2001, turning length: 1,000 mm, turning diameter: 400 mm, spindle bore: 80 mm, spindle speed (max.): 3,200 rpm, overall weight: 6,400 kg, Fanuc 18T, 4500 machining hours 12-position turret Capacity: 1000 x 400 mm Chuck: 315 mm Gtodpfx Aox Hhl Uja Iot Spindle bore: 80 mm Chip conveyor

Condition: used, Year of construction: 2006, BIGLIA B 301 M LATHE Max. bar working diameter: 42 mm Max. chuck working diameter: 220 mm Max. working length: 380 mm Max. swing diameter: 400 mm MAIN SPINDLE: Variable speed range: 100-5000 rpm Spindle nose: ASA 5" Spindle bore: 55 mm Front bearing inner diameter: 90 mm Chuck diameter: 165/210 mm Motor power: 11-15 kW (50%) TURRET: Number of positions: 12 Type: bidirectional External tool shank: 20x20 mm Boring bar shank: Ø25, Ø32 mm Indexing time (1 position): 0.15 sec Gsdsxw Eabspfx Aa Iott LIVE TOOLS: Number of positions: 12 Variable speed range: 50-4000 rpm Motor power: 3.7 kW (50%) HYDRAULIC TAILSTOCK: Automatic quill stroke: 100 mm Morse taper: No. 4-5 Manual positioning: 380 mm AXES: X axis travel: 160 mm (145+15) Z axis travel: 380 mm (360+20) B axis travel: 440 mm DIMENSIONS – WEIGHT: Overall size with chip conveyor: 3500 x 1754 x 1935 mm (H) Weight with chip conveyor: 3550 kg

Condition: good (used), Year of construction: 2001, Max. machining diameter from bar mm 65 Max. machining diameter from take-up mm 250 Max. machining length mm 500 Max. rotating diameter mm 520 CNC Fanuc 18i-T Iemca Master 800 MP loader Gtedpfom Hauajx Aa Ijt counter spindle chip conveyor tool setter

Condition: excellent (used), Year of construction: 2012, functionality: fully functional, turning length: 560 mm, turning diameter: 220 mm, spindle bore: 52 mm, spindle speed (max.): 5,000 rpm, travel distance X-axis: 170 mm, travel distance Y-axis: 105 mm, travel distance Z-axis: 560 mm, overall weight: 4,900 kg, Fanuc 32i CNC – Model B WORKING RANGE Max. workable bar diameter: 45 mm Max. Machinable length: 220 mm Maximum workable length: 560 mm Gtodjxqhakjpfx Aa Ist Maximum rotating diameter: 580 mm MAIN SPINDLE Maximum rotation speed: 5.000 rpm Spindle nose: ASA 5" Spindle bore: 52 mm Internal bearing diameter: 90 mm TAILSTOCK Tailstock taper: CM 5 with CM4 reduction B-axis rapid traverse: 15 m/min TURRET Number of positions: 12 Tool shank for external/internal: 20 x 20 mm – 25 x 25 mm – Ø32 Rotation time (1 position): 0.15 sec DRIVE TOOLS Number of positions: 12 Maximum rotation speed: 4.000 rpm Motor power: 3,7 kW Motor torque: 47 Nm C-AXIS Minimum programmable value: 0,001° Maximum rapid traverse speed: 100 rpm AXES X-axis travel: 170 mm Z-axis travel: 560 mm Y-axis travel: + 55 / – 50 mm B-axis travel: 490 mm X-axis rapid traverse: 20 m/min Z-axis rapid traverse: 24 m/min Y-axis rapid traverse: 6 m/min COOLANT Tank capacity: 250 l Pump flow rate: 230 l/min Pump motor power: 1.5 kW DIMENSIONS – WEIGHT Overall dimensions with chip conveyor: 4.240 x 2.000 x 2.020 mm Height of spindle center: 1.000 mm Weight with chip conveyor: 4.900 kg Equipment Machine: • 3-jaw Autoblock chuck, diam. 210 mm • Various motorized modules (axial + radial) • Operation and maintenance manuals and CE declaration of conformity

Condition: used, TECHNICAL DETAILS - Number of axes : 2 MAIN SPINDLE - Spindle power : 15 [kW] - Spindle speeds : 5000 [rpm] - Max. bar diameter : 45 [mm] - Max. machinable length : 560 [mm] - Max. chuck diameter : 220 [mm] TURRET - Number of positions : 12 - X/Z stroke : 170 / 560 [mm] POWER SUPPLY - Supply voltage : 400 [V] WEIGHT & DIMENSIONS Gtsdeuhaf Sopfx Aa Iet - Machine floor space : 4240 X 2000 [mm] - Machine height : 1900 [mm] - Machine weight : 4200 [kg] EQUIPMENT - CNC : Fanuc 21i-TB - Coolant tank - Chips conveyor - Tool probe

Condition: good (used), Year of construction: 1998, Baujahr 1998 Spindelstunden 52’000h Stangendurchlass 40mm Fanuc Series 18i-T Späneförderer Toolsetter integriert Gjdpjtth Hgefx Aa Iott 12Stationen 1Spindel, X und Z Achse Kurzstangenlader Spannzangenfutter F48

Condition: excellent (used), Year of construction: 2013, functionality: fully functional, turning diameter: 410 mm, spindle bore: 91 mm, spindle speed (max.): 3,500 rpm, travel distance X-axis: 255 mm, travel distance Y-axis: 110 mm, travel distance Z-axis: 670 mm, bar diameter (max.): 80 mm, CNC Fanuc 18i - T WORKING RANGE Max. workable bar diameter: mm 80 Max. diam. workable from recovery: mm 410 Max. workable length: mm 670 Max. rotating diameter: mm 600 MAIN SPINDLE Max. rotation speed: rpm 3,500 Spindle nose: ASA 8 “ Spindle hole: mm 91 Internal diameter of bearings: mm 140 Motor power: kW 22 Motor torque: Nm 539 TAILSTOCK Tailstock cone: CM 5 with CM4 reduction Automatic positioning of B-axis: mm 660 B-axis rapid: m/min 15 TURRET Number of positions: N° 12 Tool stem for external/internal: mm 20 x 20 – 25 x 25 – Ø32-40-50 Rotation time (1 pos): sec 0.15 DRIVE TOOLS Number of positions: N° 12 Max rotation speed: 4,000 rpm Gjdpfewhm Rrox Aa Ijtt Motor power: 3.7 kW Motor torque: 70 Nm C AXIS Minimum programmable value: ° 0.001 Max. rapid speed: 100 rpm AXES X-axis stroke: 255 mm Z-axis stroke: 670 mm Y-axis stroke: 110 mm (+ 60 / – 50) X-axis rapid: 20 m/min Z-axis rapid: 24 m/min Y-axis rapid: 7.5 m/min COOLANT Tank capacity: 250 l Pump flow rate: 120 l/min Pump motor power: 0.75 Kw DIMENSIONS – WEIGHT Overall dimensions with chip conveyor: 4.450 x 1.900 x 2.100 mm h Height of spindle center: mm 1.600 Weight with chip conveyor: Kg 6.300 Machine equipment: • Self-centering hydro-divider Autoblock type AXN 315 mm • Various motorized tool holders (radial and axial) • Use and maintenance manuals and CE declaration of conformity Year of construction: 2013

Year of construction: 2004, condition: ready for operation (used), - USED- 2-AXIS CNC LATHE MAX ROTATING DIAMETER: 620 mm MAX TURNING LENGTH: 650 mm MAX TURNING DIAMETER: 380 mm BAR CAPACITY: 80 mm SPINDLE: 30-3000 rpm; 22-26 kW; ASA 8" ; 315 mm X-AXIS TRAVEL: 220 mm Gtjdpox E Einofx Aa Ijt Z-AXIS TRAVEL: 650 mm RAPID FEEDS X-Z: 20 - 24 m/min TURRET HEAD: 12 POS CONTROL UNIT: FANUC 31iT WEIGHT: 6000 Kg OVERALL DIMENSIONS: 4000 x 1900 x 1850 mm ACCESSORIES: SWARF CONVEYOR

Year of construction: 2008, condition: ready for operation (used), - USED - 4-AXIS CNC LATHE MAX ROTATING DIAMETER: 580 mm MAX TURNING LENGTH: 550 mm MAX TURNING DIAMETER: 290 mm BAR CAPACITY: 65 mm SPINDLE: 40-4000 rpm; 22-26 kW; ASA 6" ; 210 mm Gtedswv Exqopfx Aa Iet X-AXIS TRAVEL: 170 mm Y-AXIS TRAVEL: 55/-50 mm Z-AXIS TRAVEL: 550 mm RAPID FEEDS X-Z: 20 - 6 - 24 m/min DRIVEN TURRET HEAD: 12 POS; 4000 rpm; 3,7 kW CONTROL UNIT: FANUC 18i-TB WEIGHT: 4950 Kg OVERALL DIMENSIONS: 4240 x 2000 x 2020 mm ACCESSORIES: PARTS CATCHER ; AUTOMATIC TAILSTOCK ; SWARF CONVEYOR ; RS 232 SERIAL PORT ; TOOL SETTER ; PORTABLE HANDWHEEL

Condition: refurbished (used), Year of construction: 2012, functionality: fully functional, turning length: 2 mm, Cnc GE Fanuc Series 31i-TB Max. bar machining diameter mm 67.5 Max. machining length mm 250 MAIN SPINDLE Max. rotation speed rpm 4000 Spindle nose ASA 6" Spindle bore mm 75 Bearing internal diameter mm 80 Motor power kW 15 SUB-SPINDLE Max. rotation speed rpm 5000 Spindle nose ASA 5" Spindle bore mm 55 Useful through hole mm 45 Bearing internal diameter mm 80 Motor power kW 7.5/11 Offset travel mm 120 TURRET 1 & 2 Number of positions 12 Rotation time (1 position) sec 0.15 Driven tool stations No. 12 Max. driven tool speed rpm 4000 Driven tool motor power kW 3.7 Y-axis rapid traverse 100-6 COOLANT Tank capacity l 250 Gjdpfx Aajx S Eyao Istt Total electric pump power kW 3.7 DIMENSIONS – WEIGHT Overall dimensions with chip conveyor mm 4150 x 2100 x 2200 h Weight with conveyor kg 6800

Condition: good (used), Year of construction: 2008, Control: FANUC Series 18i-TB Max bar diameter: 65 mm Gedjxq D Hmopfx Aa Ijtt Max length: 250 mm Max turning diameter main spindle: 520 mm Max speed main and sub spindle: 4,000 rpm C-axis 2 turrets, each with 12 stations All stations are driven Driven tool speed: 4,000 rpm Chip conveyor Bar loader TOP-Automazione XF365

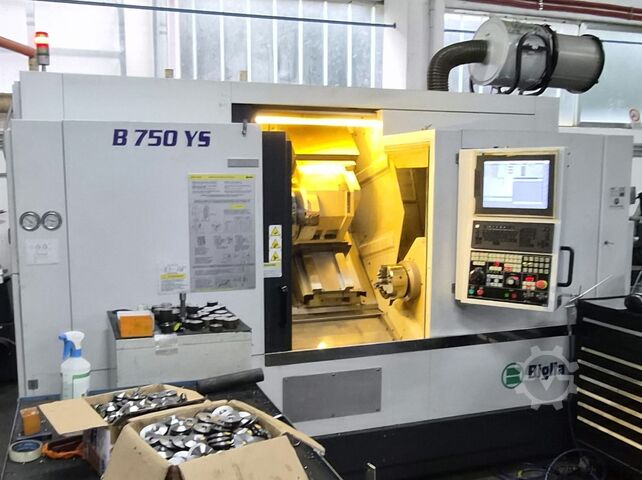

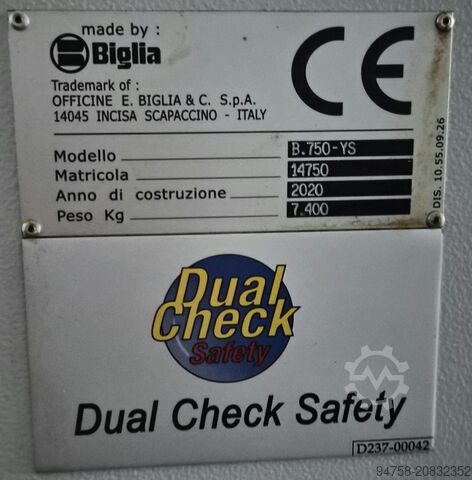

Condition: like new (used), Year of construction: 2020, operating hours: 4,848 h, functionality: fully functional, machine/vehicle number: 14750, turning length: 765 mm, turning diameter over cross slide: 680 mm, turning diameter: 552 mm, spindle motor power: 40,000 W, spindle speed (min.): 10 rpm, spindle speed (max.): 4,500 rpm, spindle bore: 77 mm, travel distance X-axis: 305 mm, travel distance Y-axis: 140 mm, travel distance Z-axis: 860 mm, rapid traverse X-axis: 18 m/min, rapid traverse Y-axis: 7 m/min, rapid traverse Z-axis: 24 m/min, rotational speed (max.): 4,500 rpm, rotational speed (min.): 10 rpm, type of input current: three-phase, feed length Y-axis: 140 mm, feed length Z-axis: 860 mm, torque: 286 Nm, bar passage: 71 mm, feed rate X-axis: 18 m/min, feed rate Y-axis: 7 m/min, feed rate Z-axis: 24 m/min, chuck outer diameter: 250 mm, Equipment: documentation/manual, rotational speed infinitely variable, We offer this Biglia B.750-YS CNC turning and milling center, year of manufacture 2020, in like-new condition. Model: B.750-YS Serial number: 14750 Year of manufacture: 2020 Weight: 7,400 kg Operating hours: 4848 Turret with 16 driven tools, main spindle, sub-spindle, Y-axis, bar feeder preparation, Renishaw tool setter, extractor, chip conveyor, high pressure coolant through driven tools. We are selling it fully equipped with driven tools, soft jaws, and tools as shown in the photos. Gtedox N Edaopfx Aa Iot If you have any questions or require further information, please do not hesitate to send us a message or call us.

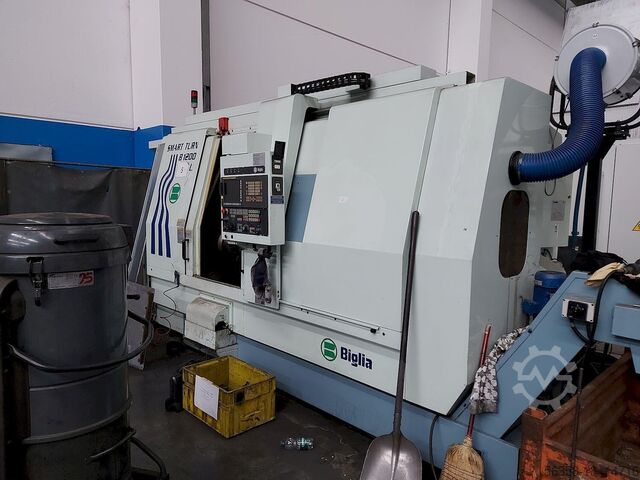

Condition: good (used), Year of construction: 2012, 750mm Swing, 500mm max. machining diameter, 1300mm max turning length, 3000rpm main spindle, 65mm bar capacity, 8,000rpm milling 20kW, C axis 0.001 degrees, Y axis - 90/+120mm, 40 station ATC, , milling speed 4,000rpm, 30kW spindle motors, FANUC 31i control, 3 Jaw Power Chuck, Swarf Conveyor, Coolant, tool setter, parts catcher, barfeed unit. Gtjdpfxoxqyg Nj Aa Iot

Condition: excellent (used), Year of construction: 2014, operating hours: 14,500 h, functionality: fully functional, machine/vehicle number: 11779, turning length: 700 mm, turning diameter: 250 mm, spindle motor power: 26,000 W, spindle speed (min.): 3,200 rpm, spindle speed (max.): 3,200 rpm, spindle bore: 65 mm, overall weight: 8,500 kg, incl. 2x Hainbuch/Ortlieb chucks, conveyor belt, swiveling measuring probe with 2 heads, MANUAL GUIDE_dialog programming, high-pressure pump 18 bar/20 l/min, SBS tool breakage monitoring and wear control. Machine year 2013 – Commissioned 05/2014 Good & well-maintained condition Original price approx. €300,000 Godperdy Uqofx Aa Iett !!! ATTENTION -> Sale without loader!!!

Condition: excellent (used), Year of construction: 2002, Biglia B 301 SM Gtedpfxjwc Dhwo Aa Iet .. CNC control FANUC 18 ITB Equipment .. Number of spindles: 2 .. Number of turrets: 1 .. Live tools: yes .. C-axis .. B-axis X-axis Z-axis WORKING RANGE - TURNING- .. Swing diameter (max.): 400 mm .. Turning diameter (max.): 220 mm .. Bar work (max.): 45 mm .. Maximum workpiece length: 380 mm Short bar loader AGW

Condition: used, Year of construction: 2001, CNC GE Fanuc Series 18i-T Max. bar machining diameter: 80 mm Max. secondary operation machining diameter: 400 mm Max. machining length: 500 mm Max. swing diameter: 520 mm SPINDLE: Variable rotation speed range: 30-3200 rpm Spindle nose: ASA 8" Spindle bore: 90 mm Bearing internal diameter: 130 mm Chuck diameter: 315 mm Motor power: 22-26 kW TURRET: Number of positions: 12 External tool shank: 25x25 mm Boring tool shank: Ø32 mm AXES: X-axis travel: 210 + 5 mm Z-axis travel: 500 + 10 mm HYDRAULIC TAILSTOCK: Automatic quill stroke: 100 mm Gedpfew A Ilajx Aa Iett Quill diameter: 85 mm Taper: MT 4 COOLANT SYSTEM: Tank capacity: 200 l Pump capacity: 100 l/min DIMENSIONS - WEIGHT: Overall dimensions with chip conveyor: 4300 x 1940 x 1960 (h) mm Height of main spindle center: 1000 mm Weight with chip conveyor: 5000 kg INCLUDED ACCESSORIES 1 Hydraulically operated self-centering chuck MARIO PINTO Dia. 315 mm

Condition: good (used), Year of construction: 1999, Parts shown by hand not come. Gtedpfx Aaswbz Tuj Ist

Condition: like new (used), Year of construction: 2017, operating hours: 5,190 h, functionality: fully functional, MAIN SPINDLE MAX. BAR DIAMETER: 70 MM MAX. TURNING DIAMETER: 290 MM MAX. TURNING LENGTH: 560 MM SPINDLE NOSE: A2-6 SPINDLE POWER: 11 KW SPINDLE SPEED: 40-4000 RPM C AXIS: 360° INCR. INDEXING 0.001° TURRET NUMBER OF POSITIONS: 12 NUMBER OF LIVE POSITIONS: 12 AXES: X=170 MM, Z=560 MM, Y=+55/-50 MM Gsdpfx Aajwurdwo Iott SUB-SPINDLE SPINDLE NOSE: A2-5 SPINDLE POWER: 11 KW SPINDLE SPEED: 5000 RPM C AXIS: 360° INCR. INDEXING 0.001° CONTROL FANUC 32i-B

Condition: used, Year of construction: 2009, operating hours: 3,483 h, functionality: fully functional, total length: 5,550 mm, total width: 2,250 mm, bar diameter (max.): 95 mm, overall weight: 8,400 kg, Max. workable diameter from bar mm 95 Max. workable diameter from recovery mm 500 Max. workable length mm 1250 Max. rotating diameter mm 700 MAIN ELECTROSPINDLE: Variable rotation range rpm 40-2800 ASA spindle nose 8" Spindle hole mm 111 Internal diameter of bearings mm 150 Self-centering diameter mm 315 Motor power kW 30 TAILSTOCK TO FOLLOW: Positioning stroke mm 1,100 Quilt stroke mm 150 Quilt diameter mm 115 MOTORIZED ELECTROSPINDLE HEAD: Type of attachment HSK-63 Max. revolutions RPM 6,000 Electrospindle motor power Kw 9 Gtsdpovv Ud Rofx Aa Ijt B AXIS UNIT: Total rotation range 205° Rotation range beyond the tailstock axis 15° Rotation range beyond the spindle axis 10° Angular position with mechanical block Every 5° CROSS SLIDE Max. Z stroke mm 1300 Max. X stroke mm 520 Max. stroke Y mm 210 (+120 – 90) TOOL MAGAZINE Magazine capacity 40 pos Max. diameter of tools with adjacent tools mm 80 Max. diameter of tools without adjacent tools mm 140

Condition: excellent (used), Year of construction: 2015, operating hours: 9,564 h, functionality: fully functional, CNC FANUC 31i-MODEL B5 TOOL PRESETS N. 2 SELF-CENTERING N. 7 HSK TOOLS Gtedpfx Ajwayv Eoa Iot

Condition: used, Year of construction: 2014, functionality: fully functional, Cnc FANUC Series 31i – MODEL B Max. diam. workable from bar mm 51 Max. workable length mm 230 MAIN SPINDLE Max. rotation speed rpm 5000 ASA spindle nose 5" Spindle hole mm 59.5 Internal diameter of bearings mm 90 Motor power kW 15 COUNTER-HEAD Max. rotation speed rpm 5000 ASA spindle nose 5" Spindle hole mm 55 Useful through hole mm 45 Internal diameter of bearings mm 90 Motor power kW 11 Gtedpjwari Rofx Aa Iet UPPER LEFT TURRET 1 UPPER RIGHT TURRET 2 LOWER TURRET 3 Number of positions 12 Rotation speed rpm 4,000 Motor power Kw 3.7 Rotation time (1 pos) sec 0.15 Max. stroke Y axis mm 90(-40/+50) COOLANT Tank capacity l 450 Total power of electric pumps kW 4.8 DIMENSIONS - WEIGHT Overall dimensions with chip evacuator mm 5033 x 2100 x 2458 h Weight with conveyor kg 8200

Condition: used, Year of construction: 2001, functionality: fully functional, CNC: GE Fanuc Series 18i–T Max. bar working diameter: 45 mm Max. working length: 200 mm Max. second operation (chucking) diameter: 160 mm MAIN SPINDLE Max. spindle speed: 4000 rpm Spindle nose: ASA 5" Spindle bore: 56 mm Bearing inner diameter: 90 mm Motor power: 7.5 kW SUB SPINDLE Max. spindle speed: 4000 rpm Spindle nose: ASA 5" Spindle bore: 56 mm Bearing inner diameter: 90 mm Motor power: 7.5 kW TURRETS Number of positions: 12 Indexing time (1 position): 0.2 s Type: Bidirectional External tool shank: 20x20 mm Boring bar shank: 32 mm LIVE TOOLS head 1-2 Number of positions: 12 Variable speed range: 100–3000 rpm Motor power: 3.7 kW AXES X-axis stroke: 158 mm Z-axis stroke: 240 mm B-axis stroke: 420 mm DIMENSIONS – WEIGHT Dimensions with chip conveyor: 4107 x 2128 x 2204 h mm Weight with conveyor: 6700 kg Complete with Iemca bar loader Gjdpfx Aaew I Rzmo Iott

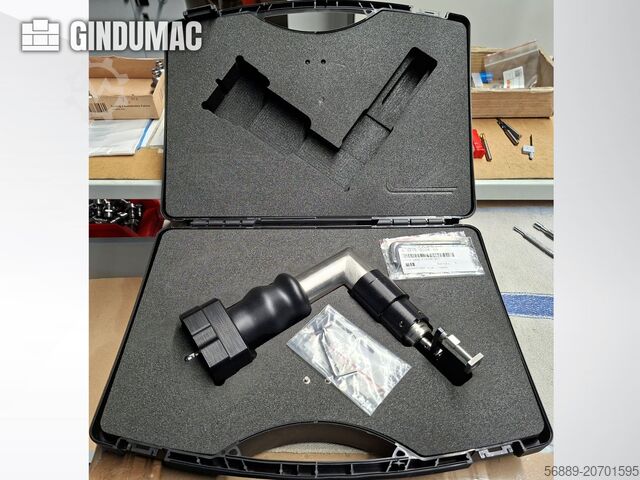

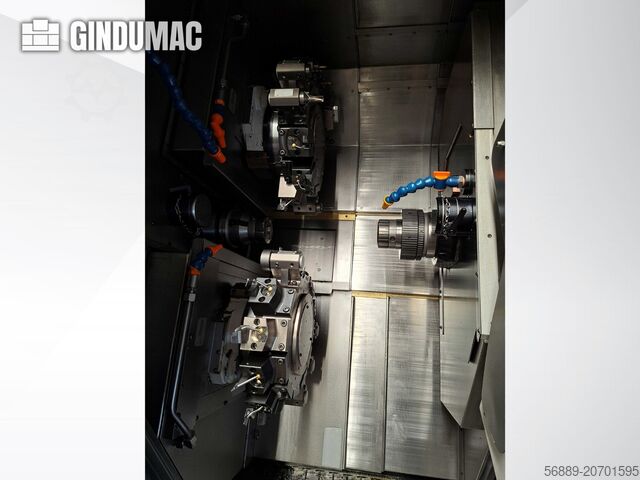

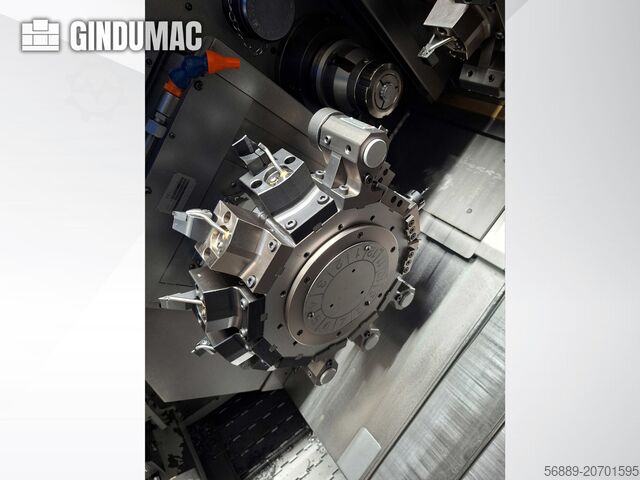

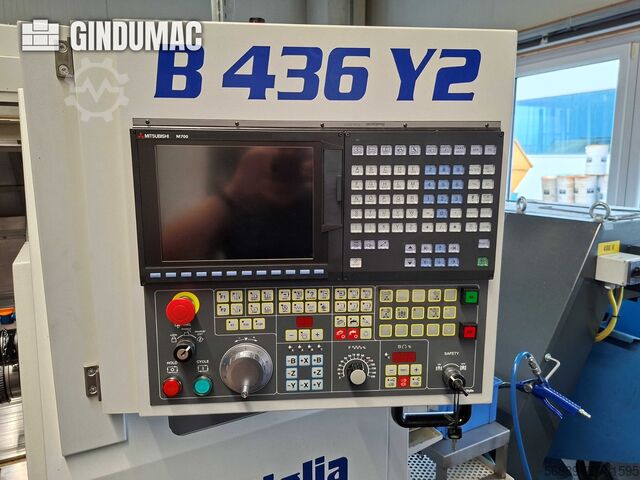

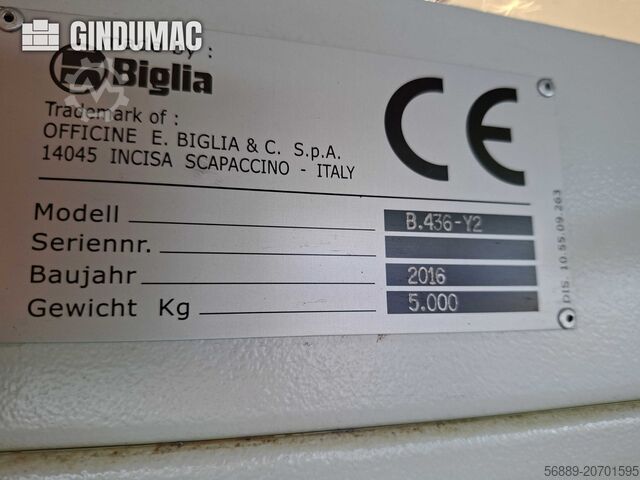

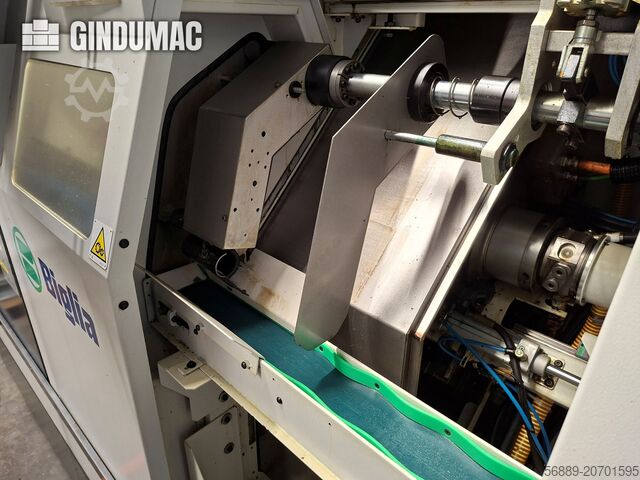

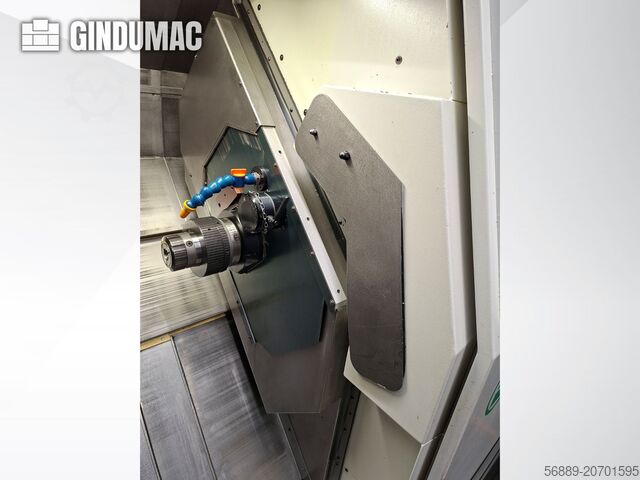

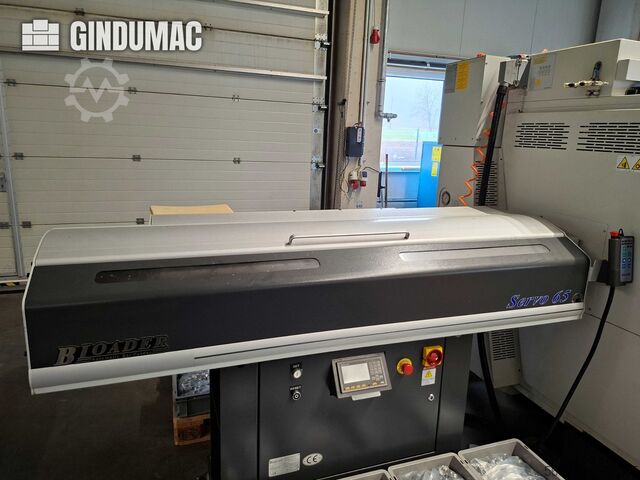

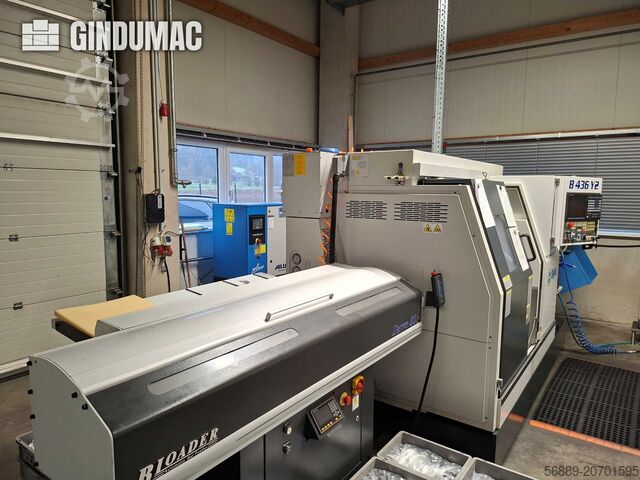

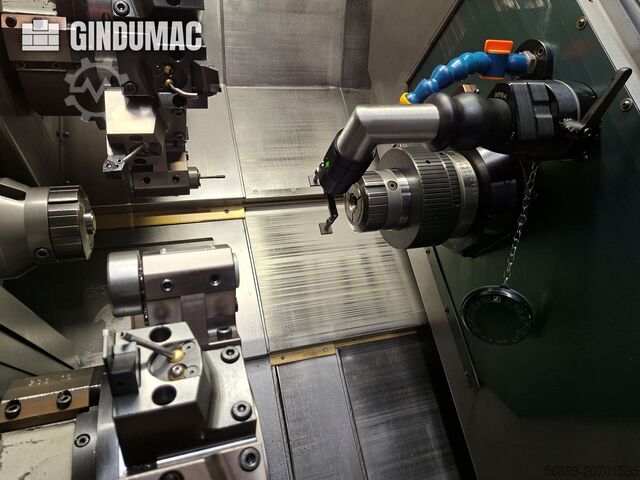

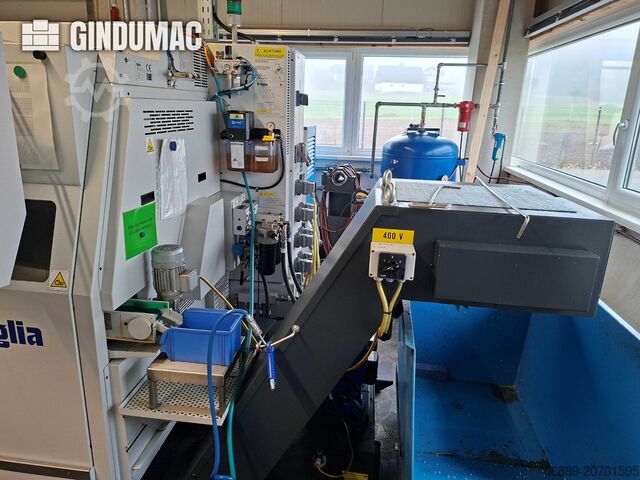

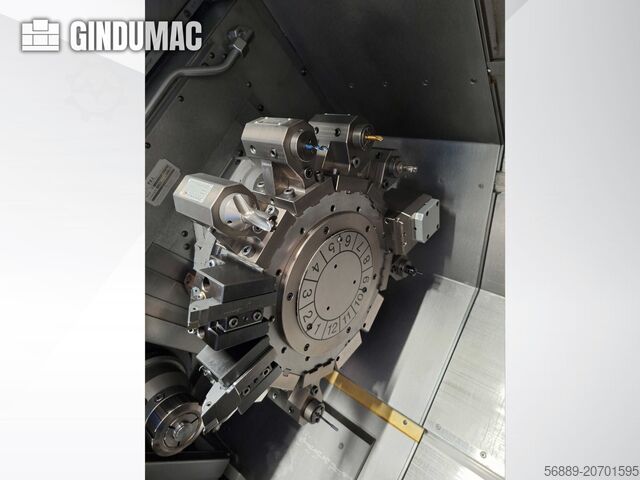

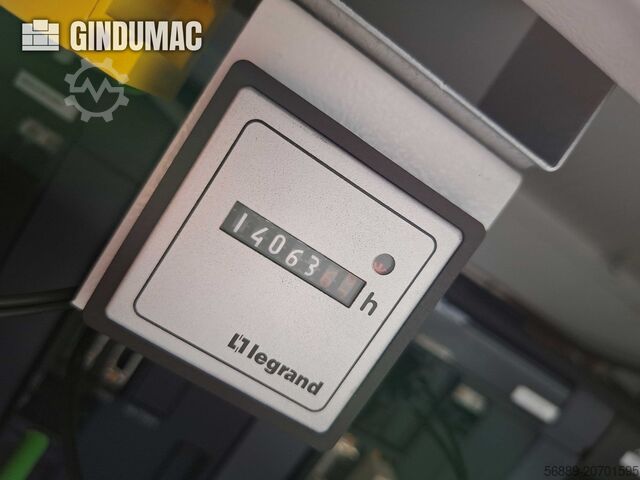

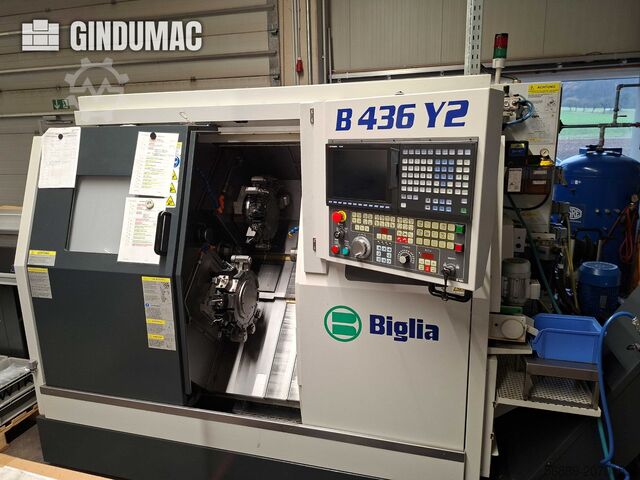

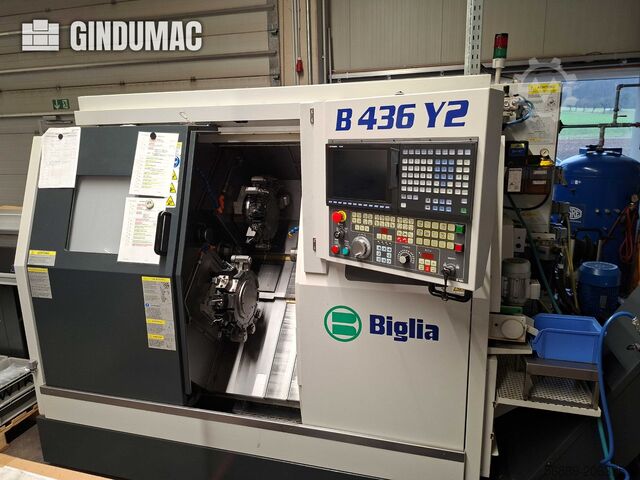

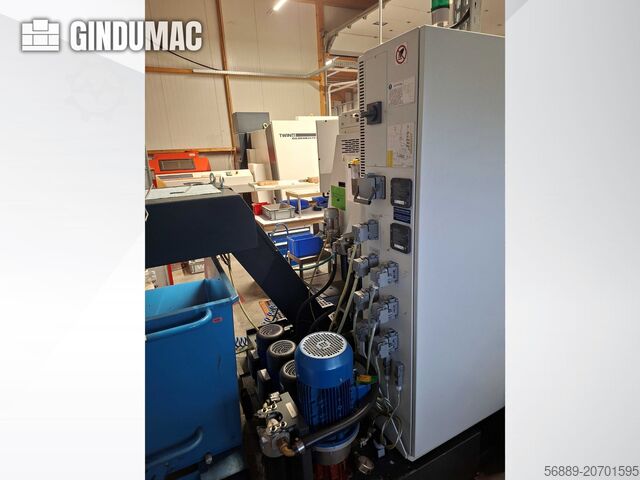

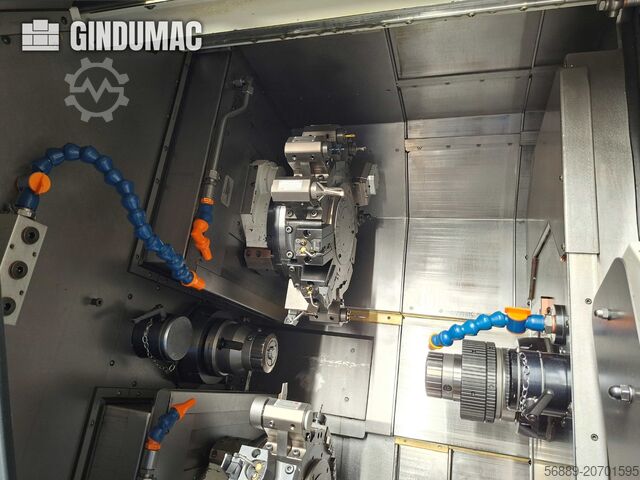

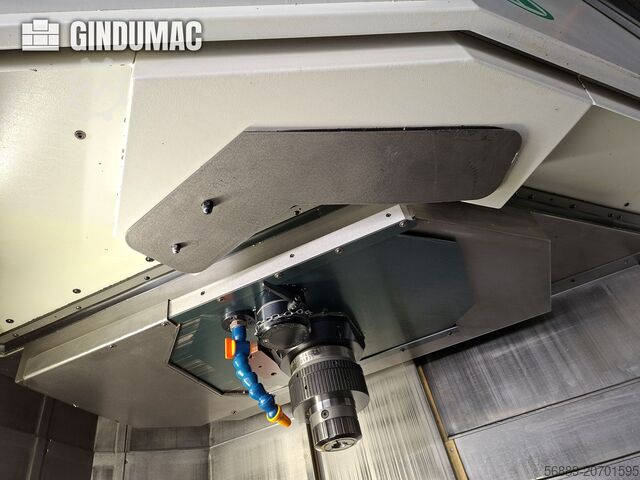

Condition: ready for operation (used), Year of construction: 2016, operating hours: 14,063 h, spindle speed (max.): 7,000 rpm, spindle motor power: 11,000 W, number of axes: 6, This 6-axis Biglia B.436-Y2 horizontal turning machine was manufactured in 2016. It features a maximum bar diameter of 36 mm, spindle speed up to 7000 rpm, and motor power of 11 kW. With rapid traverse rates up to 30 m/min and a comprehensive toolset including high-precision boring bar holders and radial drilling heads, this machine offers robust capabilities for complex machining tasks. If you are looking to get high-quality turning capabilities consider the Biglia B.436-Y2 machine we have for sale. Contact us for more information. Godpfx Aox D Ep Nsa Iett • Max. bar diameter: 36 mm • Aiming tube: 37.5 mm • Spindle nose: 115 mm • Draw tube: 46 mm • Continuous motor power: 7.5 kW • Continuous power available from: 1700 rpm • Max. torque: 62 Nm • Cylinder thrust area: 75 cm² • Cylinder stroke (max.) for clamping operation: 26 mm • Longitudinal slide (Z1 axis) • Max. stroke: 300 mm • Ball screw diameter/pitch: 25/10 mm • Max. rapid traverse: 30 m/min • Cross slide (X1 axis) • Max. stroke: 85 mm • Ball screw diameter/pitch: 25/5 mm • Max. rapid traverse: 15 m/min • Vertical slide (Y1 axis) • Max. stroke: 50 (+25/-25) mm • Ball screw diameter/pitch: 25/5 mm • Max. rapid traverse: 15 m/min • Longitudinal slide (Z2 axis) • Max. stroke: 300 mm • Ball screw diameter/pitch: 25/10 mm • Max. rapid traverse: 30 m/min • Cross slide (X2 axis) • Max. stroke: 85 mm • Ball screw diameter/pitch: 25/5 mm • Max. rapid traverse: 15 m/min • Vertical slide (Y2 axis) • Max. stroke: 50 (+25/-25) mm • Ball screw diameter/pitch: 25/5 mm • Max. rapid traverse: 15 m/min • Connected load: 11 kW / 40 kVA / 70 A / 3 x 400 V • Operating pressure: 4.8–6.9 bar • Max. air consumption (supply): 0.10 m³/min (guideline) • Footprint (with chip conveyor) L x D approx.: 3682 x 1430 mm • Overall height (max.): 1900 mm Additional equipment • High-precision boring bar holder Ø25 mm with internal coolant (Oesterle) • Precision reducing sleeve D=25/16 (Oesterle) • Precision reducing sleeve D=25/12 (Oesterle) • Precision reducing sleeve D=25/06 (Oesterle) • Collet chuck ER20, shank D=25 mm (Oesterle) • Precision parting-off holder for parting tool SH26 mm, left-hand, height 70 mm • Radial drilling and milling head ER20 with internal coolant, 1:1, 6000 rpm (MT) • Radial drilling and milling head ER20 with internal coolant, 1:2, 12,000 rpm (MT) • External turning tool holder, 1st side 16x16 / 0088-00004 (Oesterle) • Angled external turning tool holder, 2nd side 16x16 / 0088-00006 (Oesterle) • High-pressure pump 40 bar with replaceable filter cartridge • Coolant gun including its own pump • Collet chuckThe machine ran with cooling lubricant! Brand: Castrol Type: Hysol MB 50The tension of the main and counter spindle is hydraulic and adjustable by pressure! A collet chuck with stroke limitation is mounted on the counter spindle! The tool presetting is a measuring probe that is only used to measure the tools! It also functions properly! The cooling lubricant pressure is 7 bar and can be increased to a maximum of 40 bar via M code! The workpiece removal is permanently installed in the machine and can be freely programmed! The bar loading magazine is included! According to the operating instructions, the bar loader can handle 1500 mm
