Used Leadwell Cnc Lathe for sale (21)

Condition: used, machine/vehicle number: L2SIH0236, turning diameter over cross slide: 700 mm, turning length: 1,500 mm, spindle bore: 80 mm, Leadwell LTC 30 BPL, CNC Turning Centre with Fanuc OT Control, fitted with 300mm dia 3 jaw chuck Made in Japan, approx 700mm swing x 1500mm centre distance, spindle bore 80mm,  operators foot pedal, Serial Number L2SIH0236, swarf conveyor, Iasdpfsw A Rqrex Ahuol

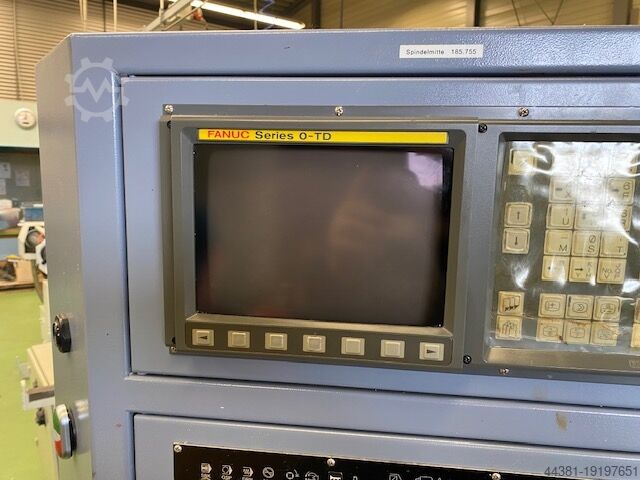

Condition: used, Year of construction: 2002, spindle motor power: 11 W, rotational speed (min.): 4,500 rpm, CNC Lathe "LEADWELL" Model T6 CNC FANUC 0-TD Iasdpfx Ajx U Ti Ijhusl Complete with standard equipment Max. turning length: 450 mm Max. turning diameter: 290 mm ATC with 12 stations Spindle speed: 4500 rpm Motor power: 11 kW

Condition: good (used), Year of construction: 2010, Machine have live tools option and Y axis. Cutting tools not come. Parts shown by hand not come. Isdpexpw Nlofx Ahuoal Technical details shown on pictures.

Condition: good (used), Year of construction: 2011, 450mm swing, 210mm max diameter, FANUC 0i Control, 51mm bar capacity, 12 station turret, Iedpfoxuhwqsx Ahuoal 11/7.5kW Spindle Motor, 4,500 rpm, collet chuck, low volt light, coolant, Tool setter, Tailstock, swarf conveyor

Condition: used, Year of construction: 1987, operating hours: 2,362 h, functionality: limited functionality, machine/vehicle number: L7+029, turning diameter over cross slide: 42 mm, spindle bore: 42 mm, spindle motor power: 7,500 W, rotational speed (max.): 4,500 rpm, Equipment: documentation/manual, LEADWELL LTC10 Year of manufacture: 1987 Operating hours: 2362h Turning diameter: 42mm CNC type: Fanuc OT Model A Number of tool turrets: 1 Axes: X, Z, and C Tailstock Number of turret positions: 8 Iasdpoxwp T Ejfx Ahusl Main and sub spindle speed: 4500 rpm Main spindle motor power: 7.5 kW Dimensions (L x W x H): 235 cm x 122 x 160 Weight: ? kg Chip conveyor Documentation: electrical diagrams, Fanuc manual, spare parts list, programming assistance, hard copy of parameters. Numerous fixed tool holders included in the sale. The machine is operational. It is somewhat aged, so it is not perfect. Machine is to be collected on site (Marignier - France). Loading and transport costs are the responsibility of the buyer.

Condition: used, Year of construction: 2012, Machine Designation: Vertical Machining Center LCV-760 (Moving Column Type) Manufacturer: LEADWELL CNC Machines Mfg. Corp., Taichung, Taiwan Type / Model: LCV-760 Control System: FANUC Oi-MD Technical Specifications • Working Area / Travels: - X-axis travel: 760 mm - Y-axis travel: 610 mm - Z-axis travel: 610 mm - Distance from table (pallet) top to spindle nose: 150 – 760 mm - Distance from column front to spindle center: 718 mm - Table dimensions: 850 × 600 mm - Maximum workpiece weight: 400 kg - Table configuration: M16 × P2.0 mm T-slots - Table height (floor to table top): 1,033 mm Ijdpsxnlhgjfx Ahuoal • Spindle / Drive: - Spindle speed: 10,000 rpm (optional: 12,000 rpm) - Spindle drive motor: 18.5 / 24 kW (30 min / continuous duty) - Maximum spindle torque: 95 Nm (67.5 ft-lb) - Spindle taper: 7/24 TAPER No. 40 (BT-40) - Spindle bearing inner diameter: 70 mm - Tool clamping force: 1,200 kgf - Transmission: HT.D belt drive - Spindle oil chiller: included - Rigid tapping: standard • Feedrates: - Rapid traverse (X / Y / Z): 32 / 32 / 32 m/min - Cutting feedrate: 10 m/min - Jog feedrate: 2,500 mm/min • Automatic Tool Changer (ATC): - Type: Arm-type changer - Tool capacity: 30 tools - Tool taper: BT-40 - Retention knob: MAS P40T-1 (JIS B-6339) - Max. tool diameter (adjacent): 80 mm - Max. tool diameter (free): 100 mm - Max. tool length: 250 mm - Max. tool weight: 7 kg - Tool change time (tool-to-tool): 2 s - Chip-to-chip: 6 s • Automatic Pallet Changer (APC): - Number of pallets: 2 - Change method: hydraulic swapper - Pallet change time: 12 s • Motors: - Spindle motor: 18.5 kW (24 HP) - X-axis feed motor: 4.5 kW (6.4 HP), 30 Nm torque - Y-axis feed motor: 4.5 kW (6.4 HP), 30 Nm torque - Z-axis feed motor: 3.88 kW (5.4 HP), 22 Nm torque - Hydraulic pump motor: 3 kW - Lubrication pump motor: 0.01 kW - Coolant pump motor: 0.76 kW • Guideways: - X-axis: SNS45C2SSCOEx3 (600 mm width, 1,000 mm distance) - Y-axis: SNS45LC2X151SLHx2 (600 mm width, 600 mm distance) - Z-axis: SHS45R2SSCOEx1305×2 (500 mm distance) • Utilities / Connections: - Power supply: 45 kVA - Compressed air: 0.6 MPa (87 psi), 400 L/min - Hydraulic oil tank: 400 L - Lubrication tank: 2 L - Coolant tank: 300 L • Dimensions / Weight: - Machine height: 2,885 mm - Machine footprint: 3,510 × 2,410 mm - Machine weight: 9,200 – 9,500 kg (approx. 10 t) lifting requirement • Cutting Capacities: - Milling: 230 cm³/min - Drilling: Ø 40 mm - Tapping: M30

Condition: ready for operation (used), Year of construction: 1995, functionality: fully functional, Leadwell CNC lathe Iaodpfx Aoxqcqqehusl Model LTC - 20 AP Year : 1995 Working lenght : 550 mm. Max. working diameter : 300 mm. Spindle borer : 62 / 52 mm. Number of tools : 12 pcs. X-axis travel : 175 mm. Z-axis travel : 600 mm. Control : Fabuc O-T 3-jaw chuck Tailstock Tool-Setter Tool posts Interface RS-232 C Tool locker Chip conveyer Coolant

Condition: used, Year of construction: 2009, Machine Designation: Vertical Machining Center LCV-760 (Moving Column Type) Manufacturer: LEADWELL CNC Machines Mfg. Corp., Taichung, Taiwan Type / Model: LCV-760 Control System: FANUC Oi-MD Technical Specifications • Working Area / Travels: - X-axis travel: 760 mm - Y-axis travel: 610 mm - Z-axis travel: 610 mm - Distance from table (pallet) top to spindle nose: 150 – 760 mm - Distance from column front to spindle center: 718 mm - Table dimensions: 850 × 600 mm - Maximum workpiece weight: 400 kg - Table configuration: M16 × P2.0 mm T-slots - Table height (floor to table top): 1,033 mm • Spindle / Drive: - Spindle speed: 10,000 rpm (optional: 12,000 rpm) - Spindle drive motor: 18.5 / 24 kW (30 min / continuous duty) - Maximum spindle torque: 95 Nm (67.5 ft-lb) - Spindle taper: 7/24 TAPER No. 40 (BT-40) - Spindle bearing inner diameter: 70 mm - Tool clamping force: 1,200 kgf - Transmission: HT.D belt drive - Spindle oil chiller: included - Rigid tapping: standard • Feedrates: - Rapid traverse (X / Y / Z): 32 / 32 / 32 m/min - Cutting feedrate: 10 m/min - Jog feedrate: 2,500 mm/min • Automatic Tool Changer (ATC): - Type: Arm-type changer - Tool capacity: 30 tools - Tool taper: BT-40 - Retention knob: MAS P40T-1 (JIS B-6339) - Max. tool diameter (adjacent): 80 mm Iaodpexnki Ajfx Ahusl - Max. tool diameter (free): 100 mm - Max. tool length: 250 mm - Max. tool weight: 7 kg - Tool change time (tool-to-tool): 2 s - Chip-to-chip: 6 s • Automatic Pallet Changer (APC): - Number of pallets: 2 - Change method: hydraulic swapper - Pallet change time: 12 s • Motors: - Spindle motor: 18.5 kW (24 HP) - X-axis feed motor: 4.5 kW (6.4 HP), 30 Nm torque - Y-axis feed motor: 4.5 kW (6.4 HP), 30 Nm torque - Z-axis feed motor: 3.88 kW (5.4 HP), 22 Nm torque - Hydraulic pump motor: 3 kW - Lubrication pump motor: 0.01 kW - Coolant pump motor: 0.76 kW • Guideways: - X-axis: SNS45C2SSCOEx3 (600 mm width, 1,000 mm distance) - Y-axis: SNS45LC2X151SLHx2 (600 mm width, 600 mm distance) - Z-axis: SHS45R2SSCOEx1305×2 (500 mm distance) • Utilities / Connections: - Power supply: 45 kVA - Compressed air: 0.6 MPa (87 psi), 400 L/min - Hydraulic oil tank: 400 L - Lubrication tank: 2 L - Coolant tank: 300 L • Dimensions / Weight: - Machine height: 2,885 mm - Machine footprint: 3,510 × 2,410 mm - Machine weight: 9,200 – 9,500 kg (approx. 10 t) lifting requirement • Cutting Capacities: - Milling: 230 cm³/min - Drilling: Ø 40 mm - Tapping: M30

Condition: used, Year of construction: 1990, weight 4 t Isdpfx Ahsuu S R Ueuoal X - Y + Z-axis each 410 mm kN control Fanuc Axis 4

Condition: ready for operation (used), Year of construction: 1996, Main Drive Number of axis 3 Spindle Speed 8000 RPM Tool taper BT 40 Tools Slots in storage 20 This 3-axis Leadwell V-40 was manufactured in 1996. It features a BT40 spindle, a 20-tool automatic tool changer, and a maximum spindle speed of 8,000 rpm. External coolant is provided at 2 bar. If you are looking to get high-quality milling capabilities, consider the Leadwell V-40 machine we have for sale. Contact us for more information about this machine. Iasdpfx Asx S Si Uehujl Application Types Milling

Condition: as good as new (ex-display), Year of construction: 2023, functionality: fully functional, Fanuc 0i-MFplus 15" LCD with Manual Gudie i Travel X=1250, Y=635, Z=610 mm Spindle speed 15'000 rpm with direct drive Tool changer 40 places / SK40 Coolant through the spindle 40 bar Hinged belt chip conveyor Iasdpfeqxak Tex Ahujl Coolant and air gun Rotary feed-through for air & coolant

Condition: like new (used), Year of construction: 2012, operating hours: 5,607 h, functionality: fully functional, 2012 LEADWELL MCV 1500i+ (4 Axis) VMC Category: Vertical Machining Centers (VMC) Reference No.: 400140 Capacity: 1520 X 1016 X 720 MM Year of Construction: 2012 Technical Specification: SPINDLE Spindle Taper : CAT/BT 50 Spindle Speeds : 4000 RPM WORKING CAPACITY Table Size : 1550 x 1000 mm Travels (XYZ) : 1520 x 1016 x 720 mm Spindle Nose to Table (Min.- Max.) : 120 - 840 mm ATC Tool Change Capacity : 24 Tools ATC Type : ARM Iasdpfox Ehibex Ahuel CNC Control : Fanuc Oi-MD Additional Details: 12" 4th Axis

Condition: used, Year of construction: 1995, x-travel 650 mm y-travel 410 mm Iajdpfjx Iwg Rex Ahusl z-travel 410 mm Control Mitsubishi Meldas 50 M max. turning speeds 6.000 min/-1 tool taper SK 40 In our opinion, the machine is in good used condition and can be inspected under power by appointment. Accessories, tools and clamping devices shown are only included in the scope of delivery if this is noted in the additional information. Subject to changes and errors in the technical data and information as well as prior sale!

Condition: good (used), Year of construction: 2011, Traverses X Y Z: 1000 x 520 x 610mm, 24 station tool changer, Table 1100 x 500mm, spindle taper BT40, Ijdox Dk I Rjpfx Ahueal spindle speed 10,000rpm, 24 station ATC, FANUC OI-MD Control, 11Kw power, coolant.

Condition: used, Year of construction: 2019, Leadwell Vertikal Flerop BC-700T Fanuc 0i-MF controller with 10.4" LCD Chip conveyor + bucket Transformer Without linear scale Pallet package CTS function Air gun / Water gun HSK63 tooling system 12000 rpm spindle CE4 20 bar high pressure pump Automatic workpiece measurement OMP-60 Auto tool length measurement NC-4 Oil skimmer Auto door Network connection Spindle coolant ring X axis: 1300mm Y axis: 610mm Z axis: 610mm vertical / 750mm Horizontal Distance from table top to spindle end : 110-750mm Table LXW: 1480x610mm 600mm rotary table C Axis speed: 120-800Rpm Tool storage capacity: 30pcs Ijdpfx Aox Hfx Sohueal

Condition: excellent (used), Year of construction: 2011, Siemens Sinumerik 828D control with ShopMill Travel paths X/Y/Z: 1020 x 635 x 610 mm Spindle speed: 10,000 min-1 Tool magazine for 24 tools SK 40 IKZ Chip conveyor Measuring probe Iasdpfx Aovtcyujhujl

Condition: like new (used), Year of construction: 2021, operating hours: 1,200 h, X 800 mm Isdpfov Th E Aox Ahusal H 460 mm Z 510 mm Control FANUC Chip Conveyor Including 4-axis Rotary table.

Condition: good (used), Year of construction: 2007, functionality: fully functional, Equipment: chip conveyor, documentation/manual, LEADWELL FMC - 560 PALLETIZED MACHINING CENTER CNC FANUC 0i - MC Iodpfx Ahotufugjuoal YEAR FIRST INSTALLATION 2008 TABLE MEASURES : 580 mm x 410 mm COURSES : X : 560 mm Y : 420 mm Z : 490 mm SPINDLE SPEED : 10,000 RPM SPINDLE POWER : 11 KW TOOL MAGAZINE : 24 POSITIONS CHIP EVACUATOR MACHINE WEIGHT : KG. 4.500 COMPLETE WITH ALL DOCUMENTATION

Condition: used, Vertical machining center LEADWELL MCV 610 CR CNC Fanuc 0M X 610 Y 510 Z 410 6000RPM ISO 40 The machine is in our warehouse in Gussago BS, under power Mimu Machine Tools Gussago BS Italy The machining center is a machine tool equipped with numerical control capable of performing multiple mechanical operations with a single set-up on multiple surfaces of the same work piece. It is generally equipped with multiple axes of motion and a automatic tool exchange system and sometimes multiple pallets X axis: 610 Iasdpfxjtrbb Eo Ahuel Y axis: 510 Z axis: 410 CNC type: Fanuc Spindle revolutions: 6000

Condition: good (used), Year of construction: 2014, Traverses X Y Z: 800 x 520 x 610mm, 24 station tool changer, table 890 x 500mm, Iaodpfjx Dk Hmjx Ahuel 11kW motor power, spindle taper BT40, spindle speed 40 – 8,000rpm, FANUC 0i-MD Control, low volt light, coolant, 4th axis.

Condition: ready for operation (used), Year of construction: 1998, table mounting size: 765 x 400 mm movements x/y/z: 650/410/510 mm spindle taper: BT 40 min./max. distance table/spindle: ca. 90/690 mm spindle turning speed range: 80 - 8000 rpm number of tool positions: 20 pieces carriages: ca. 30 m/min rapid move: ca. 30 m/min electrical connection: 380 V, ca. 15 kVA kW space needed: 2300 x 2100 x 2650 mm Iodstwy Diopfx Ahusal weight: 4000 kg
