Used Weiler Cnc Lathe for sale (208)

Condition: ready for operation (used), Year of construction: 2003, Weiler E50 x 1000 precision lathe (2003) Manufacturer: Weiler Type: E50 x 1000 Year of manufacture: 2003 Condition: good, used, under power Operating hours: 43.000h Technical data see pictures. Included in delivery: - Original documentation - Rota S Plus 250-62 - Bezel Nsdpfx Asxd Tikofxelh - Parat 4 compartment tool turret

Condition: ready for operation (used), Year of construction: 2002, functionality: limited functionality, machine/vehicle number: 081, turning diameter over cross slide: 160 mm, spindle bore: 42 mm, turning length: 750 mm, turning diameter: 330 mm, swing diameter over cross slide: 160 mm, quill stroke: 130 mm, quill diameter: 50 mm, spindle speed (max.): 4,500 rpm, bed width: 240 mm, total length: 1,750 mm, total width: 1,150 mm, total height: 1,650 mm, overall weight: 1,300 kg, Used Weiler C 30 Servo Conventional Precision Lathe Year of manufacture 2002, center distance 750 mm, center height 165 mm, spindle bore 42 mm, dimensions L=approx. 1750 mm, W=approx. 1150 mm, H=approx. 1650 mm, weight approx. 1300 kg, equipped with ball quick-clamping device and various collets, two additional chucks, various tools. Display has minor fault, wear parts should be replaced. The machine can be inspected and functions tested. Wear parts should be replaced. Nlodpfx Afoxfqyiexsh

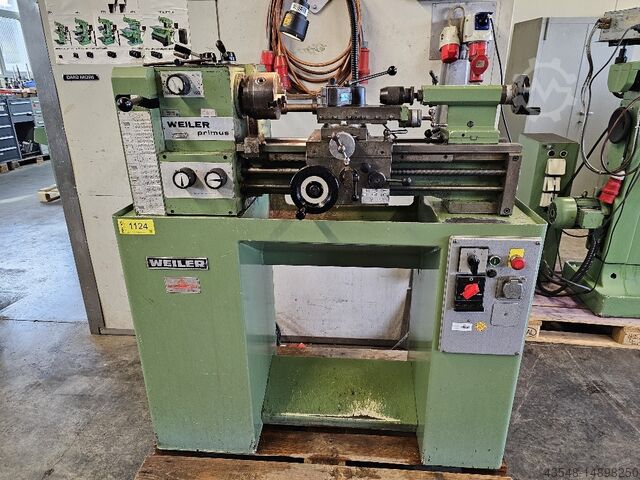

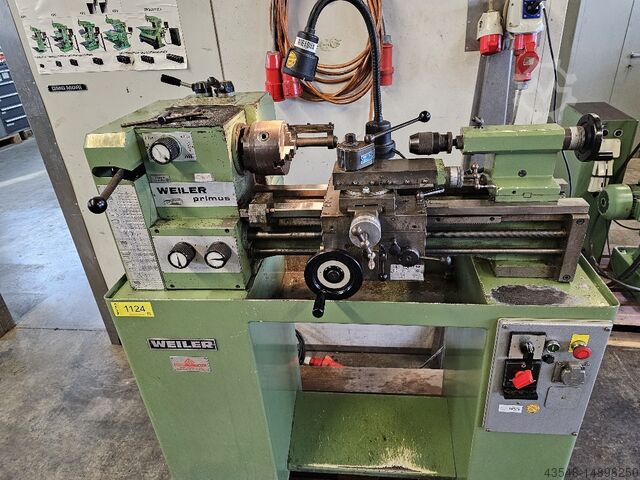

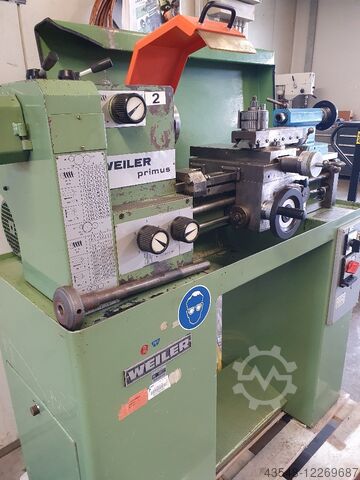

Year of construction: 1986, condition: used, Weiler Primus lathe year ca.1986, three-jaw chuck , Multifix. Machine in a good condition , By arrangement under power ready for demonstration. Nodsn Ard Dopfx Afxslh

Condition: excellent (used), Year of construction: 1992, functionality: fully functional, Weiler Commodor 230 Lead and Feed Spindle Lathe with 3-Axis Digital Readout K&C NEW Excellent Condition Technical Data: - Year of manufacture: 1992, Machine No. 239 - Centre height: 230 mm - Centre distance: 1000 mm - Spindle speeds: from 13 to 2000 rpm - Spindle bore: 56 mm - Short-taper spindle nose DIN 55027 size 6 with bayonet lock - Tailstock: MT 4 Nledpfxsxdi She Afxeh - Feeds from 0.026 to 0.888 mm/rev - Possible threads: Metric, Inch, Module, and Diametral Pitch - Metric thread pitches from 0.35 to 12 mm - Weight approx. 2000 kg - Spindle brake engageable - Drive power: 7.5 kW - Length 2.2 m, Height 1.5 m, Depth 1 m Accessories and Equipment: - 3-axis digital readout by K&C, new, 12 months manufacturer warranty with user manual Functions: mm/inch toggle, coordinate selection ABS/INC, value halving, reference mark, tool programming for 200 tools, taper calculation, radius/diameter, rapid zeroing, counting direction selection - NEW 200 mm 3-jaw chuck, 2 sets of jaws - Multifix size B with 2 tool holders - Bed stop - Machine lamp - Coolant system About the Machine: Offered is a Weiler Commodor 230 lathe in excellent condition. The Commodor 230 is one of the largest manual lathes manufactured by Weiler—a very robust and powerful machine. The new K&C 3-axis digital readout makes operation even easier and more precise. The machine has been electrically and mechanically tested by us and a complete oil change has been performed. This newer generation of Weiler lathes is very user-friendly. Take the opportunity to inspect and test the machine under power at our location.

Condition: used, Year of construction: 1984, - K+C 3-axis position indicator - Bison 3204-160 3-jaw lathe chuck - Collet chuck + various collets - Chuck guard - Multifix - Coolant system - Chip deflector - Full service completed (oil change, belt change, etc.) - Year of manufacture 1984 Specifications - Swing over bed: 330 mm - Swing over cross slide: 185 mm - Turning length between centers: 750 mm - Turning length between centers with covered lead screw and feed screw: 650 mm - Center height: 165 mm - Bed width: 240 mm Lathe spindle: - Spindle head DIN 55027: Size 5 - or similar DIN 55029 (Camlock D1): Size 4 - Spindle diameter in front bearing: 70 mm - Spindle bore: 40 mm - Internal taper according to DIN 228: MT5 - Centering point according to DIN 806: MT3 - Maximum faceplate diameter: 280 mm - Standard chuck diameter: 160 mm - Maximum chuck diameter: 200 mm Tool slide: Nedpfxjv U Dlzj Afxelh - Guide length of the bed slide: 365 mm - Cross slide travel: 175 mm - Cross slide spindle pitch: 3 mm - Cross slide width: 140 mm - Top slide travel: 140 mm - Top slide spindle pitch: 3 mm Tailstock: - Quill stroke: 110 mm - Quill diameter: 50 mm - Taper DIN 228: MT3 Spindle speeds: - Number: 16 / 32 - Range: 45-2800 / 22-2800 rpm Feeds: - Number: 120 - Standard longitudinal range over gears, metric/inch: 0.016 - 0.25 mm/rev - Standard longitudinal range over timing belts, metric/inch: 0.022 - 0.5 mm/rev - Steep longitudinal range over gears, metric/inch: 0.125 - 2 mm/rev - Steep longitudinal range over timing belts, metric/inch: 0.045 - 4 mm/rev - Face feeds: 0.3733 x longitudinal feed Thread pitches: - Standard metric: 0.18 - 28 mm - Standard inch: 80 - 1 1/2 thread - Module: 0.1 - 9 mm - Diametrical pitch: 200 - 2 3/4 thread - High-helix thread device: 8-axis - Lead screw pitch: 6 mm / 4 threads/in Workpiece weights: - Between centers without steady rests: 160 kg - Between centers with steady rests: 50 kg - Maximum workpiece weight (incl. clamping device): 125 kg Electrical specifications: - Motor power: 3 kW - Motor rated current: 7.1 A - Operating voltage: 400 V - Control voltage: 42 V Space requirements and weights: - Dimensions W x H x D: 1832 x 1290 x 880 mm - Turning spindle above floor: 1150 mm - Weight: approx. 1020 kg

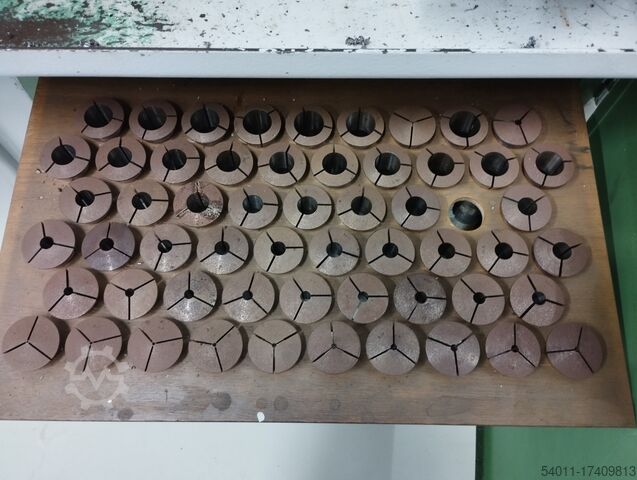

Condition: good (used), WEILER CONDOR VS 2 from university (test laboratory) - Guideways "as new" - Centre height: 165 mm - Swing diameter over bed: 330 mm - Distance between centres: 800 mm - Speed range: 28-2800 rpm - Automatic longitudinal / cross feeds - Spindle bore: 40 mm - Threads / Metric / Inch etc. - Collet quick-change system incl. collets - Four-jaw chuck Röhm - Face plate - Four-jaw face plate - Chuck guard - Multifix with inserts Nlsdpfjxc H Tyox Afxjh - Emergency stop - Documentation Dimensions: LxWxH 2x0.8x1.6 m / Weight 900 kg Subject to errors / input mistakes.

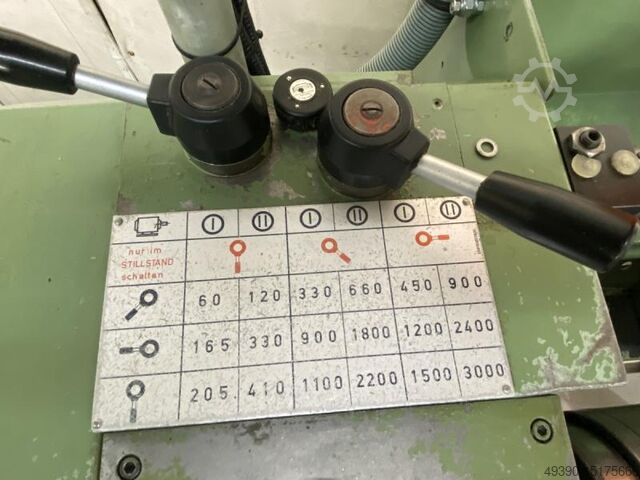

Condition: used, L + Z Lathe WEILER Type LZ PRIMUS GS Machine no. No. 2461 Year of construction approx. 1990 Center width 400 mm Nlsdpfx Aertd Uwefxsh Turning diameter over bed 250 mm Center height above bed 125 mm Turning diameter over support 140 mm Center height above support 70 mm Spindle bore 24 mm Spindle speed 60 - 3000 rpm 18 steps Feed lengthwise and flat Chuck flange short taper DIN 55022 size 4 Inner tailstock taper MK 2 Drive power 1.1 kW and 1.5 kW pole-changing Mains connection 380 Volt, 50 Hz - 3-axis digital readout FAGOR, type 30i-T-B - Spindle speed via 2 motor speeds and 9 gear stages - 3-jaw lathe chuck RÖHM Ø 125 mm with stepped jaws - MULTIFIX quick-change tool holder with 1 interchangeable cassette - Set of collets Ø 1 / 3 / 4 / 5 / 7 / 8 / 10 / 14 / 15 / 16 / 17 / 19 / 20 / mm - 1 centering tip for collet chuck holder - Emergency stop - Hinged chuck guard - Splash guard - Machine light - electrical diagram - Machine mounted on a steel plate (steel plate L x W x H 1200 x 500 x 30 mm, 140 kg) Space requirement L x W x H 1200 x 900 x 1560 mm Weight 520 kg good condition

Condition: excellent (used), Precision lathe, turning machine, lathe, center lathe, center lathe -Manufacturer: WEILER, lead screw lathe type commodor 42 -Machine bed: hardened -Turning length: 900 mm -Turning Ø over bed: 400 -Turning Ø over support: 190 mm -Spindle bore: Ø 56 mm -Spindle speeds: 45 - 2000 rpm -Three-jaw chuck: Röhm Ø 200 mm Nlsdpoxapm Rsfx Afxjh -Four-jaw chuck: Röhm Ø 200 mm -Tailstock mount: MK3 -Drive: 4 kW -Accessories: 18x Multifix tool holder with rotating center see photos -Lathe dimensions: 2200/1300/H1410 mm -Weight of lathe: 1380 kg

Year of construction: 1986, condition: used, Weiler Primus lathe built approx. 1986, three-jaw chuck, Multifix. Machine in good condition, ready for demonstration under power on request. Nlsdpferhzcmox Afxjh

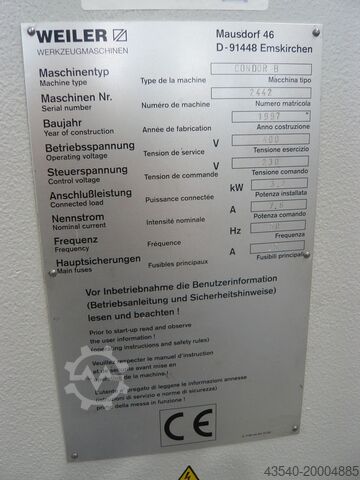

Condition: excellent (used), Year of construction: 1997, functionality: fully functional, Weiler precision lathe model Condor B, lead and feed screw lathe with brand new K&C 3-axis digital readout, CE compliant! Technical data: >> Machine No. 2442, year of manufacture 1997 >> Centre height: 165 mm >> Centre distance: 750 mm >> Spindle speeds: from 22 to 2800 rpm >> Spindle bore: 40 mm >> Camlock spindle nose DIN 55027 size 5 with bayonet lock >> Tailstock: MT 3 >> Feeds: from 0.015 to 0.46 mm/rev >> Thread cutting: metric, imperial, module and diametral pitch threads possible >> Metric thread pitches: 0.18 to 28 mm >> Weight: approx. 1100 kg >> Spindle brake, selectable >> Length: 1.83 m, height: 1.29 m, depth: 0.88 m Equipment and features: >> New K&C 3-axis digital readout, 12-month manufacturer's warranty, supplied with operating manual Features: mm/inch switching, selectable ABS/INC coordinates, value halving function, reference mark, tool memory for 200 tools, taper calculation, radius/diameter display, quick zeroing, count direction switching >> 1 x brand new 160 mm 3-jaw chuck with 2 sets of jaws >> 1 x 200 mm 4-jaw chuck with 1 set of jaws >> New collet chuck system and new collets from 3 to 25 mm in 1 mm increments >> Multifix size B with 2 tool holders >> Bed stop >> Electronic spindle guard >> Rear splash guard >> Machine feet Safety features: electronic spindle guard, 2 emergency stop buttons, changewheel box with safety interlock, spindle brake About the machine: Offered here is a Weiler Condor in very good condition. The machine is, of course, fully functional. A very robust and powerful machine. The new K&C 3-axis digital readout makes work easier and more precise. The machine has been electrically and mechanically checked by us. A complete oil change has been carried out. This newer generation of Weiler lathes is very user-friendly. Take advantage of the opportunity to inspect and test this machine under power on site. Nodpfxsxcuazo Afxjlh

Condition: used, functionality: fully functional, This Weiler Commodor lathe comes from a technical school and, as such, has low operating hours. Lightly used and not heavily loaded – a tidy, reliable machine with a long service life ahead. Turning length: 1,000 mm Turning diameter over bed: 380 mm Turning diameter over cross slide: 190 mm Spindle speed range: 25 – 2,000 rpm Nsdpfx Afsw U Sx Hsxelh Number of speed steps: 18 Spindle bore: Ø 56.0 mm Spindle taper: MK DIN 228 / MK 4 Spindle flange: DIN 55027 / size 6 Cross slide travel: 150 mm Bed width: 310 mm Feed rate – longitudinal: 0.022 – 0.8 mm/rev Feed rate – cross: 0.011 – 0.4 mm/rev Voltage: 380 V Total required power: 7.5 kW

Condition: used, turning length 500 mm turning diameter over bed 297 mm turning diameter over slide rest 160 mm spindle bore 36.0 mm Nlsdpfxexaciro Afxsh tool adaptor DIN 55022 Gr. 5 quill: 3 MK quill travel 90.0 mm turning speeds 30 - 3550 U/min motor speeds: 1410 / 2830 U/min total power requirement 3.3 kW voltage 380 V weight of the machine ca. 620 kg. range L-W-H 1420 x 700 x 1200 mm from a vocational school - very good condition (!!) regularly receive a WEILER factory service particularly suitable for medium-precision turned parts Equipment: - robust lead/pull spindle lathe - KLOPFER four-jaw chuck Ø 140 mm - KLOPFER three-jaw chuck Ø 140 mm - collet holder with lots of collets - foldable lathe chuck guard - chuck key - MULTIFIX steel holder A, with 3x new inserts - movable tailstock - adjustable bed stop - control panel, front left - automatic feeds for face and top support - pole-changing drive motor - machine base frame, with cabinet door (storage area) - chip splash guard rear wall - emergency stop button, bottom right - machine swing feet - original operating instructions

Condition: used, Year of construction: 1999, turning diameter 150 mm turning length 500 mm total power requirement 4 kW Njdpfsvm Dv Djx Afxelh weight of the machine ca. 0,8 t

Condition: good (used), functionality: fully functional, spindle bore: 36 mm, center height: 155 mm, turning length: 800 mm, spindle speed (max.): 2,000 rpm, spindle speed (min.): 25 rpm, Used Weiler Condor lathe, No. 7939, Center height 155mm, Center width 800mm, Njdpsv R Tdxofx Afxelh Spindle speeds 12-2800 rpm, spindle bore 36mm Accessories: 1x RÖHM three-jaw chuck Ø 160mm, Multifix base body size B with 2 inserts, keyless drill chuck, live center, and coolant system. The machine is in stock at our facility in 71334 Waiblingen-Beinstein and is available immediately.

Condition: good (used), Year of construction: 1972, turning diameter over bed 330 mm turning diameter over slide rest 200 mm turning length 800 mm total power requirement 3 kW Nodswwl Izjpfx Afxelh weight of the machine ca. 800 kg dimensions of the machine ca. 1,9x0,7x1,2 m turning speed range 24-2800 U/min

Condition: excellent (used), Year of construction: 2005, functionality: fully functional, spindle bore: 83 mm, turning length: 1,000 mm, turning diameter: 570 mm, turning diameter over top slide: 340 mm, quill diameter: 80 mm, quill travel distance: 200 mm, overall weight: 3,200 kg, chuck outer diameter: 250 mm, Equipment: rotational speed infinitely variable, The machine is in very good condition. Njdpewxw S Iefx Afxslh Immediately available! Can be tested under power.

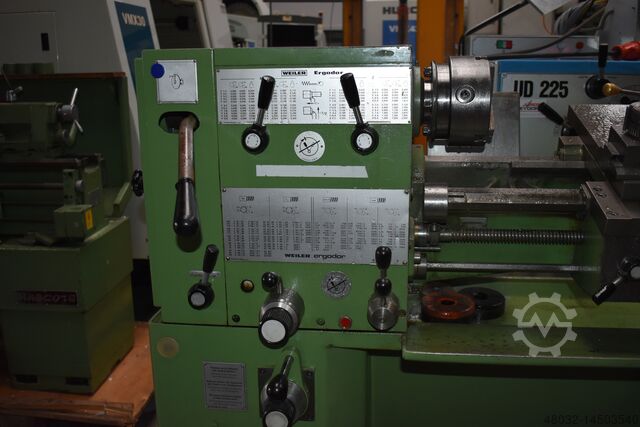

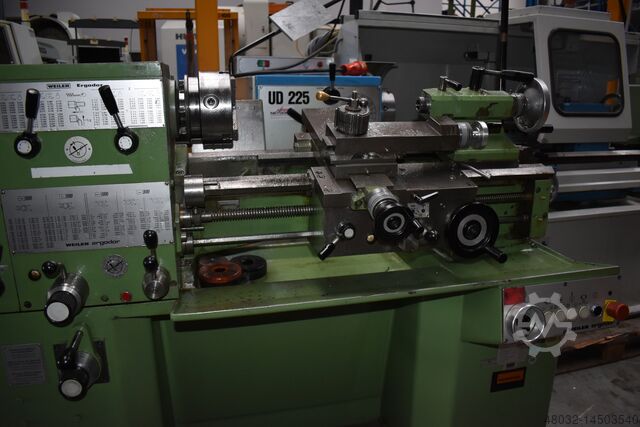

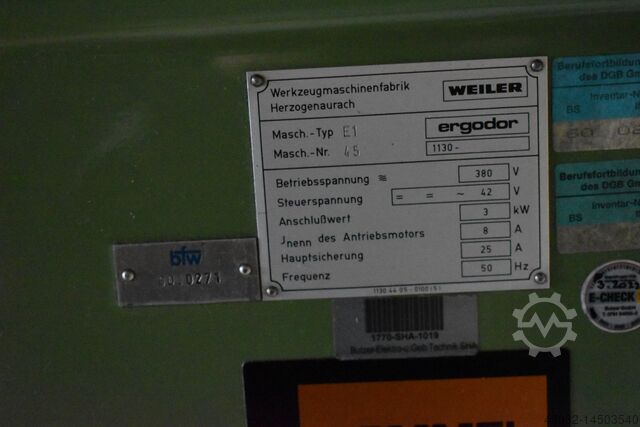

Condition: excellent (used), Weiler Ergodor lathe Max. Turning diameter over bed: approx. 320 mm Max. Turning diameter over support: approx. 160 mm Nlsdpfeq Ixxysx Afxoh Max. Turning length: approx. 470 mm Bar passage: approx. 36 mm Spindle: Speed range: approx. 30 - 3550 rpm Spindle nose: A 2 - 5 Drive power: approx. 3.0 kW Automatic longitudinal & face feeds: Feed range: approx. 0.020 - 2.0 mm/rev Suitable for threads: - metric 0.20 - 12 mm Inch 80 - 2 Gg/ Diametral - Pitch thread 160 - 5.5 Dp Module 0.1 - 4

Condition: used, turning length 800 mm turning diameter 280 mm Nodsxacg Rspfx Afxjlh turning diameter over slide rest 150 mm spindle bore 42.0 mm tailstock quill taper MT 3 MK bed width 208 mm turning speeds 42 - 2022 U/min spindle taper DIN 55027/5 quill stroke 90.0 mm voltage 380 V total power requirement 3.0 kW weight of the machine ca. 750 kg range L-W-H 1800 x 800 x 1250 mm Due to its design (type, performance, feed rates, etc.) it can be used successfully in training workshops, but also for toolmaking and repair shops. Equipment: - robust conventional lead/spindle lathe - WMW 3-jaw chuck Ø 150 mm - faceplate 280 mm - MULTIFIX quick-change holder, with insert - movable tailstock - chuck key - machine base with storage area - pole-changing drive motor - operating instructions

Condition: used, Year of construction: 1992, machine/vehicle number: 160 3205, Sale only within EU member states! No private sale MAE can be inspected. All warranty rights are excluded. Nledpfouxl Ezex Afxoh For the correctness of the technical data and year of construction, for the completeness of accessories and tooling, as well as for compliance with all safety and environmental protection safety and environmental protection requirements. Any warranty is excluded. For the correctness of the technical data and year of construction, for the completeness of accessories and tools as well as for compliance with all safety- and environmental-requirements, mentioned in the accident prevention regulations, we take over no guarantee.

Condition: used, Year of construction: 2007, operating hours: 25,598 h, functionality: fully functional, Working area Centre distance mm 1000 Spindle head according to DIN 55027 AC drive Further technical specifications can be found in the attachment. Nlodpow U Szhefx Afxeh Note: We offer flexible financing solutions for all machines as well as a professional relocation service. Dismantling, transport, and proper installation – all from a single source. Billing according to individual conditions and term. Contact us for your personalised offer.

Condition: used, Year of construction: 1989, turning diameter over bed 300 mm turning diameter over slide rest 150 mm Nledpfx Afordwfzjxeh turning length 800 mm spindle bore 36 mm turning speed range 42 - 2000 U/min feeds 0,011 - 0,91 mm/U tailstock quill taper MT 3 total power requirement 2,2 kW weight of the machine ca. 0,75 t dimensions of the machine ca. 1,7 x 0,8 x 2,0 m Machine had been active in the school centre very little used!

Condition: used, turning length 500 mm turning diameter over bed 297 mm turning diameter over slide rest 160 mm spindle bore 36.0 mm tool adaptor DIN 55022 Gr. 5 quill: 3 MK quill travel 90.0 mm turning speeds 30 - 3550 U/min motor speeds: 1410 / 2830 U/min total power requirement 3.3 kW voltage 380 V weight of the machine ca. 620 kg. Nledpoxacgdjfx Afxsh range L-W-H 1420 x 700 x 1200 mm from a vocational school - very good condition (!!) regularly receive a WEILER factory service particularly suitable for medium-precision turned parts Equipment: - robust lead/pull spindle lathe - KLOPFER four-jaw chuck Ø 140 mm - KLOPFER three-jaw chuck Ø 140 mm - collet holder with lots of collets - foldable lathe chuck guard - chuck key - MULTIFIX steel holder A, with 3x new inserts - movable tailstock - adjustable bed stop - control panel, front left - automatic feeds for face and top support - pole-changing drive motor - machine base frame, with cabinet door (storage area) - chip splash guard rear wall - emergency stop button, bottom right - machine swing feet - original operating instructions

Condition: used, turning length 500 mm turning diameter over bed 297 mm turning diameter over slide rest 160 mm spindle bore 36.0 mm tool adaptor DIN 55022 Gr. 5 quill: 3 MK quill travel 90.0 mm turning speeds 30 - 3550 U/min motor speeds: 1410 / 2830 U/min total power requirement 3.3 kW voltage 380 V weight of the machine ca. 620 kg. range L-W-H 1420 x 700 x 1200 mm from a vocational school - very good condition (!!) regularly receive a WEILER factory service particularly suitable for medium-precision turned parts Equipment: - robust lead/pull spindle lathe - KLOPFER four-jaw chuck Ø 140 mm - collet holder with lots of collets - chuck key - MULTIFIX steel holder A, with 3x new inserts - movable tailstock Nledexaccxspfx Afxeh - adjustable bed stop - control panel, front left - automatic feeds for face and top support - pole-changing drive motor - machine base frame, with cabinet door (storage area) - chip splash guard rear wall

Condition: used, turning length 500 mm turning diameter over bed 297 mm turning diameter over slide rest 160 mm spindle bore 36.0 mm tool adaptor DIN 55022 Gr. 5 quill: 3 MK quill travel 90.0 mm turning speeds 30 - 3550 U/min motor speeds: 1410 / 2830 U/min total power requirement 3.3 kW voltage 380 V weight of the machine ca. 620 kg. range L-W-H 1420 x 700 x 1200 mm from a vocational school - very good condition (!!) regularly receive a WEILER factory service particularly suitable for medium-precision turned parts Equipment: - robust lead/pull spindle lathe Nljdpsxaal Defx Afxoh - KLOPFER four-jaw chuck Ø 140 mm - collet holder with lots of collets - foldable lathe chuck guard - chuck key - MULTIFIX steel holder A, with 3x new inserts - movable tailstock - adjustable bed stop - control panel, front left - automatic feeds for face and top support - pole-changing drive motor - machine base frame, with cabinet door (storage area) - chip splash guard rear wall - EMERGENCY OFF button, bottom right - machine swing feet

Condition: repair required (used), turning length 1000 mm turning diameter over bed 380 mm turning diameter over slide rest 190 mm number of spindle speeds 25 - 2000 U/min. turning speeds 18 Stk. spindle bore Ø 56,0 mm tailstock quill taper MT DIN 228 / MK 4 quill stroke 150 mm bed width 310 mm spindle taper DIN 55027 / 6 feeds - longitudinal 0,022 - 0,8 mm/U feeds - cross 0,011 - 0,4 mm/U thread M 0,3 - 10,0 mm voltage 380 V total power requirement 7,5 kW weight of the machine ca. 1600 kg Basic functions are available Machine with various leaks Sold in current condition at a special price ! Lathe with precision ground and induction hardened bed. Very suitable, for example, for use in workshops and teaching facilities. - machine video - ?v=zCGu4i6V5dM Nljdpfxew U U Uqe Afxsh Furnishing: - robust lead and pull spindle lathe - FORKARDT 3-jaw chuck Ø 200 mm, with chuck key - MULTIFIX steel holder - size B - with 3x inserts - movable tailstock, including keyless chuck - Chip protection back wall - EMERGENCY stop button at the front - adjustable bed stop - Coolant system including coolant pan - User manual (PDF)
